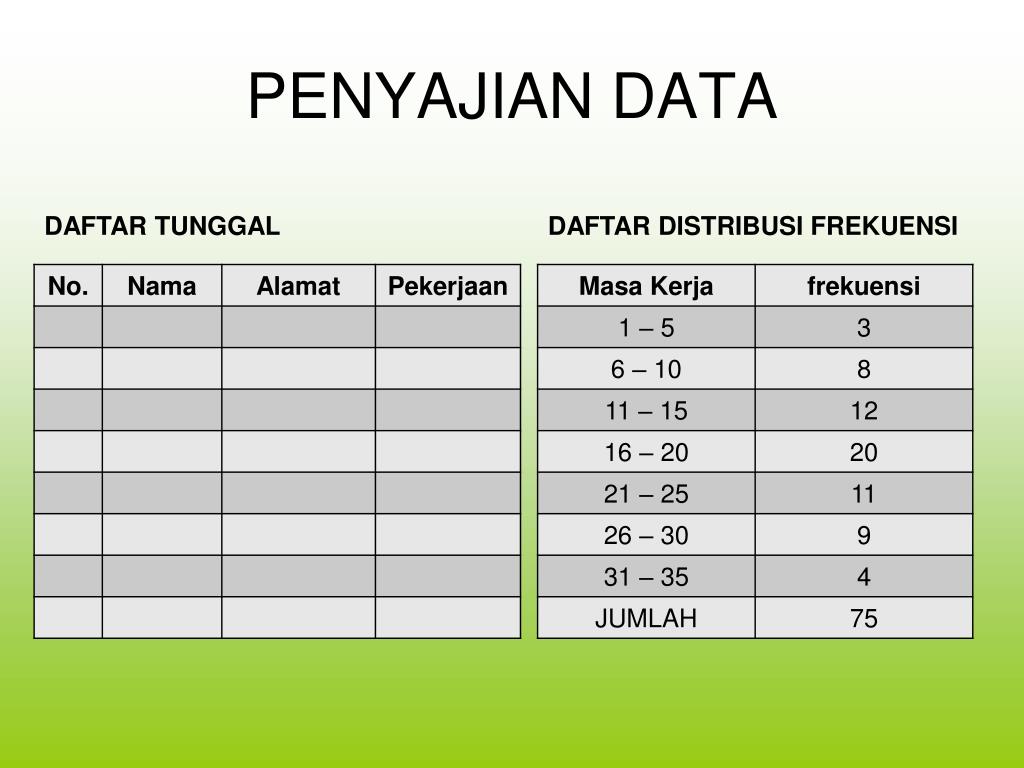

  1. PENYAJIAN DATA DAFTAR TUNGGAL DAFTAR DISTRIBUSI FREKUENSI

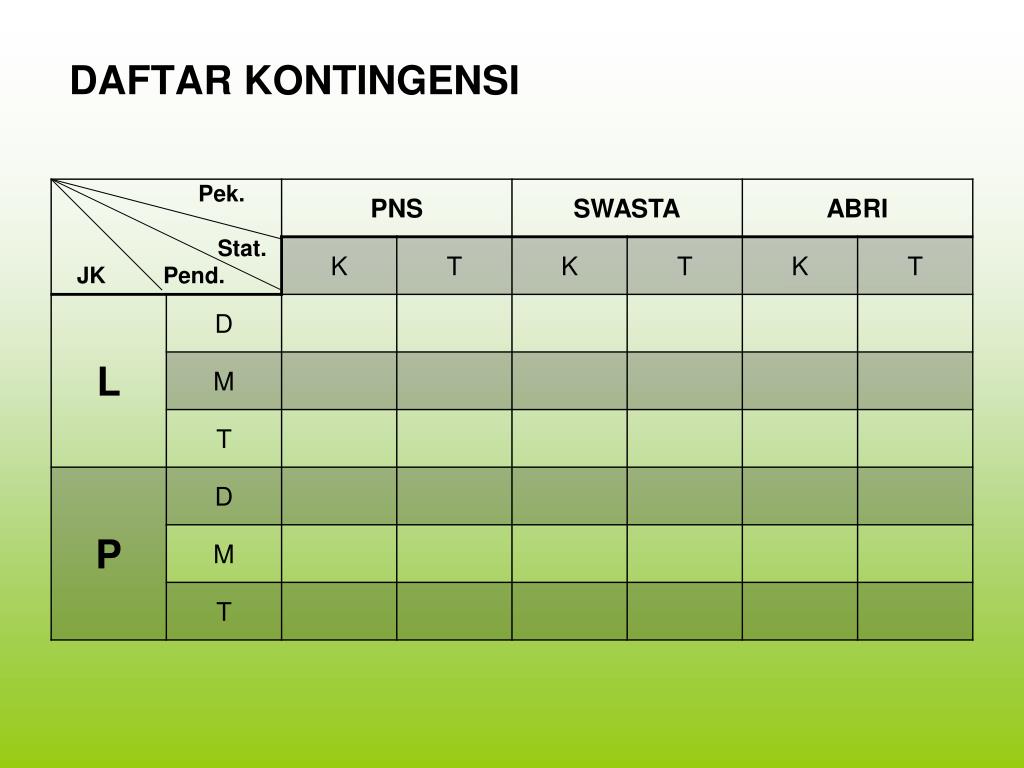

  2. DAFTAR KONTINGENSI

  3. DIAGRAM LAMBANG

  4. DIAGRAM PETA

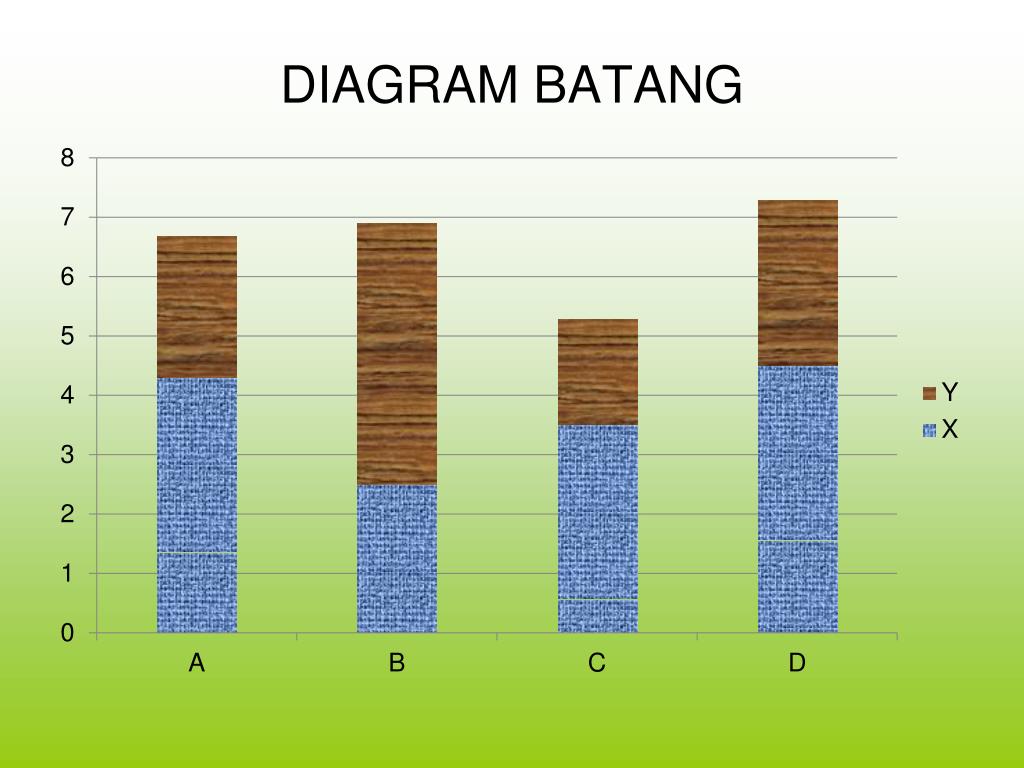

  5. DIAGRAM BATANG

  6. DIAGRAM GARIS

  7. DIAGRAM PENCAR

  8. Contoh: Nilai ujian Statistika 80 orang mahasiswa • 49 48 74 81 98 87 81 80 84 90 70 91 53 82 78 70 71 92 38 56 81 74 73 68 72 85 51 65 93 83 86 90 32 83 73 74 43 86 68 92 93 76 71 91 72 67 75 80 91 61 72 97 91 88 81 71 74 99 95 80 59 71 77 63 60 83 82 61 67 89 63 76 63 88 70 66 88 79 75

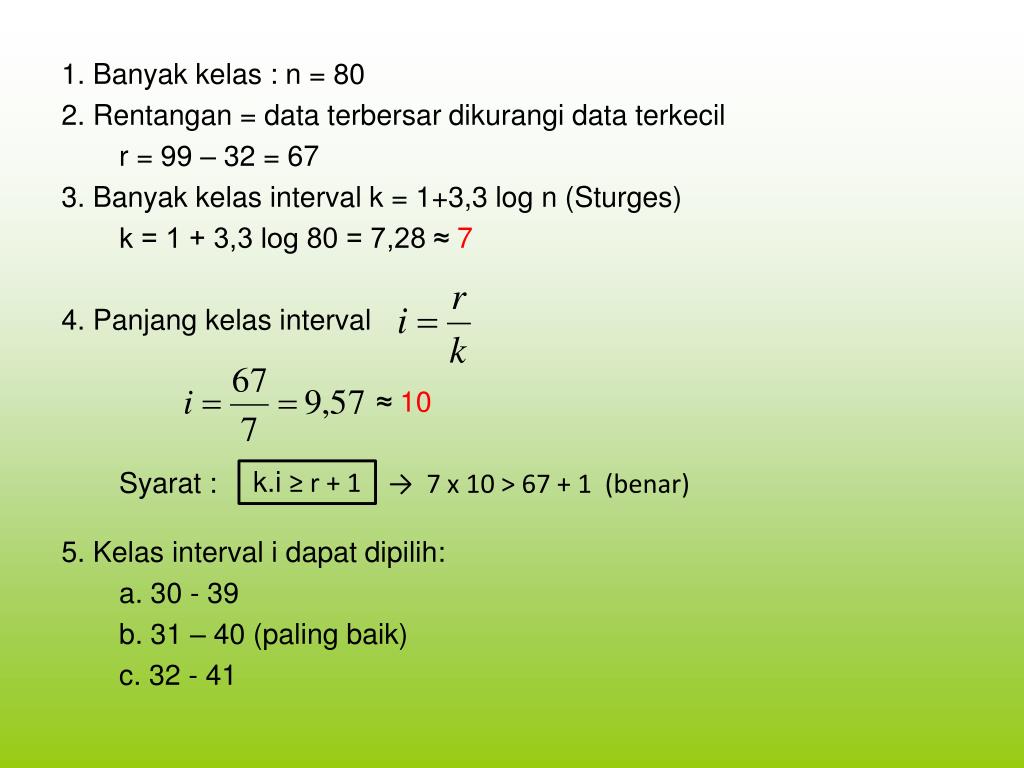

  9. 1. Banyak kelas : n = 80 2. Rentangan = data terbersar dikurangi data terkecil r = 99 – 32 = 67 3. Banyak kelas interval k = 1+3,3 log n (Sturges) k = 1 + 3,3 log 80 = 7,28 ≈ 7 4. Panjang kelas interval ≈ 10 Syarat : → 7 x 10 > 67 + 1 (benar) 5. Kelas interval i dapat dipilih: a. 30 - 39 b. 31 – 40 (paling baik) c. 32 - 41 k.i≥ r + 1

  10. DAFTAR DISTRIBUSI FREKUENSI ABSOLUT DAN RELATIF

  11. DAFTAR DISTRIBUSI FREKUENSI KUMULATIF

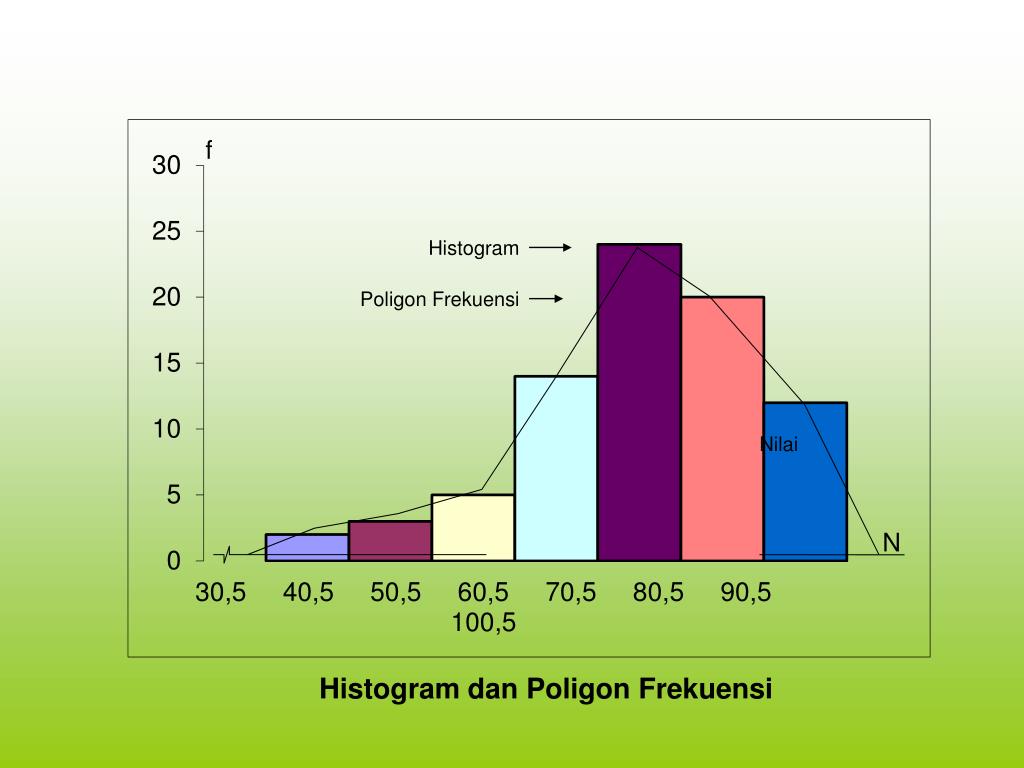

  12. f Histogram Poligon Frekuensi Nilai N Histogram dan Poligon Frekuensi

  13. f Lebih dari Kurang dari N 31 41 51 61 71 81 91 101 OZAIV
