  1. Welcome Welcome! The Alberta Department of Energy provides GeoView as a mapping system to enable users to find geographic information in Alberta.GeoView can be launched from within a specific application such as OASIS. This module outlines the functionality of the Edit feature in GeoView. Please complete the GeoView Overview module before proceeding with this module • To the GeoView - Editing for OASIS • Online Training Course

  2. Revision

  3. Introduction • In this module you will learn how to access and use the: • Online map (Geoview) • How to Launch Map • Screen Layout • Information Panel and Map Layers • How to navigate the map • Toolbar • Zoom in • Pan • GeoView Editing for OASIS. • Edit Tab • How to Add Land(s) • How to Remove Land(s) • Note: As this course demonstrates the use of the GeoView tool, the data in some instances may not portray the actual Crown or Freehold ownership.

  4. How to Launch Map - ETS To Log on to the ETS web site:Enter the ETS User ID issued by the Site Administrator (EN####_accountname) into the User Name field. This field is NOT case-sensitive. Enter the Password: This field IScase-sensitive. Click the Login button:Save my user name: If you check this box, ETS will save your user name on the site so you do not have to enter it every time you log in.

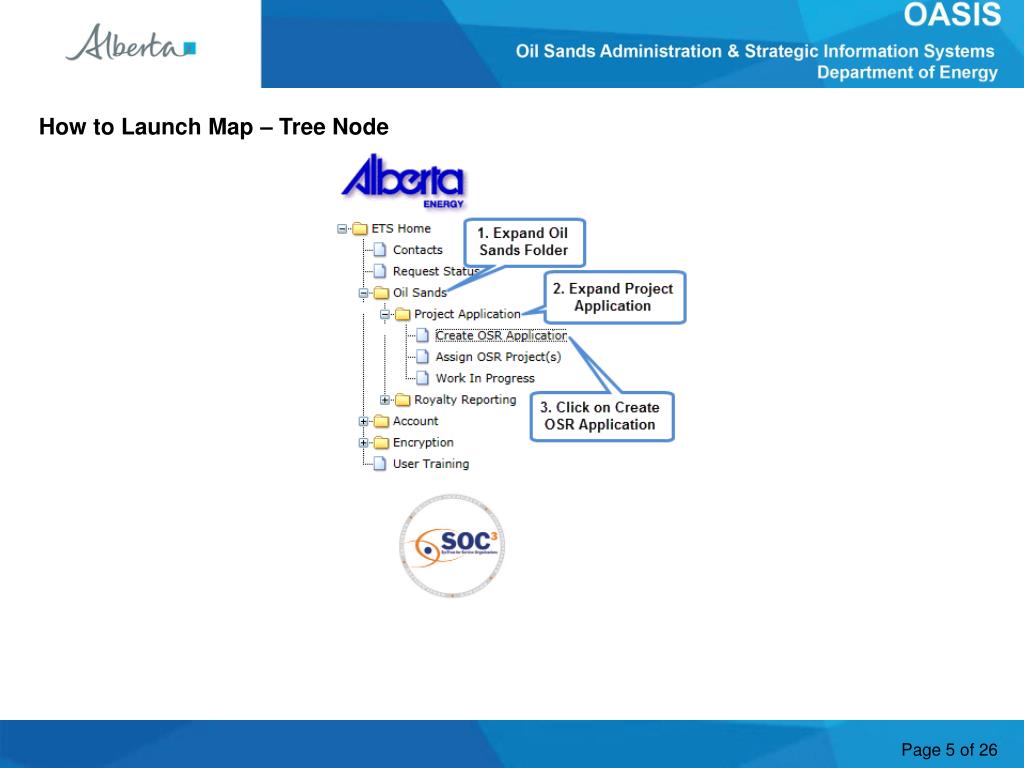

  5. How to Launch Map – Tree Node

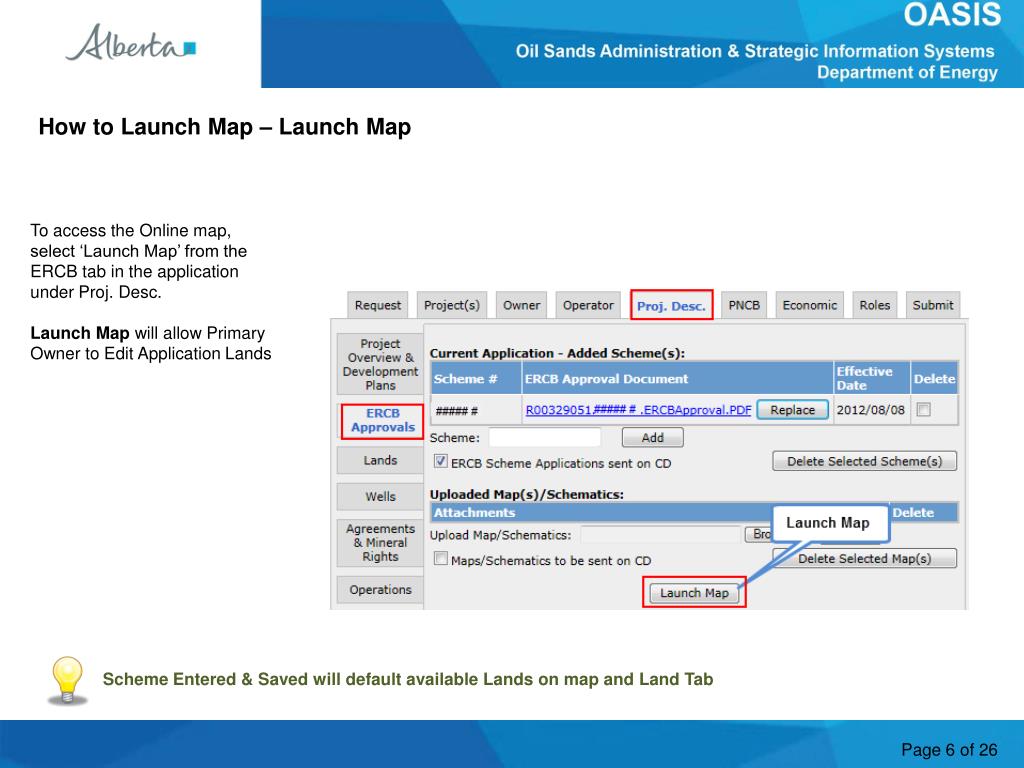

  6. How to Launch Map – Launch Map To access the Online map, select ‘Launch Map’ from the ERCB tab in the application under Proj. Desc. Launch Map will allow Primary Owner to Edit Application Lands Scheme Entered & Saved will default available Lands on map and Land Tab

  7. Screen Layout • The GeoView screen display has three main sections: • Toolbar Area • Information Panel • Map Window • The Toolbar Area contains numerous tools that are used to move around the map, find or search information on the map, print the map, etc. These tools are categorized into high-level groups: Getting Around, Maps and Data Sources, Tasks and Analysis. • The Information Panel shows different kinds of information when you interact with the map. For example, this panel displays the Map Layers where you can select different layers to hide or show on the map. • The Map View shows the map window where you can interact with the map by zooming, panning, annotating or right-clicking to get more information. 1. Toolbar Area 2. Information Panel 3. Map View

  8. Information Panel and Map Layers Map Layers control the display of the Map Layers List. You can check or uncheck the map layers according to your requirement. You can also control the visibility and transparency of the map using the sliders.

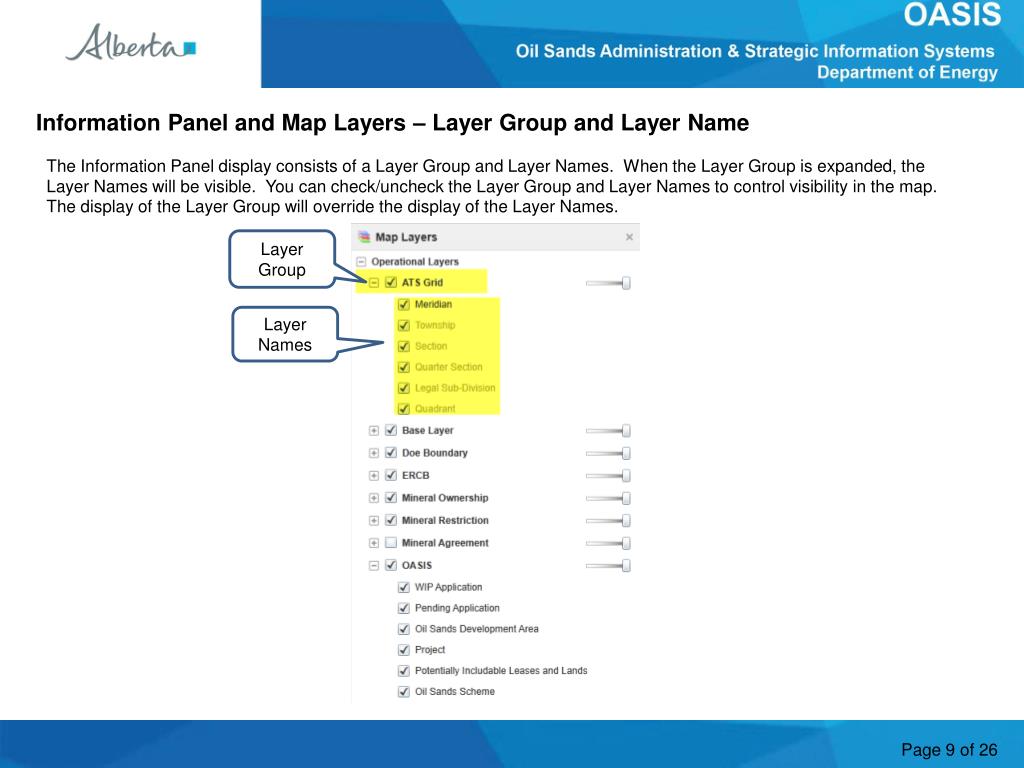

  9. Information Panel and Map Layers – Layer Group and Layer Name The Information Panel display consists of a Layer Group and Layer Names. When the Layer Group is expanded, the Layer Names will be visible. You can check/uncheck the Layer Group and Layer Names to control visibility in the map. The display of the Layer Group will override the display of the Layer Names. Layer Group Layer Names

  10. Information Panel – Map Legend The Map Legend show the corresponding legend for the layers used in map. You can toggle between Show Legend or Show Layer.

  11. How to NavigateMap – Toolbar Several Navigation Tools are available to navigate the map under the Getting Around Tab Zoom-in and Zoom-Out take you 2x into the map or out of the map depending upon the option selected.

  12. Getting Started - Pan

  13. Getting Around – Zoom In

  14. GeoView – Editing for OASIS • Edit tools are available only if: • Application has Project, Potentially Includable lands & Leases (PILL), or available lands via the added Scheme. • User represents the Primary Owner, • And • c) User is the Creator, or assigned Creator/Delegate. • LEFT Panel can display: • List of Map Layer or Legend • - Map Layers (Layer Display controls), or • Show Legend: (Color/Patterns) • Lands Selected (via Edit) • Land Key Results (Application Lands) • Results of queries * • Results of land selection * • * details in GeoView Overview module

  15. Toolbar – Edit Tab

  16. Toolbar – Edit Tab (Continued)

  17. How to – Add Land(s) • Overview of Steps: • The first step is to select the Land(s) • Select ATS Grid Level • Click Select Land(s) • Select appropriate Editing Layer • Click on the map to select the Land(s)

  18. Add Land(s) Selected Lands will be identified in Information Panel under Selected Land(s) After Land has been selected, click on Add Land(s)

  19. Edit – Add Validation After clicking on Add Land(s), a validation screen is displayed. Click on Apply to continue. Allowed lands will be identified. Lands not allowed will have an error.

  20. Edit – Land Keys • The Land Keys Tree will display those lands which are in the application at the time of last saved action and land boundary will be adjusted accordingly. • Land Keys sort order are as follows: • Meridian • Range • Township • Sections • Quarter Sections • Legal Sub Divisions • Quadrants

  21. How to Remove Land(s) Previously Added Land can be removed by following these steps

  22. Edit – Remove Validation After clicking on Remove Land(s), a validation screen is displayed. Click on Apply to continue. Cancel will close popup and return back to edit session

  23. Removed Land Keys

  24. Validation Results - Errors While editing, if an action is performed which is contrary to the Business Rules allowing the action, a warning window will appear. Here are some examples:

  25. Closing the Map

  26. Conclusion Congratulations! You have completed the GeoView – Editing for OASIS Online Training Course • Supplemental training materials are available and can be accessed from the Alberta Energy Online Learning home page under: • Interactive Map – GeoView System Overview 10.1 • Oil Sands – Create New OSR Project Application • Oil Sands – Create an Amendment OSR Project Application If you have any comments or questions on this training course, please forward them to the following email address: • MOGISSUPPORT: Mogiss@enr.gov.ab.ca
