Removing motion blur from a single image

Removing motion blur from a single image. Sources of blur. Object motion. Sources of blur. Object motion Translation of camera. Sources of blur. Object motion Translation of camera Rotation of camera. Sources of blur. Object motion Translation of camera Rotation of camera. Defocus

desirae-klein
Télécharger la présentation

Removing motion blur from a single image

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Removing motion blur from a single image

  2. Sources of blur • Object motion

  3. Sources of blur • Object motion • Translation of camera

  4. Sources of blur • Object motion • Translation of camera • Rotation of camera

  5. Sources of blur • Object motion • Translation of camera • Rotation of camera • Defocus • Internal camera distortions

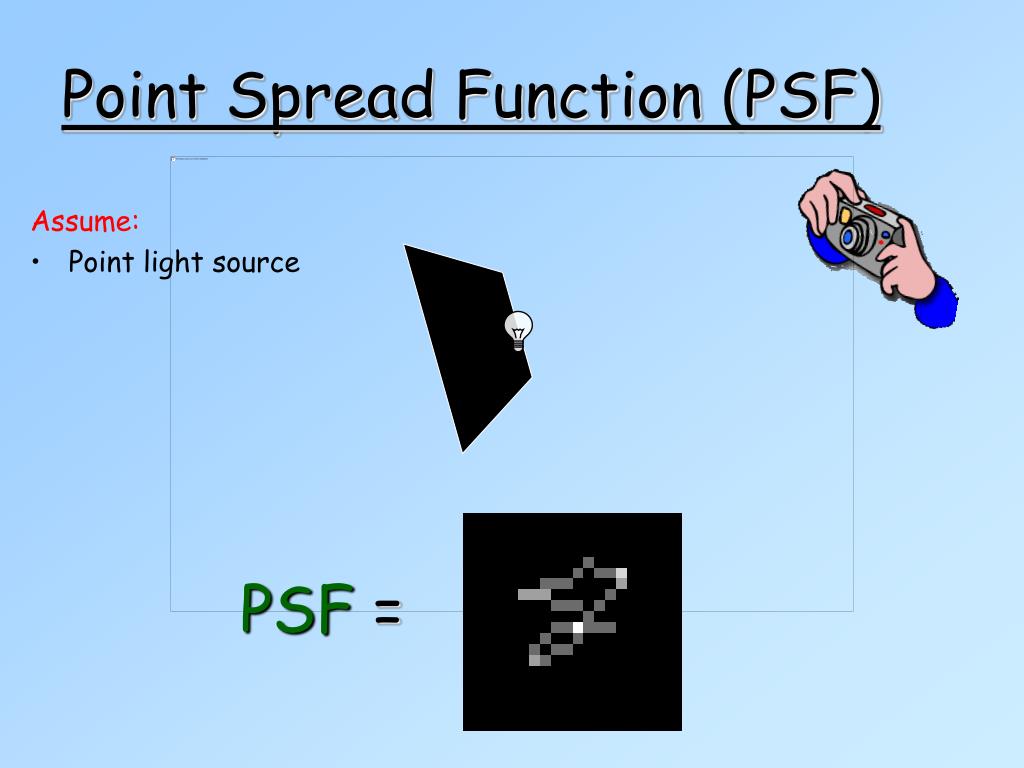

  6. PSF = Point Spread Function (PSF) Assume: • Point light source

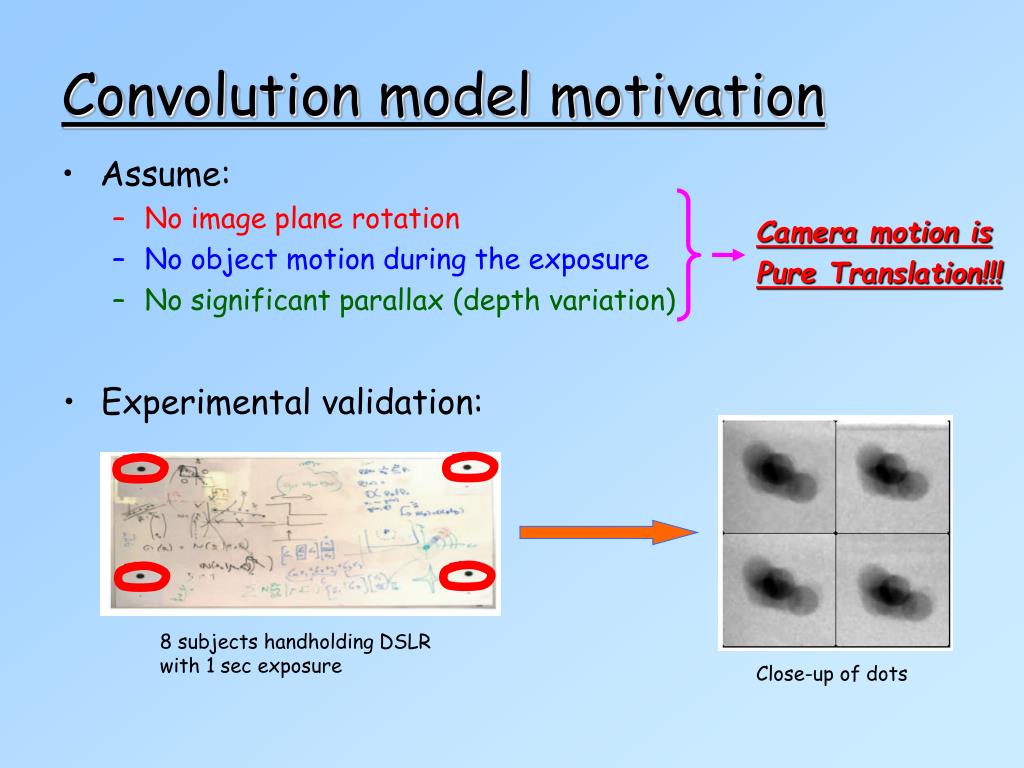

  7. B = KL + N Convolution model motivation • Assume: • No image plane rotation • No object motion during the exposure • No significant parallax (depth variation) Camera motion is Pure Translation!!! • Violation of assumption:

  8. B = KL + N Convolution model motivation • Assume: • No image plane rotation • No object motion during the exposure • No significant parallax (depth variation) Camera motion is Pure Translation!!! • Experimental validation: 8 subjects handholding DSLR with 1 sec exposure Close-up of dots

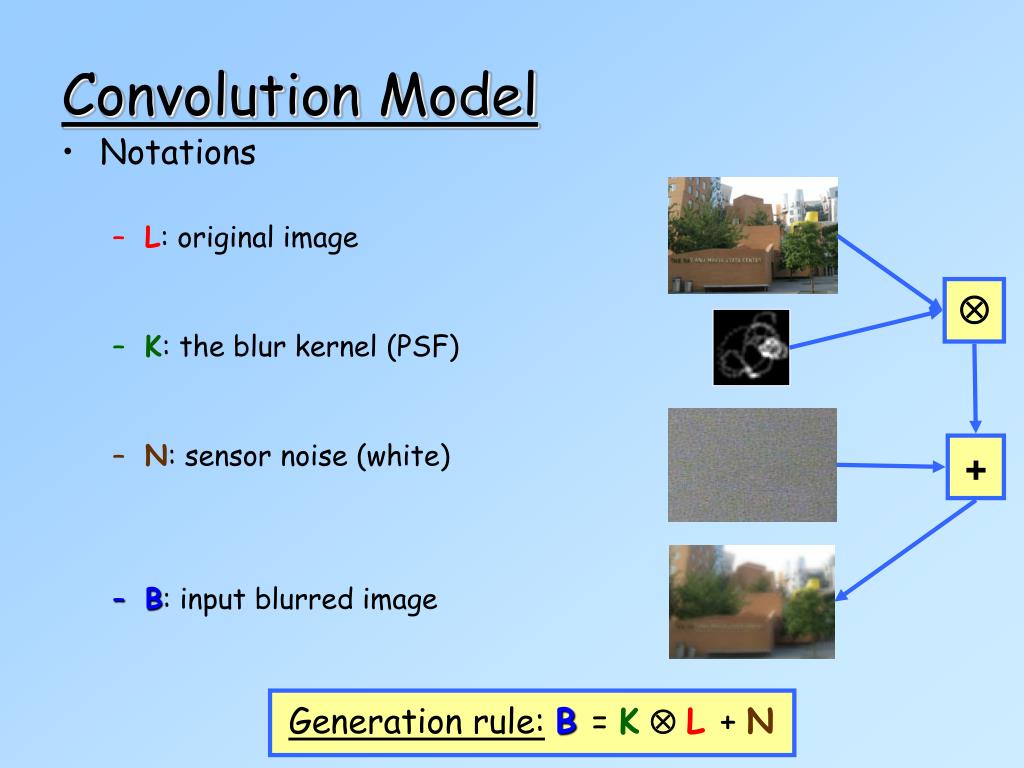

  9. Generation rule:B = KL + N Convolution Model • Notations • L: original image • K: the blur kernel (PSF) • N: sensor noise (white) • B: input blurred image  +

  10. Fourier Convolution Theorem! How can the image be recovered? Assumptions: • Known kernel (PSF) • Constant kernelfor the whole image • No noise Goal: • Recover Ls.t.: B = KL

  11. De-blur using Convolution Theorem Convolution Theorem:

  12. Recovered Example: Blurred Image PSF

  13. Deconvolution is unstable Example: Noisy case:

  14. FT of original signal Original signal Convolved signals w/w noise FT of convolved signals Reconstructed FT of the signal 1D example: Regularization is required

  15. 51 151 191 Regularizing by window Window size:
