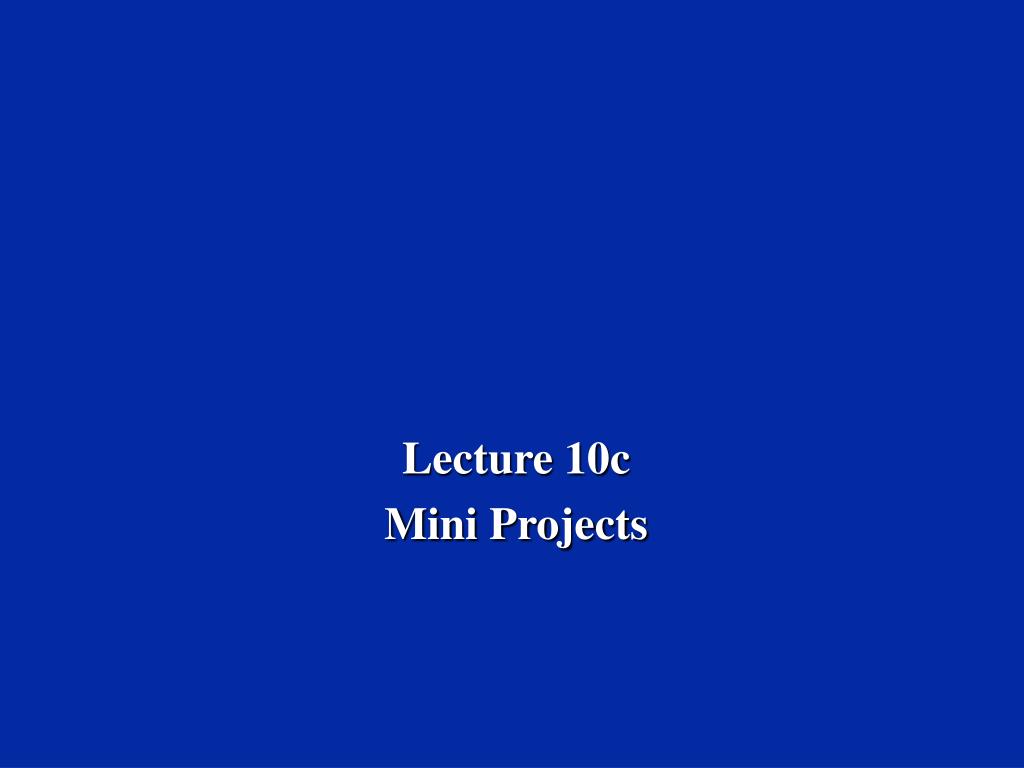

  1. Lecture 10c Mini Projects

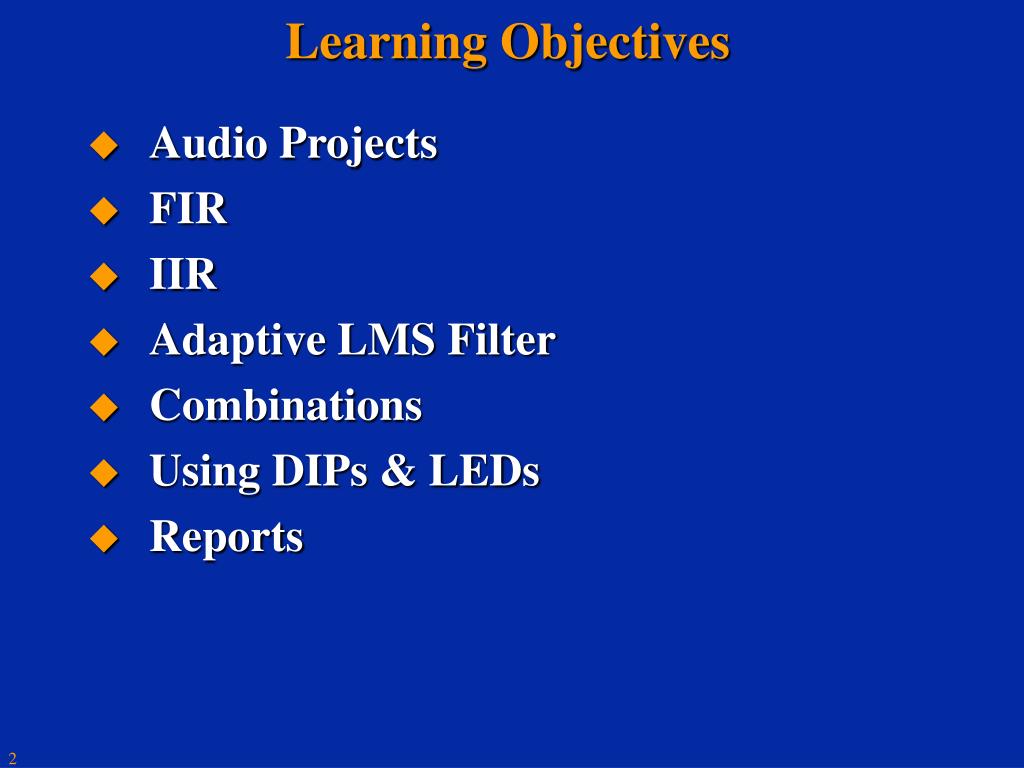

  2. Learning Objectives • Audio Projects • FIR • IIR • Adaptive LMS Filter • Combinations • Using DIPs & LEDs • Reports

  3. Project 1 • FIR • Left Channel – LPF 2KHz • Right Channel –HPF 2KHz • Order: 128 • Using FDATOOL

  4. Project 2 • IIR • Left Channel – LPF 3KHz • Right Channel –HPF 3KHz • Order: 2 • Using FDATOOL • Q15 Format of coefficients

  5. Project 3 • FIR • Left Channel – LPF 3KHz • Right Channel –HPF 3KHz • Order: 128 • DIP#0: Bi-pass Left • DIP#1: Bi-pass Right • Use FIR.M

  6. Project 4 • IIR • Left Channel – LPF 3KHz • Right Channel –HPF 3KHz • Order: 2 • DIP#0: Bi-pass Left • DIP#1: Bi-pass Right • USE IIR_CODE.M • Q15 Format

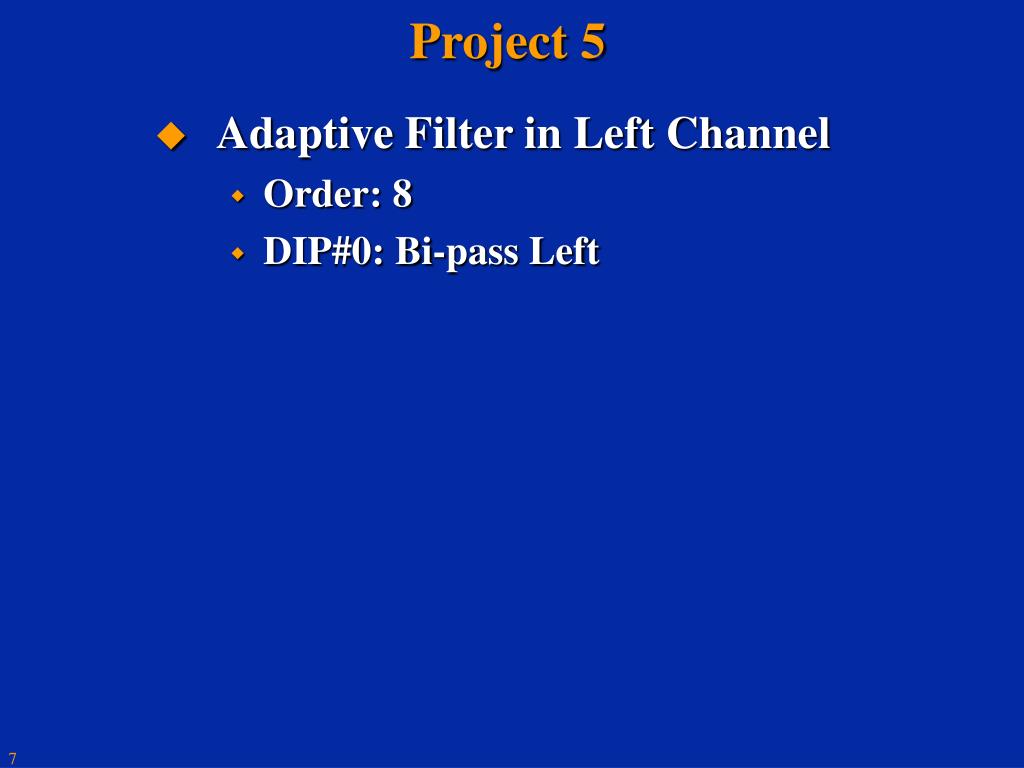

  7. Project 5 • Adaptive Filter in Left Channel • Order: 8 • DIP#0: Bi-pass Left
