  1. Lecture Set 3E Introduction Basic Software Development Issues Notes on Software Development Intro to Software Development Tools

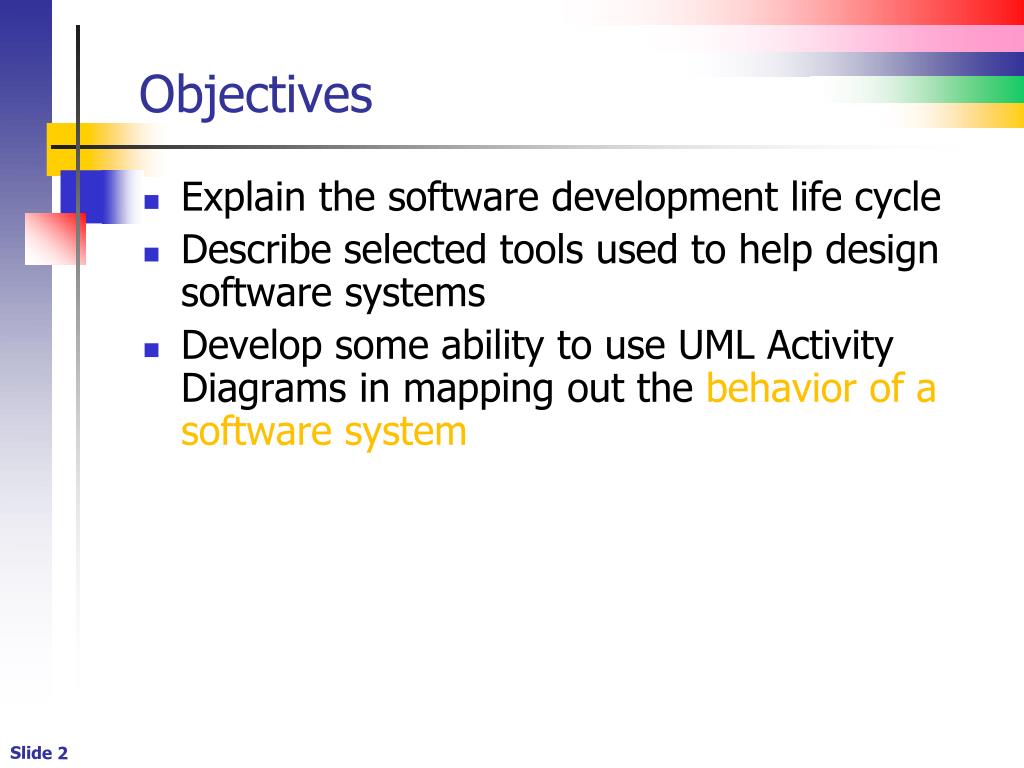

  2. Objectives • Explain the software development life cycle • Describe selected tools used to help design software systems • Develop some ability to use UML Activity Diagrams in mapping out the behavior of a software system

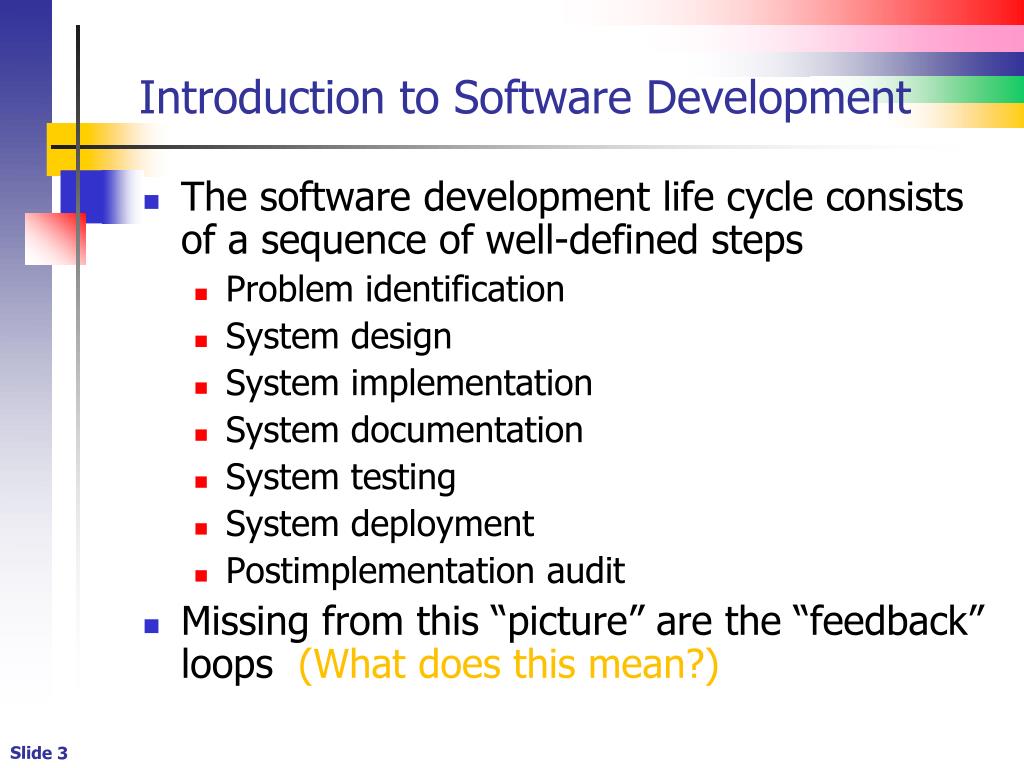

  3. Introduction to Software Development • The software development life cycle consists of a sequence of well-defined steps • Problem identification • System design • System implementation • System documentation • System testing • System deployment • Postimplementationaudit • Missing from this “picture” are the “feedback” loops (What does this mean?)

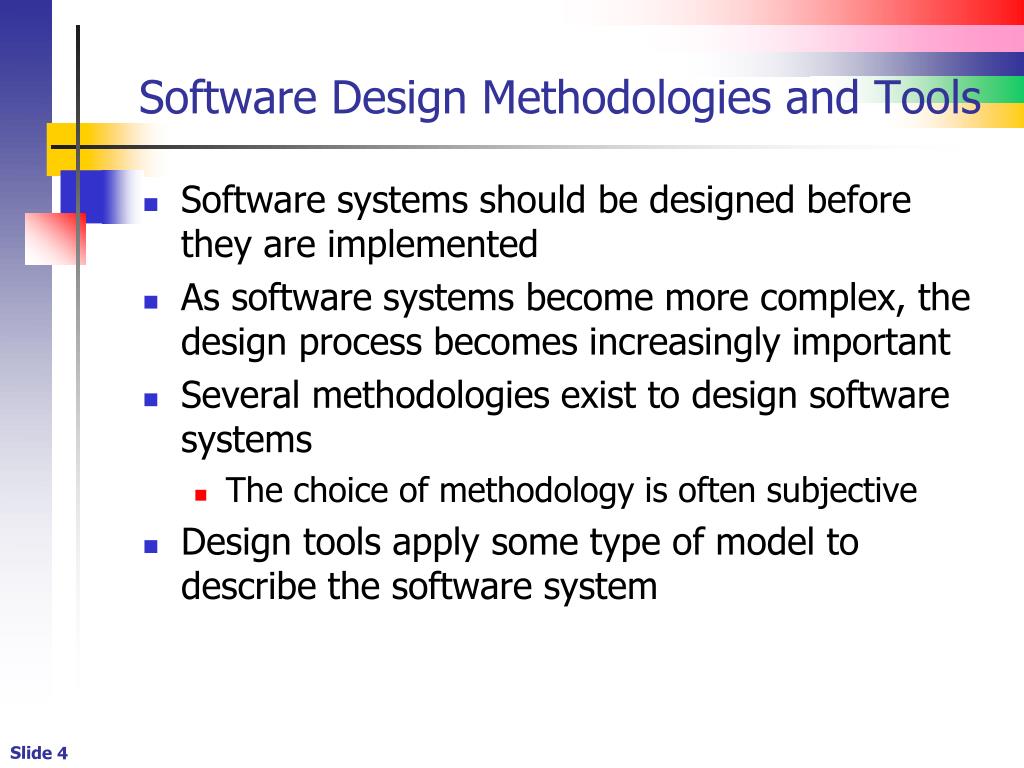

  4. Software Design Methodologies and Tools • Software systems should be designed before they are implemented • As software systems become more complex, the design process becomes increasingly important • Several methodologies exist to design software systems • The choice of methodology is often subjective • Design tools apply some type of model to describe the software system

  5. System Analysis Methodologies • Pseudocode uses English-like statements to depict an application’s actions • Top-down design is used to subdivide general tasks into more specific tasks • Flowcharting uses graphical symbols to depict an application’s actions • The Unified Modeling Language (UML) supplies several graphical templates to model a system

  6. Pseudocode • Pseudocode uses English-like statements to describe a particular task • Pseudocode is not exact • Different developers may write pseudocode differently • Pseudocode characteristics • The words “start” and “stop” denote the beginning and end of a process • The word “if” indicates a decision • Decisions can be nested • Pseudocode used mainly for small algorithms design – sorts, searches etc

  7. Top-Down (Hierarchical) Design • Steps • Define general tasks first • Decompose general tasks into more specific tasks • Continue decomposing sub-tasks, as needed • Hierarchical Input Process Output (HIPO) charts are used to visualize the top-down design process

  8. HIPO chart for an ATM withdrawal

  9. Expanded HIPO chart

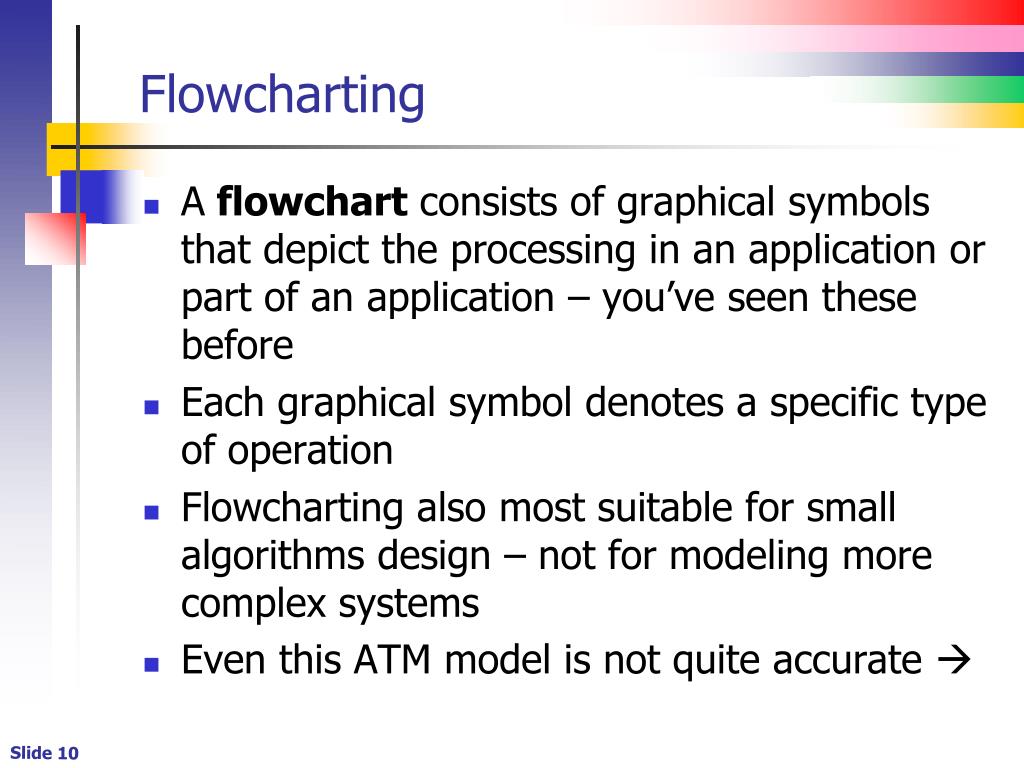

  10. Flowcharting • A flowchart consists of graphical symbols that depict the processing in an application or part of an application – you’ve seen these before • Each graphical symbol denotes a specific type of operation • Flowcharting also most suitable for small algorithms design – not for modeling more complex systems • Even this ATM model is not quite accurate 

  11. Generic flowchart

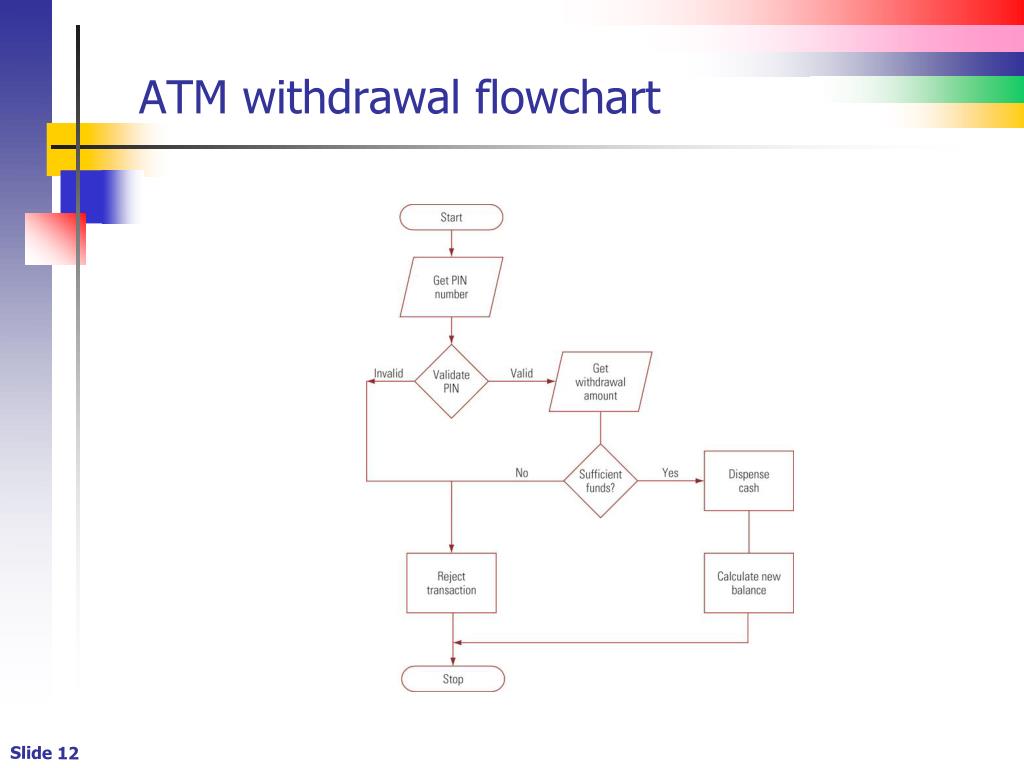

  12. ATM withdrawal flowchart

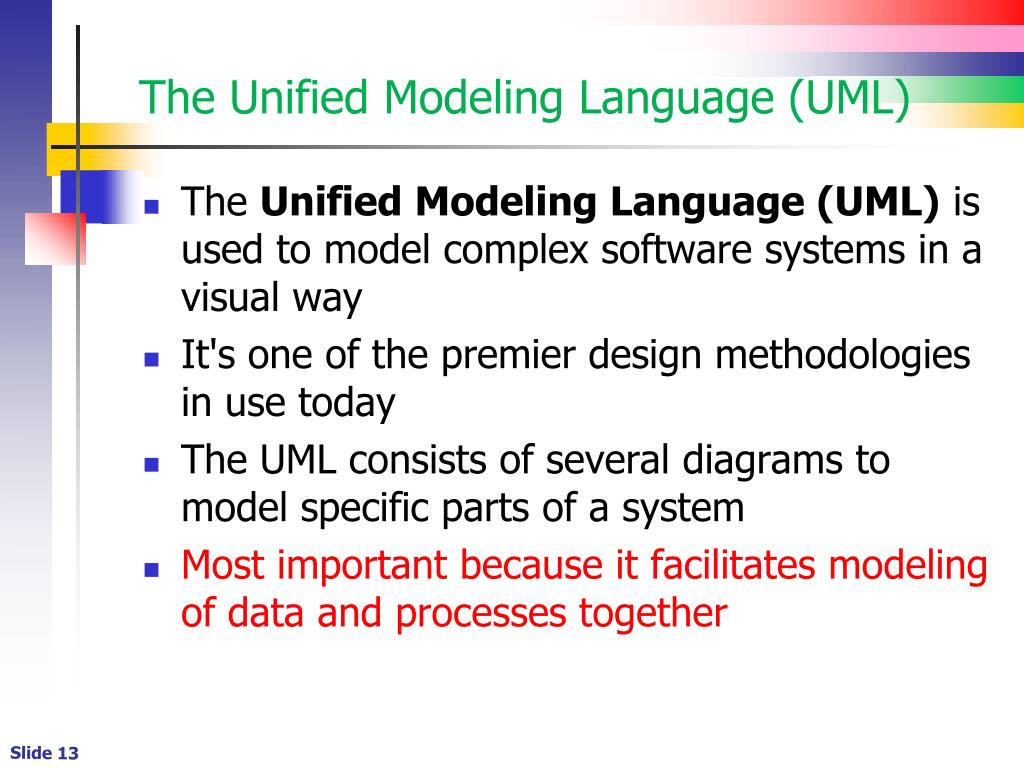

  13. The Unified Modeling Language (UML) • The Unified Modeling Language (UML) is used to model complex software systems in a visual way • It's one of the premier design methodologies in use today • The UML consists of several diagrams to model specific parts of a system • Most important because it facilitates modeling of data and processes together

  14. Common UML Diagrams • Class diagrams model the conceptual and physical aspects of a system • Use case diagrams model the actors (users) of a system • Activity diagrams show the actions performed by the system and the order in which those actions are performed • UML activity diagrams are similar to flowcharts

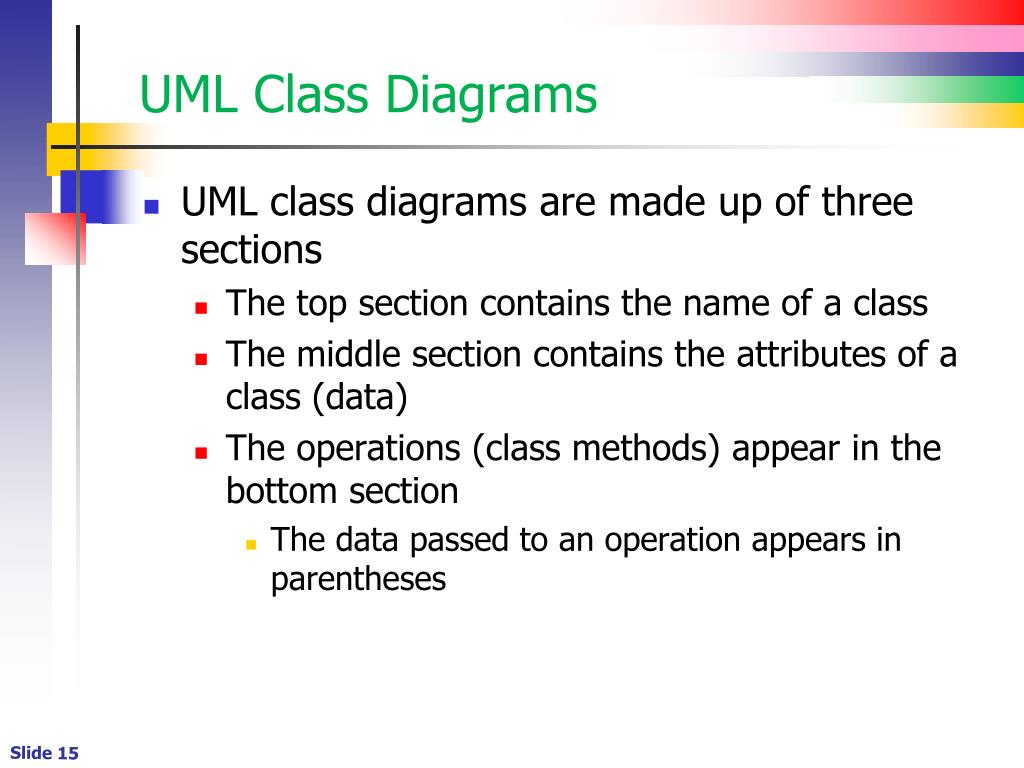

  15. UML Class Diagrams • UML class diagrams are made up of three sections • The top section contains the name of a class • The middle section contains the attributes of a class (data) • The operations (class methods) appear in the bottom section • The data passed to an operation appears in parentheses

  16. UML Class Diagram

  17. UML Use Case Diagrams • Use case diagrams model the actors (users) of the system • A rectangular box defines the boundaries of the system • Stick figures define the actors • Lines connect the actors with the system's elements • We will not get too wrapped up in this aspect of UML until near the end of the course

  18. UML Use Case Diagram

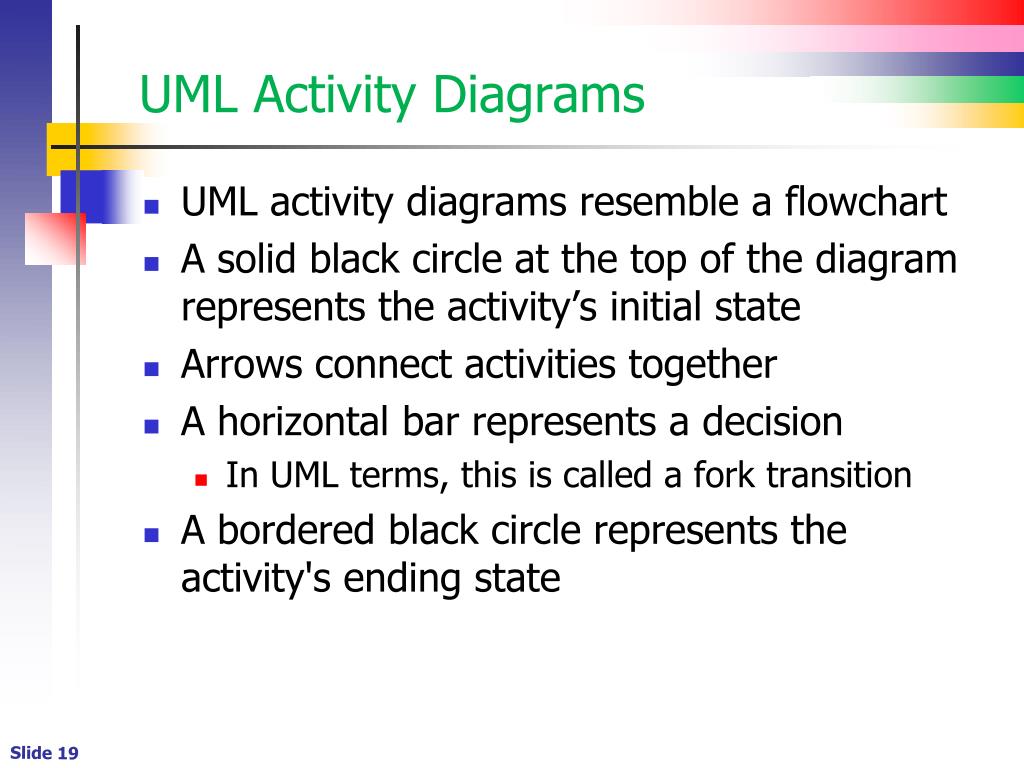

  19. UML Activity Diagrams • UML activity diagrams resemble a flowchart • A solid black circle at the top of the diagram represents the activity’s initial state • Arrows connect activities together • A horizontal bar represents a decision • In UML terms, this is called a fork transition • A bordered black circle represents the activity's ending state

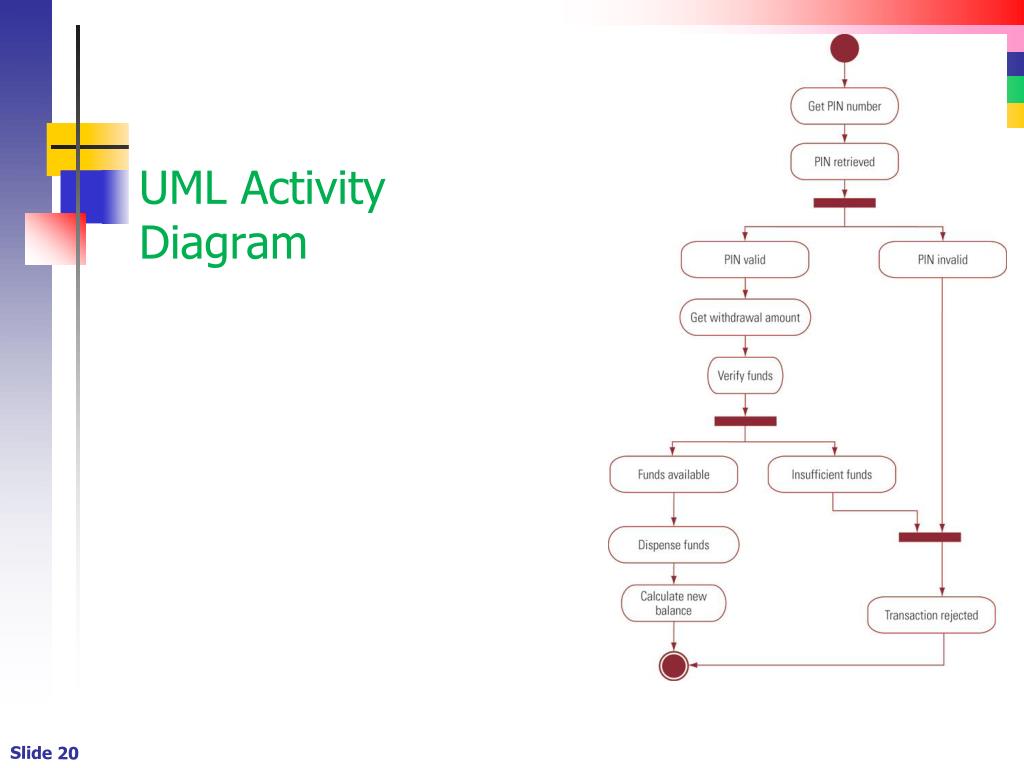

  20. UML ActivityDiagram

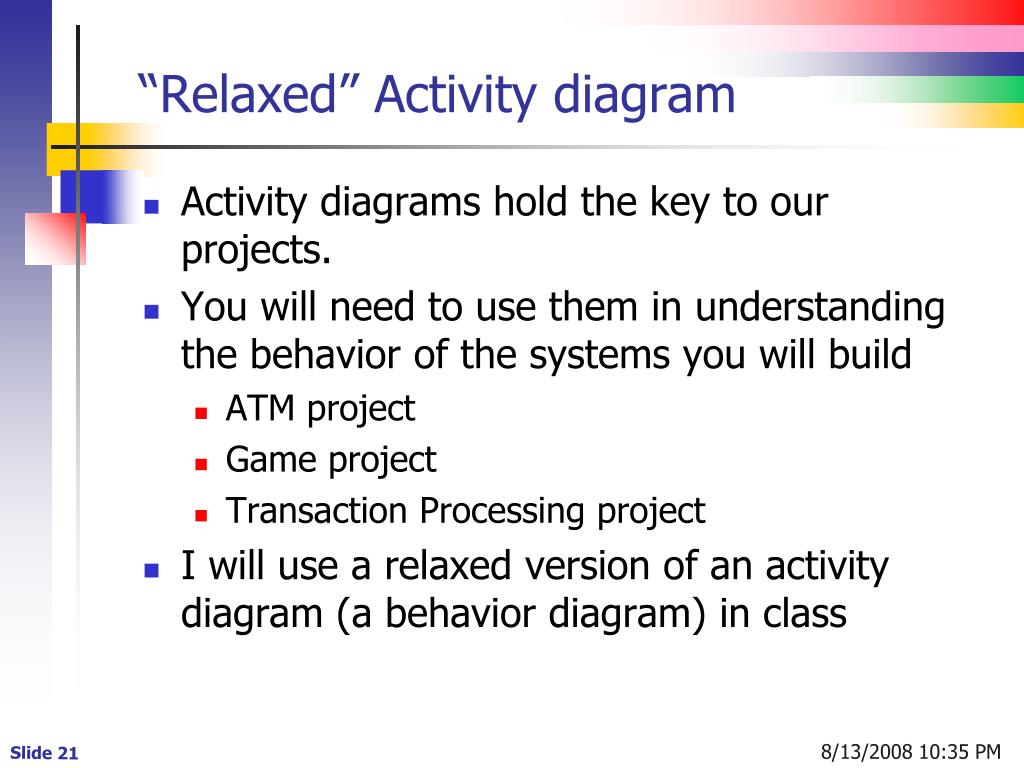

  21. “Relaxed” Activity diagram • Activity diagrams hold the key to our projects. • You will need to use them in understanding the behavior of the systems you will build • ATM project • Game project • Transaction Processing project • I will use a relaxed version of an activity diagram (a behavior diagram) in class
