  1. Lecture Set 1 Part C: Understanding Visual Studio and .NET – Applications, Solutions, Projects (no longer used – embedded in Lecture Set 2A)

  2. Objectives Understand basic terminology – Visual Studio, .NET. Solutions, Projects, Applications, etc. Learn how to create new Solutions, new Applications/Projects General navigation around the Solution Explorer and Forms and applications windows in the Visual Studio IDE Compiling and running programs

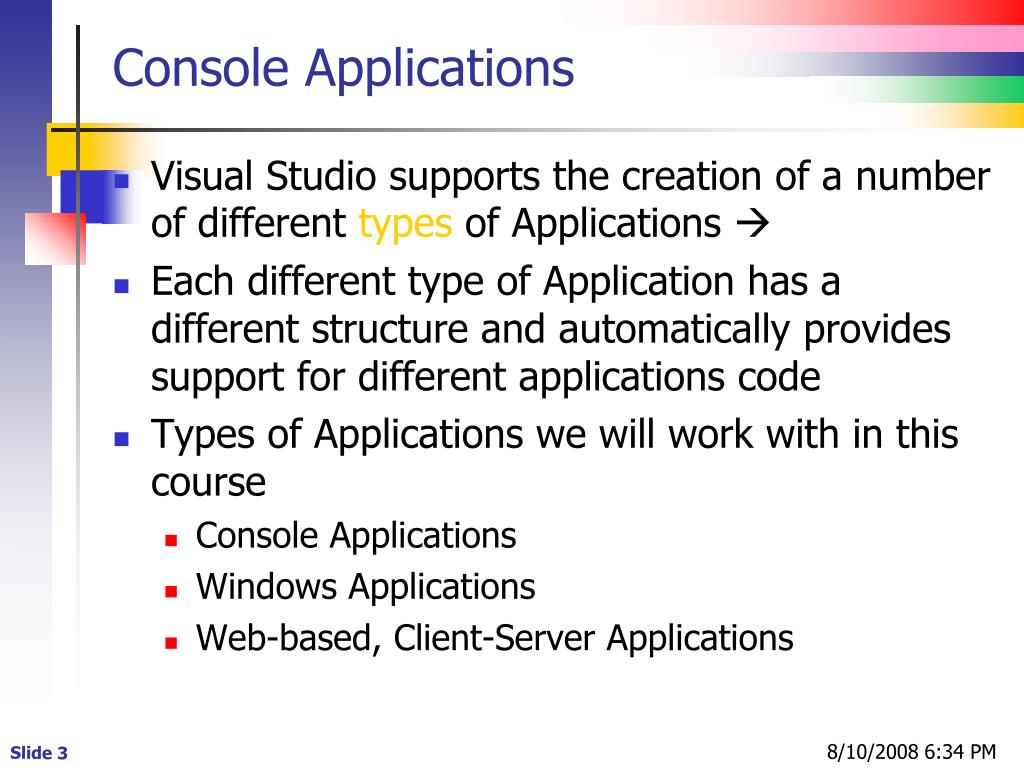

  3. Console Applications • Visual Studio supports the creation of a number of different types of Applications  • Each different type of Application has a different structure and automatically provides support for different applications code • Types of Applications we will work with in this course • Console Applications • Windows Applications • Web-based, Client-Server Applications

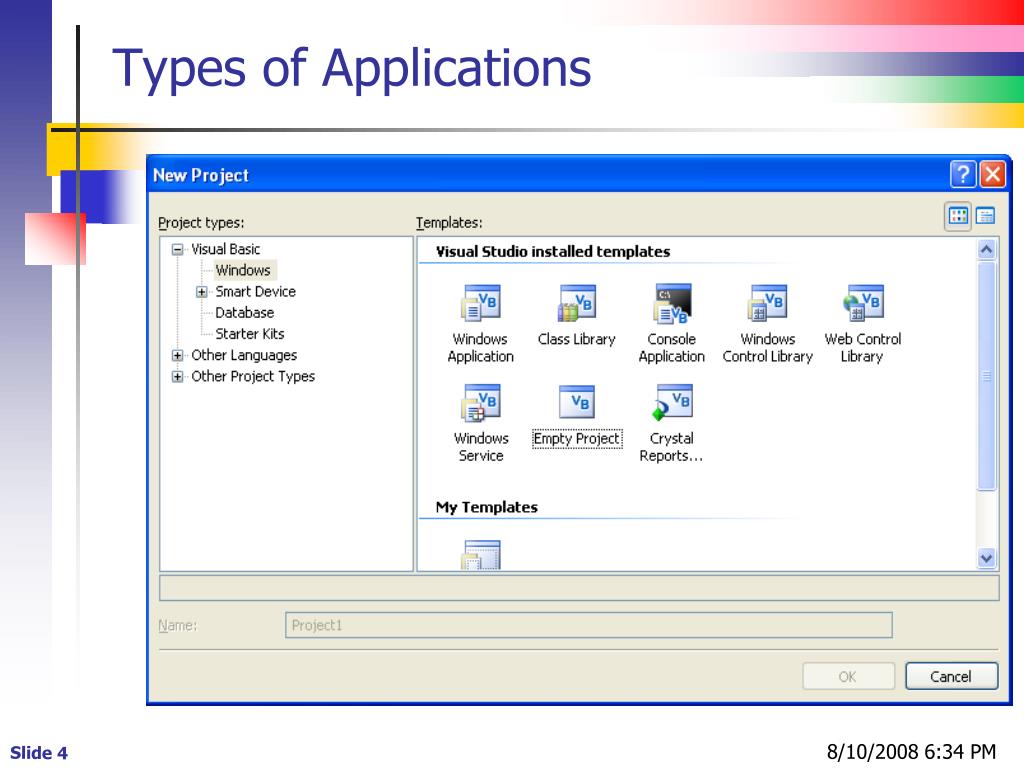

  4. Types of Applications

  5. The Console Class • Console is System class (it is in the System Namespace) – it is part of the mscorlib* library which as we have seen is one of the library DLLs that is automatically loaded with the execution of ALL VS applications. • This Console class supports a number of methods, including methods performing actions related to keyboard input (Read and ReadLine) and screen output (Write and WriteLine) *mscorlib will briefly be discussed later

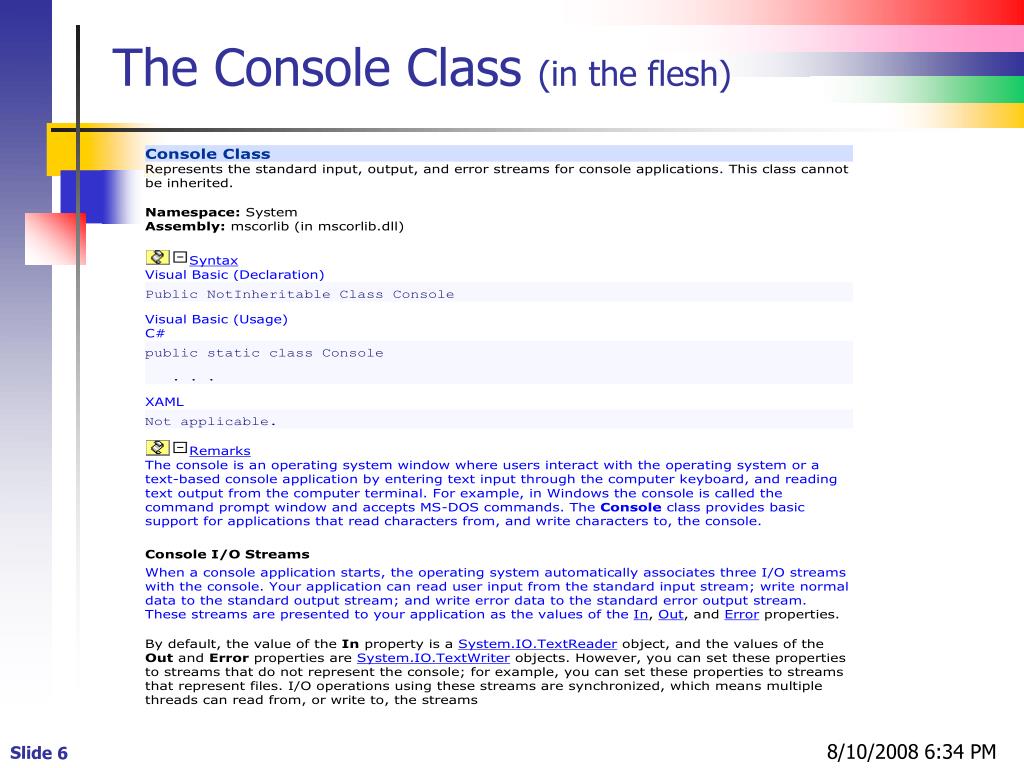

  6. The Console Class (in the flesh)

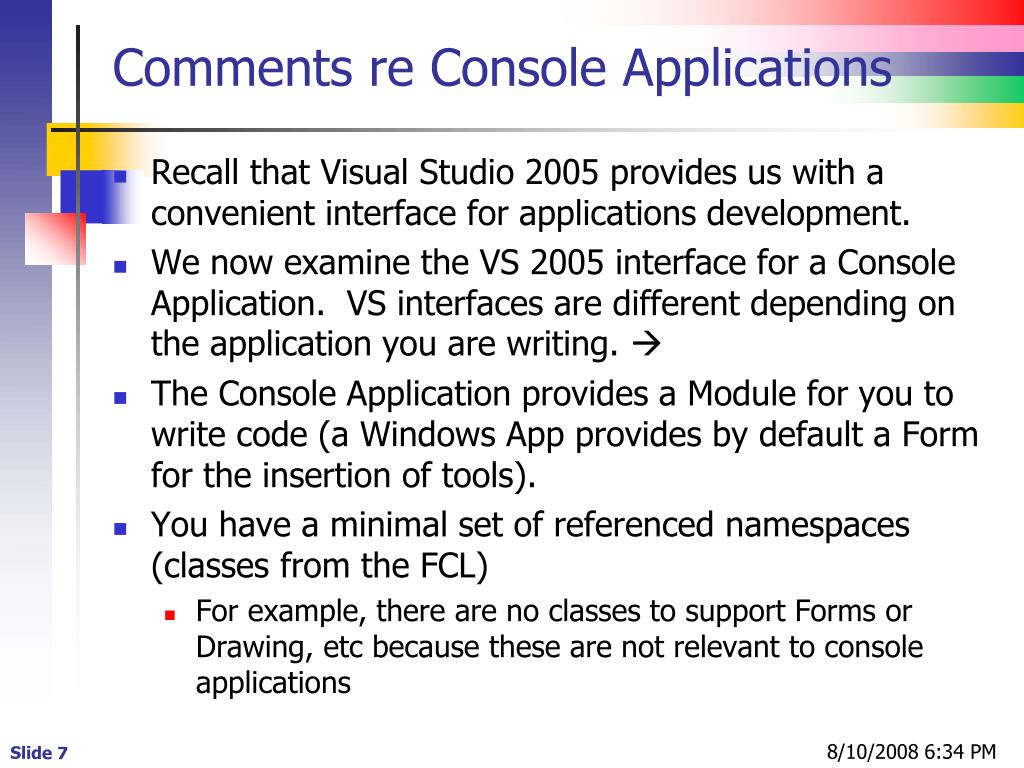

  7. Comments re Console Applications • Recall that Visual Studio 2005 provides us with a convenient interface for applications development. • We now examine the VS 2005 interface for a Console Application. VS interfaces are different depending on the application you are writing.  • The Console Application provides a Module for you to write code (a Windows App provides by default a Form for the insertion of tools). • You have a minimal set of referenced namespaces (classes from the FCL) • For example, there are no classes to support Forms or Drawing, etc because these are not relevant to console applications

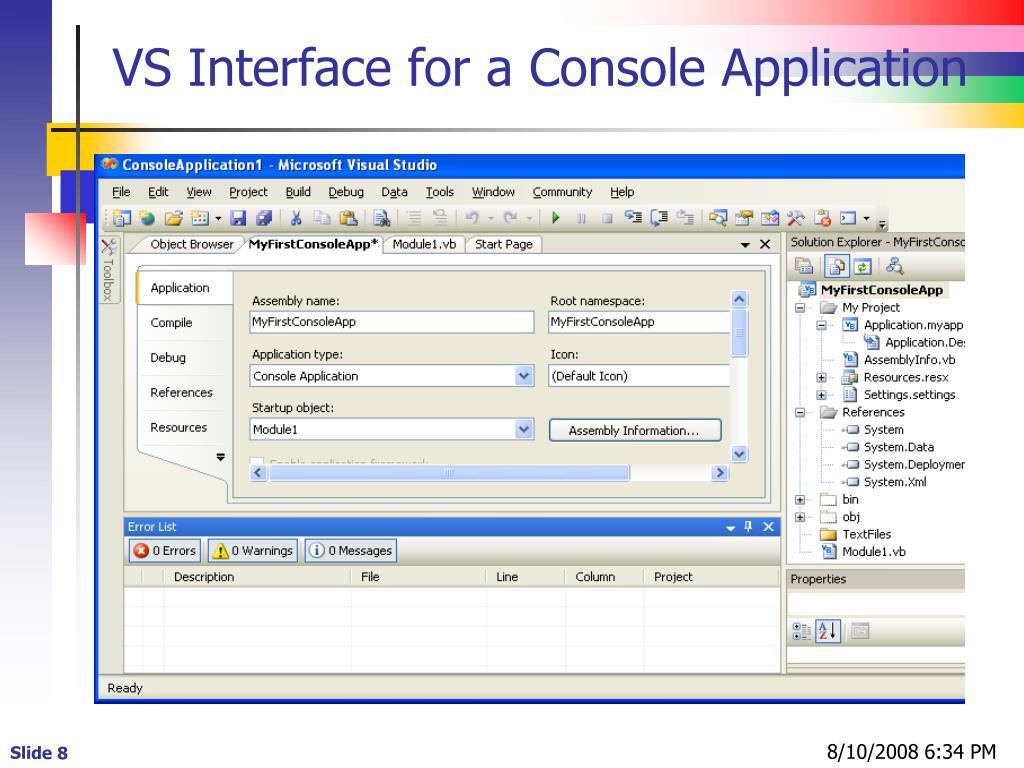

  8. VS Interface for a Console Application

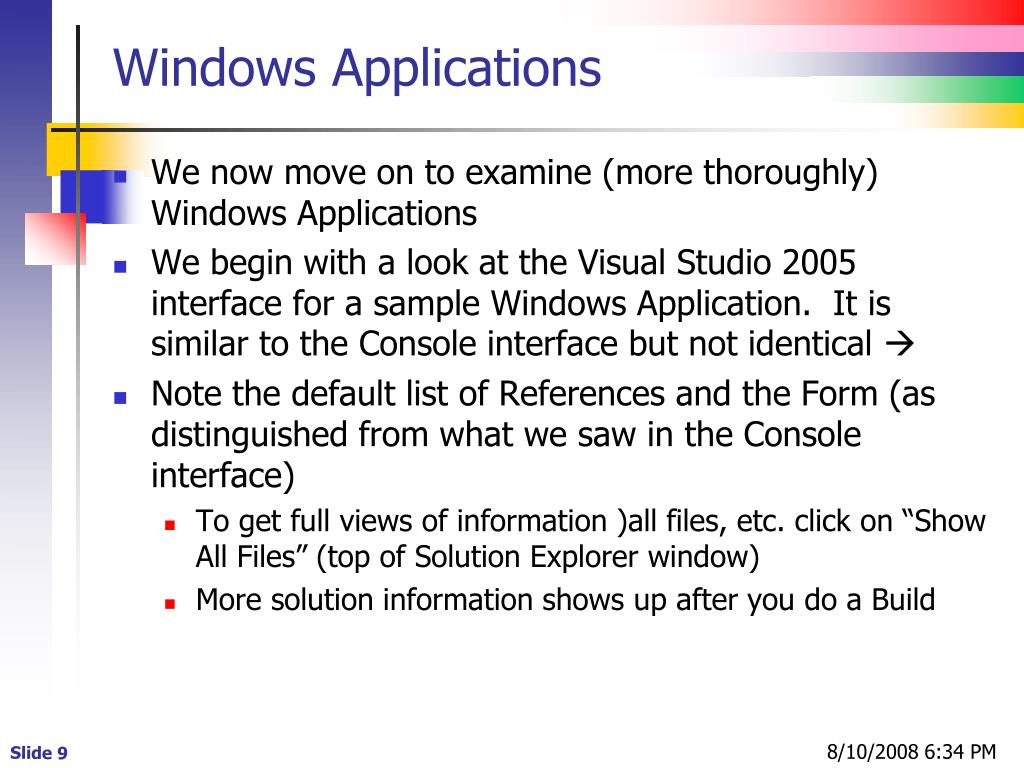

  9. Windows Applications • We now move on to examine (more thoroughly) Windows Applications • We begin with a look at the Visual Studio 2005 interface for a sample Windows Application. It is similar to the Console interface but not identical  • Note the default list of References and the Form (as distinguished from what we saw in the Console interface) • To get full views of information )all files, etc. click on “Show All Files” (top of Solution Explorer window) • More solution information shows up after you do a Build

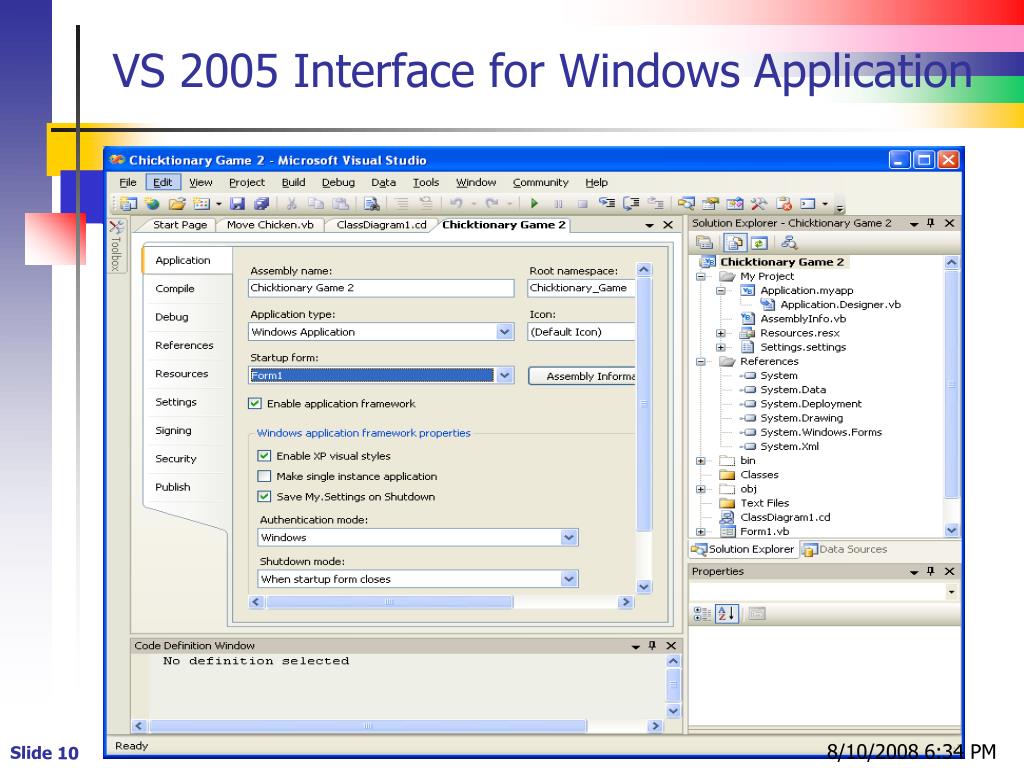

  10. VS 2005 Interface for Windows Application

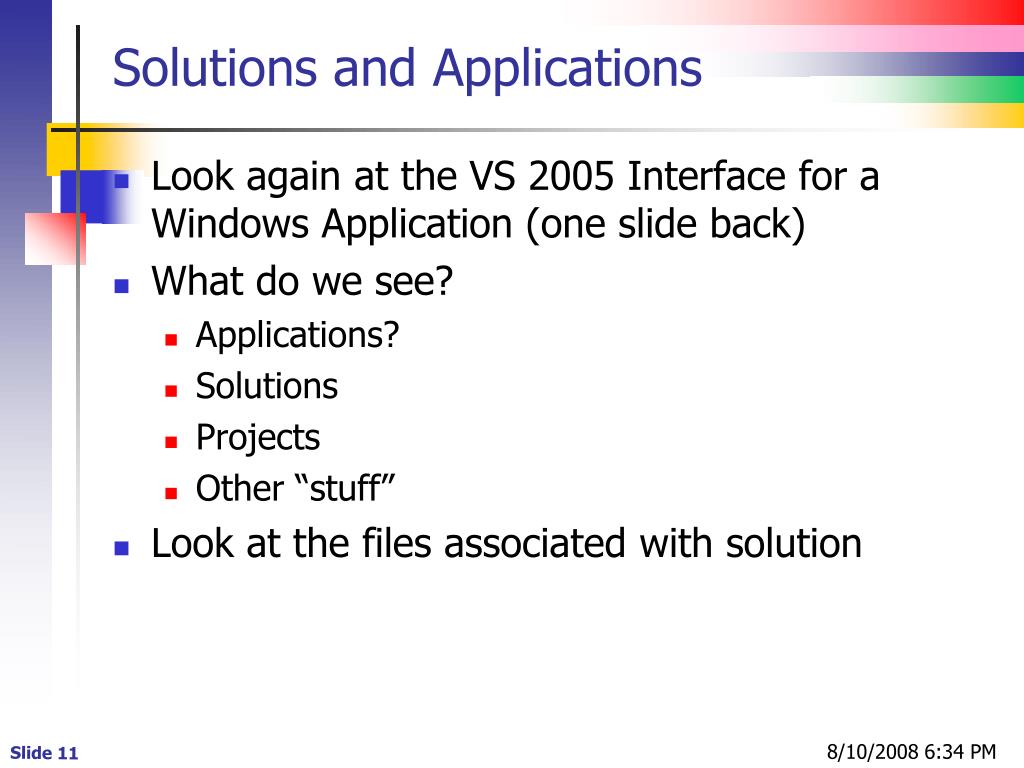

  11. Solutions and Applications • Look again at the VS 2005 Interface for a Windows Application (one slide back) • What do we see? • Applications? • Solutions • Projects • Other “stuff” • Look at the files associated with solution

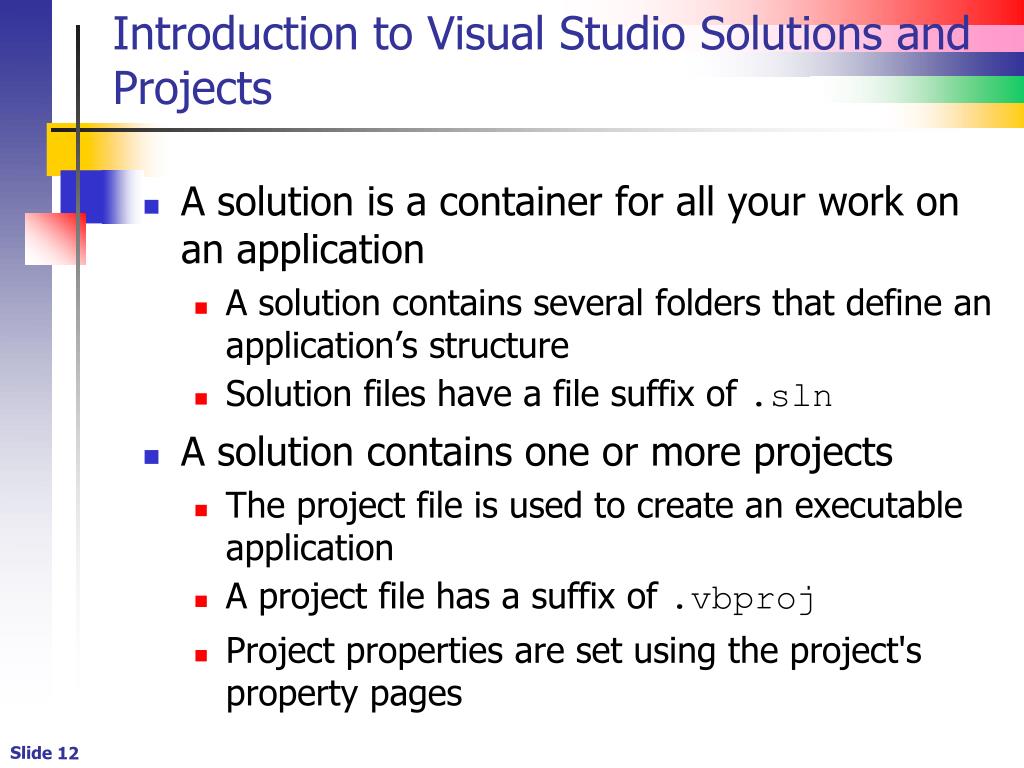

  12. Introduction to Visual Studio Solutions and Projects • A solution is a container for all your work on an application • A solution contains several folders that define an application’s structure • Solution files have a file suffix of .sln • A solution contains one or more projects • The project file is used to create an executable application • A project file has a suffix of .vbproj • Project properties are set using the project's property pages

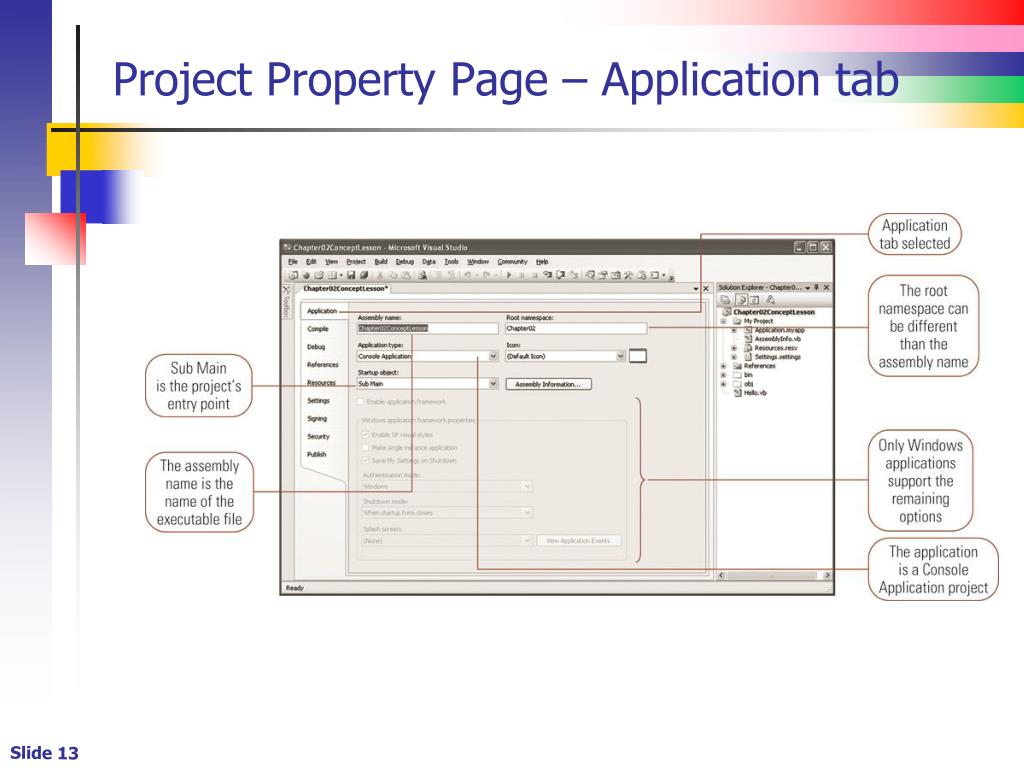

  13. Project Property Page – Application tab

  14. Sample Show

  15. Solution with Two Projects

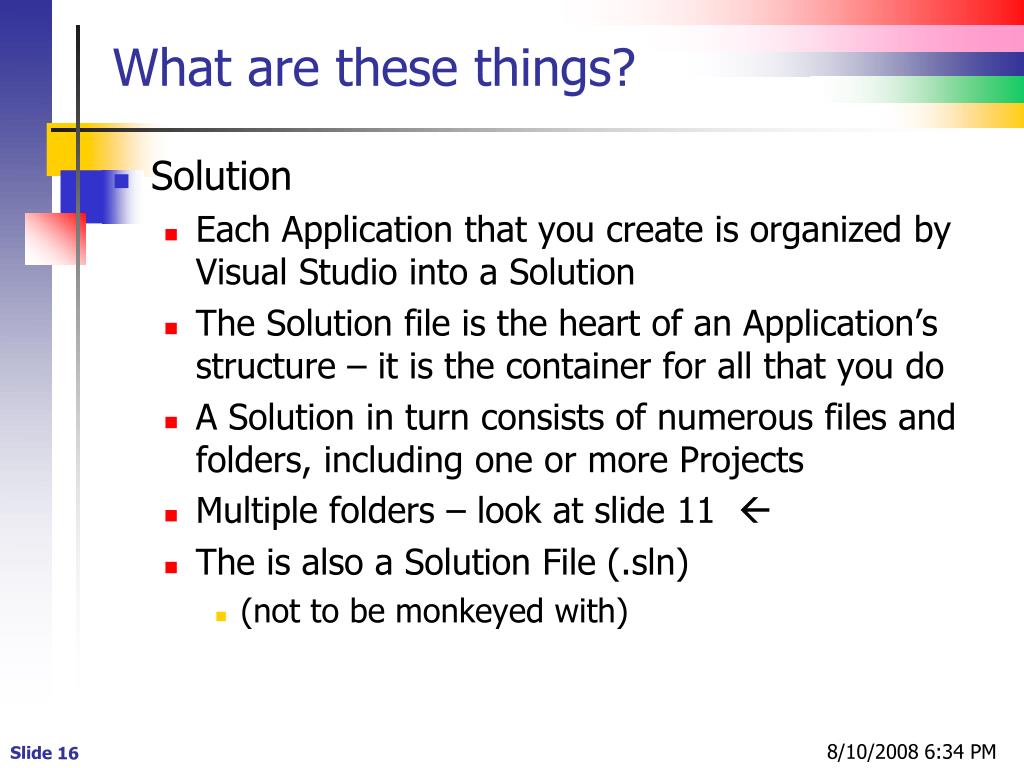

  16. What are these things? • Solution • Each Application that you create is organized by Visual Studio into a Solution • The Solution file is the heart of an Application’s structure – it is the container for all that you do • A Solution in turn consists of numerous files and folders, including one or more Projects • Multiple folders – look at slide 11  • The is also a Solution File (.sln) • (not to be monkeyed with)

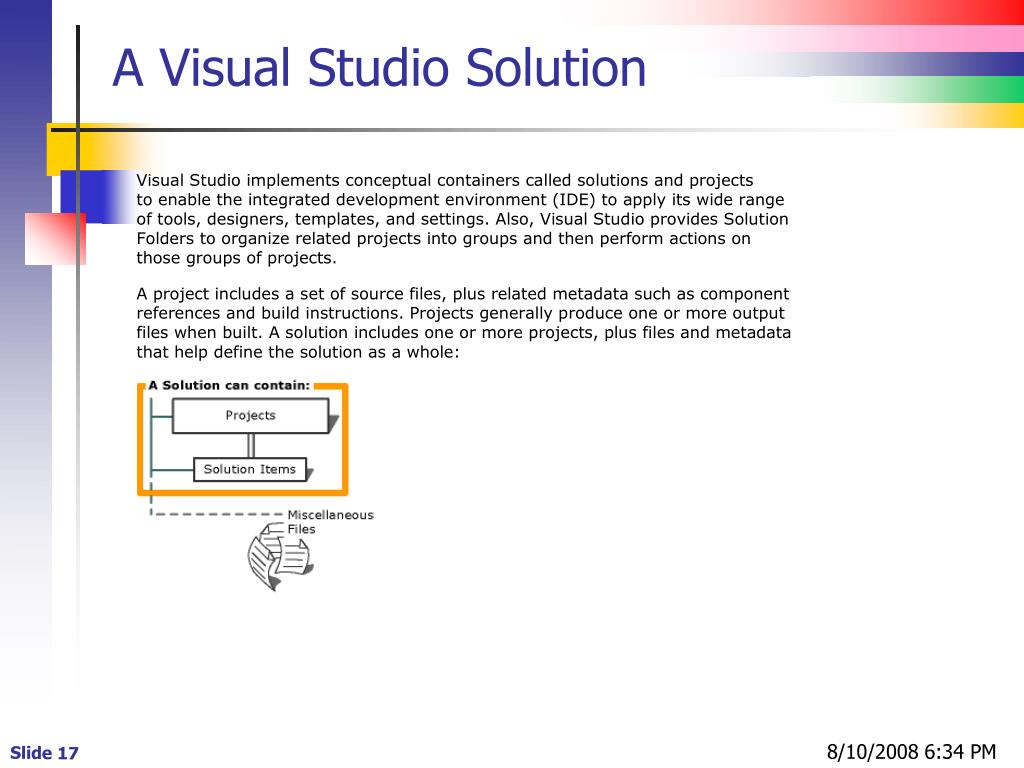

  17. A Visual Studio Solution

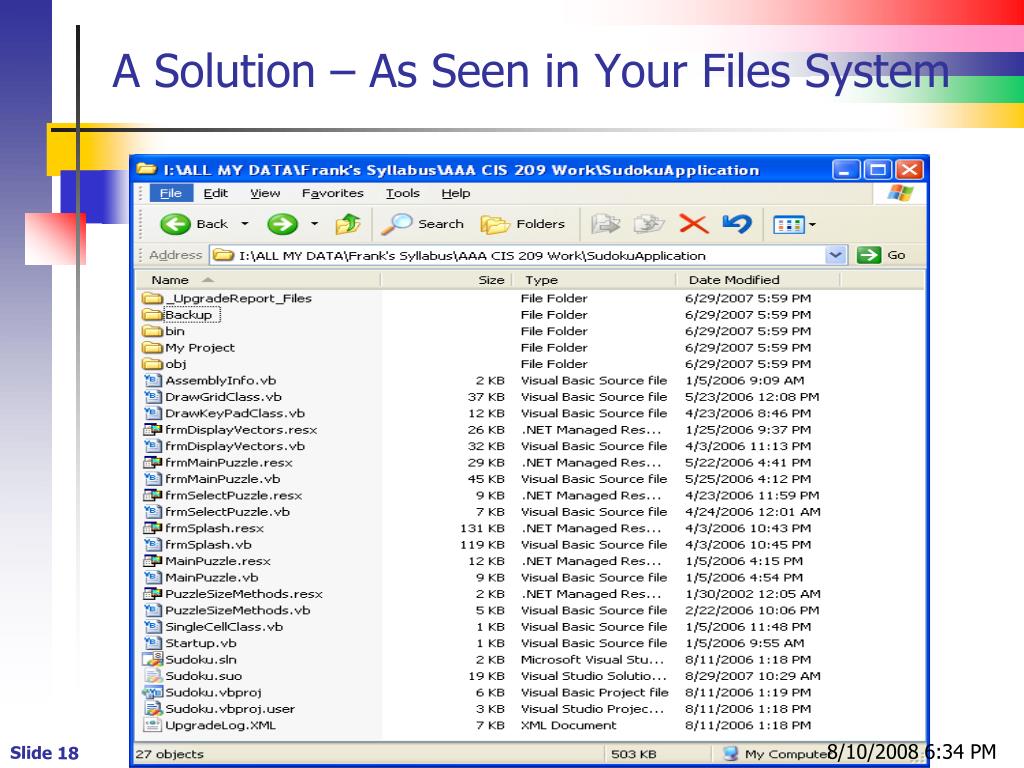

  18. A Solution – As Seen in Your Files System

  19. Project Characteristics • Again, refer back to Slide 11 • A project contains one or more namespaces • Every project has one root namespace • But projects can have many other Namespaces • Every project has a type (Console, Windows, Web etc.) • Each project gets compiled into an Assembly • Every project has an entry point • A Sub procedure named Main or a form • Forms apply only to Windows Application projects

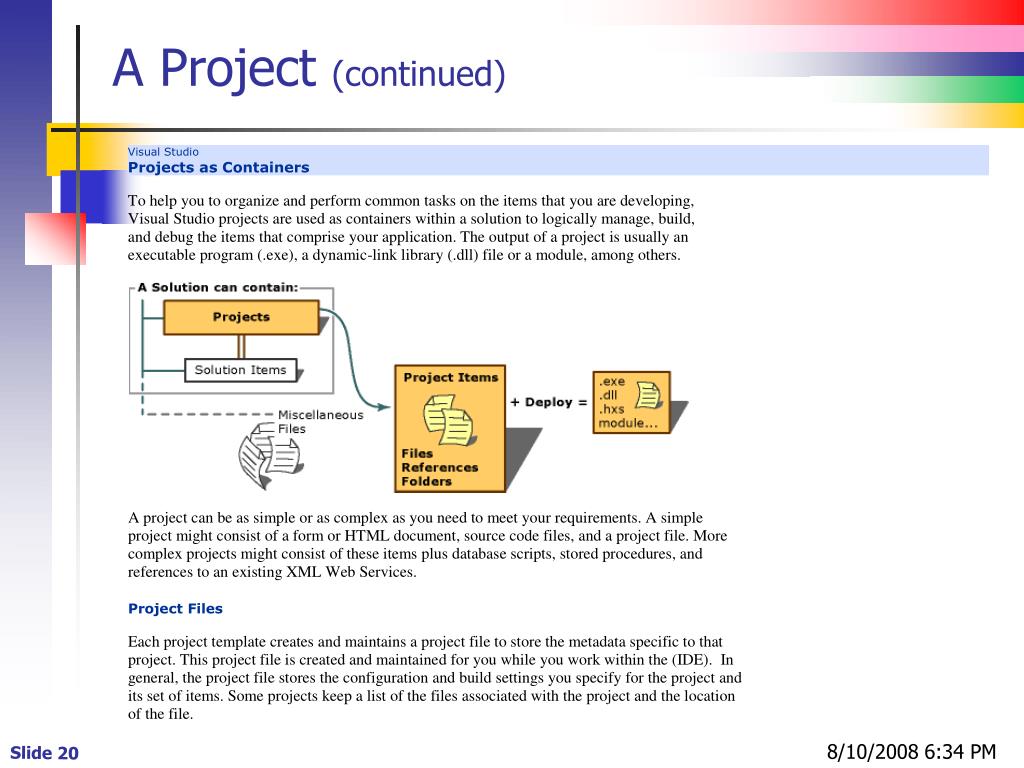

  20. A Project (continued)

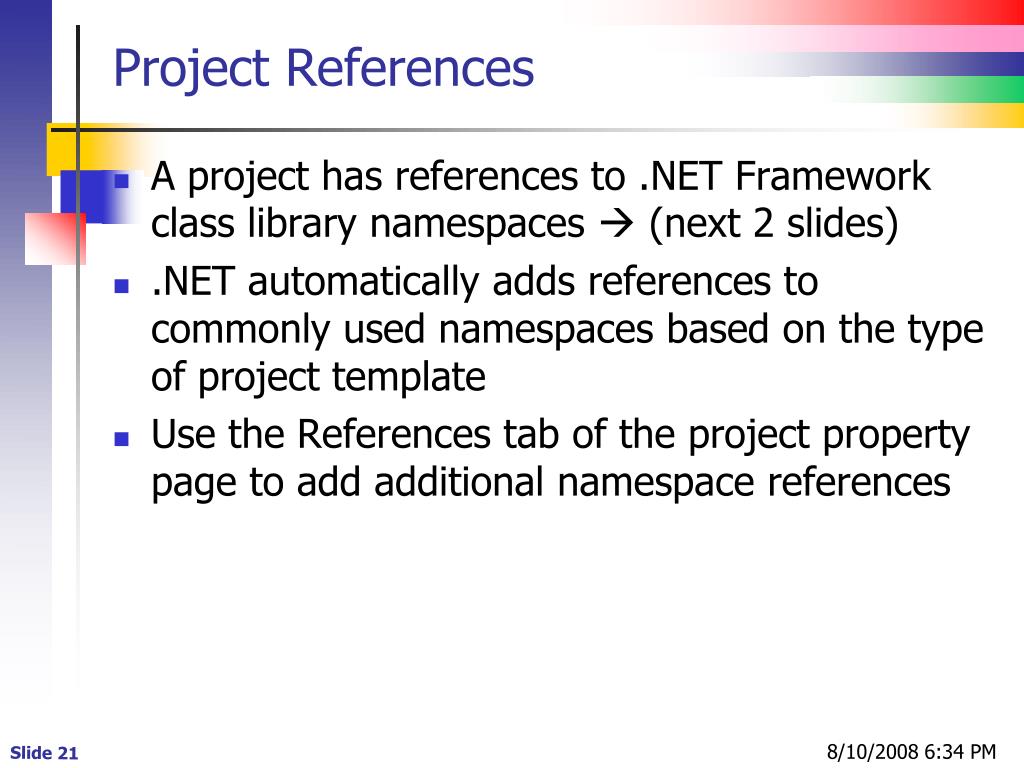

  21. Project References • A project has references to .NET Framework class library namespaces  (next 2 slides) • .NET automatically adds references to commonly used namespaces based on the type of project template • Use the References tab of the project property page to add additional namespace references

  22. Project Property Page – References tab

  23. Some FCL Namespaces That Can Be Referenced

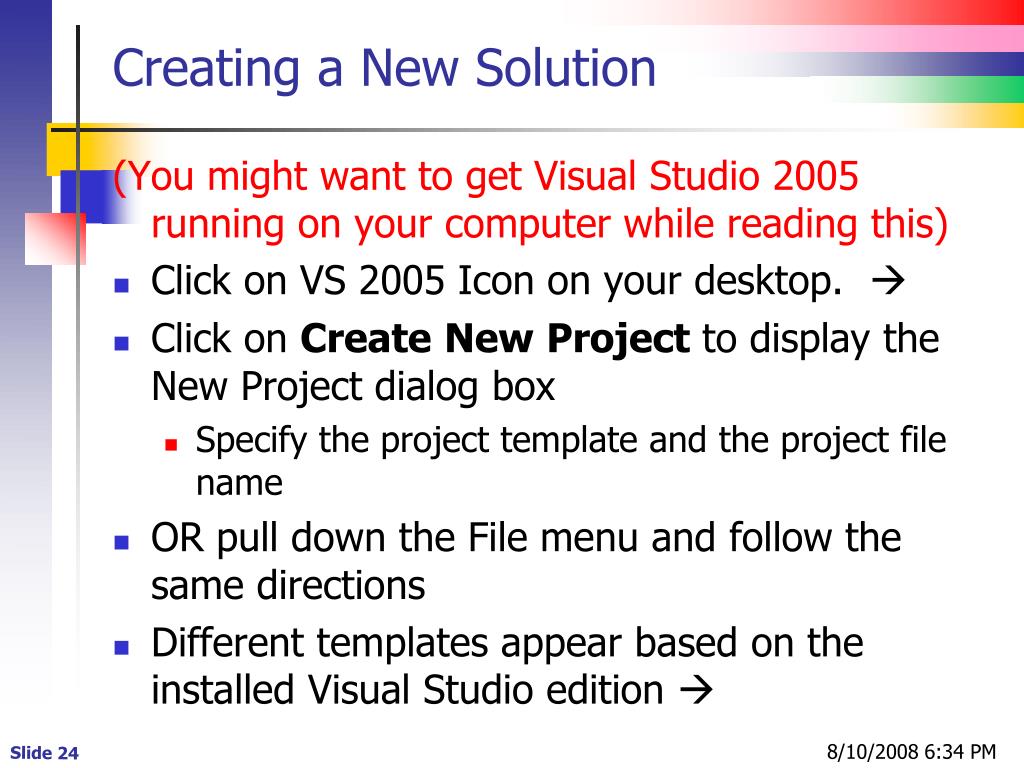

  24. Creating a New Solution (You might want to get Visual Studio 2005 running on your computer while reading this) • Click on VS 2005 Icon on your desktop.  • Click on CreateNewProject to display the New Project dialog box • Specify the project template and the project file name • OR pull down the File menu and follow the same directions • Different templates appear based on the installed Visual Studio edition 

  25. New Project Dialog Box

  26. Creating a New Project • A new project does not exist in a vacuum – it must be part of an application • In VS, you begin with the application you wish to create, and VS organizes everything you do into a Solution (with one or more Projects) • The Application, and everything related to it is encapsulated in a Visual Studio solution • There may be multiple projects inside a solution • The solution takes on the name of the first Project created

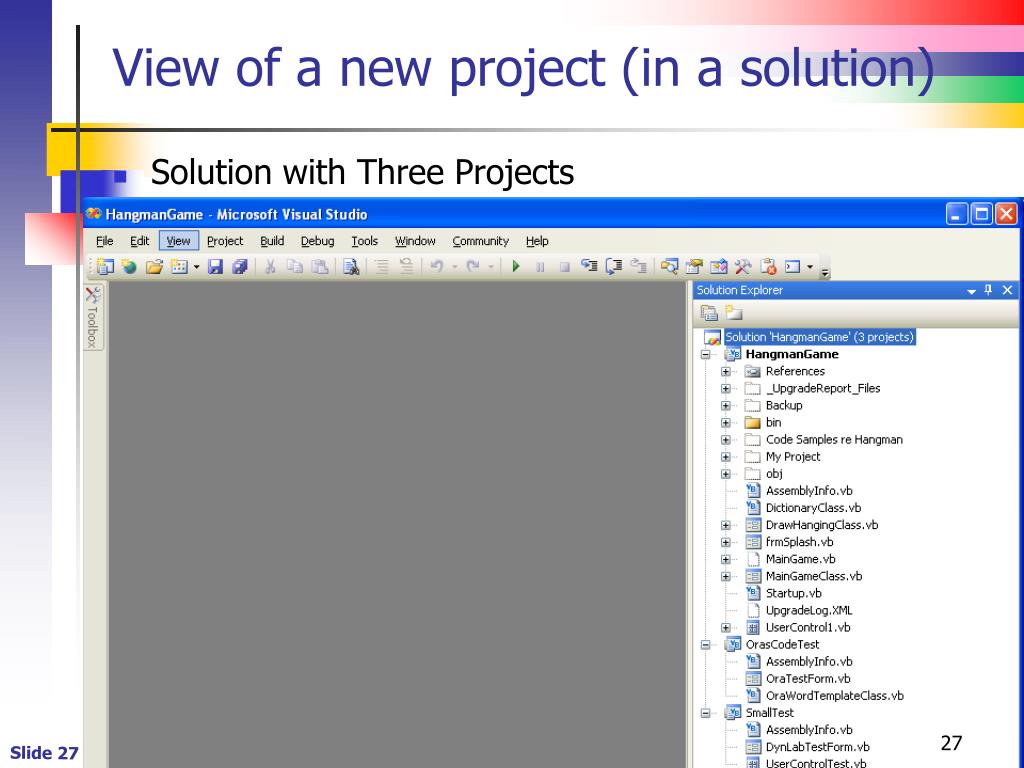

  27. View of a new project (in a solution) • Solution with Three Projects

  28. Solutions and Projects • HangmanGame is the name of the solution – the name of the container for everything you do • A new solution is created from a project template • This solution contains three Projects (Note – pick your solution, projects, and components names carefully.) • Each allows you to rename – DO IT – in a meaningful way before you do your first save. • The solution file has a suffix .sln. • Do not change this extension • Template  Application  Solution (with one or more projects)

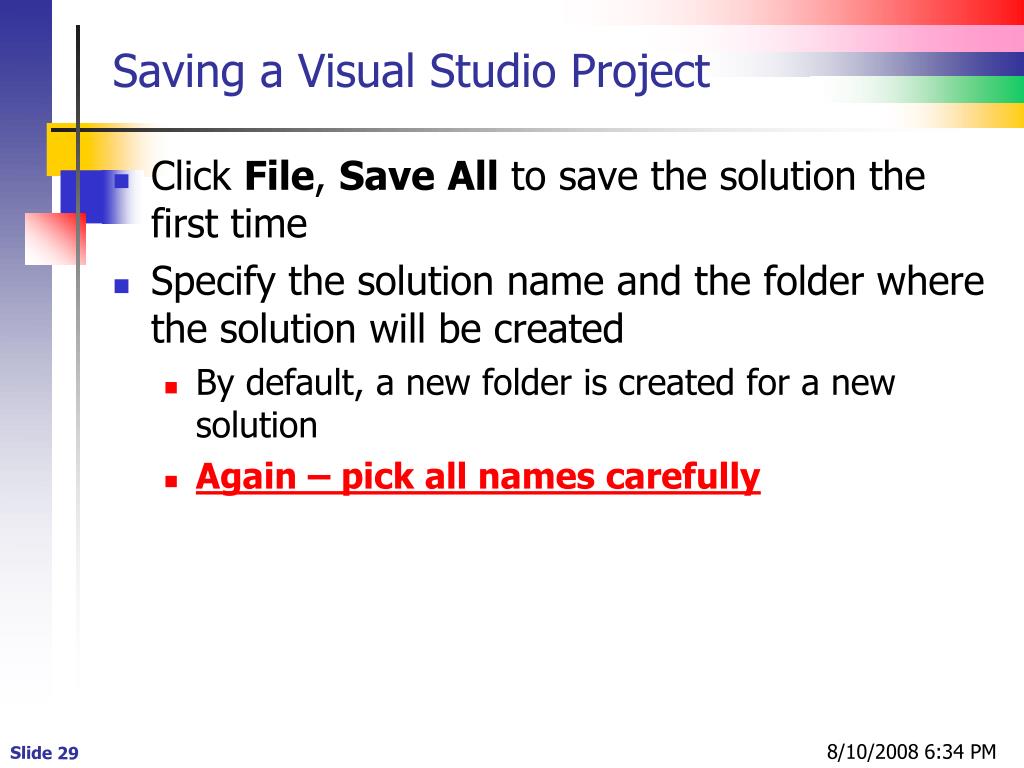

  29. Saving a Visual Studio Project • Click File, SaveAll to save the solution the first time • Specify the solution name and the folder where the solution will be created • By default, a new folder is created for a new solution • Again – pick all names carefully

  30. Save Project Dialog Box

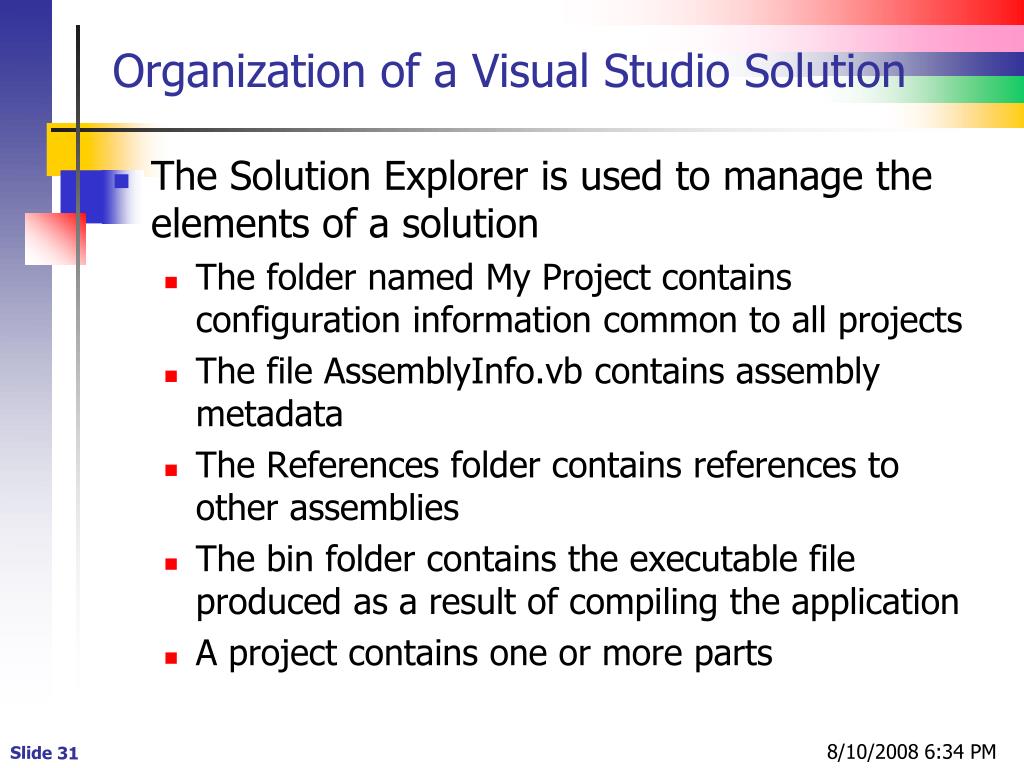

  31. Organization of a Visual Studio Solution • The Solution Explorer is used to manage the elements of a solution • The folder named My Project contains configuration information common to all projects • The file AssemblyInfo.vb contains assembly metadata • The References folder contains references to other assemblies • The bin folder contains the executable file produced as a result of compiling the application • A project contains one or more parts

  32. Solution Explorer with All Folders Expanded

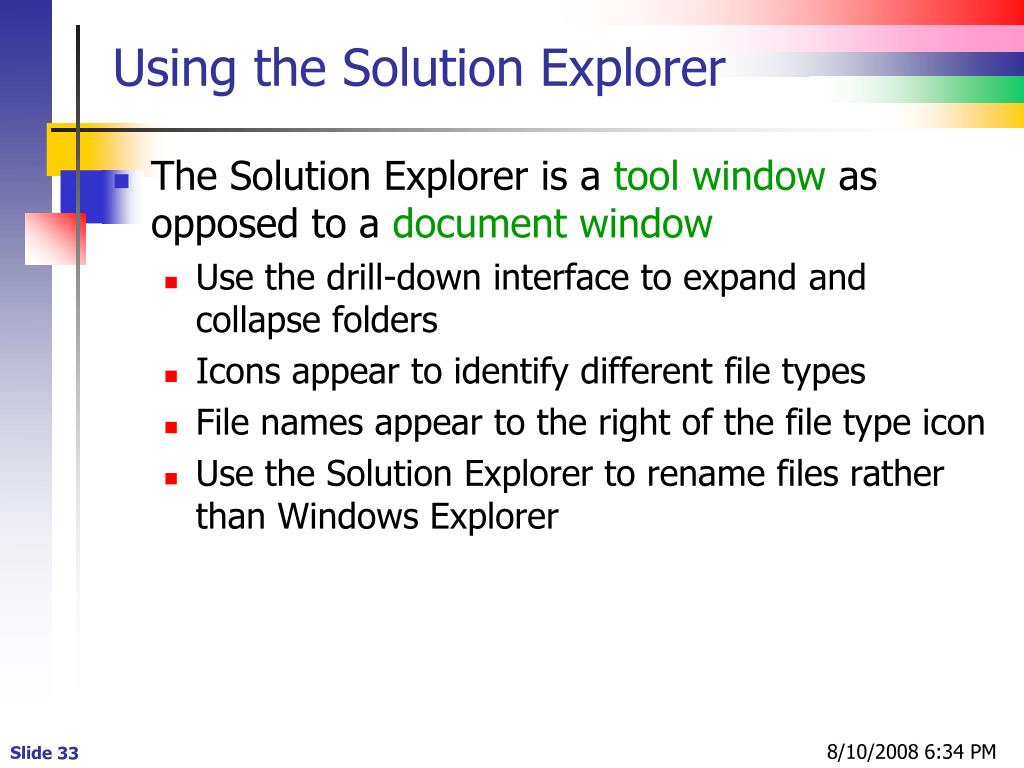

  33. Using the Solution Explorer • The Solution Explorer is a tool window as opposed to a document window • Use the drill-down interface to expand and collapse folders • Icons appear to identify different file types • File names appear to the right of the file type icon • Use the Solution Explorer to rename files rather than Windows Explorer

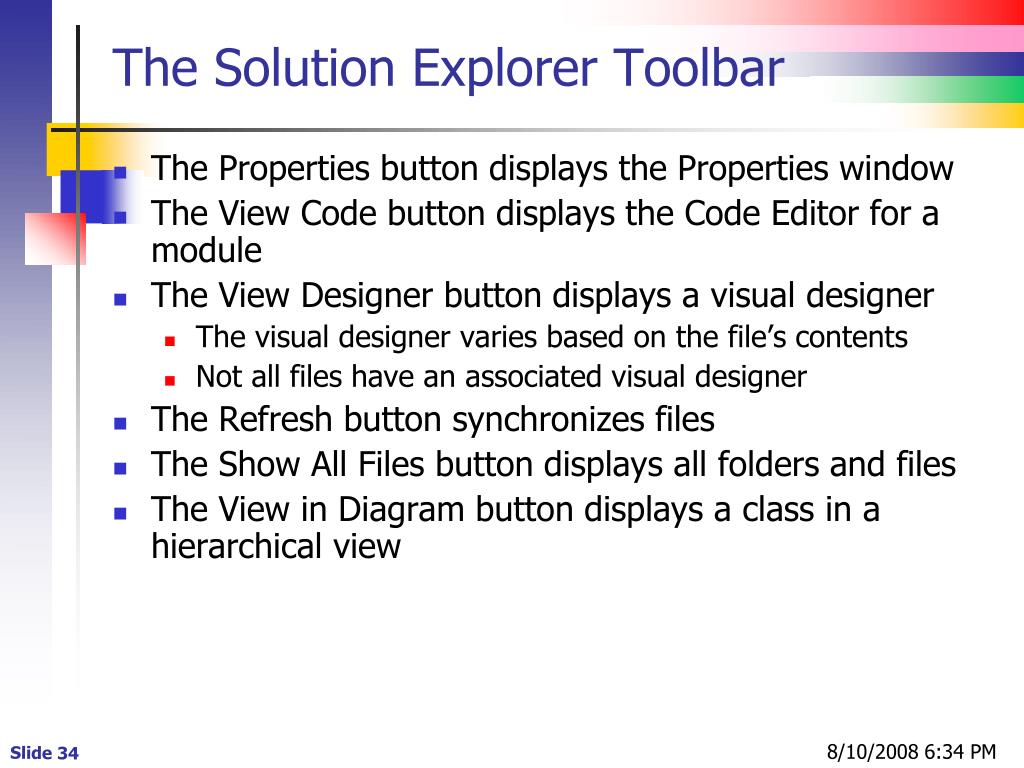

  34. The Solution Explorer Toolbar • The Properties button displays the Properties window • The View Code button displays the Code Editor for a module • The View Designer button displays a visual designer • The visual designer varies based on the file’s contents • Not all files have an associated visual designer • The Refresh button synchronizes files • The Show All Files button displays all folders and files • The View in Diagram button displays a class in a hierarchical view

  35. Windows of the Visual Studio IDE • Windows are of two types • Tool windows are common to all applications • Tool windows are used for development in all Visual Studio languages • Document windows are used to create the visual interface and code for an application

  36. Tool Windows • The Solution Explorer groups the elements of a solution • The Properties window is used to set properties for objects • The Toolbox contains controls that are created on a form • Several tool windows exist for debugging • Refer to Appendix A • The Error List window displays syntax errors • The Output window displays information as a project is compiled

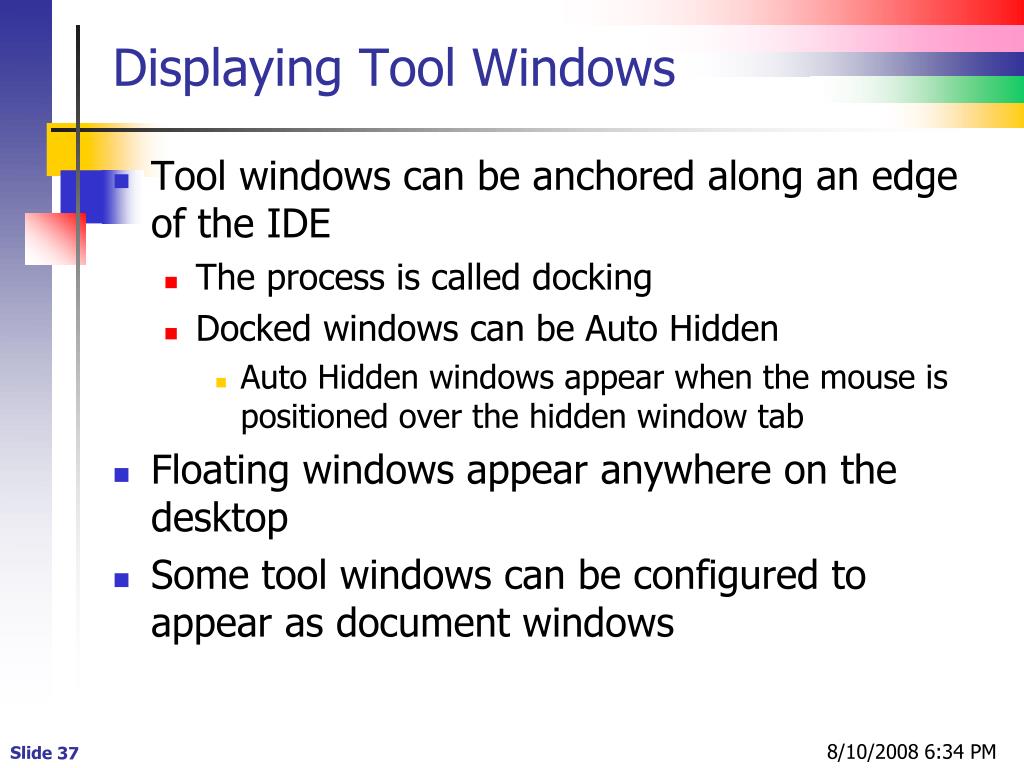

  37. Displaying Tool Windows • Tool windows can be anchored along an edge of the IDE • The process is called docking • Docked windows can be Auto Hidden • Auto Hidden windows appear when the mouse is positioned over the hidden window tab • Floating windows appear anywhere on the desktop • Some tool windows can be configured to appear as document windows

  38. Appearance of Windows in the Visual Studio IDE
