Nothing But Net … Swish into Tuesday!

Nothing But Net … Swish into Tuesday!. - Take out last night’s homework. - Take out paper for your warm up - DEAR. WARM UP: Show all your work!. -6  4  -6  4 . 1) 5 p − 14 = 8 p + 4 2) 5 n + 34 = −2(1 − 7 n ) 3) 14 = −( p − 8) 4) − 3(4 x + 3) + 4(6 x + 1) = 43

devi
Télécharger la présentation

Nothing But Net … Swish into Tuesday!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

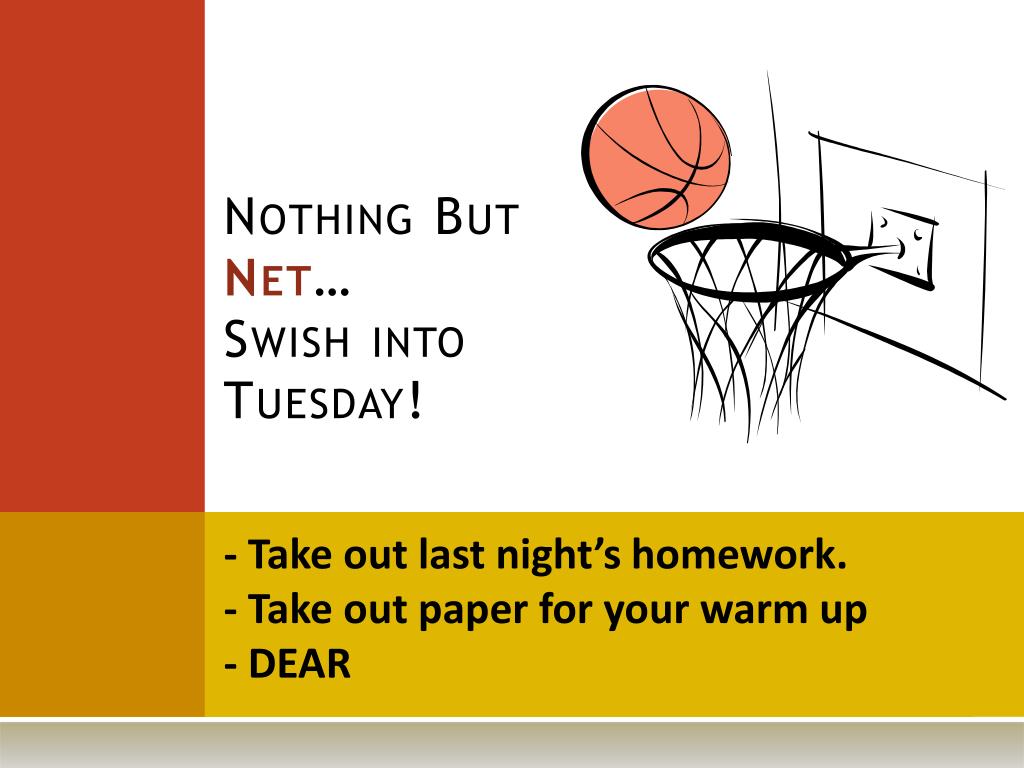

  1. Nothing But Net…Swish into Tuesday! - Take out last night’s homework. - Take out paper for your warm up - DEAR

  2. WARM UP: Show all your work! -6 4 -6 4 • 1) 5p− 14 = 8p+ 4 • 2) 5n+ 34 = −2(1 − 7n) • 3) 14 = −(p− 8) • 4) −3(4x+ 3) + 4(6x+ 1) = 43 • # correct/ 4

  3. Let’s check last night’s homework (yesterday’s class work that you finished…) Rate yourself on how you think you did…3: “I made 3-pointers the whole game!” 2: “I was fouled a few times, but still made the free throws!” 1: “I only scored once, but at least I tried.”

  4. What is surface area?The sum of all the areas of all the surfaces of a figure Think about… • wrapping a gift • covering your math book • labels on a can • painting a room • tiling a floor or shower • WHAT ELSE CAN YOU THINK OF?

  5. How can you calculate the area of those surfaces? • Find the area of each side individually and then add them together! • One way to see this is by looking at the object’s NET. • NET: a arrangement of 2-D figures that can be folded to make a polyhedron (3-D object) • Nets allow you to see all the surfaces at one time.

  6. Net of a cube…

  7. NAME THAT NET! Cylinder Rectangular Prism CUBE Hexagonal prism Triangular prism

  8. Calculate the surface area 8 32 8 32 16 +16 112 un² 4(2) = 8 un² 4(8) = 32 un² 4(2) = 8 un² 4(8) = 32 un² What do you notice about your answers of each part? There are 2 of each! 2(8) = 16 un² 2(8) = 16 un²

  9. A closer look at a cylinder • Where do the dimensions of the NET come from? • Take a rectangular sheet of paper and label the long edge as “base” and the short edge “height” • Roll the piece of paper to form a cylinder. • What do you notice? • The “base” is the circumference of the circle • The “height” is the height of the cylinder

  10. Calculate the surface area Area of one circle: Area of BOTH circles: A= ᴫr ² 2(50.24) = 100.48 A= (3.14) (4²) A= (3.14) (16) A= 50.24 Area of Rectangle: A= bh A= (circumference)(height) A= (2ᴫr)(h) A= (2*3.14*4)(6.2) A= 25.12(6.2) A= 155.744 TOTAL Surface Area: 100.48 + 155.744 = 256.224 or about 256.2 in ² Area of the circle: A= ᴫr ² Area of a rectangle: A= bh 4 in. 4 in. 6.2 in.

  11. Class Work time…make it nothing but NET!! • Work on the handout with a partner • YES, you may use calculators, BUT you must still show your work!
