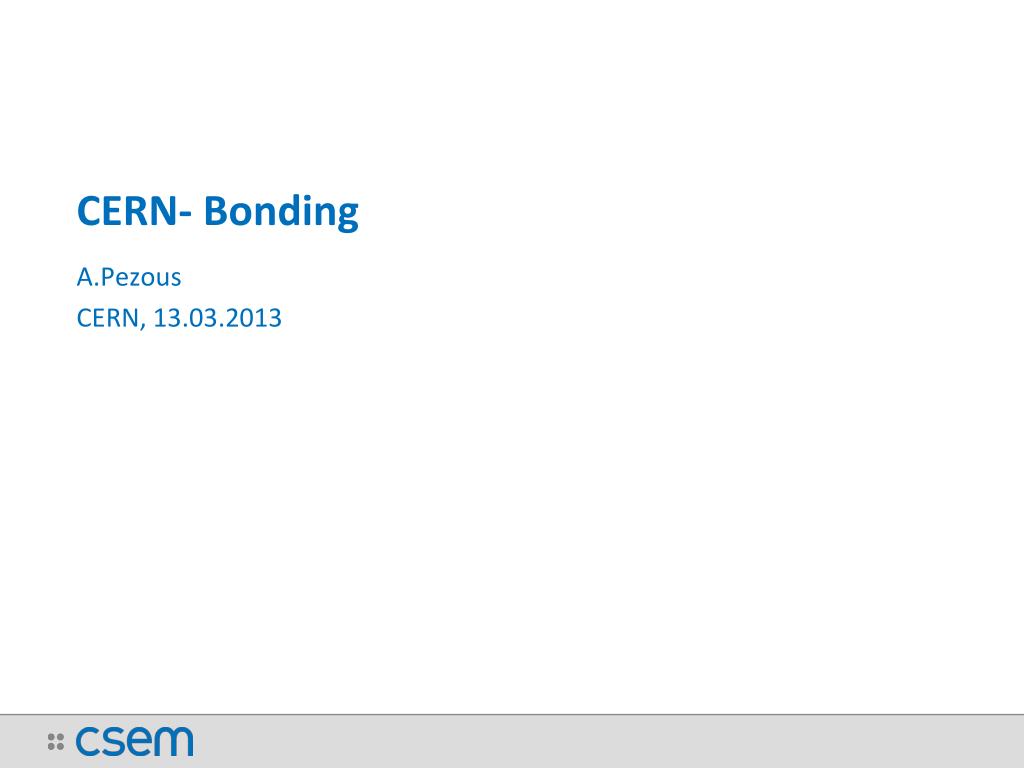

  1. CERN- Bonding A.PezousCERN, 13.03.2013

  2. Design • 2 “NA62 frame” • 2 “ATLAS” • 8 “explosions” • 10 “micro-chevron”

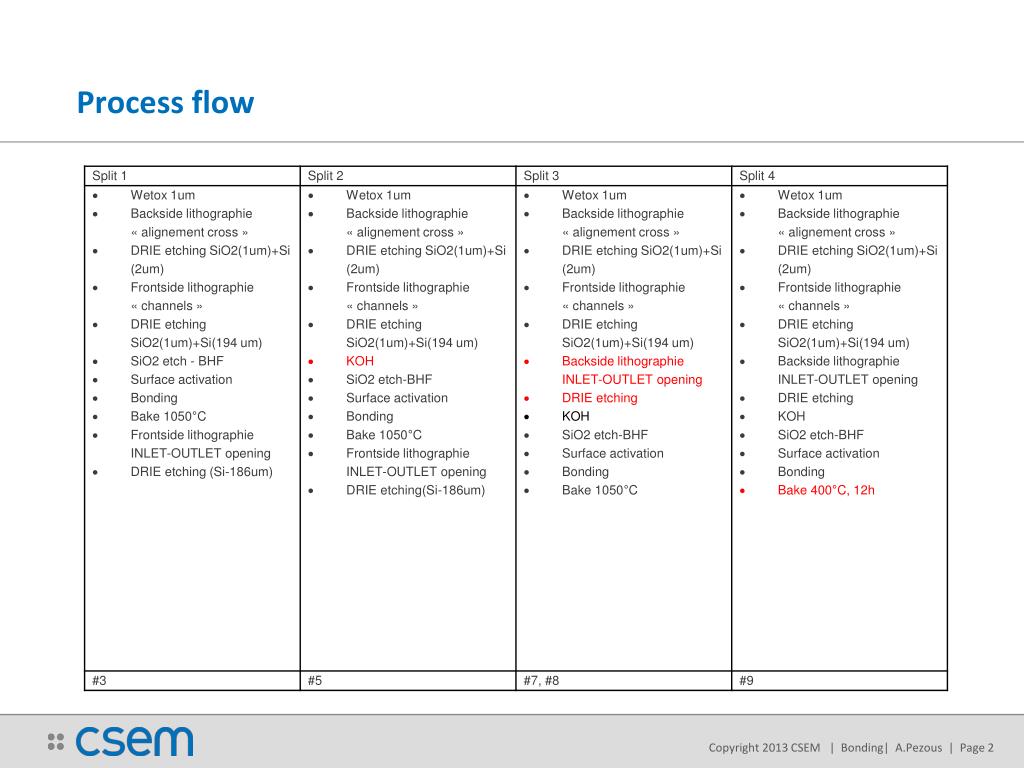

  3. Process flow

  4. Results- afteretching

  5. #3-split 1(no KOH) • Avant recuit • Après recuit

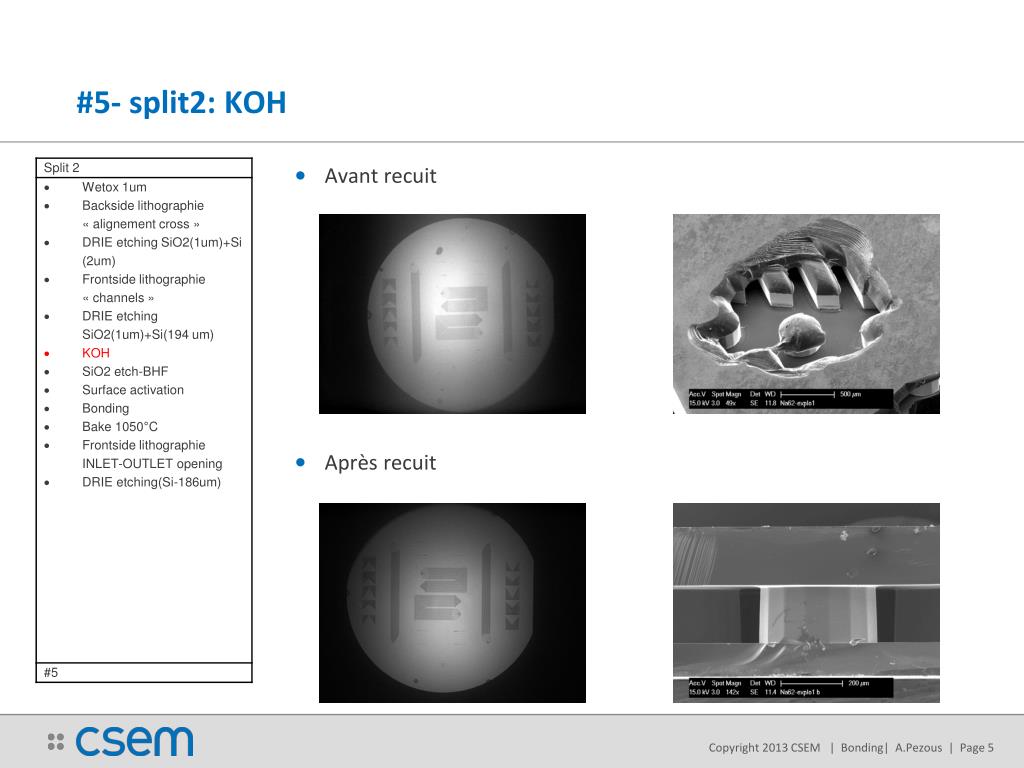

  6. #5- split2: KOH • Avant recuit • Après recuit

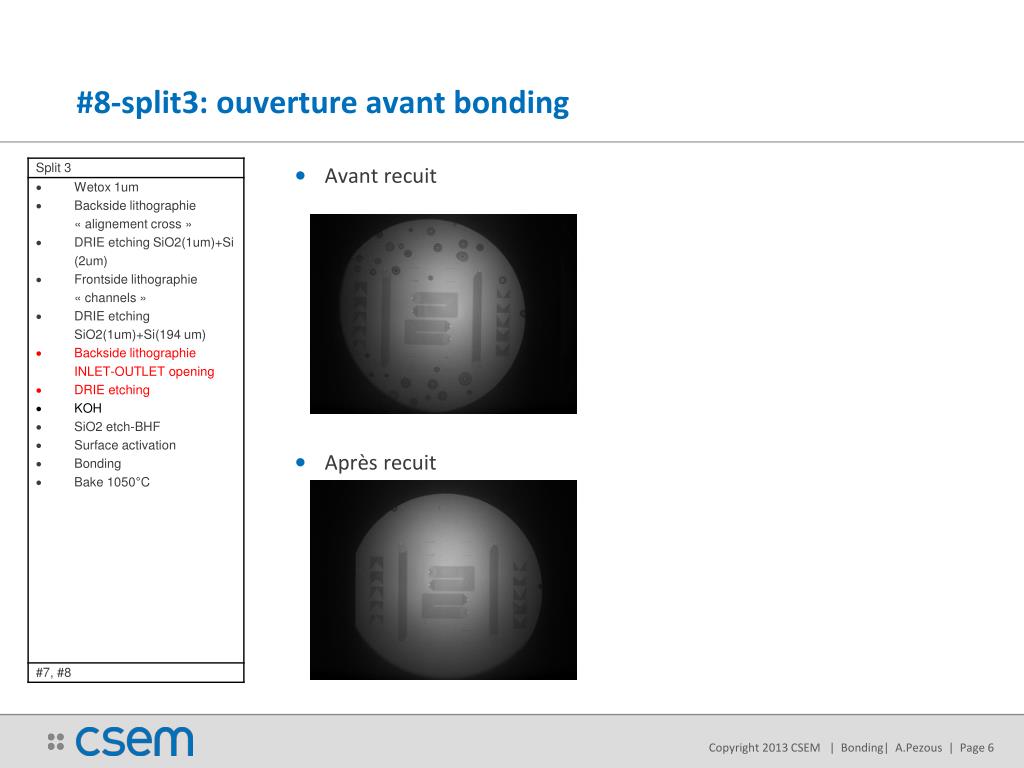

  7. #8-split3: ouverture avant bonding • Avant recuit • Après recuit

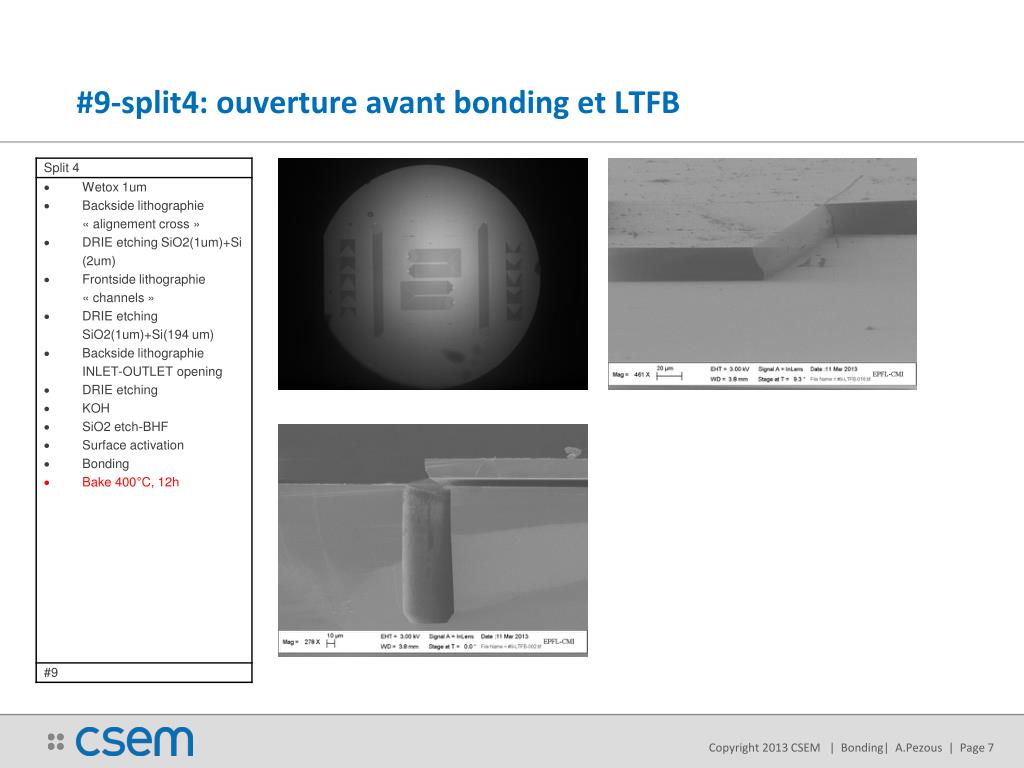

  8. #9-split4: ouverture avant bonding et LTFB

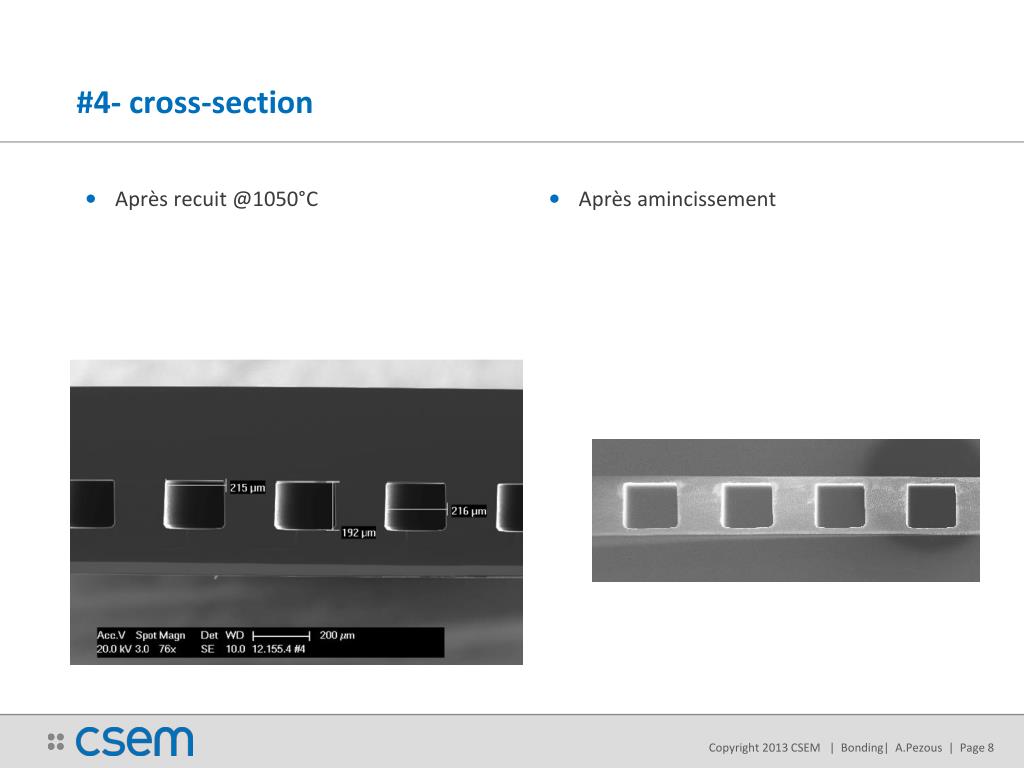

  9. #4- cross-section • Après recuit @1050°C • Après amincissement

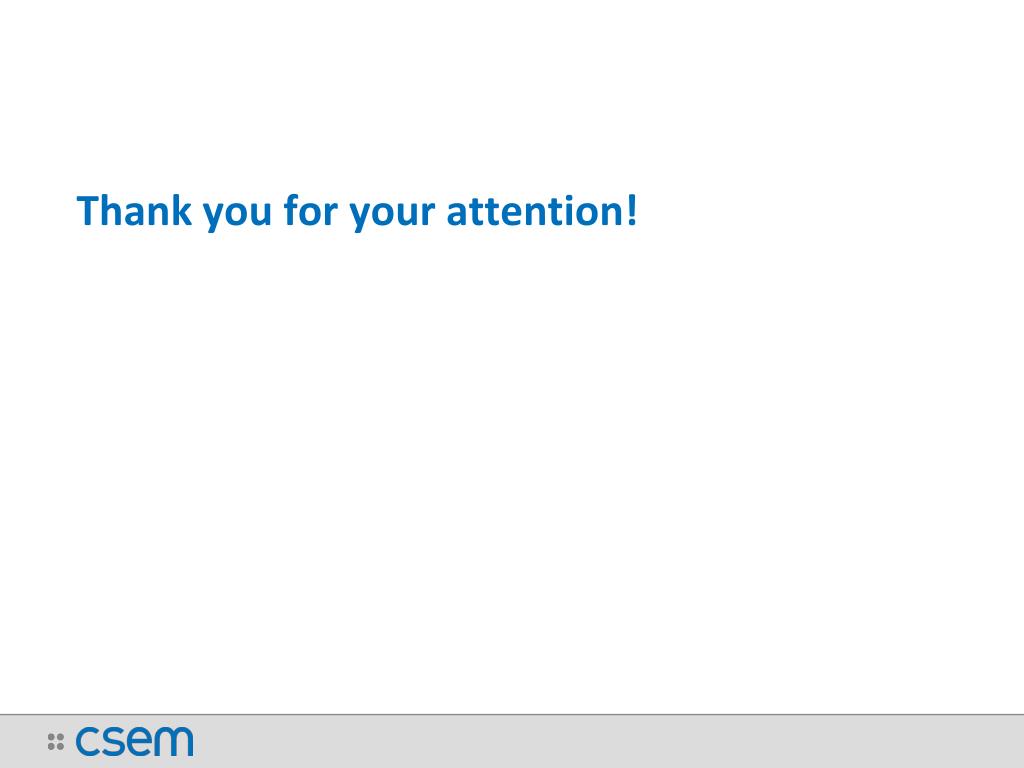

  10. Thank you for your attention!
