  1. KIPA Game Engine Seminars Day 10 Jonathan Blow Ajou University December 6, 2002

  2. Collision Detection Methods • Early today I’ll overview some of the simpler methods and talk about real-world issues about integrating them in games • bounding spheres, boxes, bsp • find time of collision, prevent tunneling • Later we’ll go to some of the more advanced collision detection schemes • GJK algorithm • Lin/Canny Closest Features

  3. Bounding Spheres • Simplest, fastest bounding volume • Least information to store • Isotropic • Means it may be a poor fit • Better fit: perhaps use the centroid, not the origin (or find the two furthest points) • But this takes more information per sphere

  4. Bounding Boxes:Axis Aligned • Don’t take much information to store • May be a poor fit for “diagonal” data • Easy to test them against each other for intersection • Abbreviated “AABB” • (“Axis-Aligned Bounding Box”)

  5. Bounding Boxes:Oriented • Better fit than AABB • But a little more complicated to compute • More complicated intersection detection • See Gottschalk’s 1998 paper • I will include this in the course notes • Unclear in the end whether it’s better than AABB or spheres • Probably depends on the nature of your data • Abbreviated “OBB” • (“Oriented Bounding Box”) • Software toolkit “RAPID”

  6. Bounding Volume Hierarchies • Method of saving computation time • It costs memory, though • Form volumes around pieces of a mesh so that you can “early-reject”

  7. BSP Tree • Can be viewed as a hierarchical bounding volume system • The split planes are spheres with infinite radius • So an individual sphere has poor spatial locality, but the hierarchy makes up for that

  8. BSP Tree • What might a BSP tree be like that didn’t use planes as its splitting surface? • Spheres of finite radius? • Other curved surfaces?

  9. Animated Meshes • How are we to adapt hierarchical bounding volumes to animated meshes? • Fully recompute every time • Try to do an incremental update, but quality will decay • Always slow!

  10. Animated Mesh Example • In Barbaric Smackdown I made a set of spheres that track the skeleton (not the mesh) • The spheres animate with the mesh, and we collide against the spheres • This is faster than colliding against the mesh • Also faster than building spheres from the mesh vertices each frame

  11. Intersection Primitives • Box/box, sphere/sphere, etc • What kind of information do they return? • What kind of information do we get from a triangle vs. triangle intersection routine?

  12. Finding the time of intersection • Necessary for good physics? • How do you do it given a triangle/triangle intersection style primitive? • Move through time in very small samples and interpolate? • Binary search through time

  13. Preventing “tunneling” • When long frame times happen, objects might pass through each other • What do we do here? • Raycasting solution • Analytic method?

  14. Closed-form intersection testfor spheres • Without acceleration • With acceleration (constant over time period)

  15. Separating Axis Theorem • Convex objects and separating planes • But we want non-convex objects! • Model them as unions of convex objects and do separate collision tests • Still very difficult (Maya is not a solid modeling program) • BSP the thing? • This can be harder than you would think • Also it produces a lot of pieces • Try to re-join the pieces?

  16. Algorithms that help usestimate collision times • Maybe tell us how much two entities are colliding, so that we can better guide our search for the collision time • Example of two spheres, or sphere vs plane

  17. GJK Collision DetectionAlgorithm • “Gilbert-Johnson-Keerthi” • Operates on convex solids • Again, that’s a problem! • Uses Minkowski sums

  18. Minkowski Sum / Minkowski Difference • (examples on whiteboard)

  19. Lin-Canny Closest Feature Tracking • Tells you the closest “features” between two objects • A feature can be a point, line segment, or face • Relies on frame coherence • (example on whiteboard)

  20. Hierarchical Bounding VolumeQuantization/Packing • Sphere tree, bounding box tree • Exploit multiscale nature of hierarchy • BSP Tree • Exploit recurrence of plane equations

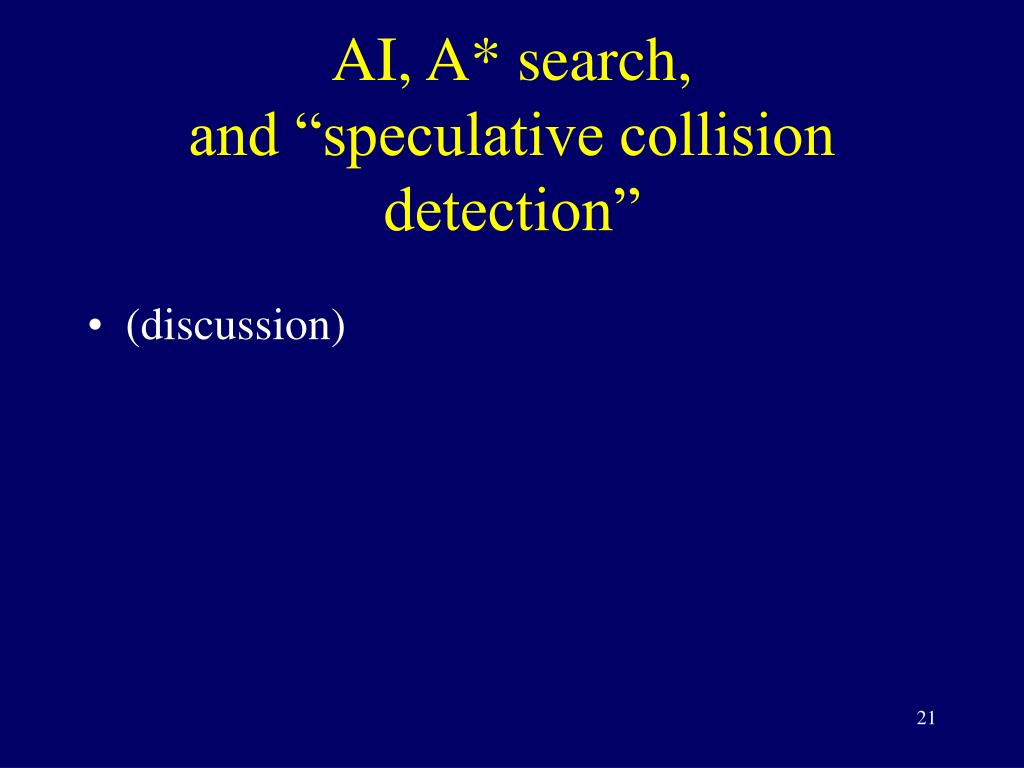

  21. AI, A* search,and “speculative collision detection” • (discussion)

  22. Higher-Level Scene Management • Indoor shooter level • BSP • Portals • Terrain • Flight / Space Sim / Heavily occupied environment
