Mink Dissection

Mink Dissection. Practice Practical. Identify these muscles. Close up. Answer. Rectus Femoris Gracilis. Identify this muscle. Answer. 3. Clavotravezius. Identify this muscle. Answer. 4. Serratus ventralis ( Serratus anterior in humans).

dex
Télécharger la présentation

Mink Dissection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Mink Dissection Practice Practical

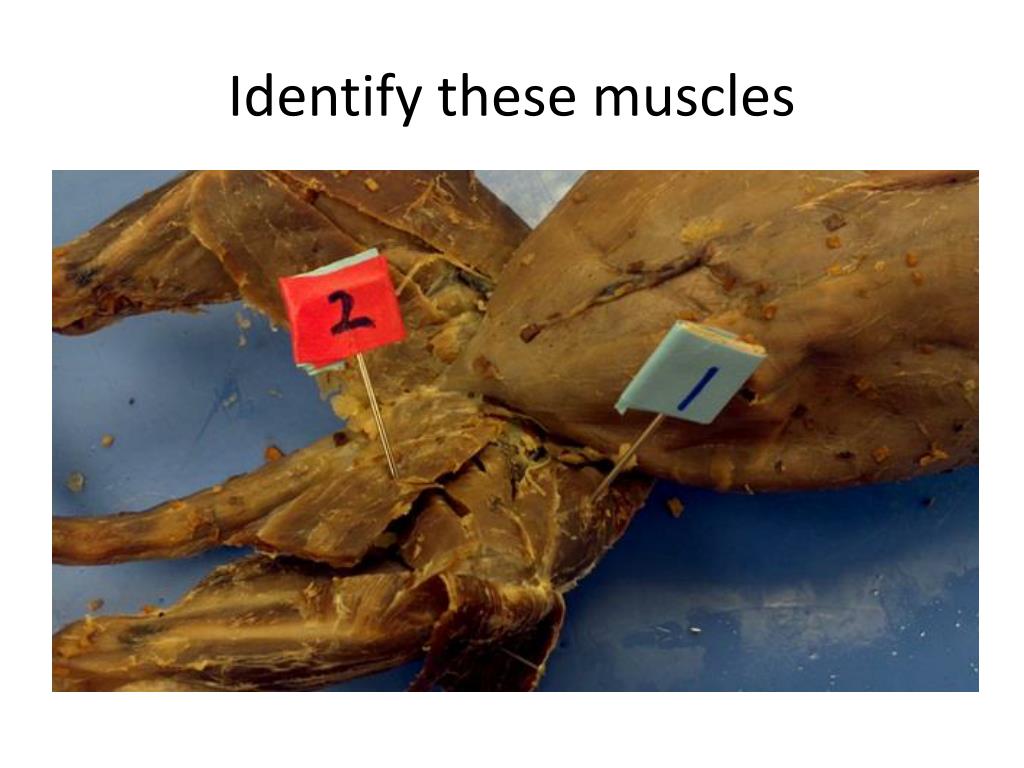

  2. Identify these muscles

  3. Close up

  4. Answer • Rectus Femoris • Gracilis

  5. Identify this muscle

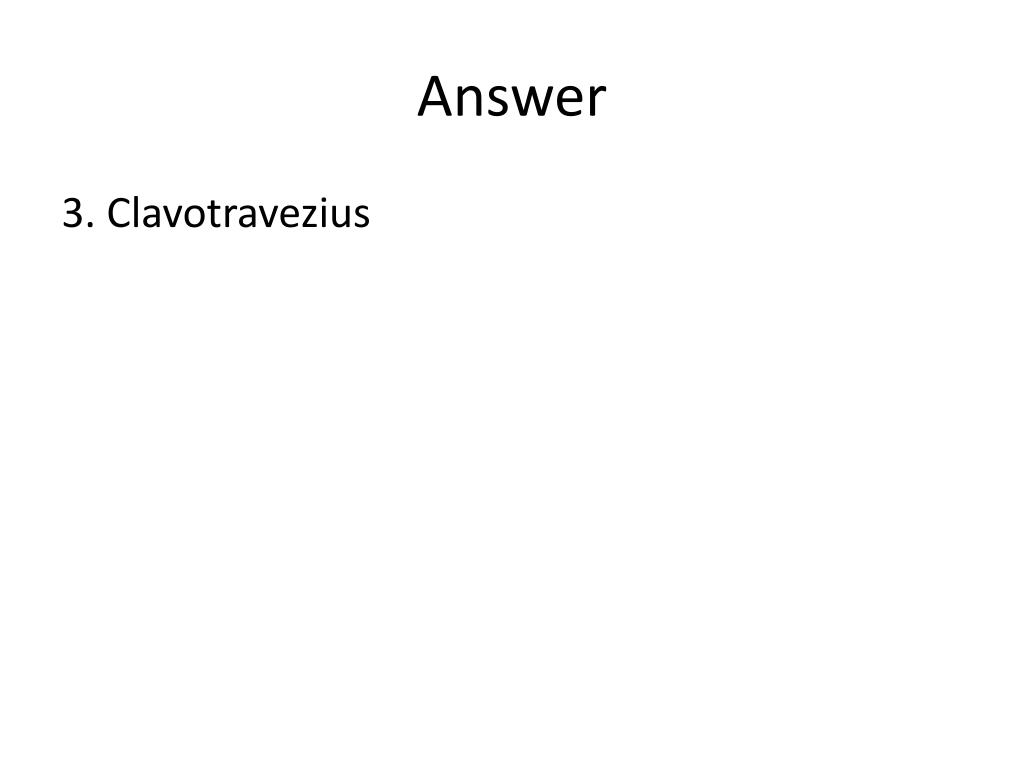

  6. Answer 3. Clavotravezius

  7. Identify this muscle

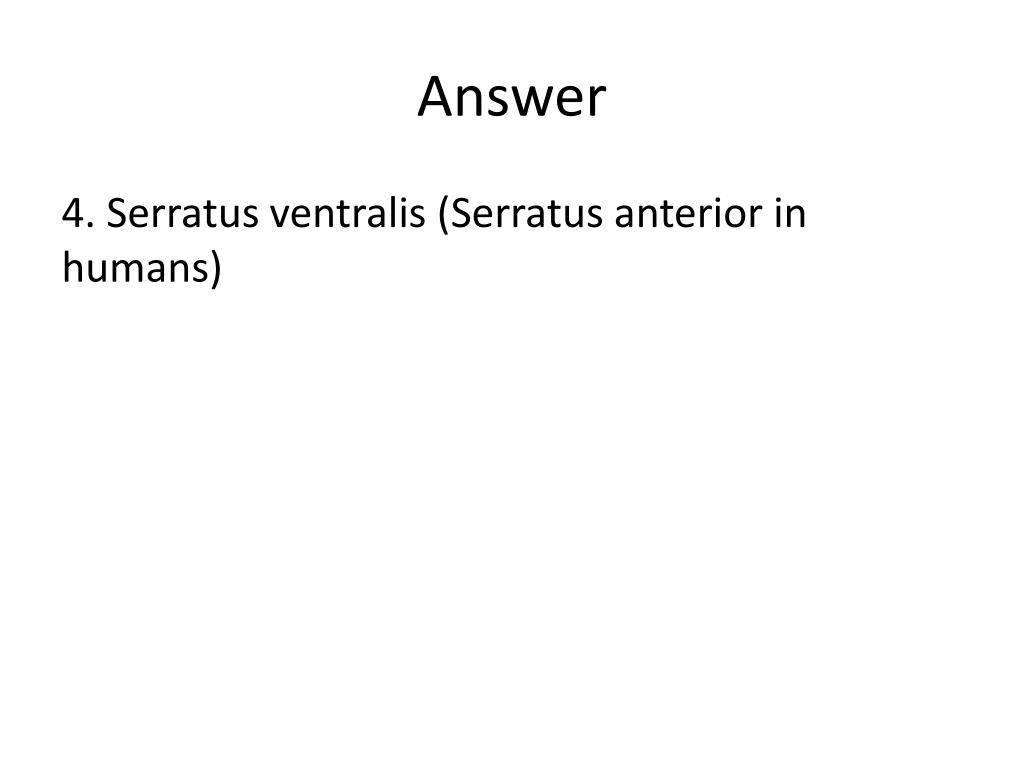

  8. Answer 4. Serratusventralis (Serratus anterior in humans)

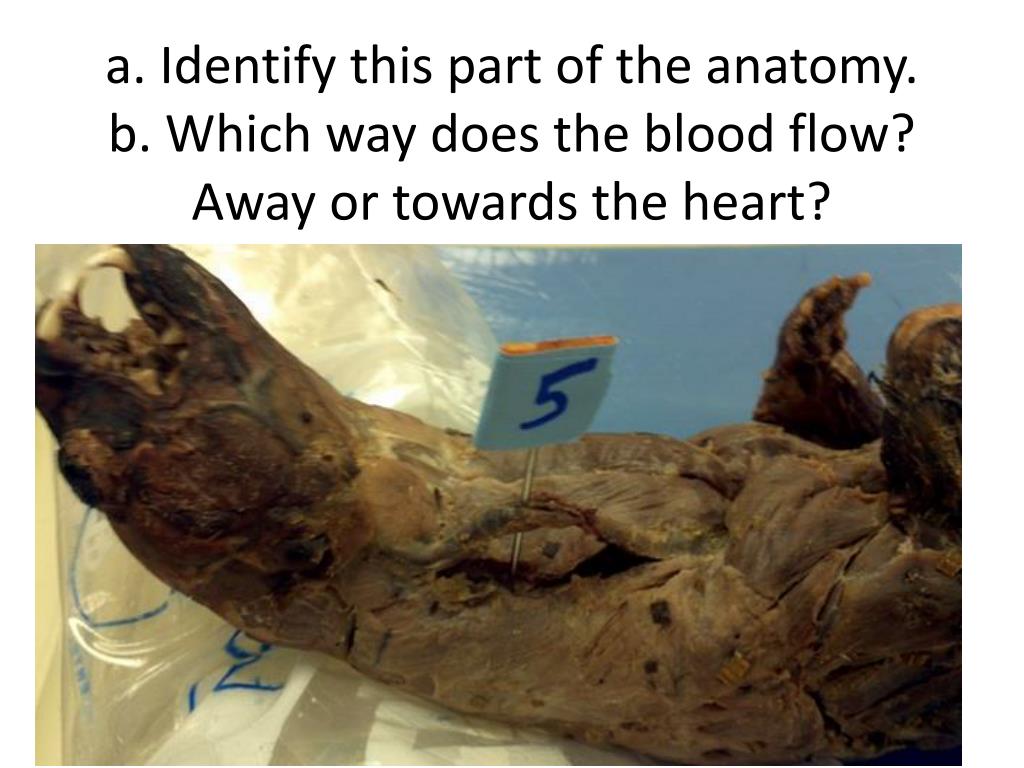

  9. a. Identify this part of the anatomy. b. Which way does the blood flow? Away or towards the heart?

  10. Answer 5. a. External jugular vein. b. Blood flows towards the heart, through superior vena cava to the right atrium.

  11. a. Identify this muscle.b. What bone is the insertion?

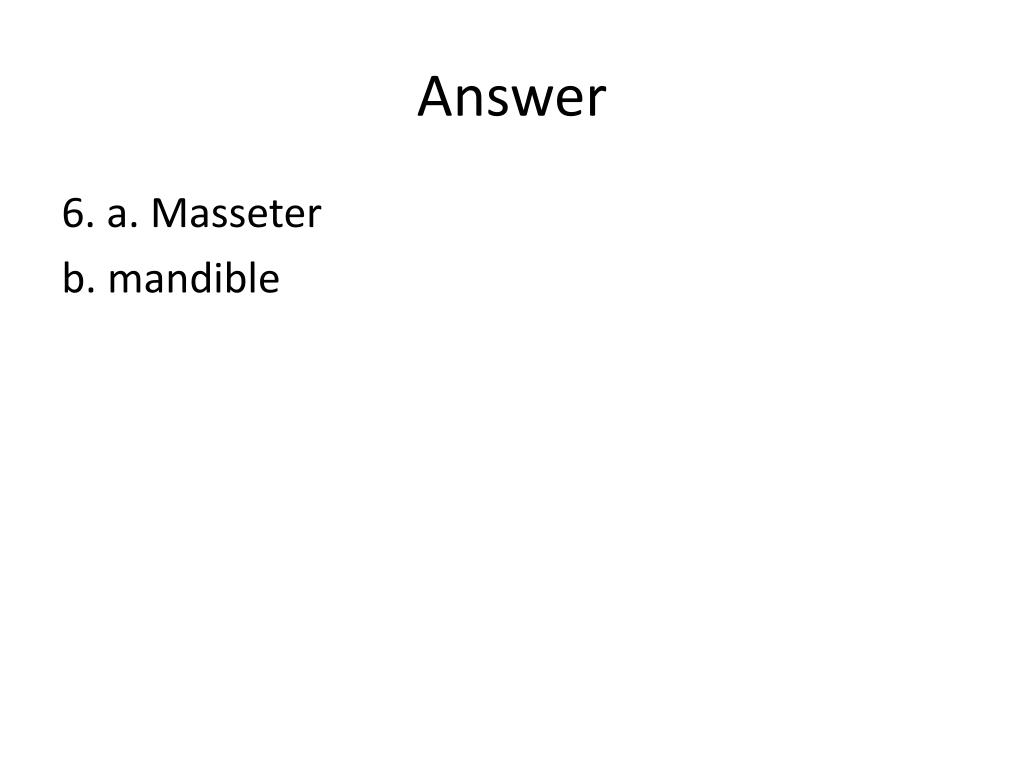

  12. Answer 6. a. Masseter b. mandible

  13. Identify this muscle (dorsal surface)

  14. Answer 7. LatissimusDorsi

  15. a. Identify this muscleb. Is it an abductor or adductor?

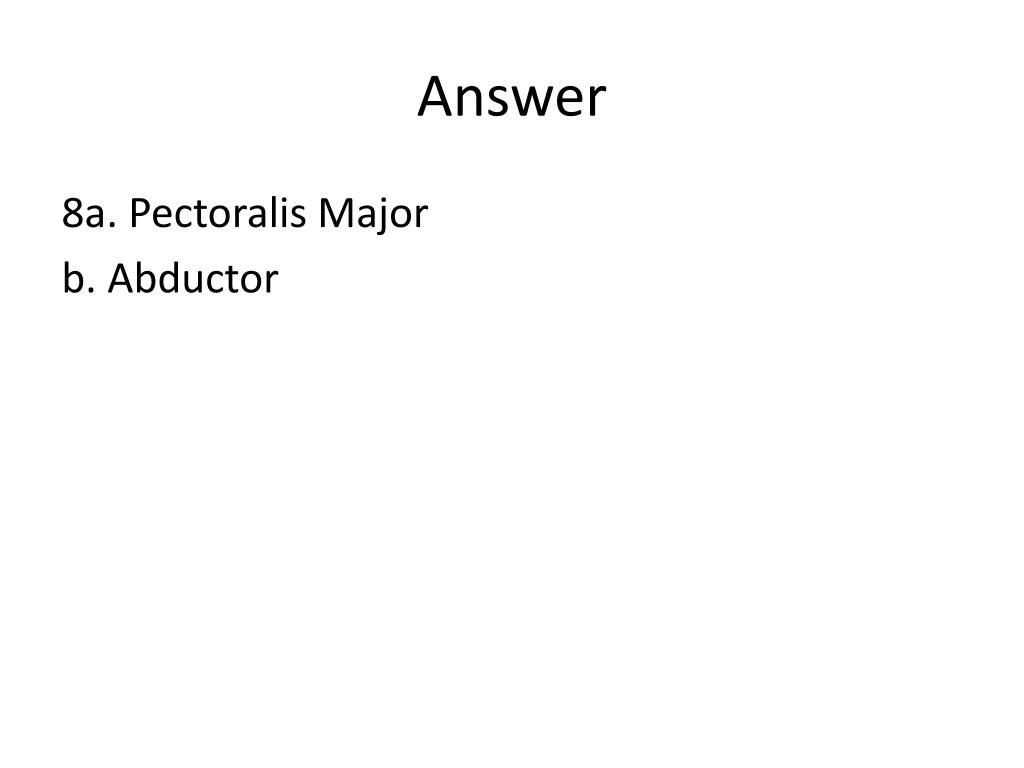

  16. Answer 8a. Pectoralis Major b. Abductor

  17. Identify this muscle

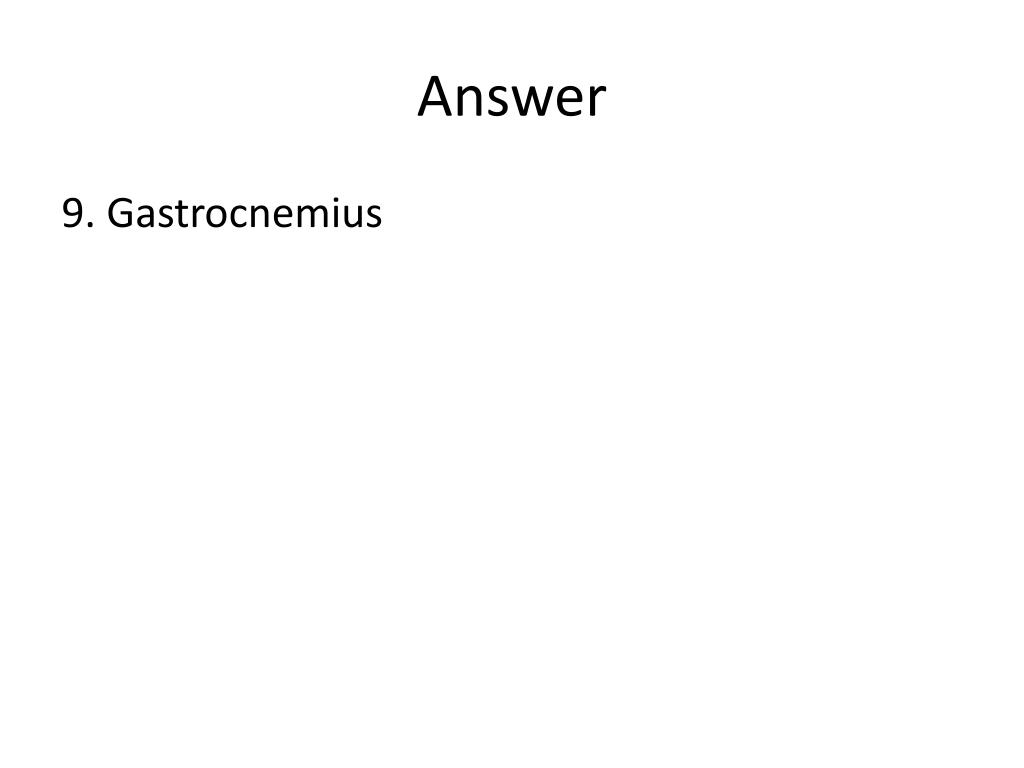

  18. Answer 9. Gastrocnemius

  19. 10. Identify this lifted disc.b. What is its function?

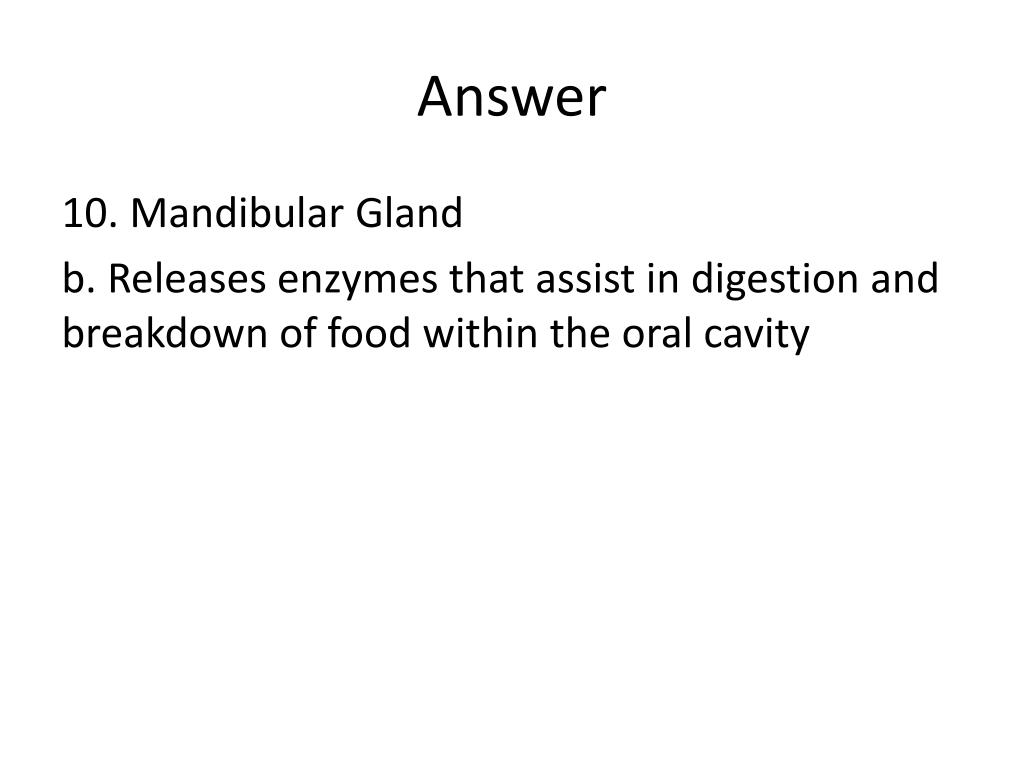

  20. Answer 10. Mandibular Gland b. Releases enzymes that assist in digestion and breakdown of food within the oral cavity

  21. a. Identify the the muscle labeled 11b. Break-down and define the latin roots that make up the name of this muscle.

  22. Different view of previous slide

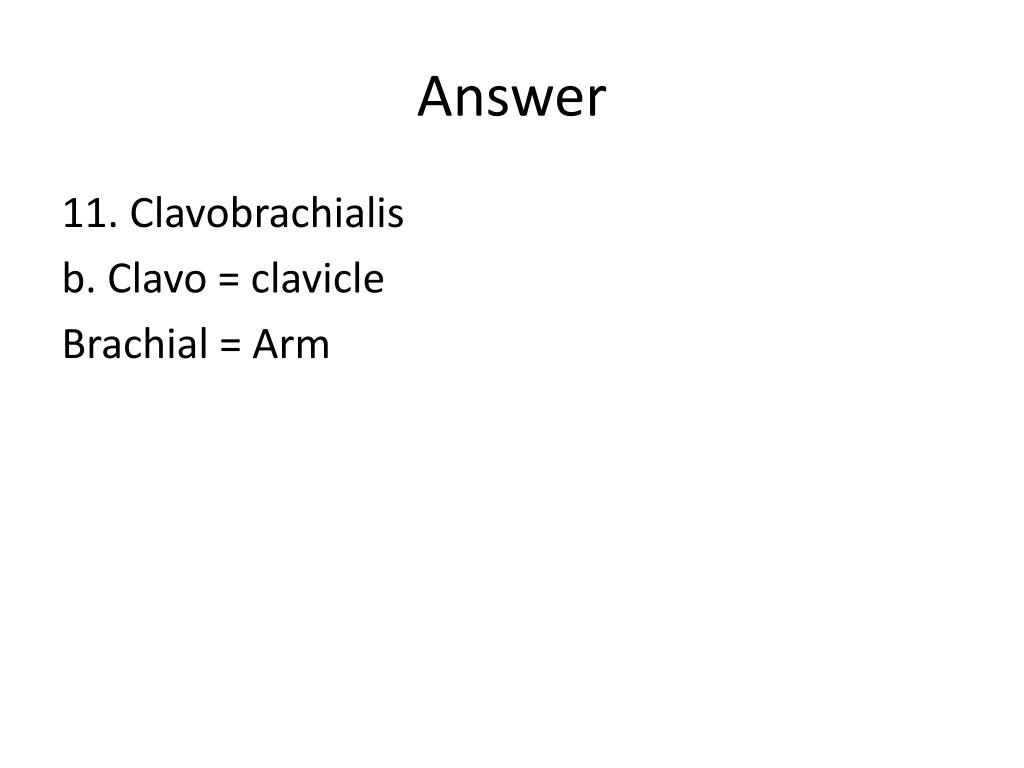

  23. Answer 11. Clavobrachialis b. Clavo = clavicle Brachial = Arm

  24. Identify this muscle(Anterior view of let, with sartorius lifted)

  25. Another View of Previous Slide

  26. Answer 12. Vastusmedialis

  27. Identify these muscles

  28. Close-up of 13

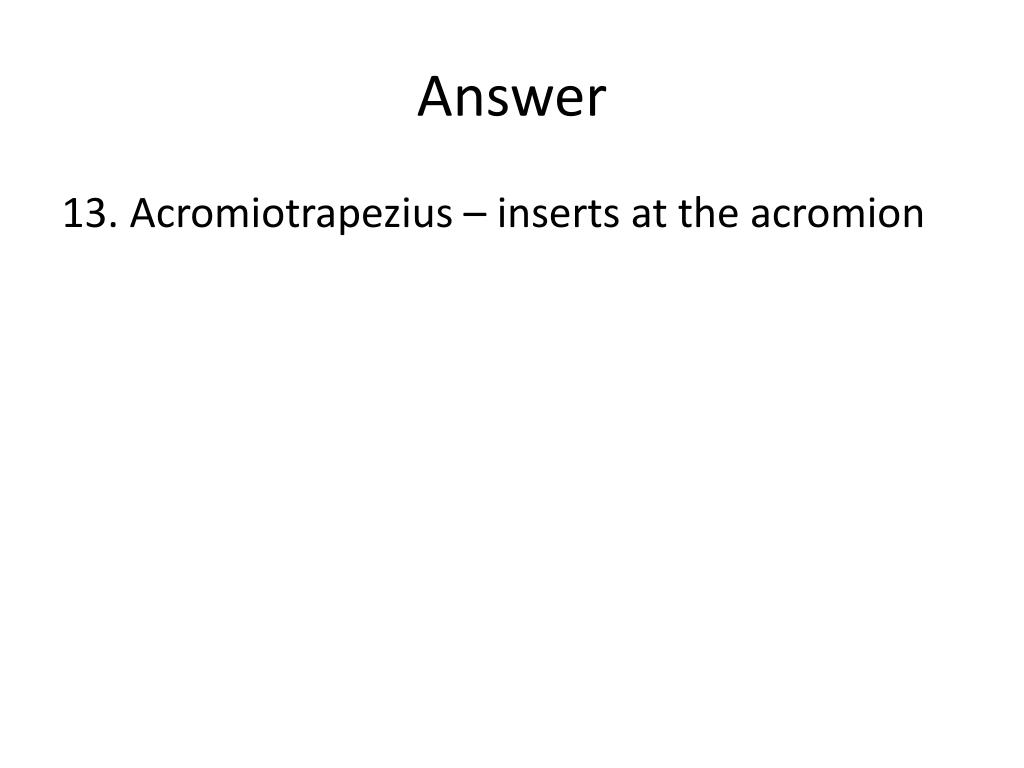

  29. Answer 13. Acromiotrapezius – inserts at the acromion

  30. Close up of 14

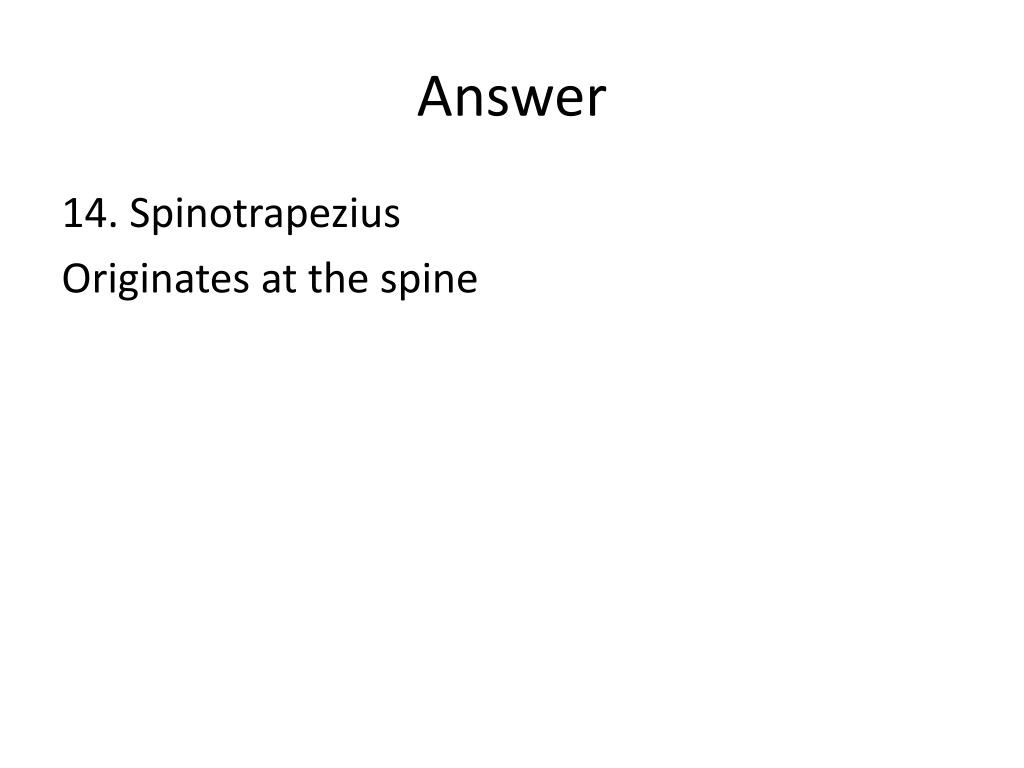

  31. Answer 14. Spinotrapezius Originates at the spine

  32. Identify this muscle

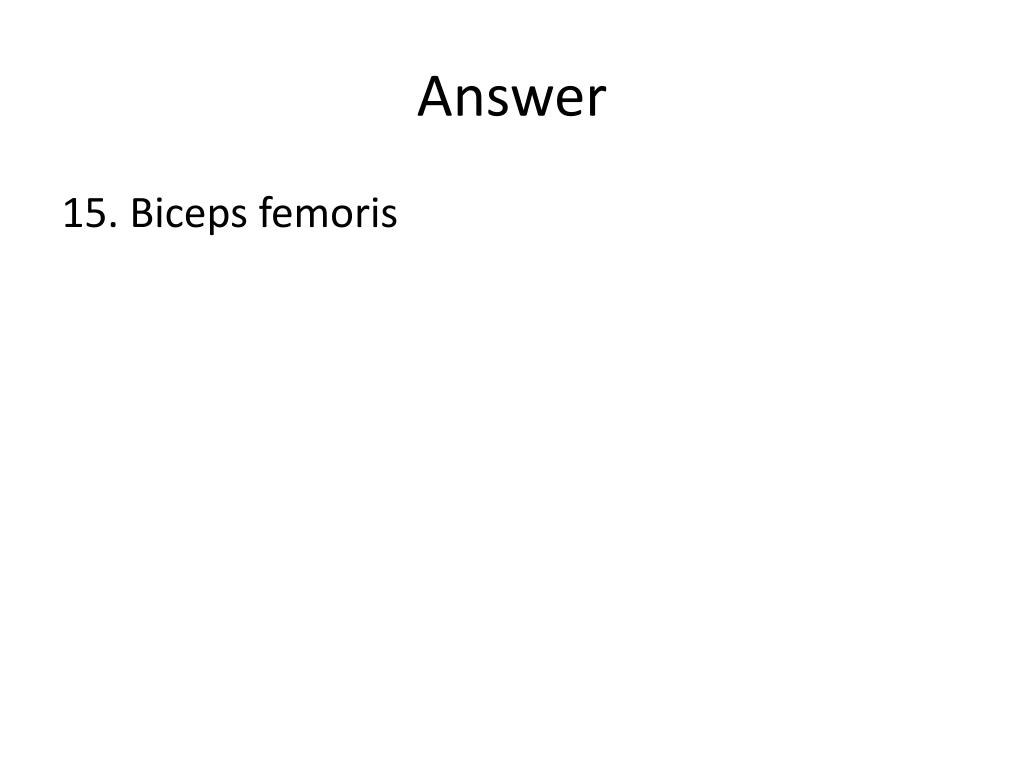

  33. Answer 15. Biceps femoris

  34. Identify this muscle (lateral view of leg)

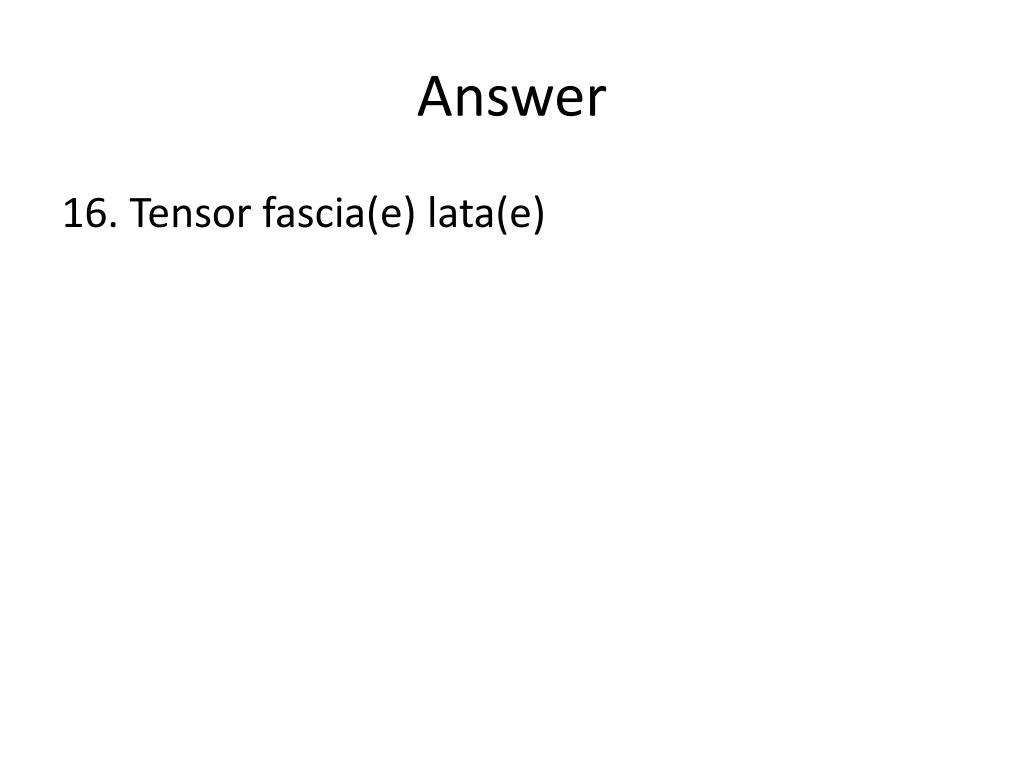

  35. Answer 16. Tensor fascia(e) lata(e)

  36. Identify this muscle

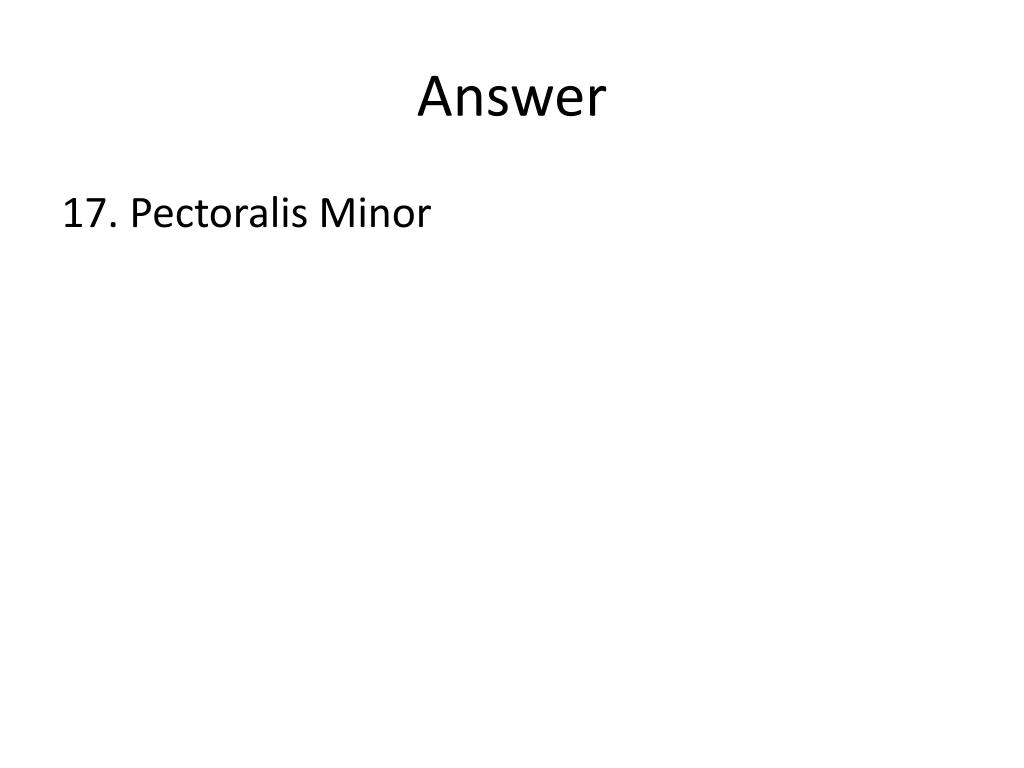

  37. Answer 17. Pectoralis Minor

  38. Identify this muscle (Extra Credit – deep neck)

  39. Close-Up of 18

  40. Answer 18. Splenius

  41. Identify the muscle labeled 19. (Extra Credit)Identify the muscle labeled “B” - mandatory

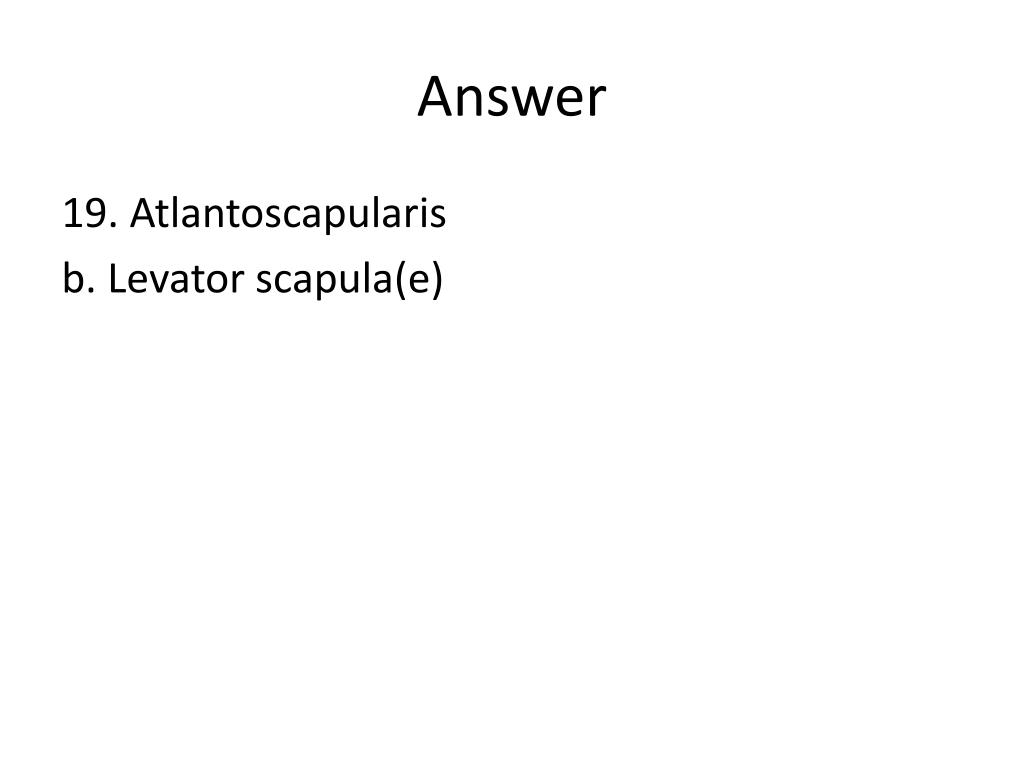

  42. Answer 19. Atlantoscapularis b. Levator scapula(e)

  43. Identify this muscle

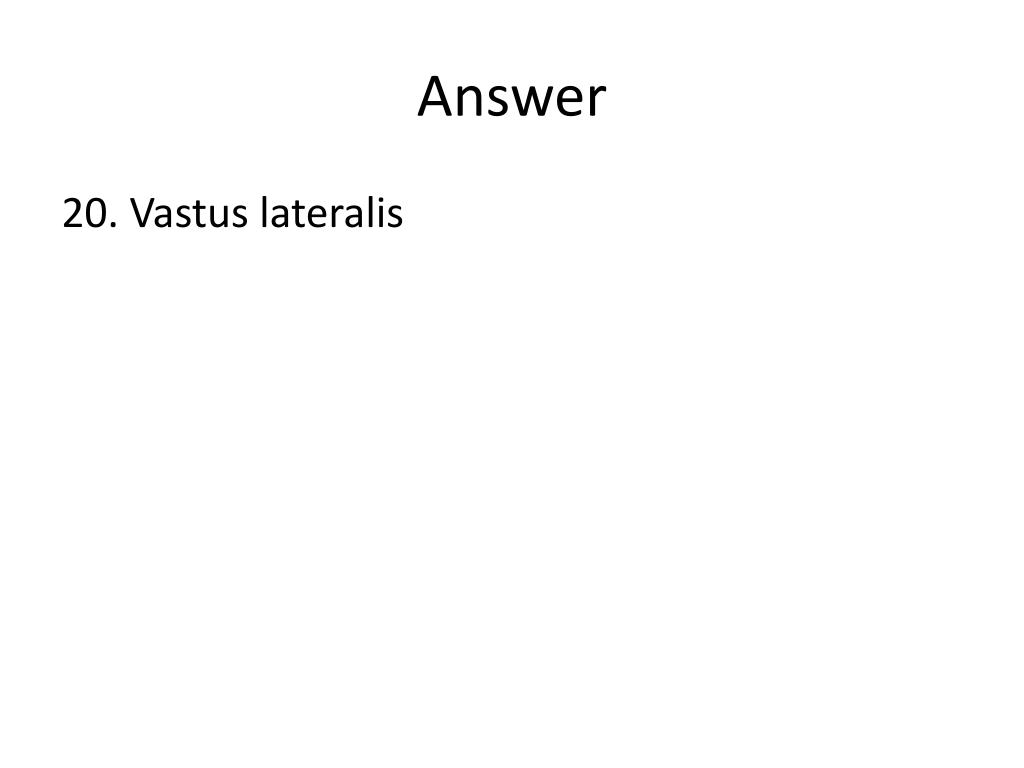

  44. Answer 20. Vastuslateralis

  45. Identify 21 Is this muscle directly or indirectly attached?

  46. Answer 21. Temporalis b. Direct attachment

  47. Identify this muscle

  48. Answer 22. Semi-tendinosus

  49. Identify this muscle (superficial on leg)

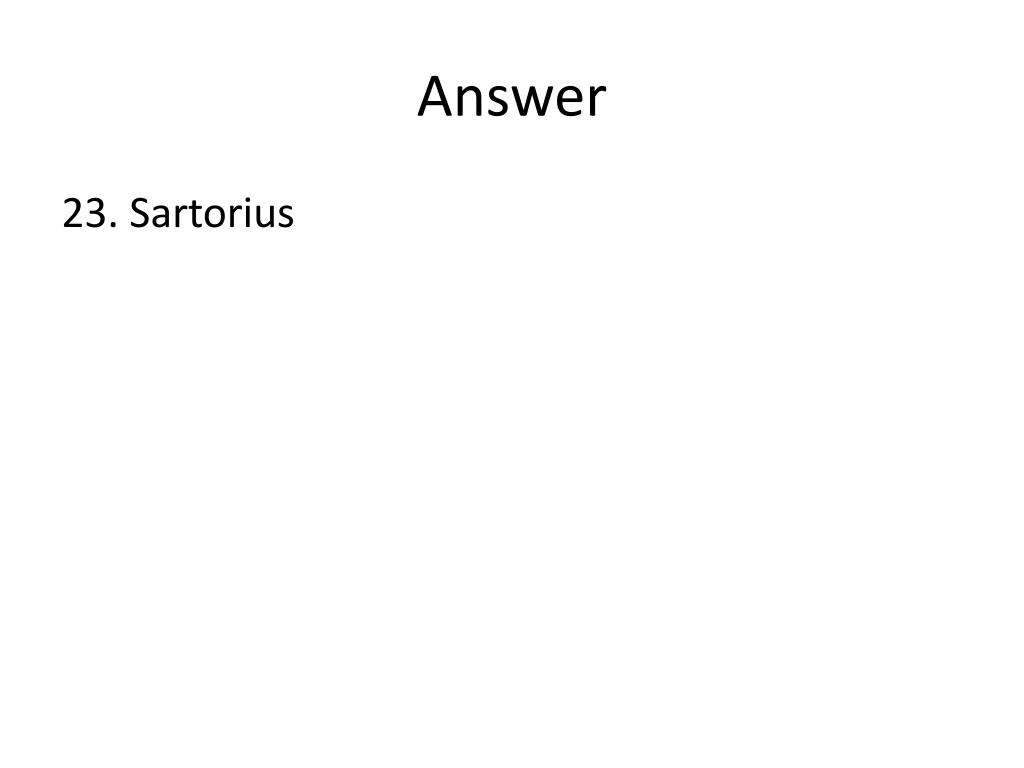

  50. Answer 23. Sartorius
