  1. Further Wing Checks T. Brown 1/25/06 MC to MC gaps.ppt

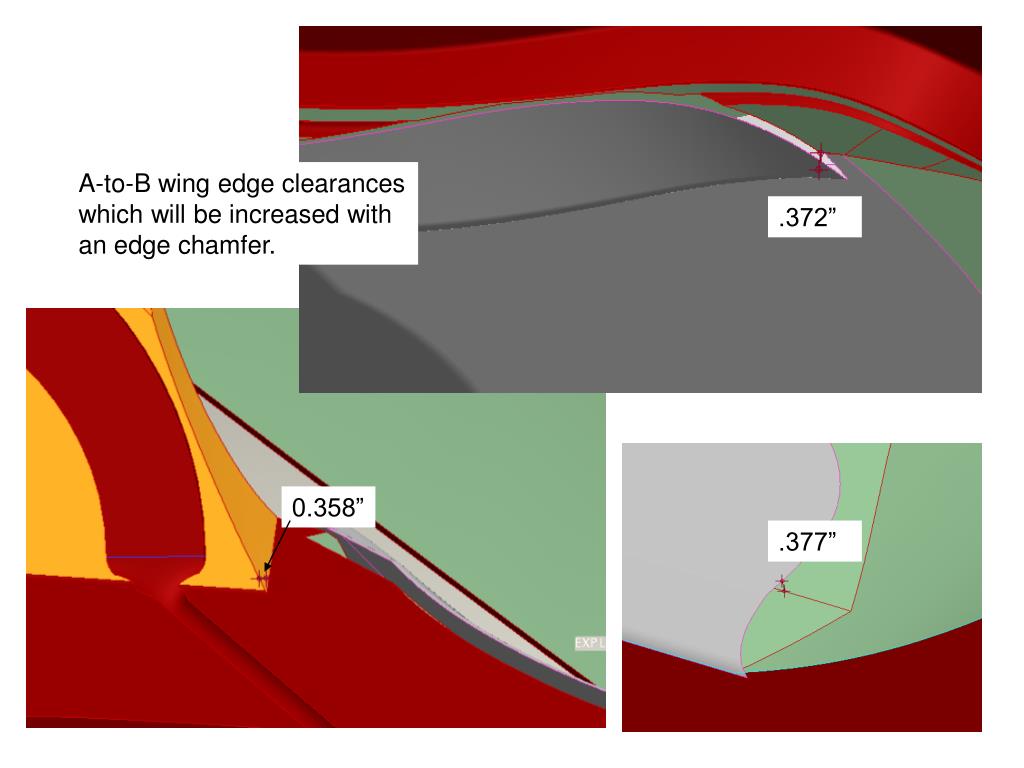

  2. 0.358” A-to-B wing edge clearances which will be increased with an edge chamfer. .372” .377”

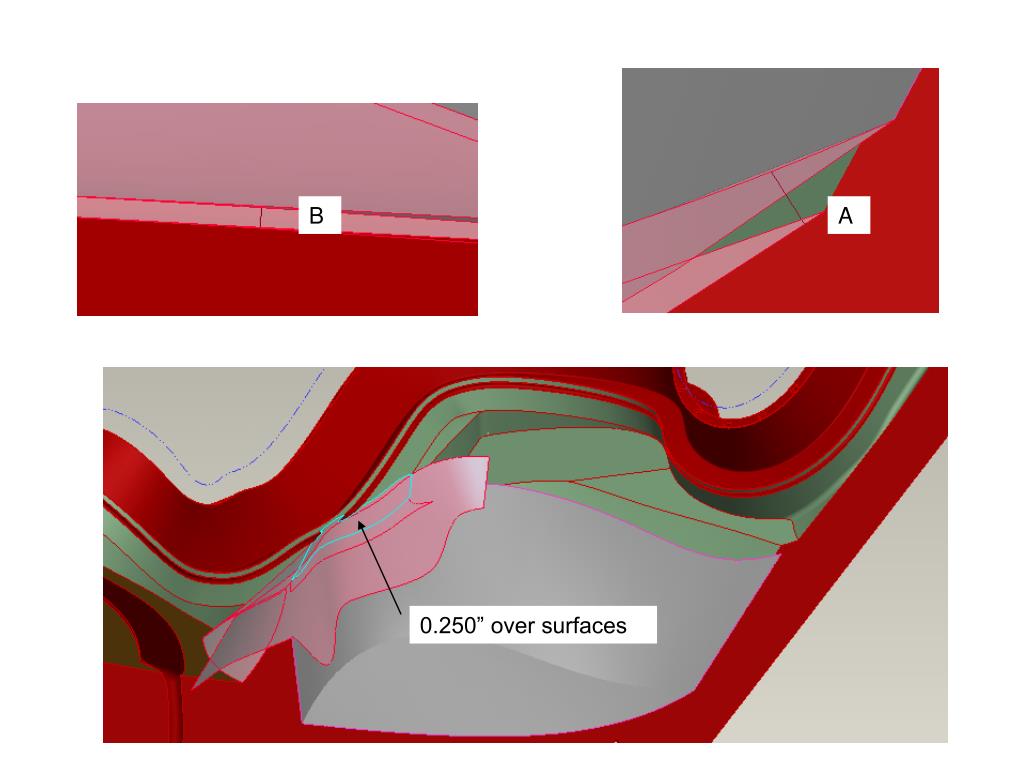

  3. Type-C to Type-B wing interface B 0.250” over surfaces 0.250” A See next VG for further details

  4. B A 0.250” over surfaces

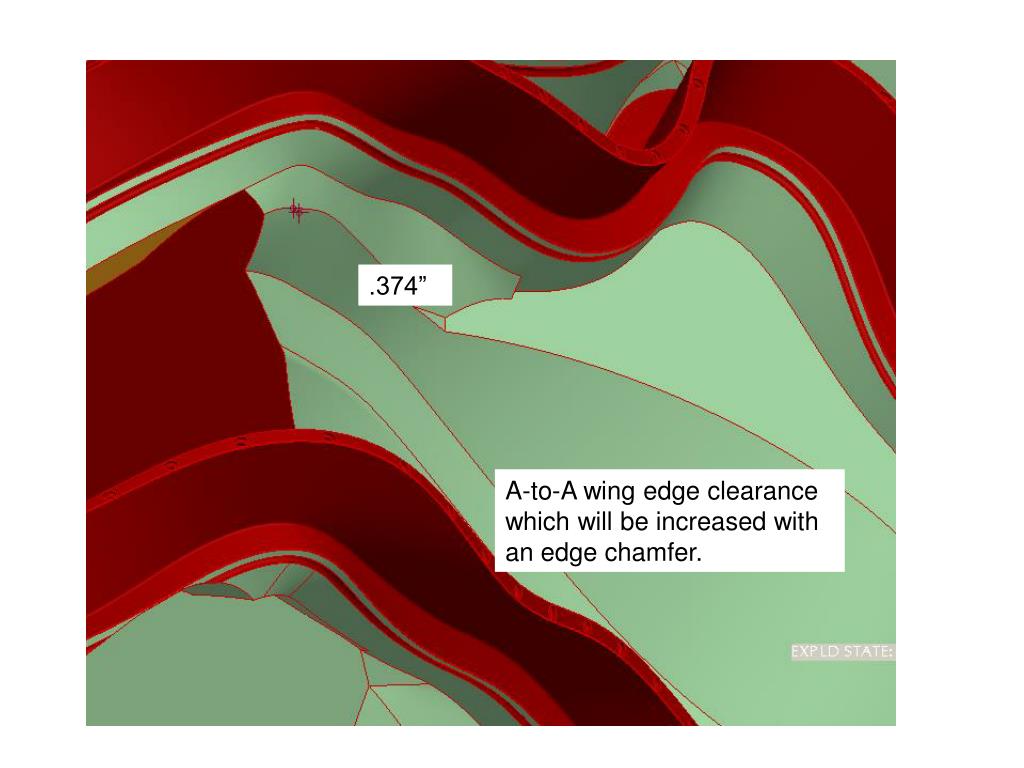

  5. .374” A-to-A wing edge clearance which will be increased with an edge chamfer.

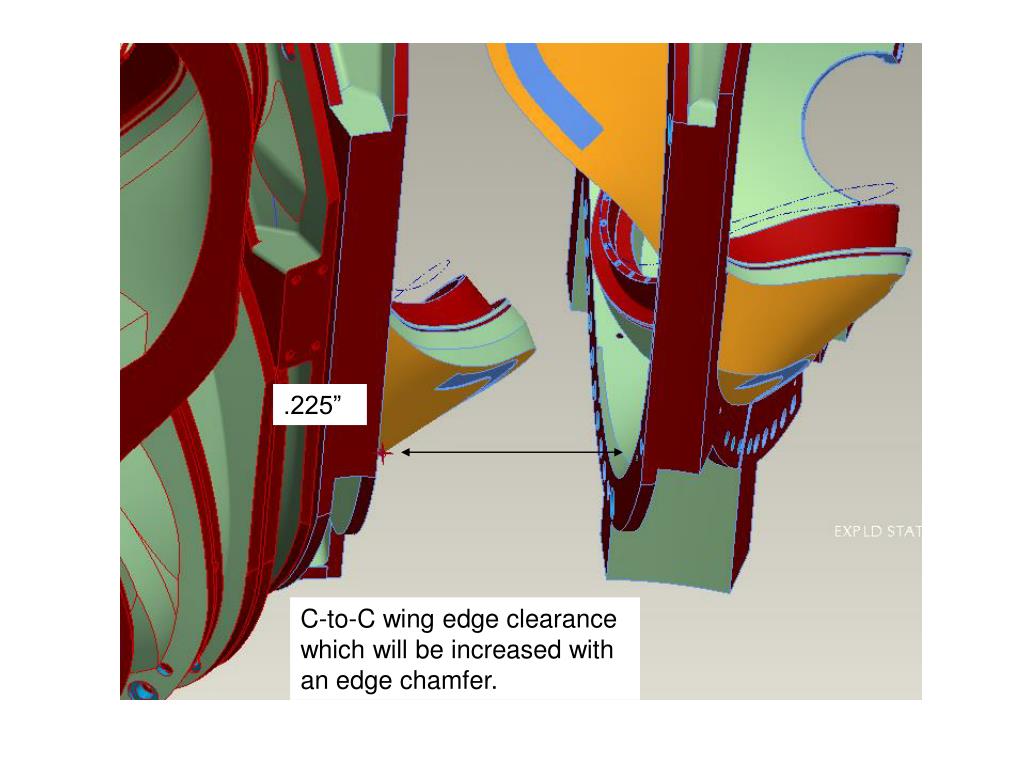

  6. .225” C-to-C wing edge clearance which will be increased with an edge chamfer.
