  1. 3-Dimensional Views Existing spillway construction

  2. 3-Dimensional Views First concrete pour inside spillway (summer 2013)

  3. 3-Dimensional Views New concrete pier extensions (summer 2014) This work takes place “in the dry” behind a sheet pile cofferdam

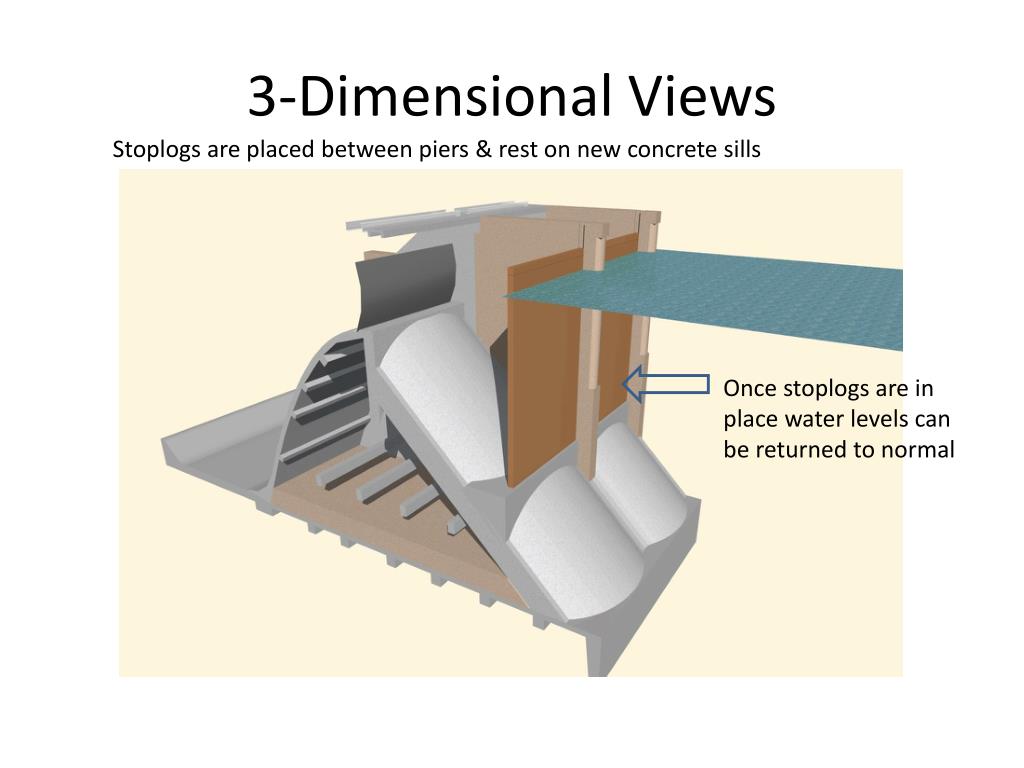

  4. 3-Dimensional Views Stoplogs are placed between piers & rest on new concrete sills Once stoplogs are in place water levels can be returned to normal

  5. 3-Dimensional Views Construction work taking place between 2015 and 2016 Existing gate and bridge are removed More concrete is poured in the base of the spillway

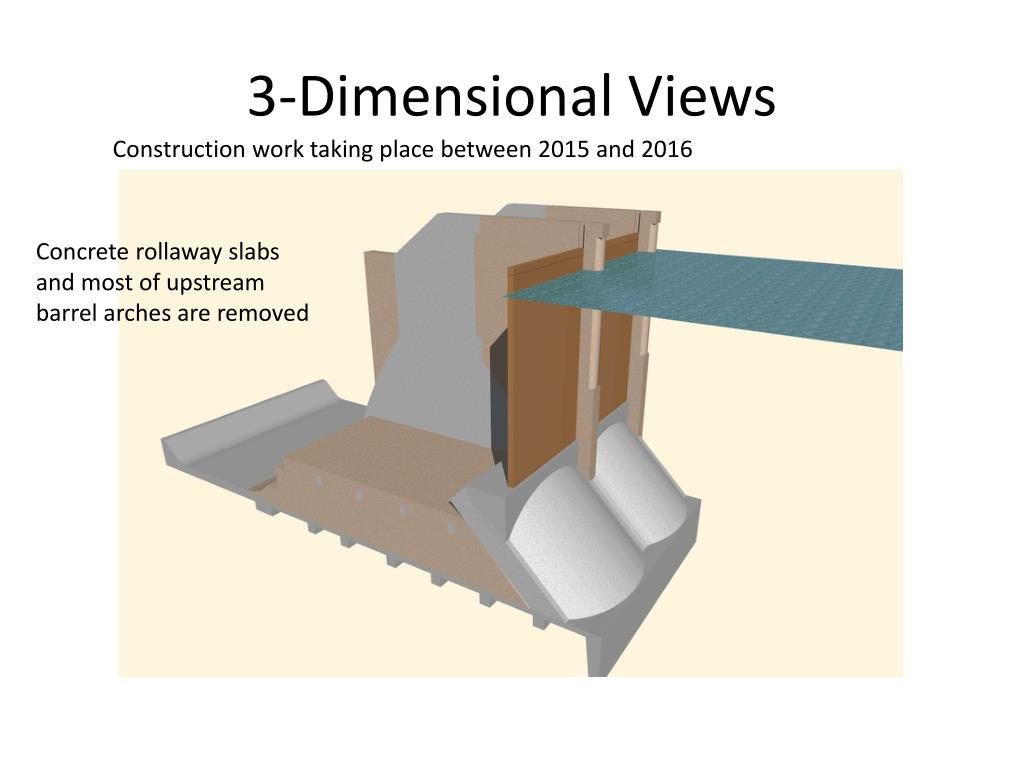

  6. 3-Dimensional Views Construction work taking place between 2015 and 2016 Concrete rollaway slabs and most of upstream barrel arches are removed

  7. 3-Dimensional Views Construction work taking place between 2015 and 2016 New concrete crest is poured

  8. 3-Dimensional Views Construction work taking place between 2015 and 2016 Concrete overlay is placed over entire pier structure

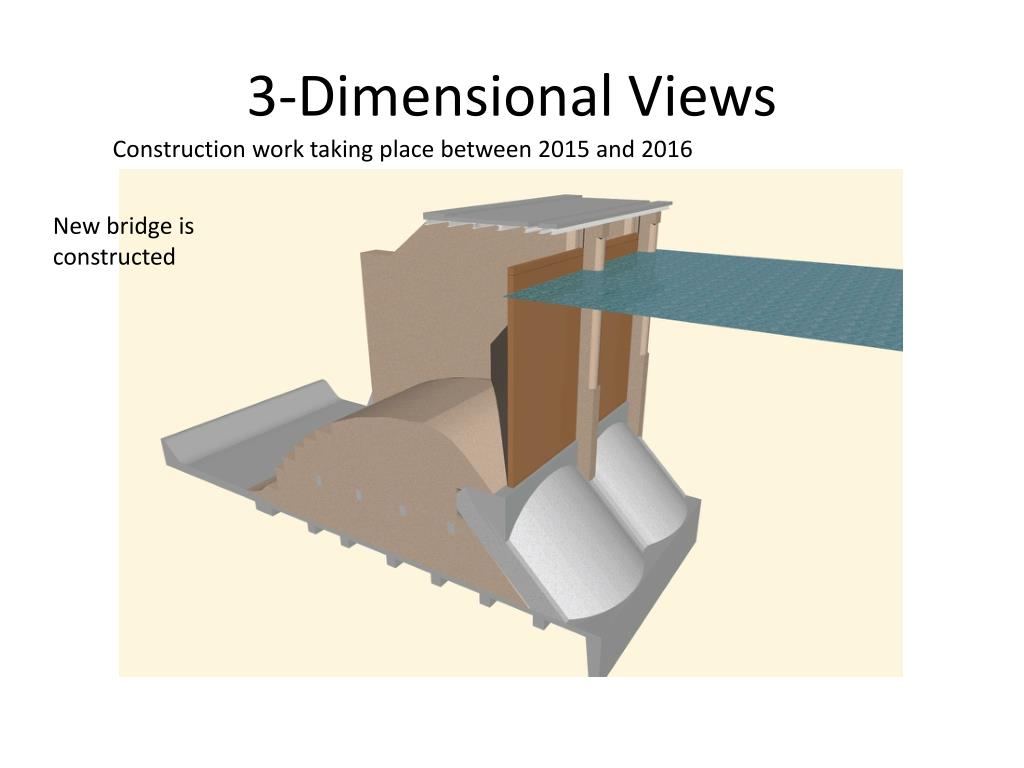

  9. 3-Dimensional Views Construction work taking place between 2015 and 2016 New bridge is constructed

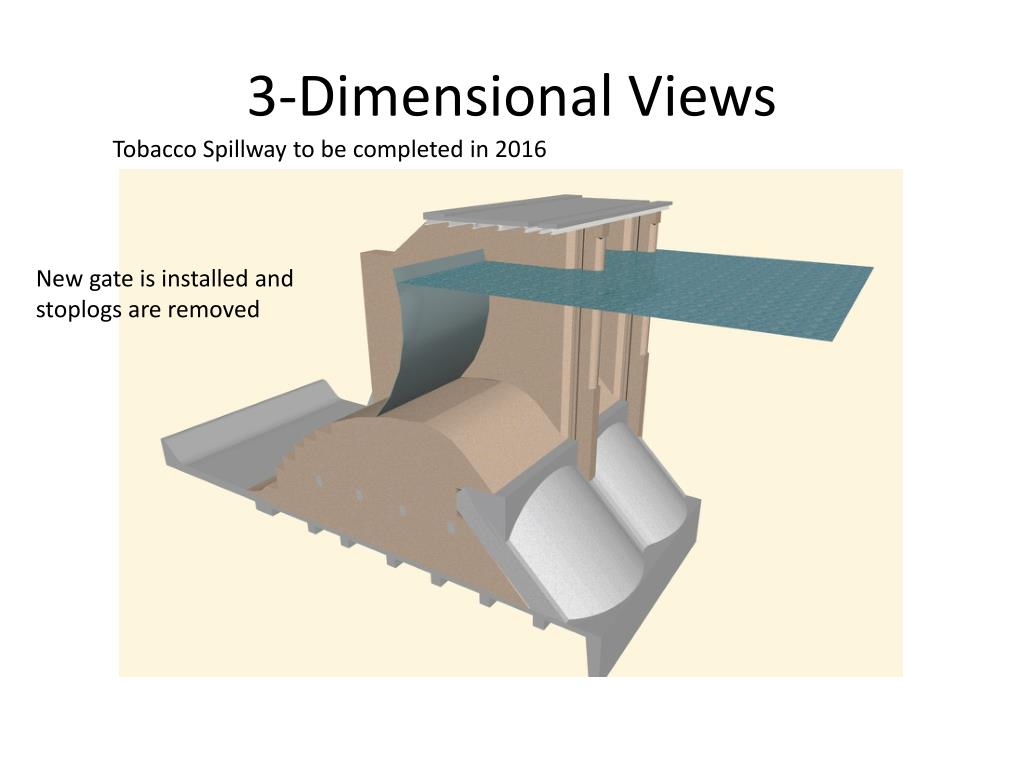

  10. 3-Dimensional Views Tobacco Spillway to be completed in 2016 New gate is installed and stoplogs are removed

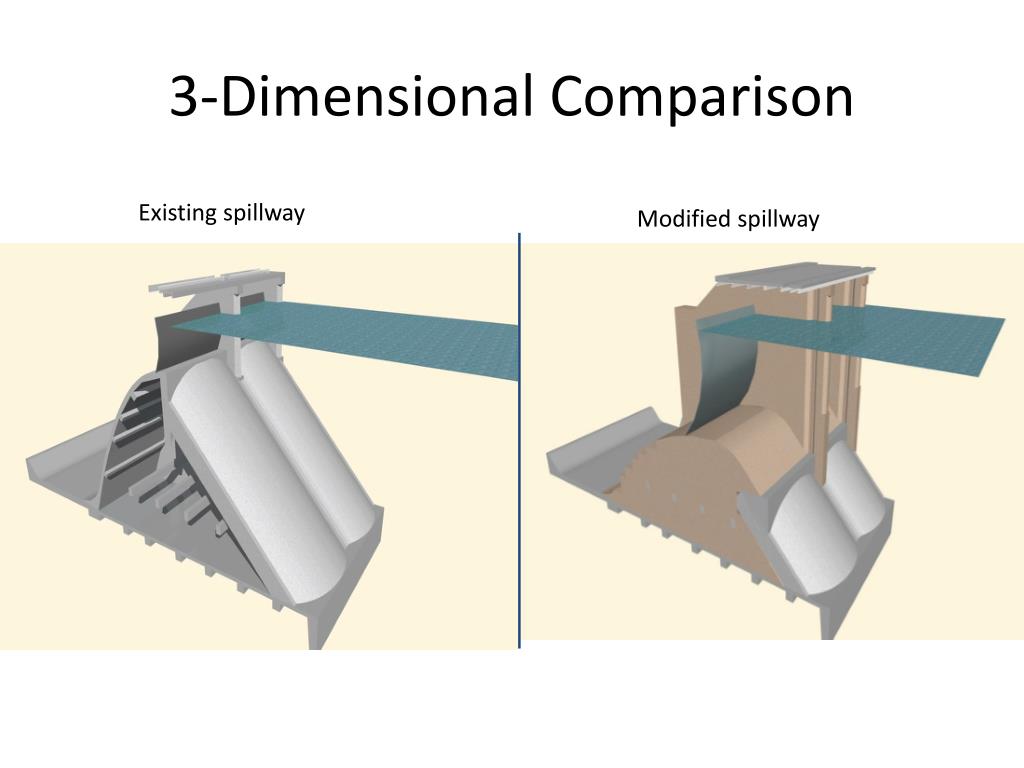

  11. 3-Dimensional Comparison Existing spillway Modified spillway
