  1. Computational Neuromodulation Peter Dayan Gatsby Computational Neuroscience Unit University College London Nathaniel Daw Sham Kakade Read Montague John O’Doherty Wolfram Schultz Ben Seymour Terry Sejnowski Angela Yu

  2. 5. Diseases of the Will • Contemplators • Bibliophiles and Polyglots • Megalomaniacs • Instrument addicts • Misfits • Theorists

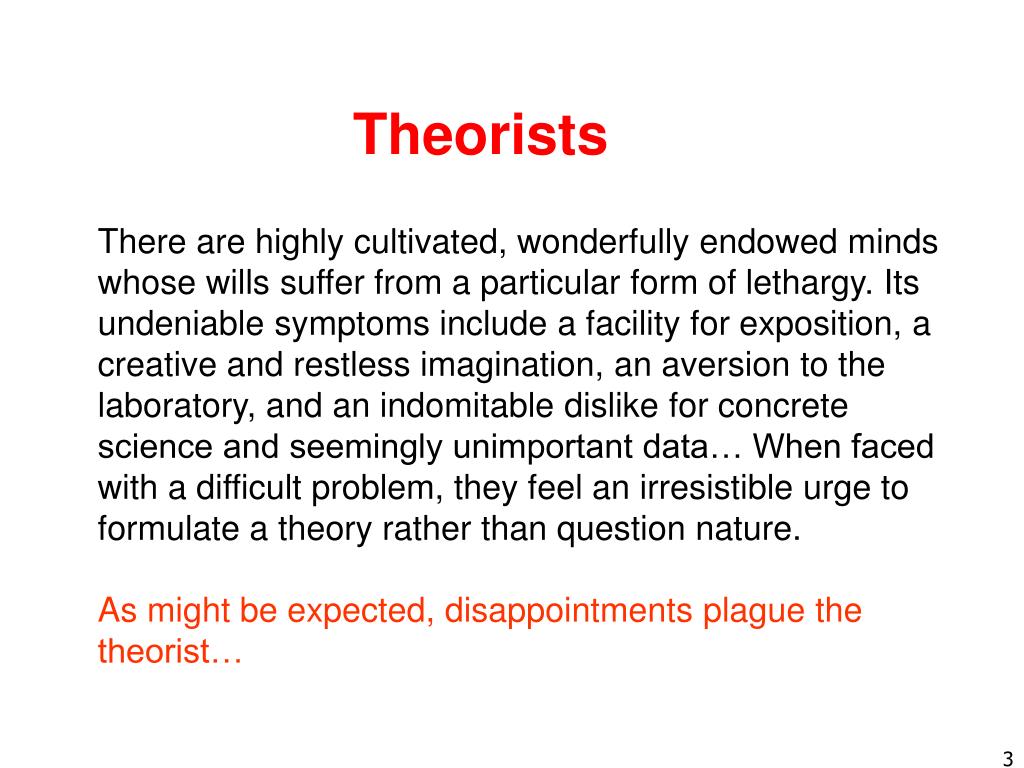

  3. Theorists • There are highly cultivated, wonderfully endowed minds whose wills suffer from a particular form of lethargy. Its undeniable symptoms include a facility for exposition, a creative and restless imagination, an aversion to the laboratory, and an indomitable dislike for concrete science and seemingly unimportant data… When faced with a difficult problem, they feel an irresistible urge to formulate a theory rather than question nature. • As might be expected, disappointments plague the theorist…

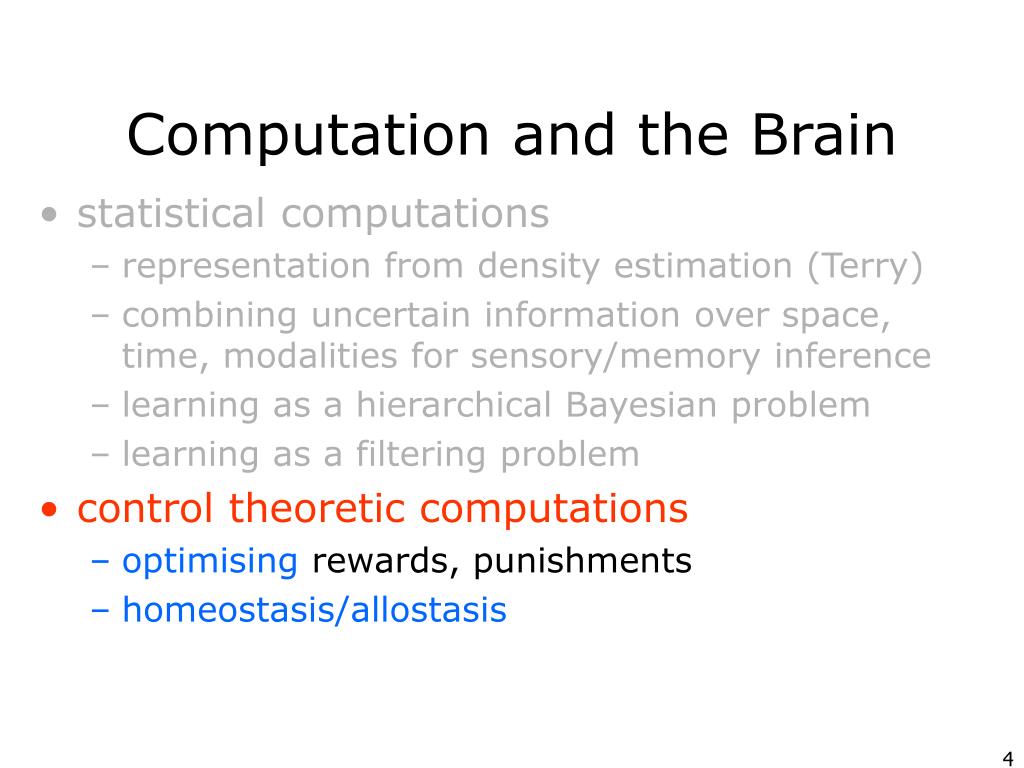

  4. Computation and the Brain • statistical computations • representation from density estimation (Terry) • combining uncertain information over space, time, modalities for sensory/memory inference • learning as a hierarchical Bayesian problem • learning as a filtering problem • control theoretic computations • optimising rewards, punishments • homeostasis/allostasis

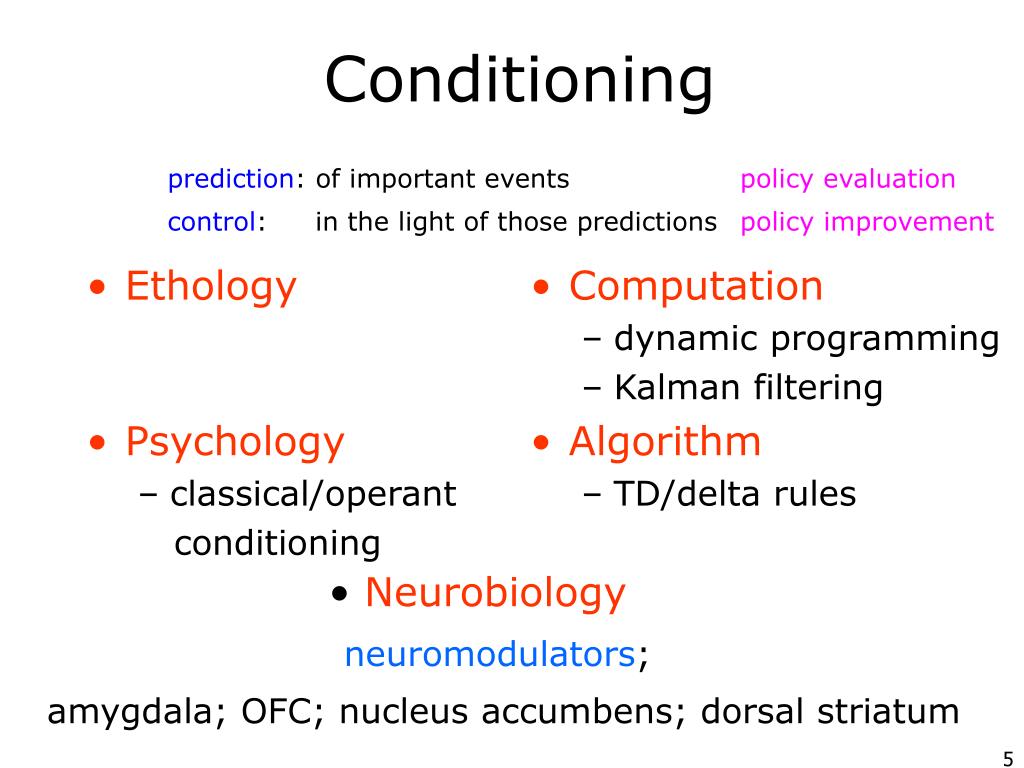

  5. Ethology Psychology classical/operant conditioning Computation dynamic programming Kalman filtering Algorithm TD/delta rules Conditioning prediction: of important events control: in the light of those predictions policy evaluation policy improvement • Neurobiology neuromodulators; amygdala; OFC; nucleus accumbens; dorsal striatum

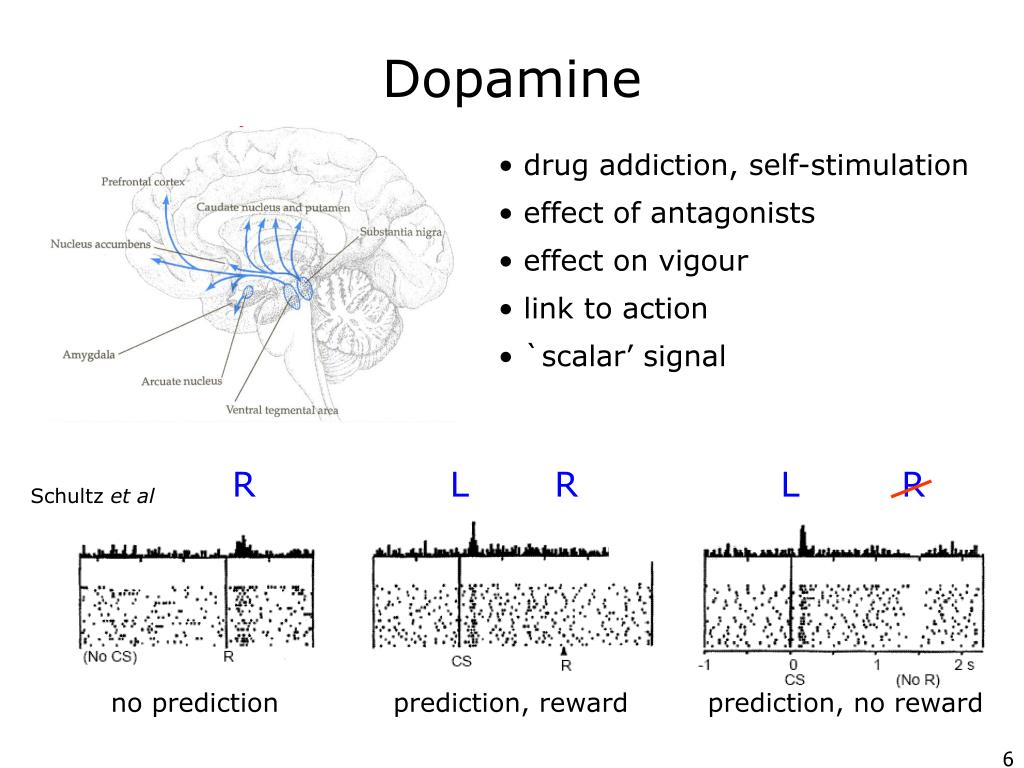

  6. R Dopamine • drug addiction, self-stimulation • effect of antagonists • effect on vigour • link to action • `scalar’ signal R L R L Schultz et al R no prediction prediction, reward prediction, no reward

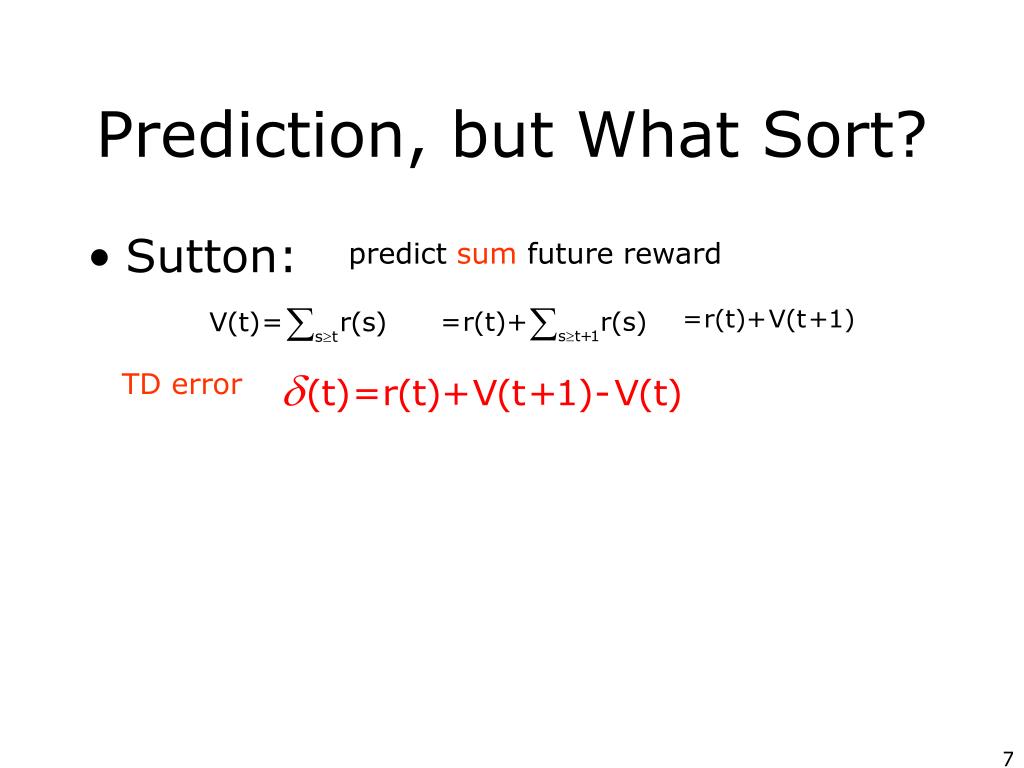

  7. Prediction, but What Sort? • Sutton: predict sum future reward TD error

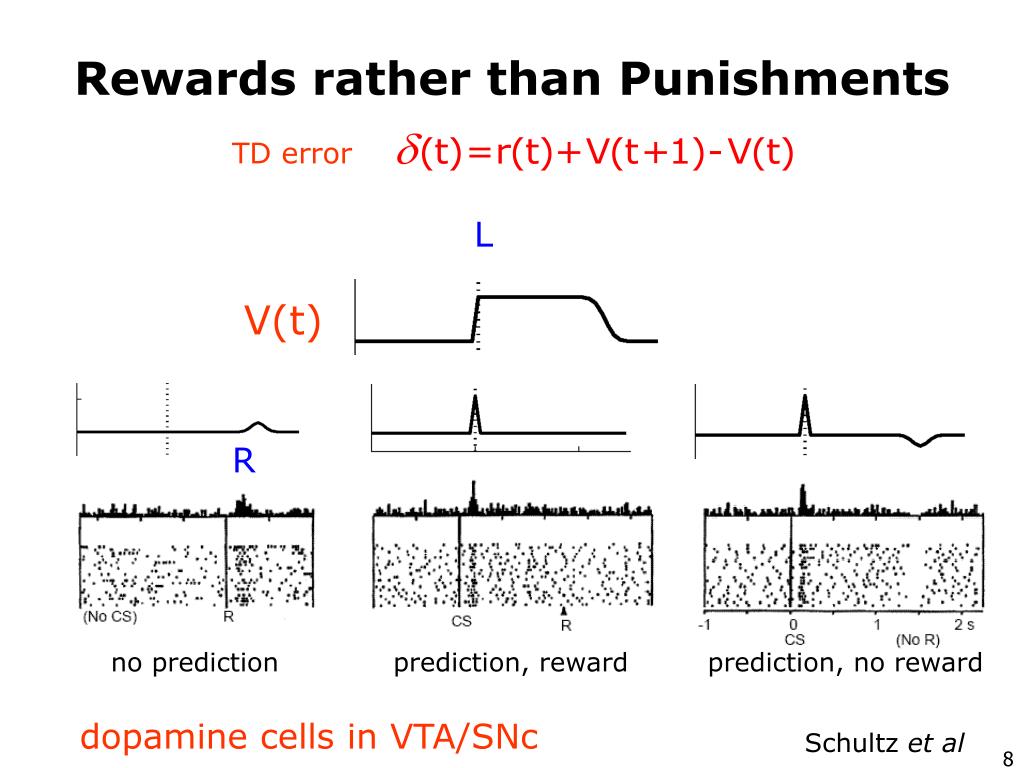

  8. Rewards rather than Punishments TD error L R V(t) R no prediction prediction, reward prediction, no reward dopamine cells in VTA/SNc Schultz et al

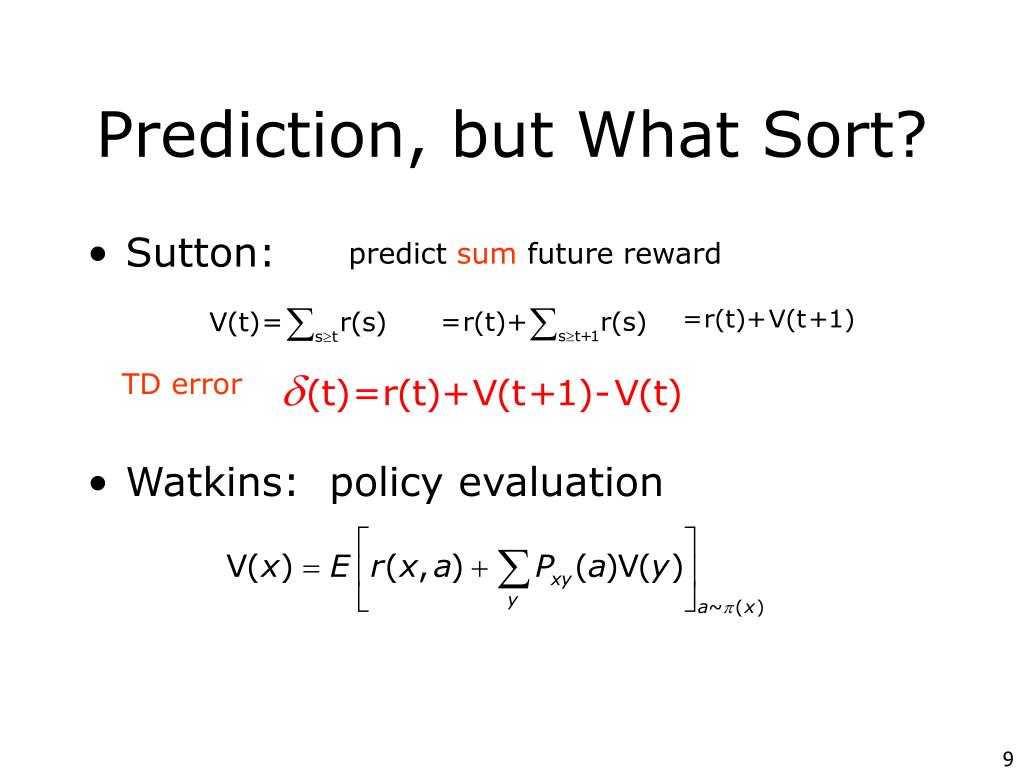

  9. Prediction, but What Sort? • Sutton: • Watkins: policy evaluation predict sum future reward TD error

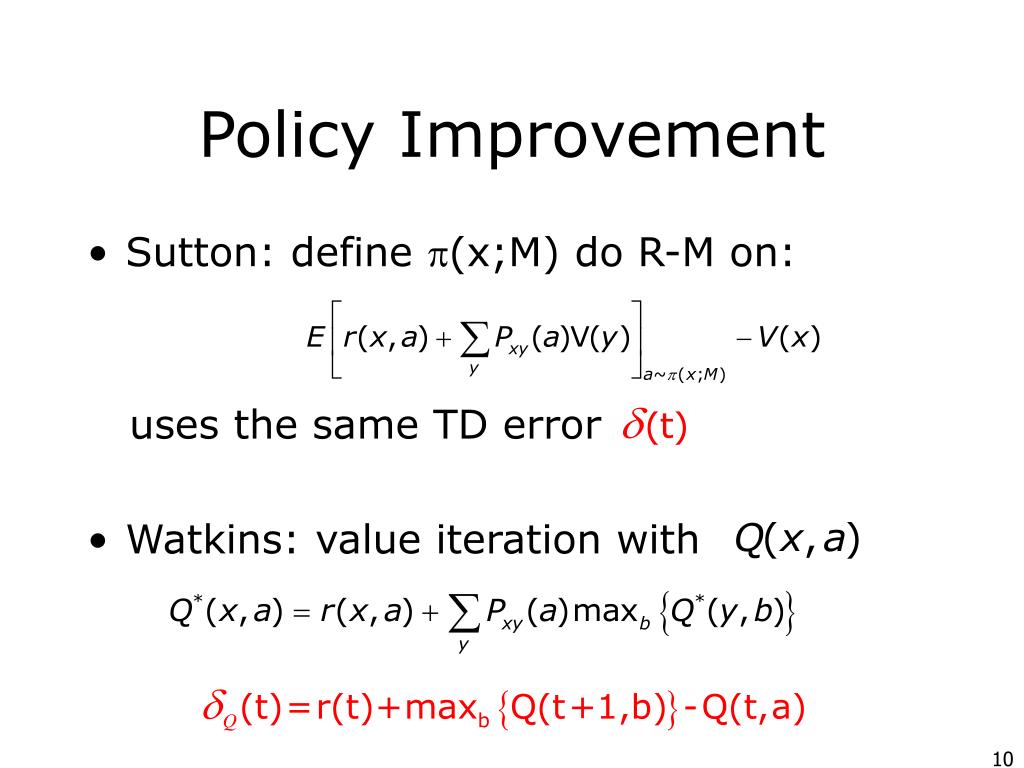

  10. Policy Improvement • Sutton: define p(x;M) do R-M on: uses the same TD error • Watkins: value iteration with

  11. Active Issues • exploration/exploitation • model-based (PFC)/cached (striatal) methods • motivational influences • vigour • hierarchical control (PFC) • hyperbolic discounting, Pavlovian misbehavior and ‘the will’ • representational learning • appetitive/aversive opponency • links with behavioural economics

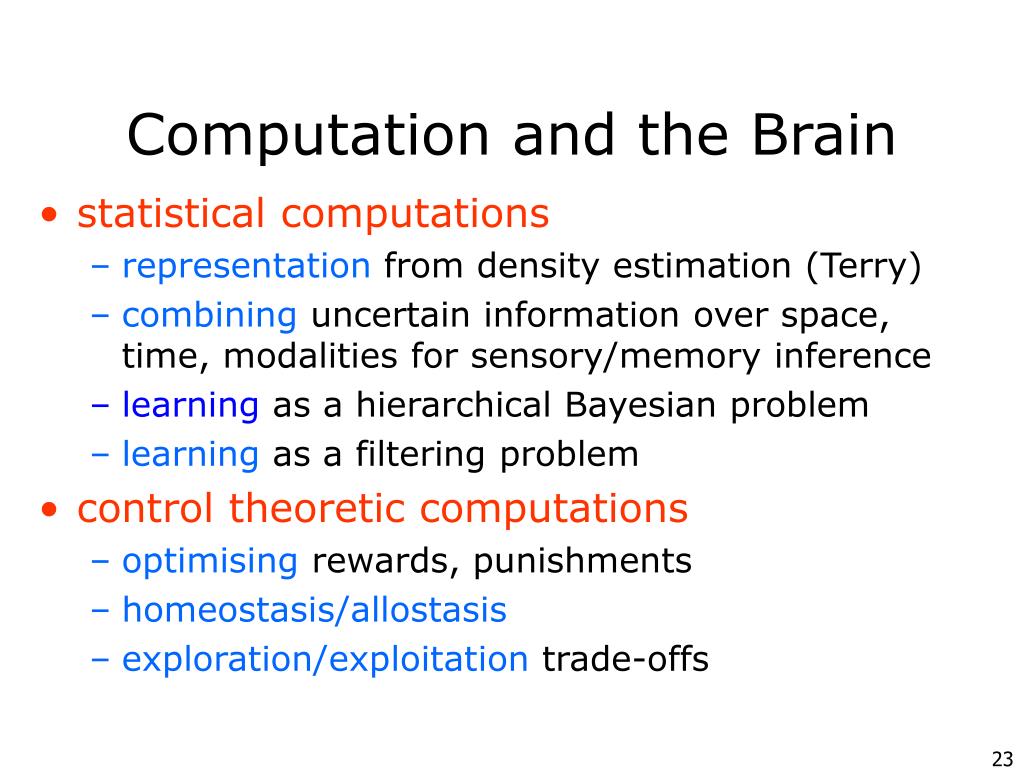

  12. Computation and the Brain • statistical computations • representation from density estimation (Terry) • combining uncertain information over space, time, modalities for sensory/memory inference • learning as a hierarchical Bayesian problem • learning as a filtering problem • control theoretic computations • optimising rewards, punishments • homeostasis/allostasis • exploration/exploitation trade-offs

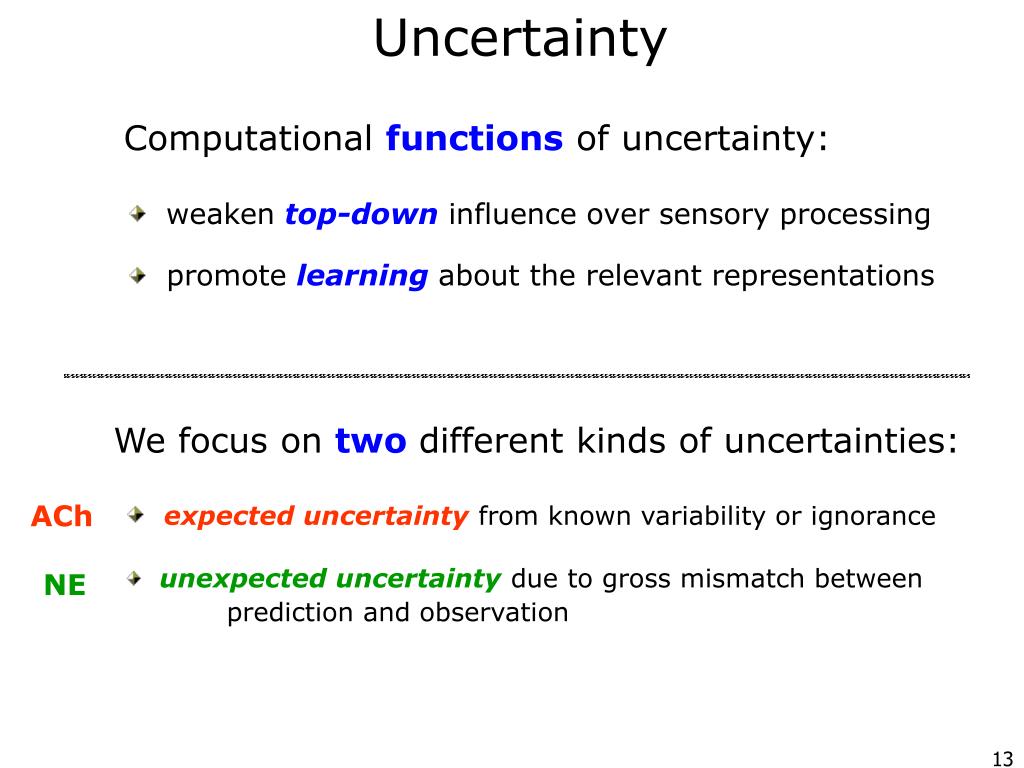

  13. Uncertainty We focus on two different kinds of uncertainties: • expected uncertainty from known variability or ignorance ACh • unexpected uncertainty due to gross mismatch between prediction and observation NE Computational functions of uncertainty: • weaken top-down influence over sensory processing • promote learning about the relevant representations

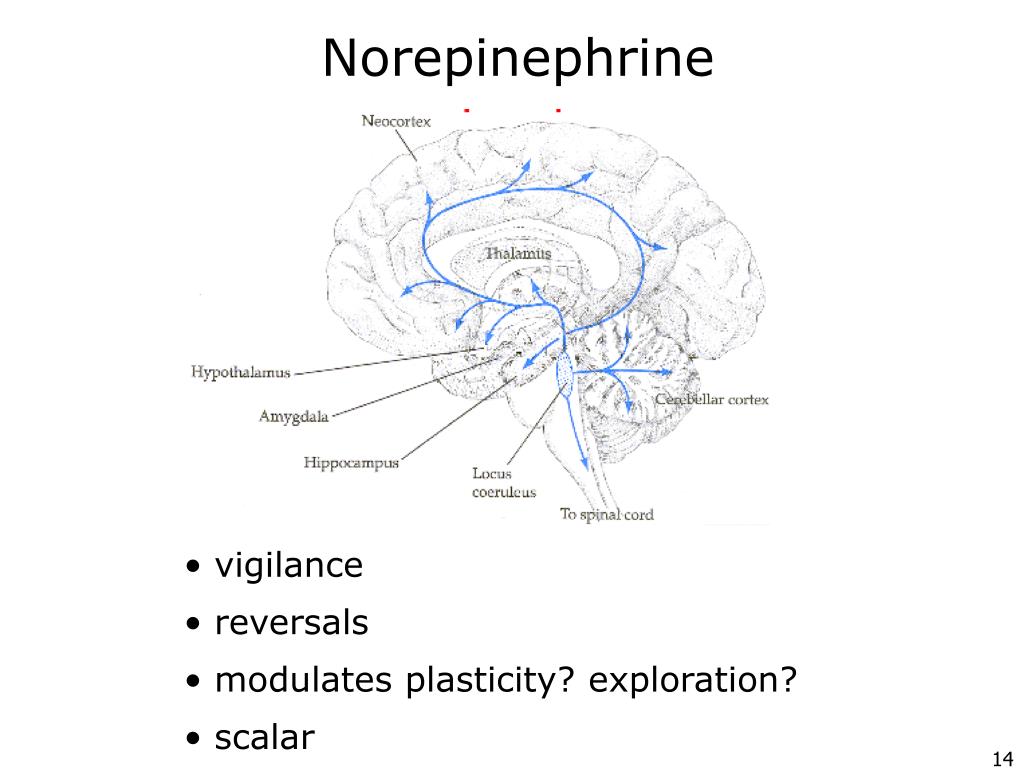

  14. Norepinephrine • vigilance • reversals • modulates plasticity? exploration? • scalar

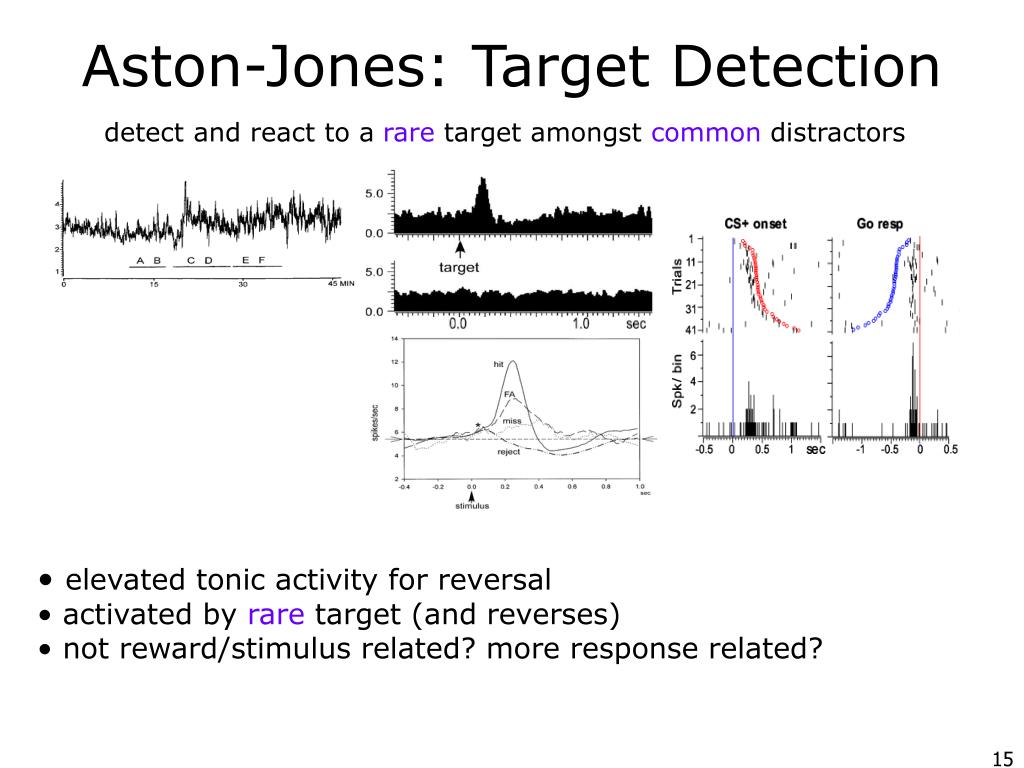

  15. Aston-Jones: Target Detection detect and react to a rare target amongst common distractors • elevated tonic activity for reversal • activated by rare target (and reverses) • not reward/stimulus related? more response related?

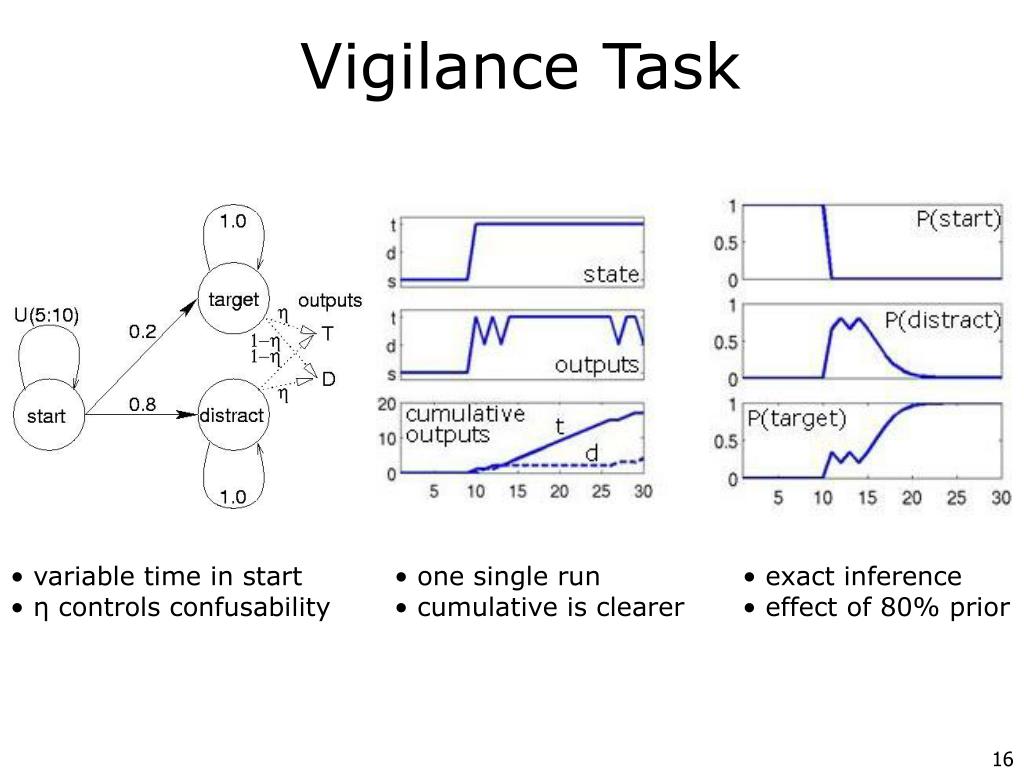

  16. Vigilance Task • variable time in start • η controls confusability • one single run • cumulative is clearer • exact inference • effect of 80% prior

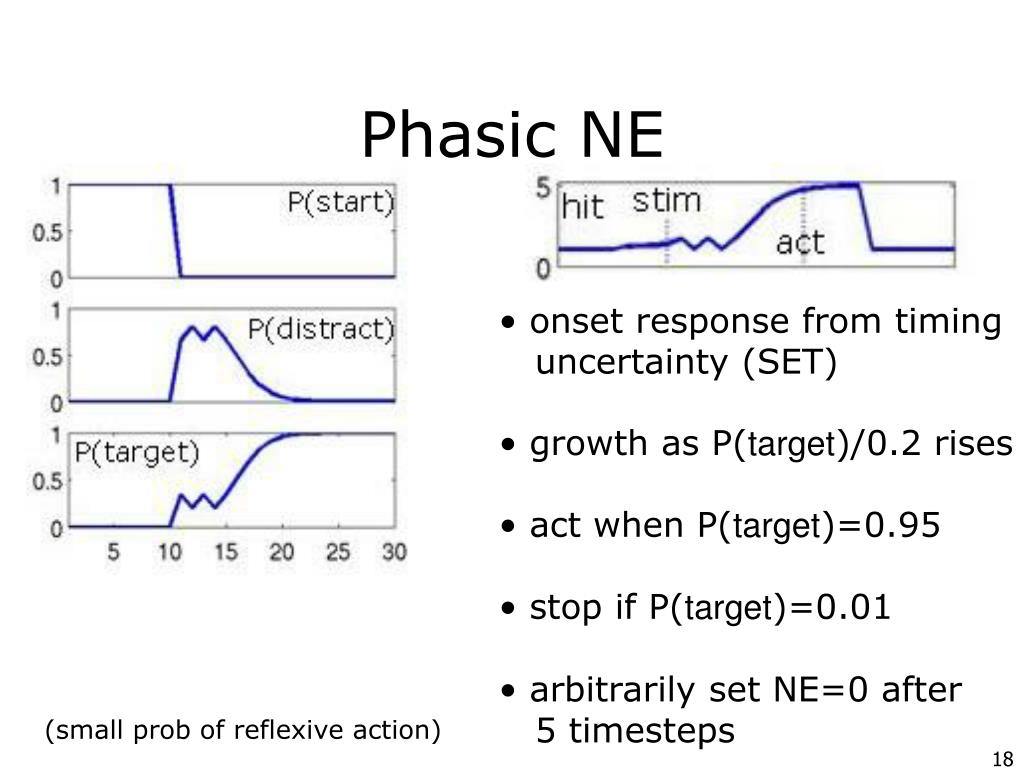

  17. Phasic NE • onset response from timing • uncertainty (SET) • growth as P(target)/0.2 rises • act when P(target)=0.95 • stop if P(target)=0.01 • arbitrarily set NE=0 after • 5 timesteps (small prob of reflexive action)

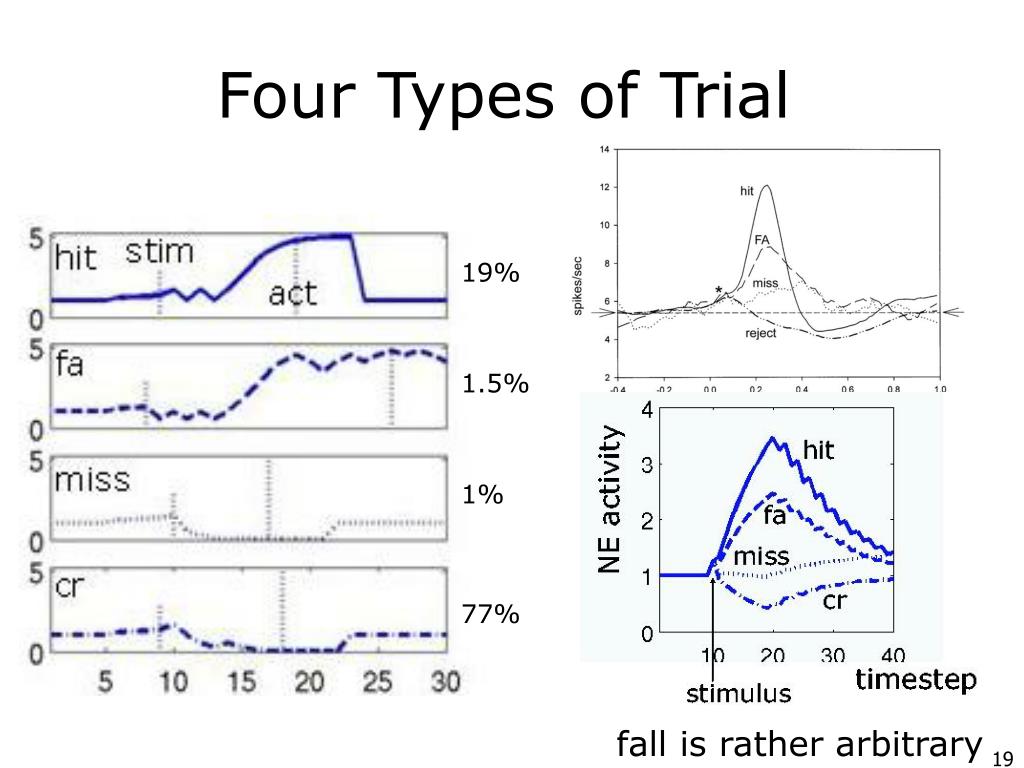

  18. Four Types of Trial 19% 1.5% 1% 77% fall is rather arbitrary

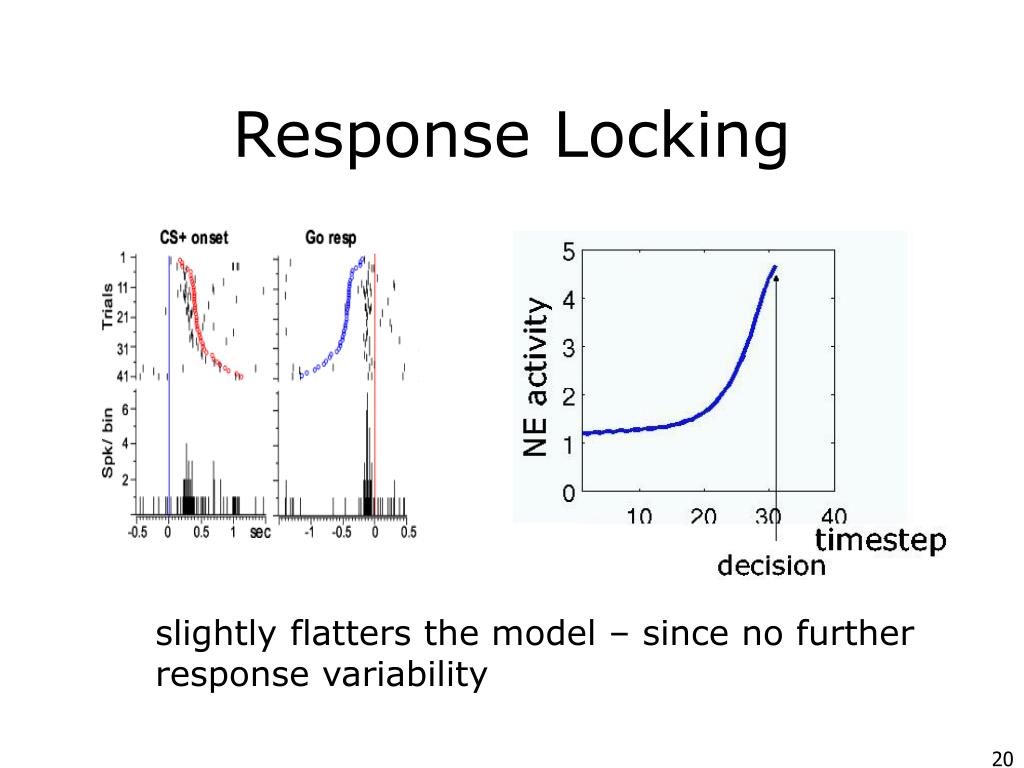

  19. Response Locking slightly flatters the model – since no further response variability

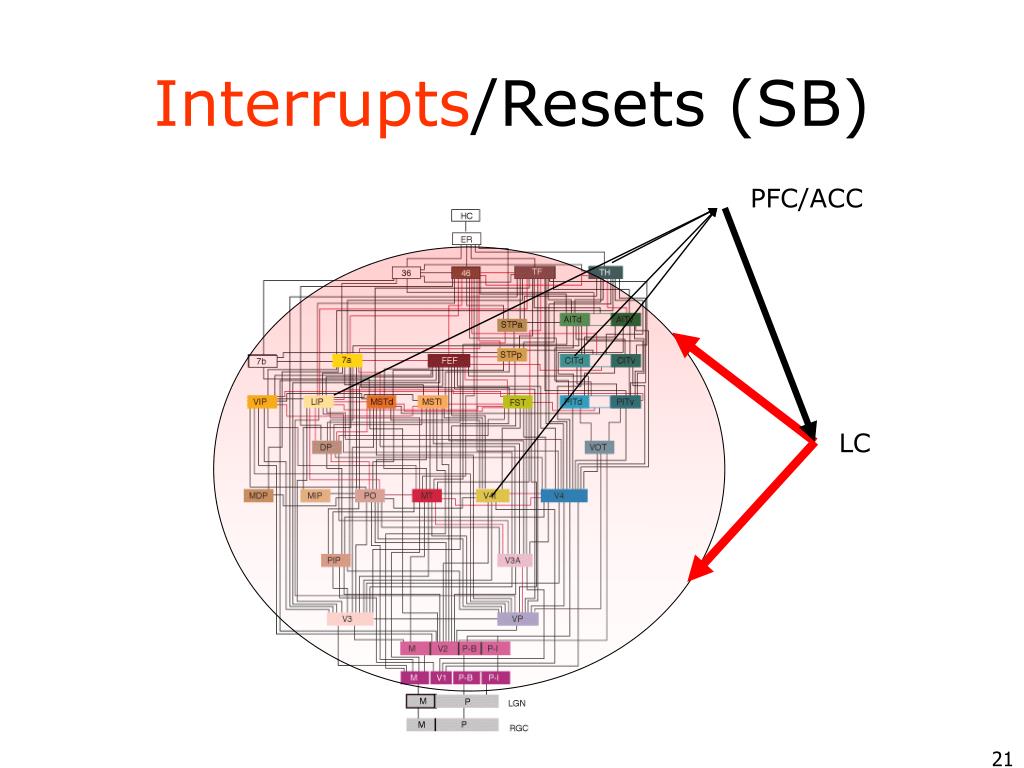

  20. Interrupts/Resets (SB) PFC/ACC LC

  21. Active Issues • approximate inference strategy • interaction with expected uncertainty (ACh) • other representations of uncertainty • finer gradations of ignorance

  22. Computation and the Brain • statistical computations • representation from density estimation (Terry) • combining uncertain information over space, time, modalities for sensory/memory inference • learning as a hierarchical Bayesian problem • learning as a filtering problem • control theoretic computations • optimising rewards, punishments • homeostasis/allostasis • exploration/exploitation trade-offs

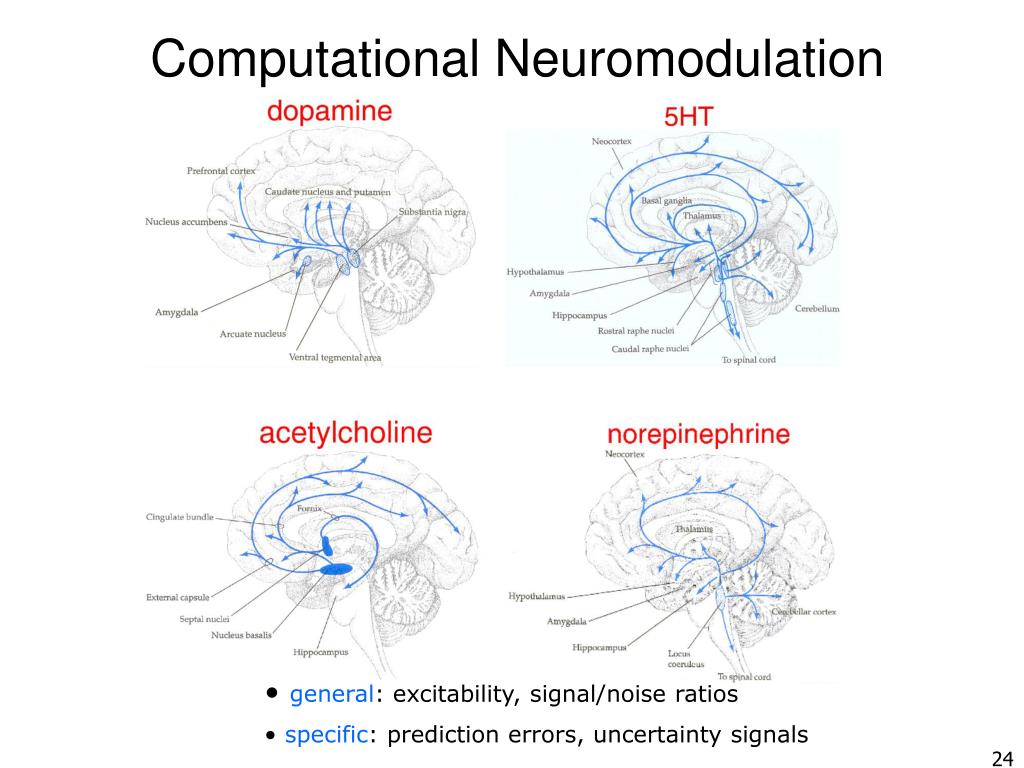

  23. Computational Neuromodulation • general: excitability, signal/noise ratios • specific: prediction errors, uncertainty signals

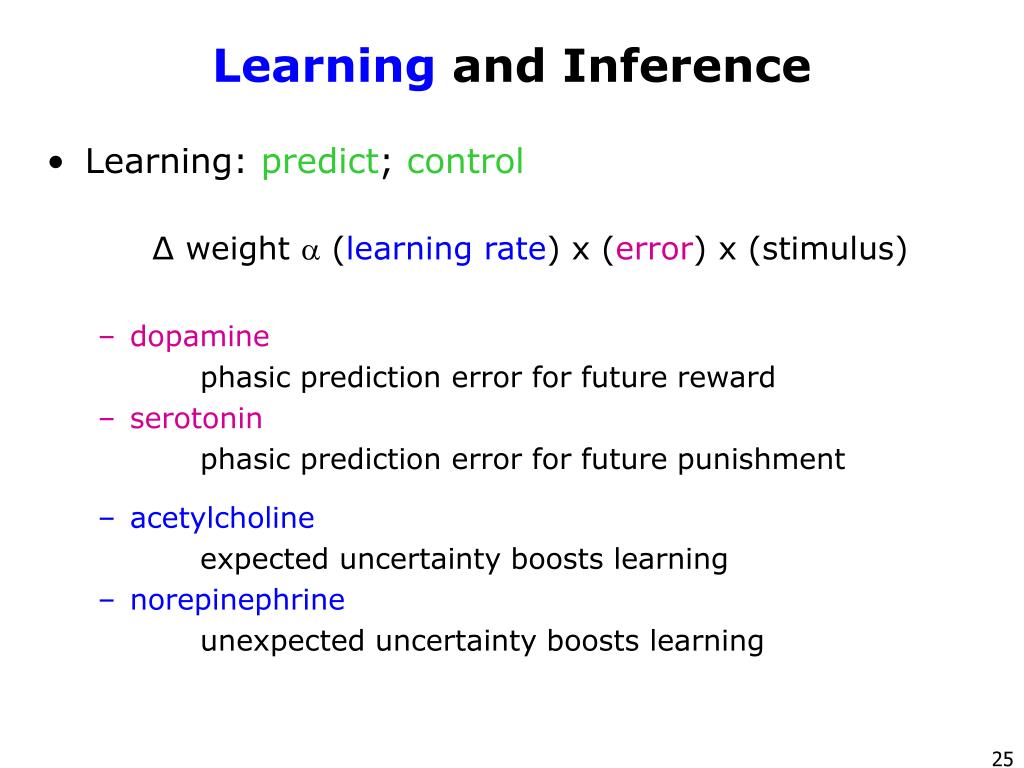

  24. Learning and Inference • Learning: predict; control ∆ weight  (learning rate) x (error) x (stimulus) • dopamine phasic prediction error for future reward • serotonin phasic prediction error for future punishment • acetylcholine expected uncertainty boosts learning • norepinephrine unexpected uncertainty boosts learning

  25. Learning and Inference context expected uncertainty unexpected uncertainty top-down processing NE ACh cortical processing prediction, learning, ... bottom-up processing sensory inputs

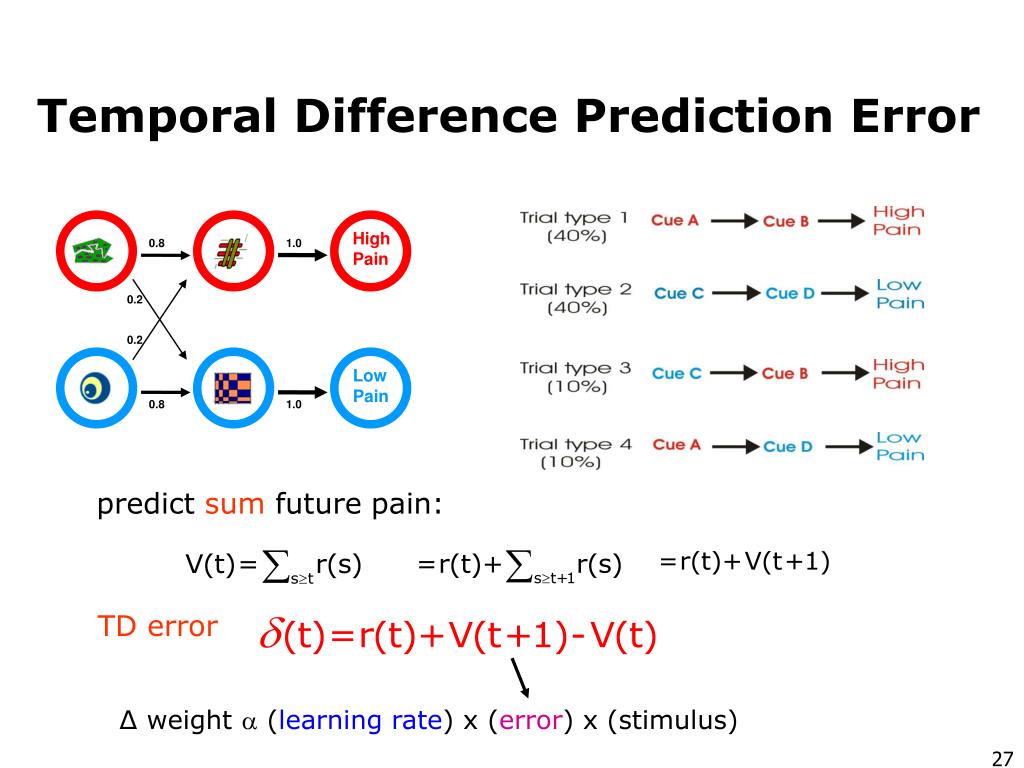

  26. Temporal Difference Prediction Error High Pain 0.8 1.0 0.2 0.2 Low Pain 0.8 1.0 predict sum future pain: TD error ∆ weight  (learning rate) x (error) x (stimulus)

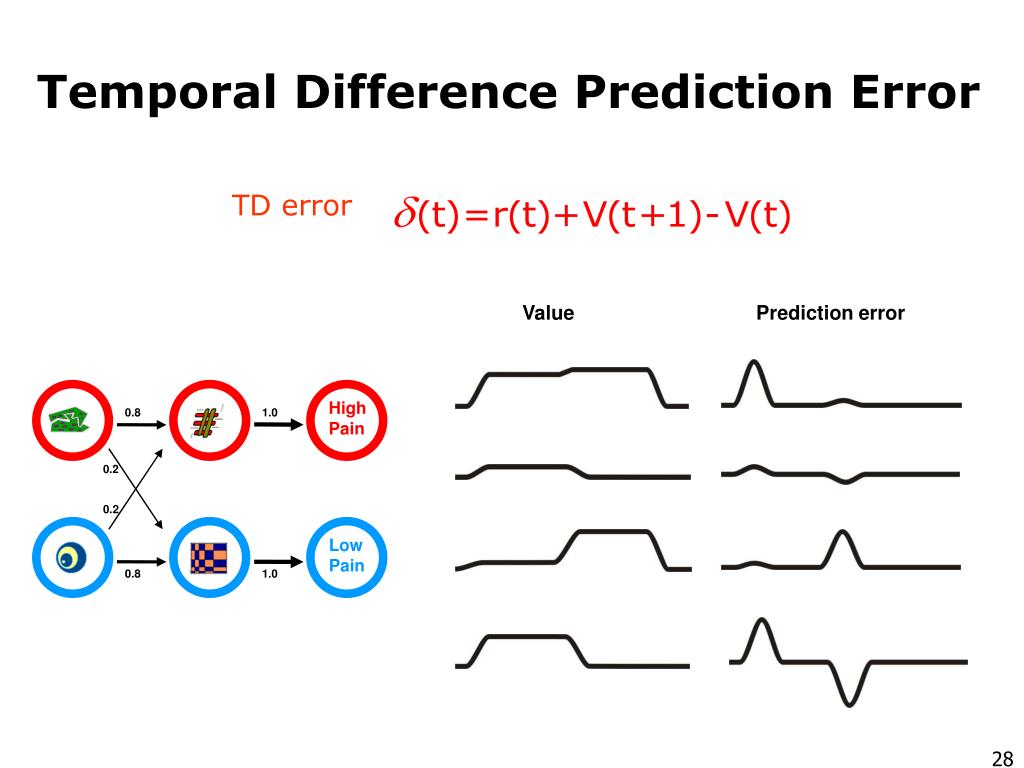

  27. Temporal Difference Prediction Error TD error Value Prediction error High Pain 0.8 1.0 0.2 0.2 Low Pain 0.8 1.0

  28. Prediction error Temporal Difference Prediction Error experimental sequence….. A – B – HIGH C – D – LOW C – B – HIGH A – B – HIGH A – D – LOW C – D – LOW A – B – HIGH A – B – HIGH C – D – LOW C – B – HIGH MR scanner TD model Brain responses ? Ben Seymour; John O’Doherty

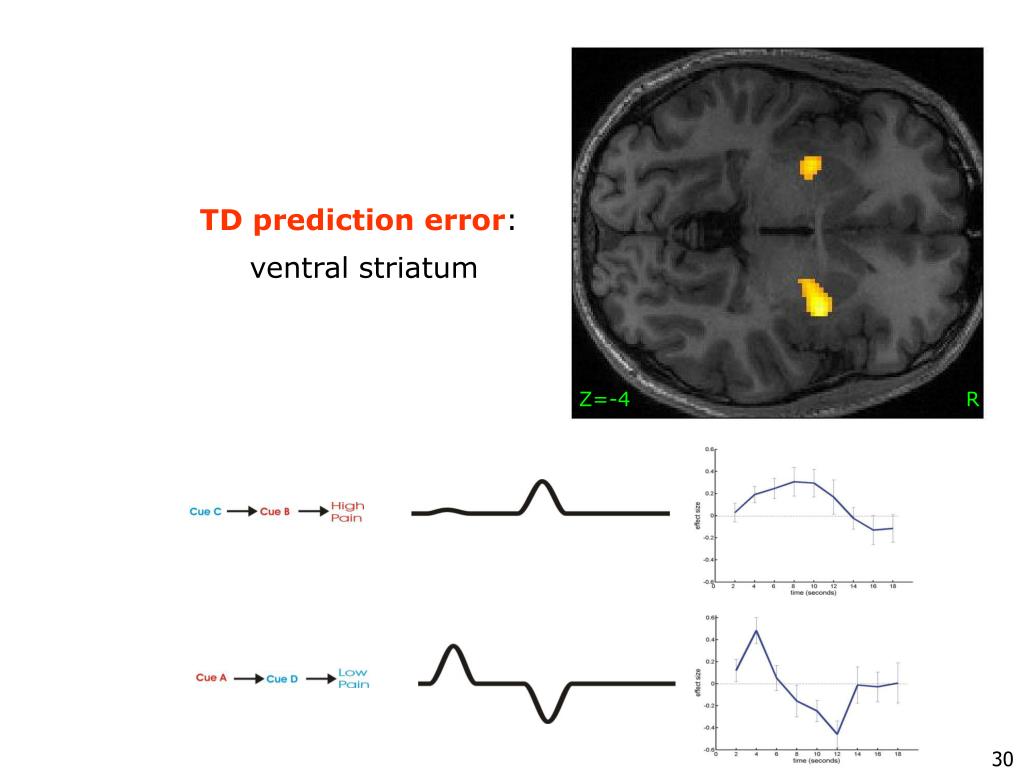

  29. TD prediction error: ventral striatum Z=-4 R

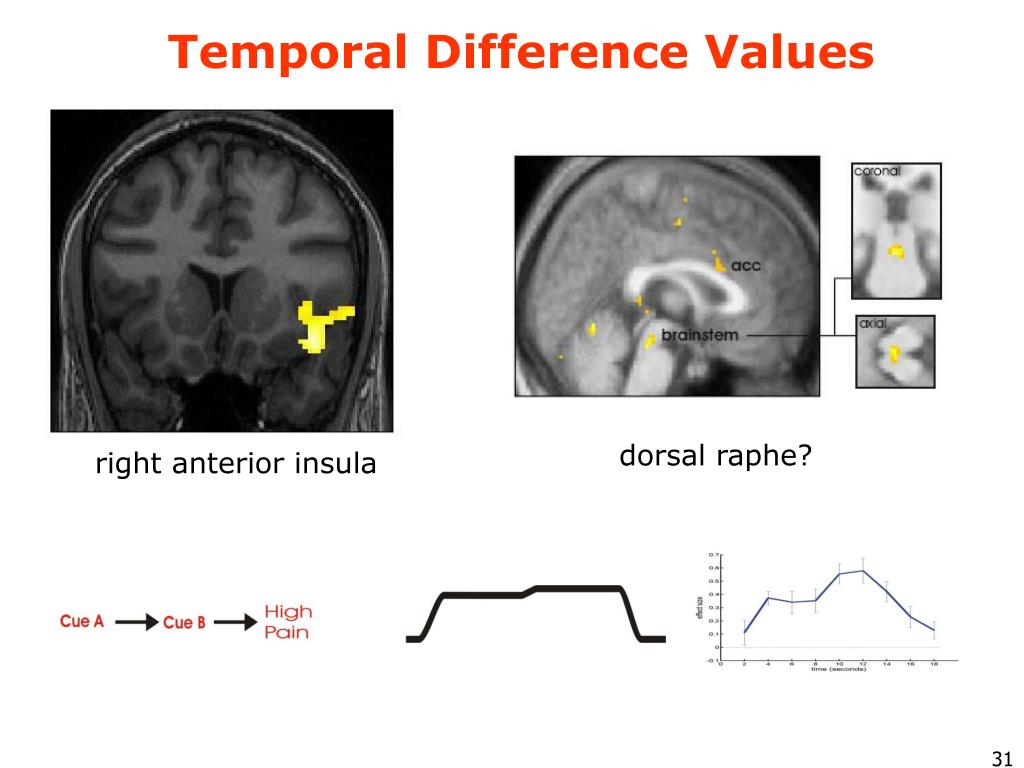

  30. Temporal Difference Values dorsal raphe? right anterior insula

  31. Rewards rather than Punishments TD error L R V(t) R no prediction prediction, reward prediction, no reward dopamine cells in VTA/SNc Schultz et al

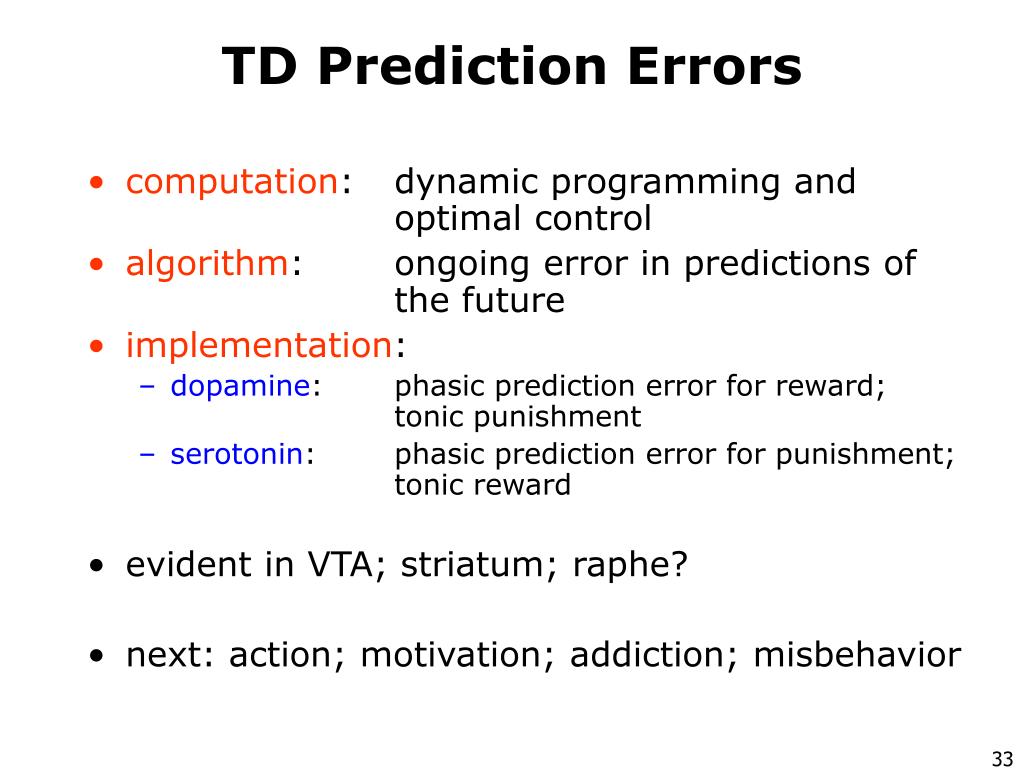

  32. TD Prediction Errors • computation: dynamic programming and optimal control • algorithm: ongoing error in predictions of the future • implementation: • dopamine: phasic prediction error for reward; tonic punishment • serotonin: phasic prediction error for punishment; tonic reward • evident in VTA; striatum; raphe? • next: action; motivation; addiction; misbehavior

  33. Task Difficulty • set η=0.65 rather than 0.675 • information accumulates over a longer period • hits more affected than cr’s • timing not quite right

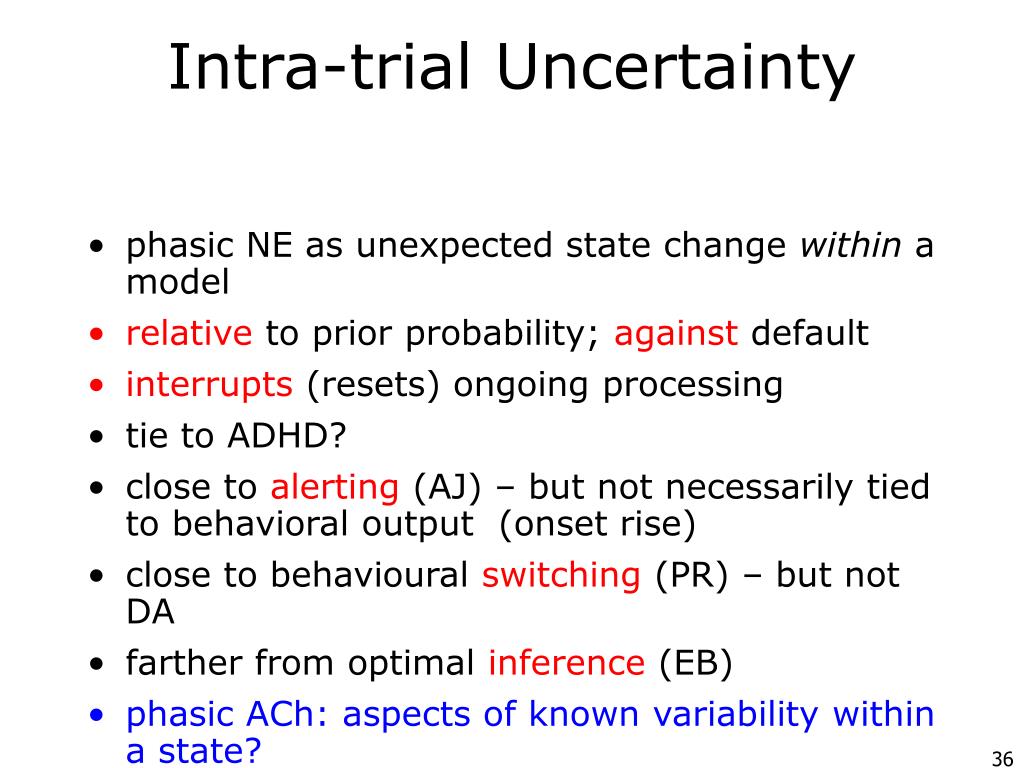

  34. Intra-trial Uncertainty • phasic NE as unexpected state change within a model • relative to prior probability; against default • interrupts (resets) ongoing processing • tie to ADHD? • close to alerting (AJ) – but not necessarily tied to behavioral output (onset rise) • close to behavioural switching (PR) – but not DA • farther from optimal inference (EB) • phasic ACh: aspects of known variability within a state?

  35. Where Next • dopamine • tonic release and vigour • appetitive misbehaviour and hyperbolic discounting • actions and habits • psychosis • serotonin • aversive misbehaviour and psychiatry • norepinephrine • stress, depression and beyond

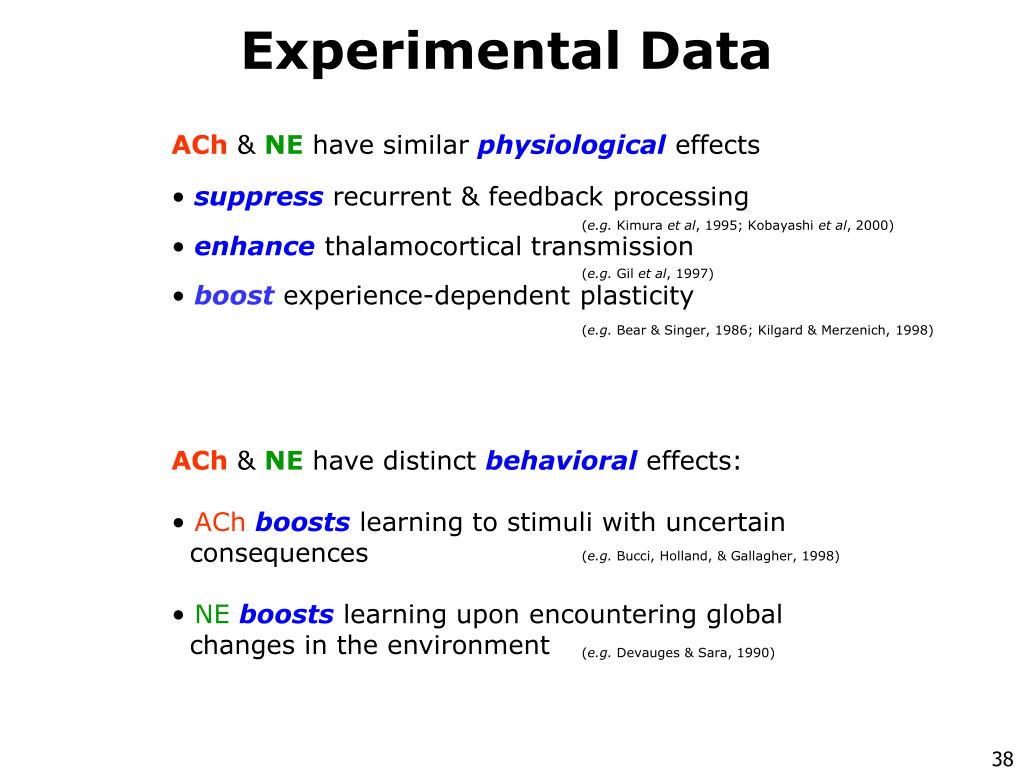

  36. Experimental Data • ACh&NEhave similar physiological effects • suppress recurrent & feedback processing • enhance thalamocortical transmission • boost experience-dependent plasticity (e.g. Kimura et al, 1995; Kobayashi et al, 2000) (e.g. Gil et al, 1997) (e.g. Bear & Singer, 1986; Kilgard & Merzenich, 1998) • ACh&NEhave distinct behavioral effects: • ACh boosts learning to stimuli with uncertain • consequences • NEboosts learning upon encountering global • changes in the environment (e.g. Bucci, Holland, & Gallagher, 1998) (e.g. Devauges & Sara, 1990)

  37. Model Schematics context expected uncertainty unexpected uncertainty top-down processing NE ACh cortical processing prediction, learning, ... bottom-up processing sensory inputs

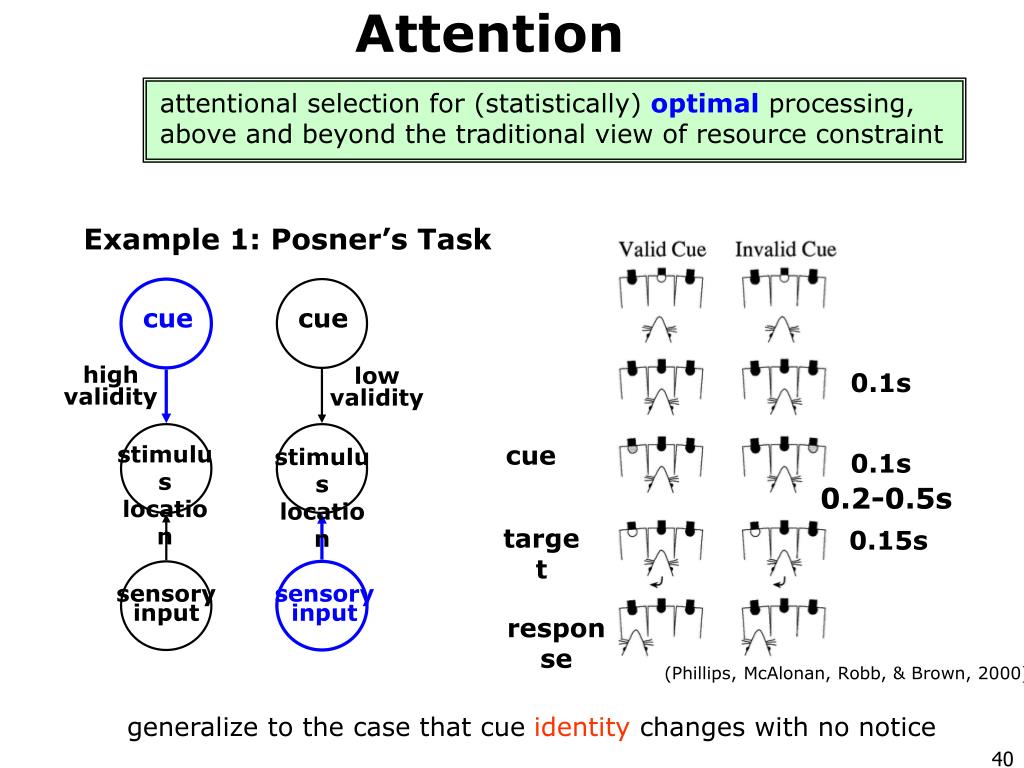

  38. Attention Example 1: Posner’s Task cue cue high validity low validity cue stimulus location stimulus location target sensory input sensory input response (Phillips, McAlonan, Robb, & Brown, 2000) attentional selection for (statistically) optimal processing, above and beyond the traditional view of resource constraint 0.1s 0.1s 0.2-0.5s 0.15s generalize to the case that cue identity changes with no notice

  39. Formal Framework ACh NE variability in identity of relevant cue variability in quality of relevant cue cues: vestibular, visual, ... target: stimulus location, exit direction... avoid representing full uncertainty Sensory Information

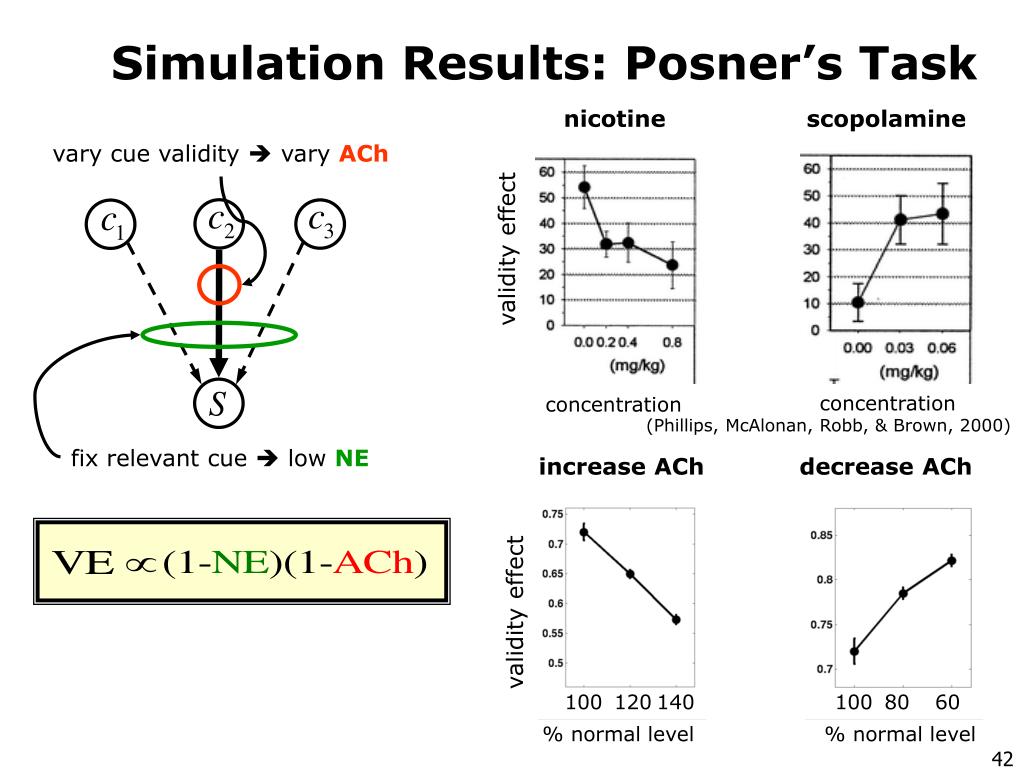

  40. nicotine scopolamine validity effect concentration concentration (Phillips, McAlonan, Robb, & Brown, 2000) increase ACh decrease ACh validity effect 100 120 140 100 80 60 % normal level % normal level Simulation Results: Posner’s Task vary cue validity  vary ACh fix relevant cue  low NE

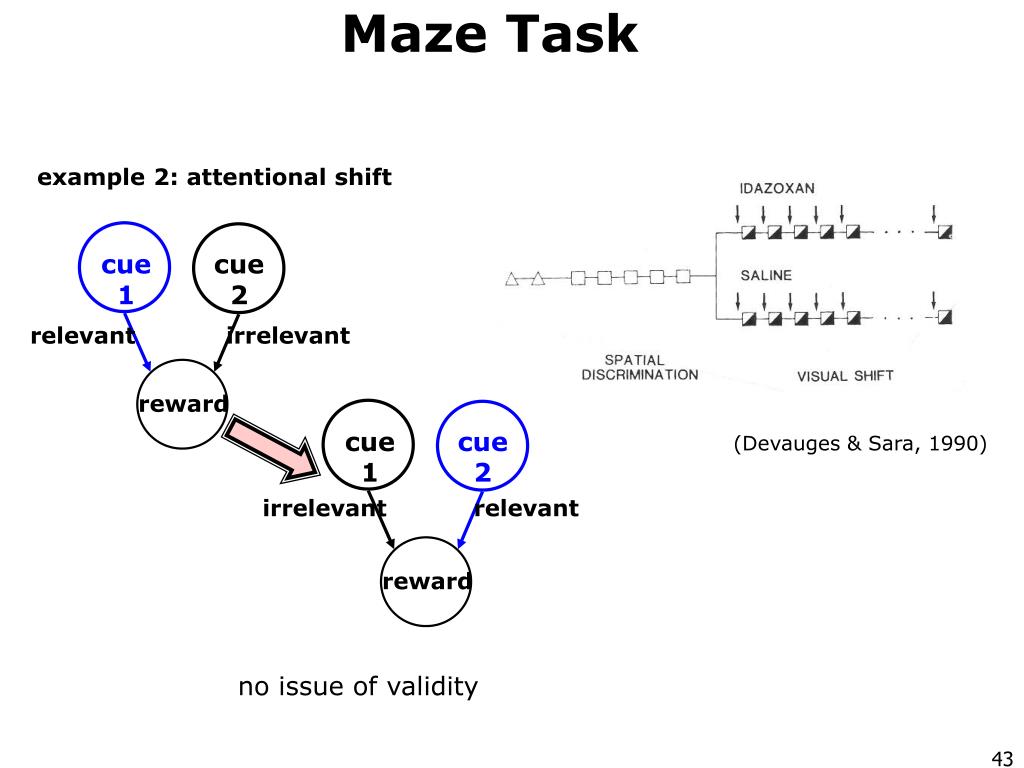

  41. Maze Task cue 1 cue 2 relevant irrelevant reward cue 1 cue 2 (Devauges & Sara, 1990) irrelevant relevant reward example 2: attentional shift no issue of validity

  42. experimental data model data % Rats reaching criterion % Rats reaching criterion change relevant cue  NE No. days after shift from spatial to visual task No. days after shift from spatial to visual task (Devauges & Sara, 1990) Simulation Results: Maze Navigation fix cue validity  no explicit manipulation of ACh

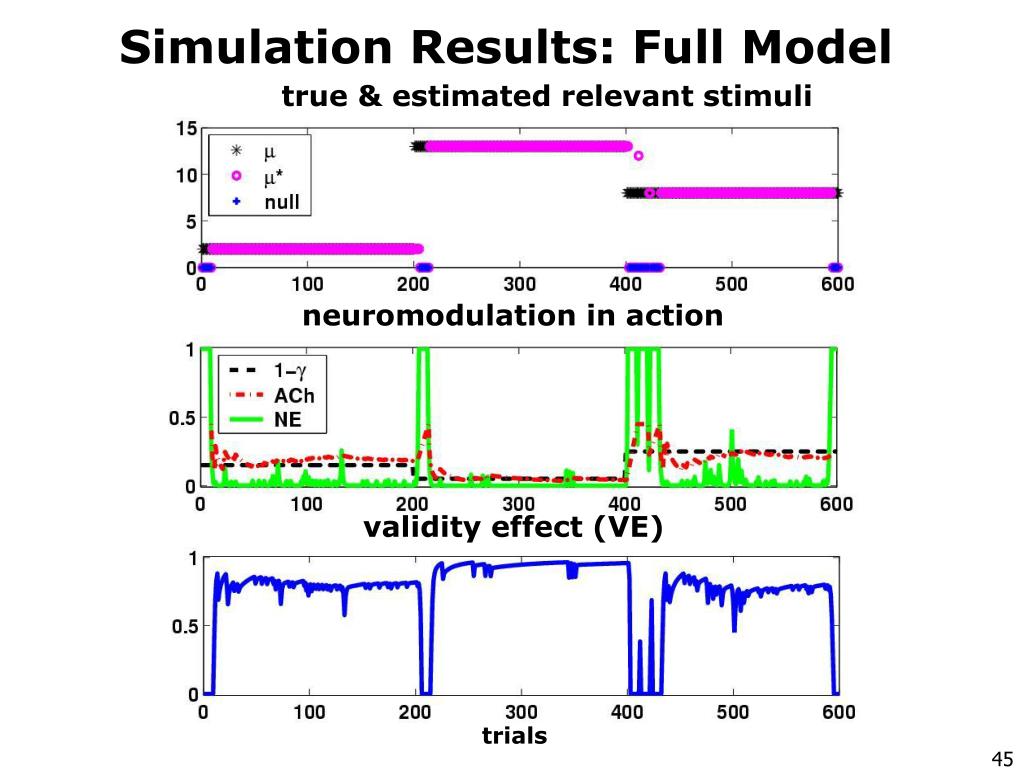

  43. true & estimated relevant stimuli neuromodulation in action validity effect (VE) trials Simulation Results: Full Model

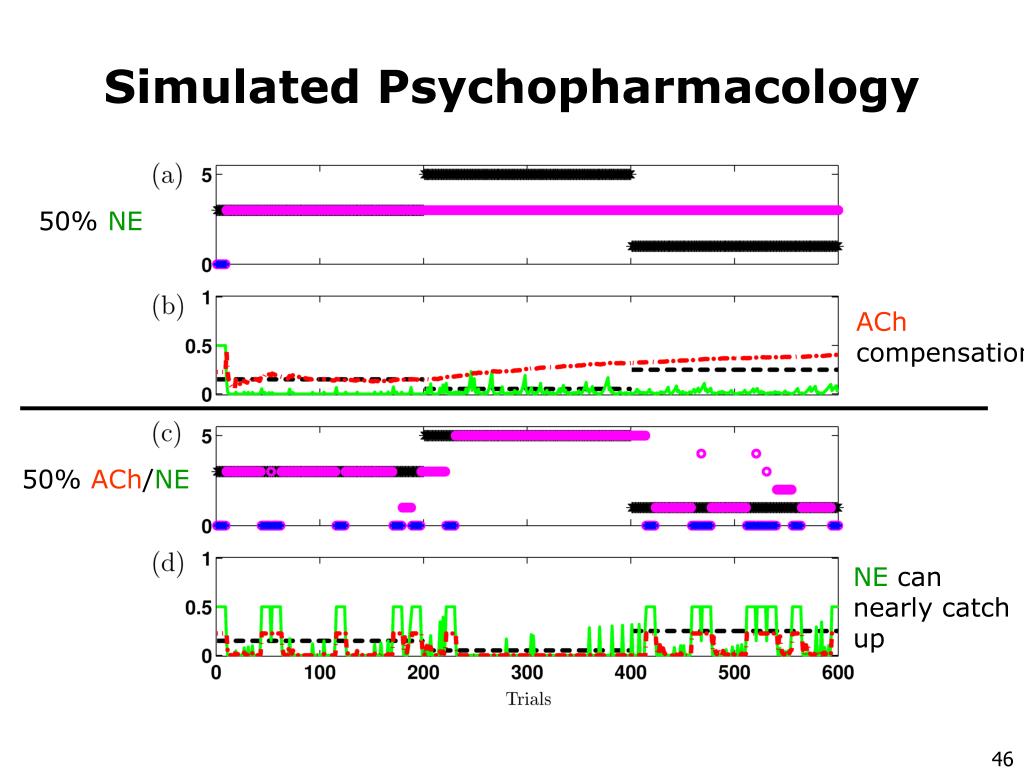

  44. Simulated Psychopharmacology 50% NE ACh compensation 50% ACh/NE NE can nearly catch up

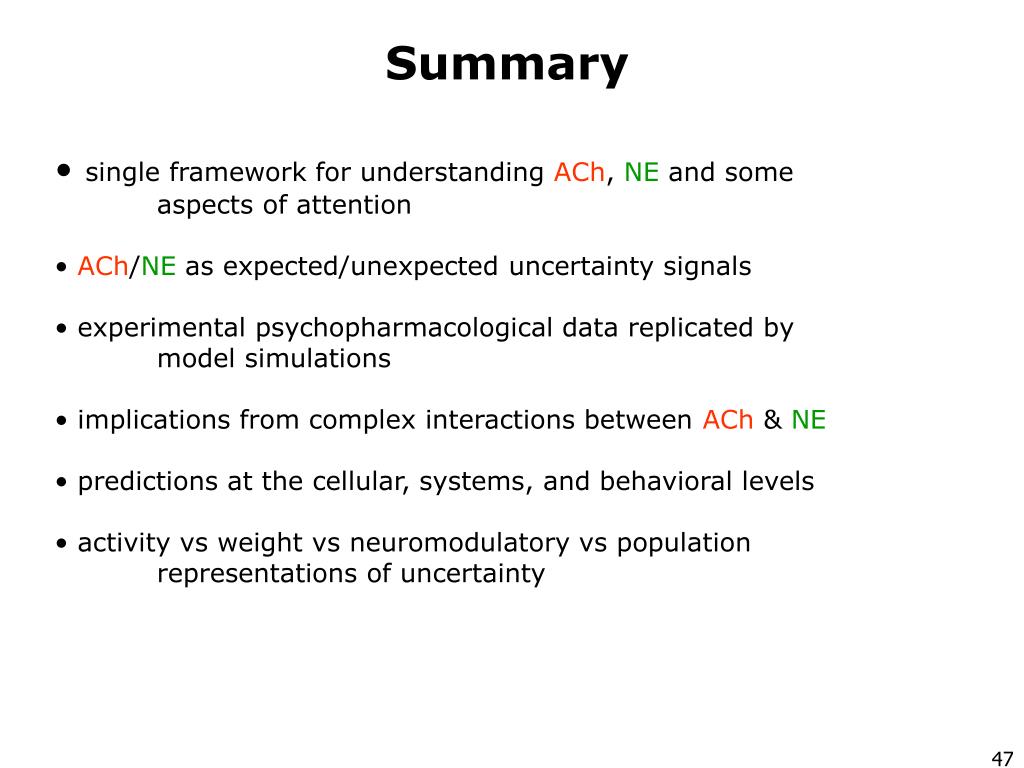

  45. Summary • single framework for understanding ACh, NE and some • aspects of attention • ACh/NE as expected/unexpected uncertainty signals • experimental psychopharmacological data replicated by model simulations • implications from complex interactions between ACh & NE • predictions at the cellular, systems, and behavioral levels • activity vs weight vs neuromodulatory vs population representations of uncertainty
