Understanding Right Triangles and Phasor Information in AC Circuits

Explore mechanical degrees and the unit of rotational movement, 360 degrees. Learn about angles, measurements, Pythagorean Theorem for solving right triangles, and trigonometric functions SOH CAH TOA. Develop a solid foundation in triangles and phasor analysis.

didina
Télécharger la présentation

Understanding Right Triangles and Phasor Information in AC Circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Into to A.C. CKT Right Triangles and Phasor

  2. Information • Mechanical Degree • Unit of measurement of rotational movement 360 degree • Angle • Whenever two lines extend from a point the separation between is the call angle

  3. Angle and Degree • the angle between the lines will be some portion of 360

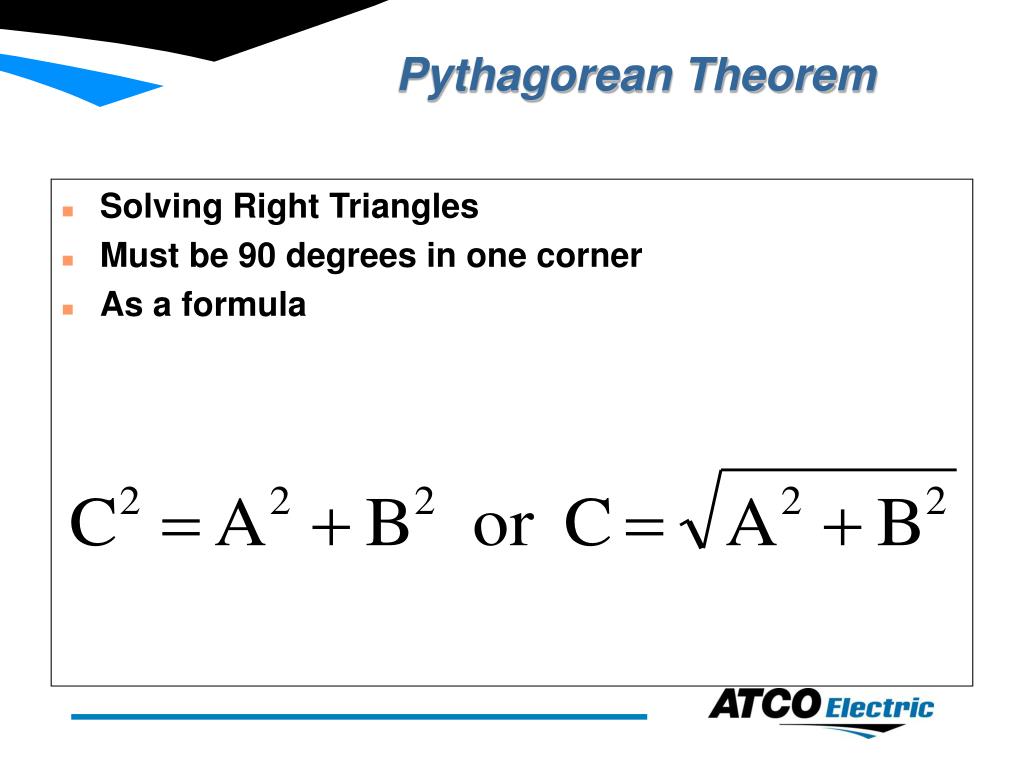

  4. Solving Right Triangles Must be 90 degrees in one corner As a formula Pythagorean Theorem

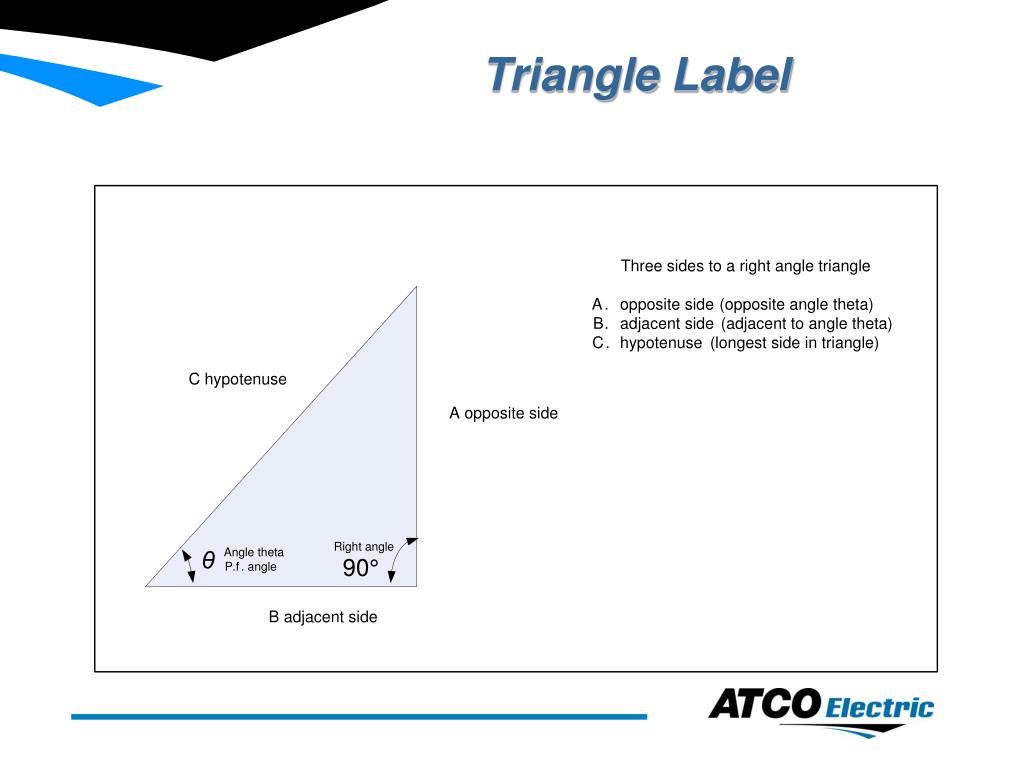

  5. Triangle Label

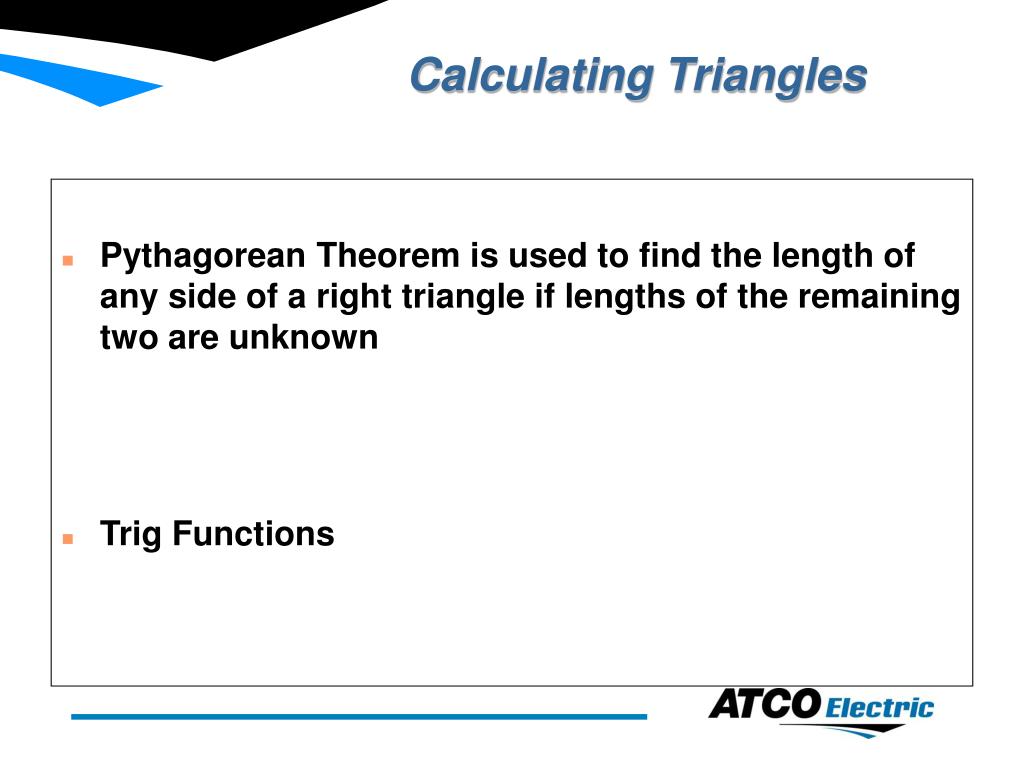

  6. Pythagorean Theorem is used to find the length of any side of a right triangle if lengths of the remaining two are unknown Trig Functions Calculating Triangles

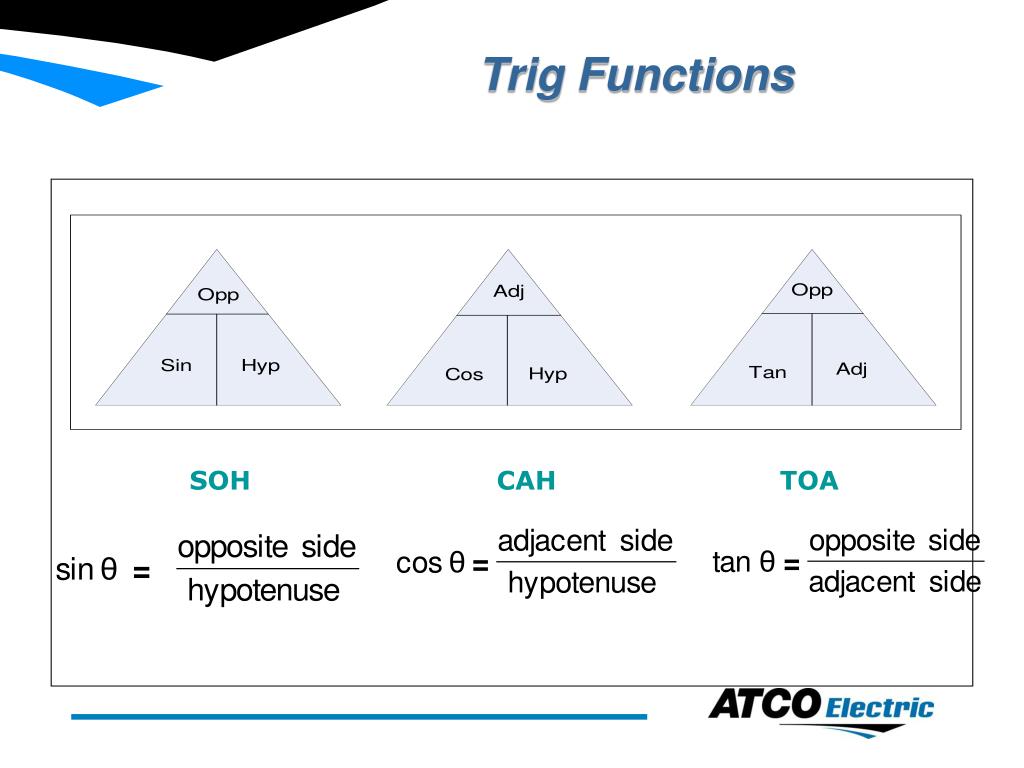

  7. Trig Functions SOH CAH TOA
