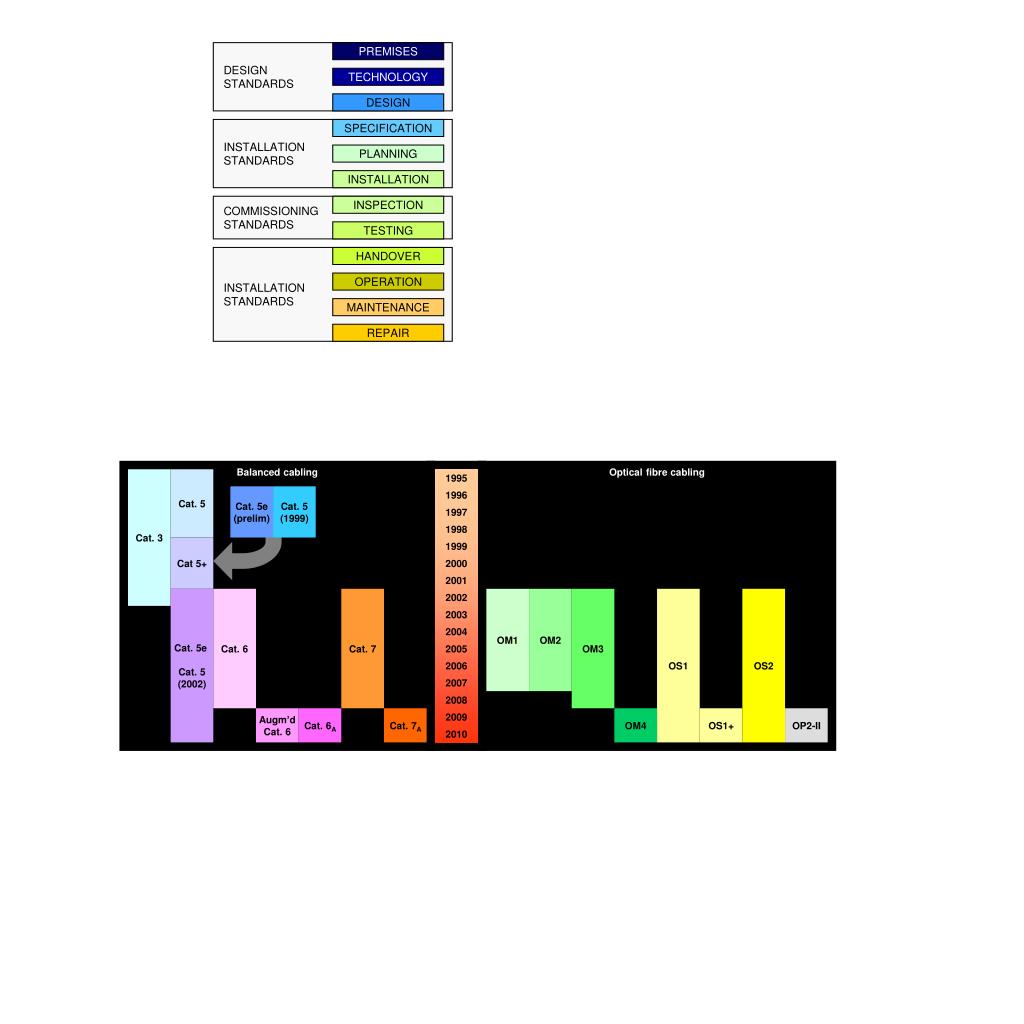

  1. Balanced cabling Optical fibre cabling 1995 Cat. 3 Cat. 5 1996 Cat. 5e (prelim) Cat. 5 (1999) 1997 1998 1999 Cat 5+ 2000 2001 2002 Cat. 5e Cat. 5 (2002) Cat. 6 Cat. 7 OM1 OM2 OM3 OS1 OS2 2003 2004 2005 2006 2007 2008 2009 Augm’d Cat. 6 Cat. 6A Cat. 7A OM4 OS1+ OP2-II 2010 DESIGN STANDARDS PREMISES TECHNOLOGY DESIGN INSTALLATION STANDARDS SPECIFICATION PLANNING INSTALLATION COMMISSIONING STANDARDS INSPECTION TESTING INSTALLATION STANDARDS HANDOVER OPERATION MAINTENANCE REPAIR

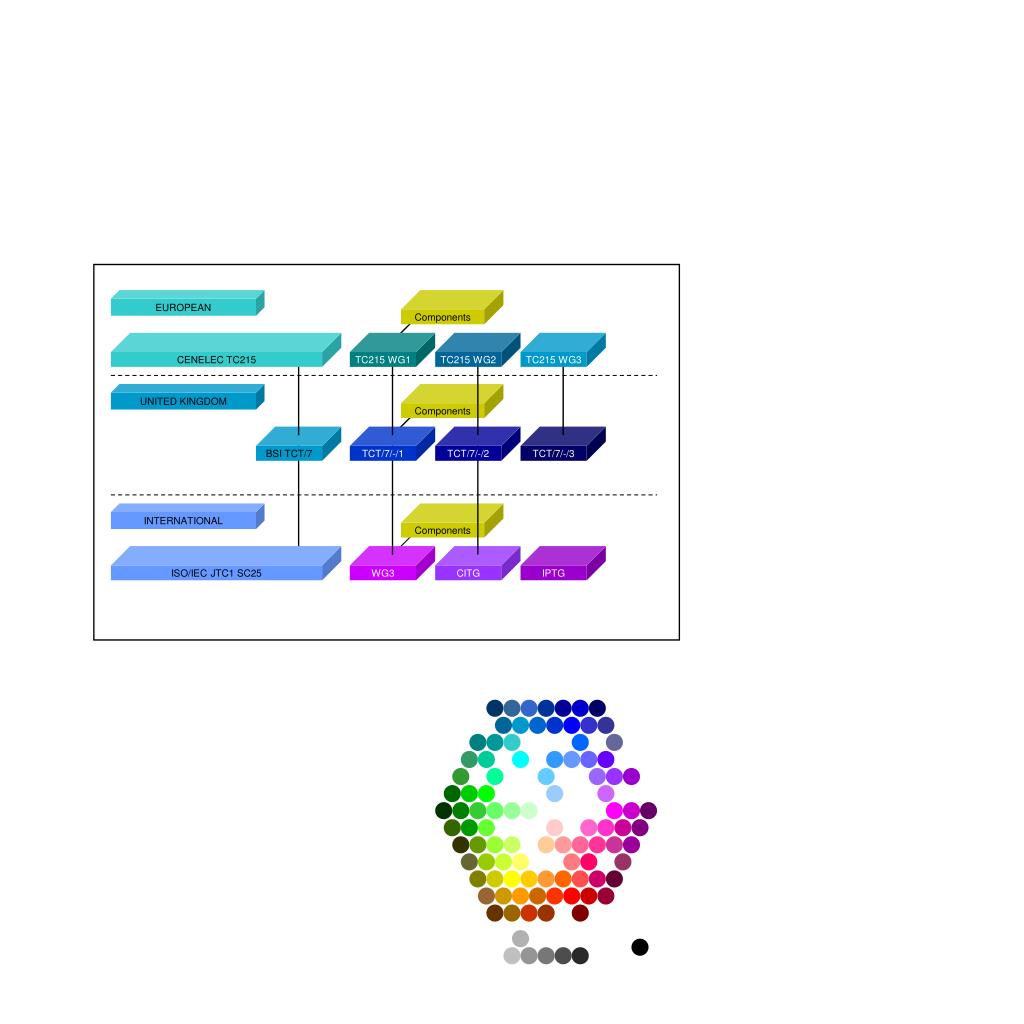

  2. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

  3. BSI TCT/7 • TITLE: Telecommunications - Installation Requirements • Chairman: Mike Gilmore (e-Ready Building) • Secretary: BSI Appointee • TCT/7 is a management committee in control of three “Expert Panels”: • TCT/7/-/1, TCT/7/-/2 and TCT/7/-/3 EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

  4. Chairman: Mike Gilmore (e-Ready Building) Secretary: Rob Cardigan (NCS) TCT/7/-/1 is the mirror committee covering work undertaken in CENELEC TC215 WG1 and ISO/IEC JTC1 SC25 WG3 addressing information technology cabling design and commissioning. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

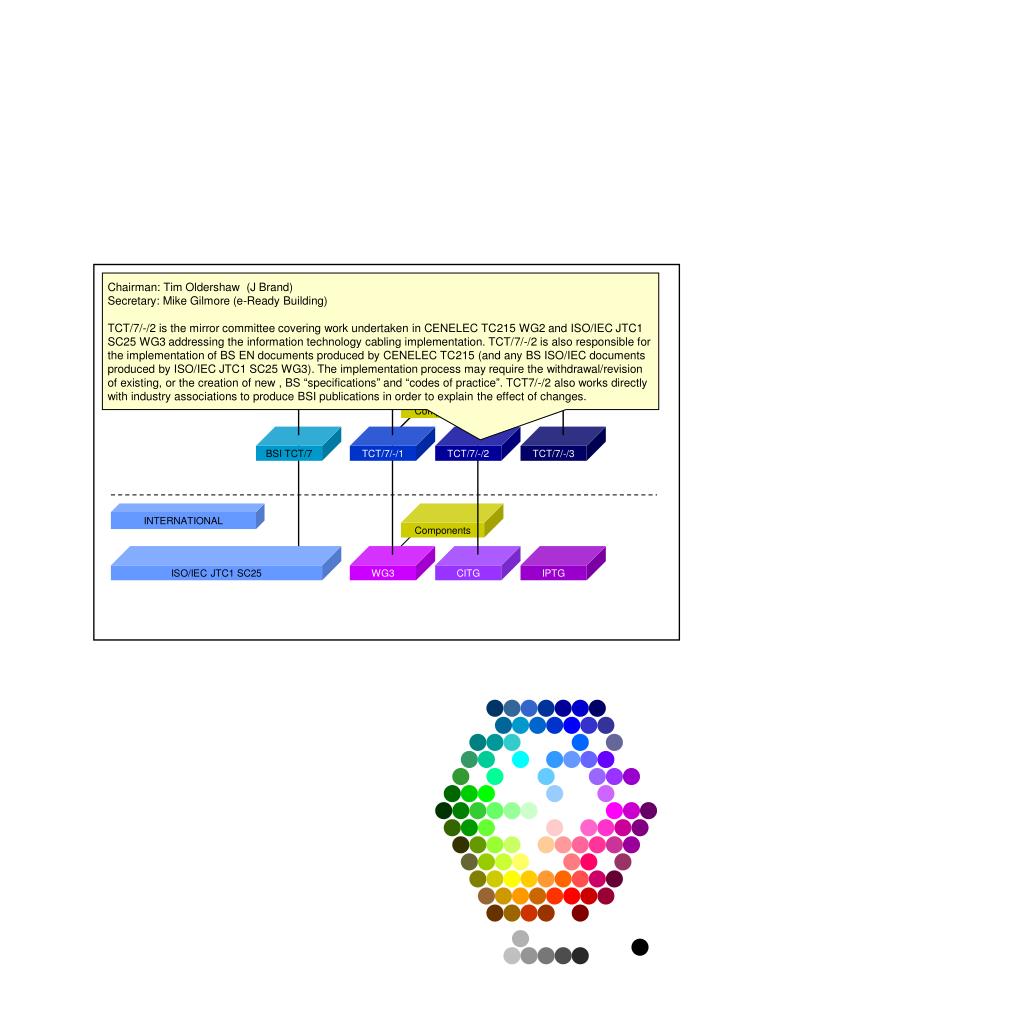

  5. Chairman: Tim Oldershaw (J Brand) Secretary: Mike Gilmore (e-Ready Building) TCT/7/-/2 is the mirror committee covering work undertaken in CENELEC TC215 WG2 and ISO/IEC JTC1 SC25 WG3 addressing the information technology cabling implementation. TCT/7/-/2 is also responsible for the implementation of BS EN documents produced by CENELEC TC215 (and any BS ISO/IEC documents produced by ISO/IEC JTC1 SC25 WG3). The implementation process may require the withdrawal/revision of existing, or the creation of new , BS “specifications” and “codes of practice”. TCT7/-/2 also works directly with industry associations to produce BSI publications in order to explain the effect of changes. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

  6. Chairman: Mike Gilmore (e-Ready Building) Secretary: Rob Cardigan (NCS) TCT/7/-/3 is the mirror committee covering work undertaken in CENELEC TC215 WG3 addressing facilities and infrastructures in support of teelcommunications systems. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

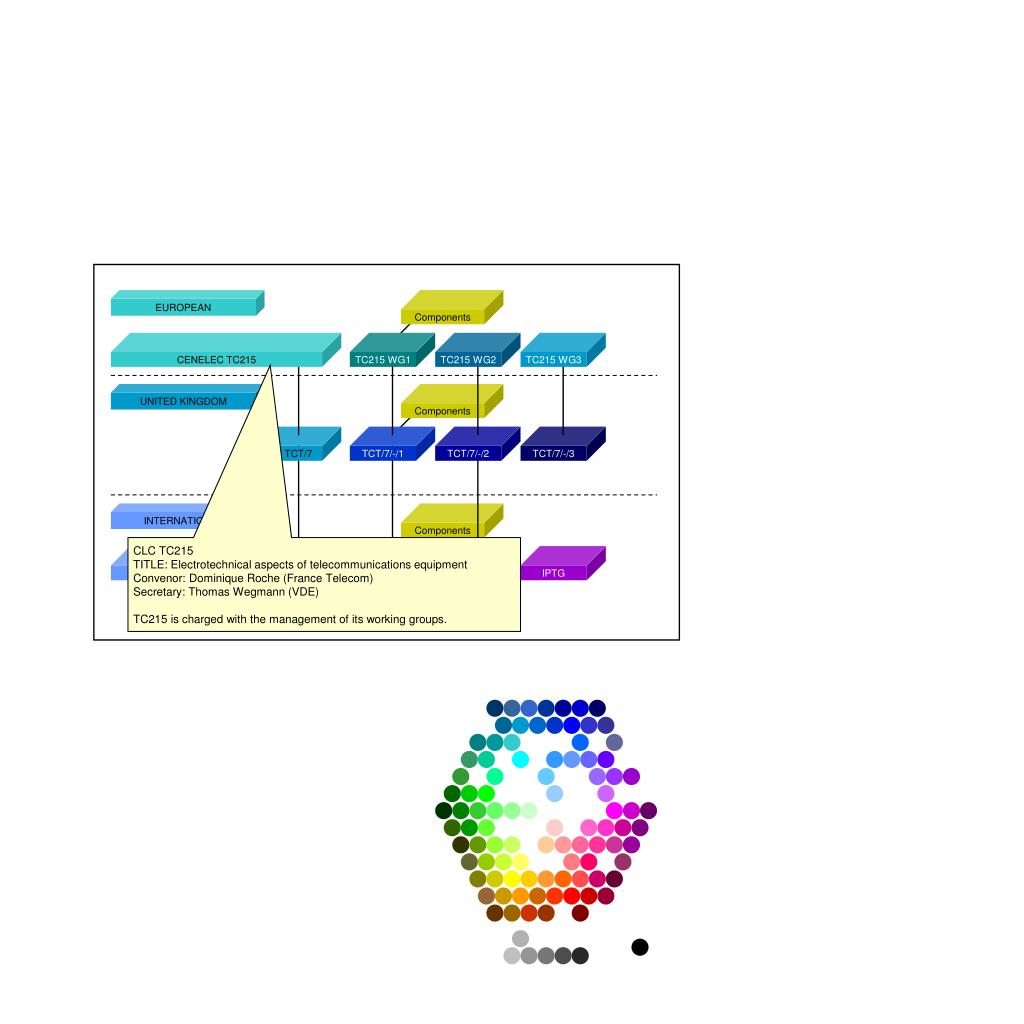

  7. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components CLC TC215 TITLE: Electrotechnical aspects of telecommunications equipment Convenor: Dominique Roche (France Telecom) Secretary: Thomas Wegmann (VDE) TC215 is charged with the management of its working groups. ISO/IEC JTC1 SC25 WG3 CITG IPTG

  8. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components Convenor: Mike Gilmore (e-Ready Building) Secretary: Allan Nielsen (Tyco - Denmark) CLC TC215 WG1 is responsible for development and maintenance of EN 50173 series of standards, EN 50346 together with other standards covering cabling for ISDN. It provides management services for project teams working on specific documents in development. ISO/IEC JTC1 SC25 WG3 CITG IPTG

  9. EUROPEAN Components CENELEC TC215 TC215 WG1 PTDC PTH PTIP PTT CLC TC215 WG1 PT Industrial Premises Dormant CLC TC215 WG1 PT Homes Dormant CLC TC215 WG1 PT Data Centre Dormant CLC TC215 WG1 PT Testing Convenor: Dieter Schicketanz (Con)

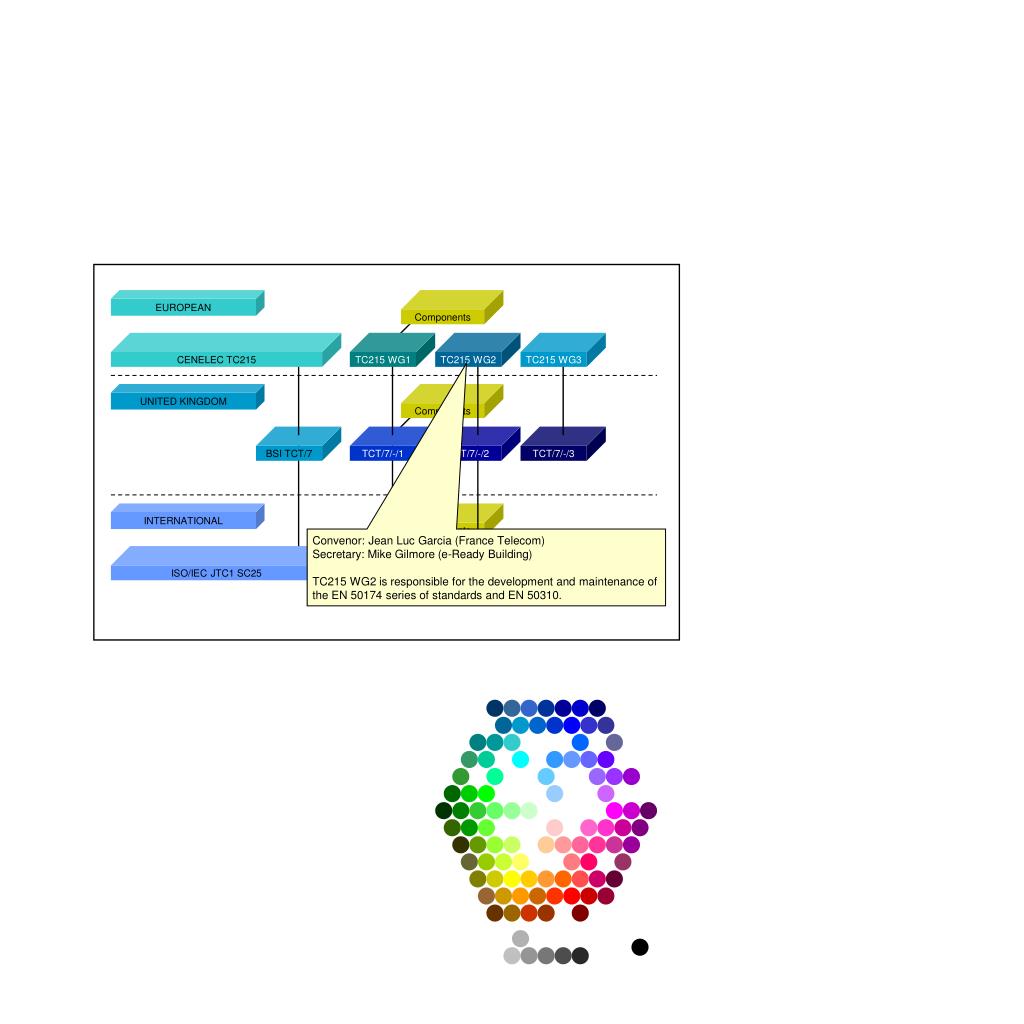

  10. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components Convenor: Jean Luc Garcia (France Telecom) Secretary: Mike Gilmore (e-Ready Building) TC215 WG2 is responsible for the development and maintenance of the EN 50174 series of standards and EN 50310. ISO/IEC JTC1 SC25 WG3 CITG IPTG

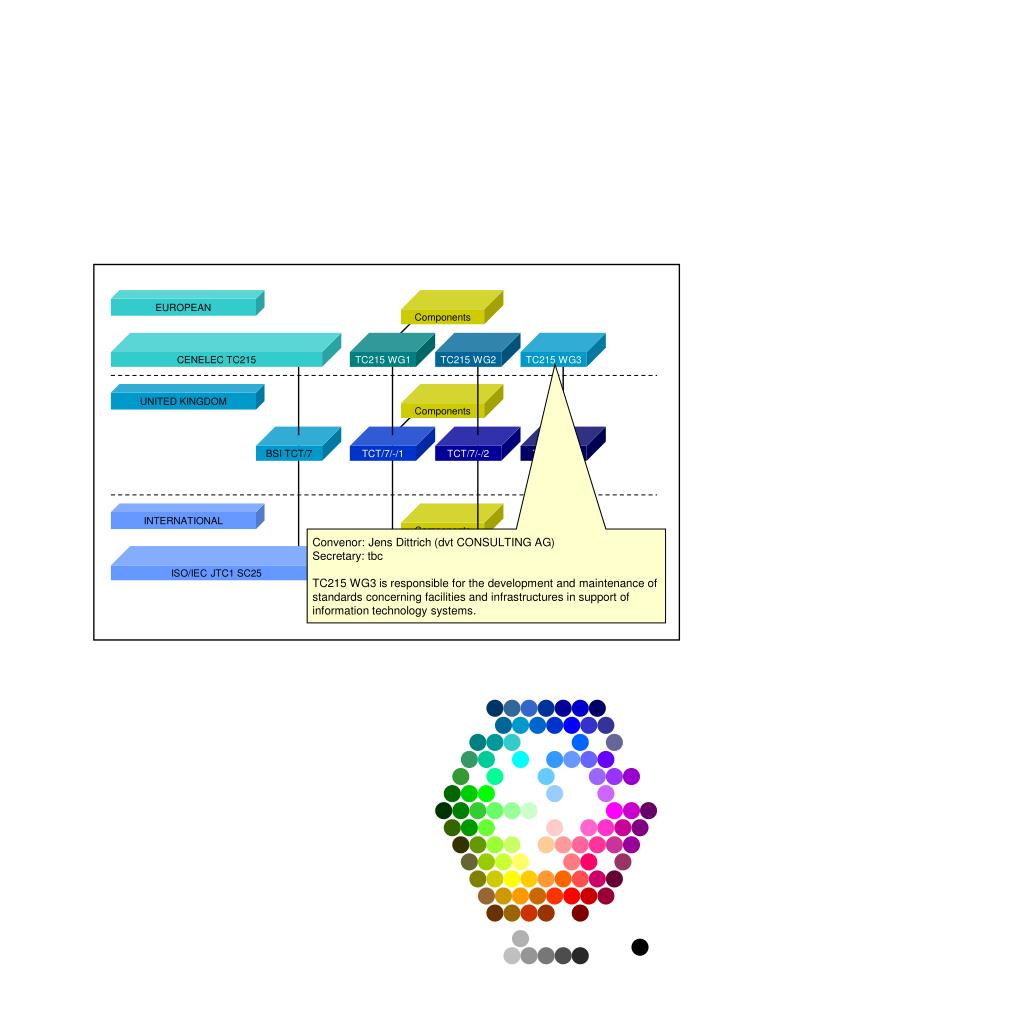

  11. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components Convenor: Jens Dittrich (dvt CONSULTING AG) Secretary: tbc TC215 WG3 is responsible for the development and maintenance of standards concerning facilities and infrastructures in support of information technology systems. ISO/IEC JTC1 SC25 WG3 CITG IPTG

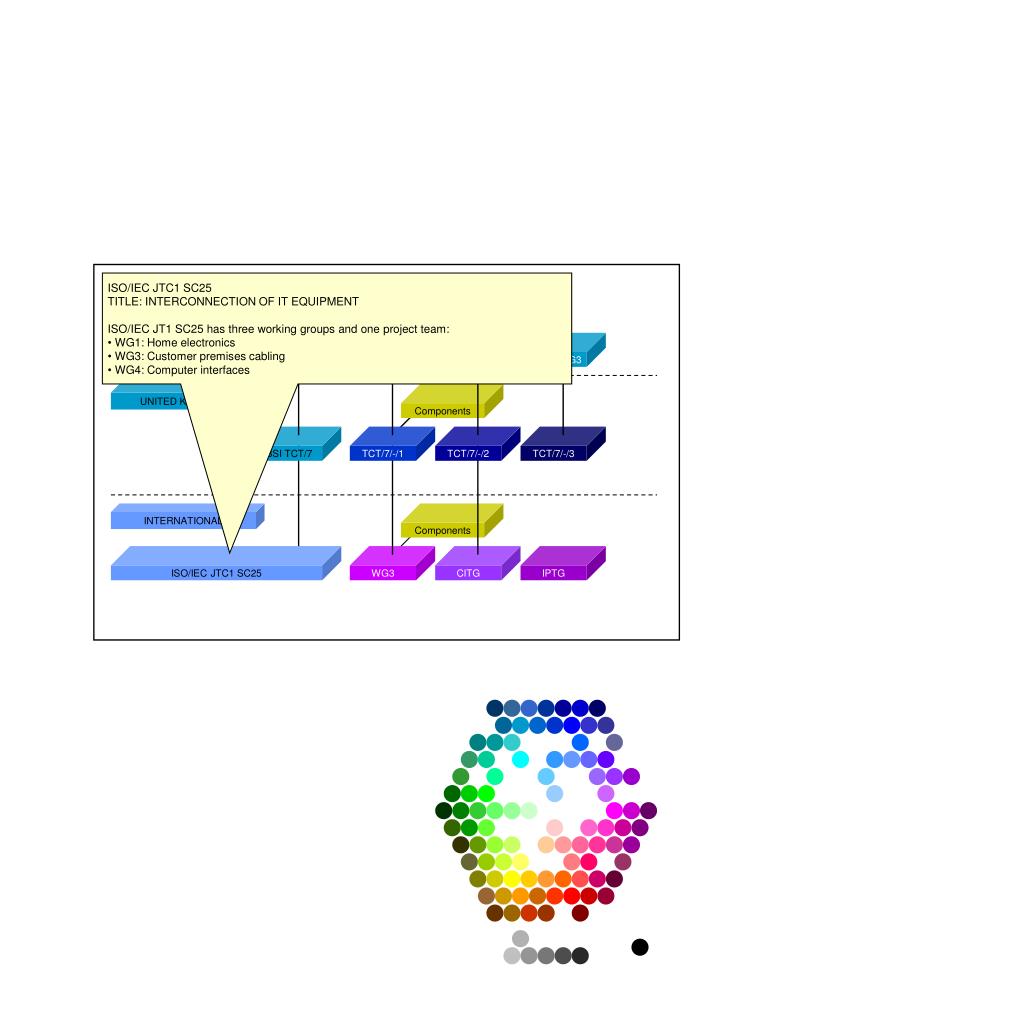

  12. ISO/IEC JTC1 SC25 • TITLE: INTERCONNECTION OF IT EQUIPMENT • ISO/IEC JT1 SC25 has three working groups and one project team: • WG1: Home electronics • WG3: Customer premises cabling • WG4: Computer interfaces EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

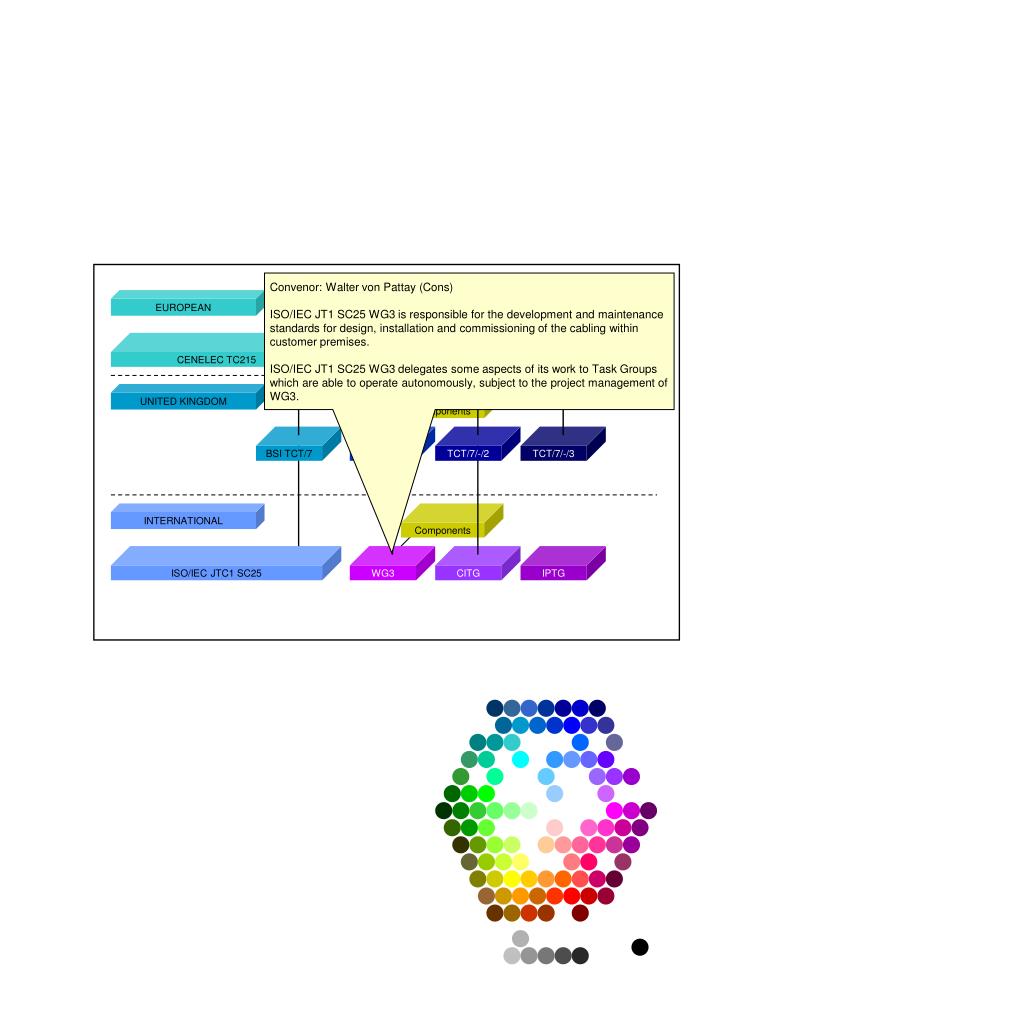

  13. Convenor: Walter von Pattay (Cons) ISO/IEC JT1 SC25 WG3 is responsible for the development and maintenance standards for design, installation and commissioning of the cabling within customer premises. ISO/IEC JT1 SC25 WG3 delegates some aspects of its work to Task Groups which are able to operate autonomously, subject to the project management of WG3. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

  14. Convenor: Walter von Pattay (Cons) ISO/IEC JT1 SC25 WG3 is responsible for the development and maintenance standards for design, installation and commissioning of the cabling within customer premises. ISO/IEC JT1 SC25 WG3 delegates some aspects of its work to Task Groups which are able to operate autonomously, subject to the project management of WG3. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

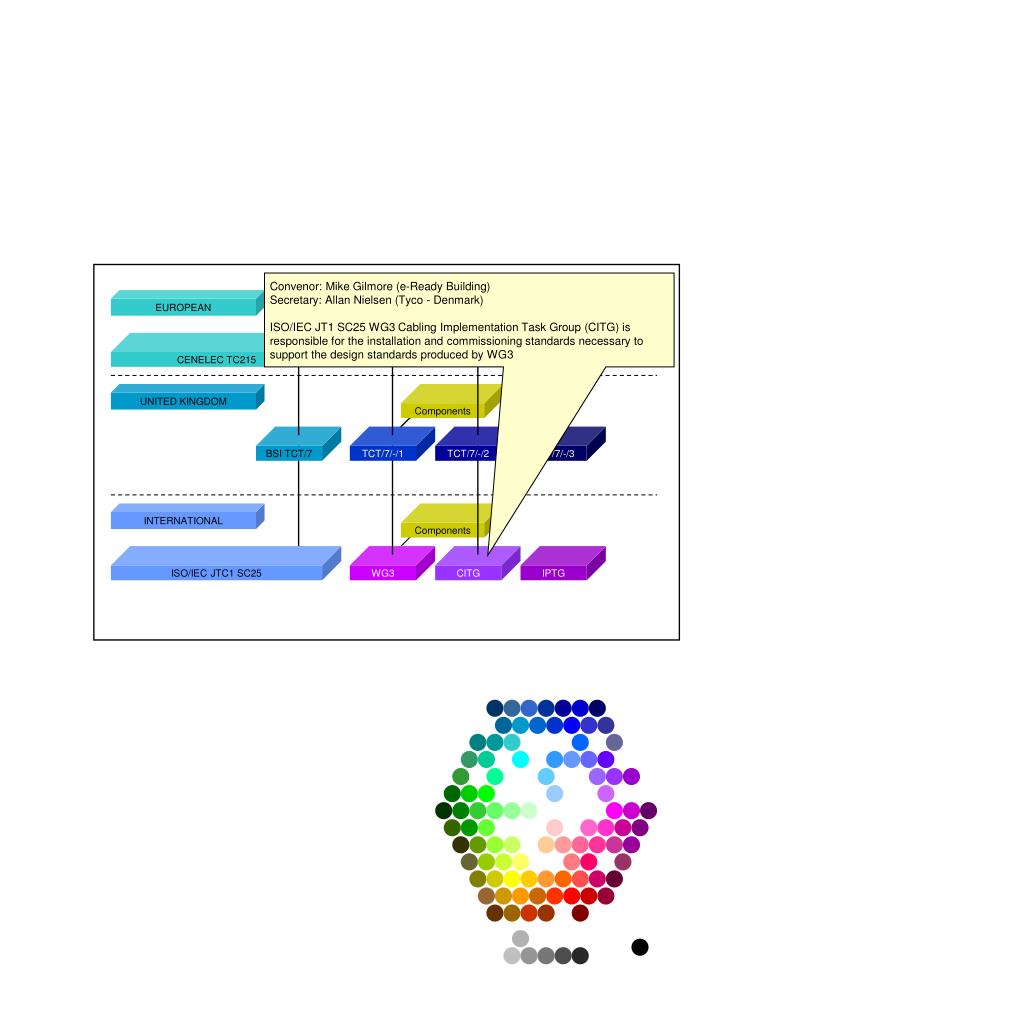

  15. Convenor: Mike Gilmore (e-Ready Building) Secretary: Allan Nielsen (Tyco - Denmark) ISO/IEC JT1 SC25 WG3 Cabling Implementation Task Group (CITG) is responsible for the installation and commissioning standards necessary to support the design standards produced by WG3 EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

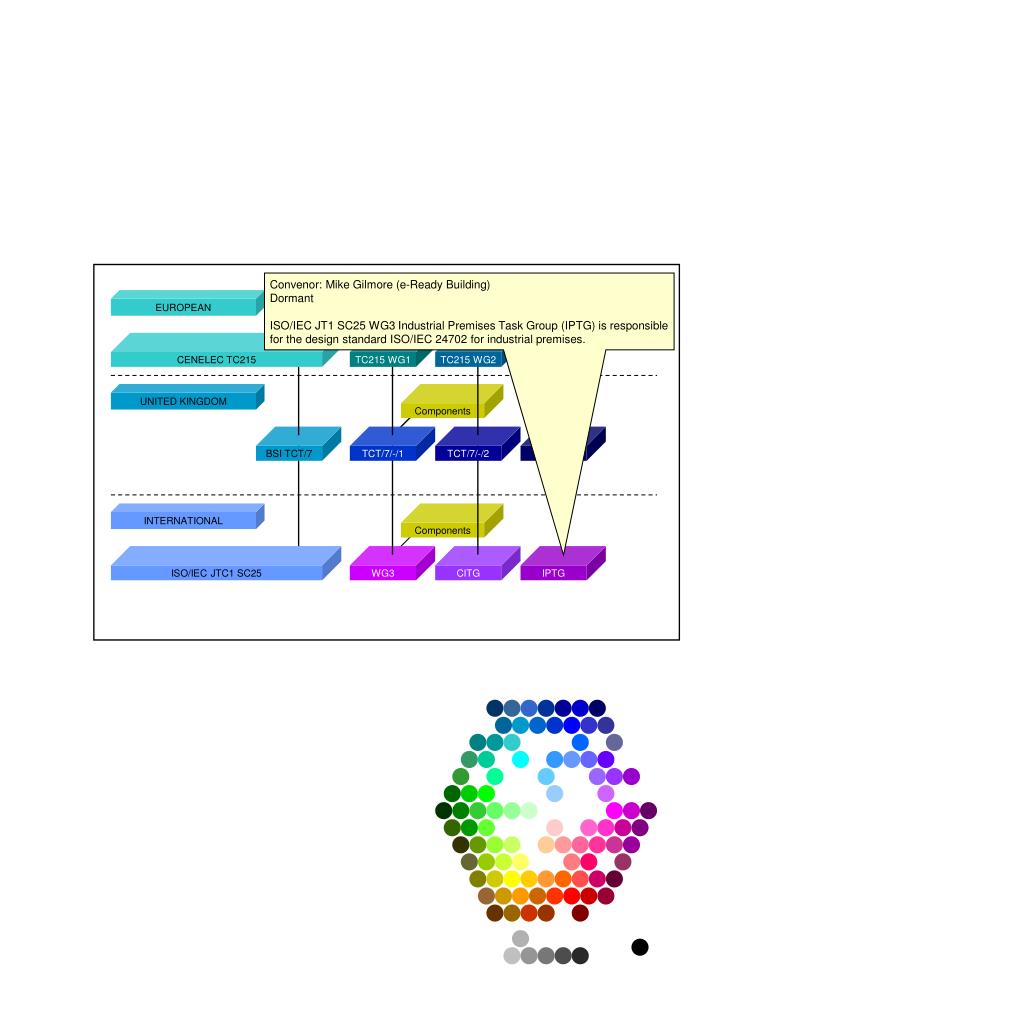

  16. Convenor: Mike Gilmore (e-Ready Building) Dormant ISO/IEC JT1 SC25 WG3 Industrial Premises Task Group (IPTG) is responsible for the design standard ISO/IEC 24702 for industrial premises. EUROPEAN Components CENELEC TC215 TC215 WG1 TC215 WG2 TC215 WG3 UNITED KINGDOM Components BSI TCT/7 TCT/7/-/1 TCT/7/-/2 TCT/7/-/3 INTERNATIONAL Components ISO/IEC JTC1 SC25 WG3 CITG IPTG

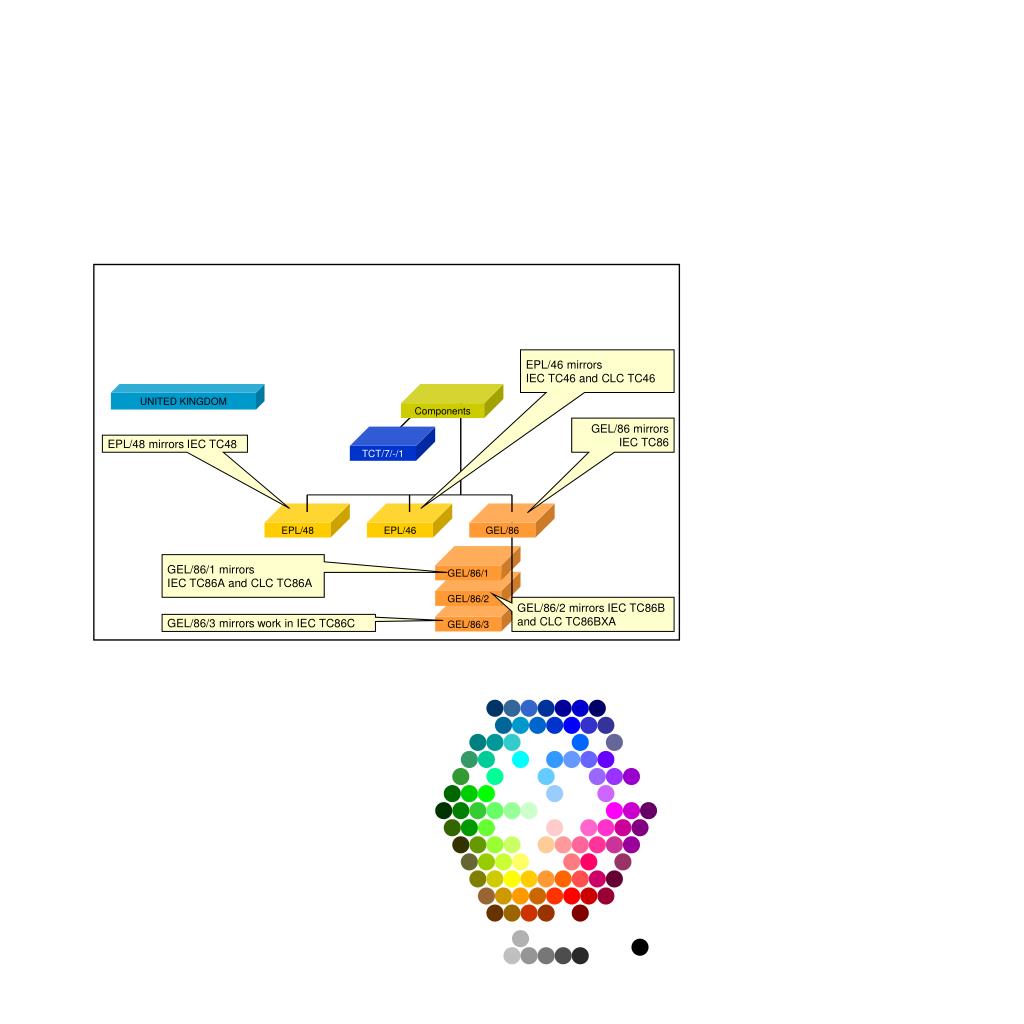

  17. EPL/46 mirrors IEC TC46 and CLC TC46 UNITED KINGDOM Components GEL/86 mirrors IEC TC86 TCT/7/-/1 EPL/48 mirrors IEC TC48 EPL/48 EPL/46 GEL/86 GEL/86/1 GEL/86/1 mirrors IEC TC86A and CLC TC86A GEL/86/2 GEL/86/3 GEL/86/2 mirrors IEC TC86B and CLC TC86BXA GEL/86/3 mirrors work in IEC TC86C

  18. CLC TC48 is a parallel-voting committee for IEC TC48 and does not produce its own specifications. For example it publishes the IEC 60603-7 series of standards as EN 60603-7 standards EUROPEAN Components CENELEC TC215 TC215 WG1 TC48 TC46X TC86A TC86BXA CLC TC46X and its WGs produce specifications for cable and cabling test methods TC46X SC46XC SC46XA CLC SC86B produces specifications for optical fibre and optical fibre cable CLC SC46XC produces specifications for balanced cables CLC SC46XA produces specifications for coaxial cables CLC SC86B produces specifications for optical fibre connecting hardware IEC TC48 IEC SC48B

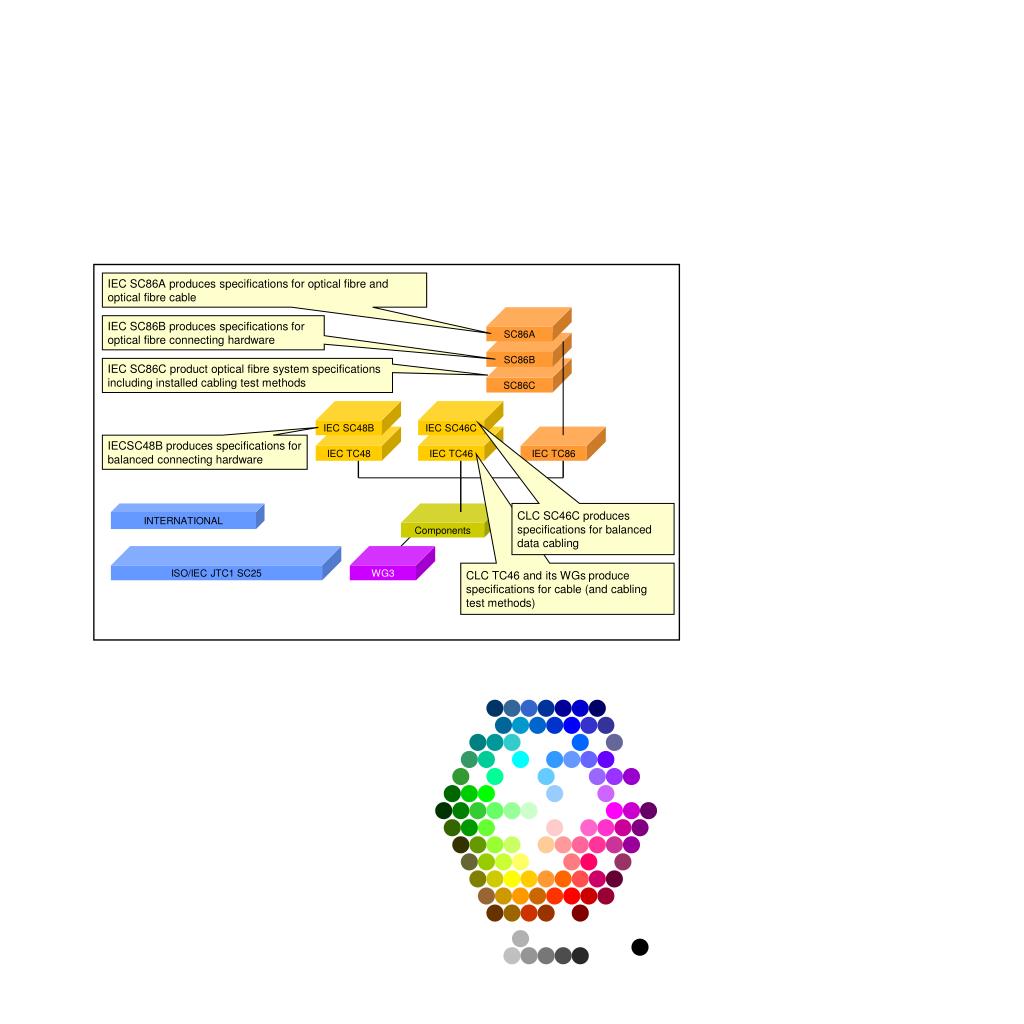

  19. IEC SC86A produces specifications for optical fibre and optical fibre cable SC86A IEC SC86B produces specifications for optical fibre connecting hardware SC86B IEC SC86C product optical fibre system specifications including installed cabling test methods SC86C IEC SC48B IEC SC46C IEC TC48 IEC TC46 IEC TC86 IECSC48B produces specifications for balanced connecting hardware INTERNATIONAL Components CLC SC46C produces specifications for balanced data cabling ISO/IEC JTC1 SC25 WG3 CLC TC46 and its WGs produce specifications for cable (and cabling test methods)
