Chapter 14 – Partial Derivatives

dinesh avatar
dinesh
16 diapositives · 591 Views · Jul 27, 2014

Chapter 14 – Partial Derivatives. 14.4 Tangent Planes & Linear Approximations. Objectives: Determine how to approximate functions using tangent planes Determine how to approximate functions using linear functions. Definition – Tangent Plane.

Chapter 14 – Partial Derivatives - slide 1
01 / 16Chapter 14 – Partial Derivatives
1 / 17

Télécharger la présentation

Chapter 14 – Partial Derivatives
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

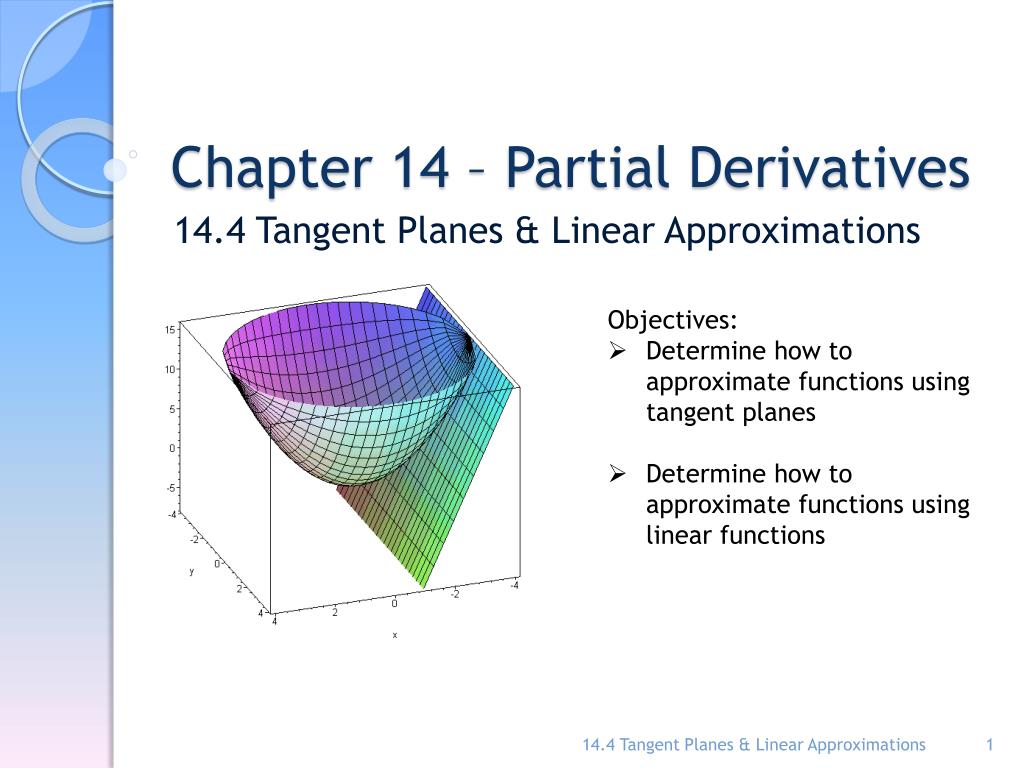

  1. Chapter 14 – Partial Derivatives 14.4 Tangent Planes & Linear Approximations • Objectives: • Determine how to approximate functions using tangent planes • Determine how to approximate functions using linear functions 14.4 Tangent Planes & Linear Approximations

  2. Definition – Tangent Plane • Suppose a surface S has equation z = f(x, y), where f has continuous first partial derivatives. • Let P(x0, y0, z0) be a point on S. • let C1 and C2 be the curves obtained by intersecting the vertical planes y = y0 and x = x0 with the surface S. • Then, the point Plies on both C1 and C2. • Let T1 and T2 be the tangent lines to the curves C1 and C2 at the point P. 14.4 Tangent Planes & Linear Approximations

  3. Tangent Plane • Then, the tangent planeto the surface S at the point P is defined to be the plane that contains both tangent lines T1 and T2. 14.4 Tangent Planes & Linear Approximations

  4. Equation of a tangent plane 14.4 Tangent Planes & Linear Approximations

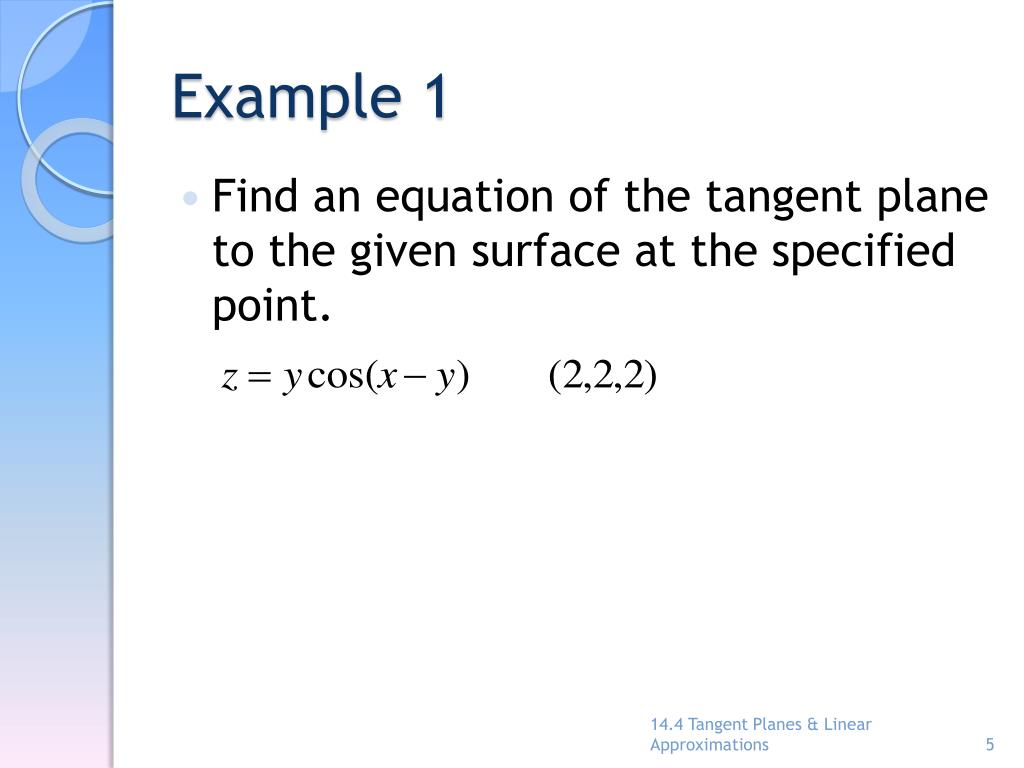

  5. Example 1 • Find an equation of the tangent plane to the given surface at the specified point. 14.4 Tangent Planes & Linear Approximations

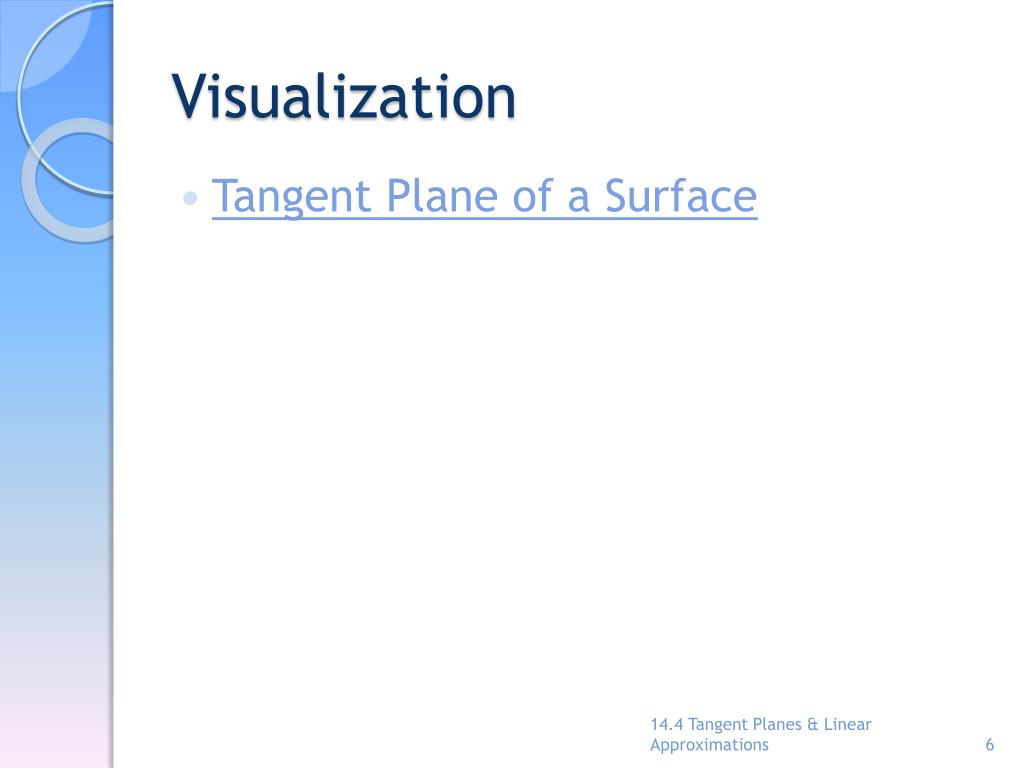

  6. Visualization • Tangent Plane of a Surface 14.4 Tangent Planes & Linear Approximations

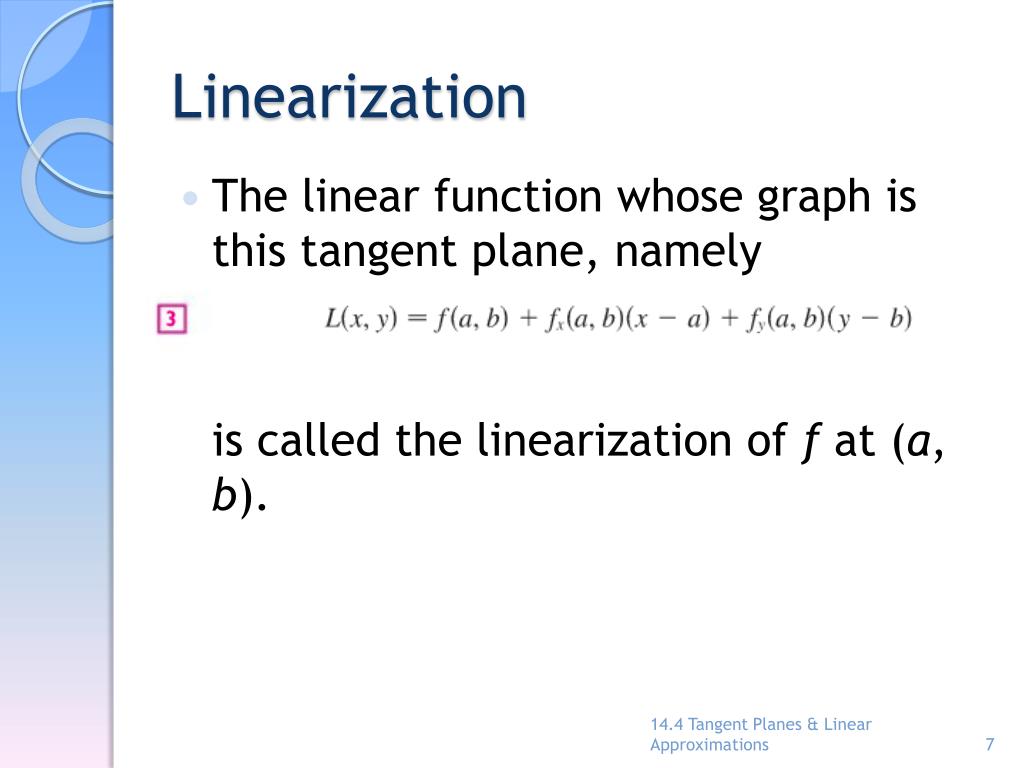

  7. Linearization • The linear function whose graph is this tangent plane, namely is called the linearization of f at (a, b). 14.4 Tangent Planes & Linear Approximations

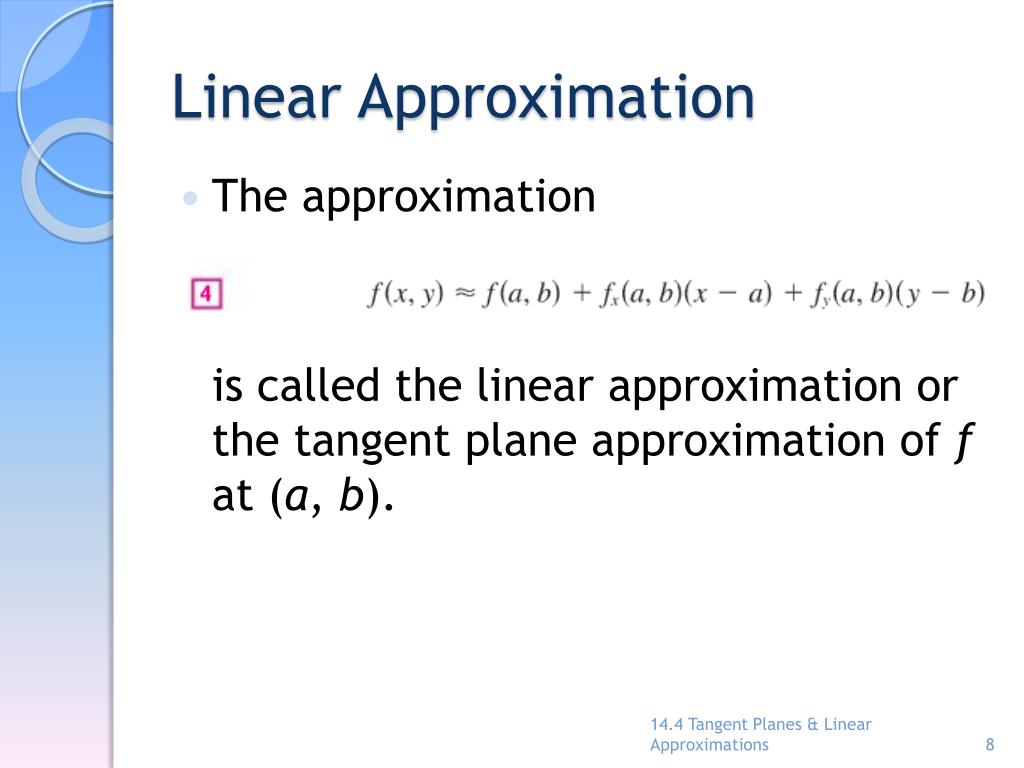

  8. Linear Approximation • The approximation is called the linear approximation or the tangent plane approximation of f at (a, b). 14.4 Tangent Planes & Linear Approximations

  9. Differentiable • This means that the tangent plane approximates the graph of f well near the point of tangency. 14.4 Tangent Planes & Linear Approximations

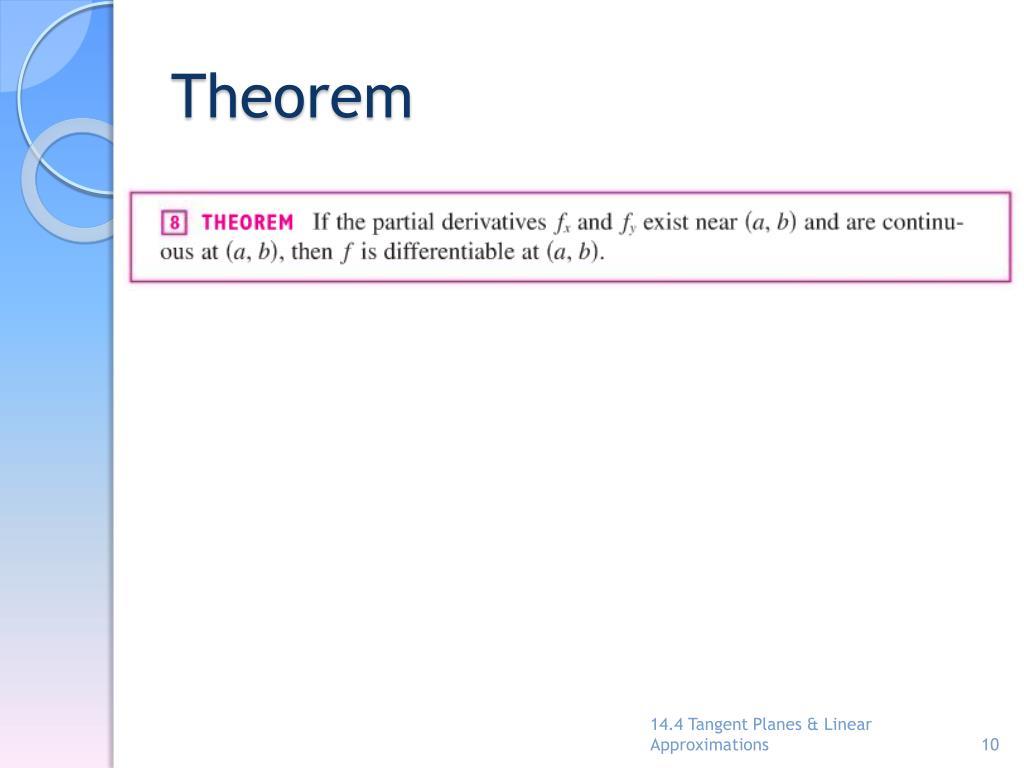

  10. Theorem 14.4 Tangent Planes & Linear Approximations

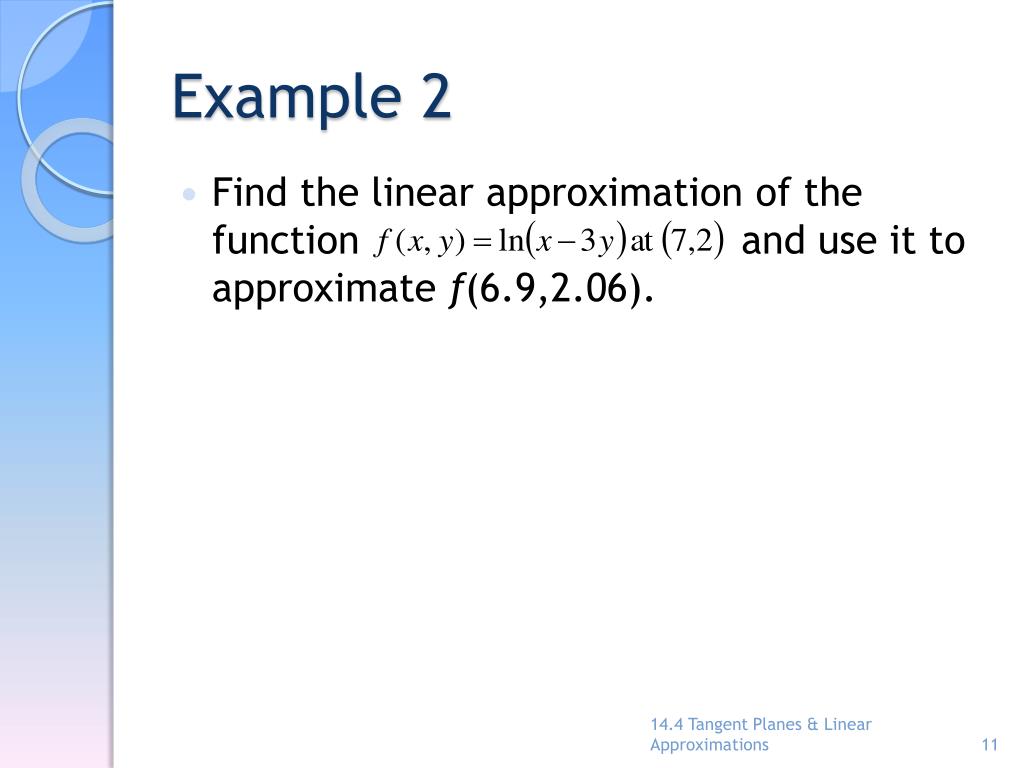

  11. Example 2 • Find the linear approximation of the function and use it to approximate f(6.9,2.06). 14.4 Tangent Planes & Linear Approximations

  12. Total differential • For a differentiable function of two variables, z = f(x, y), we define the differentials dx and dy to be independent variables. • Then the differential dz, also called the total differential, is defined by: 14.4 Tangent Planes & Linear Approximations

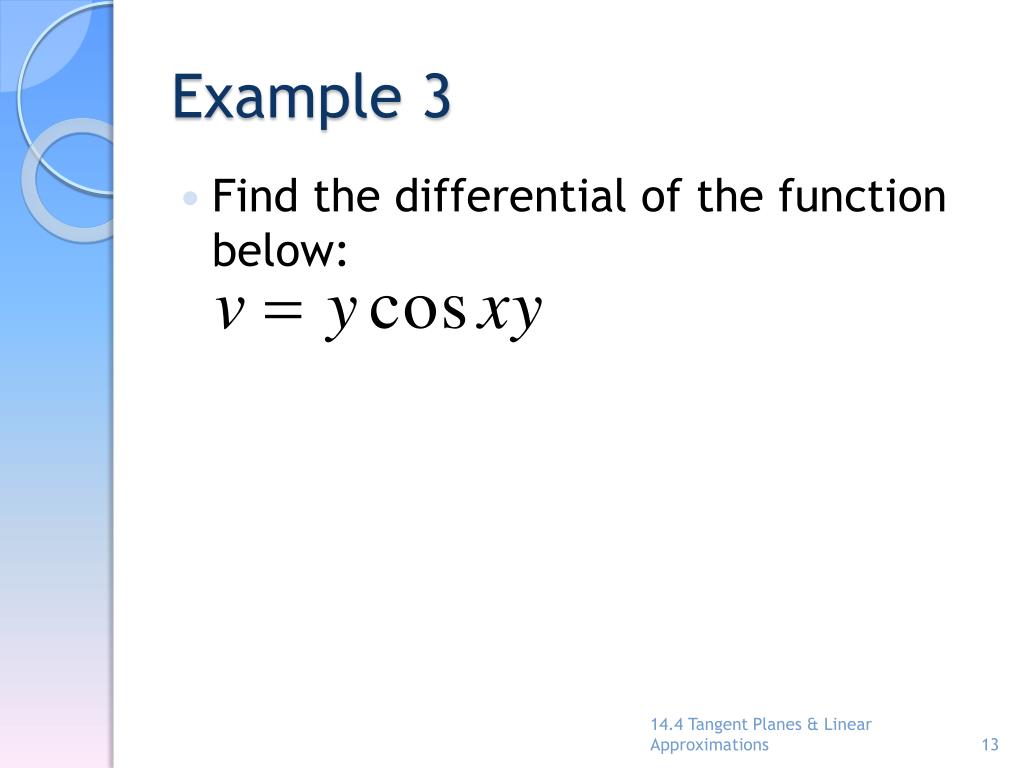

  13. Example 3 • Find the differential of the function below: 14.4 Tangent Planes & Linear Approximations

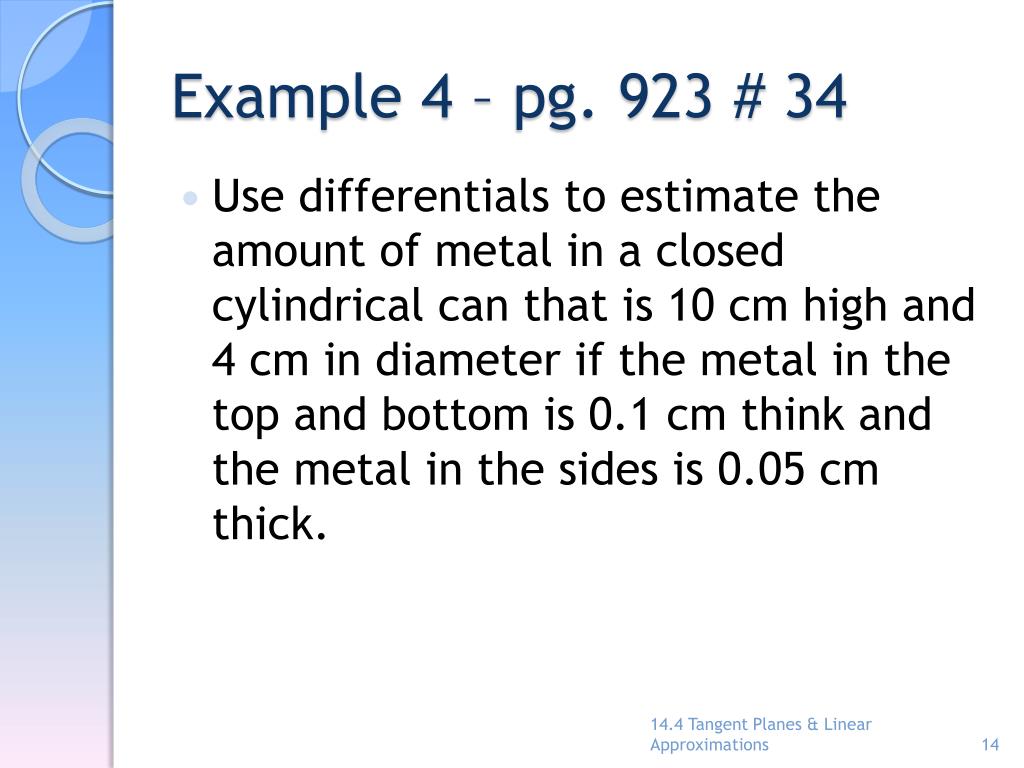

  14. Example 4 – pg. 923 # 34 • Use differentials to estimate the amount of metal in a closed cylindrical can that is 10 cm high and 4 cm in diameter if the metal in the top and bottom is 0.1 cm think and the metal in the sides is 0.05 cm thick. 14.4 Tangent Planes & Linear Approximations

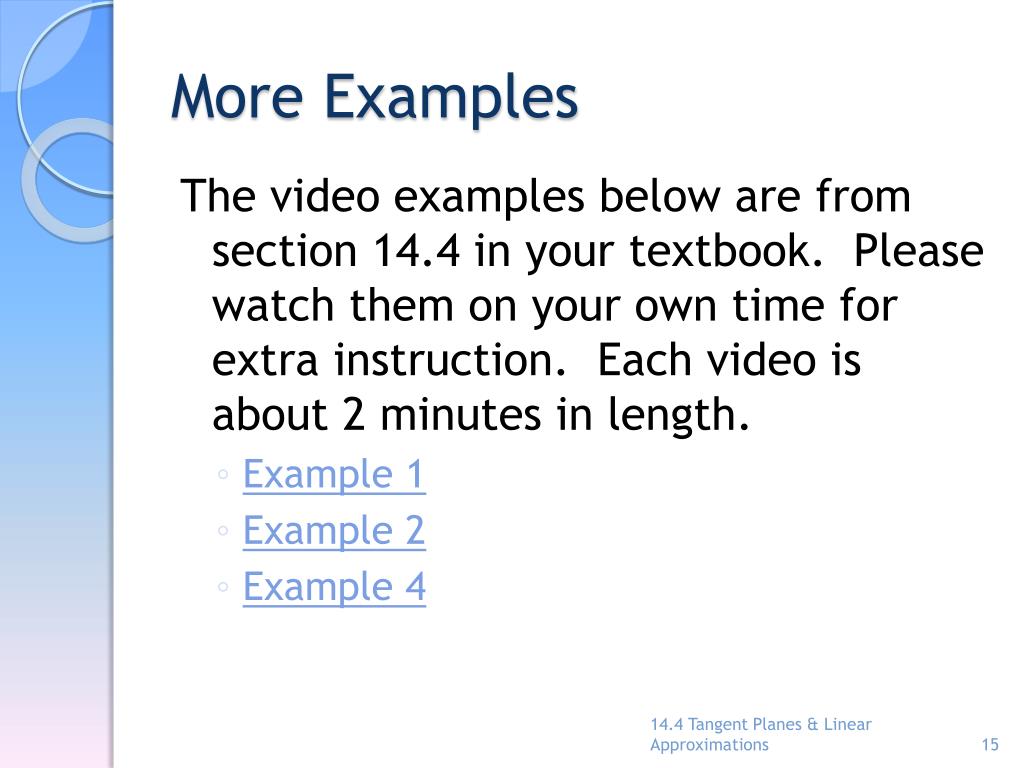

  15. More Examples The video examples below are from section 14.4 in your textbook. Please watch them on your own time for extra instruction. Each video is about 2 minutes in length. • Example 1 • Example 2 • Example 4 14.4 Tangent Planes & Linear Approximations

  16. Demonstrations Feel free to explore these demonstrations below. • Tangent Planes on a 3D Graph • Total Differential of the First Order • Limits of a Rational Function of Two Variables 14.4 Tangent Planes & Linear Approximations
