  1. IGD Working Committee Update Ulhas Warrier Chair, IGD Intel Corporation

  2. Outline • IGD v1.0 recap • IGD v2.0 objectives • WLAN Enrollment Scenario • Working Committee Status

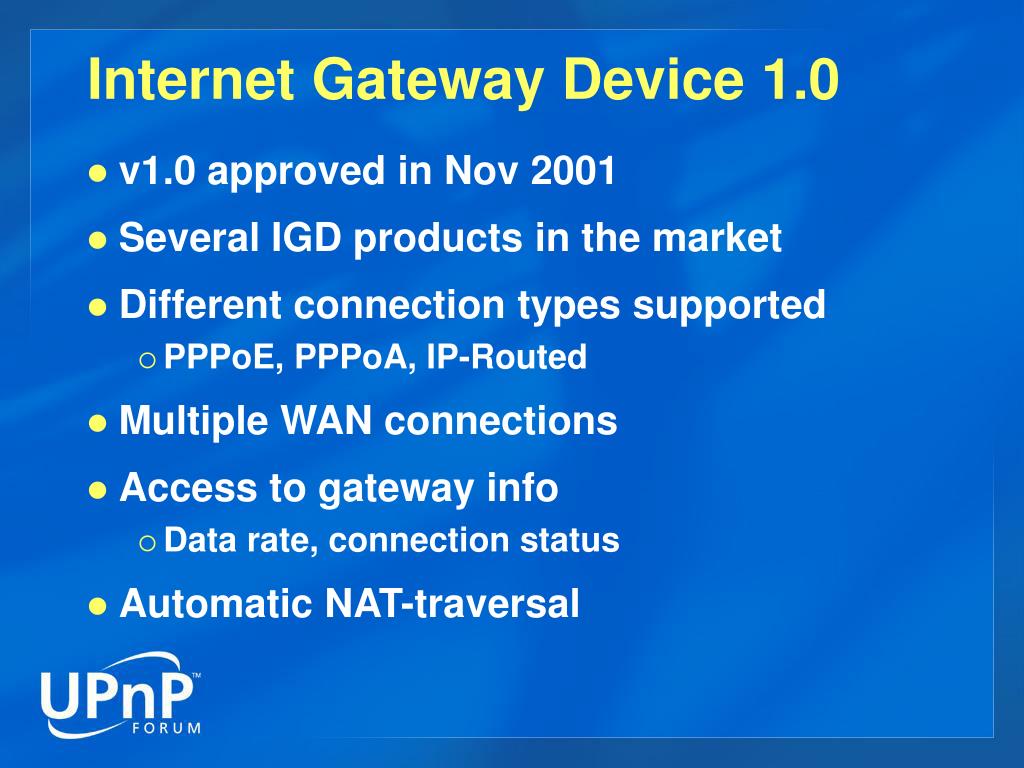

  3. Internet Gateway Device 1.0 • v1.0 approved in Nov 2001 • Several IGD products in the market • Different connection types supported • PPPoE, PPPoA, IP-Routed • Multiple WAN connections • Access to gateway info • Data rate, connection status • Automatic NAT-traversal

  4. Tell peer to send packet to LAN address Routing to private LAN address fails End to end packet delivery Internet Discover IGD, Get WAN IP address Configure IGD to forward packets arriving on the IGD WAN address to host UPnP IGD Example for NAT traversal Peer Game System on Internet NAT using WAN address Home LAN IGD Game Host with private LAN IP address Tell peer to send packet to IGD’s WAN address

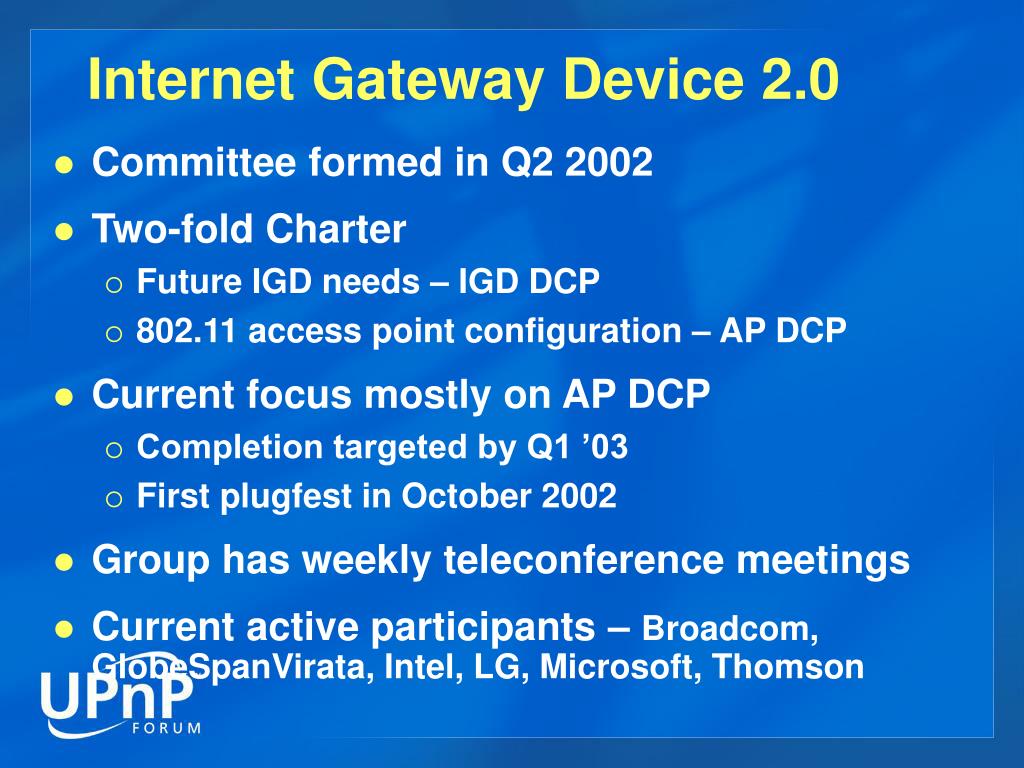

  5. Internet Gateway Device 2.0 • Committee formed in Q2 2002 • Two-fold Charter • Future IGD needs – IGD DCP • 802.11 access point configuration – AP DCP • Current focus mostly on AP DCP • Completion targeted by Q1 ’03 • First plugfest in October 2002 • Group has weekly teleconference meetings • Current active participants – Broadcom, GlobeSpanVirata, Intel, LG, Microsoft, Thomson

  6. IGD DCP 2.0 • IPv6 support • Existing services modified for IPv6 • New services – firewall configuration • IGD v1 enhancements • Support for configuring IP Forwarding • Port mapping additions

  7. Access Point DCP • Simplify Access Point setup • Initial configuration • Diagnostic information • Make enrollment of new clients easy • Devices with no UI • Guest clients • Additional access points • Enable deployment of stronger link security • Privacy important as WLAN usage increases • Make link security setup easy, including 802.1x

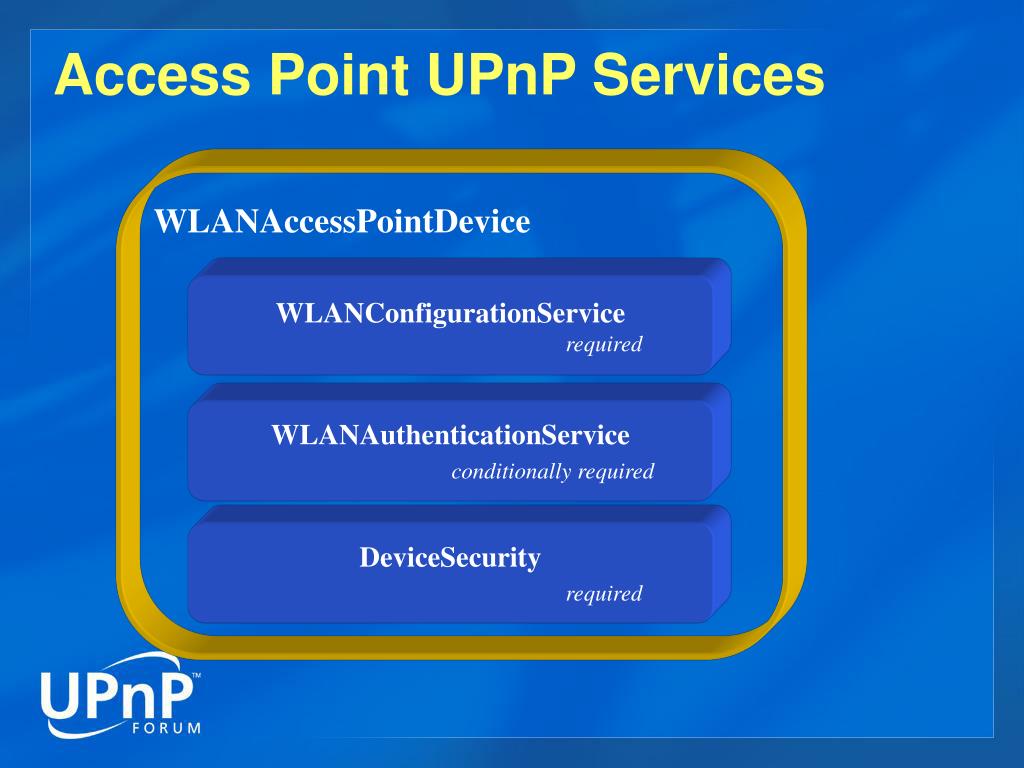

  8. Access Point UPnP Services WLANAccessPointDevice WLANConfigurationService required WLANAuthenticationService conditionally required DeviceSecurity required

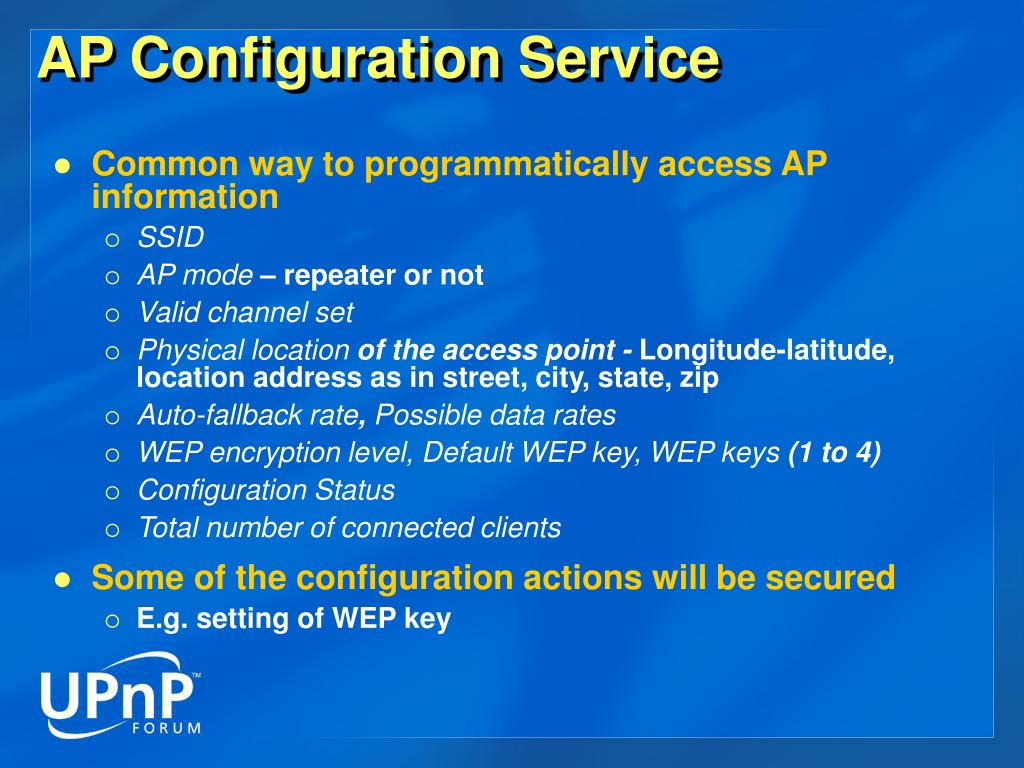

  9. AP Configuration Service • Common way to programmatically access AP information • SSID • AP mode – repeater or not • Valid channel set • Physical location of the access point - Longitude-latitude, location address as in street, city, state, zip • Auto-fallback rate, Possible data rates • WEP encryption level, Default WEP key, WEP keys (1 to 4) • Configuration Status • Total number of connected clients • Some of the configuration actions will be secured • E.g. setting of WEP key

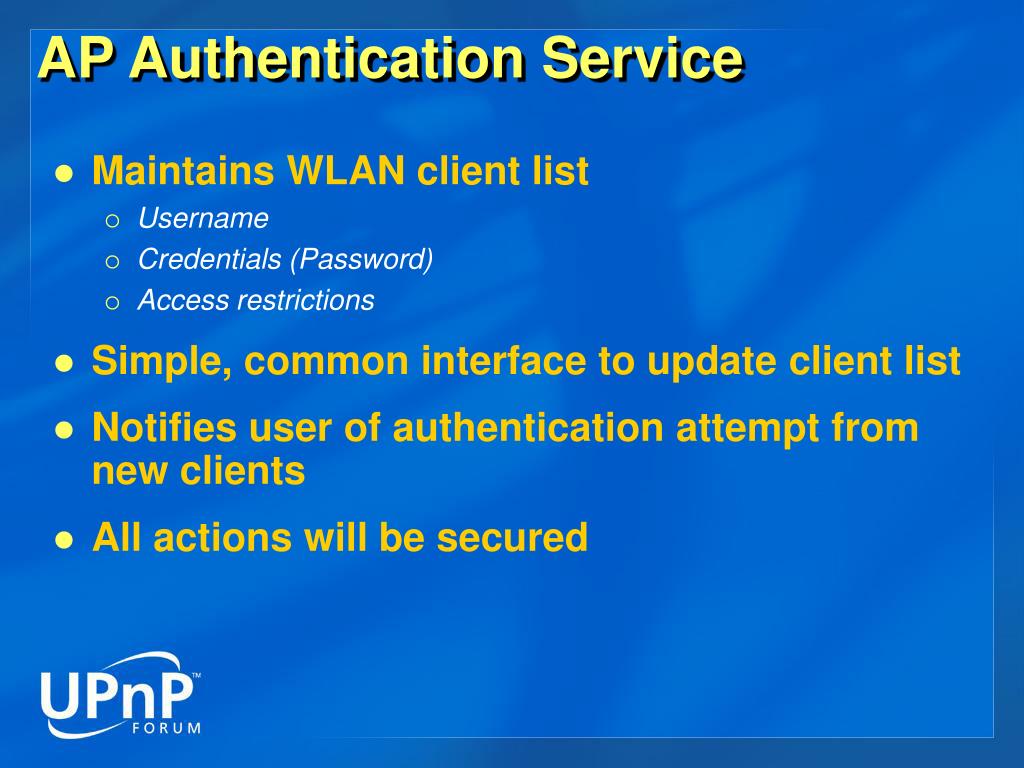

  10. AP Authentication Service • Maintains WLAN client list • Username • Credentials (Password) • Access restrictions • Simple, common interface to update client list • Notifies user of authentication attempt from new clients • All actions will be secured

  11. Secure 802.11 link established Enrolling an 802.11 Client PC1 Dev1 Secure UPnP • User prompted on PC1 for 802.1x authentication password Console PC Username: __Dev1__ Password: ________ • User enters info provided by Dev1 vendor (chassis/manual) • PC1 informs AP about successful validation Device without UI easily enrolled into secure WLAN

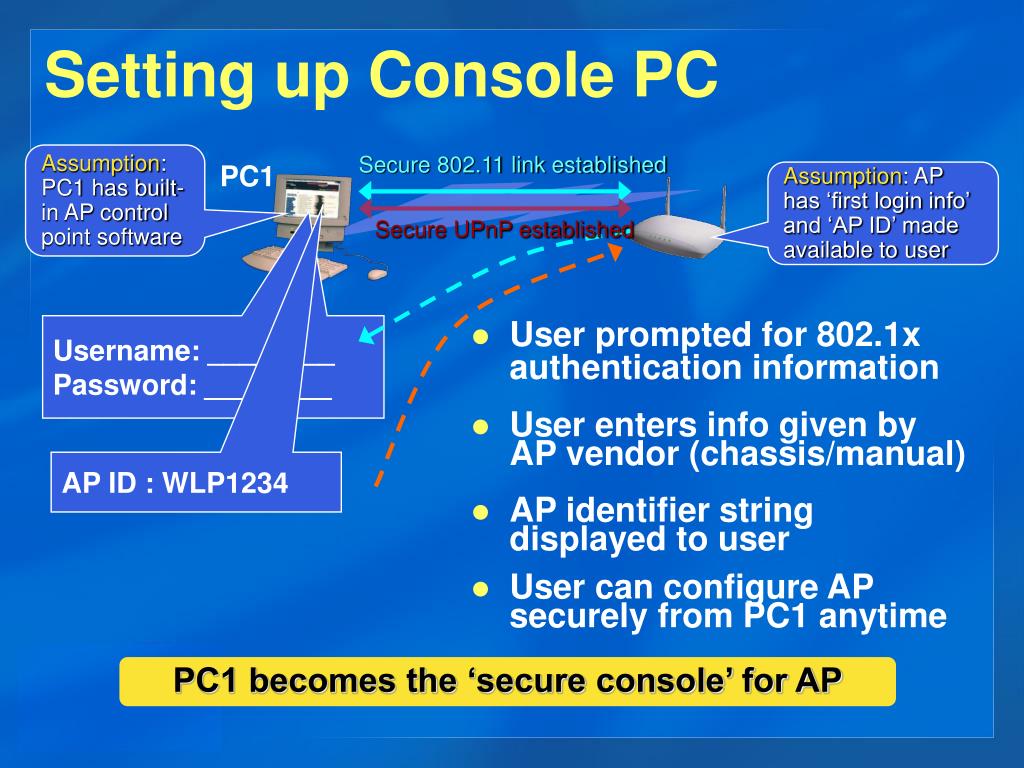

  12. Assumption: PC1 has built-in AP control point software Secure 802.11 link established Assumption: AP has ‘first login info’ and ‘AP ID’ made available to user Setting up Console PC PC1 • User prompted for 802.1x authentication information Secure UPnP established Username: ________ Password: ________ • User enters info given by AP vendor (chassis/manual) AP ID : WLP1234 • AP identifier string displayed to user • User can configure AP securely from PC1 anytime PC1 becomes the ‘secure console’ for AP

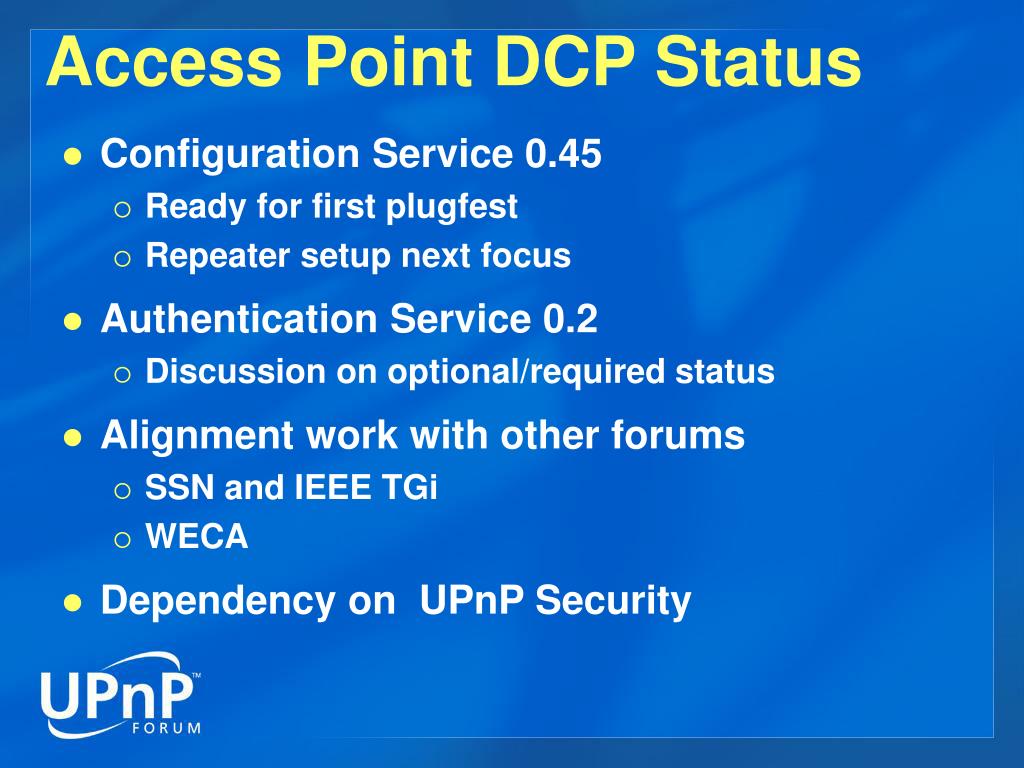

  13. Access Point DCP Status • Configuration Service 0.45 • Ready for first plugfest • Repeater setup next focus • Authentication Service 0.2 • Discussion on optional/required status • Alignment work with other forums • SSN and IEEE TGi • WECA • Dependency on UPnP Security

  14. Demo Enrolling into secure WLAN

  15. For the interconnected lifestyle
