  1. School of Computing Science Simon Fraser University Multiplexing of Variable Bitrate Scalable Video for Mobile Broadcast Networks Project Presentation FaridMolazem Cmpt 820 Fall 2010

  2. Outline • High level description of the problem • Overview of scalable video coding • Formulation of the problem • Problem solution • Evaluation and results

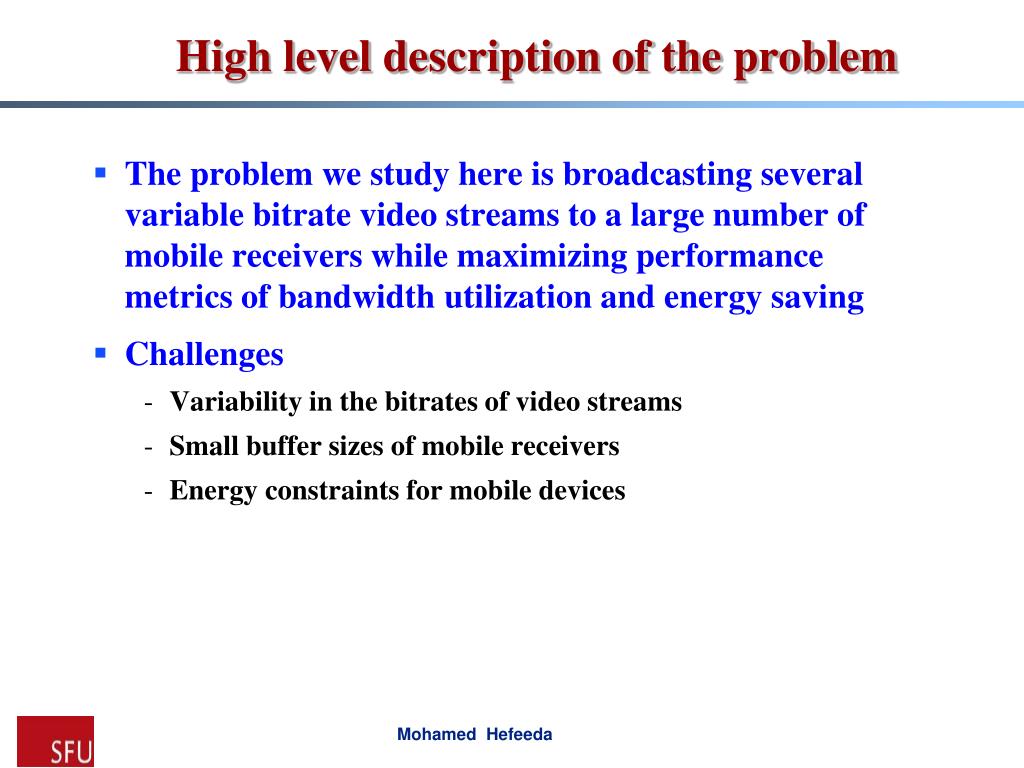

  3. High level description of the problem • The problem we study here is broadcasting several variable bitrate video streams to a large number of mobile receivers while maximizing performance metrics of bandwidth utilization and energy saving • Challenges • Variability in the bitrates of video streams • Small buffer sizes of mobile receivers • Energy constraints for mobile devices

  4. Scalable Video Coding • Scalable video coding • Temporal scalability • Spatial scalability • Quality scalability

  5. Quality Scalability • Quality scalability could be considered as a special case of spatial scalability • We could have • Fine Grain Scalability • Coarse Grain Scalability • Medium Grain Scalability

  6. Problem Formulation • Problem: Broadcasting S scalable video streams from a base station to a large number of mobile receivers over a wireless medium • Notation: • There are S video streams • Each frame video stream s has a base layer and MGS layers • Each video stream has I frames • Indicates the size of layer k of frame i of stream s • Each stream is coded at F frame-per-second Base layer Frame i of stream s

  7. Problem Formulation • Bandwidth Utilization • The fraction of video frames received at the decoder before their decoding deadline • Energy Saving: • The fraction of time the receivers can put their wireless receivers into sleep • We use the average energy saving among all video streams

  8. Problem Formulation • The average quality of all transmitted frames is shown by • We use peak-signal-to-noise-ration (PSNR) as a quality metric

  9. Problem Solution • We solve the problem in two steps • First Step: • We solve the problem as if the video streams are not scalable • We show that energy saving and bandwidth utilization are not independent • We control transmission by considering buffer level in the video streams • Define a parameter that tells us when to schedule a burst: time

  10. Problem Solution • Second Step: • Consider only base layer of video streams • Add burst to S2 until it reached threshold • Now we add back the quality layers as long as we have available bandwidth in our rescheduling window s1 s2 time Below threshold Rescheduling window

  11. Problem Solution • Second Step: • Define a threshold for buffers, • If the buffer level is less than we start adjusting quality layers of video streams s1 s2 time Below threshold Rescheduling window

  12. Problem Solution • Second Step: • We have a number of frames • Each frame has a number of quality layers • Selecting each quality layer consumes some space and provides some quality value • Which quality layers to choose? • 0-1 multiple choice knapsack • NP-Complete

  13. Problem Solution • Second Step: • Use an approximation algorithm • Scale the table :

  14. Evaluation • Settings • We set the modulator to use 16-QAM (Quadrature Amplitude Modulation) • 10MHz radio channel • Overhead To=100ms • Video streams • 16 video streams of different categories of: sport, tv game show, documentray, talk show and have very different visual characteristics • Bitrates ranging from 250 to 768 kbps • We created video streams with different MGS layers and the trace file for each stream using “BitStreamExtractorStatic” tool provided by JSVM • We used “PSNRStatic” to determine the PSNR value of each MGS layer of each video stream

  15. Results • Dropped Frame

  16. Results • Resulted Quality

  17. Conclusions • Having a small lookahead window, we can have an approximation algorithm to reduce dropped frame using quality scalability characteristics of scalable video streams • Operator can adjust the chance of dropping frame by adjusting the threshold for buffer levels • Reducing the threshold lowers the chance of dropping frames at a cost of loosing some quality in video frames

  18. Thanks You
