  1. Scalable Routing in Delay Tolerant MobileNetworks Hao Wen1 Jia Liu, Chuang Lin, Fengyuan Ren, Chuanpin Fu 1 Department of Computer Science, Tsinghua University

  2. Outline • Background • Related work • Region-based mobility pattern • Protocol design • Evaluation • Conclusion Page 2/51

  3. Background • As a kind of challenged networks, Intermittently Connected Mobile Network (ICMN) is a Delay-Tolerant Mobile Network (DTMN) that is made up of mobile nodes • Intermittent Connectivity • Variable Delay • Key metrics in DTMN: • Packet Arrival Rate • Delay • Scalability (not considered by most previous work) Page 3/51

  4. Background • Typical cases of DTMN • Princeton ZebraNet: Track and monitor Zebra in Africa • UMass DieselNet buses: VANET • … Page 4/51

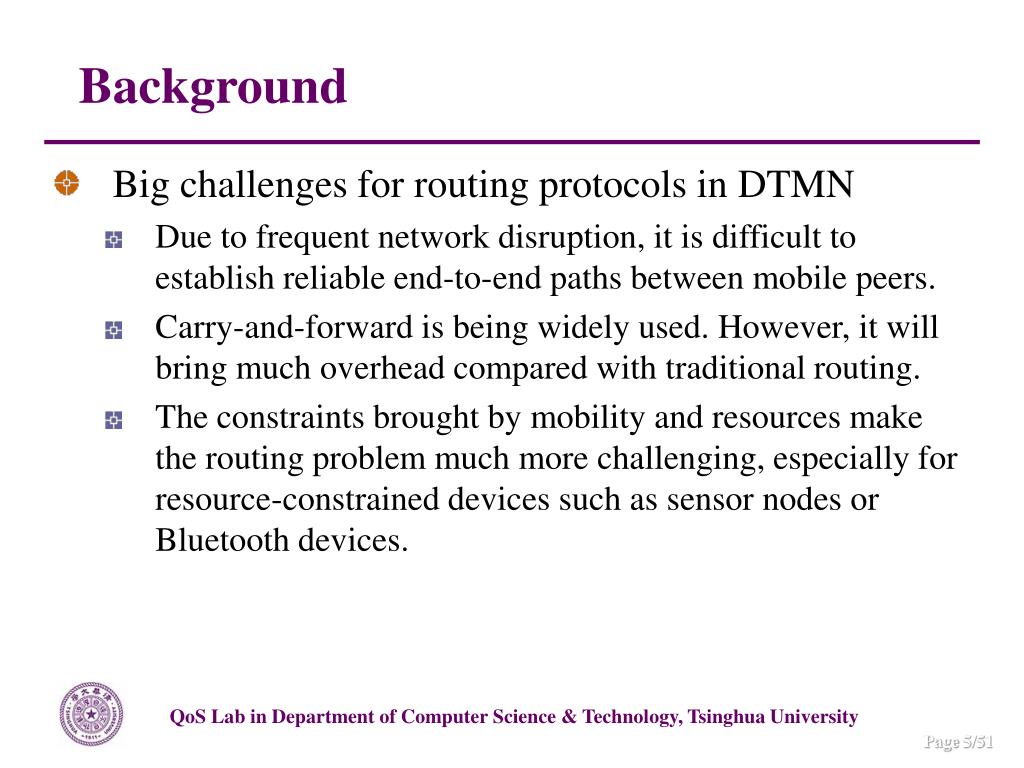

  5. Background • Big challenges for routing protocols in DTMN • Due to frequent network disruption, it is difficult to establish reliable end-to-end paths between mobile peers. • Carry-and-forward is being widely used. However, it will bring much overhead compared with traditional routing. • The constraints brought by mobility and resources make the routing problem much more challenging, especially for resource-constrained devices such as sensor nodes or Bluetooth devices. Page 5/51

  6. Background • In this paper, we take advantage of the spatial property and propose two scalable protocols based on regional movement, • Since the long-term spatial property is relatively stable over time, our protocols avoid complicated computation for delivery probabilities and excessive storage for tracking encounter history. Page 6/51

  7. Outline • Background • Related work • Protocol design • Evaluation • Conclusion Page 7/51

  8. Related Work-Flooding Type • Flooding routing is extremely wasteful of limited resources, such as wireless bandwidth and storage space. • Distributing a bounded number of copies to reduce the overhead [Spray and Wait, WDTN 05] • Replicating packets with a small probability [Wireless Network 2002] • They do not make use of gaining knowledge about network conditions, so their performance is not satisfying under more realistic conditions. Page 8/51

  9. Related Work- Utility Type • Based on encounter history, they estimate delivery probabilities between nodes. • RAPID [Sigcomm 07] • Translates the routing metric into per-packet utilities • Calculate utility according to average meeting time • Every node records meeting history of all nodes • This type exploits past knowledge of encounters but faces a challenge of choosing the right time scale : • Short scale: “distance effect”, the long-run trends are difficult to capture from a short-scale temporal way. • Long scale: consuming much storage and computation Page 9/51

  10. Related Work • There are many recent works on WLAN measurements which reveal the important spatial properties of the real-world users. • They imply that not only temporal but also spatial info can be taken into account during the design of practical routing protocols. Page 10/51

  11. Outline • Background • Related work • Protocol design • Evaluation • Conclusion Page 11/51

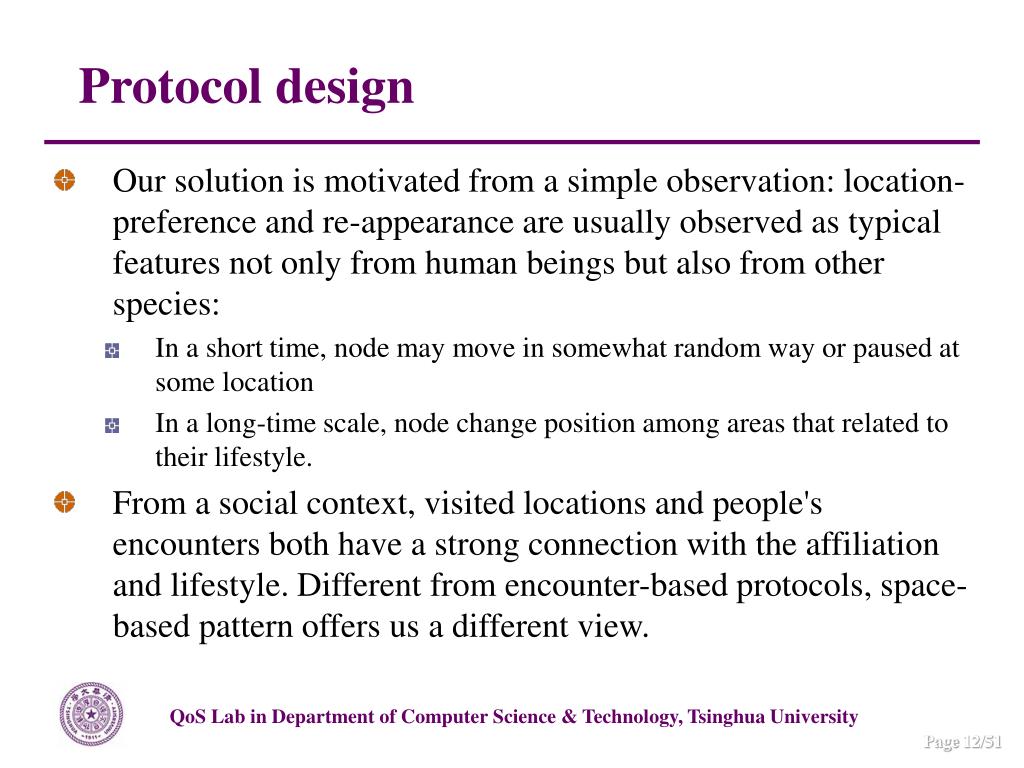

  12. Protocol design • Our solution is motivated from a simple observation: location-preference and re-appearance are usually observed as typical features not only from human beings but also from other species: • In a short time, node may move in somewhat random way or paused at some location • In a long-time scale, node change position among areas that related to their lifestyle. • From a social context, visited locations and people's encounters both have a strong connection with the affiliation and lifestyle. Different from encounter-based protocols, space-based pattern offers us a different view. Page 12/51

  13. Protocol design • The main idea of our space-based protocols is to find the popular regions for destination node and distribute copies of packets inside those popular regions. • The concept of space is defined as a kind of logic converge • We simply adopt a square coverage as a unit space and assume nodes are equipped with any localization method. Page 13/51

  14. Protocol design • Step 1: calculate distribution probability matrix R • Step 2: choose candidate destination regions based on two methods • Step 3: the source node will send one copy to every chosen region with the help of relay nodes • Step 4: after the relay node reaches the destination regions, it will trigger a spray-and-search distribution Page 14/51

  15. Protocol design-Step 1 • Every unit time, every node will track the current region and record into space transition matrix B. Then we can get distribution probability matrix R and transition probability matrix P Page 15/51

  16. Protocol design-Step 2 • In terms of choosing candidate destination regions, we propose two space-based protocols according to probability or distance, respectively. • SpacE-Probability (SEP) optimized protocol • regions are simply chosen according to the distribution probability rj(y) of node y: • Given the probability threshold P, L regions are chosen in decreasing order of rj(y) Page 16/51

  17. Protocol design-Step 2 • SpacE-Distance (SED) optimized protocol • The source node x makes decision based on the Euclidean distance dkjfrom the current region k to the destination region j. The problem is formulated to • To reducethe complexity of this 0/1 Knapsack Problem we use a greedy algorithm: choose L regions in decreasing order of distancevalue per unit of probability weight, i.e., Page 17/51

  18. Protocol design-Step 3 • To forward copies to L chosen regions, relay nodes are chosen according to the distribution probability in SEP or the expected distance in SED. • SpacE-Probability (SEP) optimized protocol • When two nodes encounter in the region v (v!= j), the copy will be forwarded to the node that has a bigger rj. • SpacE-Distance (SED) optimized protocol • Nodes will exchange transition probability pviand calculate expected distance from v to j. The copy will be forwardedto the node that has a smaller Dvj. Page 18/51

  19. Protocol design-Step 4 • When relay node Z arrives at destination region j, choose w nodes to take copies using Spray and Search • Spray phase: Z distribute data using binary forward to w nodes (”jump-start” spreading in a quick manner ) • Search phase: the copy will be forwarded to a better relay according to the policy in step 3. Z Z Z Page 19/51

  20. Outline • Background • Related work • Region-based mobility pattern • Protocol design • Evaluation • Conclusion Page 20/51

  21. Evaluation-Experiment setups • Simulator: Opportunistic Network Environment (ONE) [Jorg Ott, 2008] • Epidemic: a greedy strategy • Spray and Wait: a passive strategy • Prophet: based on the encounter frequency • Maxprop: based on the last encounter time • The numbers of copies of SEP/SED and SNW are both restricted to 10% of all n nodes. • The overhead is defined as Page 21/51

  22. Evaluation-Experiment setups • Bus Network Model [Jorg Ott, Mobility Model 2008] • Based on the city area of Helsinki with 10000 × 10000 m2. • Total n buses are evenly distributed in 8 bus routes • The buses move at 7-10m/s with a 10-30s waiting time at each bus stop. • RENA generates 16 regions with equal unit size. Page 22/51

  23. Evaluation-Bus Network • Epidemic and Prophet increase firstly and then slowly decrease to about 60% • MaxProp achieves the best performance when n < 72 and then deteriorate rapidly due to the fast increase of computation and control packets • SEP, SED and SNW gradually increase to stable values Page 23/51

  24. Evaluation-Bus Network • Due to the estimation of delivery probability based on the encounter frequency, Prophet spent less overhead than Epidemic. • SNW consumes the least overhead as a result of passive waiting. • By calculating global shortest path based on the last encounter time, MaxProp only behaves well when the number is small. • Using limited computation and storage, our proposed protocols achieves not only better scalability but also high performance. Page 24/51

  25. Evaluation-Performance Bound • Although our protocols are proposed based on the spatial property, they could achieve feasibility in most scenarios. • In the extreme case without any location-preference property, such as random mobility models, our protocols could naturally transfer to SNW: • when there are no candidate destination regions, they simply chooses its current region as destination and starts binary spray. • So the delivery performance of SNW is the lower bound. Page 25/51

  26. Conclusion • In this paper, we take advantage of the macro-level spatial information and propose two space-based probabilistic forwarding protocols. • Different from temporal-based protocols using encounter history to calculate the delivery probability, our protocols make good use of regional movement pattern hidden in spatial property and need not expend much computation for calculation. • Compared with several typical protocols in a bus network, the scalability of our protocols is well verified. Page 26/51

  27. Q&A Thank you for your attention. Page 27/51

  28. Backup • Parameters • Connectivity: interpersonal communication (10m range, 2 Mbps) using Bluetooth devices. • Every t interval time, one mobile user generates one packet of 1 KB to a random destination. Page 28/51

  29. Backup-Region Size • Different choices depend on the specific granularity of the movement in different applications. In addition, we should also consider the storage occupied by control packets. (the average storage per region consumed by control overhead is about 650 Bytes). • In this paper, our empirical analysis suggests that it is better to keep control packets under 20% of the whole storage. Page 29/51
