  1. GridView - A Monitoring & Visualization tool for LCG Rajesh Kalmady, Phool Chand, Kislay Bhatt, D. D. Sonvane, Kumar Vaibhav B.A.R.C. BARC-CERN/LCG Meeting 15.09.2006

  2. Gridview : New Developments(During 27th April to 15th September) • Enhancements to Gridftp file transfer monitoring • Development of summarization and presentation modules for • Job Monitoring • Service Availability Monitoring • Deployment of all the new developments to production system

  3. File Transfer Monitoring • Enhanced Gridftp summarization and presentation modules for • VO-wise distribution of overall data transfers • VO-wise distribution of data transfers per Site • Site-wise distribution of data transfers per VO • Developed graphs and reports for data transfers from all sites to a given site (Hourly, Daily reports)

  4. File Transfer Monitoring : Overall VO-wise Details

  5. File Transfer Monitoring : Site-wise details for a particular VO

  6. Job Monitoring • Developed summarization module for computation of job statistics • Developed presentation module to display periodic Graphs and Reports for • Job Status (Total Number of Jobs in various States) • Job Success Rate • Job Resource Utilization (Elapsed time,CPU, Memory) • Average Job Turnaround time (RB Waiting, Site Waiting, Execution Time) • Site, VO and RB-wise distribution • Hourly, Daily, Weekly and Monthly reports

  7. Job Monitoring (Cont…) • Developed periodic Graphs and Reports for • Overall Summary • sites with high/low job execution rate • sites with high/low job success rate • VOs running more/less jobs etc • Possible to view job statistics for any user selected combination of VO, Site and RB

  8. Job Status : State-wise Distribution

  9. Job Status : VO-wise Distribution

  10. Job Status : RB-wise Distribution

  11. Job Status : Site-wise Distribution

  12. Job Monitoring : Job Success Rate

  13. Job Monitoring : Average Job Turnaround time

  14. Service Availability Monitoring • Developed summarization module for computation of Service Availability • based on SAM Test Results • AND (critical services) of OR (redundant services) • Developed presentation module to display periodic Graphs and Reports for • Central Service Availability (FTS, LFC, RB) • Aggregate tier-1 site Availability • Site-wise availability for individual tier-1 sites • Site-wise service availability of tier-2 sites (grouped by associated VOs) • Detailed availability of various services (CE, SE, SRM) and their individual instances running at a particular site

  15. Service Availability Monitoring (Cont…) • Reports on Hourly, Daily, Weekly and Monthly basis • Tracability from Aggregate Availability to Individual Service Instance Availability • Provision for saving user preferences based on certificates

  16. Service Availability Monitoring : Central Service Availability

  17. Service Availability Monitoring : FTS Instance Availability

  18. Service Availability Monitoring : Aggregate T1 Site Availability

  19. Service Availability Monitoring : Tier-1 Site Availability

  20. Service Availability Monitoring : Site Detail Availability

  21. On-going Work • Presentation of Detailed SAM test results for traceability from Availability Graphs to corresponding tests • Development of Weekly and Monthly reports for All to Given site data transfers • Modification to Gridftp file transfer GUI and Reports in order to enable Multiple site selection (new request)

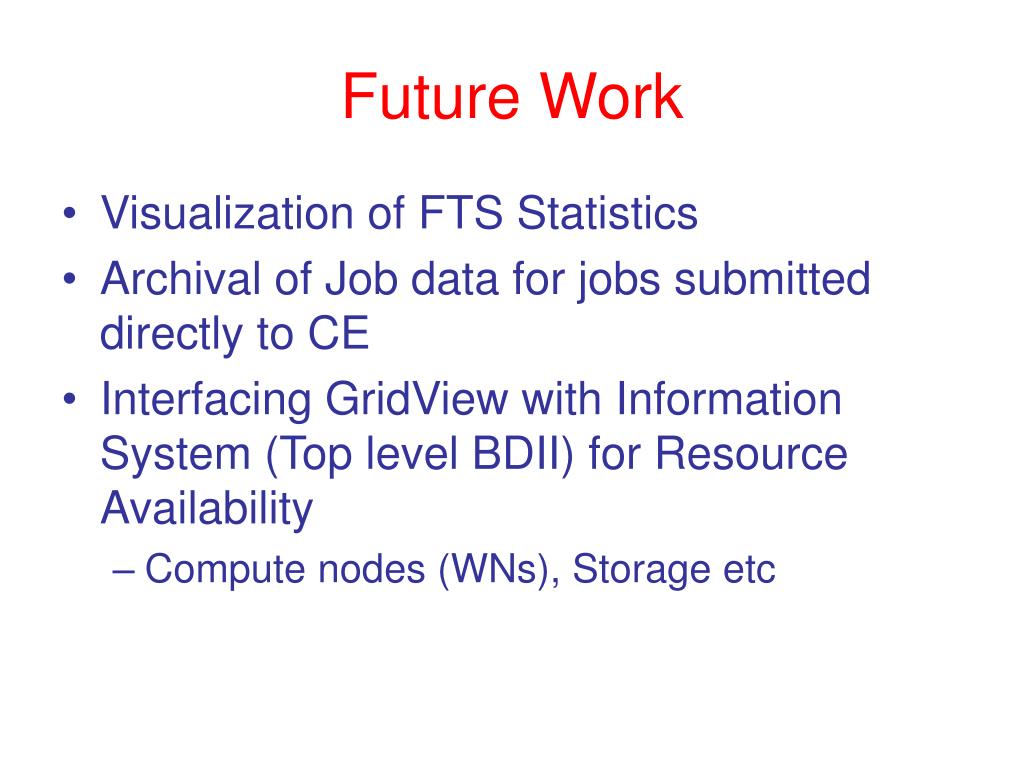

  22. Future Work • Visualization of FTS Statistics • Archival of Job data for jobs submitted directly to CE • Interfacing GridView with Information System (Top level BDII) for Resource Availability • Compute nodes (WNs), Storage etc

  23. Future Work : Visualization of FTS Statistics • Currently GridView visualizes gridftp data transfer rates across the sites. • FTS statistics to be visualized include • Successful transfers • Failure rates • VO-wise, FTS server-wise and Channel-wise details of data transfers

  24. Problems • No data is being published to R-GMA table JobMonitor since 2 months (in spite of repeated reminders) • Gridview Availability Depends on • R-GMA Service • Oracle Database Service • SAM/SFT tests • Instabilities in Gridview service caused by • R-GMA Instabilities • Registry failures, Monbox failures, Data loss etc. • Occasional Oracle downtime • Unannounced software upgrades on production machines leading to broken code • Subsequently, Gridview address added to cern-quattor-announce mailing list and upgrades done manually by Gridview team

  25. Thank You Your comments and suggestions please
