Optimizing Biomass Preprocessing Operations: Tools and Models for Efficiency

This project, led by S. Sokhansanj and A. Turhollow in collaboration with INL, focuses on developing tools to optimize biomass preprocessing operations. Key areas include size reduction, fractionation, blending, drying, densification, and wet storage. The project has successfully created detailed heat and mass transfer models validated with industrial dryer data, and has established overall energy and mass balances for various processes. A baseline cost estimate for biomass densification is also presented, with ongoing work on model formulation for wet storage.

dionne
Télécharger la présentation

Optimizing Biomass Preprocessing Operations: Tools and Models for Efficiency

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

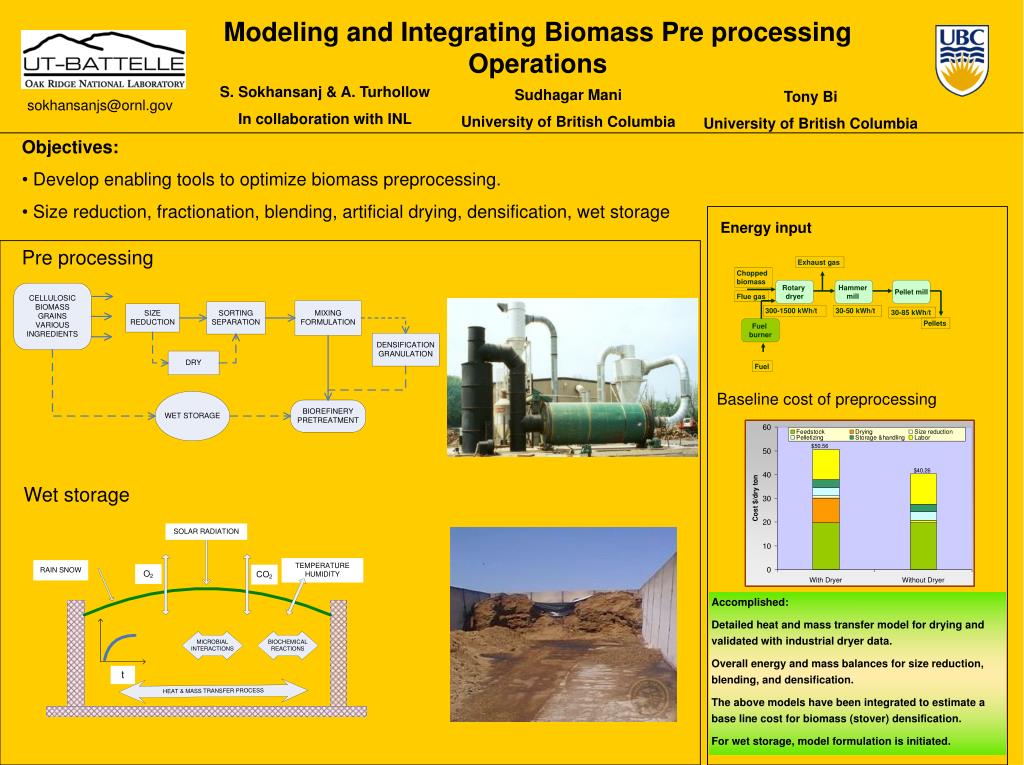

  1. Modeling and Integrating Biomass Pre processing Operations S. Sokhansanj & A. Turhollow In collaboration with INL Sudhagar Mani University of British Columbia Tony Bi University of British Columbia sokhansanjs@ornl.gov • Objectives: • Develop enabling tools to optimize biomass preprocessing. • Size reduction, fractionation, blending, artificial drying, densification, wet storage Energy input Pre processing Exhaust gas Chopped biomass Rotary dryer Hammer mill Pellet mill Flue gas 300-1500 kWh/t 30-50 kWh/t 30-85 kWh/t Pellets Fuel burner Fuel Baseline cost of preprocessing Wet storage Accomplished: Detailed heat and mass transfer model for drying and validated with industrial dryer data. Overall energy and mass balances for size reduction, blending, and densification. The above models have been integrated to estimate a base line cost for biomass (stover) densification. For wet storage, model formulation is initiated.
