Lockout/Tagout Affected Employees

1. Lockout/TagoutAffected Employees

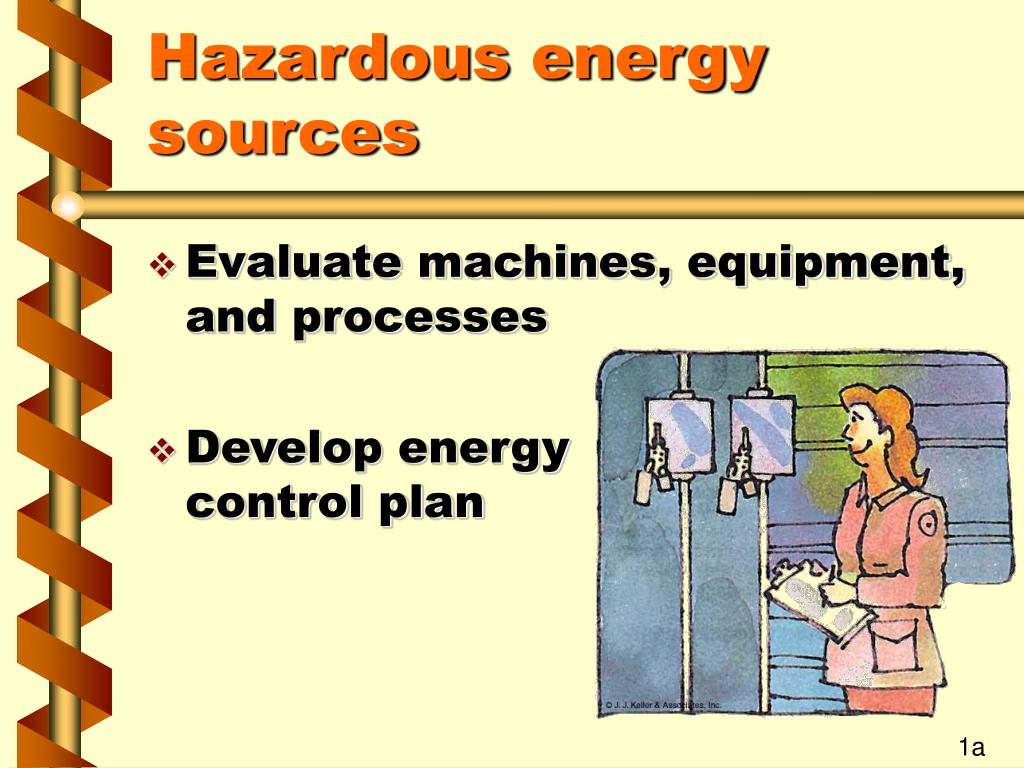

2. Hazardous energy sources • Evaluate machines, equipment, and processes • Develop energy control plan 1a

3. Hazardous energy sources • Look for all sources of energy • Identify secondary and stored energy sources 1b

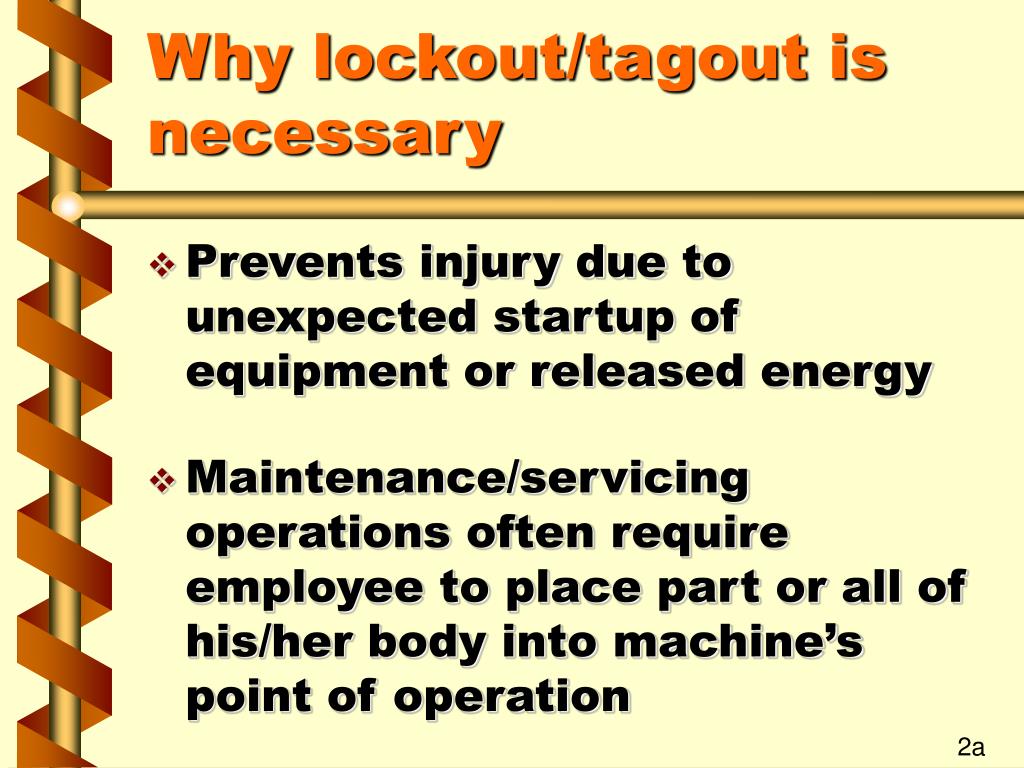

4. Why lockout/tagout is necessary • Prevents injury due to unexpected startup of equipment or released energy • Maintenance/servicing operations often require employee to place part or all of his/her body into machine’s point of operation 2a

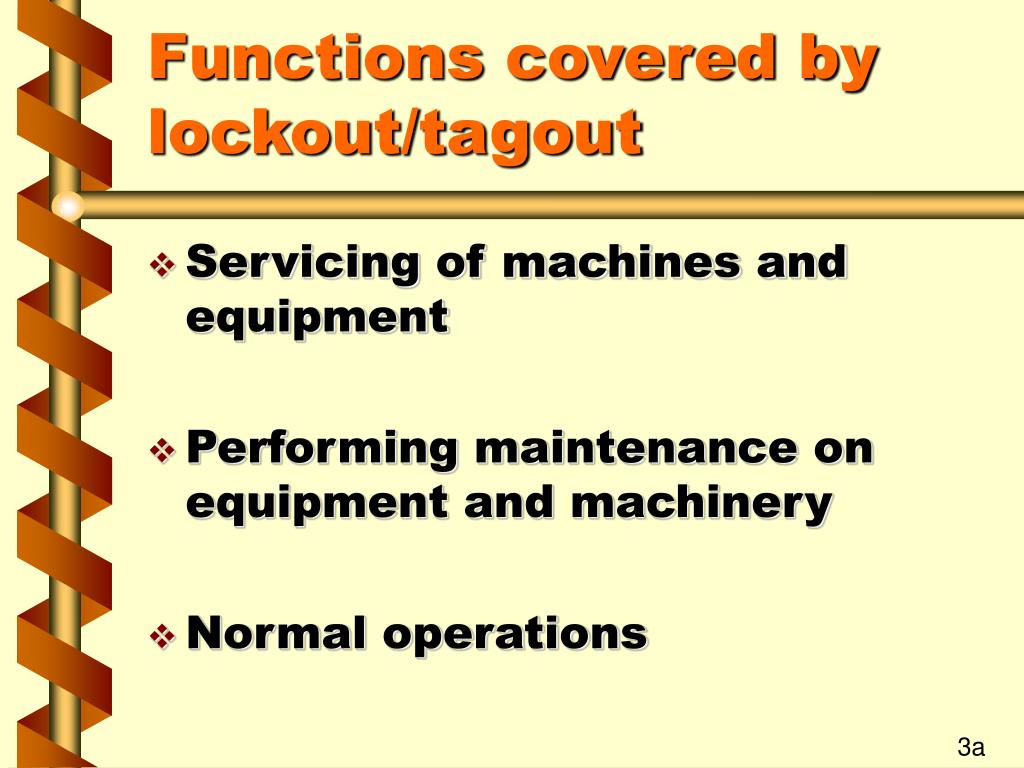

5. Functions covered by lockout/tagout • Servicing of machines and equipment • Performing maintenance on equipment and machinery • Normal operations 3a

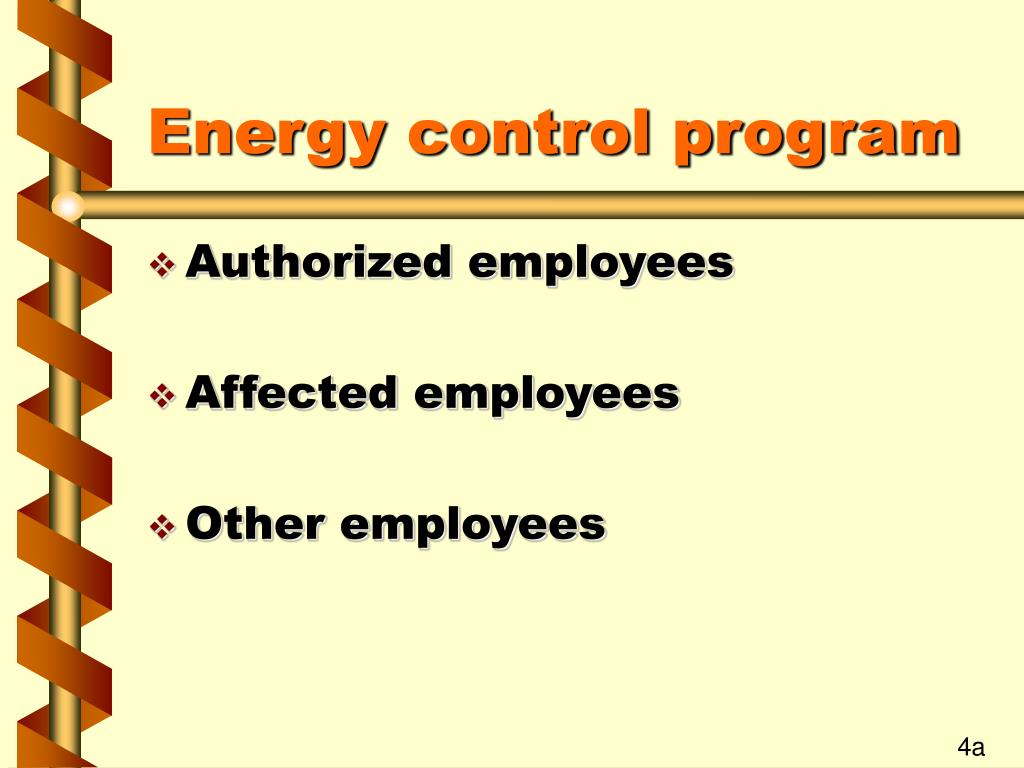

6. Energy control program • Authorized employees • Affected employees • Other employees 4a

7. Energy control program • Energy control procedures • Training • Periodic audits 4b

8. Preparation for shutdown • Authorized employees locate all energy sources • Authorized employees inform all affected persons 5a

9. Shutdown procedure • Each piece of equipment or machine must be shutdown according to written energy control procedures • Orderly shutdown avoids additional or increased hazards 6a

10. Shutdown procedure • Authorized employee uses shutdown procedures that are established for the machine 6b

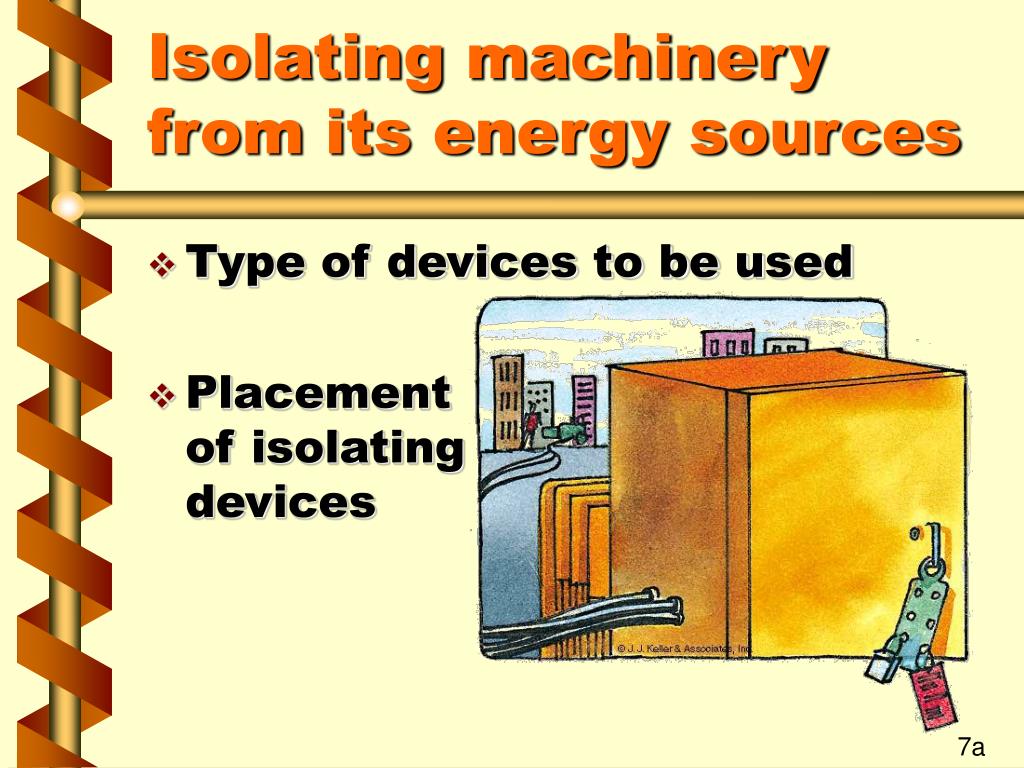

11. Isolating machinery from its energy sources • Type of devices to be used • Placement of isolating devices 7a

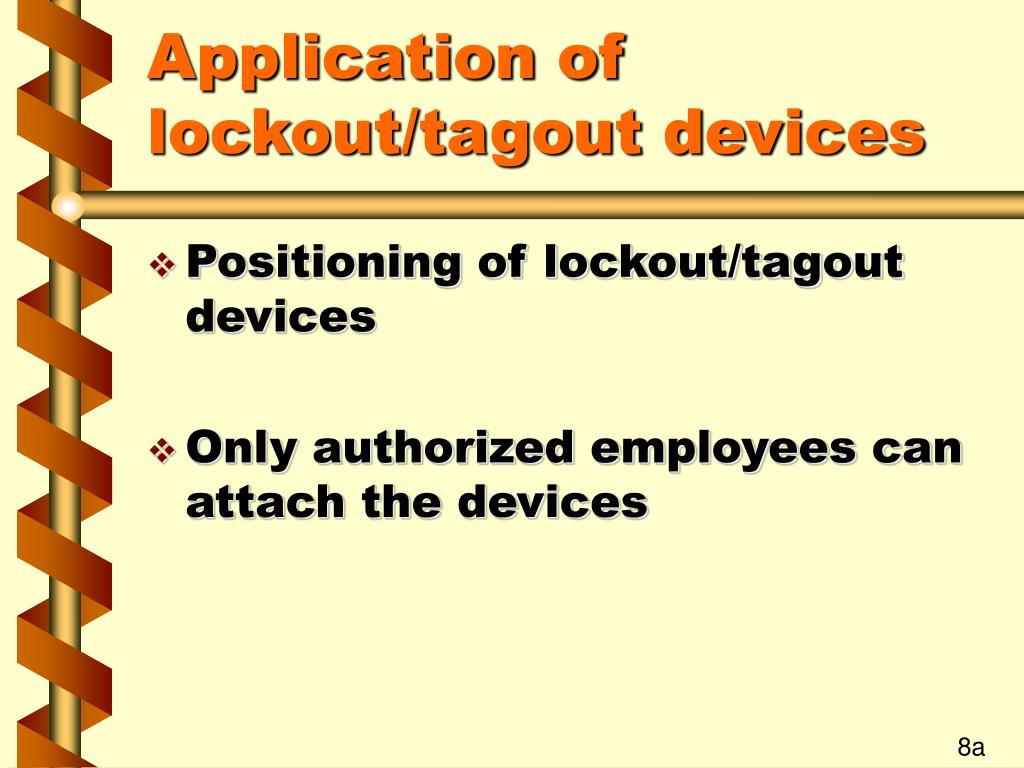

12. Application of lockout/tagout devices • Positioning of lockout/tagout devices • Only authorized employees can attach the devices 8a

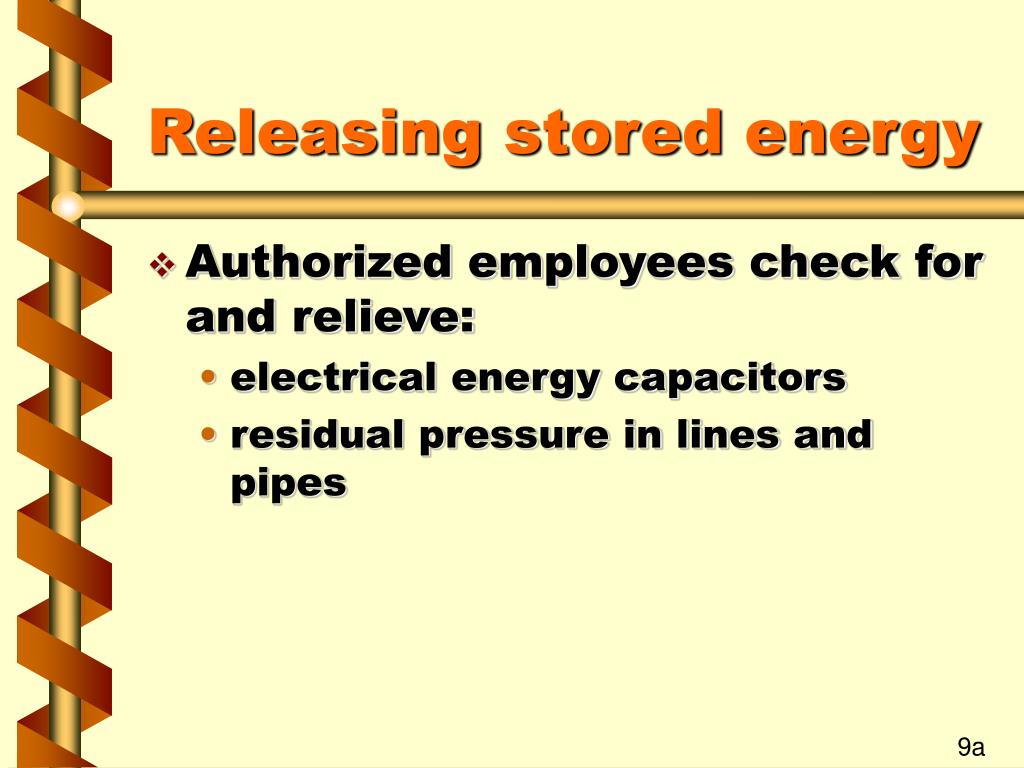

13. Releasing stored energy • Authorized employees check for and relieve: • electrical energy capacitors • residual pressure in lines and pipes 9a

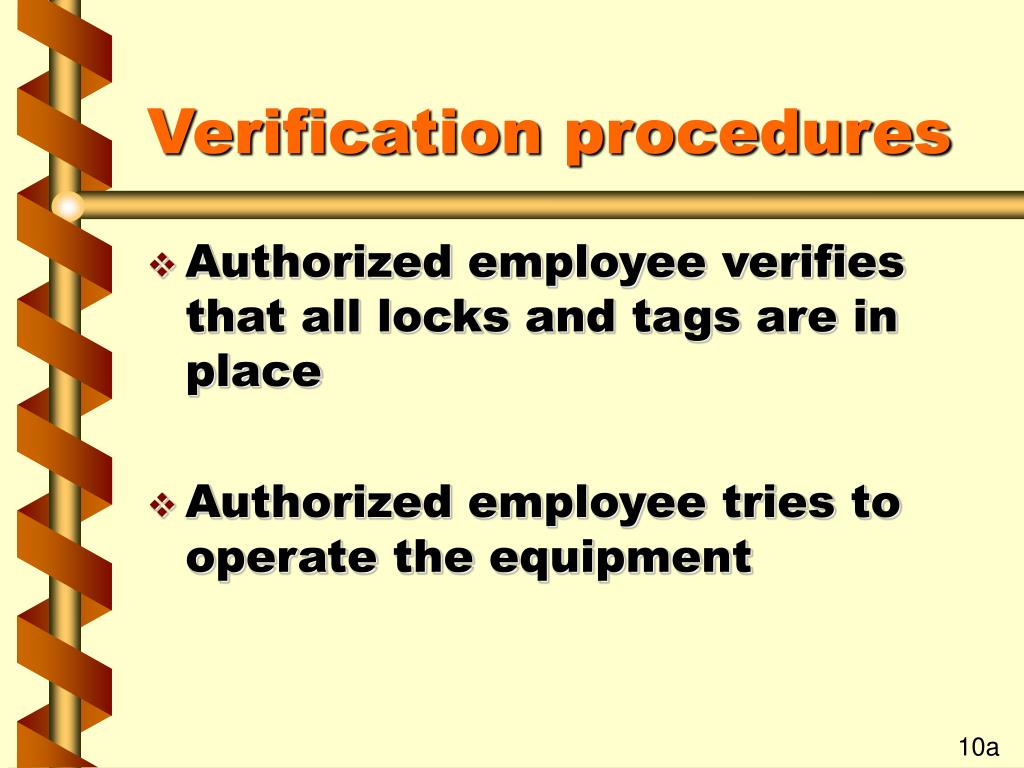

14. Verification procedures • Authorized employee verifies that all locks and tags are in place • Authorized employee tries to operate the equipment 10a

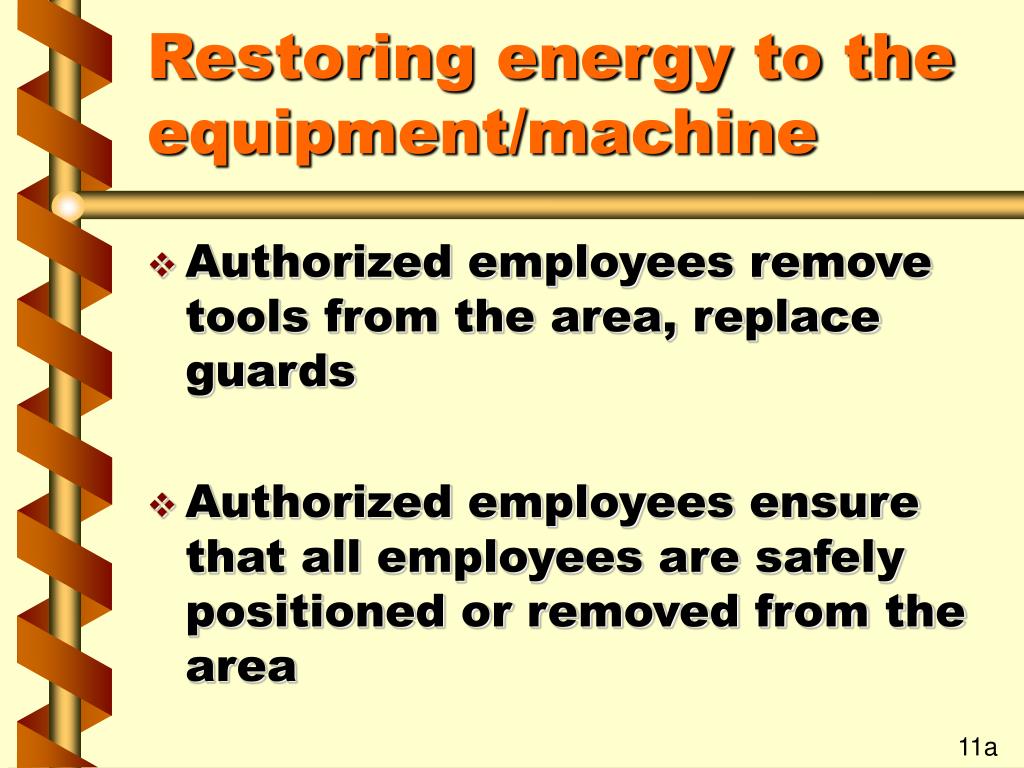

15. Restoring energy to the equipment/machine • Authorized employees remove tools from the area, replace guards • Authorized employees ensure that all employees are safely positioned or removed from the area 11a

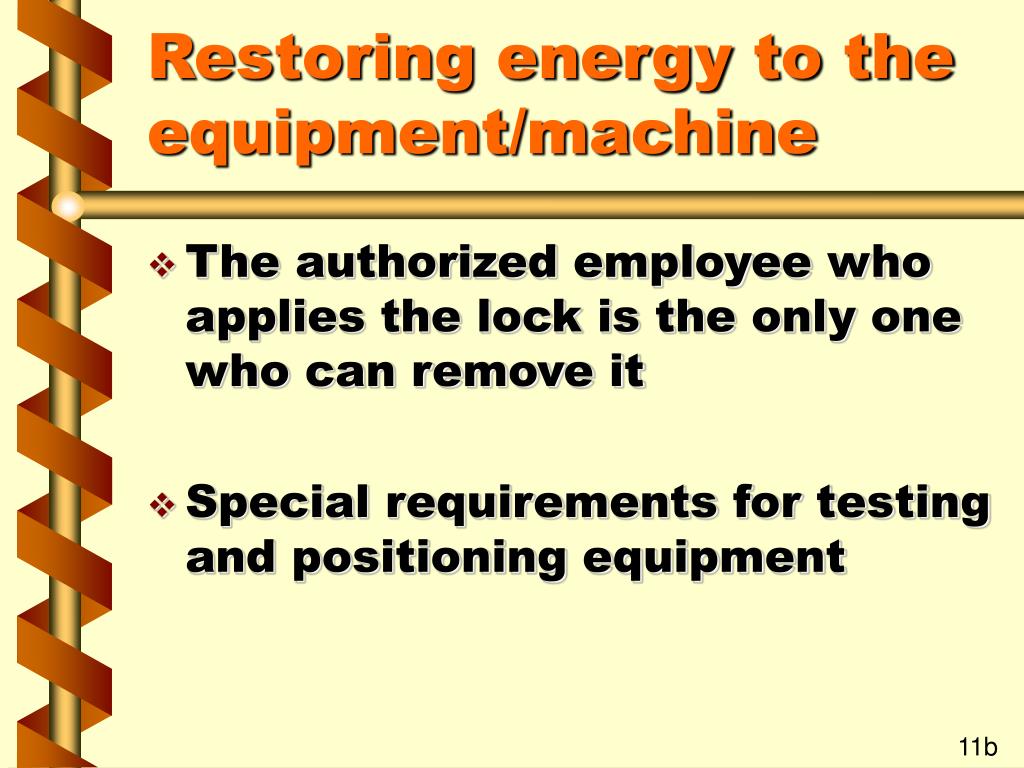

16. Restoring energy to the equipment/machine • The authorized employee who applies the lock is the only one who can remove it • Special requirements for testing and positioning equipment 11b

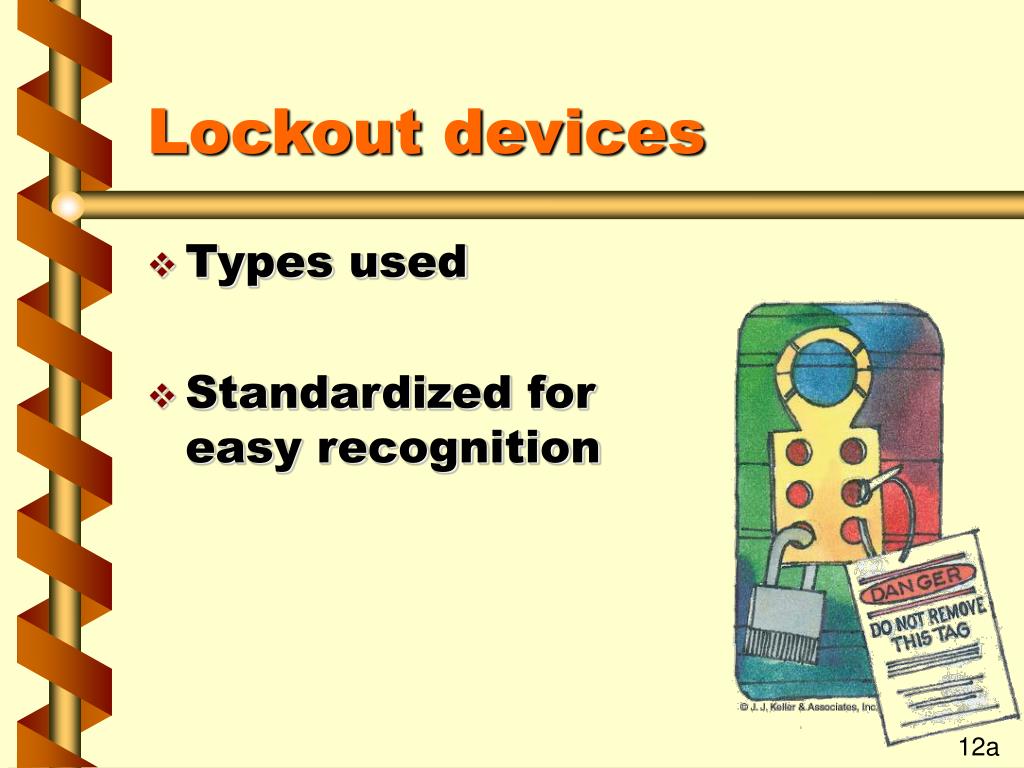

17. Lockout devices • Types used • Standardized for easy recognition 12a

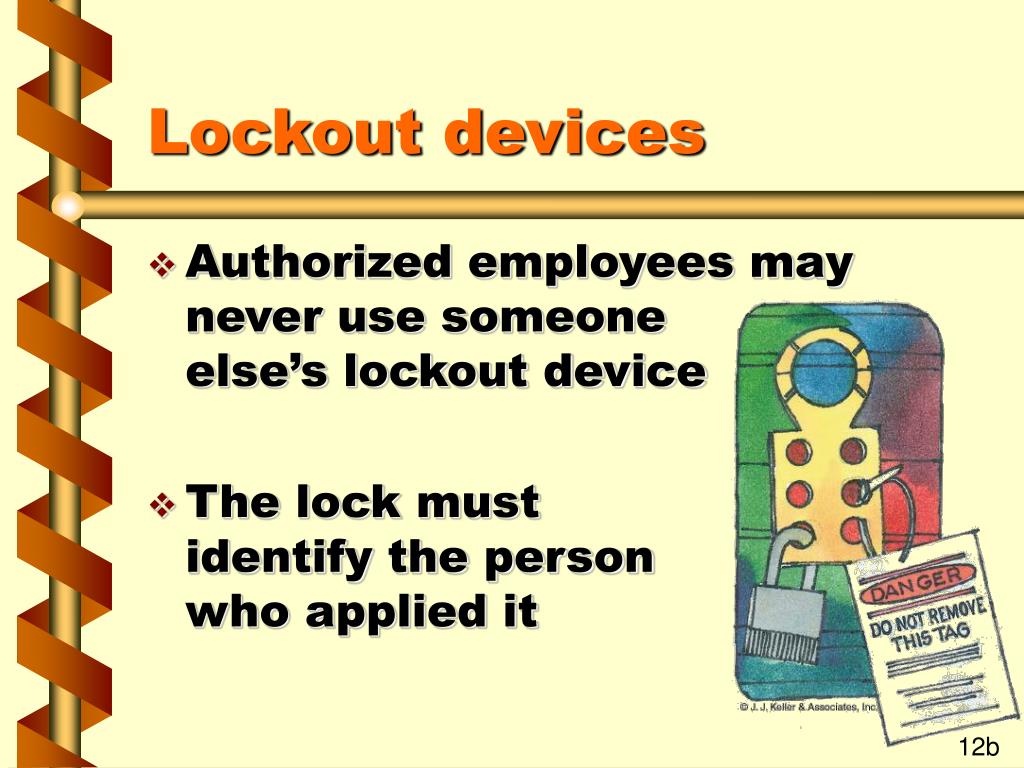

18. Lockout devices • Authorized employees may never use someone else’s lockout device • The lock must identify the person who applied it 12b

19. Tags • Types used • Standardized for easy recognition 13a

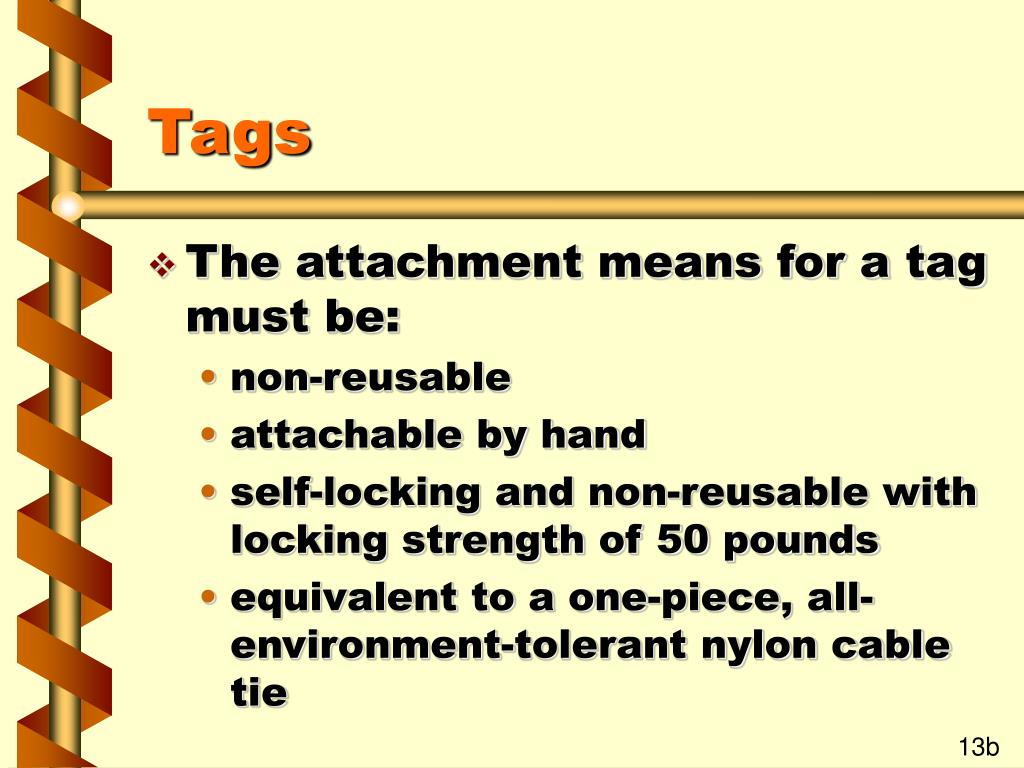

20. Tags • The attachment means for a tag must be: • non-reusable • attachable by hand • self-locking and non-reusable with locking strength of 50 pounds • equivalent to a one-piece, all-environment-tolerant nylon cable tie 13b

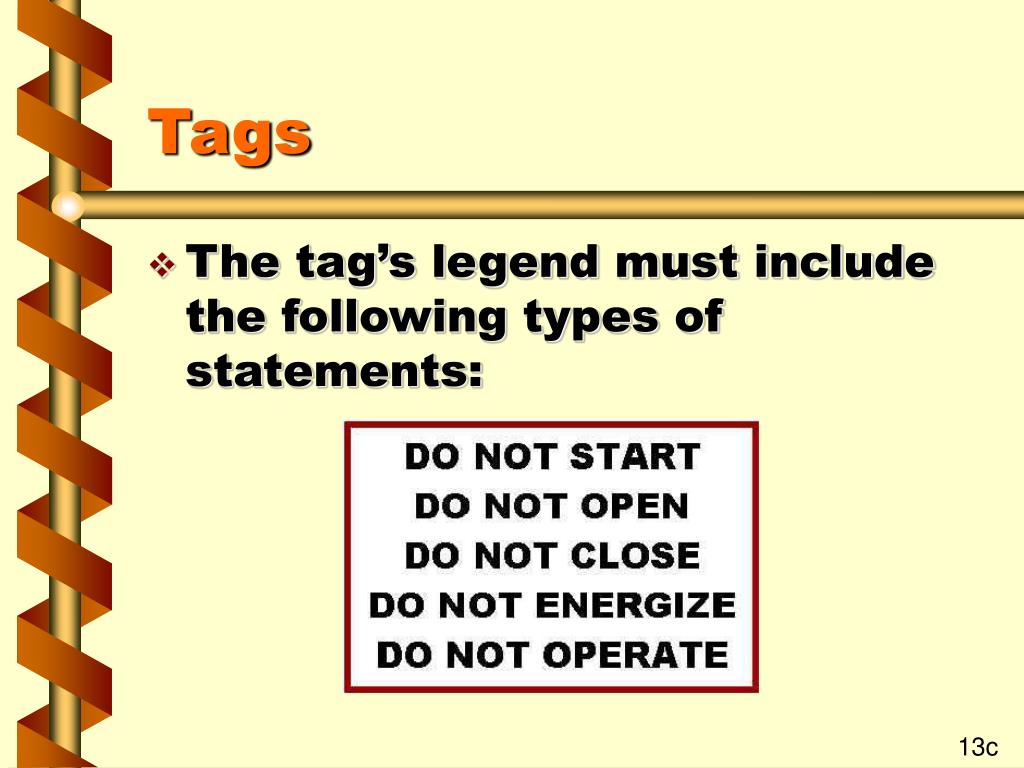

21. Tags • The tag’s legend must include the following types of statements: 13c

22. Restarting/Re-energizing equipment • Only authorized employees may remove a machine from lockout/tagout • Affected employees must not attempt to restart or re-energize machines/equipment that are locked/tagged out 14a
