  1. LOAD BALANCING IN A CENTRALIZED DISTRIBUTED SYSTEM BY ANILA JAGANNATHAM ELENA HARRIS

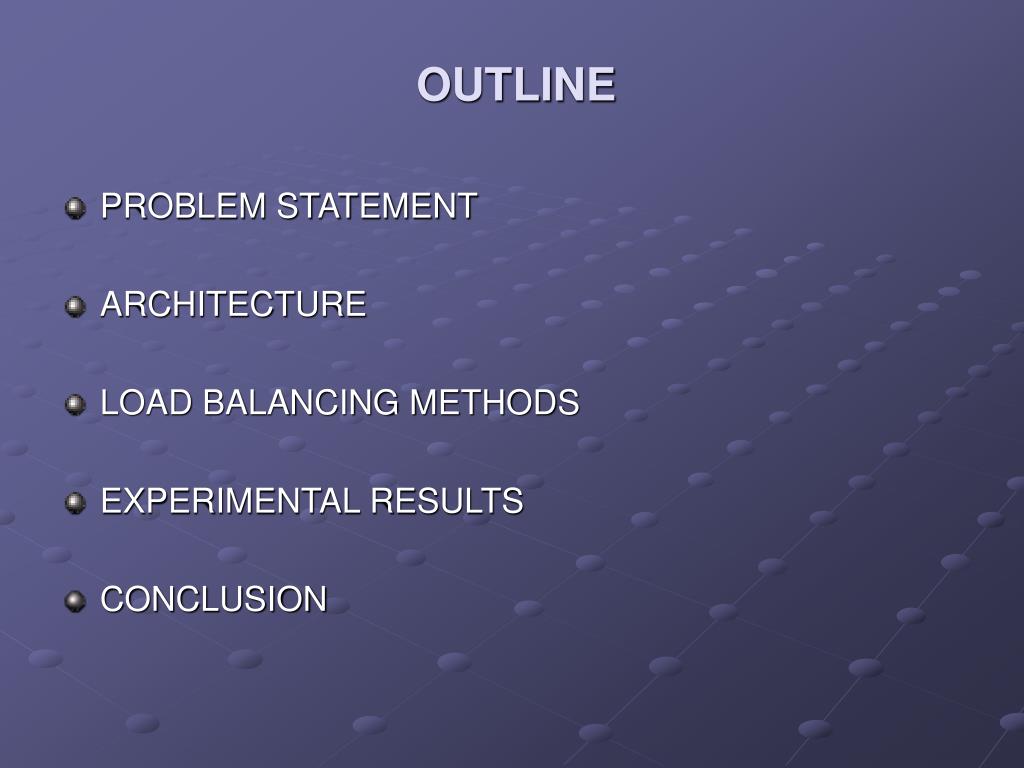

  2. OUTLINE • PROBLEM STATEMENT • ARCHITECTURE • LOAD BALANCING METHODS • EXPERIMENTAL RESULTS • CONCLUSION

  3. PROBLEM STATEMENT To study different load balancing methods in order to improve CPU utilization and overall execution time of requests in a centralized distributed system with an environment that requires extensive calculations.

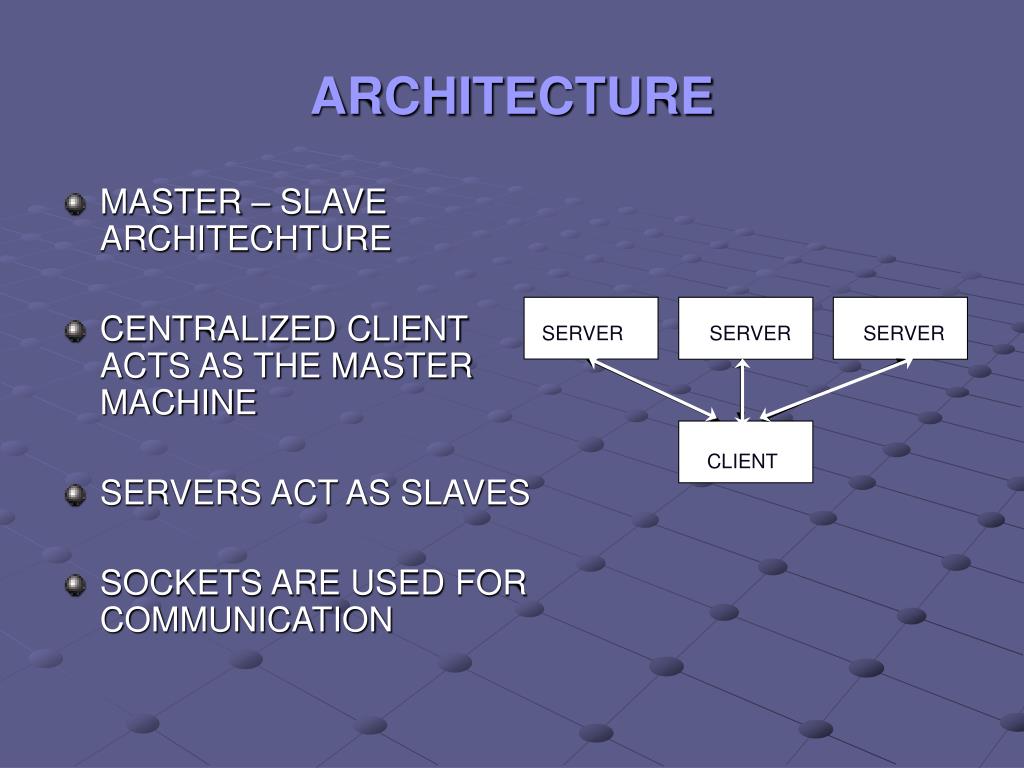

  4. ARCHITECTURE • MASTER – SLAVE ARCHITECHTURE • CENTRALIZED CLIENT ACTS AS THE MASTER MACHINE • SERVERS ACT AS SLAVES • SOCKETS ARE USED FOR COMMUNICATION SERVER SERVER SERVER CLIENT

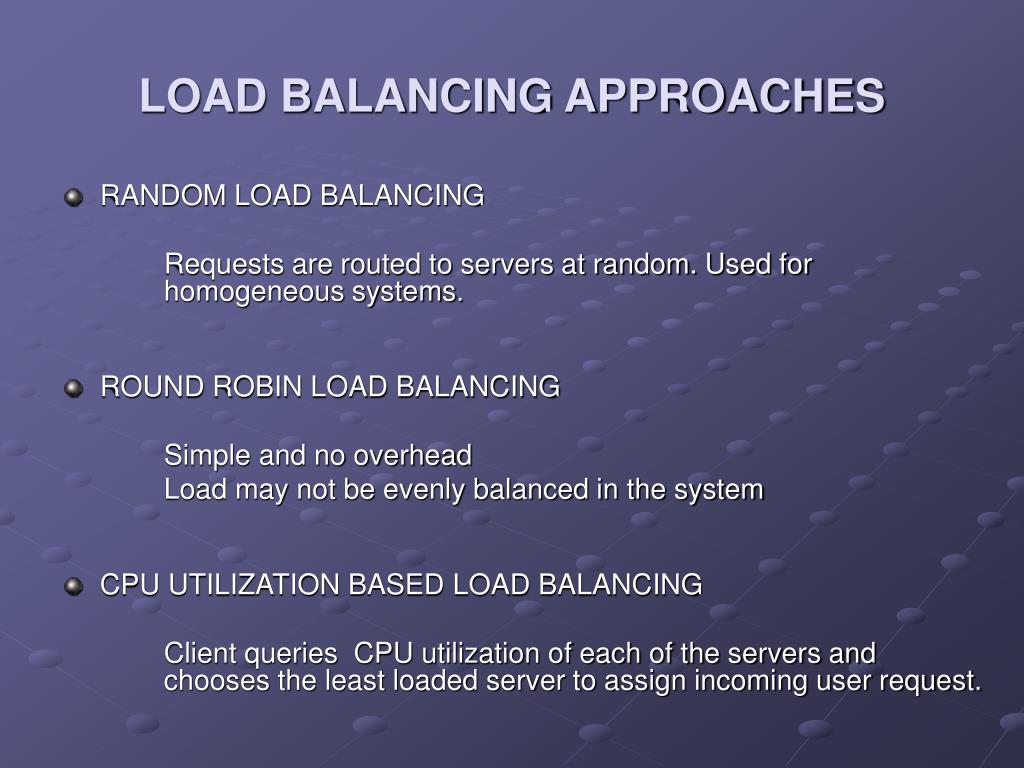

  5. LOAD BALANCING APPROACHES • RANDOM LOAD BALANCING Requests are routed to servers at random. Used for homogeneous systems. • ROUND ROBIN LOAD BALANCING Simple and no overhead Load may not be evenly balanced in the system • CPU UTILIZATION BASED LOAD BALANCING Client queries CPU utilization of each of the servers and chooses the least loaded server to assign incoming user request.

  6. CPU UTILIZATION METRIC • Client requests statistics from /proc/stat file maintained by each server to estimate current CPU utilization. • Statistics from /proc/stat: – Total time spent by the CPU on all processes – Total number of processes running. • Average time per process, T / P is used as metric T – Difference in CPU time at two time points P – Difference in number of processes at two time points • The larger T / P, the less loaded a CPU is.

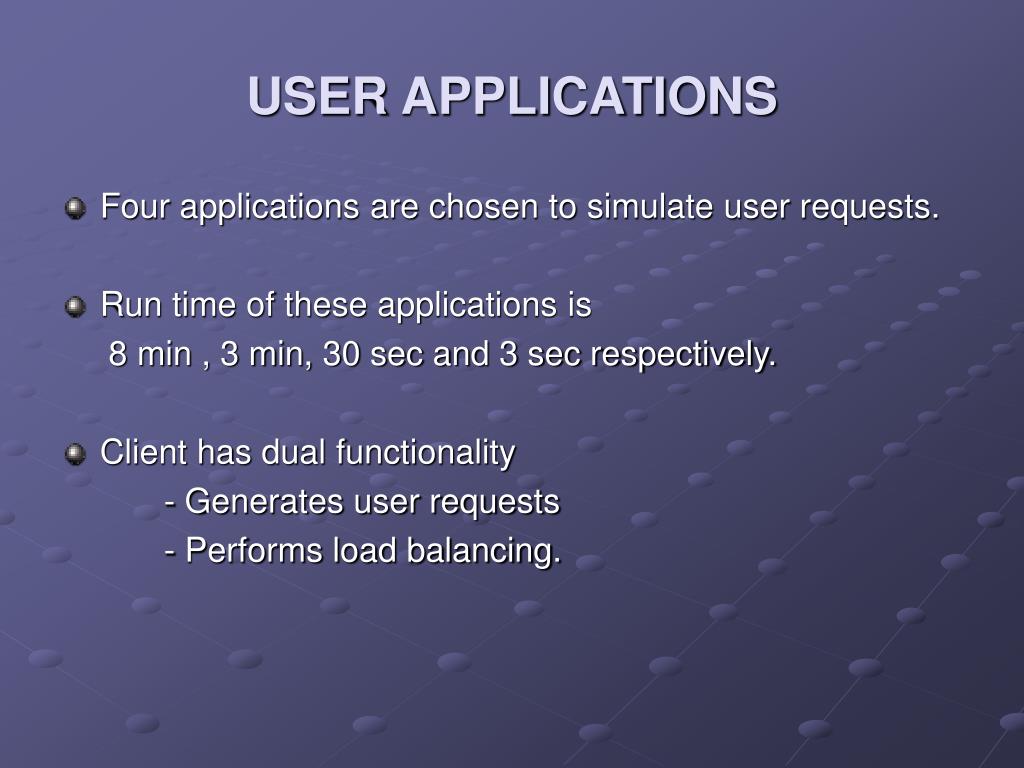

  7. USER APPLICATIONS • Four applications are chosen to simulate user requests. • Run time of these applications is 8 min , 3 min, 30 sec and 3 sec respectively. • Client has dual functionality - Generates user requests - Performs load balancing.

  8. EXPERIMENTAL RESULTS T/P TIME PERIODS RANDOM LOAD BALANCING

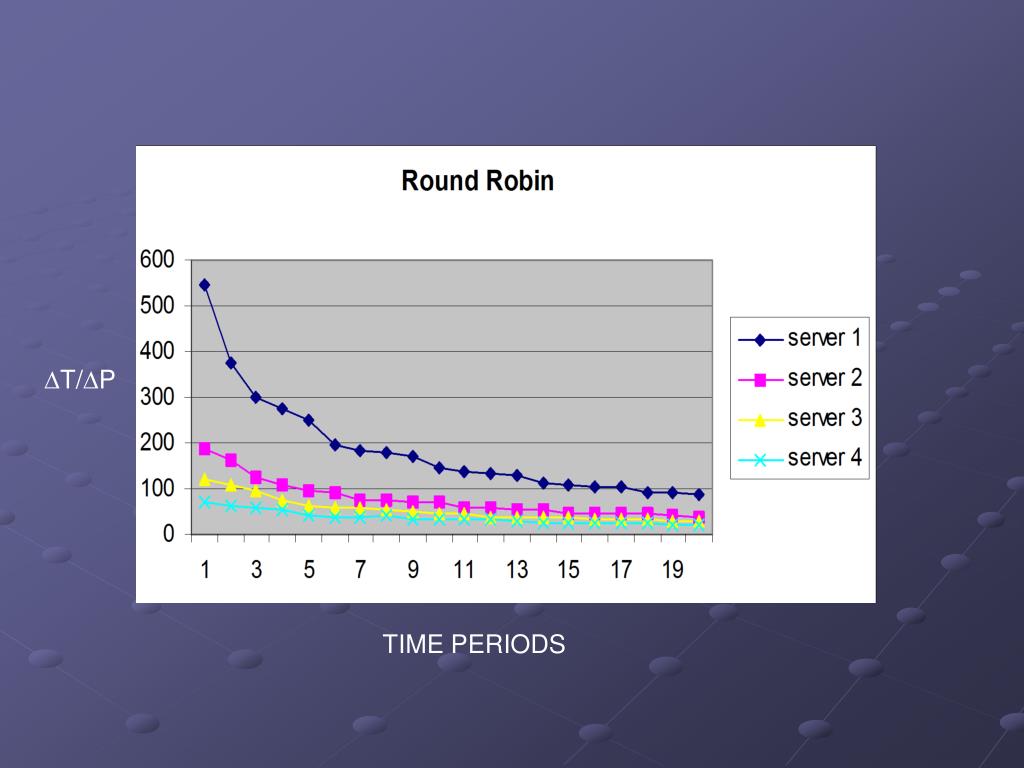

  9. T/P TIME PERIODS

  10. T/P TIME POINTS

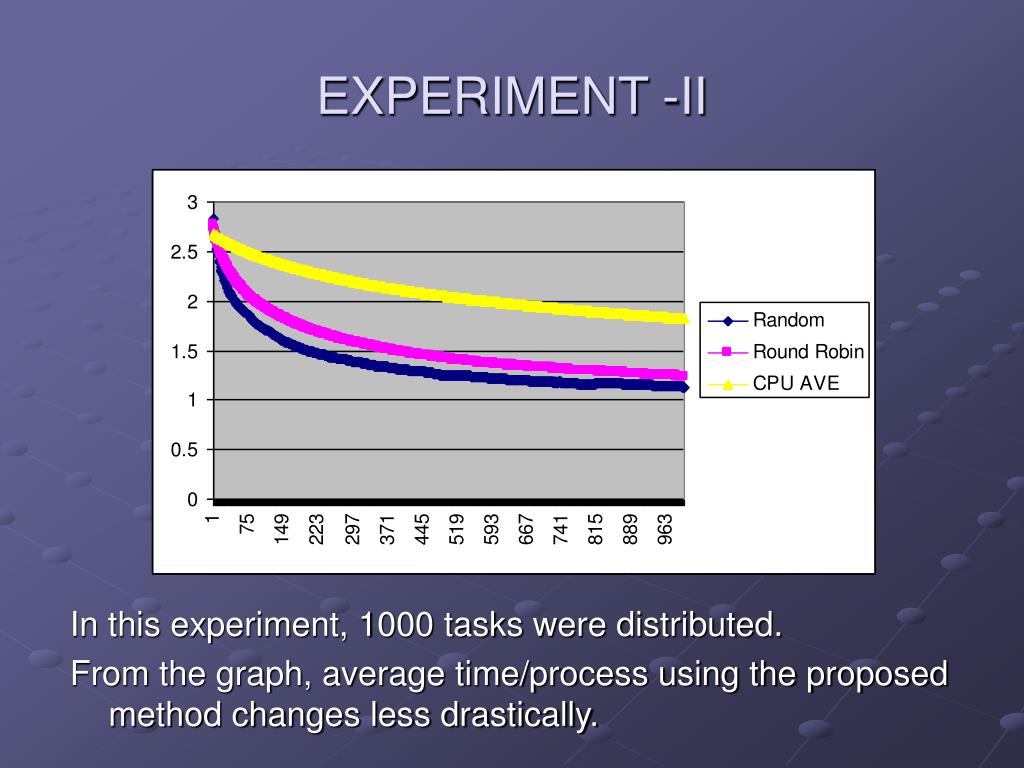

  11. EXPERIMENT -II In this experiment, 1000 tasks were distributed. From the graph, average time/process using the proposed method changes less drastically.

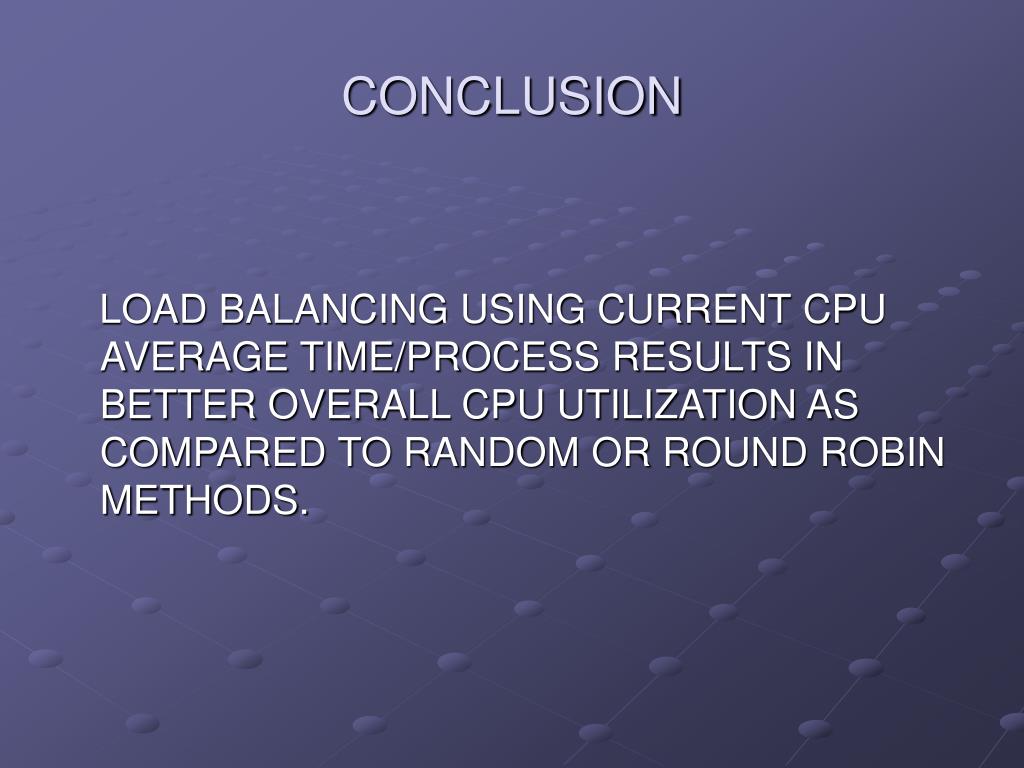

  12. CONCLUSION LOAD BALANCING USING CURRENT CPU AVERAGE TIME/PROCESS RESULTS IN BETTER OVERALL CPU UTILIZATION AS COMPARED TO RANDOM OR ROUND ROBIN METHODS.
