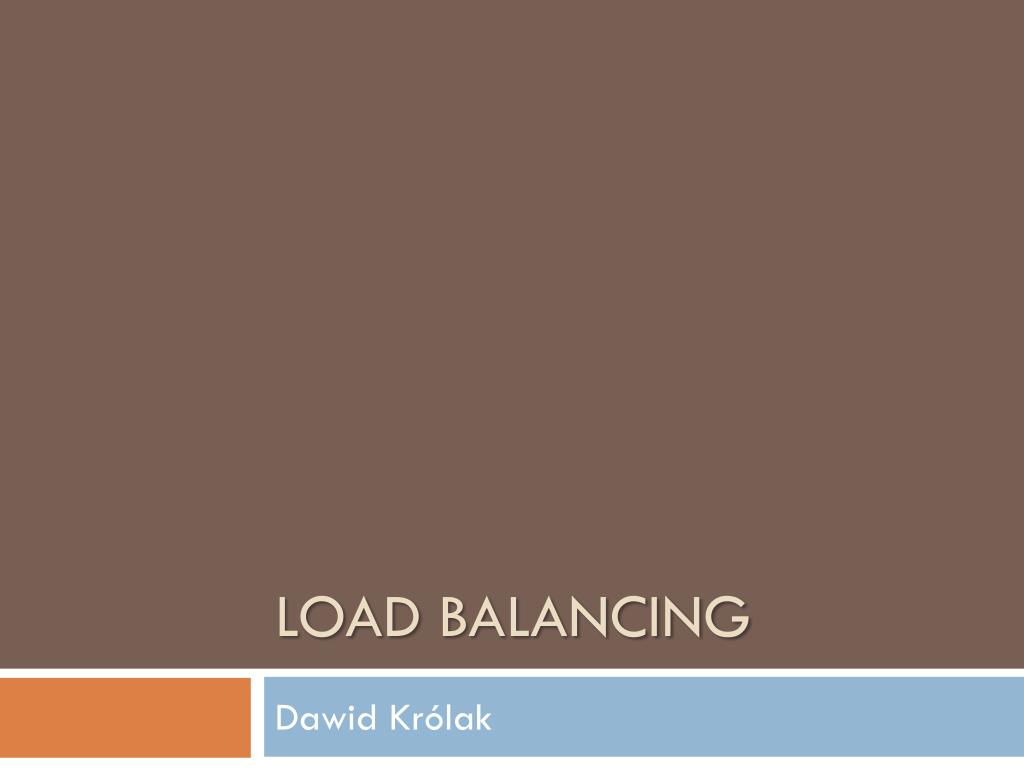

Load balancing. Dawid Królak. Intro. Problem Model OSI Layer 2 Layer 4-7 Reverse Proxy. Problem. How to maintain large amount of queries , requests ? Buy a new faster , batter hardware? Buy faster links ? Reduce service? Use load balancing methods !. Advantages.

mabyn
Télécharger la présentation

Load balancing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Loadbalancing Dawid Królak

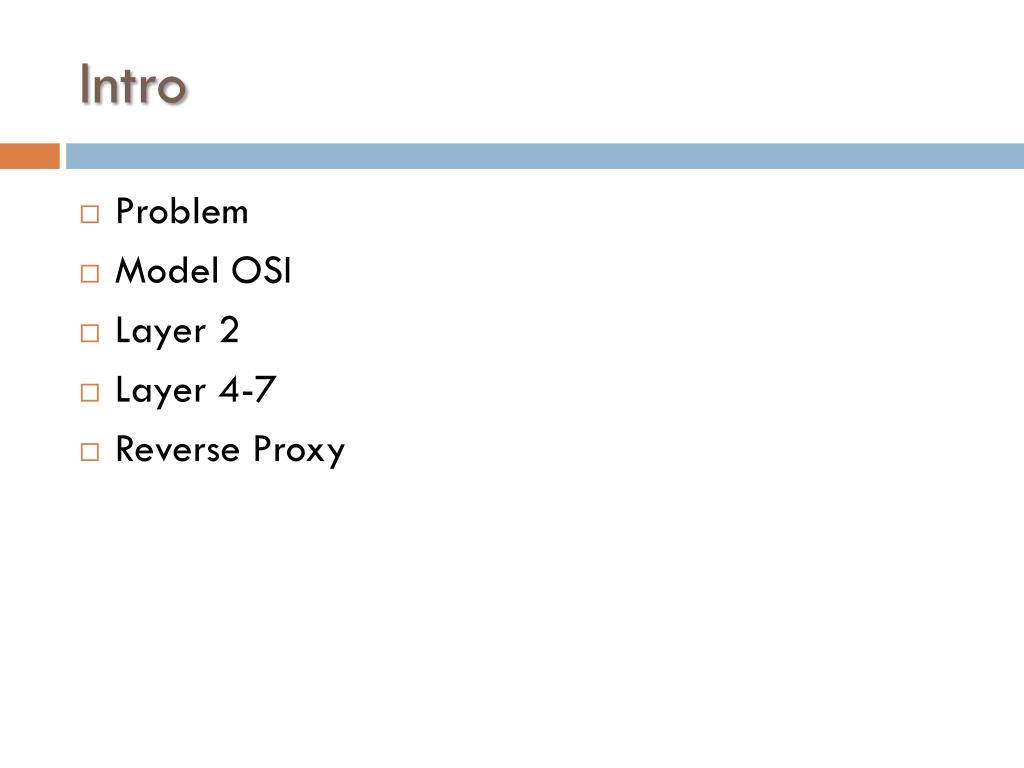

  2. Intro • Problem • Model OSI • Layer 2 • Layer 4-7 • Reverse Proxy

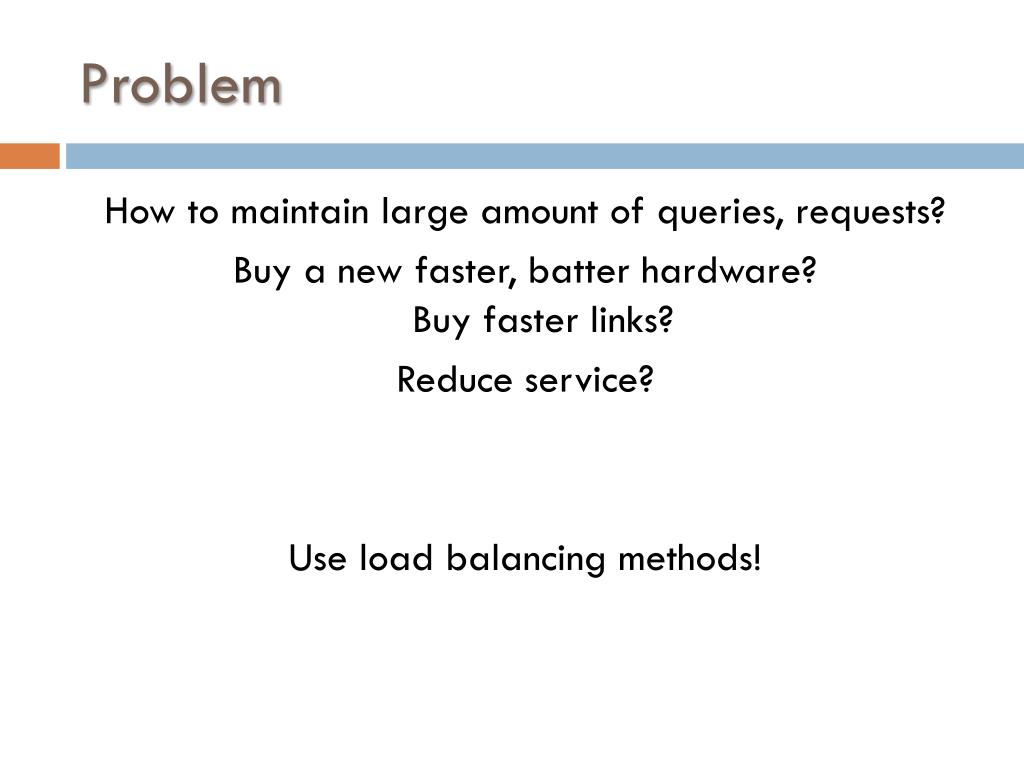

  3. Problem How to maintainlargeamount of queries, requests? Buy a newfaster, batter hardware?Buy fasterlinks? Reduce service? Useloadbalancingmethods!

  4. Advantages • Use hardware that is available but unused at this time. • Use cheaper hardware. • First properly configured easier to upgrade, maintain. • Scalability. • It`s all about speed.

  5. Disadvantages • Difficult to configure. • Need more IT knowledge.

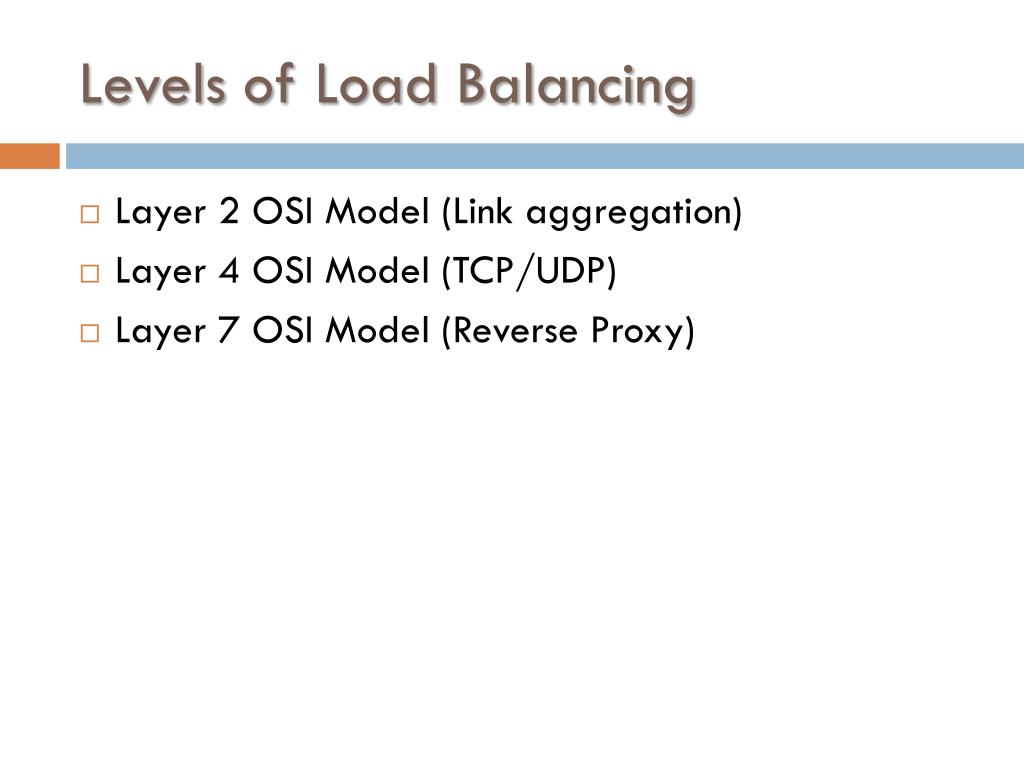

  6. Levels of LoadBalancing • Layer 2 OSI Model (Link aggregation) • Layer 4 OSI Model (TCP/UDP) • Layer 7 OSI Model (Reverse Proxy)

  7. Model OSI Application Presentation Session Transport Network Data Link Physical

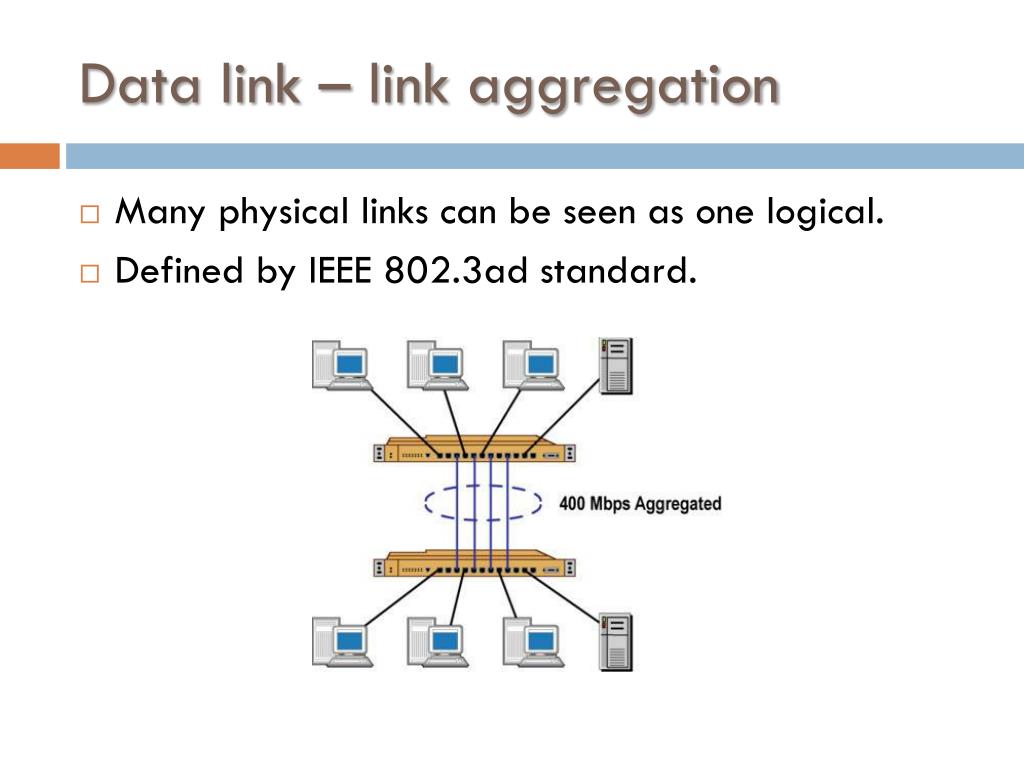

  8. Data link – linkaggregation • Many physicallinkscan be seen as one logical. • Defined by IEEE 802.3ad standard.

  9. Caution! Standard IEEE 802.3ad is not definingLoadBalancing! To loadbalancing we need to usealgorithms! But without link aggregation we can`t talk aboutlayer 2 loadbalancing.

  10. Link Aggregation Features: • LoadSharing (usingavailablelinks) • Automatic configuration • Deterministic (predictable, controllable) • Frame order (frame order ispreserved)

  11. Limiations • We need to useadditionalalgorithms to useloadbalancing • Works only between two devices. • Same speed on links (should be).

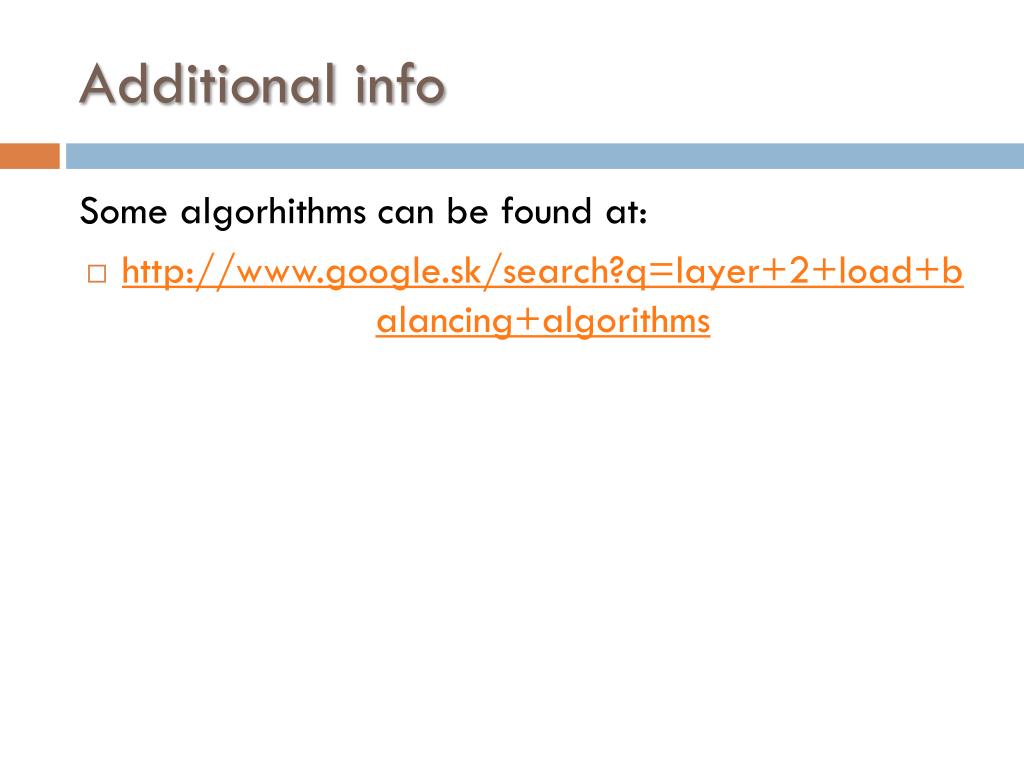

  12. Additionalinfo Somealgorhithmscan be foundat: • http://www.google.sk/search?q=layer+2+load+balancing+algorithms

  13. Layer 4 loadbalancing • Layer-4 load balancing is to distribute requests to the servers at transport layer, such as TCP, UDP and SCTP transport protocol. • We know one address, loadbalancerisswitchingus to one of many servers. • Pure 4-layer loadbalancingisbeingdisplacing by layer4-7 loadbalancing.

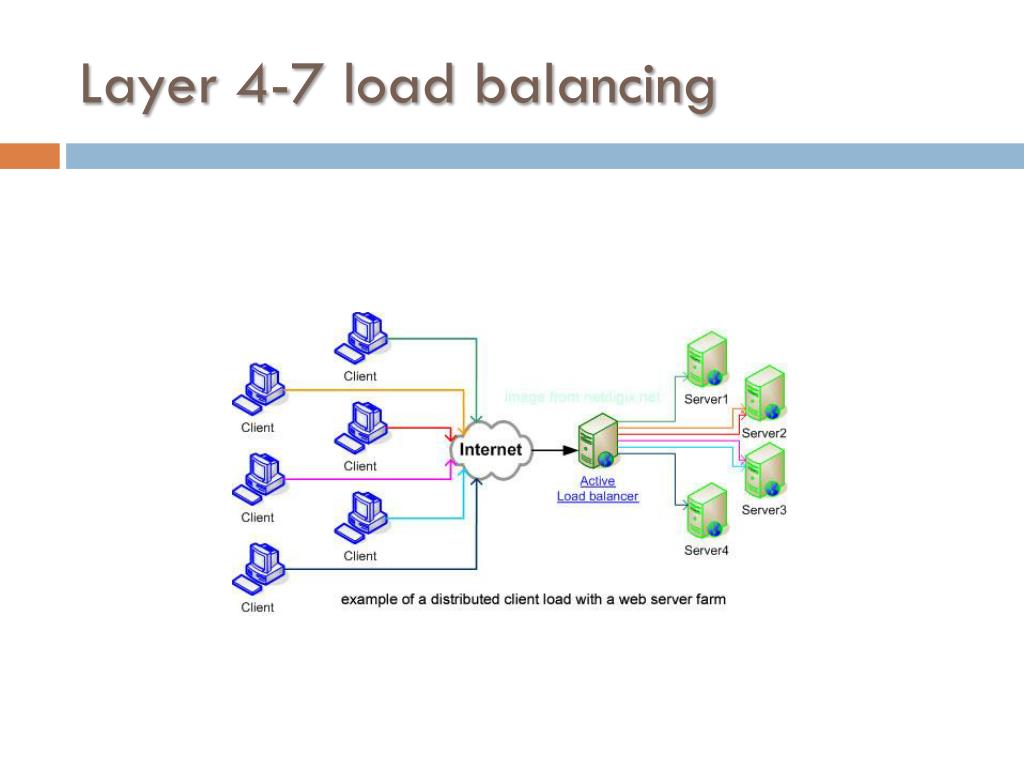

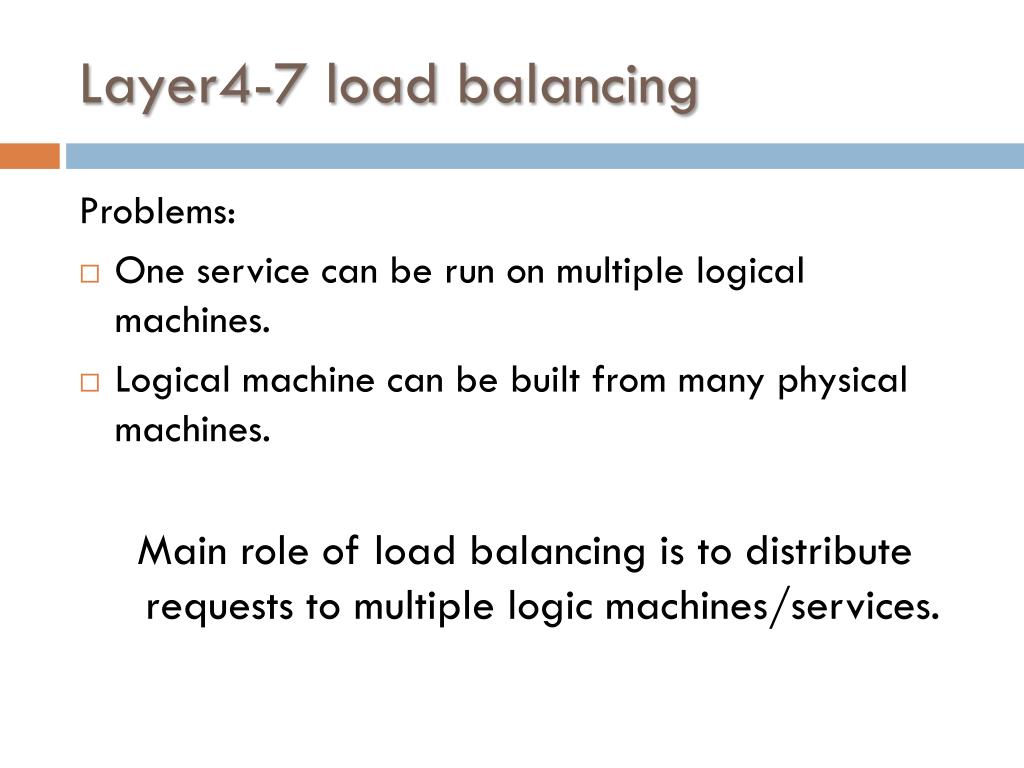

  14. Layer4-7 loadbalancing Problems: • One service can be run on multiple logical machines. • Logicalmachinecan be builtfrom many physicalmachines. Main role of load balancing is to distributerequests to multiple logic machines/services.

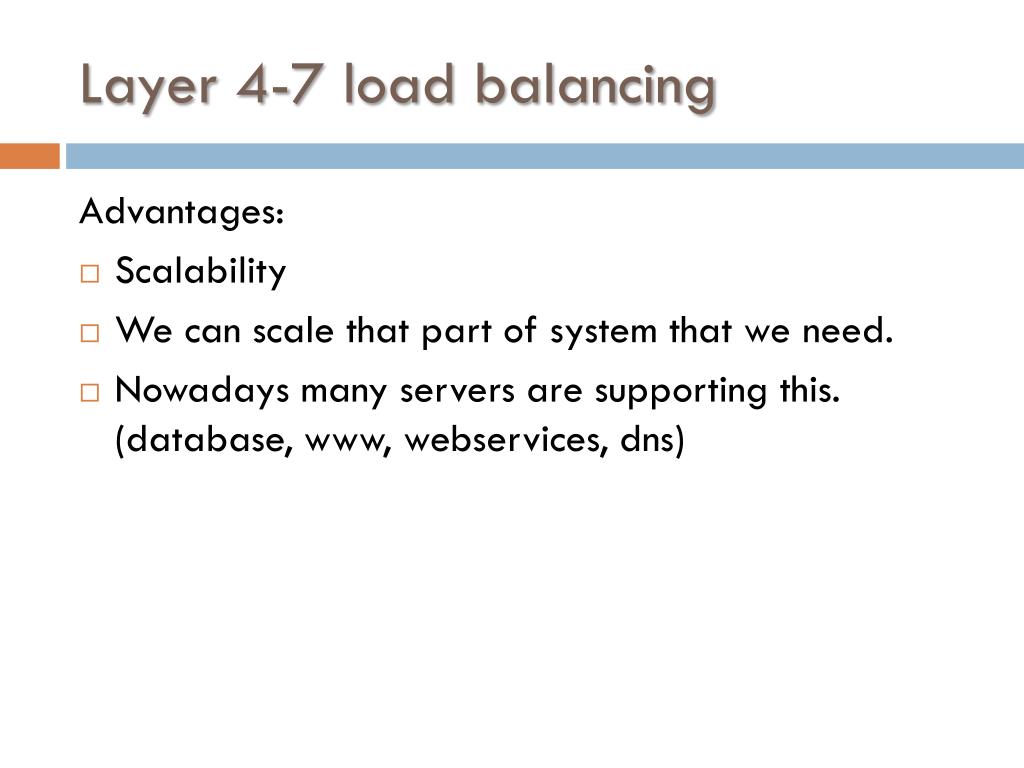

  15. Layer 4-7 loadbalancing Advantages: • Scalability • We canscalethat part of system that we need. • Nowadays many serversaresupportingthis. (database, www, webservices, dns)

  16. Layer 4-7 loadbalancing

  17. Reverseproxy • Reverseproxyisspecialserverproxytype. • Typically set at front of webservers. • Thisproxycandistributeconnections to a differentaddress. • Fast and easy to configurein popular webservers(apache, lighttp)

  18. LoadBalancinglayer 2-4-7 • Loadbalancing 2 and 4-7 can be usedatthe same time. • Loadbalancercandistributerequests to otherloadbalancer • Loadbalancingisusedincloudcomputing. • Loadbalancer and services can be runnedat one physical and logicalmachine, likecasual PC /but thereis no sense to do it/ • It`sbetter to set someloadbalancersinstead of buyingnewbetterfaster and moreexpensive hardware.

  19. Bibliography http://wiki.hill.com/wiki/index.php?title=IEEE_802.3ad http://books.google.pl/books?id=SF_LzThJdB0C http://kb.linuxvirtualserver.org/wiki/Load_balancing

  20. Finish. Any Questions? Thankyou for yourattention. Ďakujemza pozornosť. Dziękuję za uwagę.
