  1. SOI Mirror SERVER Maki Tsuchiya maki@sfc.wide.ad.jp Keio University, Shonan Fujisawa Campus

  2. SOI server tutorial contents • Section1. Description of SOI server • Section2. How to make SOI server

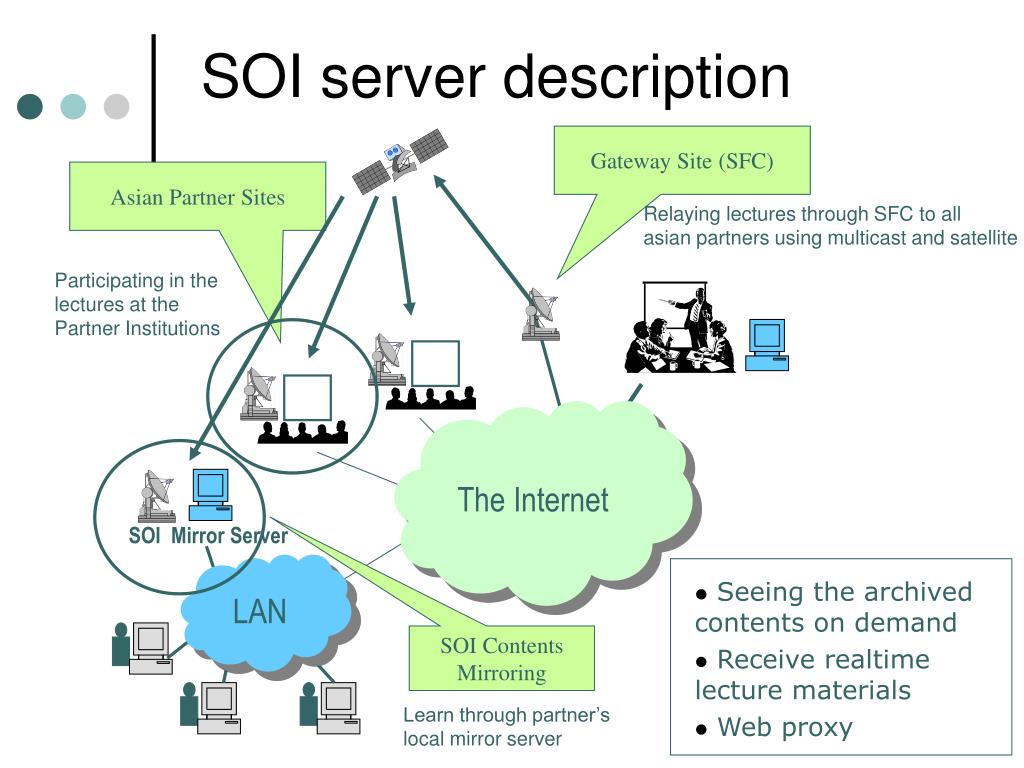

  3. SOI server description Gateway Site (SFC) Asian Partner Sites Relaying lectures through SFC to allasian partners using multicast and satellite Participating in the lectures at thePartner Institutions The Internet SOI Mirror Server LAN • Seeing the archived contents on demand • Receive realtime lecture materials • Web proxy SOI ContentsMirroring Learn through partner’s local mirror server

  4. Archived Lectures Click here

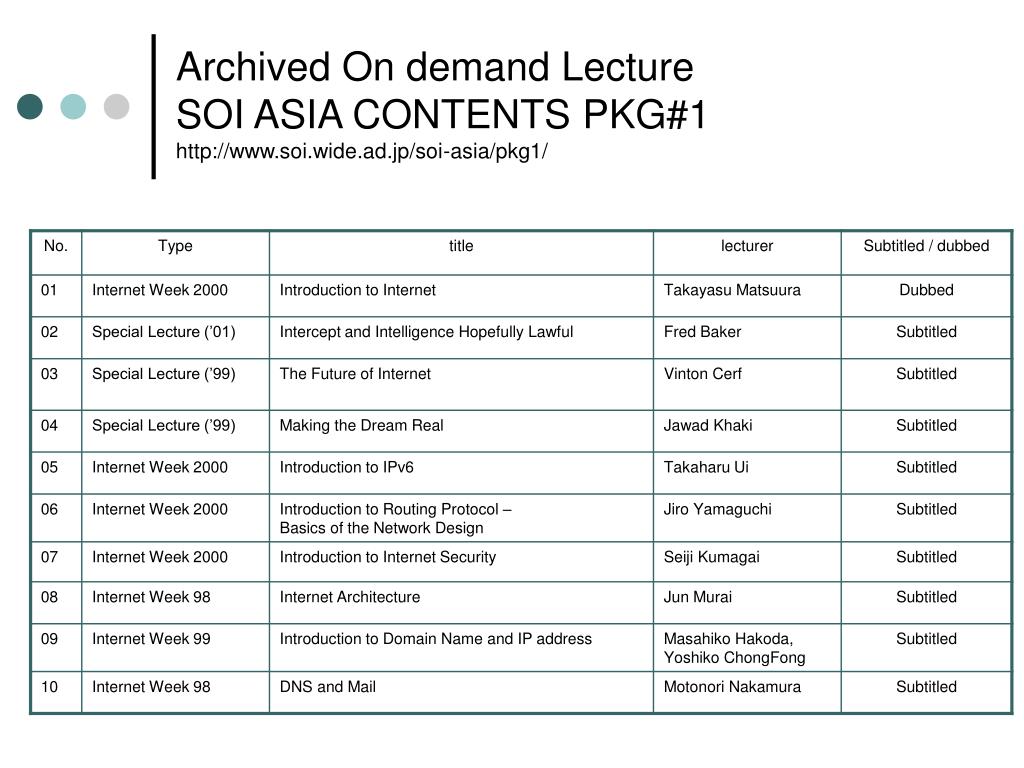

  5. Archived On demand LectureSOI ASIA CONTENTS PKG#1http://www.soi.wide.ad.jp/soi-asia/pkg1/

  6. Advanced IT

  7. Location of SOI server Terrestrial Internet (e.g. to local ISP) JCSAT-3 C-Band C-7 transponder Campus LAN UDL Receive Router Client PC Client PC IF Coaxial Cable L-Band (950 - 1450MHz) LAN SatelliteReceiver SOI Mirror Server

  8. Service of SOI server • Mondatory Services • httpd (web server) • Squid (web proxy server) • Helix Univeral Service (RealVideo streaming server) • OpenSSH (sshd server) • SAKURAFUBUKI3rd (multicast file receiving) • Optional Services • SMTP service • DNS service • DHCP service • POP service • FTP service • Database service

  9. Please install a SOI Mirror server at your site!!!

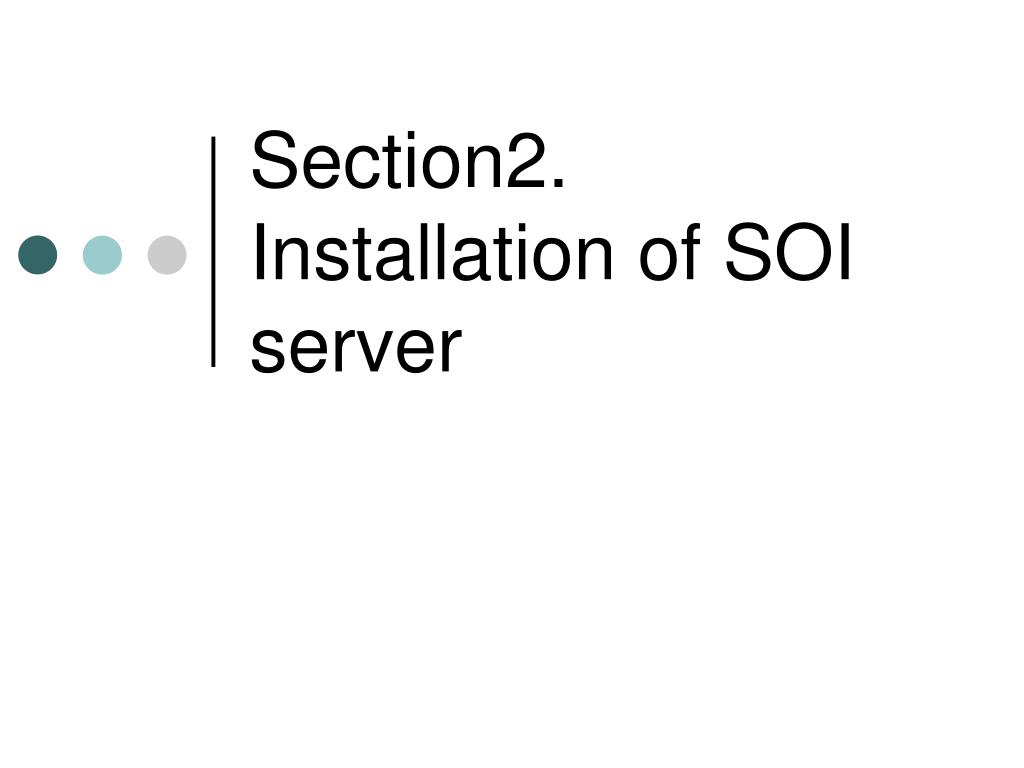

  10. Section2.Installation of SOI server

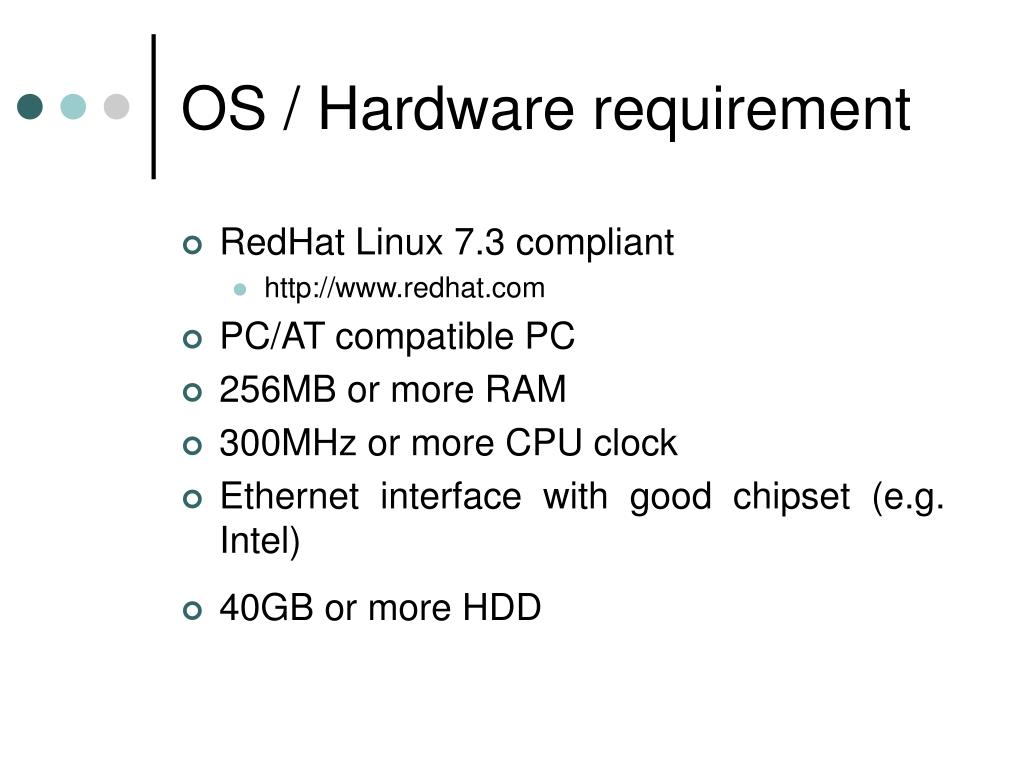

  11. OS / Hardware requirement • RedHat Linux 7.3 compliant • http://www.redhat.com • PC/AT compatible PC • 256MB or more RAM • 300MHz or more CPU clock • Ethernet interface with good chipset (e.g. Intel) • 40GB or more HDD

  12. 3.Installation Software • USAGI • SAKURAFUBUKI 3rd • Helix Universal Server Basic

  13. USAGI • USAGI is a IPv6 stack. • USAGI kernel • USAGI kit (http://www.linux-ipv6.org/)

  14. SAKURAFUBUKI 3rd • Multicast Transfer • Pre/Post processing • Three modes of reliability • Web Interface

  15. Helix Universal Server Basic

  16. 1.Directory configuration

  17. Section3.How to make SOI server

  18. 1-1. Redhat installation • You need to select and install the following software • Network Support • Web server • DNS Name Server • Utilities • Software Development • Kernel Development • For the firewall setting, select "No firewall“

  19. 1-2. Redhat update • We need to update these software • kernel-2.4.18-19.7.x.i386.rpm • xinetd-2.3.7-4.7x.i386.rpm • apache-1.3.27-2.i386.rpm • apache-devel-1.3.27-2.i386.rpm • glibc-* • squid-2.4.STABLE6-6.7.3.i386.rpm • bind-* • These software is contained “RedHat Linux 7.3 upgrade CD (iso)”

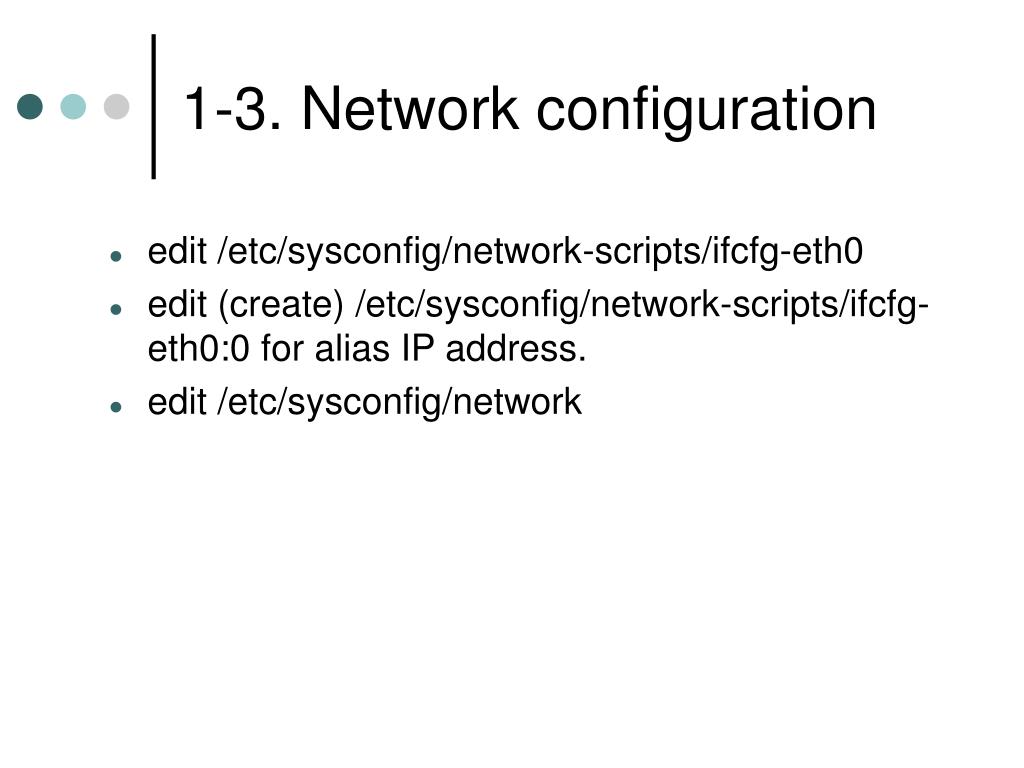

  20. 1-3. Network configuration • edit /etc/sysconfig/network-scripts/ifcfg-eth0 • edit (create) /etc/sysconfig/network-scripts/ifcfg-eth0:0 for alias IP address. • edit /etc/sysconfig/network

  21. 1-4. other necessary configuration • Stop unnecessary daemon • Start necessary daemon • Edit httpd.conf • Edit (replace) squid.conf

  22. 2. USAGI kernel installation • Caution Point When you install, please add – force option #rpm –Uvh kernel-2.4.18-17.7.x_usagi_20021007.rpm –force *Usagi kernel binary files is contained in “SOI CONTENTS CDROM”

  23. 2-1. USAGI kit installation • Caution point Plase install only libinet6 library • Usagi kit source files is contained in “SOI CONTENTS CDROM”

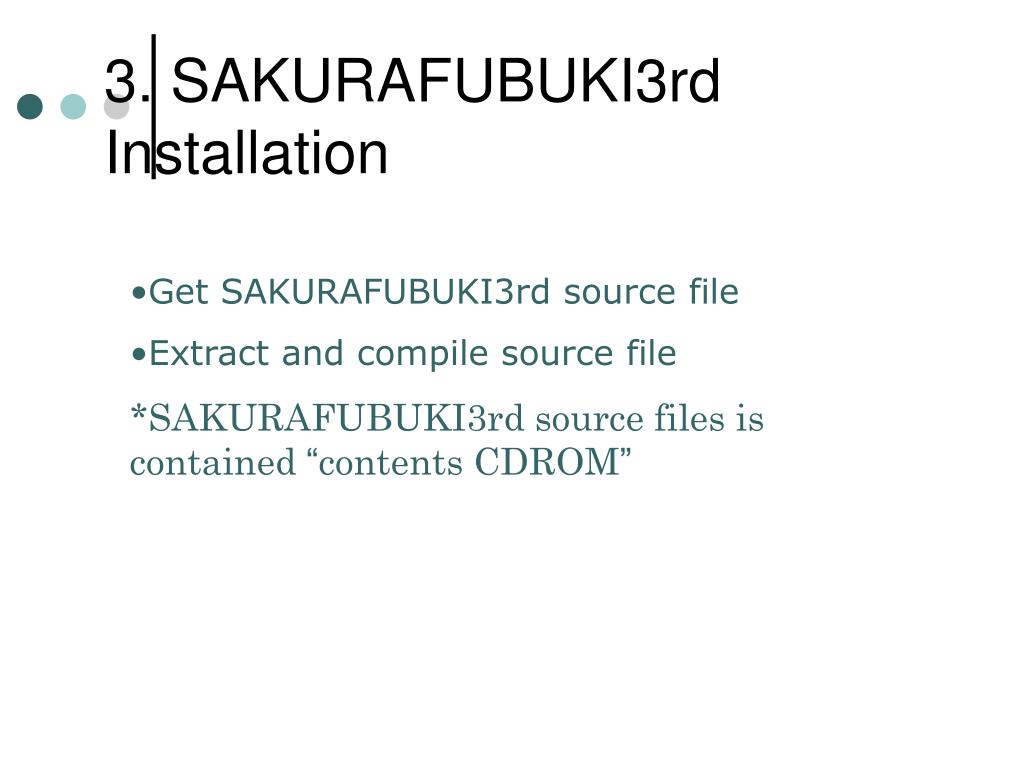

  24. 3. SAKURAFUBUKI3rd Installation • Get SAKURAFUBUKI3rd source file • Extract and compile source file • *SAKURAFUBUKI3rd source files is contained “contents CDROM”

  25. 4. Helix Universal Server Basic installation • Get the license key form web server • http://licensekey.realnetworks.com/rnforms/products/servers/eval/index.html?ulf=b • Copy files and its license key to PC • Copy startup script to your local directory and change the permission • Edit startup script • * script file is in SOI CONTENTS CDROM

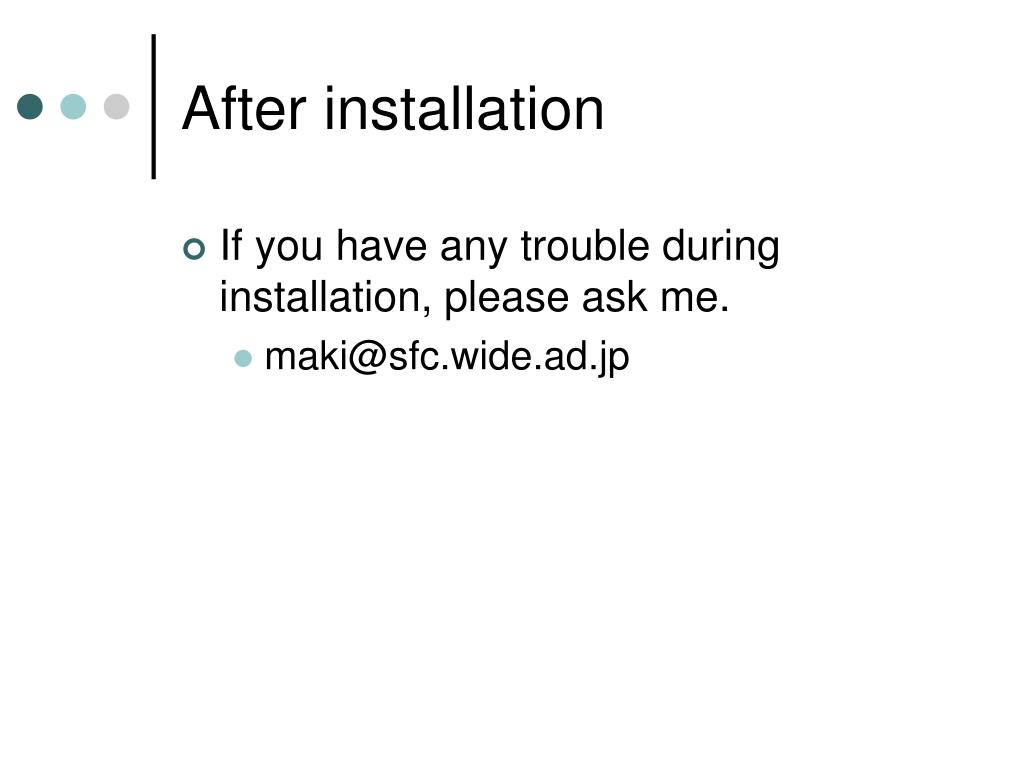

  26. After installation • If you have any trouble during installation, please ask me. • maki@sfc.wide.ad.jp
