  1. Intro to Set Theory

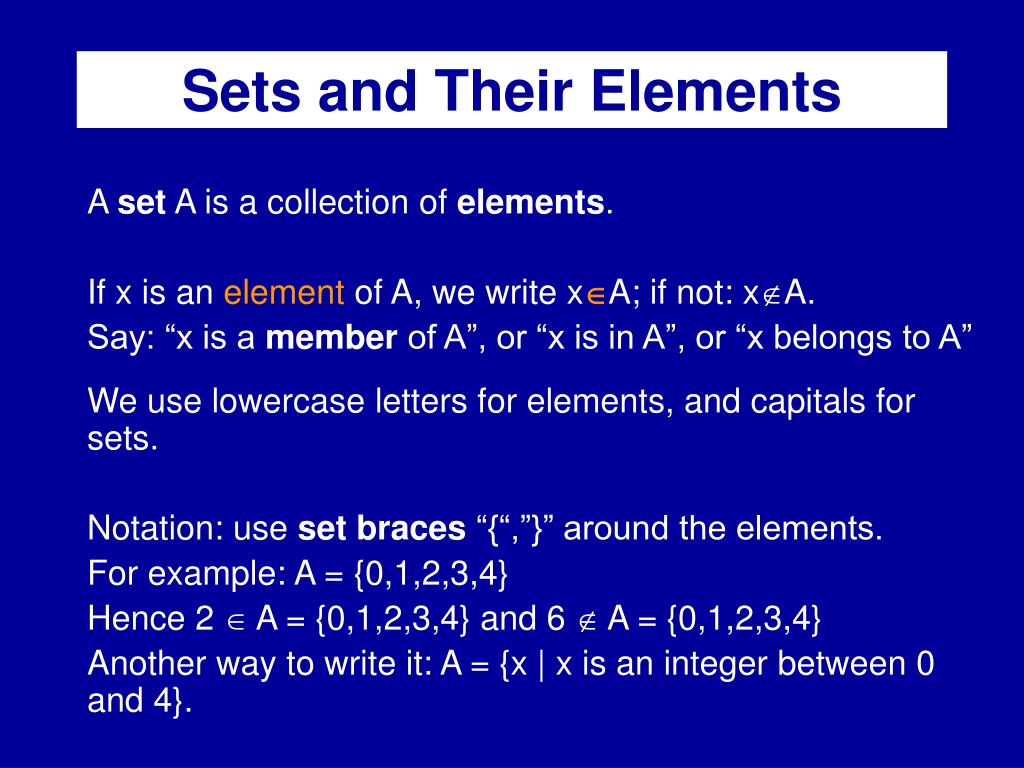

  2. A set A is a collection of elements. If x is an element of A, we write xA; if not: xA. Say: “x is a member of A”, or “x is in A”, or “x belongs to A” We use lowercase letters for elements, and capitals for sets. Notation: use set braces “{“,”}” around the elements. For example: A = {0,1,2,3,4} Hence 2  A = {0,1,2,3,4} and 6  A = {0,1,2,3,4} Another way to write it: A = {x | x is an integer between 0 and 4}. Sets and Their Elements

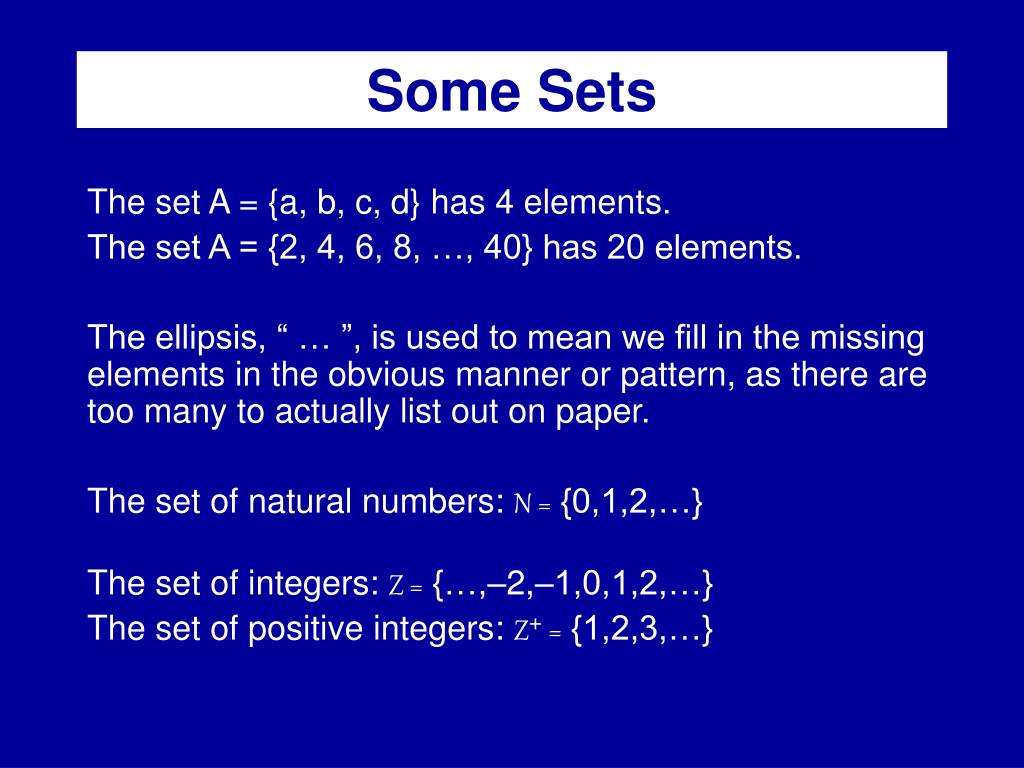

  3. The set A = {a, b, c, d} has 4 elements. The set A = {2, 4, 6, 8, …, 40} has 20 elements. The ellipsis, “ … ”, is used to mean we fill in the missing elements in the obvious manner or pattern, as there are too many to actually list out on paper. The set of natural numbers: N = {0,1,2,…} The set of integers: Z = {…,–2,–1,0,1,2,…} The set of positive integers: Z+ = {1,2,3,…} Some Sets

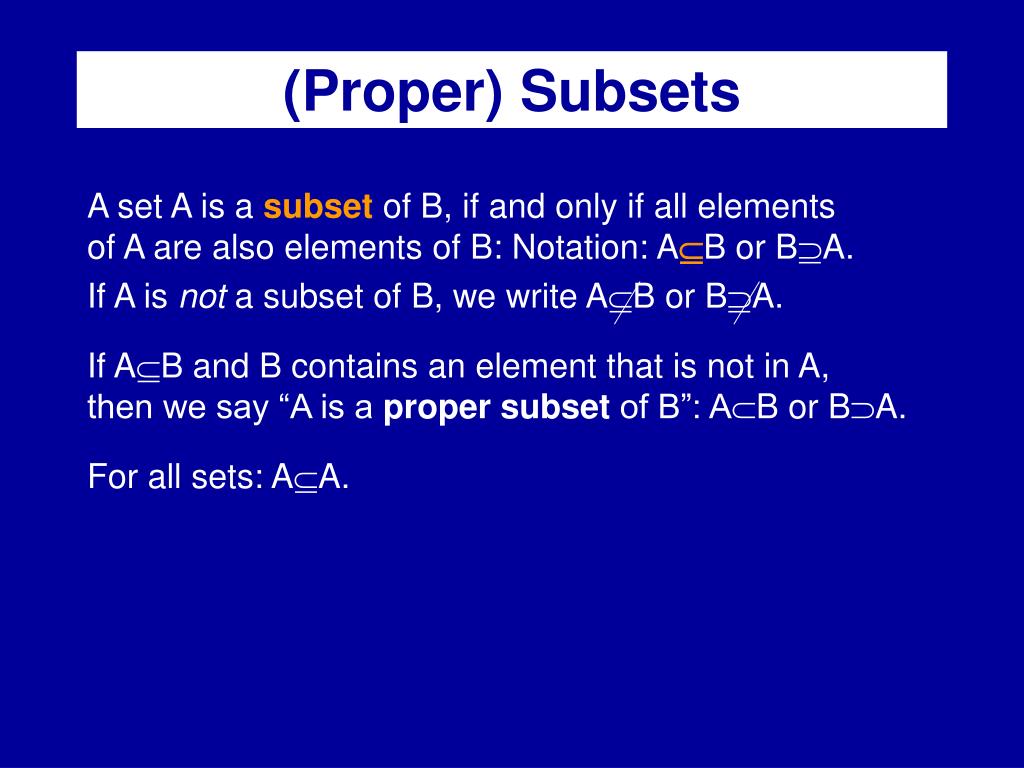

  4. A set A is a subset of B, if and only if all elementsof A are also elements of B: Notation: AB or BA. If A is not a subset of B, we write AB or BA. If AB and B contains an element that is not in A,then we say “A is a proper subset of B”: AB or BA. For all sets: AA. (Proper) Subsets

  5. The sets A and B are equal (A=B) if and only if each element of A is an element of B and vice versa. The empty set, denoted by or { }, is the set without elements. The universal set, denoted by Ω, is the set of all elements currently under consideration. The size or cardinality of a finite set A, denoted with |A|, is the number of (distinct) elements.Example: ||=0 |{2,4,8,16}| = 4 Special Sets, Cardinality

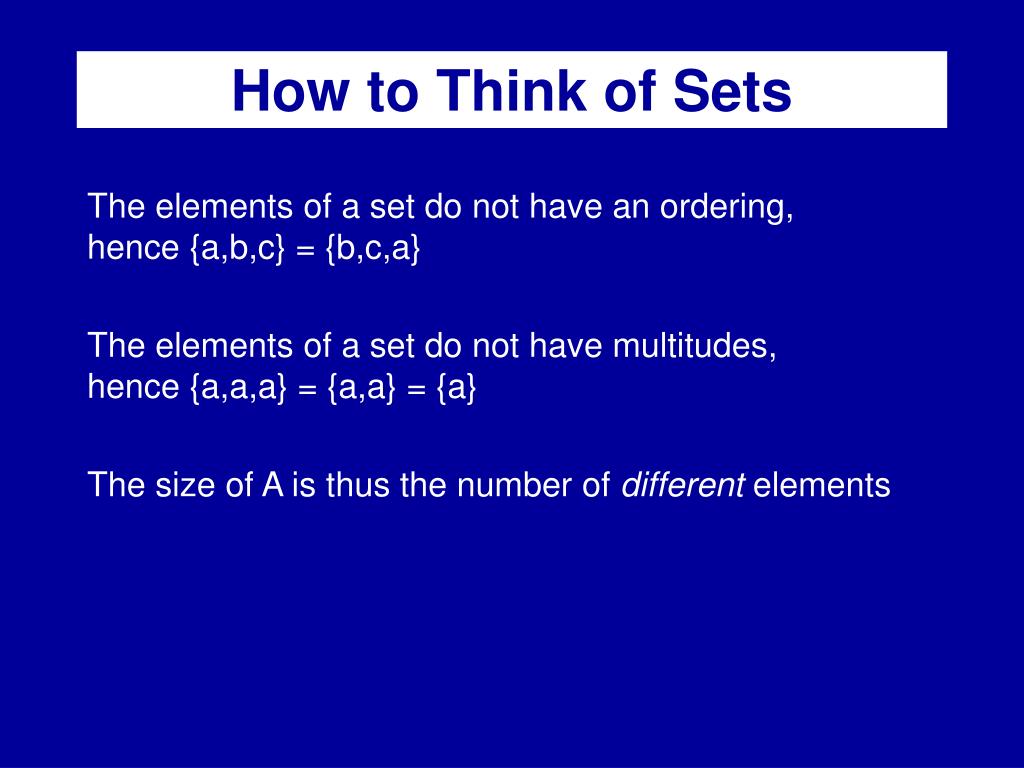

  6. The elements of a set do not have an ordering,hence {a,b,c} = {b,c,a} The elements of a set do not have multitudes,hence {a,a,a} = {a,a} = {a} The size of A is thus the number of different elements How to Think of Sets

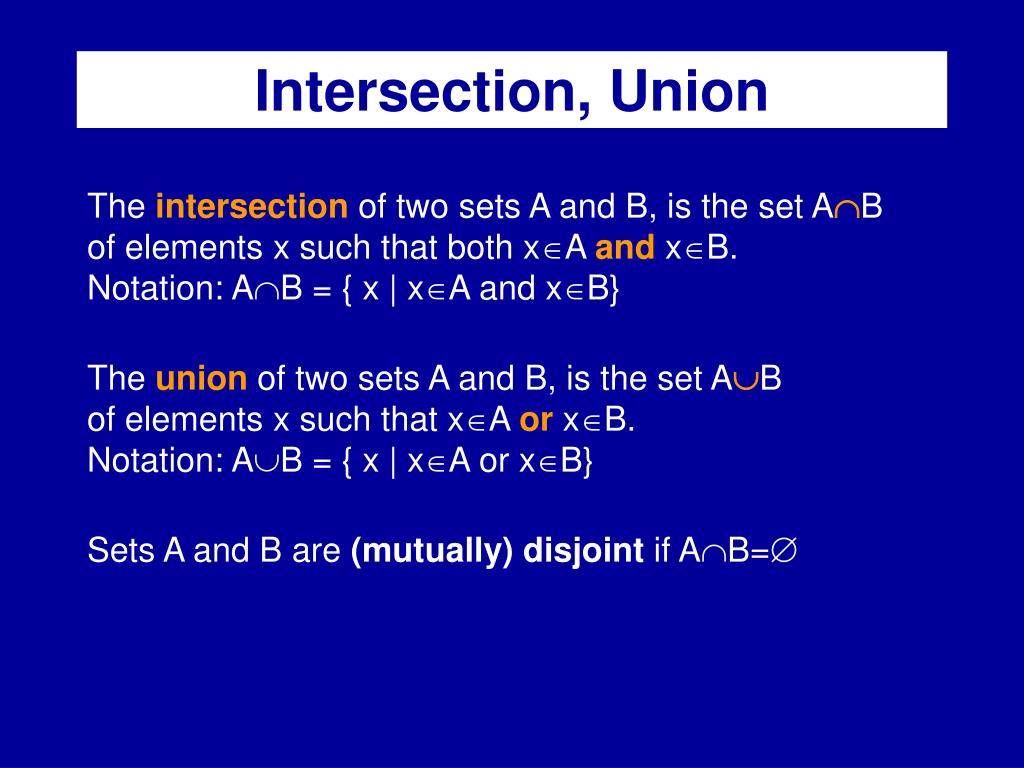

  7. The intersection of two sets A and B, is the set ABof elements x such that both xA and xB.Notation: AB = { x | xA and xB} The union of two sets A and B, is the set ABof elements x such that xA or xB.Notation: AB = { x | xA or xB} Sets A and B are (mutually) disjoint if AB= Intersection, Union

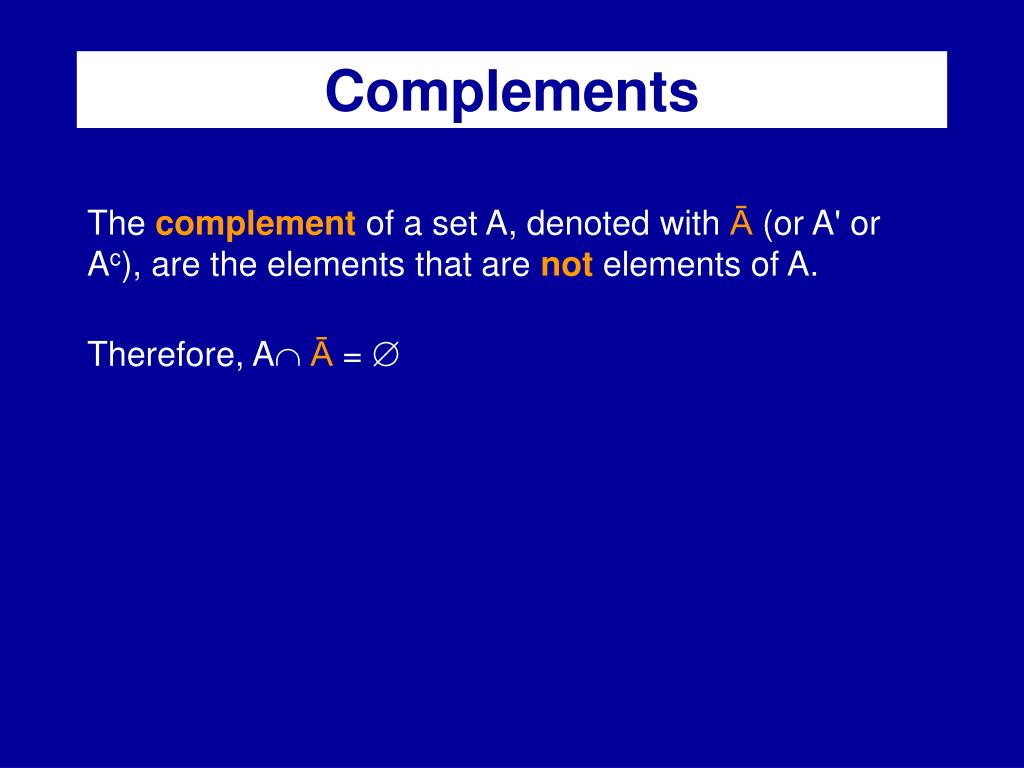

  8. The complement of a set A,denoted with Ā(or A' or Ac), are the elements that are not elements of A. Therefore, A Ā =  Complements

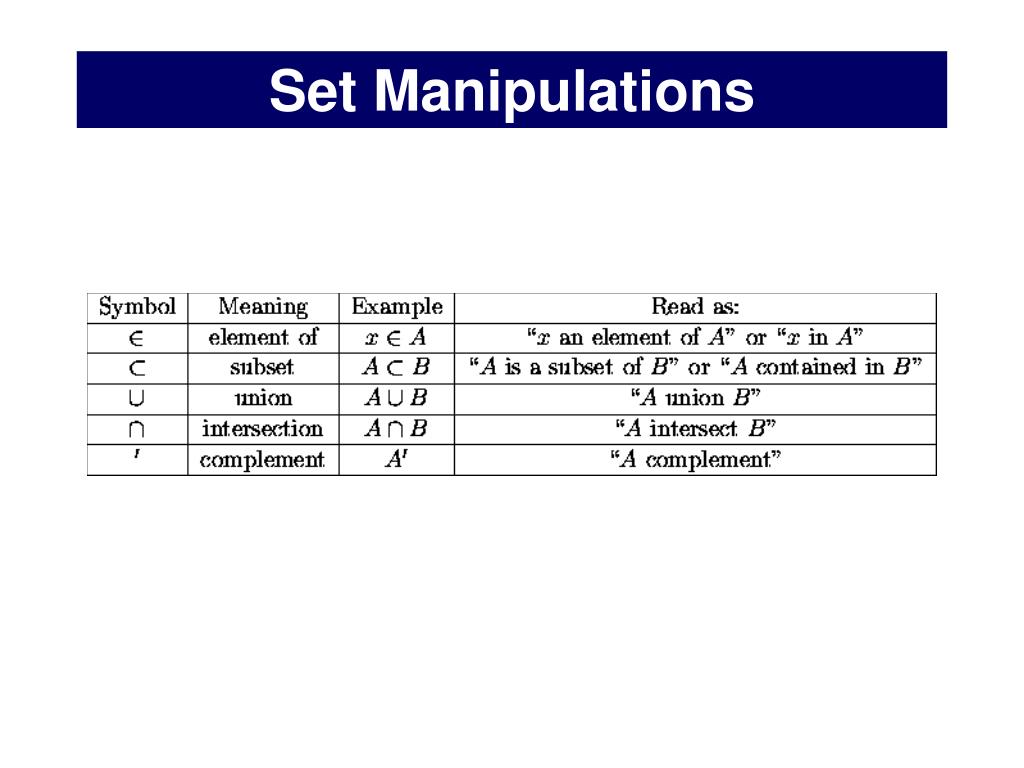

  9. Set Manipulations

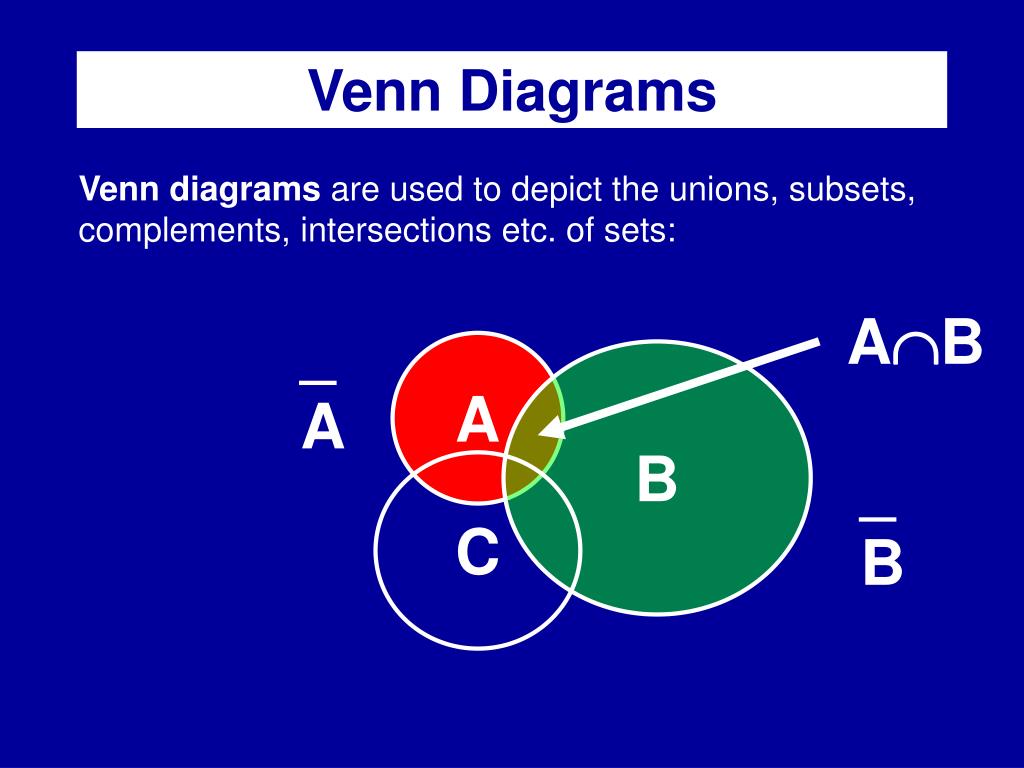

  10. Venn diagrams are used to depict the unions, subsets, complements, intersections etc. of sets: AB _ A A B _ B Venn Diagrams C

  11. A – B The set difference “A minus B” is the set of elements that are in A, with those that are in B subtracted out. Another way of putting it is, it is the set of elements that are in A, and not in B. _ Therefore, A – B = A  B Set Difference

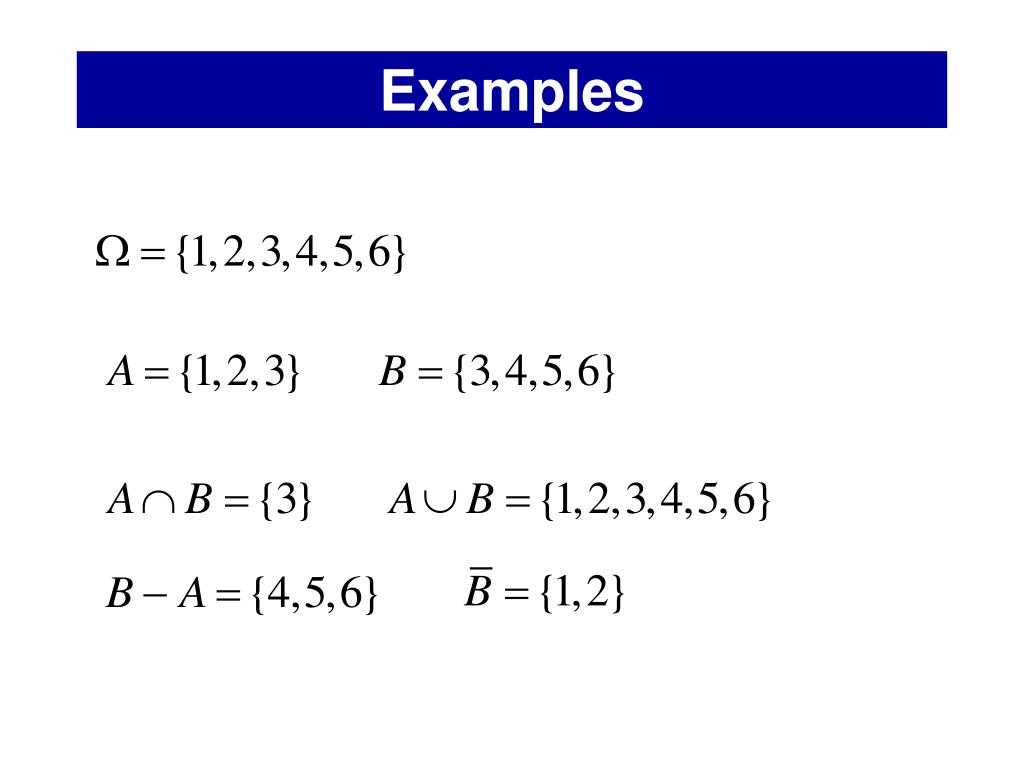

  12. Examples

  13. Logical operators include: conjunction (and), disjunction (or), negation (not), and conditional (implies, if-then). The Common Logical Operators Conjunction (and): The conjunction of propositions p and q is the compound proposition “p and q”. We denote it with p ^ q. This means p and q together. It is true if p and q are both true and false otherwise. For instance the compound proposition “2+2=4 (p) and Sunday is the first day of the week (q)” is true, but “3+3=7 (p) and the freezing point of water is 32 degrees (q)” is false. Propositional Logic, Logical Operators

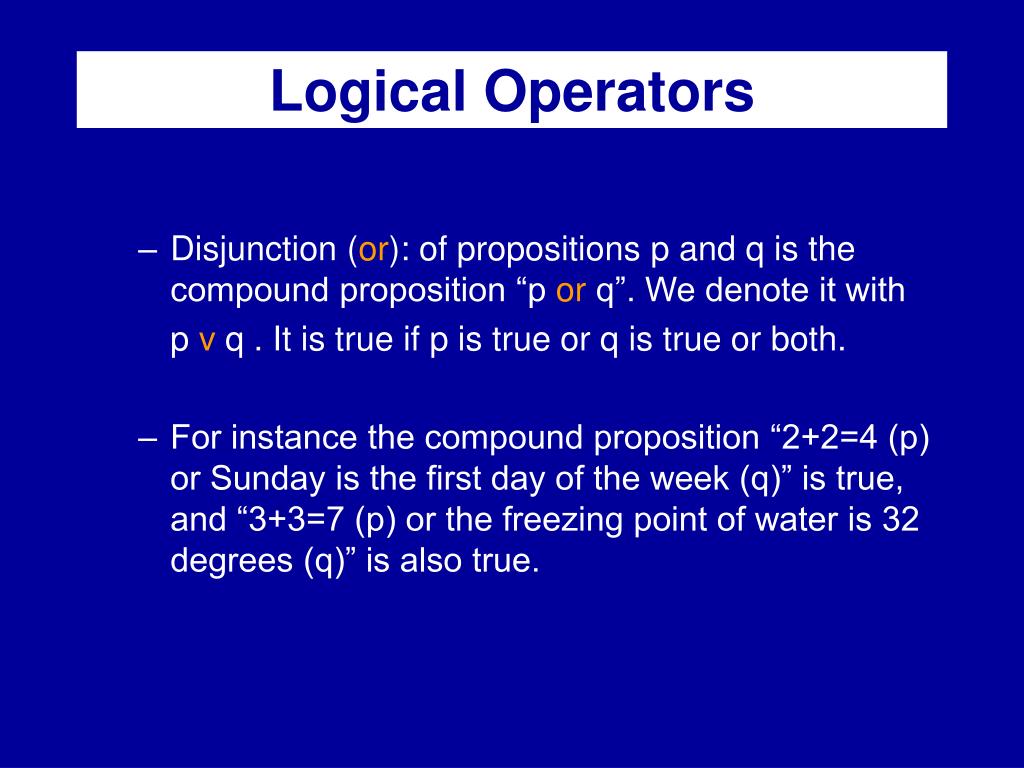

  14. Disjunction (or): of propositions p and q is the compound proposition “p or q”. We denote it with p v q . It is true if p is true or q is true or both. For instance the compound proposition “2+2=4 (p) or Sunday is the first day of the week (q)” is true, and “3+3=7 (p) or the freezing point of water is 32 degrees (q)” is also true. Logical Operators

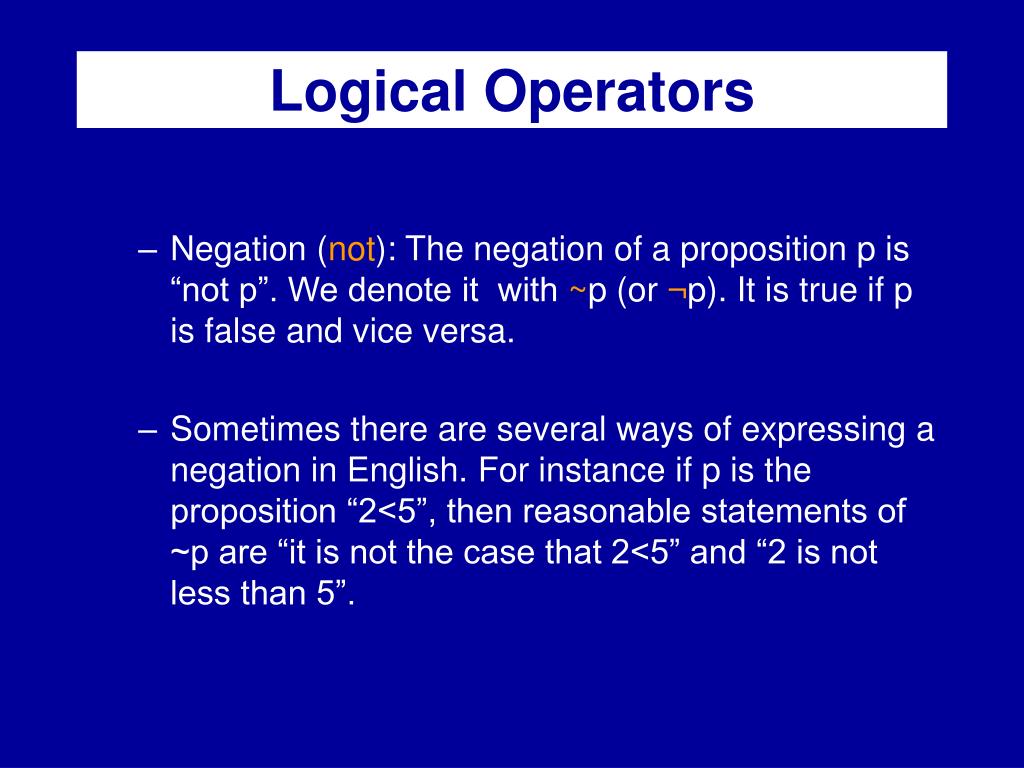

  15. Negation (not): The negation of a proposition p is “not p”. We denote it with ~p (or ¬p). It is true if p is false and vice versa. Sometimes there are several ways of expressing a negation in English. For instance if p is the proposition “2<5”, then reasonable statements of ~p are “it is not the case that 2<5” and “2 is not less than 5”. Logical Operators

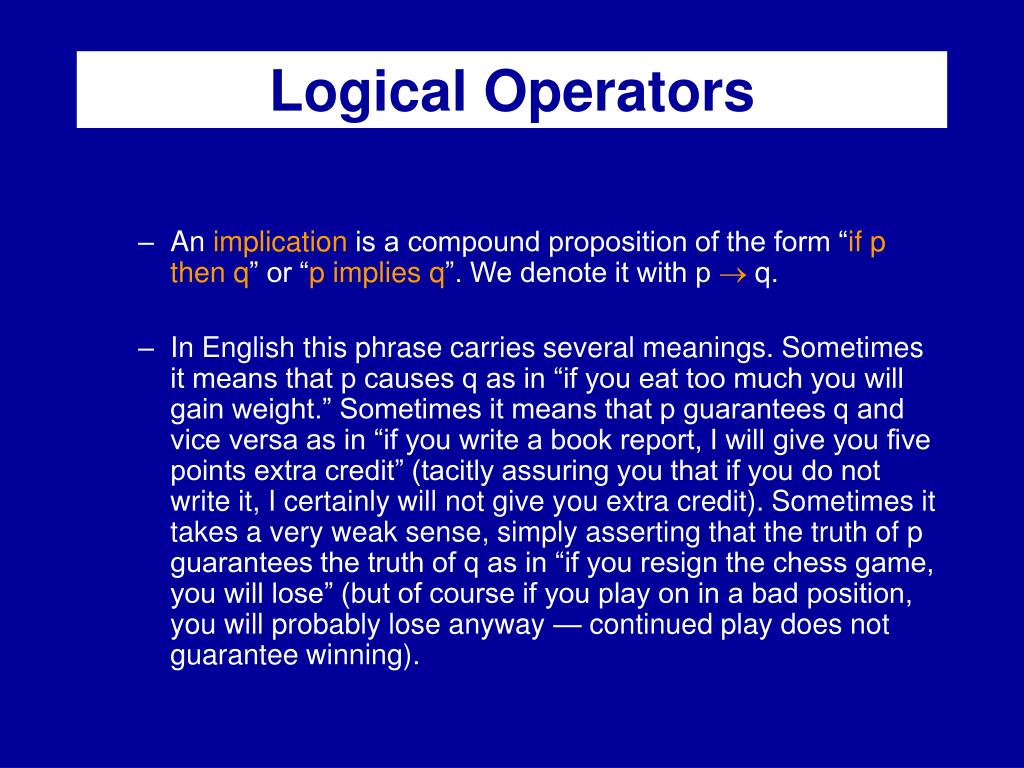

  16. An implication is a compound proposition of the form “if p then q” or “p implies q”. We denote it with p  q. In English this phrase carries several meanings. Sometimes it means that p causes q as in “if you eat too much you will gain weight.” Sometimes it means that p guarantees q and vice versa as in “if you write a book report, I will give you five points extra credit” (tacitly assuring you that if you do not write it, I certainly will not give you extra credit). Sometimes it takes a very weak sense, simply asserting that the truth of p guarantees the truth of q as in “if you resign the chess game, you will lose” (but of course if you play on in a bad position, you will probably lose anyway — continued play does not guarantee winning). Logical Operators

  17. Logic and set theory go very well together. The previous definitions can be re-written as follows:xA if and only if (xA)AB if and only if (xA  xB) is Truex  (AB) if and only if (xA  xB)x  (AB) if and only if (xA  xB)x  A–B if and only if (xA  xB)x  Ā if and only if (xA) Sets and Logic
