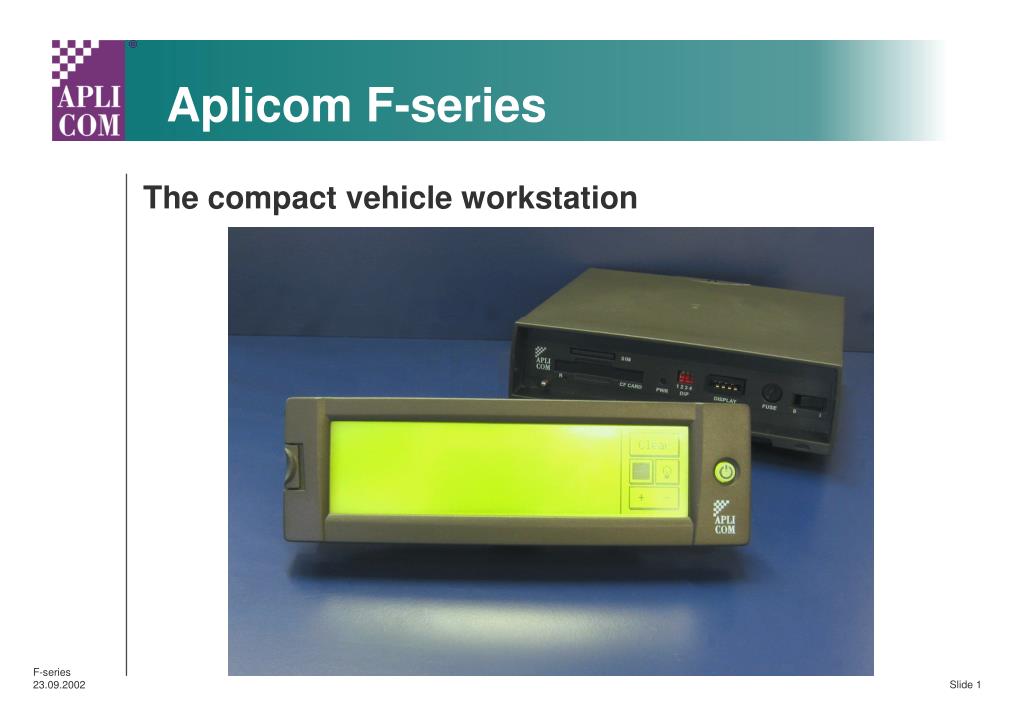

  1. The compact vehicle workstation Aplicom F-series

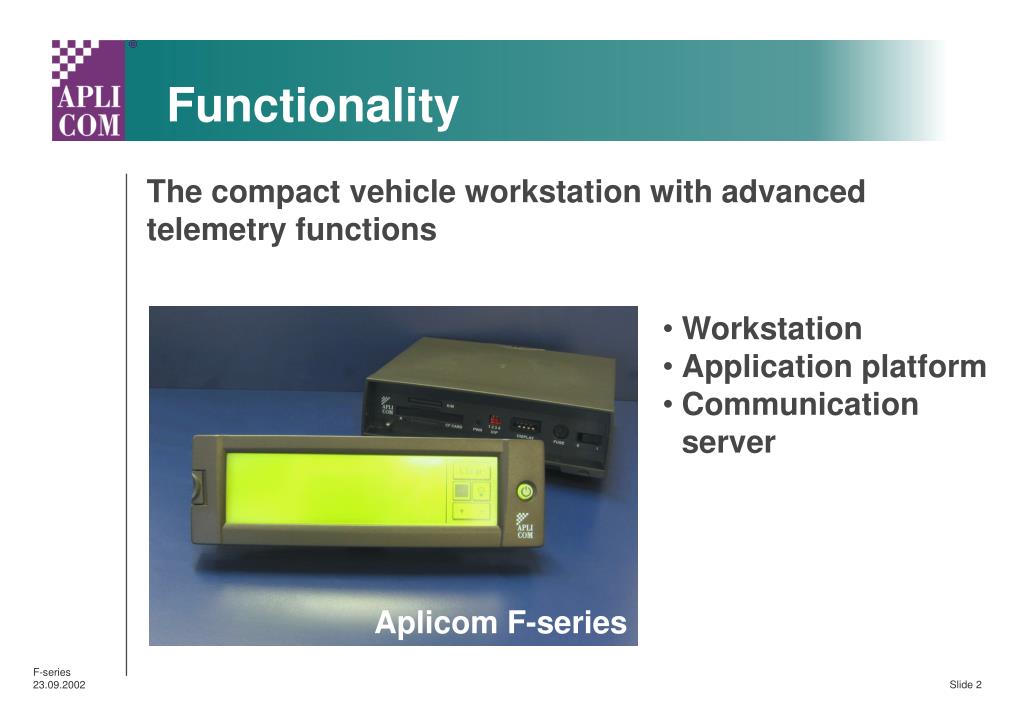

  2. Functionality The compact vehicle workstation with advanced telemetry functions • Workstation • Application platform • Communication server Aplicom F-series

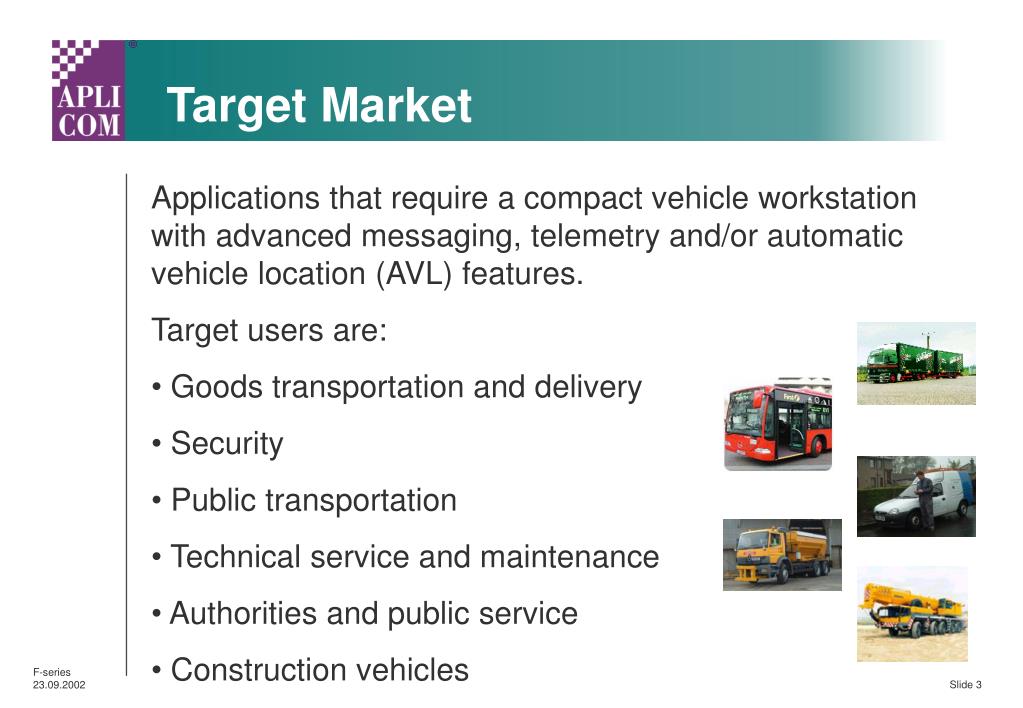

  3. Target Market • Applications that require a compact vehicle workstation with advanced messaging, telemetry and/or automatic vehicle location (AVL) features. • Target users are: • Goods transportation and delivery • Security • Public transportation • Technical service and maintenance • Authorities and public service • Construction vehicles

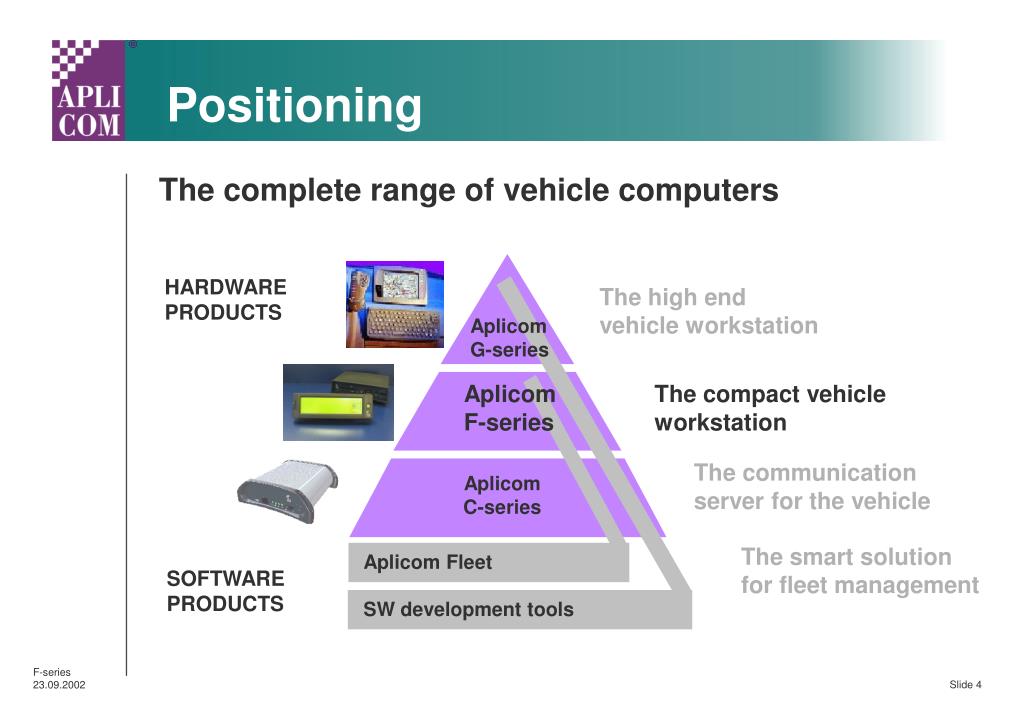

  4. Positioning The complete range of vehicle computers HARDWARE PRODUCTS The high end vehicle workstation Aplicom G-series Aplicom F-series The compact vehicle workstation The communication server for the vehicle Aplicom C-series The smart solution for fleet management Aplicom Fleet SOFTWARE PRODUCTS SW development tools

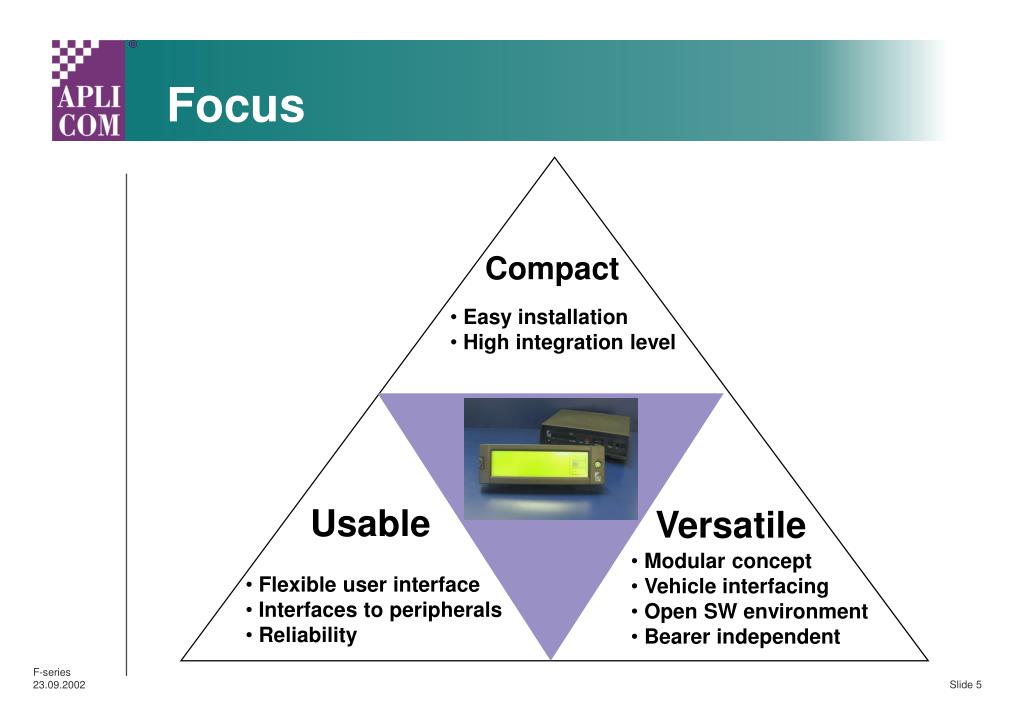

  5. Focus Compact • Easy installation • High integration level Usable Versatile • Modular concept • Vehicle interfacing • Open SW environment • Bearer independent • Flexible user interface • Interfaces to peripherals • Reliability

  6. Compact • Maximum size display for DIN-format (DT 1000 Display) • DIN-size processing unit ( DIN-slot installation possibility) • Elegant integration on vehicle dashboard • High integration of hardware (GSM, GPRS, GPS, CAN...)

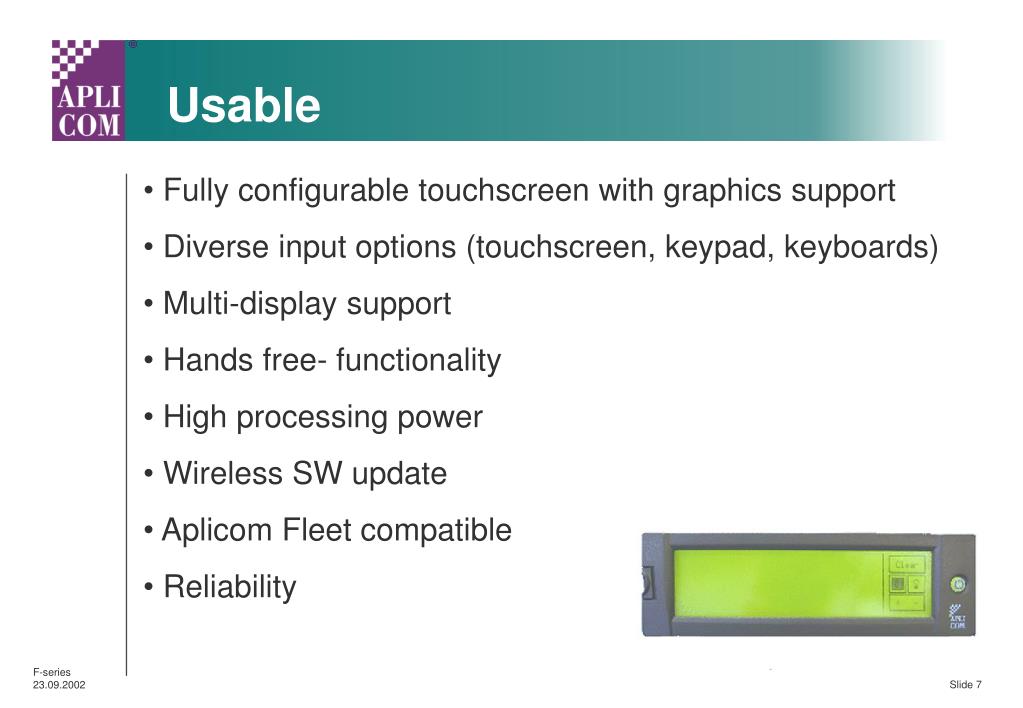

  7. Usable • Fully configurable touchscreen with graphics support • Diverse input options (touchscreen, keypad, keyboards) • Multi-display support • Hands free- functionality • High processing power • Wireless SW update • Aplicom Fleet compatible • Reliability

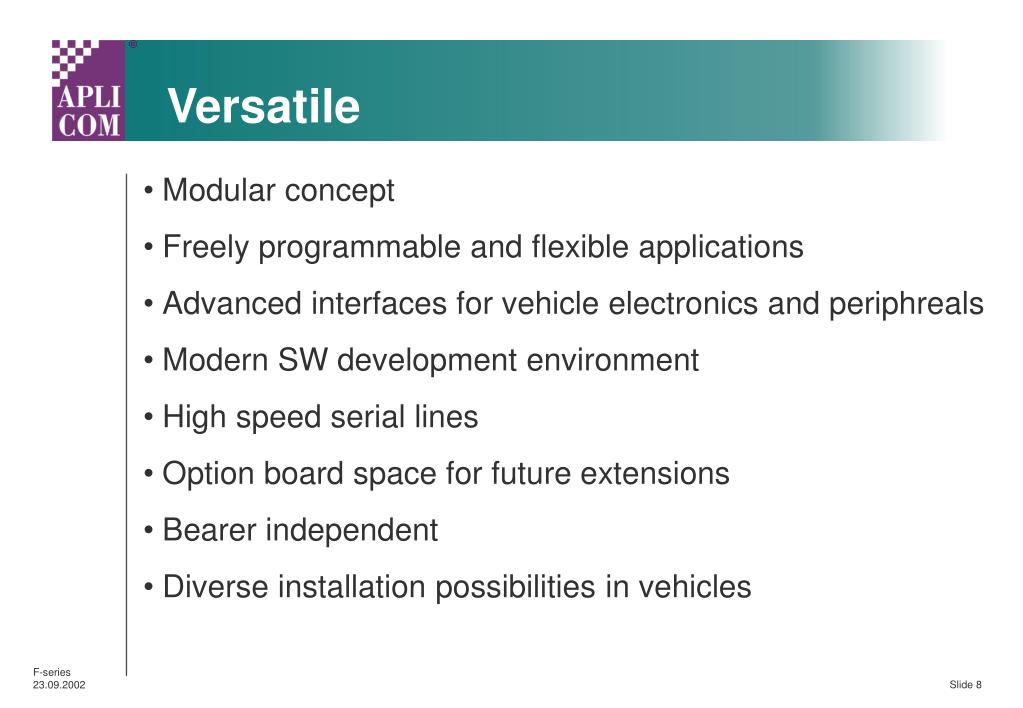

  8. Versatile • Modular concept • Freely programmable and flexible applications • Advanced interfaces for vehicle electronics and periphreals • Modern SW development environment • High speed serial lines • Option board space for future extensions • Bearer independent • Diverse installation possibilities in vehicles

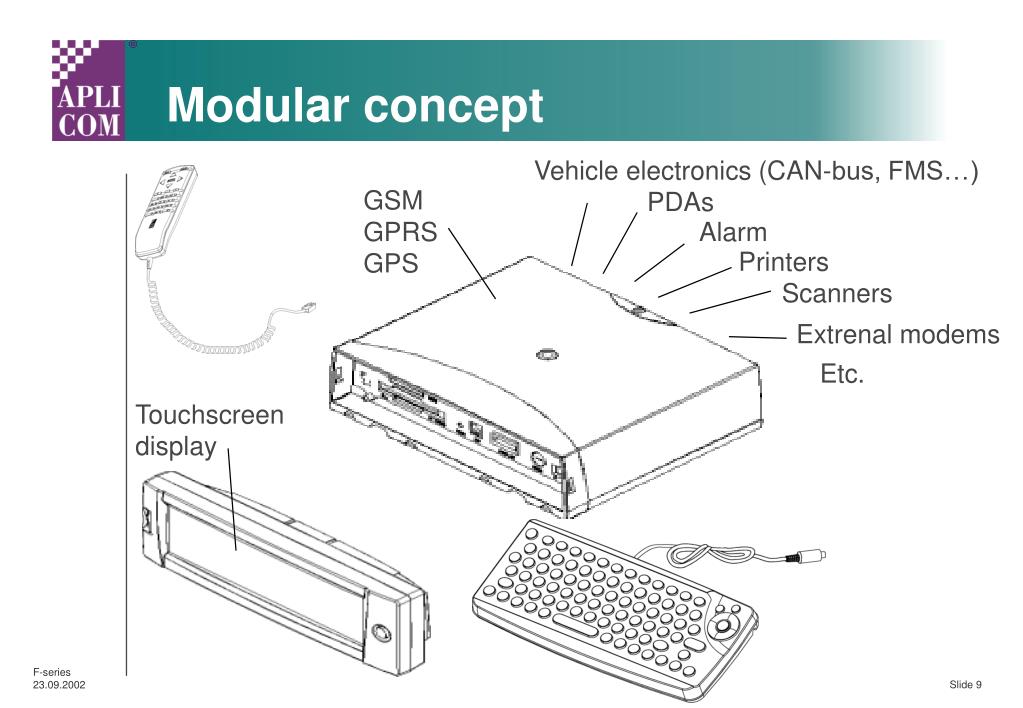

  9. Modular concept Vehicle electronics (CAN-bus, FMS…) GSM GPRS GPS PDAs Alarm Printers Scanners Extrenal modems Etc. Touchscreen display

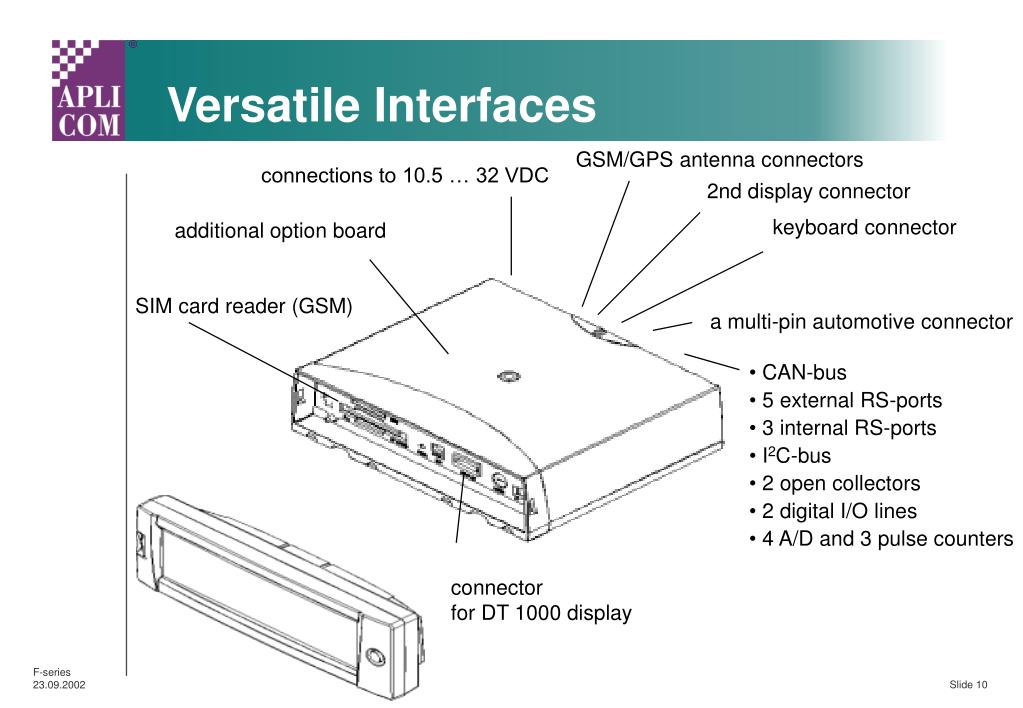

  10. Versatile Interfaces GSM/GPS antenna connectors connections to 10.5 … 32 VDC 2nd display connector keyboard connector additional option board SIM card reader (GSM) a multi-pin automotive connector • CAN-bus • 5 external RS-ports • 3 internal RS-ports • I2C-bus • 2 open collectors • 2 digital I/O lines • 4 A/D and 3 pulse counters connector for DT 1000 display

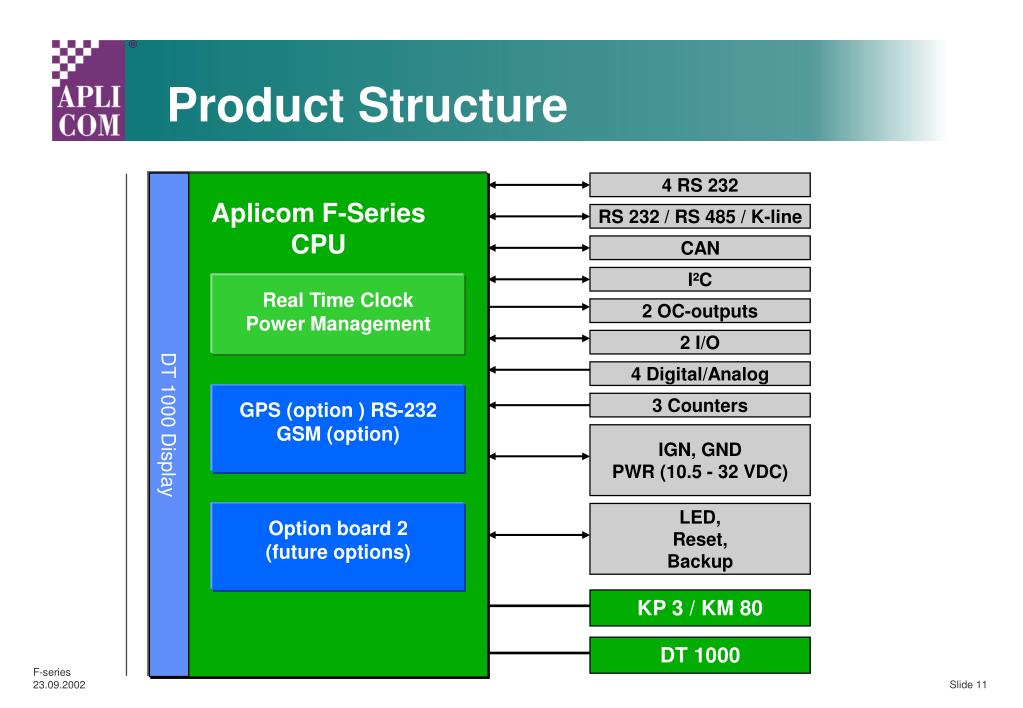

  11. CAN I²C Product Structure Aplicom F-Series CPU DT 1000 Display 4 RS 232 RS 232 / RS 485 / K-line Real Time Clock Power Management 2 OC-outputs 2 I/O 4 Digital/Analog GPS (option ) RS-232 GSM (option) 3 Counters IGN, GNDPWR (10.5 - 32 VDC) Option board 2 (future options) LED,Reset,Backup KP 3 / KM 80 DT 1000

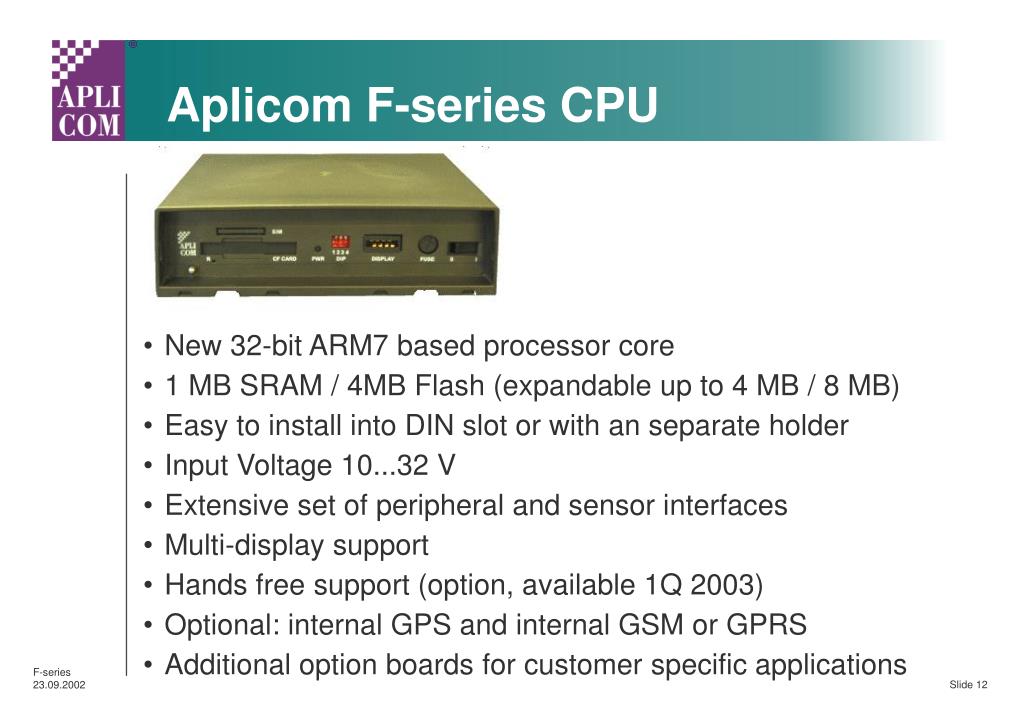

  12. Aplicom F-series CPU • New 32-bit ARM7 based processor core • 1 MB SRAM / 4MB Flash (expandable up to 4 MB / 8 MB) • Easy to install into DIN slot or with an separate holder • Input Voltage 10...32 V • Extensive set of peripheral and sensor interfaces • Multi-display support • Hands free support (option, available 1Q 2003) • Optional: internal GPS and internal GSM or GPRS • Additional option boards for customer specific applications

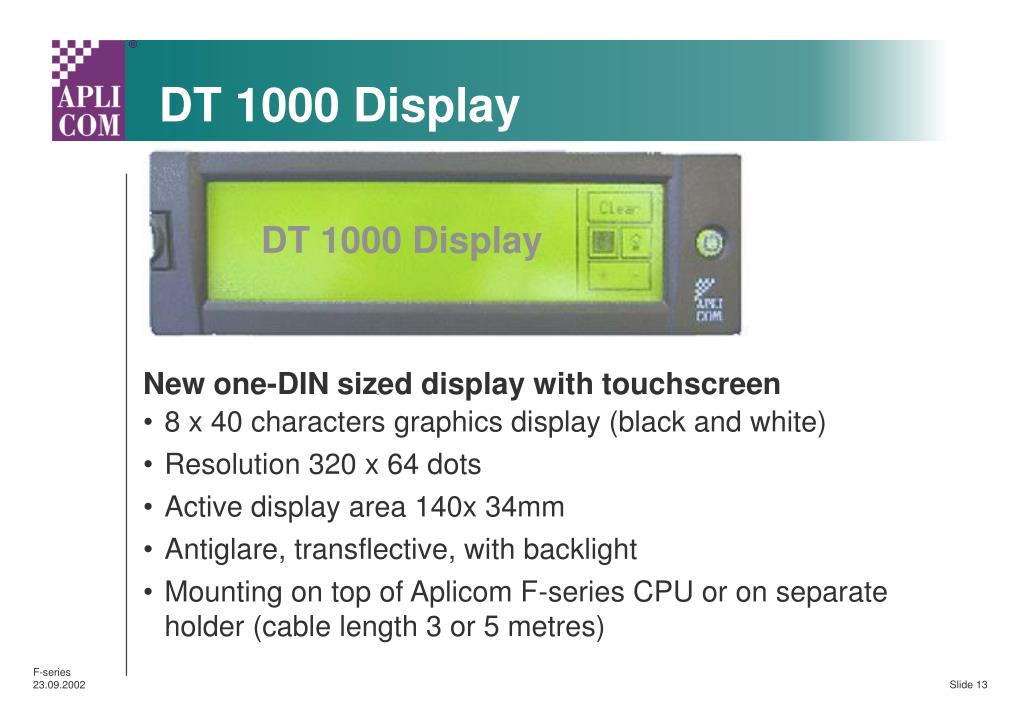

  13. DT 1000 Display DT 1000 Display • New one-DIN sized display with touchscreen • 8 x 40 characters graphics display (black and white) • Resolution 320 x 64 dots • Active display area 140x 34mm • Antiglare, transflective, with backlight • Mounting on top of Aplicom F-series CPU or on separate holder (cable length 3 or 5 metres)

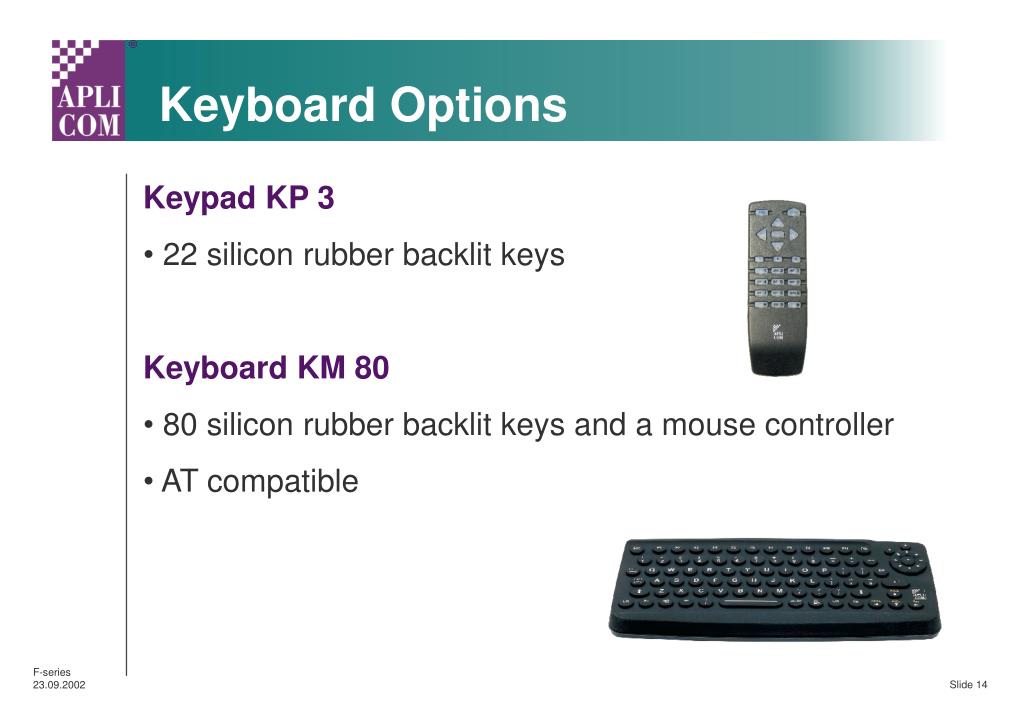

  14. Keyboard Options • Keypad KP 3 • 22 silicon rubber backlit keys • Keyboard KM 80 • 80 silicon rubber backlit keys and a mouse controller • AT compatible

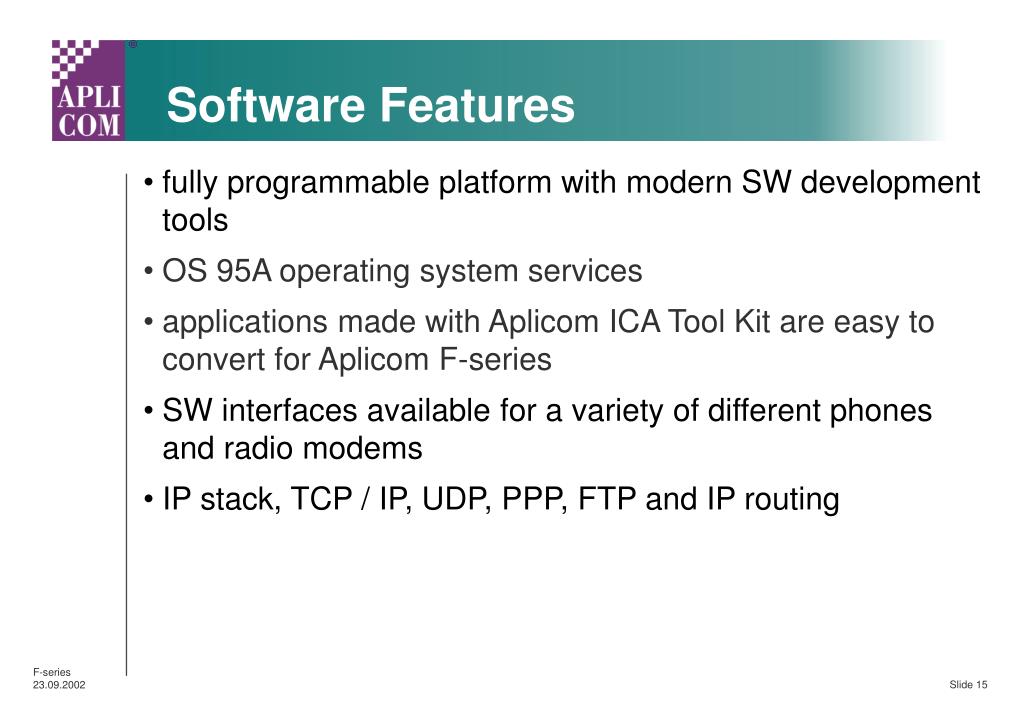

  15. Software Features • fully programmable platform with modern SW development tools • OS 95A operating system services • applications made with Aplicom ICA Tool Kit are easy to convert for Aplicom F-series • SW interfaces available for a variety of different phones and radio modems • IP stack, TCP / IP, UDP, PPP, FTP and IP routing

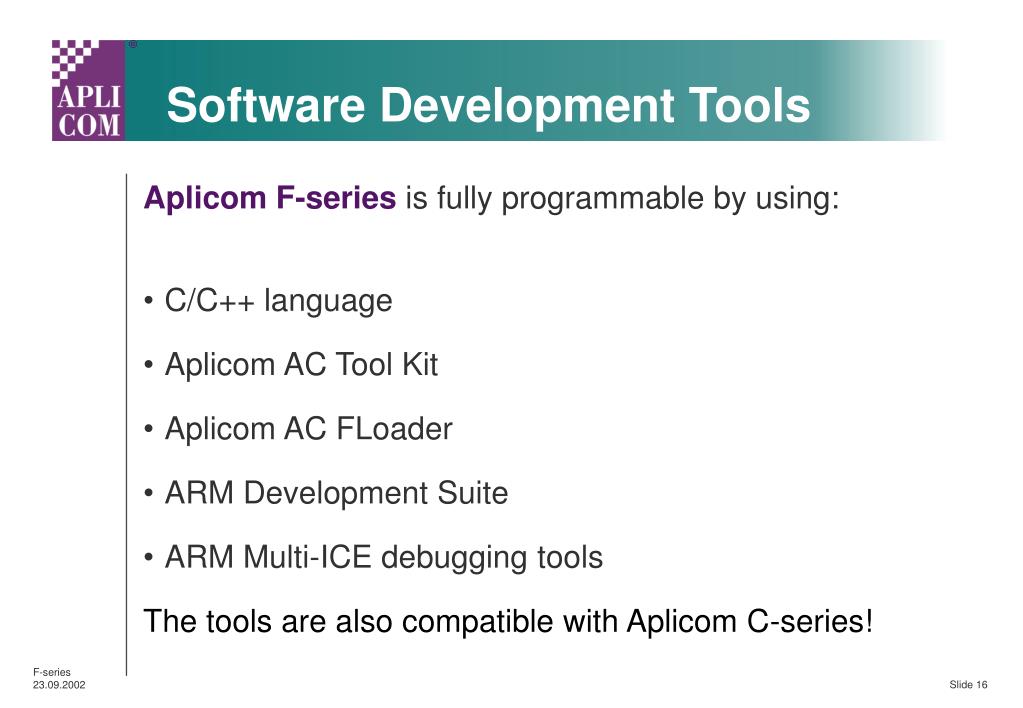

  16. Aplicom F-seriesis fully programmable by using: C/C++ language Aplicom AC Tool Kit Aplicom AC FLoader ARM Development Suite ARM Multi-ICE debugging tools The tools are also compatible with Aplicom C-series! Software Development Tools
