  1. SAFETY WRAP Multi-piece Installation Instructions

  2. Install 3 “smart bands” on the pipe. Leave 6 extra inches on the length

  3. Place sections of wrap on the pipe and snap together opposing tabs. Can be snapped together by slapping with hands

  4. Using handles rotate sections down the pipe to install next

  5. Slide bands over sections, leaving loose

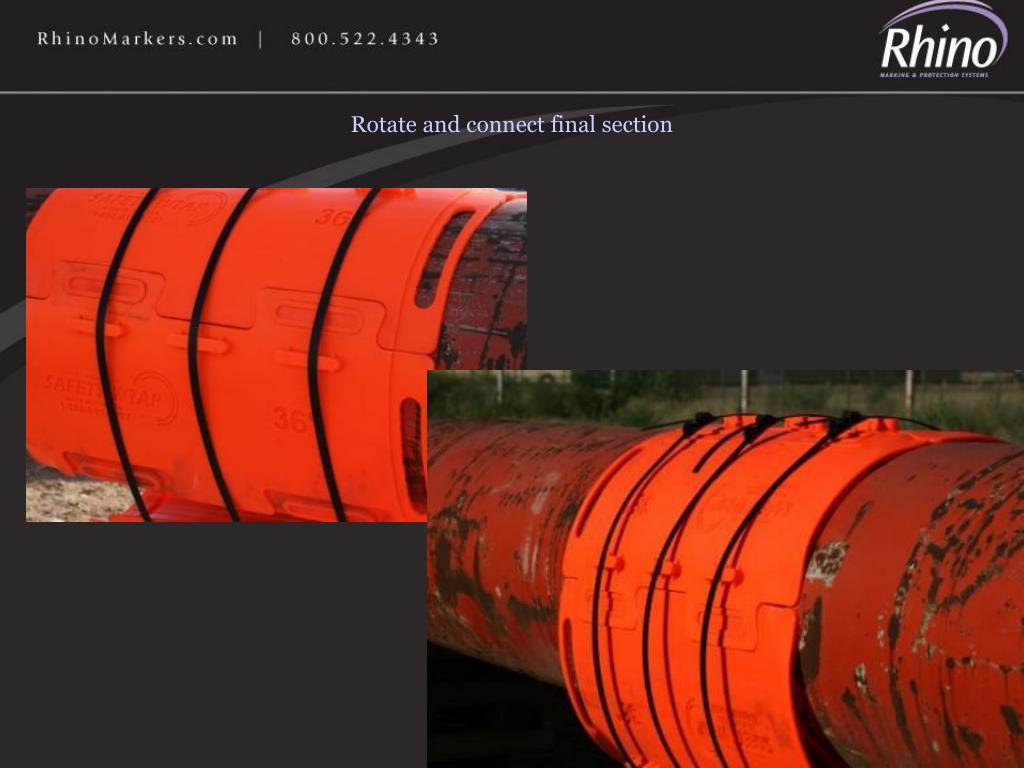

  6. Rotate and connect final section

  7. Pull bands tight to secure wrap in place. Note: Wrap may overlap slightly depending coating thickness. This will not effect performance

  8. Video A video of the installation of a multi-piece section of Safety Wrap can be found at the following link: http://www.youtube.com/user/tvrhino?feature=mhum#p/u/1/wSWHg5VyL7c
