  5. Computer Vision Using Stereoscopic Imaging Techniques to Produce a Three-Dimensional Scene Kevin Schaefer Senior Honors Presentation McKendree University 4/24/2014

  6. The goal: 3D

  7. What’s in an image? 3 components: Red 121 Green 110 Blue 90

  8. Stereo vision Left viewpoint Right viewpoint

  9. The Correlation Problem

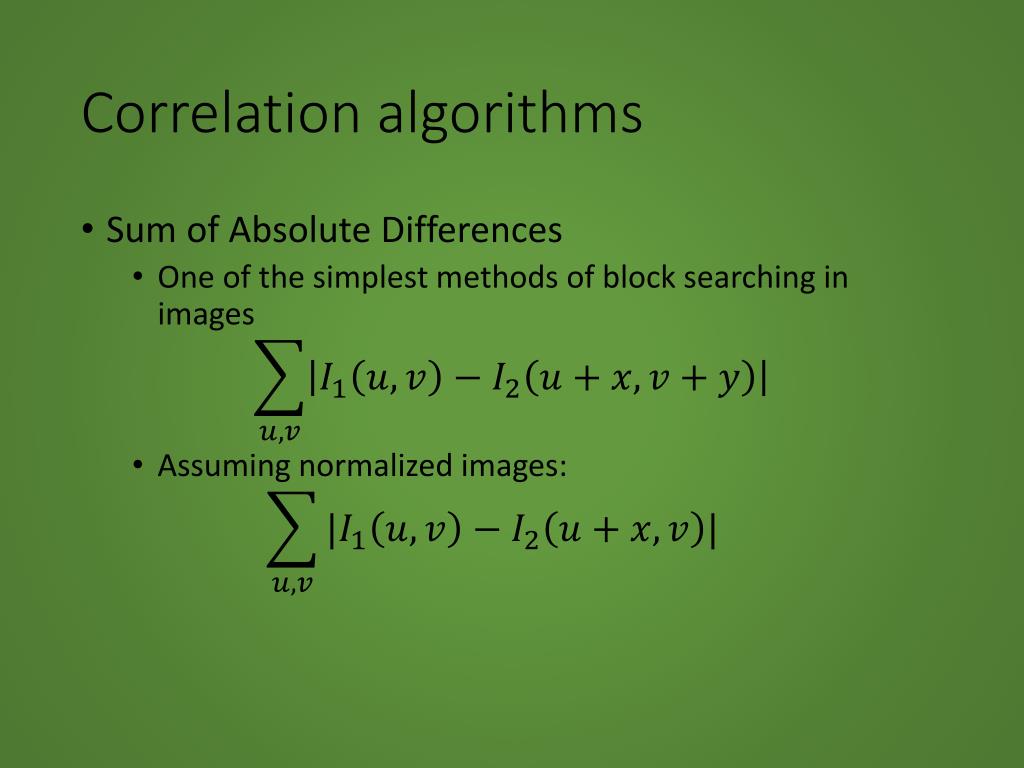

  10. Correlation algorithms • Sum of Absolute Differences • One of the simplest methods of block searching in images • Assuming normalized images:

  11. Disparity Roof Right viewpoint Left viewpoint Tree branch

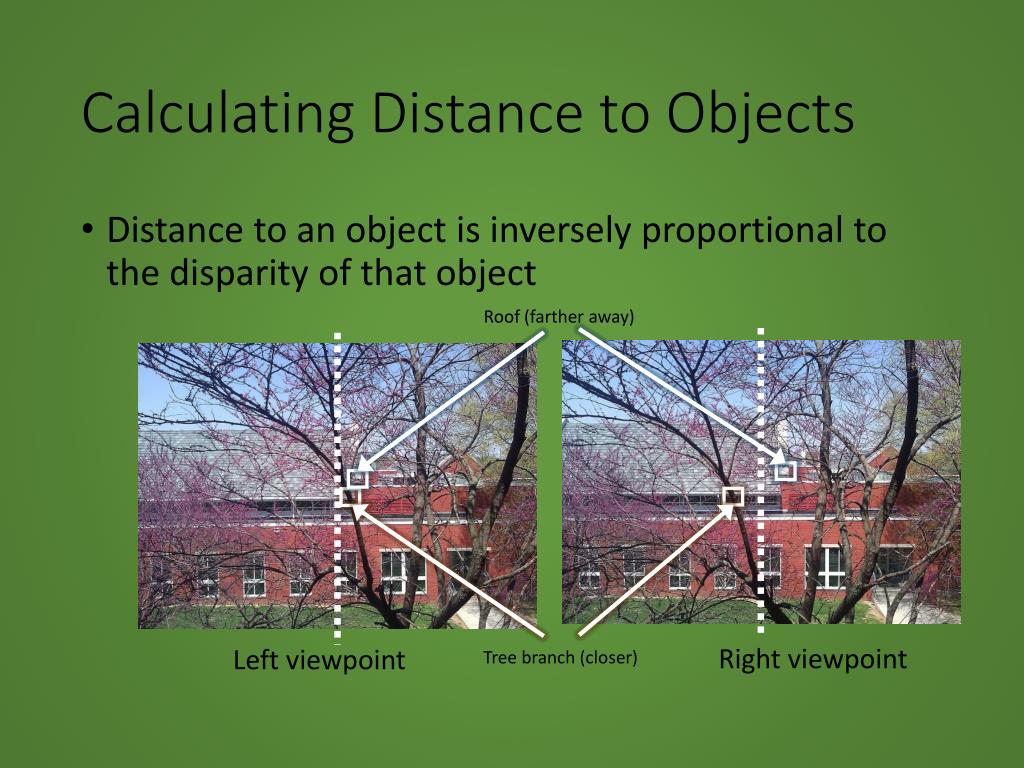

  12. Calculating Distance to Objects • Distance to an object is inversely proportional to the disparity of that object Roof (farther away) Right viewpoint Left viewpoint Tree branch (closer)

  13. Applications Mars Curiosity Rover Spirit & Opportunity
