  1. Getting Setup to use the ORGN Randy Oberg ODOT Geometronics ORGN Workshop PLSO Conference 2008

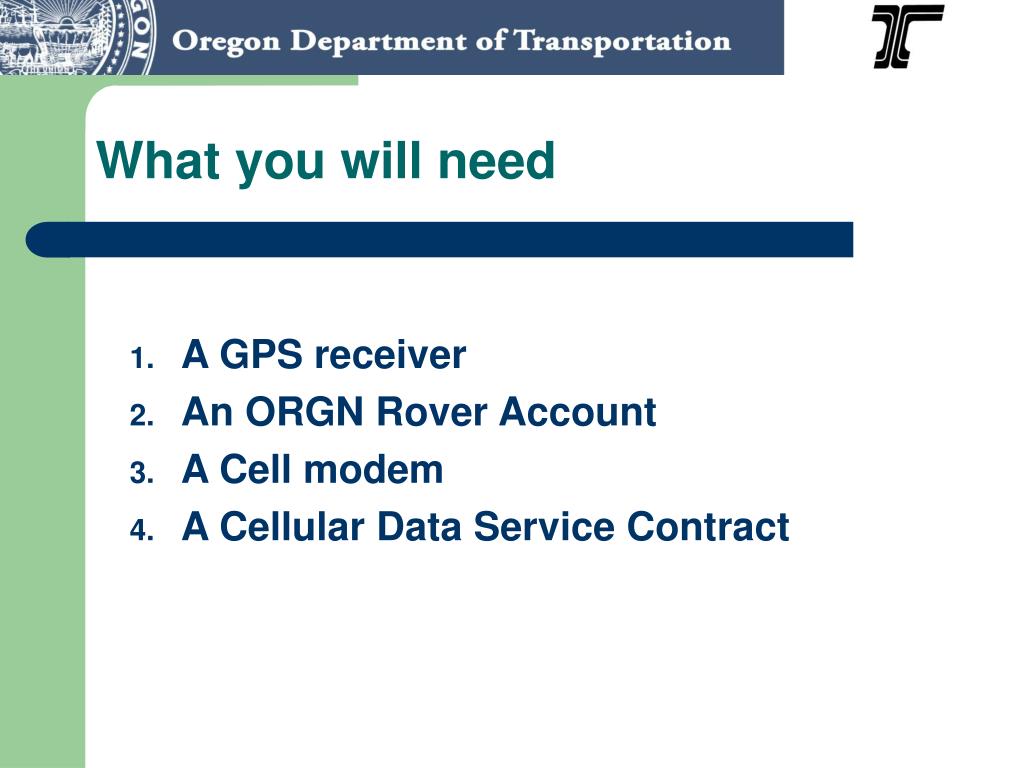

  2. A GPS receiver An ORGN Rover Account A Cell modem A Cellular Data Service Contract What you will need

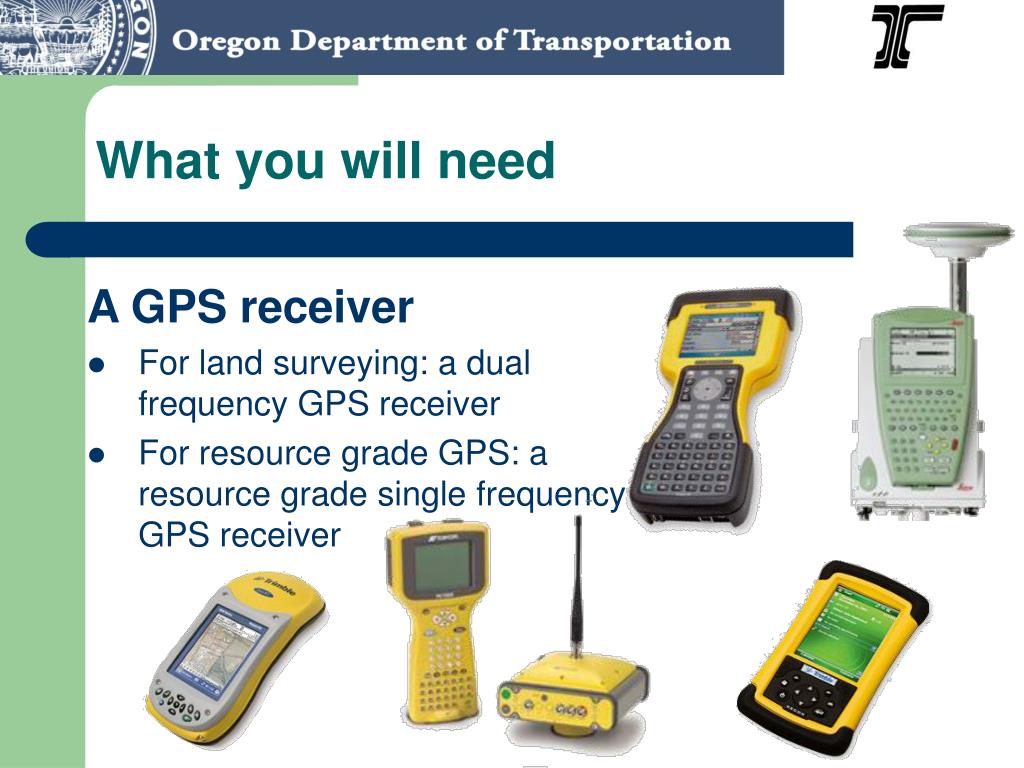

  3. A GPS receiver For land surveying: a dual frequency GPS receiver For resource grade GPS: a resource grade single frequency GPS receiver What you will need

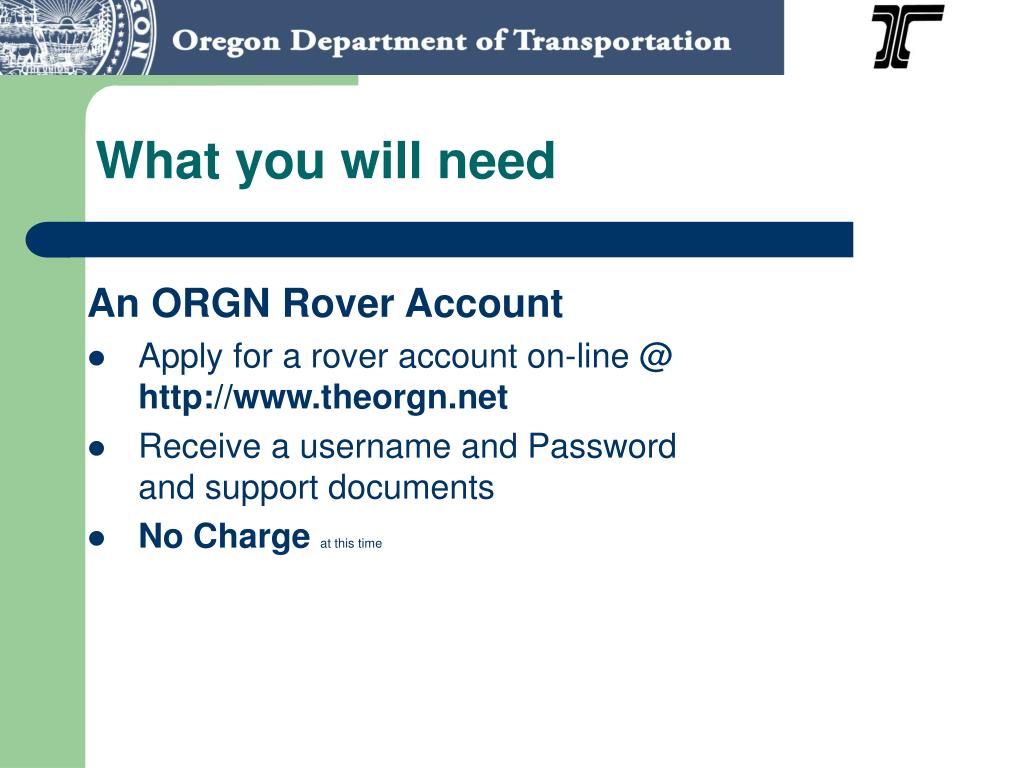

  4. An ORGN Rover Account Apply for a rover account on-line @ http://www.theorgn.net Receive a username and Password and support documents No Chargeat this time What you will need

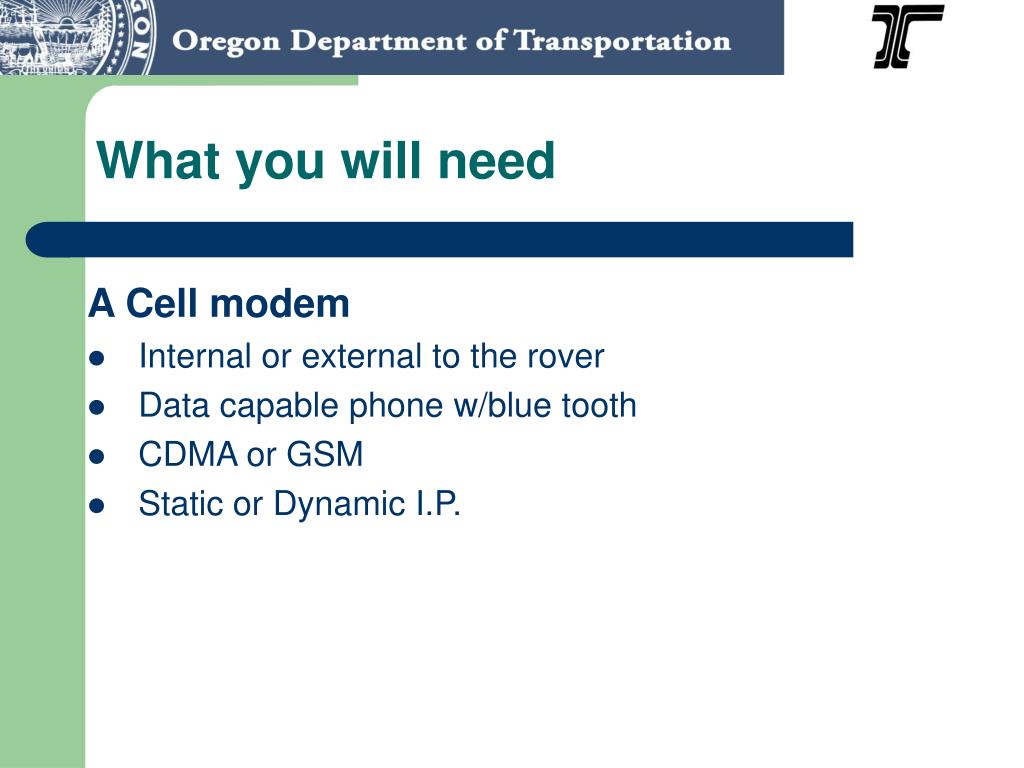

  5. A Cell modem Internal or external to the rover Data capable phone w/blue tooth CDMA or GSM Static or Dynamic I.P. What you will need

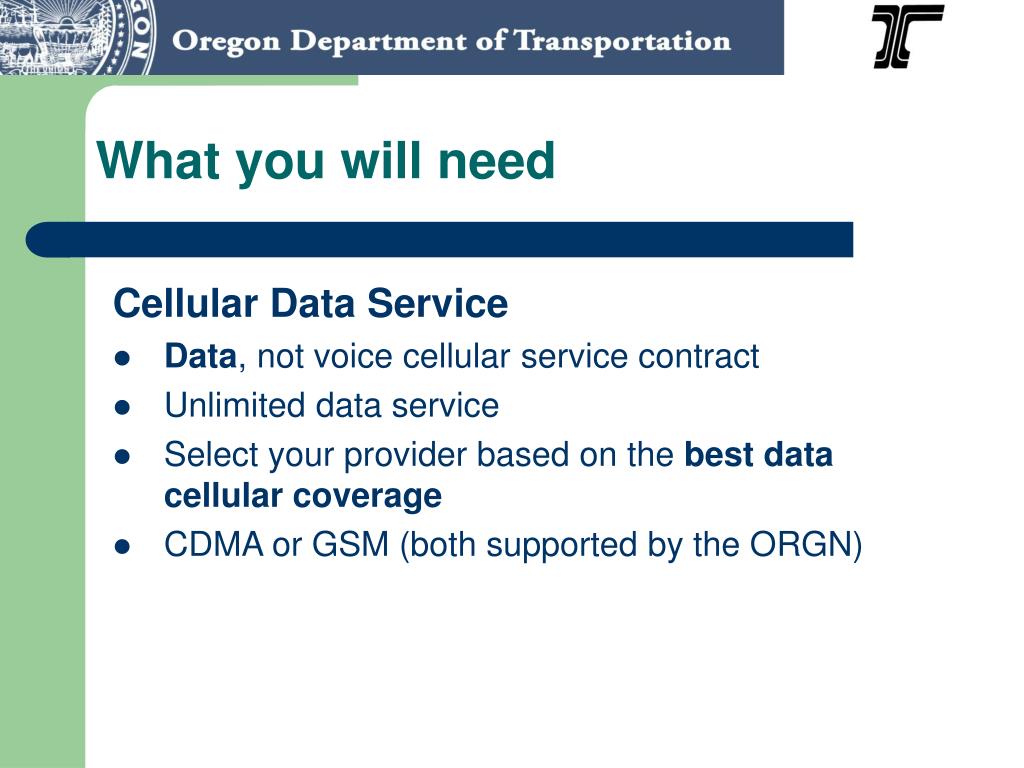

  6. Cellular Data Service Data, not voice cellular service contract Unlimited data service Select your provider based on the best data cellular coverage CDMA or GSM (both supported by the ORGN) What you will need

  7. Verizon Coverage Map

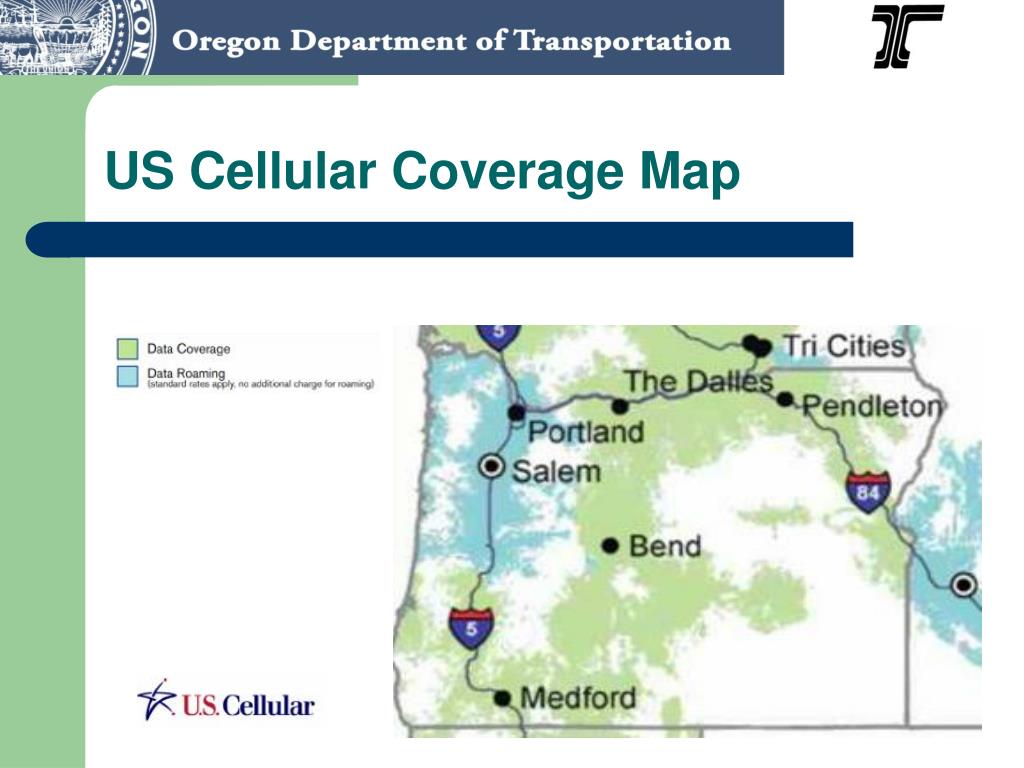

  8. US Cellular Coverage Map

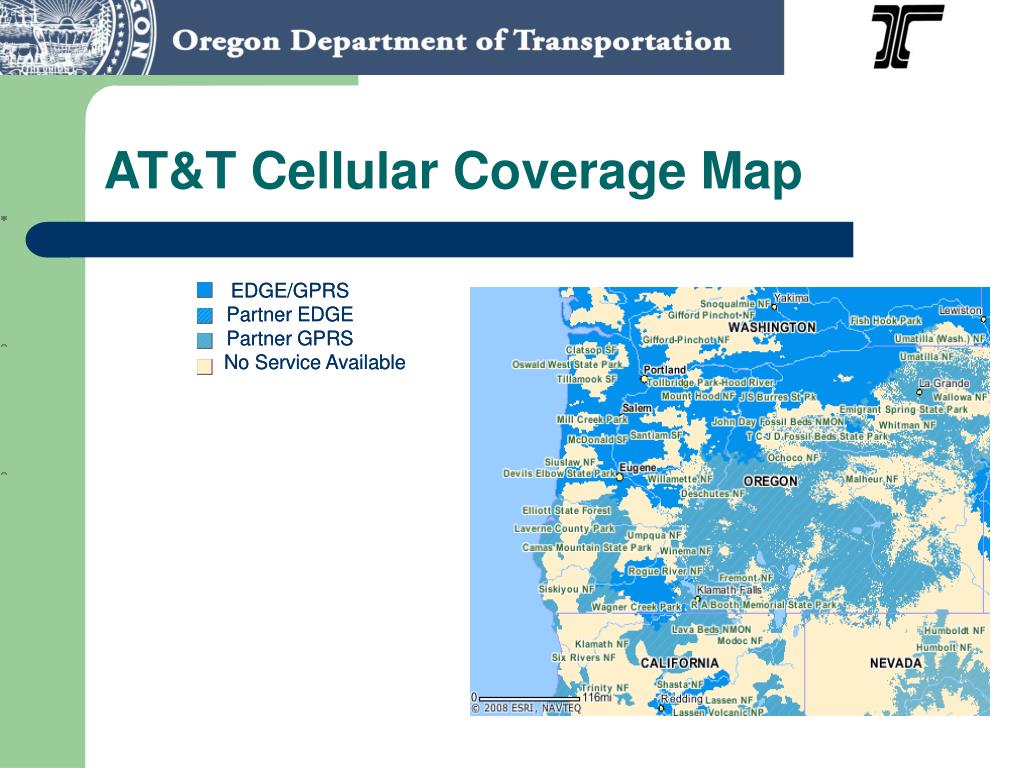

  9. AT&T Cellular Coverage Map EDGE/GPRS Partner EDGE Partner GPRS No Service Available EDGE/GPRS Partner EDGE Partner GPRS No Service Available

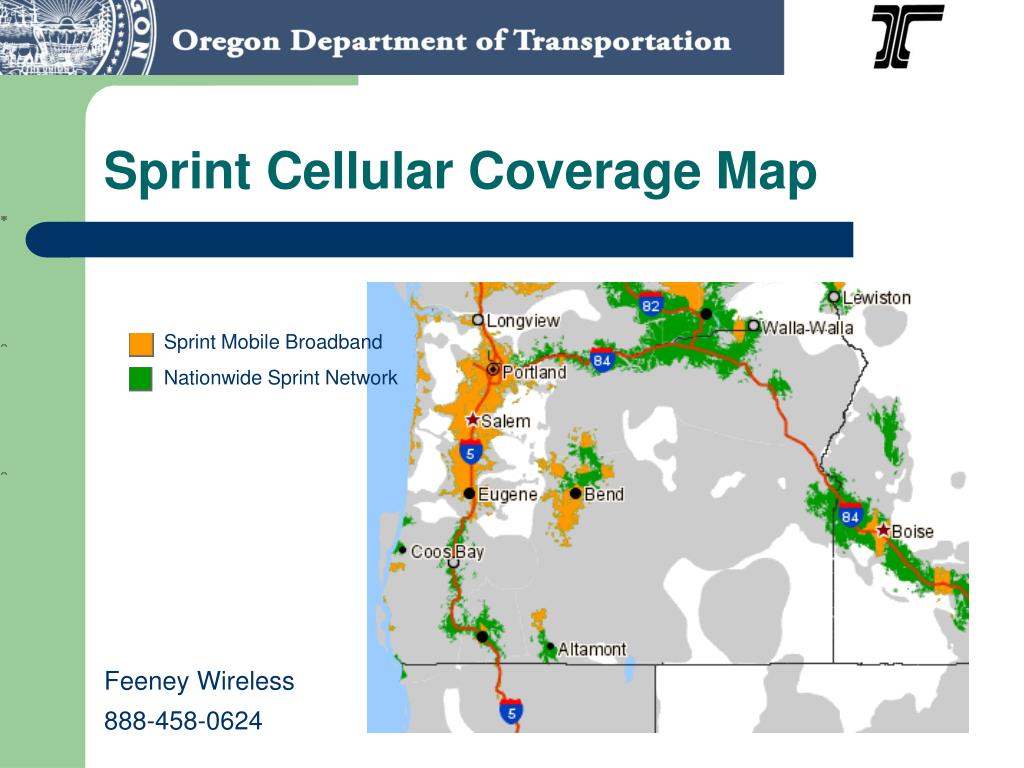

  10. Sprint Cellular Coverage Map Sprint Mobile Broadband Nationwide Sprint Network Feeney Wireless 888-458-0624

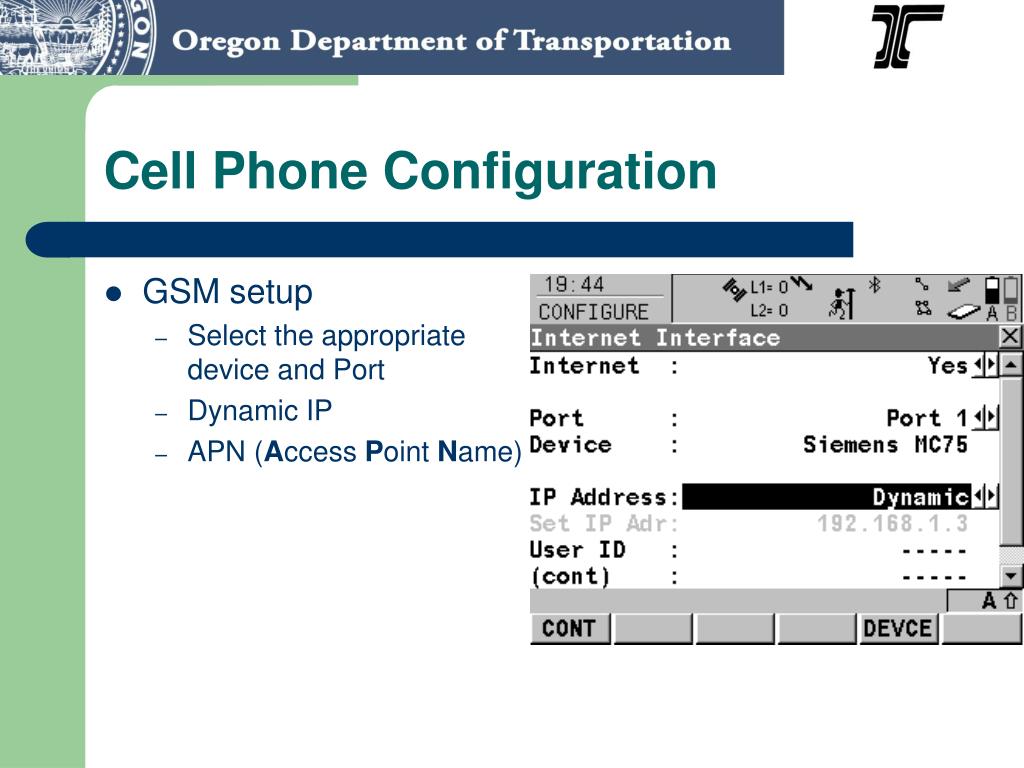

  11. Cell Phone Configuration • GSM setup • Select the appropriate device and Port • Dynamic IP • APN (Access Point Name)

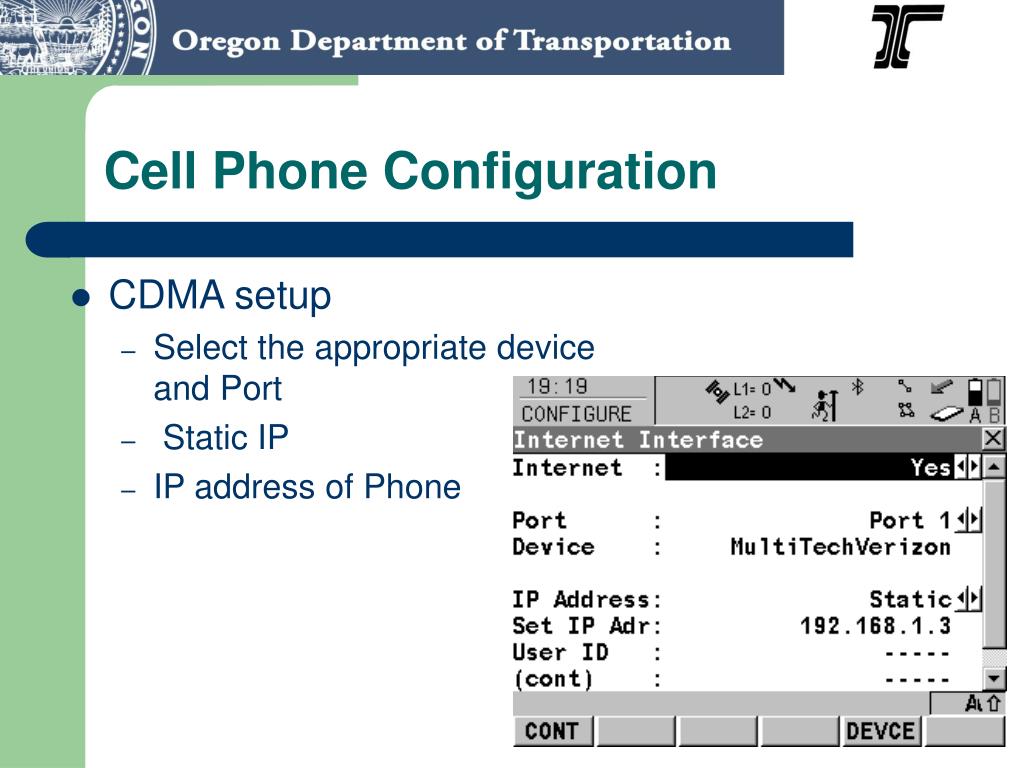

  12. Cell Phone Configuration • CDMA setup • Select the appropriate device and Port • Static IP • IP address of Phone

  13. Real-Time Setup

  14. Real-Time Setup

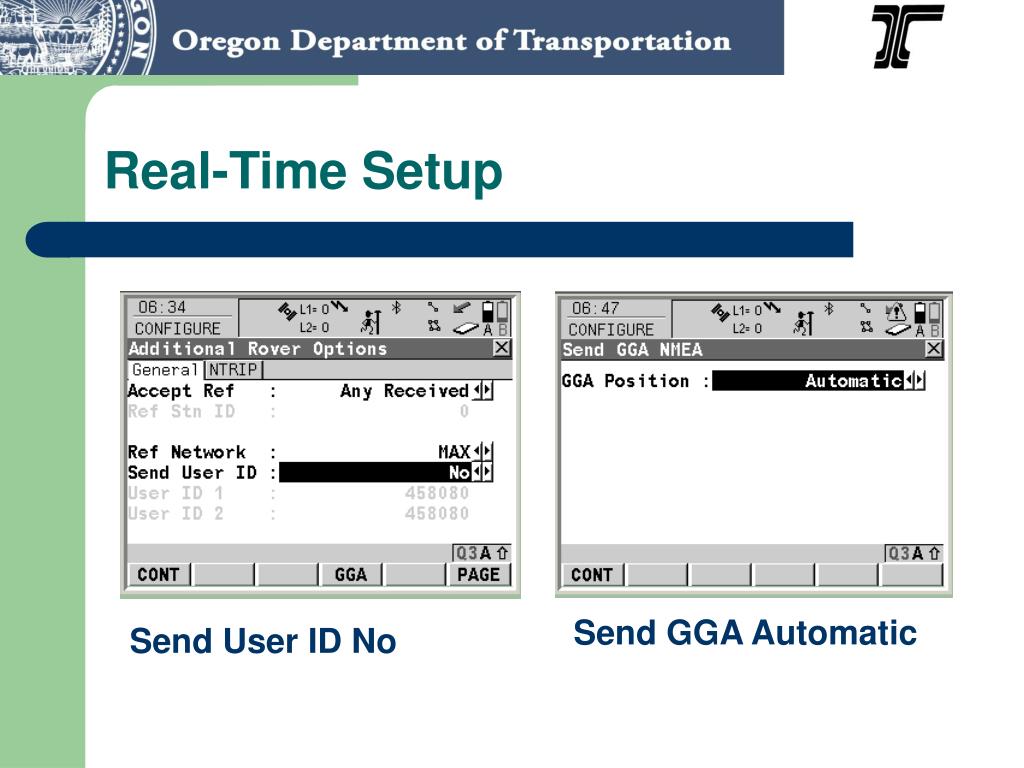

  15. Real-Time Setup Send GGA Automatic Send User ID No

  16. Real-Time Setup

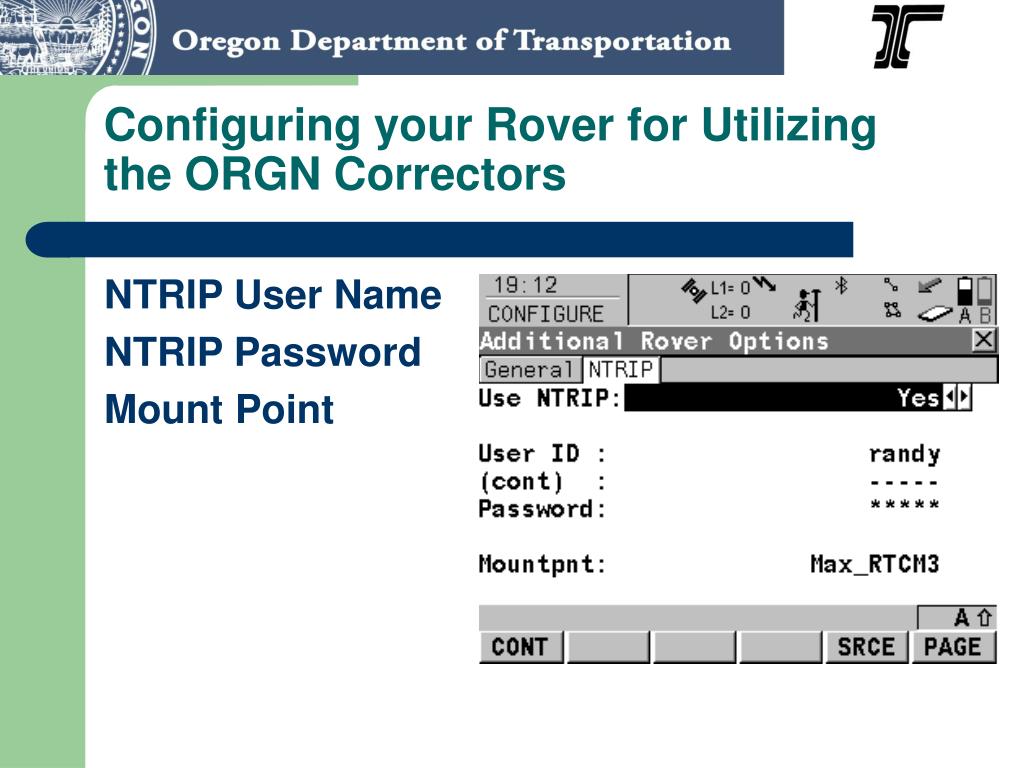

  17. Configuring your Rover for Utilizing the ORGN Correctors NTRIP User Name NTRIP Password Mount Point

  18. Configuring your Rover for Utilizing the ORGN Correctors Source Tables

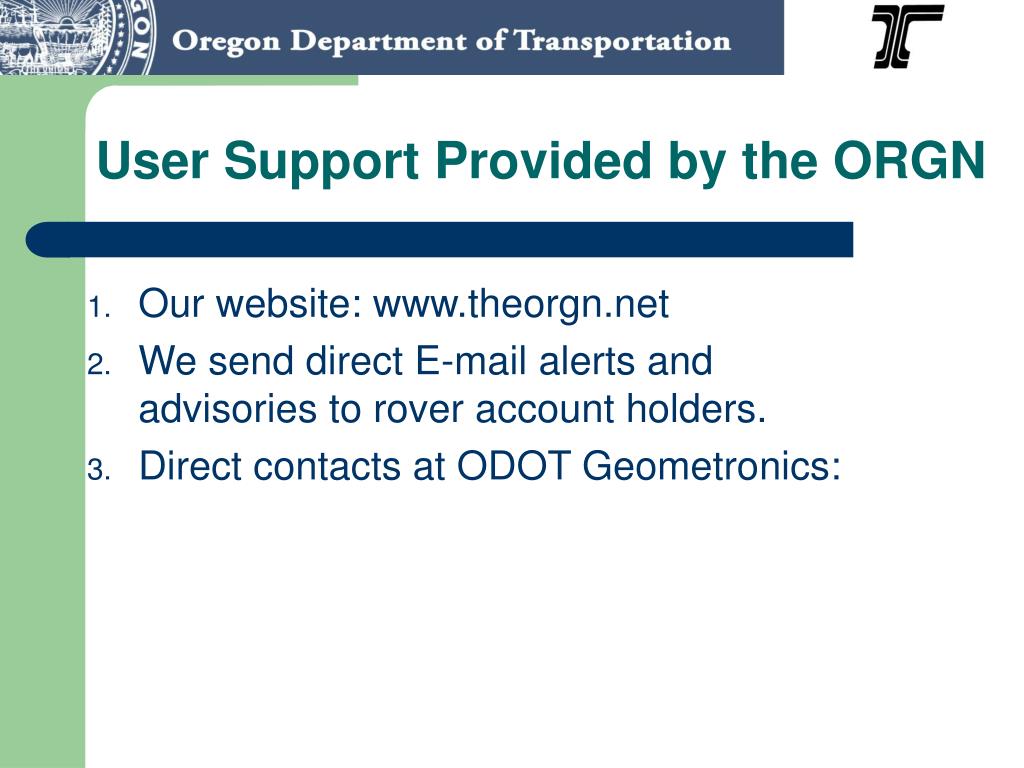

  19. Our website: www.theorgn.net We send direct E-mail alerts and advisories to rover account holders. Direct contacts at ODOT Geometronics: User Support Provided by the ORGN

  20. Website and Support Documents Any Help Document (Cook books) Are welcome

  21. Direct E-mail alerts and advisories to rover account holders

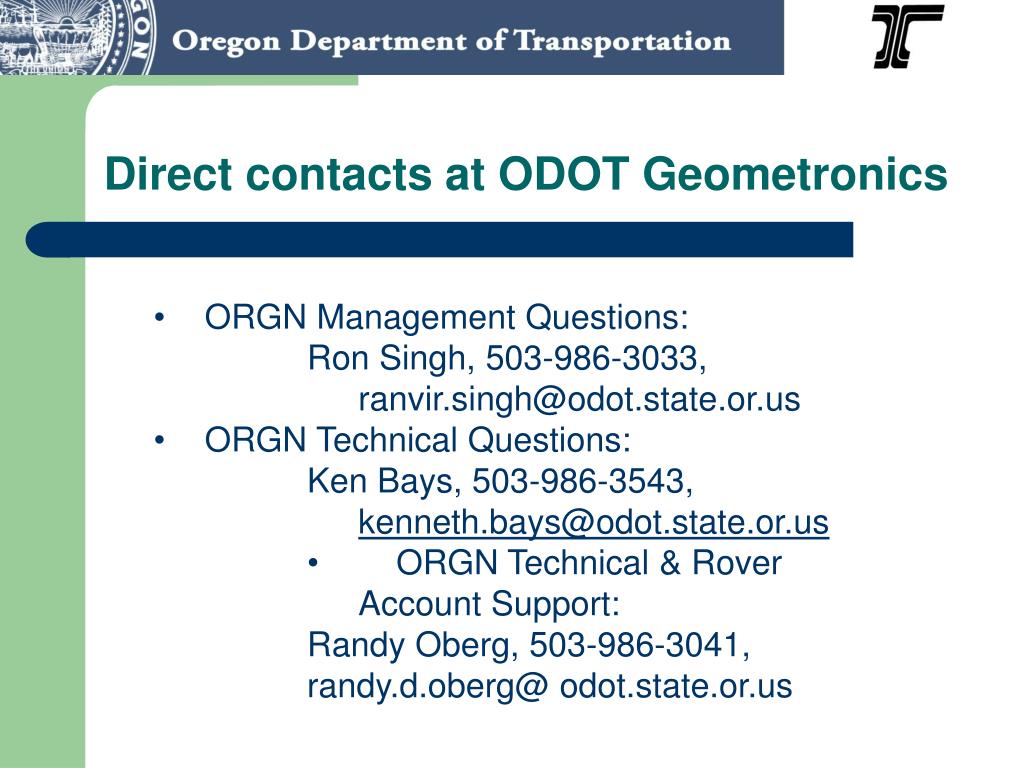

  22. Direct contacts at ODOT Geometronics • ORGN Management Questions: • Ron Singh, 503-986-3033, ranvir.singh@odot.state.or.us • ORGN Technical Questions: • Ken Bays, 503-986-3543, kenneth.bays@odot.state.or.us • ORGN Technical & Rover Account Support: • Randy Oberg, 503-986-3041, • randy.d.oberg@ odot.state.or.us

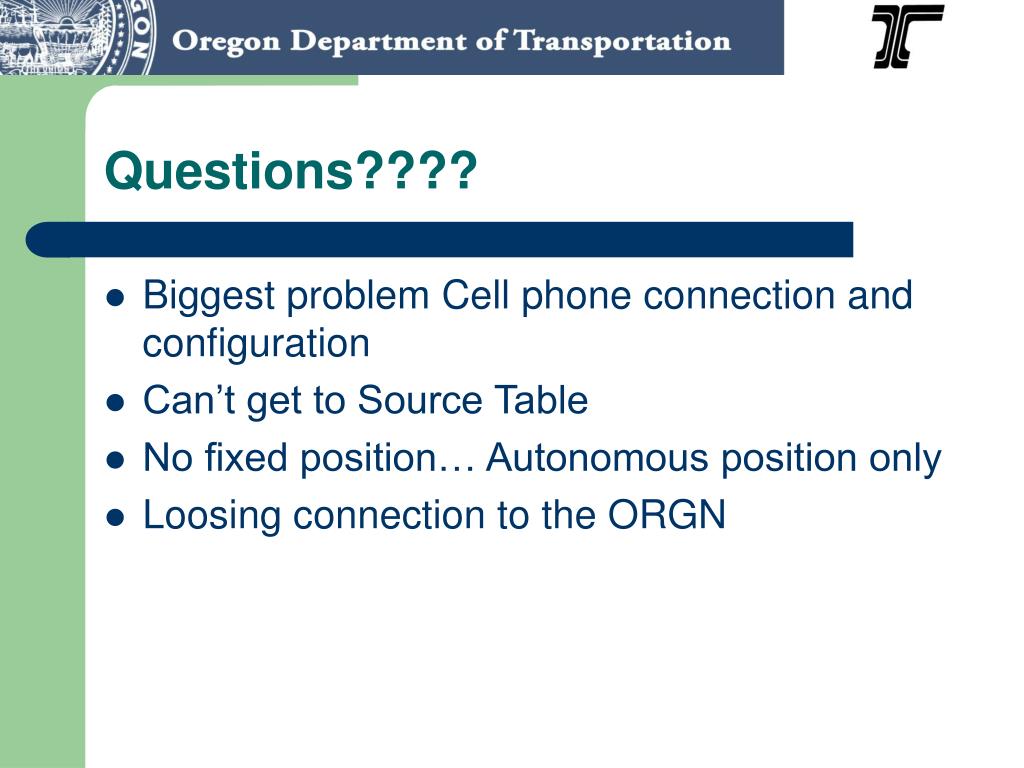

  23. Questions???? • Biggest problem Cell phone connection and configuration • Can’t get to Source Table • No fixed position… Autonomous position only • Loosing connection to the ORGN

  24. The End

  25. And Here’s Our Team
