1. Inversions based on ME atmospheres Stokes inversions beyond ME atmospheres Luis R. Bellot Rubio Instituto de Astrofísica de Andalucía (CSIC) Granada, Spain

2. Inversions based on ME atmospheres • ME atmosphere: • Source function is linear with optical depth • Absorption matrix does not vary with optical depth • Analytical Stokes profiles • Fast inversion • Smooth maps of physical quantities • Results are easy to interpret • Simplistic treatment of radiation transfer • Little thermal information. No height variations • Cannot account for asymmetric Stokes profiles

3. Asymmetric Stokes profiles • Spatial resolution: 1" • Advanced Stokes Polarimeter • DST, Sac Peak • Footpoints of cool coronal loops Nagata, Bellot Rubio, & Katsukawa (2006)

4. Asymmetric Stokes profiles Fe I 630.15 and 630.25 nm • Spatial resolution: 0.6 arcsec • Spatial resolution: 0.7" • POlarimetric LIttrow Spectrograph + KAOS • VTT, Observatorio del Teide • Temporal evolution of a bipolar MMF Cabrera Solana et al. (in preparation)

5. Asymmetric Stokes profiles + + + + + + • Spatial resolution: 0.4" • KIS/IAA Visible Imaging Polarimeter + TESOS + KAOS • VTT, Observatorio del Teide • Pore near disk center Bellot Rubio et al. (in preparation)

6. Asymmetric Stokes profiles • Spatial resolution: 0.2" • TRIPPEL spectrograph + AO • Swedish 1-m Solar Telescope, La Palma • Dark-cored penumbral filaments Bellot Rubio, Langhans, & Schlichenmaier (2005)

7. ME inversions of asymmetric profiles • Fe I 630.1 and 630.2 profiles degraded to SP pixel size MHD simulations (Vögler et al. 2005) +

8. ME inversions of asymmetric profiles • Fe I 630.1 and 630.2 profiles degraded to SP pixel size • Maps of inferred B and vLOS very similar to real ones! MHD simulations (Vögler et al. 2005) +

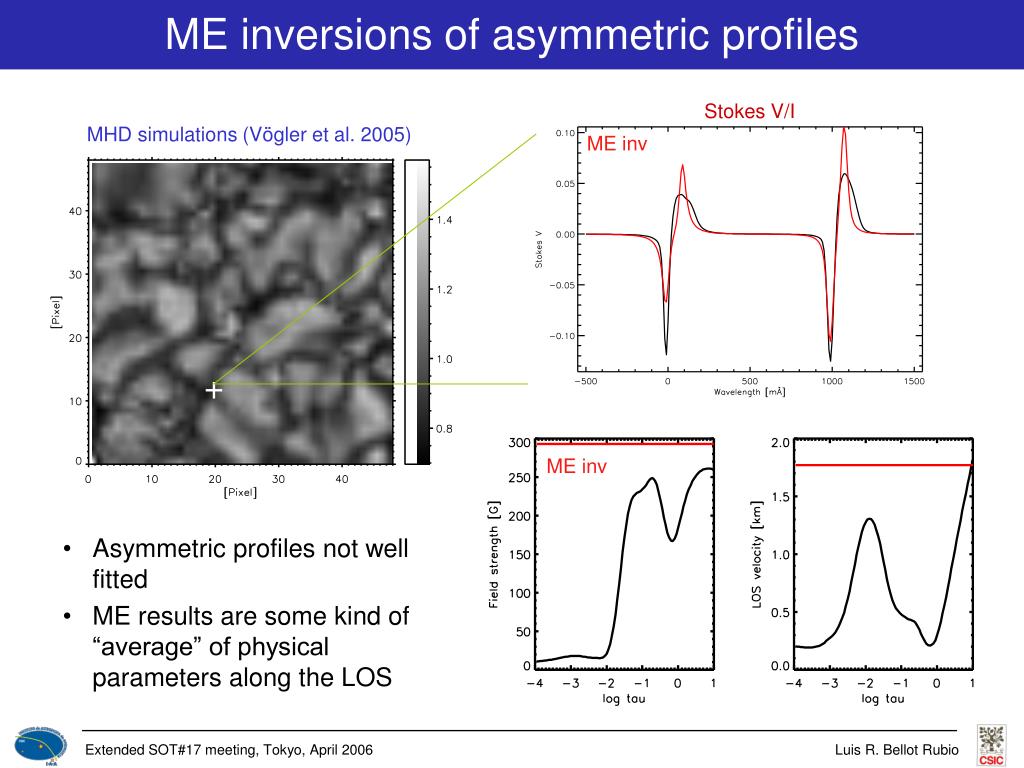

9. ME inversions of asymmetric profiles Stokes V/I • Asymmetric profiles not well fitted • ME results are some kind of “average” of physical parameters along the LOS MHD simulations (Vögler et al. 2005) ME inv + ME inv +

10. The origin of asymmetries Different magnetic atmospheres coexisting in resolution element Amplitude asymmetry/ Abnormal Stokes profiles Gradients/discontinuities of physical parameters along LOS Area asymmetry Auer & Heasley (1978) RF of V to B RF of I to vLOS RF of I to vLOS The area asymmetry can be used to derive the height variation of atmospheric parameters Cabrera Solana et al. (2005)

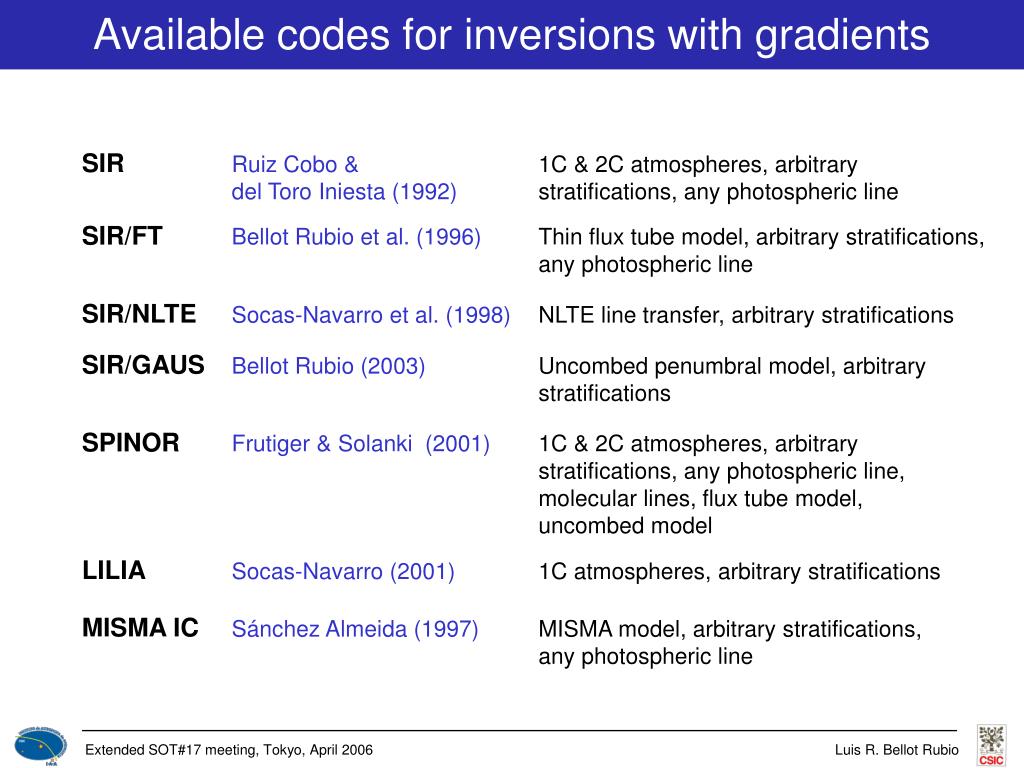

11. Available codes for inversions with gradients SIR Ruiz Cobo& del Toro Iniesta (1992) 1C & 2C atmospheres, arbitrary stratifications, any photospheric line SIR/FT Bellot Rubio et al. (1996) Thin flux tube model, arbitrary stratifications, any photospheric line SIR/NLTE Socas-Navarro et al. (1998) NLTE line transfer, arbitrary stratifications SIR/GAUS Bellot Rubio (2003) Uncombed penumbral model, arbitrary stratifications SPINOR Frutiger & Solanki (2001) 1C & 2C atmospheres, arbitrary stratifications, any photospheric line, molecular lines, flux tube model, uncombed model LILIA Socas-Navarro (2001) 1C atmospheres, arbitrary stratifications MISMA IC Sánchez Almeida (1997) MISMA model, arbitrary stratifications, any photospheric line

12. Accounting for gradients • Inversion codes capable of dealing with gradients • Are based on numerical solution of RTE • Provide reliable thermal information • Use less free parameters than ME codes (7 vs 8) • Infer stratifications of physical parameters with depth • Produce better fits to asymmetric Stokes profiles • Height dependence of atmospheric parameters is needed for • 180o azimuth disambiguation • 3D structure of sunspots and pores • Magnetic flux cancellation events • Polarity inversion lines • Dynamical state of coronal loop footpoints • …..

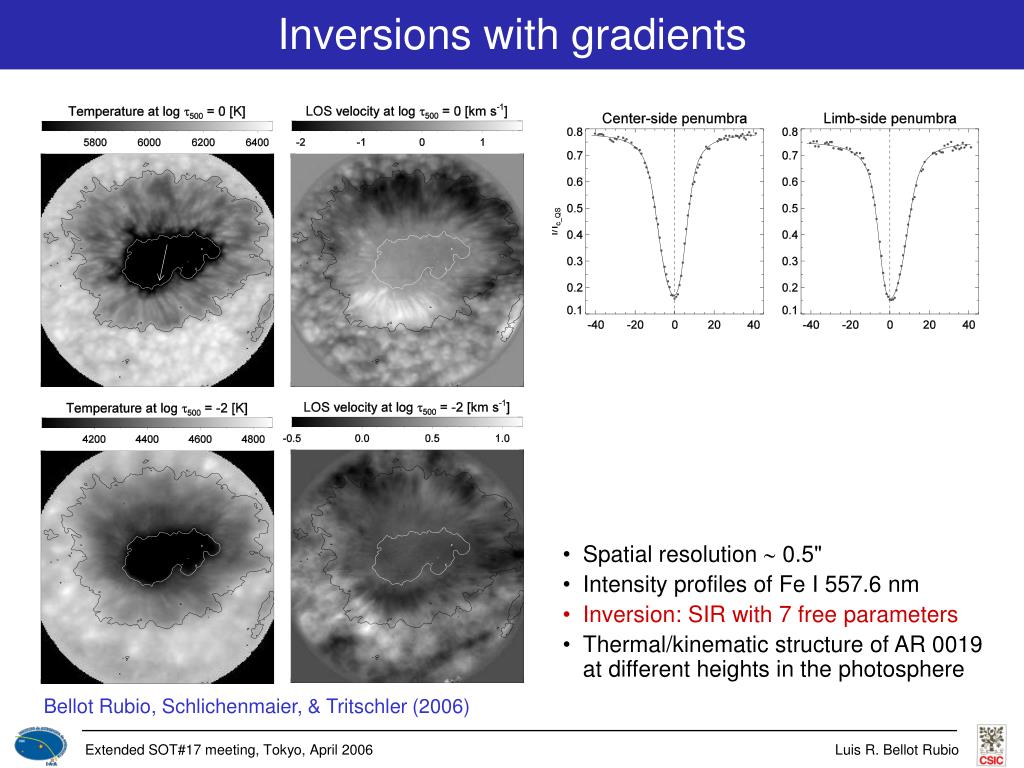

13. Inversions with gradients • Spatial resolution  0.5" • Intensity profiles of Fe I 557.6 nm • Inversion: SIR with 7 free parameters • Thermal/kinematic structure of AR 0019 at different heights in the photosphere Bellot Rubio, Schlichenmaier, & Tritschler (2006)

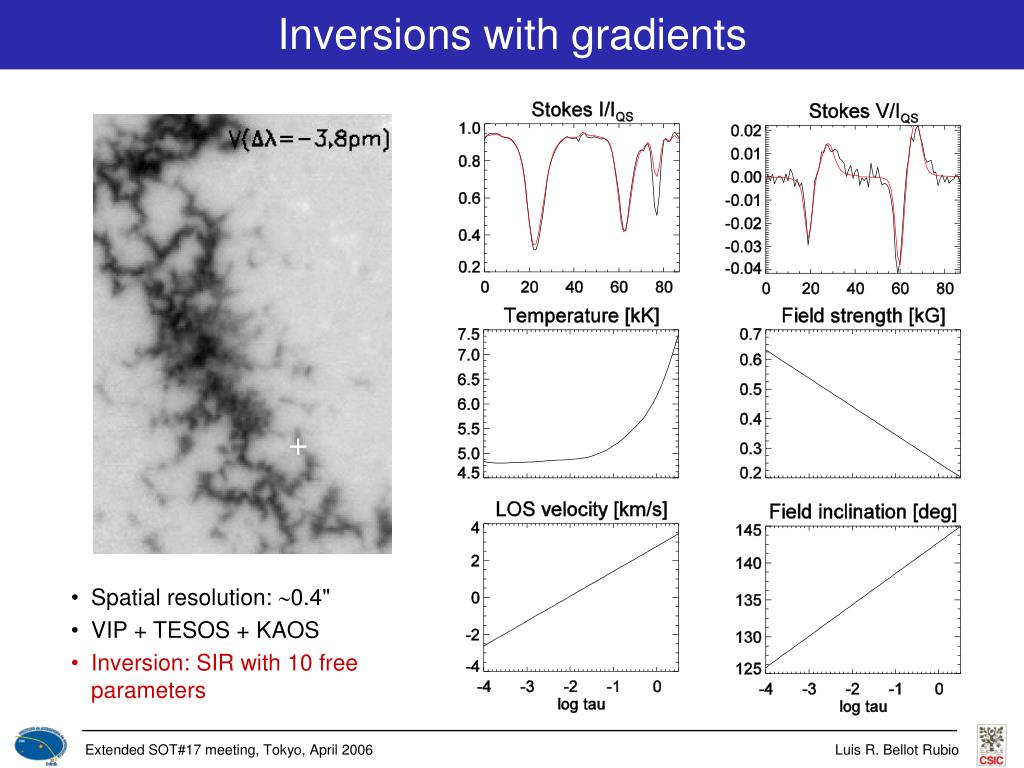

14. Inversions with gradients + • Spatial resolution: 0.4" • VIP + TESOS + KAOS • Inversion: SIR with 10 free parameters

15. Retrieving gradients from SOLAR-B/SP data How much do gradients cost? SIR inversion with 10 free parameters Dual Xeon workstation @ 2.8 GHz 2 spectral lines, 136 wavelengths, 4 Stokes parameters, model atmosphere discretized in 41 grid points 0.7 s per pixel 0.5 s per pixel Worst-case scenario (real-time inversions) Instrument Pixels Cost Time Workstations SOLIS/VSM 4 x 105 $50 000 3 hours? 20 POLIS 450 $50 000 10 s 20 SOLAR-B/SP 1000 $200 000 5 s 100

16. Optimizations of SIR • Paralellization (MPI) • Designed for use with Linux clusters • Speed increases linearly with number of processors • Status: Already available (L.Bellot) • Porting source code to Fortran 90 • More flexibility, efficiency, and speed • Better management of memory allocation and array operations • Keep I/O to a minimum • Status: in progress (B. Ruiz Cobo) • Use of look-up tables for spectral syntheses • Pe as a function of T and Pg • Absorption coefficients as functions of T and Pe • Speed gain: a factor 10-20 • Status: Already available (B. Ruiz Cobo)

17. Proposed strategy • Baseline: ME inversions of all SP scans • Identify • Pixels with bad fits and/or large asymmetries • Regions where interesting physical processes occur • Run inversions with gradients on these pixels • Use ME results as initialization • Not only linear stratifications, but also more complex height dependences will often be needed. • Two-component model atmospheres may be required • Critical issues: • Clarify limitations of 6301 and 6302 for quiet Sun magnetic field studies • Development of efficient visualization tools
