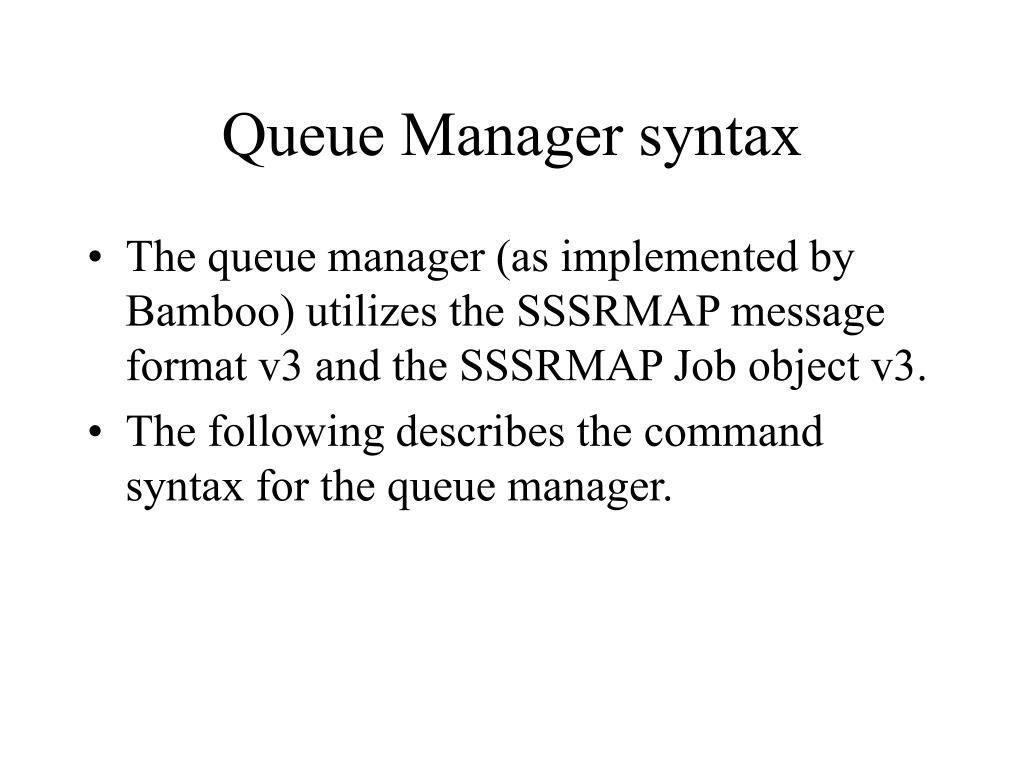

  1. Queue Manager syntax • The queue manager (as implemented by Bamboo) utilizes the SSSRMAP message format v3 and the SSSRMAP Job object v3. • The following describes the command syntax for the queue manager.

  2. Commands at a glance • Submit Job • Modify Job • Query Job(s) or Queue • Start Job • Signal Job • Cancel Job • Suspend Job • Resume Job • Checkpoint Job • Requeue Job • Administer Server

  3. Submit/Modify Job Both “Submit” and “Modify” actions requires a “Job” object in the Data section. In the case of a modify only the “JobId” and items to be altered need to be present. The response is simply success or failure. <Request action="Submit"> <Object>Job</Object> <Data> <Job><InitialWorkingDirectory>/clusters/scl/brett</InitialWorkingDirectory> <Processors>32</Processors> <Requested><WallDuration>300</WallDuration></Requested> <OutputFile>t.out</OutputFile> <Actor>brett</Actor> <GroupId>scl</GroupId> <Environment><Variable name="PATH">/usr/local/sss/bin:/bin:/usr/bin:/usr/local/bin:/usr/X11R6/bin</Variable></Environment><Executable parallel="false">./mpitest.sh</Executable> </Job> </Data> </Request>

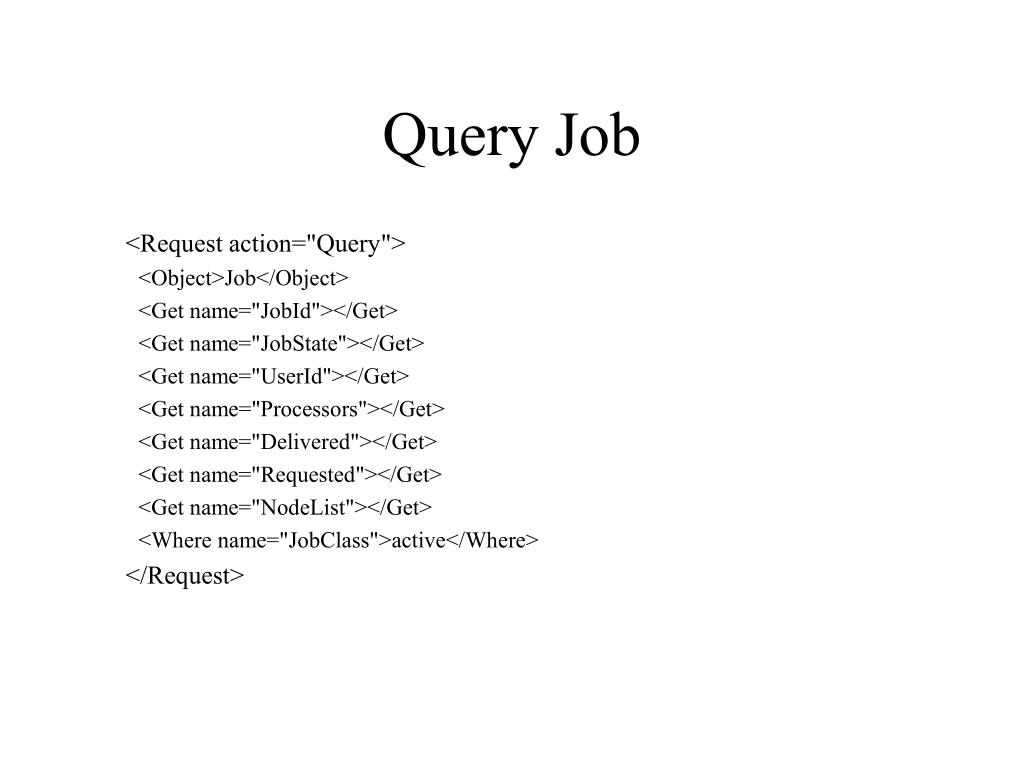

  4. Query Job <Request action="Query"> <Object>Job</Object> <Get name="JobId"></Get> <Get name="JobState"></Get> <Get name="UserId"></Get> <Get name="Processors"></Get> <Get name="Delivered"></Get> <Get name="Requested"></Get> <Get name="NodeList"></Get> <Where name="JobClass">active</Where> </Request>

  5. Query response <Response> <Status><Value>Success</Value><Code>000</Code> <Message>1 jobs found</Message></Status> <Count>1</Count> <Data type="xml"> <Job><JobId>3396</JobId> <JobState>idle</JobState> <UserId>brett</UserId> <Processors>32</Processors> <Delivered><WallDuration>0</WallDuration><NodeCount></NodeCount></Delivered> <Requested><WallDuration>300</WallDuration><NodeCount></NodeCount></Requested> <NodeList></NodeList> </Job> </Data> </Response>

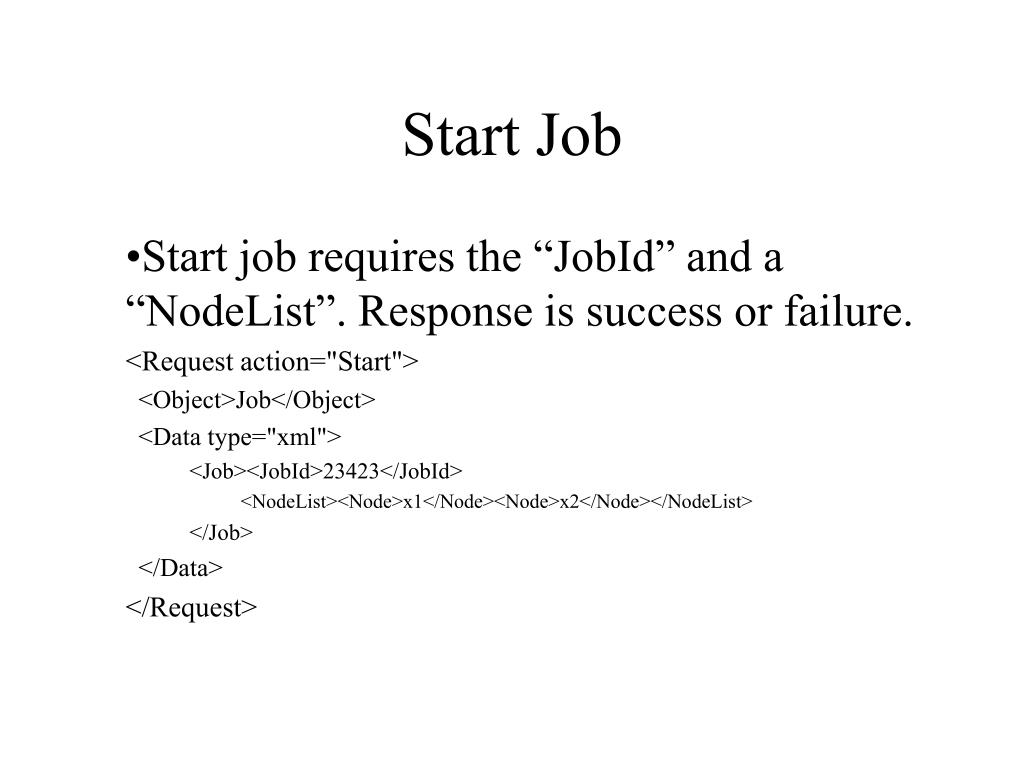

  6. Start Job • Start job requires the “JobId” and a “NodeList”. Response is success or failure. <Request action="Start"> <Object>Job</Object> <Data type="xml"> <Job><JobId>23423</JobId> <NodeList><Node>x1</Node><Node>x2</Node></NodeList> </Job> </Data> </Request>

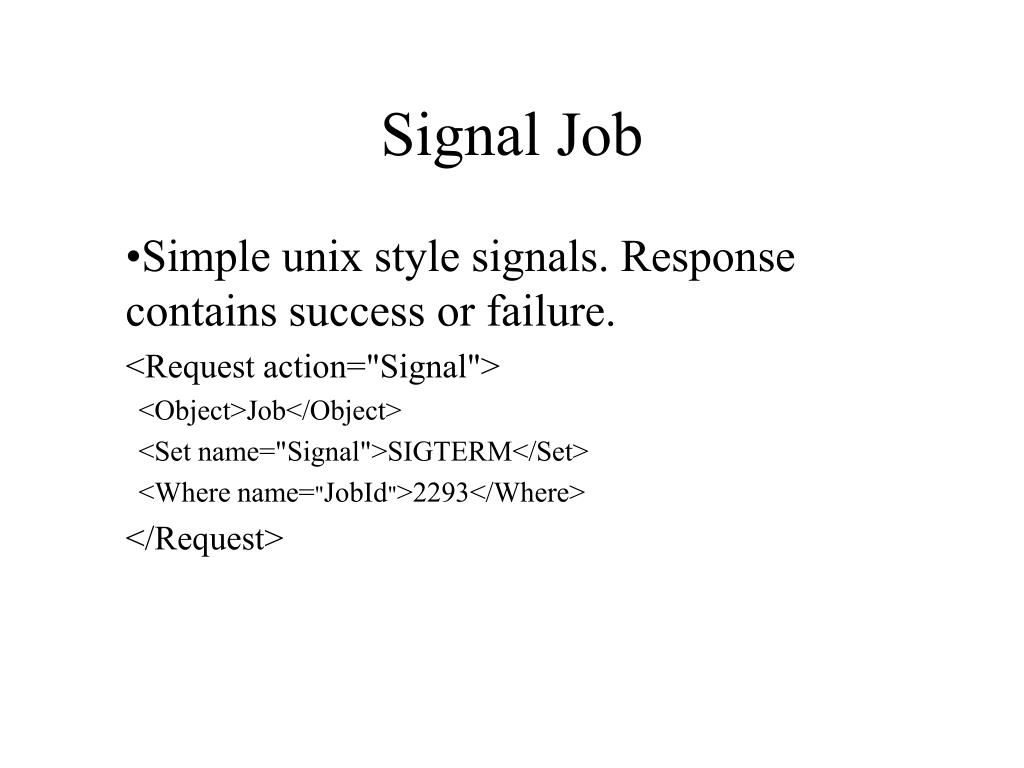

  7. Signal Job • Simple unix style signals. Response contains success or failure. <Request action="Signal"> <Object>Job</Object> <Set name="Signal">SIGTERM</Set> <Where name="JobId">2293</Where> </Request>

  8. Cancel/Suspend/Resume/Checkpoint • All are simple commands requiring just a “JobId” and returning success or failure. <Request action="Cancel"> <Object>Job</Object> <Where name="JobId">3395</Where> </Request>

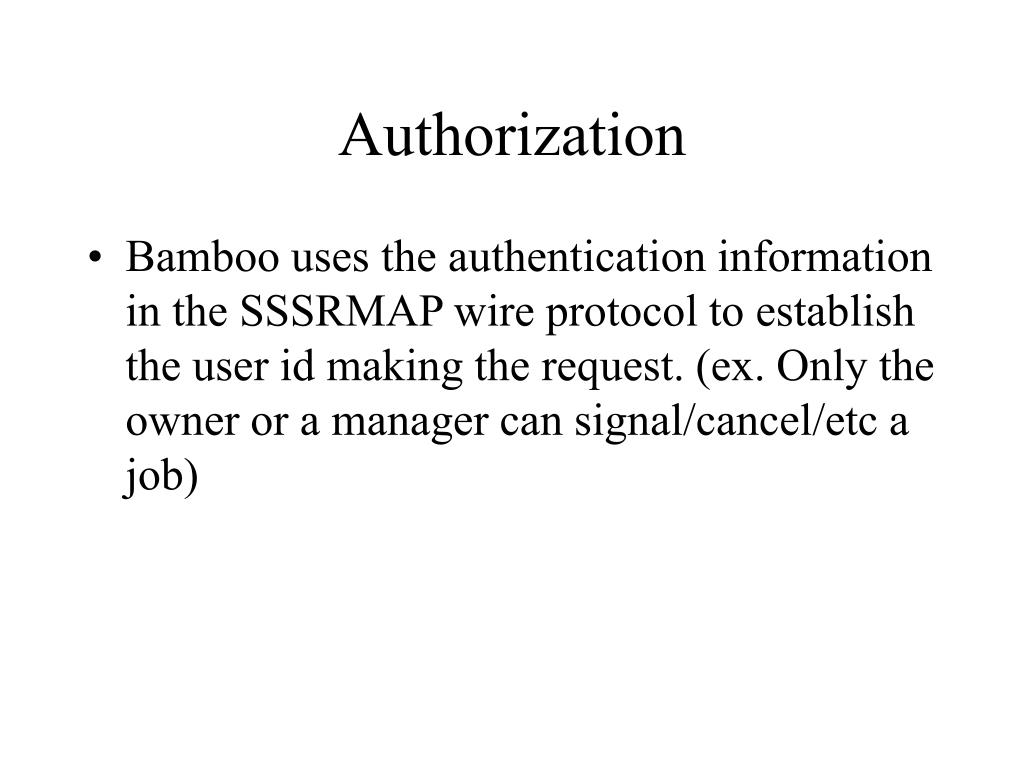

  9. Authorization • Bamboo uses the authentication information in the SSSRMAP wire protocol to establish the user id making the request. (ex. Only the owner or a manager can signal/cancel/etc a job)
