Reliability and Redundancy of FCS

(1). Exponential Distribution Law of Fault-free Operation:.  - failure rate. Reliability and Redundancy of FCS. MTBF:. (2). For n independent elements the probability of joint fault-free operation:. (3). For n elements in redundant system the probability of joint fault-free operation:.

doria
Télécharger la présentation

Reliability and Redundancy of FCS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. (1) Exponential Distribution Law of Fault-free Operation: - failure rate. Reliability and Redundancy of FCS MTBF: (2) For n independent elements the probability of joint fault-free operation: (3) For n elements in redundant system the probability of joint fault-free operation: (4) n=2: n=3:

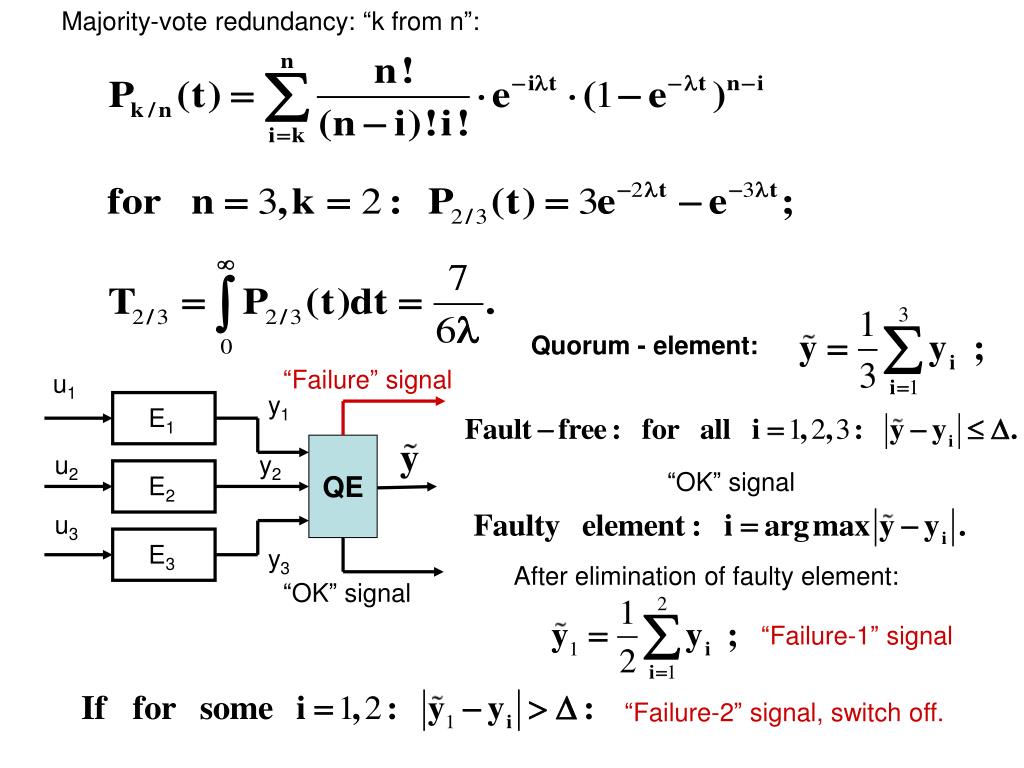

  2. Majority-vote redundancy: “k from n”: E1 E2 E3 Quorum - element: “Failure” signal u1 y1 QE u2 y2 “OK” signal u3 y3 After elimination of faulty element: “OK” signal “Failure-1” signal “Failure-2” signal, switch off.

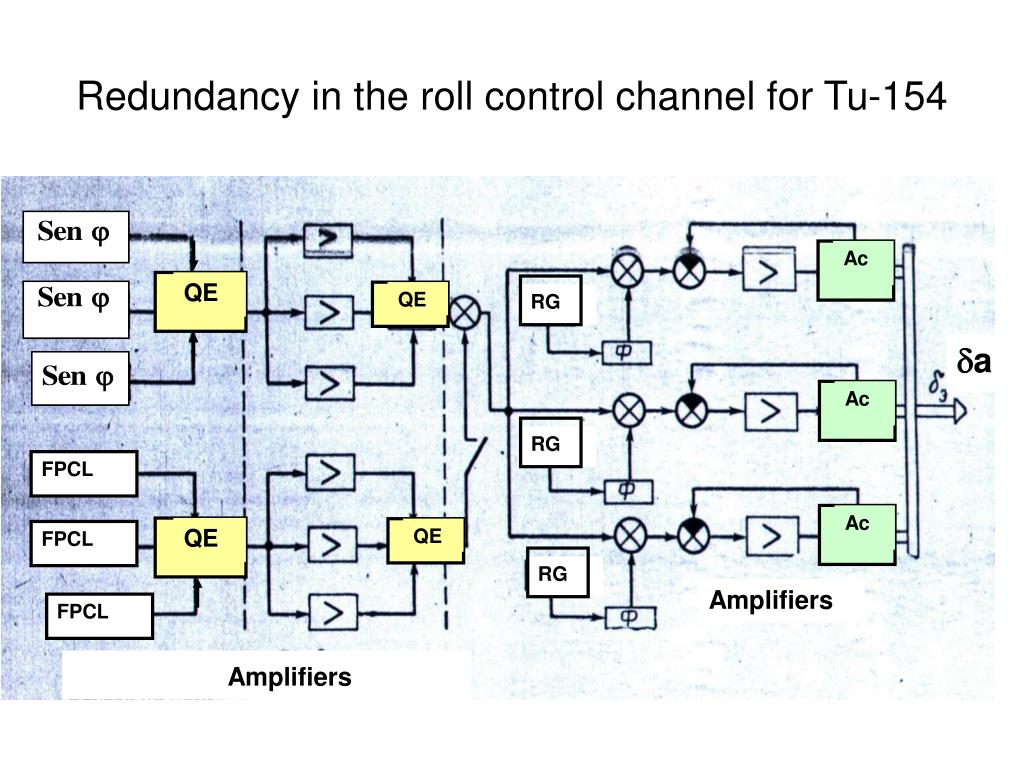

  3. a Amplifiers Amplifiers Ac QE QE Ac QE Ac QE RG RG RG FPCL FPCL FPCL Redundancy in the roll control channel for Tu-154

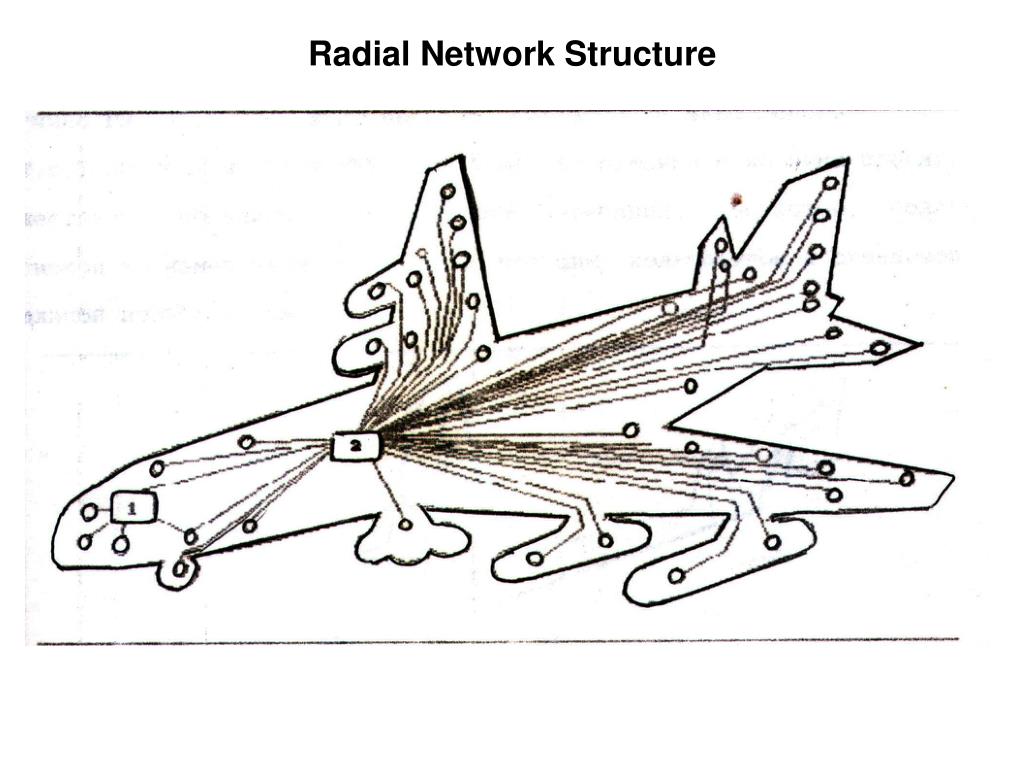

  4. Radial Network Structure

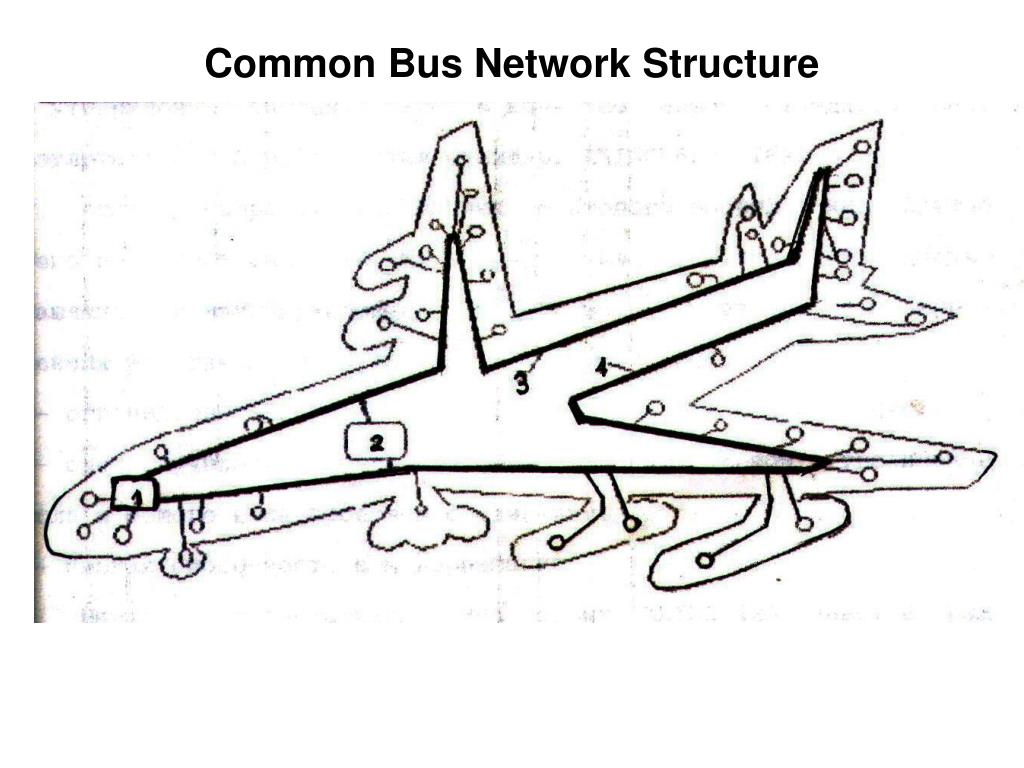

  5. Common Bus Network Structure

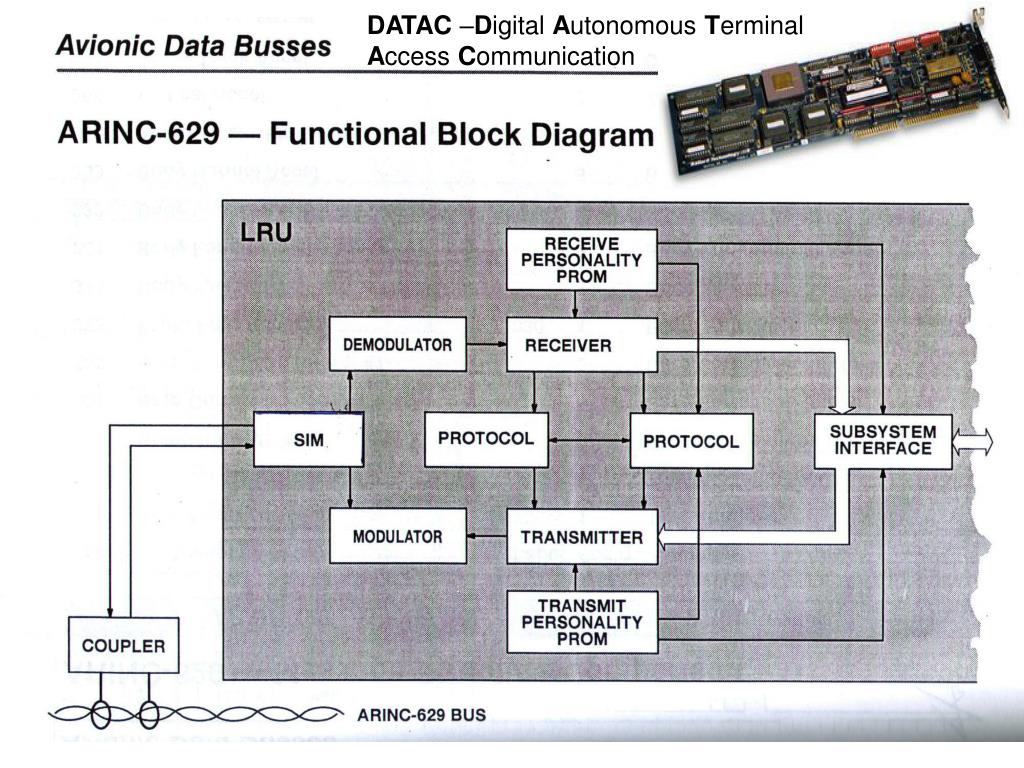

  6. DATAC –Digital Autonomous Terminal Access Communication

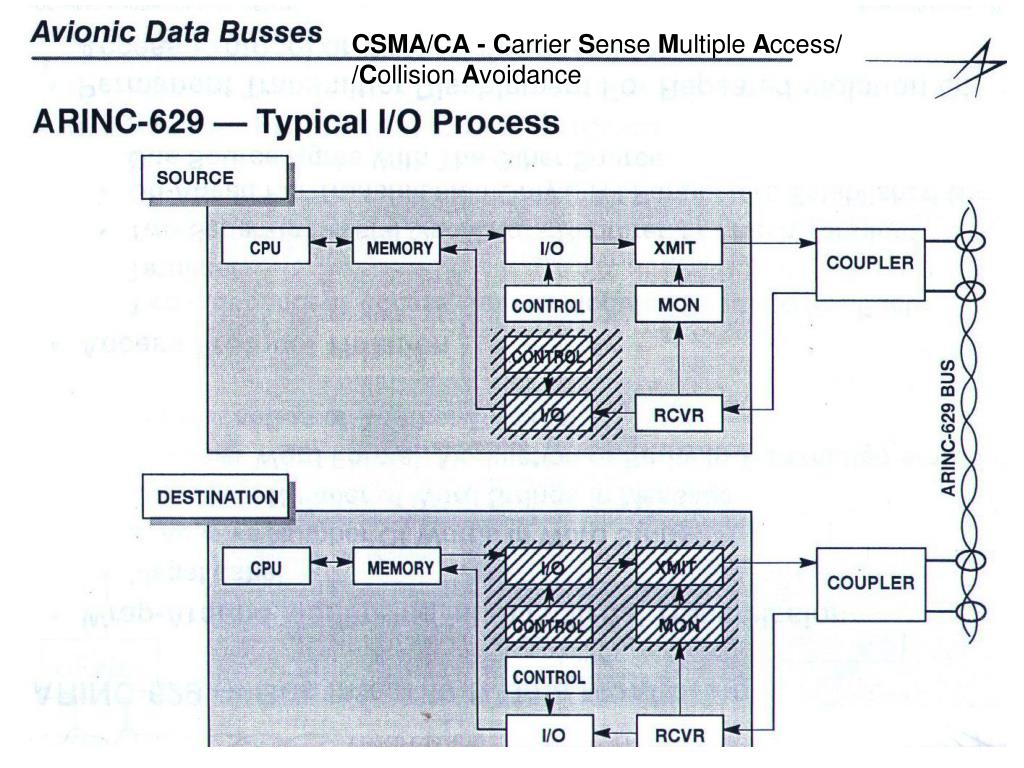

  7. CSMA/CA - Carrier Sense Multiple Access/ /Collision Avoidance
