  1. PACKING

  2. Braids

  3. Today’s Braids

  4. ANTI-KEYSTONE • Shortest Break-in • Longest Running Time between Adjustments • Reduced Leakage Rates • Up to 40% Less Horsepower Consumption • Minimal Sleeve Wear

  5. Anti-KeystoneII • Increased non-contact packing surface area raises the heat transfer rate through the packing, lowering the shaft sleeve temperature.

  6. DRY RUNNING PACKING

  7. EXFOLIATED GRAPHITE PACKING 7800

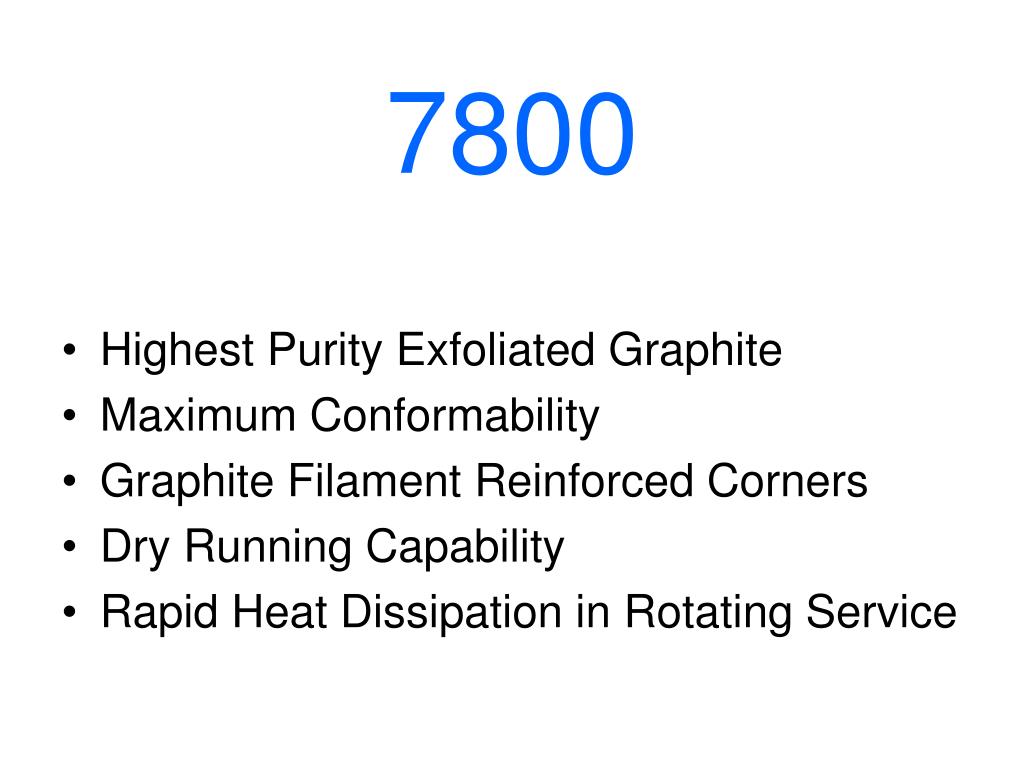

  8. 7800 • Highest Purity Exfoliated Graphite • Maximum Conformability • Graphite Filament Reinforced Corners • Dry Running Capability • Rapid Heat Dissipation in Rotating Service

  9. 1 Pumps @ 1 GPM 60 Gallons/Hour 1440 Gallons/Day 525600 Gallons/Year 200 Pumps @ 1 GPM 12000 Gallons/Hour 288000 Gallons/Day 105,120,000 Gallons/Year WaterSavings

  10. Ring Sets Available with Peerless Part Numbers
