  1. Perpendicular Ramp Components 4’ X 4’ minimum 2% maximum cross slope 8.3% maximum longitudinal slope 4’ minimum width 2% maximum cross slope Detectable Warnings 24” deep & full width 10% maximum slope

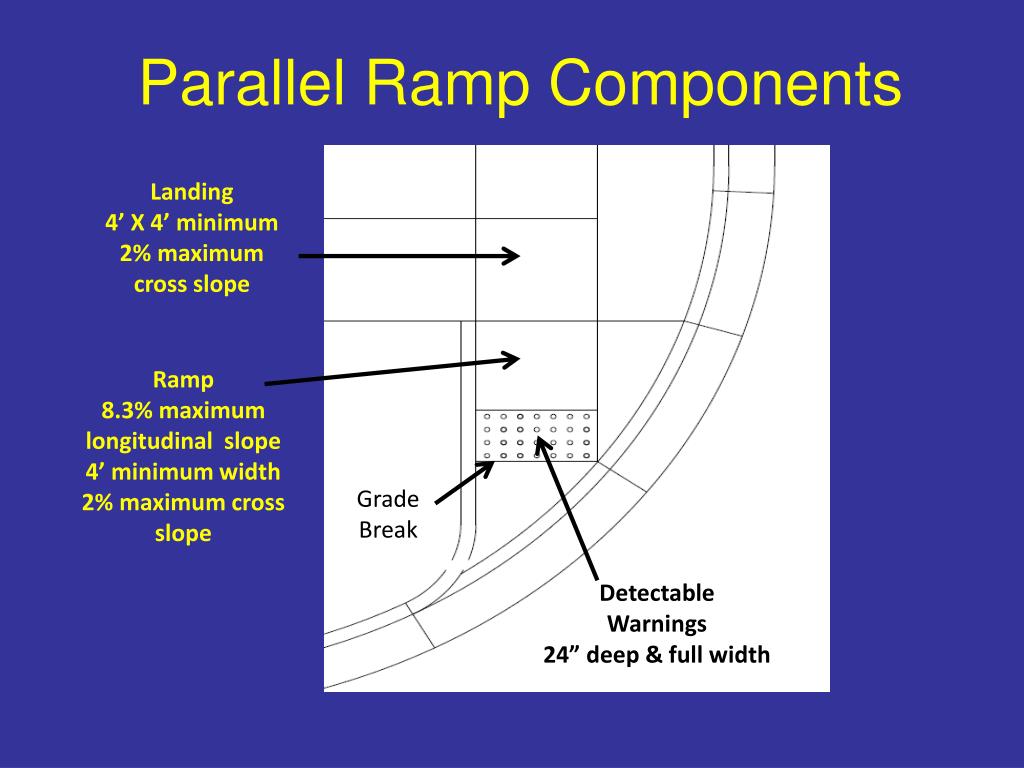

  2. Parallel Ramp Components Landing 4’ X 4’ minimum 2% maximum cross slope Ramp 8.3% maximum longitudinal slope 4’ minimum width 2% maximum cross slope Grade Break Detectable Warnings 24” deep & full width
