22 diapositives · 762 Views · Aug 22, 2014

NGN. Next Generation Network (NGN) is a service oriented network. Through the separation of service and call control, the service- independent architecture is implemented, which makes services independent of switching network. NGN provides integration of voice, data, fax, and video services.

NGN - slide 1
01 / 22NGN
1 / 17

Télécharger la présentation

NGN
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

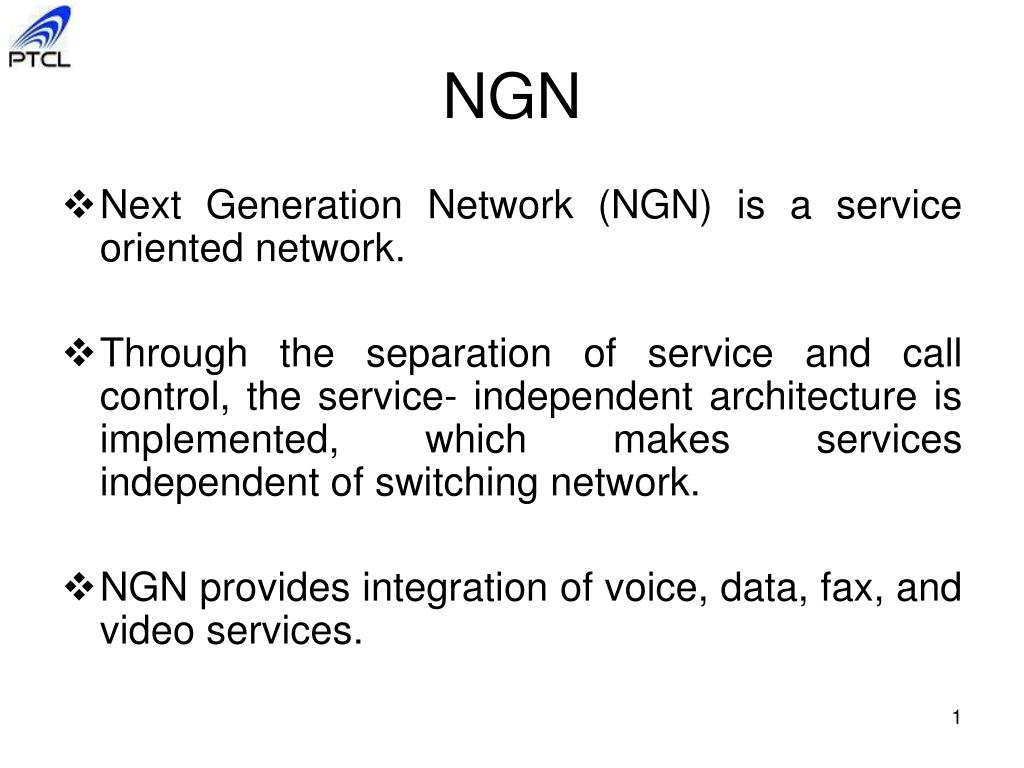

  1. NGN • Next Generation Network (NGN) is a service oriented network. • Through the separation of service and call control, the service- independent architecture is implemented, which makes services independent of switching network. • NGN provides integration of voice, data, fax, and video services.

  2. NGN (Contd) In broad sense it refers to the next generation integrated network that adopts new technologies extensively, focuses on IP, and provides voice, data, and multimedia service at the same time. In narrow sense it refers to the open system structure that employs soft switch at the control layer.

  3. NGN LAYER ARCHITECTURE Service Management Network Control Core Switch Edge Access

  4. NGN Network Architecture

  5. System capacity

  6. C4 OFFICE (PRESENT CONFIGURATION)

  7. SOFT SWITCH (SOFTX 3000) As a SoftSwitch product, SoftX3000 is located at the core control layer of NGN scheme. SoftX3000 acts as a generic Call Controller in the packet-switched network, supports the interworking between PSTN,H. 323, SIP, and MGCP domains. SoftX3000 provides H. 248 and MGCP based bearer control. In the NGN solution of Huawei, SoftX3000 acts as the core of NGN, interworking with other NGN components through the open network adopting distributed standard protocols.

  8. COMPLETE NETWORK LAYOUT

  9. PHYSICAL STRUCTURE OF SOFTX 3000

  10. LOGICAL STRUCTURE OF SOFTX 3000

  11. Faisalabad Gujranwala Bahawalpur Burewala Sargodha Multan Sahiwal Sialkot Lahore GUjrat MRS IAD Packet Core Network SG7000 Soft Switch Peshawar Abottabad Islamabad Quetta Hyderabad Sukkur Karachi Jehlum Bannu Mardan TRUNKING DIAGRAM OF NGN

  12. UMG E1 status at LX side

  13. UMG 8900 Functionality Features • UMG8900 supports inter-working between different bearer networks and provides conversion function between different traffic flow formats: • UMG8900 can server as Trunk Gateway (TG); • Act As Access Gateway (AG) in NGN network; • Support Embedded Signaling Gateway (SG) function simultaneously. • By networking with soft switching devices, UMG8900 can act as next-generation TDM switch adopting next-generation (NGN) architecture to provide all services of PSTN and achieve smooth evolvement to NGN.

  14. UMG 89000 (Cont’d) • UMG8900 serves as TG or AG in NGN or as the traditional PSTN switch and the next-generation switch. • In NGN, UMG8900 is applied in the gateway exchange and toll exchange as large-capacity TG. • Through the combined networking with soft switching device , UMG8900 can provide next-generation TDM switch application. • MG8900 can act as tandem exchange / toll office / gateway exchange / C5 networking application of PSTN to implement the seamless evolution to NGN. • Provides AG function of large capacity via RSP user frame of UMG8900 accesses user directly.

  15. PROTOCOL STACK OF SOFTX 3000

  16. System processing capability

  17. Services & Functions SERVICES • Voice Services • IP Centrex Services • Multimedia Services • IPN Services • IN based Value Added Services FUNCTIONS • Support for Multi-Country-Code and Multi-Area-Code Functions • Support for Multi-Signaling-Point-Code Function • Support for Dual-Homed Host Function • Support for Gateway Office Functions • Support for IP Supermarket Function

  18. MULTIMEDIA END OFFICE APPLICATIONS

  19. C5 OFFICE CONFIGURATION

  20. Achievements • Implementation of On-line billing in all the exchanges of Switching Zone Islamabad in ZTE B&CC project. • Testing / Commissioning of NGN expansion phase. • Testing / Commissioning of Signaling gateway at NGN for IP PPC services through FIN (fix IN) • Testing /Commissioning of MRS for the provision of IVRs for IP PPC services through FIN (fix IN) • Improvement of ASR in national directions by the augmentation of long haul media after a detail traffic analysis. • Reduction of congestion point on local as well as nation wide directions. • Termination of .25 (M) IP calls per day on NGN platform.

  21. Ongoing Issues • NGN status is currently under PAT • PAT of Softx 3000, UMG 8900,SG 7000 & MRS has been completed. Discrepancy list comprising of Non Service affecting & some deficient features has already been forwarded to the vendor through Dig Dev wing. • Connectivity with some UMG’s is still pending due to Media/hardware unavailability at the far end (LX side). • Extension of NGN NMS room is required. Several civil works need to be done.
