  1. Microarray Data Analysis Using R Studies in Tissue Databases Mark Reimers, NCI

  2. Outline • The GNF tissue database • Exploratory analysis - clustering • Positional co-regulation • Insight via co-regulation • Apoptotic configuration of tissues • Probe level analysis

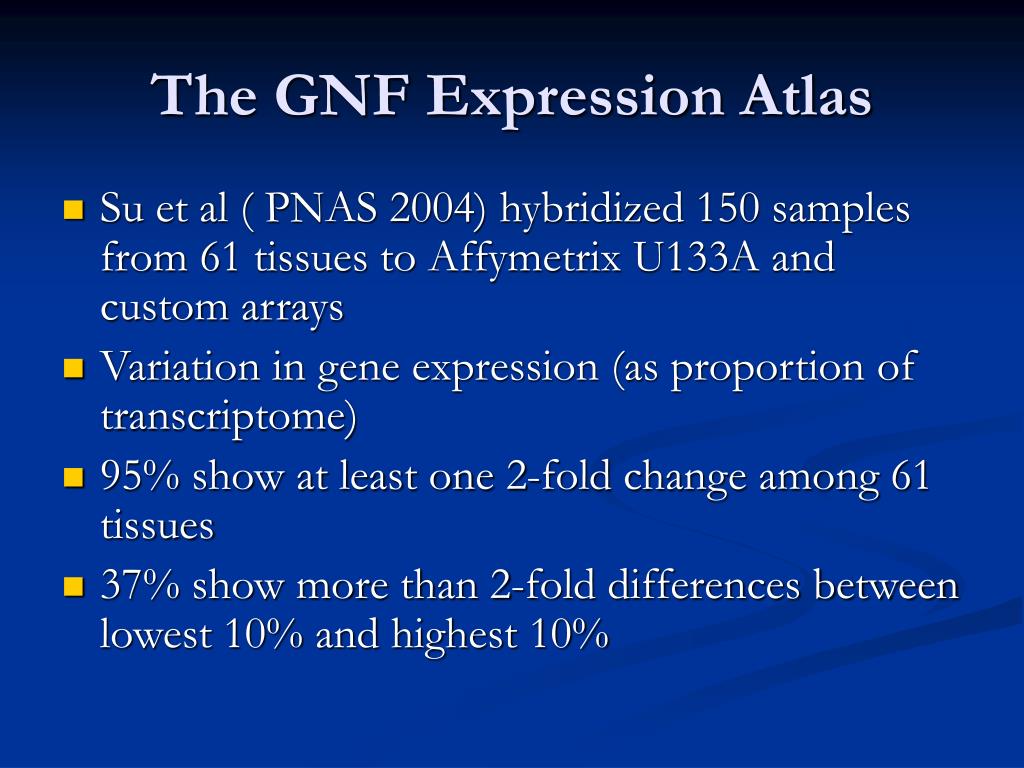

  3. The GNF Expression Atlas • Su et al ( PNAS 2004) hybridized 150 samples from 61 tissues to Affymetrix U133A and custom arrays • Variation in gene expression (as proportion of transcriptome) • 95% show at least one 2-fold change among 61 tissues • 37% show more than 2-fold differences between lowest 10% and highest 10%

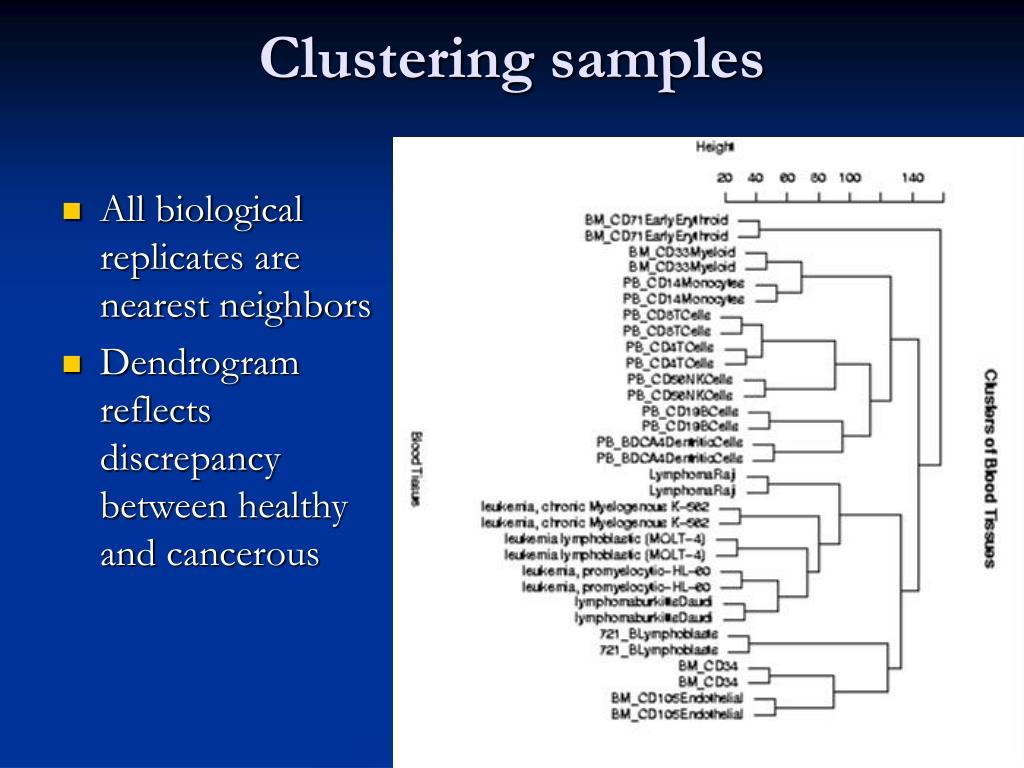

  4. Clustering samples • All biological replicates are nearest neighbors • Dendrogram reflects discrepancy between healthy and cancerous

  5. Co-regulation of Nearby Genes • Some groups of genes next to one another on chromosome show high correlation across tissues

  6. Significance of Co-regulation • How often would such correlations happen ‘by chance’ - eg. by selecting genes at random? • Three random measures would have correlation greater than 0.6 with p < 10-20! • However 3 genes selected at random from atlas have probability ~ 10-3 of having all corrs > 0.6 • In 30,000 positions, we should see 30 • 156 regions of high correlation determined • Many are paralogs • Perhaps 50% false discovery rate among the rest

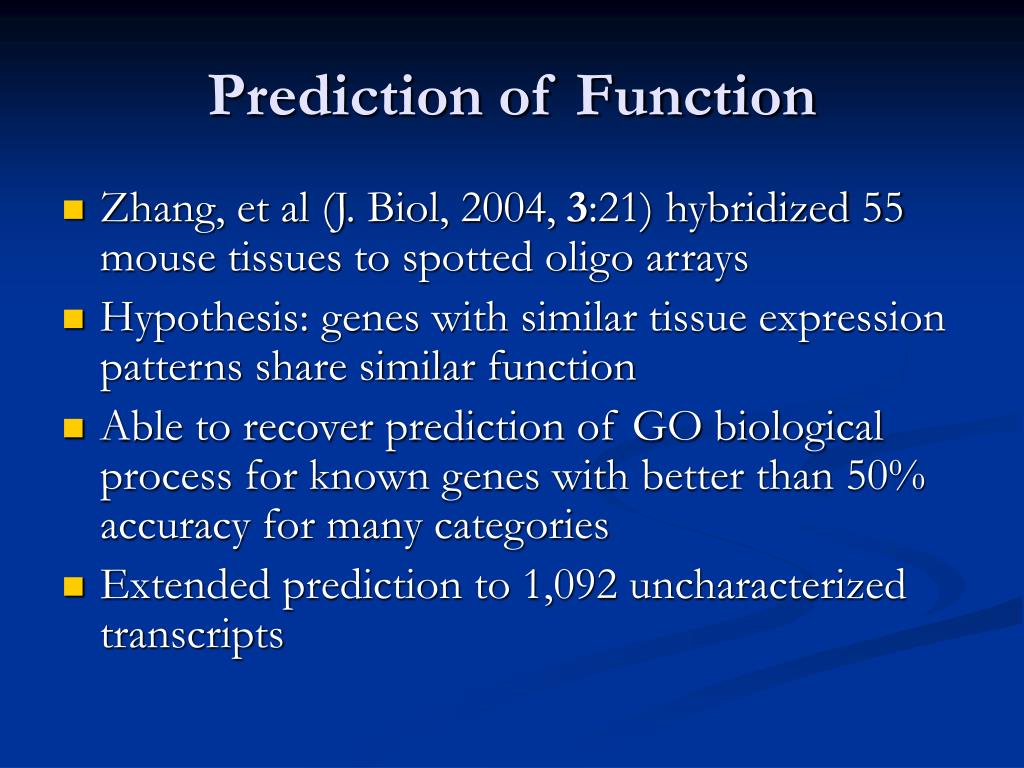

  7. Prediction of Function • Zhang, et al (J. Biol, 2004, 3:21) hybridized 55 mouse tissues to spotted oligo arrays • Hypothesis: genes with similar tissue expression patterns share similar function • Able to recover prediction of GO biological process for known genes with better than 50% accuracy for many categories • Extended prediction to 1,092 uncharacterized transcripts

  8. Investigation of Poorly Characterized Gene - Top1MT • 10-fold variation in expression (odd for a ‘housekeeping gene’) • >50 genes with expression highly correlated ( .75) with Top1MT across tissue database • Large proportion are splicing factors • Top1MT has an odd splice junction in intron 1, and may depend critically on abundant splicing factors

  9. Apoptosis Patterns • Majority of epithelial tissues show common pattern (indisposed to apoptosis) • Blood cells show variety of patterns

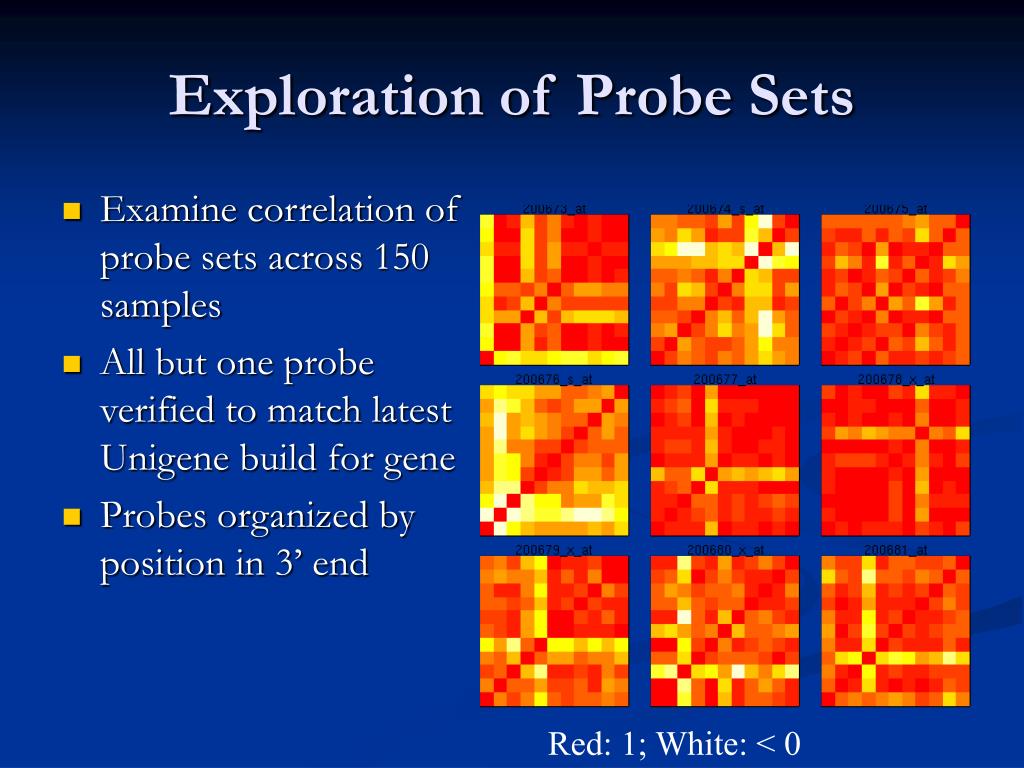

  10. Exploration of Probe Sets • Examine correlation of probe sets across 150 samples • All but one probe verified to match latest Unigene build for gene • Probes organized by position in 3’ end Red: 1; White: < 0

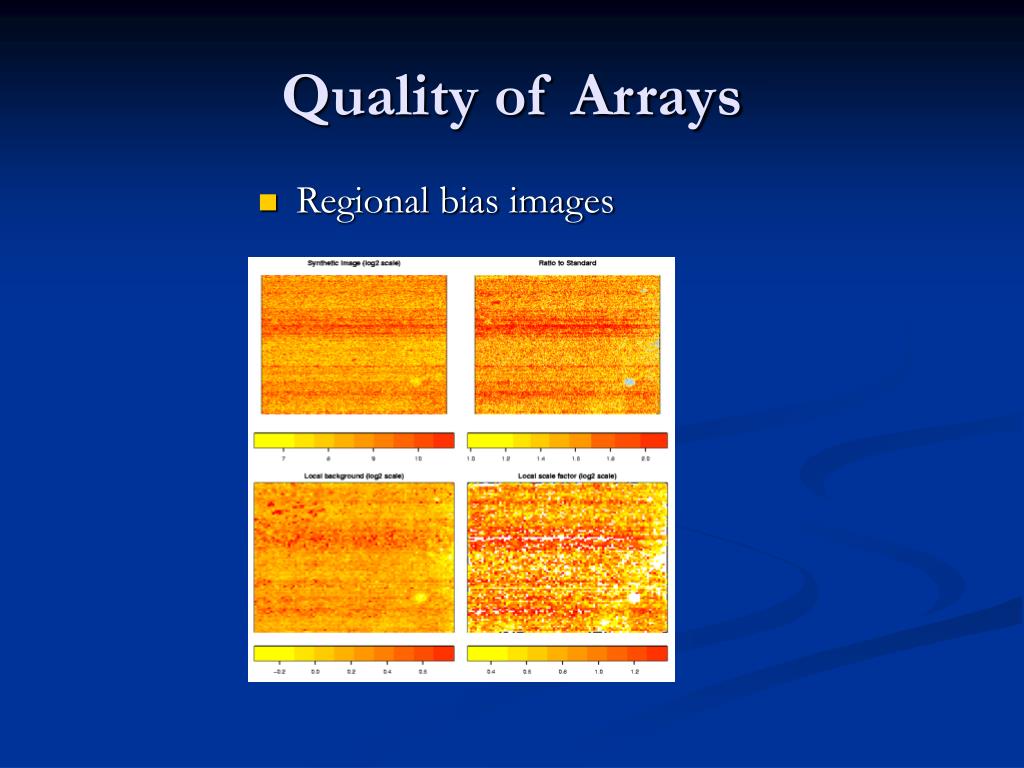

  11. Quality of Arrays • Regional bias images
