eRHIC Longitudinal Polarimeter

The eRHIC longitudinal polarimeter aims to effectively detect electrons and photons with an optimized design for laser interaction. Key features include a ~2 m drift region, a good g-2 projection at the laser infrared, and facilities for UHV/XHV and ion clearing. Challenges such as avoiding imaging of long vacuum sections with gamma detectors and utilizing a last spin rotator dipole for optimal spin precession at varying GeV levels are addressed. This layout emphasizes precision in spin measurements critical for high-energy physics experiments.

duc
Télécharger la présentation

eRHIC Longitudinal Polarimeter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. eRHIC Longitudinal Polarimeter • Ideally: • Detect electrons and photons • Have ~2 m drift for laser interaction region • Have “good” g-2 projection at laser IR • Do not image long (>5 m) vacuum sections with gamma detector • Provide for UHV/XHV and ion clearing at laser IR

  2. HERA Long. Pol. Layout Courtesy W. Lorenzon - University of Michigan

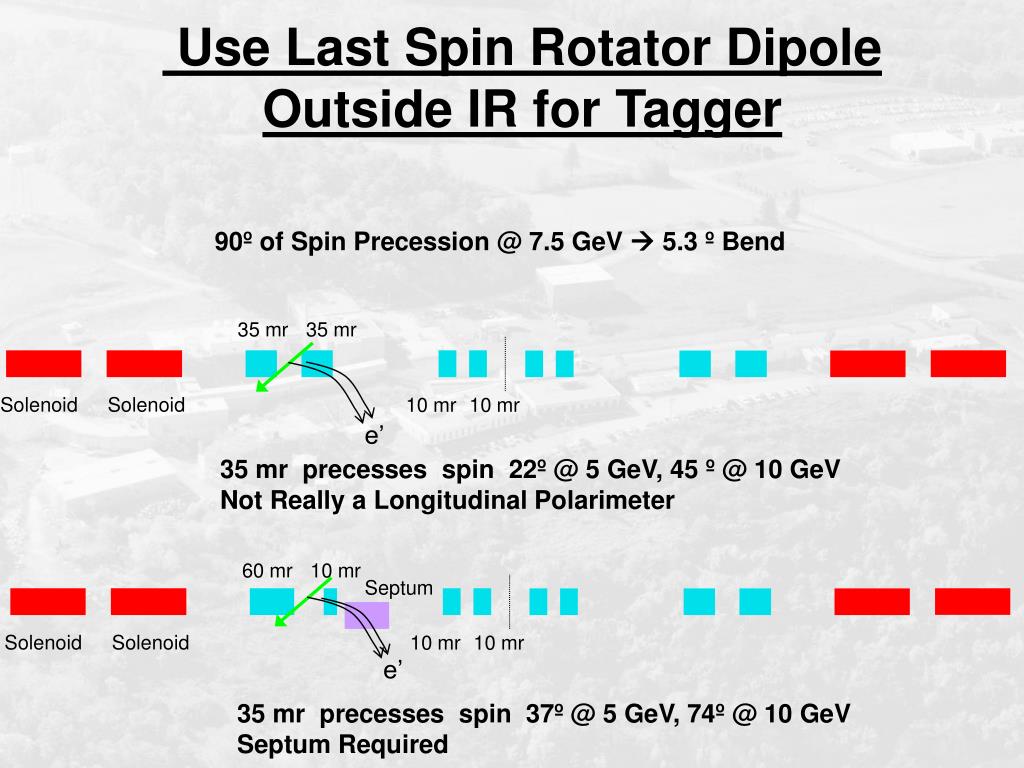

  3. Use Last Spin Rotator Dipole Outside IR for Tagger 90º of Spin Precession @ 7.5 GeV  5.3 º Bend 35 mr 35 mr Solenoid Solenoid 10 mr 10 mr e’ 35 mr precesses spin 22º @ 5 GeV, 45 º @ 10 GeV Not Really a Longitudinal Polarimeter 60 mr 10 mr Septum Solenoid Solenoid 10 mr 10 mr e’ 35 mr precesses spin 37º @ 5 GeV, 74º @ 10 GeV Septum Required

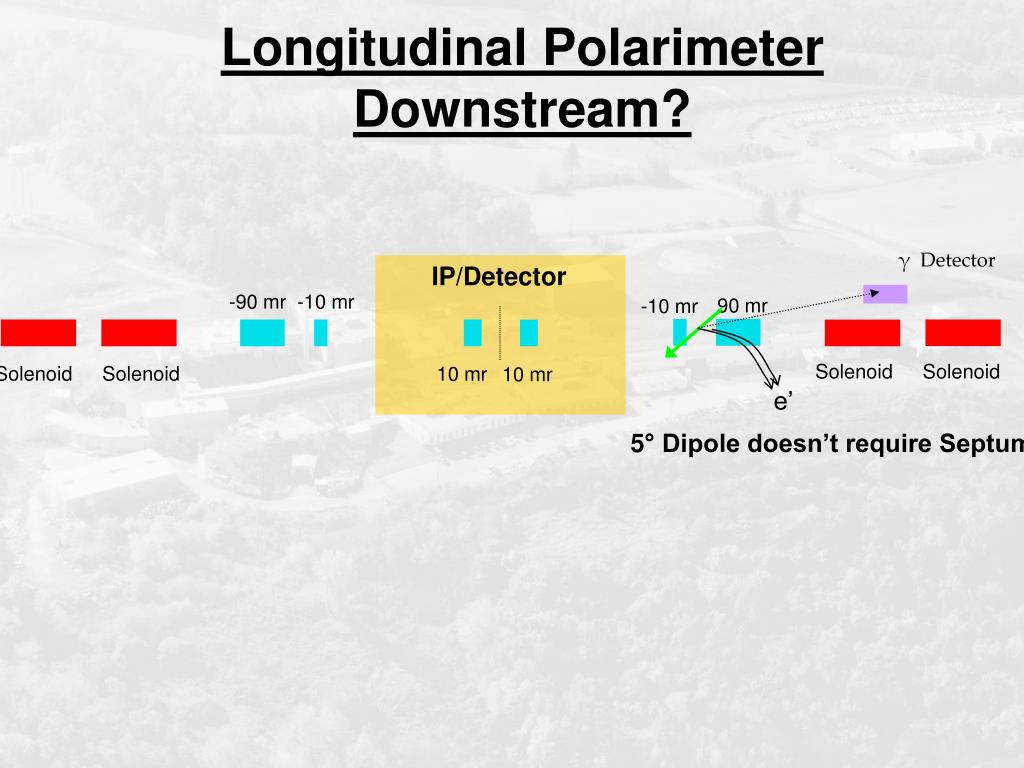

  4. Solenoid Solenoid Solenoid Solenoid Longitudinal Polarimeter Downstream? γ Detector IP/Detector -90 mr -10 mr 90 mr -10 mr 10 mr 10 mr e’ 5° Dipole doesn’t require Septum?

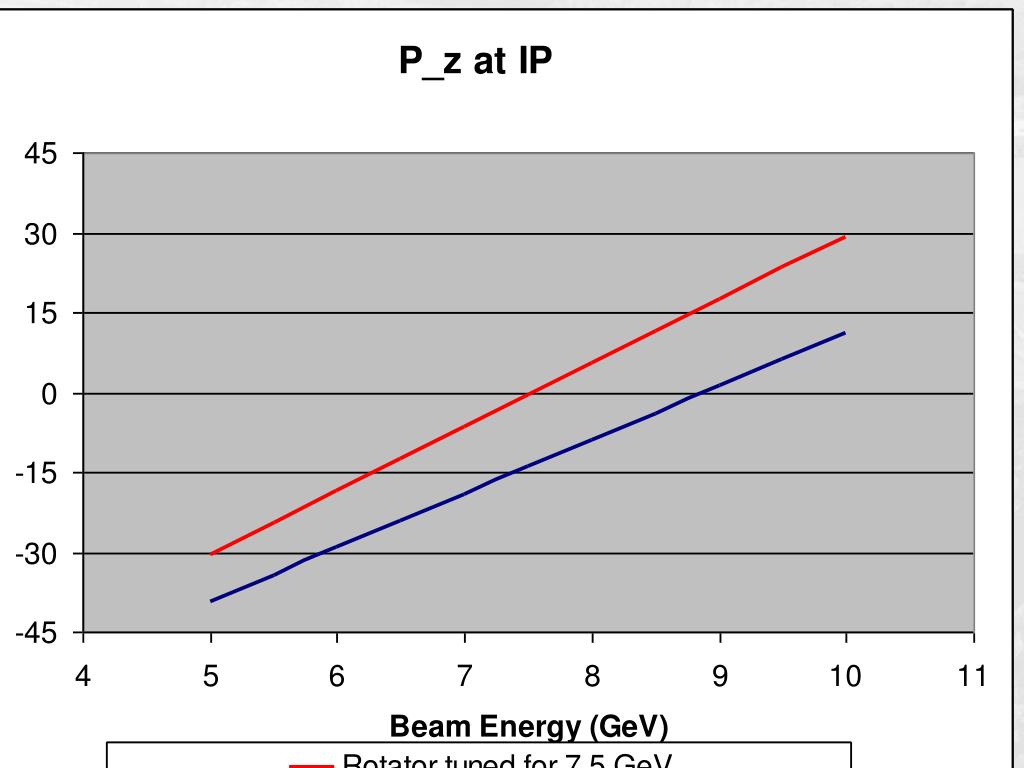

  5. Optimize Spin Rotator at 8.5 GeV?
