  1. Netslice: Enabling Critical Network Infrastructure with Commodity Routers Prof. Hakim Weatherspoon, Cornell University Joint with Tudor Marian, Ki Suh Lee TRUST Autumn 2010 Conference, Stanford University November 10, 2010

  2. Commodity Datacenters • Datacenters are becoming a commodity • Unit of replacement • Datacenter in a box: already set up with commodity hardware & software (Intel, Linux, petabyte of storage) • Plug network, power & cooling and turn on • typically connected via optical fiber • may have network of such datacenters

  3. Commodity Datacenters Titan tech boom, randy katz, 2008 Critical Network Infrastructure, by Hakim Weatherspoon

  4. Network Of Globally Distributed Datacenters • Cloud Computing—Datacenters interconnected via fiber • Long Fat Networks (LFN) or λ-networks • Packet processors and extensible routers—middleboxes • Increase functionality, performance, reliability, and security of network • E.g. DPI, IDS, PEP, protocol accelerators, overlay routers, multimedia servers, security appliances, and network monitors, etc packet processor middleboxes IBM Visit, Critical Infrastructure, by Hakim Weatherspoon

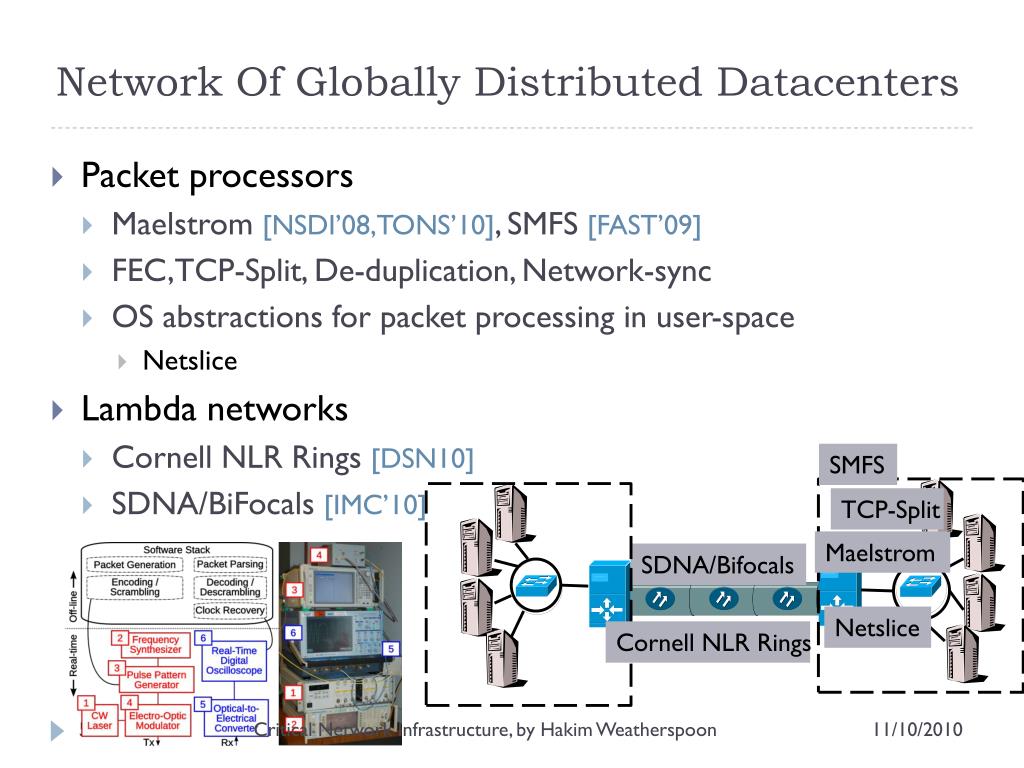

  5. Network Of Globally Distributed Datacenters • Packet processors • Maelstrom [NSDI’08,TONS’10], SMFS [FAST’09] • FEC,TCP-Split, De-duplication, Network-sync • OS abstractions for packet processing in user-space • Netslice • Lambda networks • Cornell NLR Rings [DSN10] • SDNA/BiFocals[IMC’10] SMFS TCP-Split Maelstrom SDNA/Bifocals Netslice Cornell NLR Rings Critical Network Infrastructure, by Hakim Weatherspoon

  6. Network Of Globally Distributed Datacenters • Packet processors • Maelstrom [NSDI’08,TONS’10], SMFS [FAST’09] • FEC,TCP-Split, De-duplication, Network-sync • OS abstractions for packet processing in user-space • Netslice • Lambda networks • Cornell NLR Rings [DSN10] • SDNA/BiFocals[IMC’10] Critical Network Infrastructure, by Hakim Weatherspoon

  7. Challenges • Large traffic volume processed / second (10Gb/s) • Typical packet processors realized in hardware • Trade off flexibility, programmability for speed • Goal: Improve datacenter communication • Packet processors and extensible routers • Abundance of commodity servers readily available Software Proprietary specialized hardware Commodity hardware Critical Network Infrastructure, by Hakim Weatherspoon

  8. Takeaway • Raw socket cannot take advantage of multicore/multiqueue • Need new OS abstraction to take advantage of parallelism 9.7G 9.7G 9.7G 2.25G Critical Network Infrastructure, by Hakim Weatherspoon

  9. Outline—Packet Processing Abstractions • The case for user-space packet processors • What’s wrong with the raw socket in multicore environment? • Hardware and software overheads • Contention and lack of application control of resources • Need new OS abstraction to take advantage of parallelism • Netslice • Evaluate • Group intruduction • Conclude Critical Network Infrastructure, by Hakim Weatherspoon

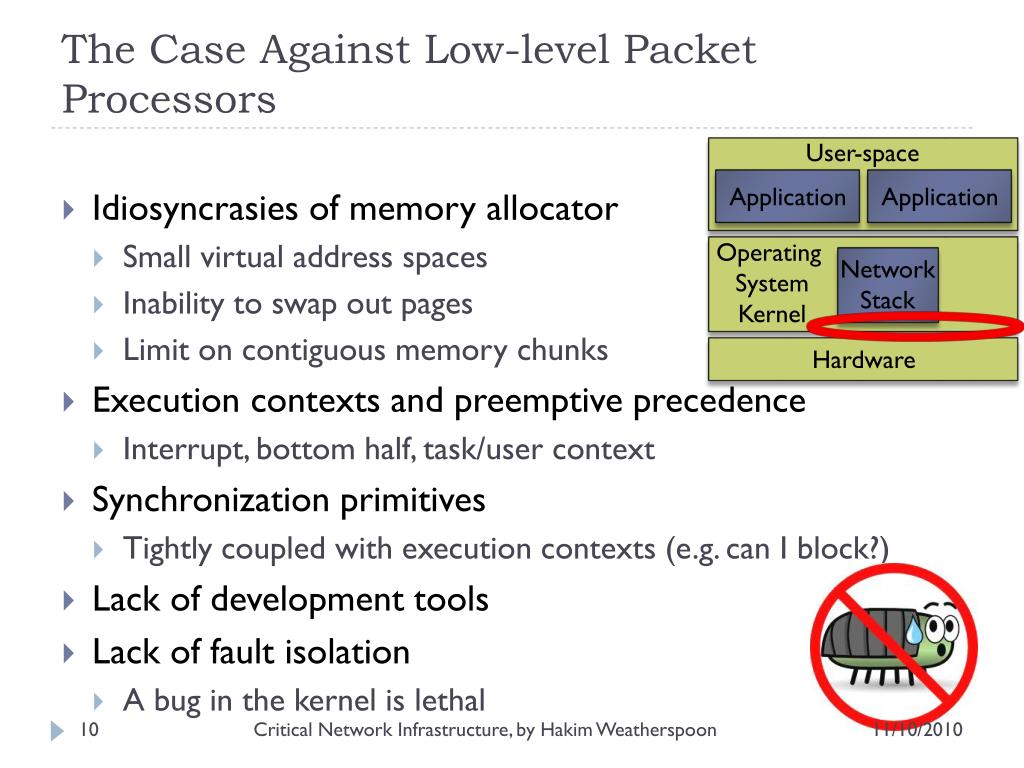

  10. The Case Against Low-level Packet Processors User-space • Idiosyncrasies of memory allocator • Small virtual address spaces • Inability to swap out pages • Limit on contiguous memory chunks • Execution contexts and preemptive precedence • Interrupt, bottom half, task/user context • Synchronization primitives • Tightly coupled with execution contexts (e.g. can I block?) • Lack of development tools • Lack of fault isolation • A bug in the kernel is lethal Operating System Kernel Network Stack Hardware Application Application Critical Network Infrastructure, by Hakim Weatherspoon

  11. High-level Packet Processors: Where Have All My Cycles Gone? • Opportunity: exploit hardware parallelism • Overheads • Contention, contention, contention! • Memory wall • OS Design Overheads • System calls • Context switches • Scheduling • Blocking CPU Memory Critical Network Infrastructure, by Hakim Weatherspoon

  12. Contention: Amdahl’s Law • Bounds maximum expected parallelism speedup • Fraction P of a program parallelized to run on N CPUs • The speedup is 1 = Serial execution + Parallel execution Program: Serial fraction (1-P) Parallel fraction (P) Critical Network Infrastructure, by Hakim Weatherspoon

  13. Contention: Cache-coherent Architecture • Effects of cache coherency & memory accesses • Cores read and write blocks of data concurrently • Commodity system: Xeon X533 with 4MB L2 cache Critical Network Infrastructure, by Hakim Weatherspoon

  14. Contention: Peripheral NIC • Slow cores fast network interface cards (NICs) • More cores exhibit contention and overheads • Hardware transmit/receive multi-queue support Critical Network Infrastructure, by Hakim Weatherspoon tx/rx queues

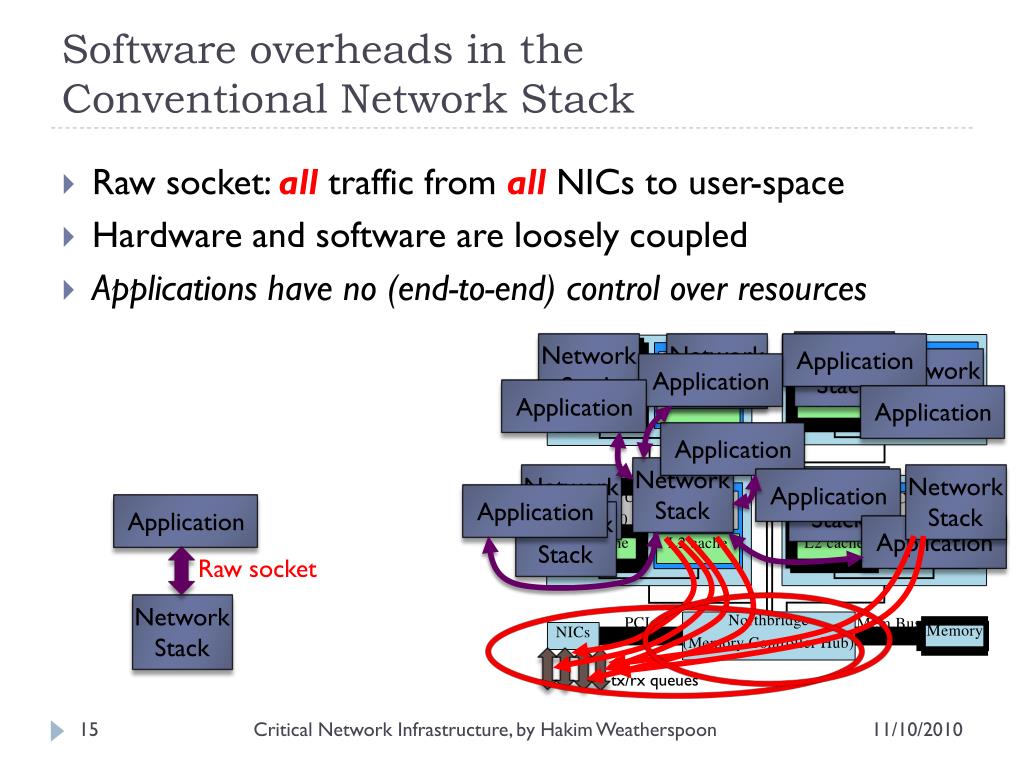

  15. Software overheads in theConventional Network Stack • Raw socket: all traffic from all NICs to user-space • Hardware and software are loosely coupled • Applications have no (end-to-end) control over resources Network Stack Network Stack Network Stack Network Stack Network Stack Network Stack Network Stack Network Stack Network Stack Network Stack Raw socket Application Application Application Application Application Application Application Application Application Critical Network Infrastructure, by Hakim Weatherspoon tx/rx queues

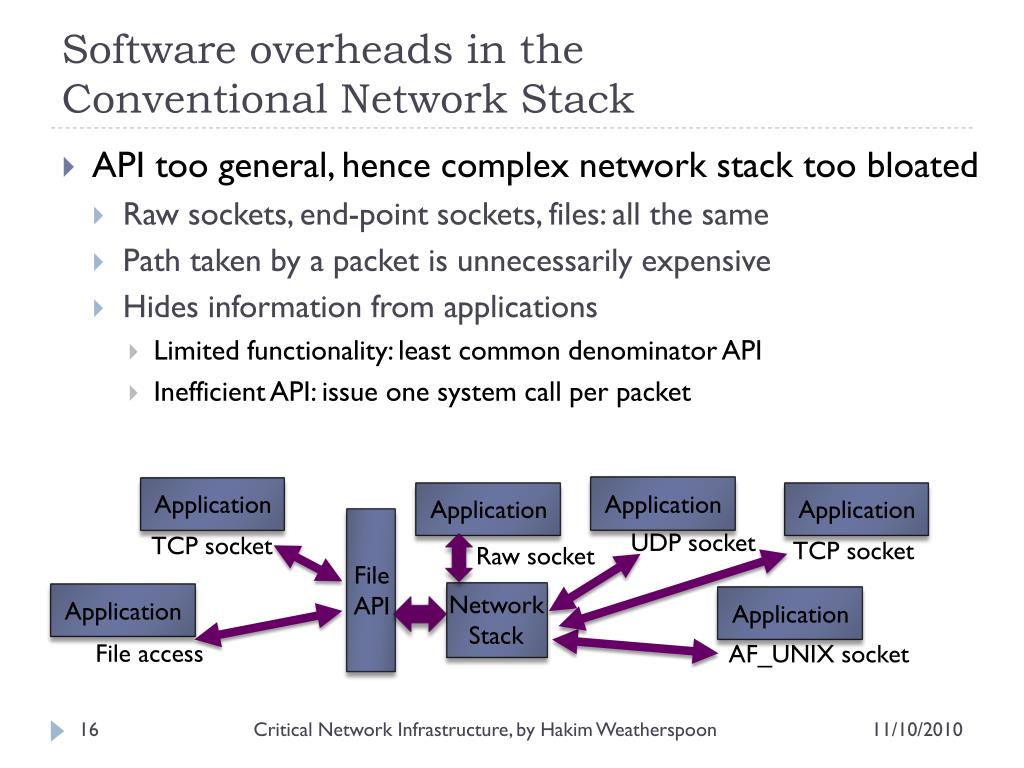

  16. Software overheads in theConventional Network Stack • API too general, hence complex network stack too bloated • Raw sockets, end-point sockets, files: all the same • Path taken by a packet is unnecessarily expensive • Hides information from applications • Limited functionality: least common denominator API • Inefficient API: issue one system call per packet Network Stack UDP socket TCP socket TCP socket Raw socket Application Application Application Application Application Application File API File access AF_UNIX socket Critical Network Infrastructure, by Hakim Weatherspoon

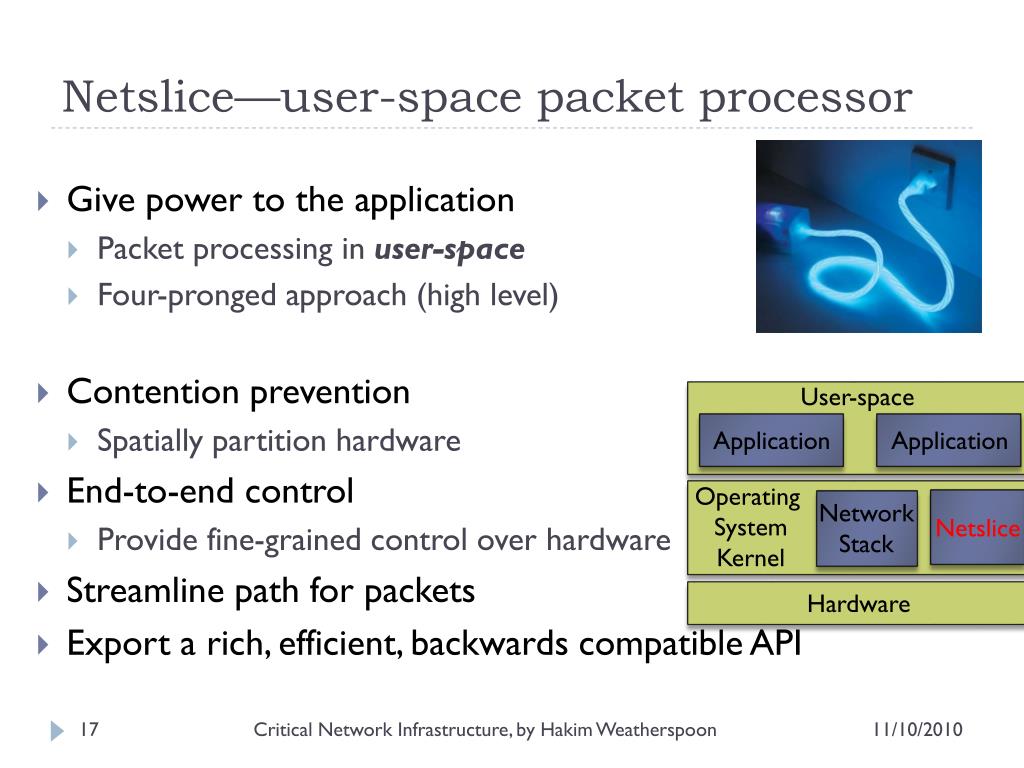

  17. Netslice—user-space packet processor • Give power to the application • Packet processing in user-space • Four-pronged approach (high level) • Contention prevention • Spatially partition hardware • End-to-end control • Provide fine-grained control over hardware • Streamline path for packets • Export a rich, efficient, backwards compatible API User-space Operating System Kernel Network Stack Netslice Hardware Application Application Critical Network Infrastructure, by Hakim Weatherspoon

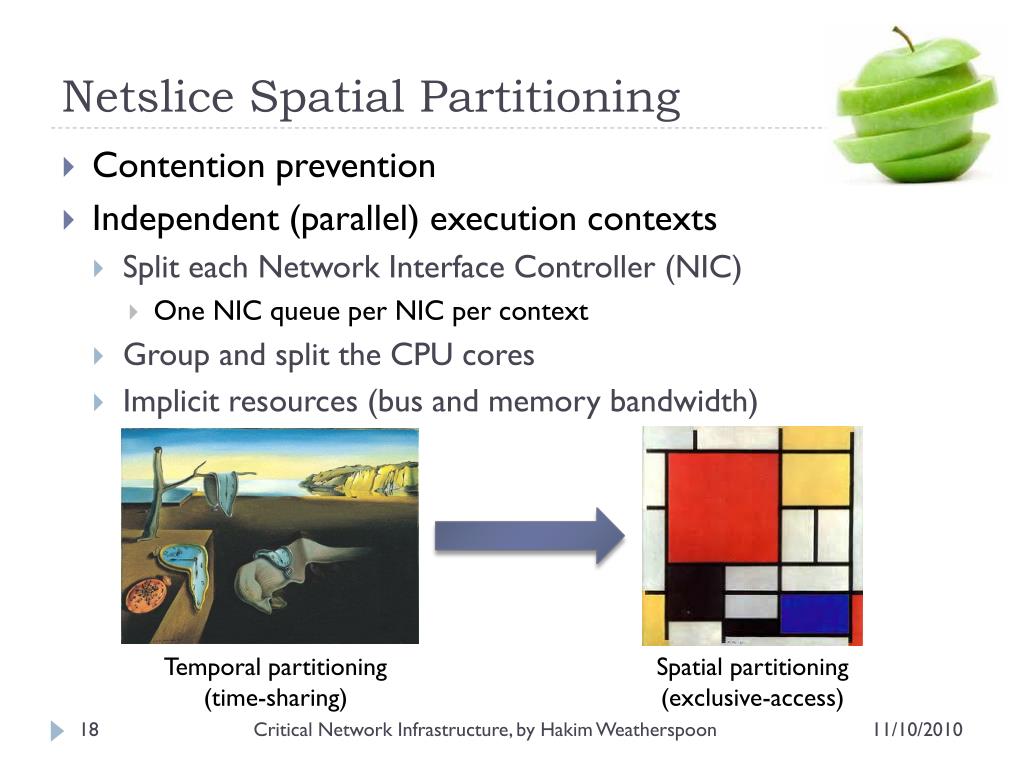

  18. Netslice Spatial Partitioning • Contention prevention • Independent (parallel) execution contexts • Split each Network Interface Controller (NIC) • One NIC queue per NIC per context • Group and split the CPU cores • Implicit resources (bus and memory bandwidth) Temporal partitioning (time-sharing) Spatial partitioning (exclusive-access) Critical Network Infrastructure, by Hakim Weatherspoon

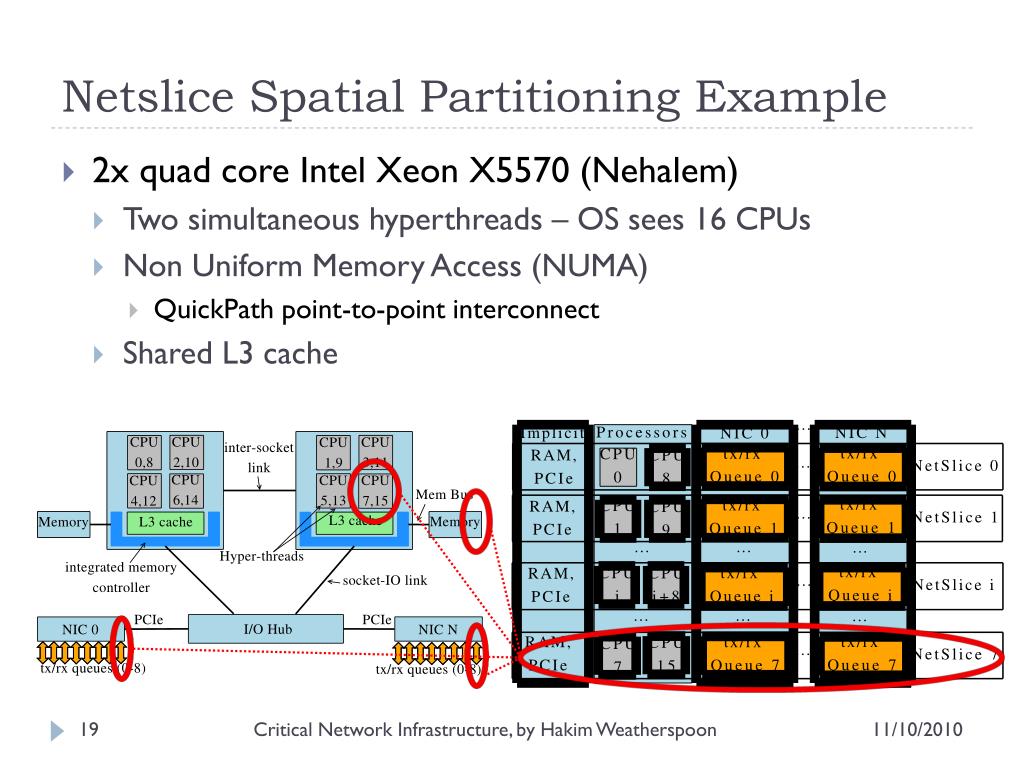

  19. Netslice Spatial Partitioning Example • 2x quad core Intel Xeon X5570 (Nehalem) • Two simultaneous hyperthreads – OS sees 16 CPUs • Non Uniform Memory Access (NUMA) • QuickPath point-to-point interconnect • Shared L3 cache Critical Network Infrastructure, by Hakim Weatherspoon

  20. Fine-grained Hardware Control • End-to-end control • App controls NIC queue and CPU slice allocation • NIC hardware interrupt routing & NIC queue • Kernel execution context • User-space execution context • Tight coupling of software and hardware components Critical Network Infrastructure, by Hakim Weatherspoon

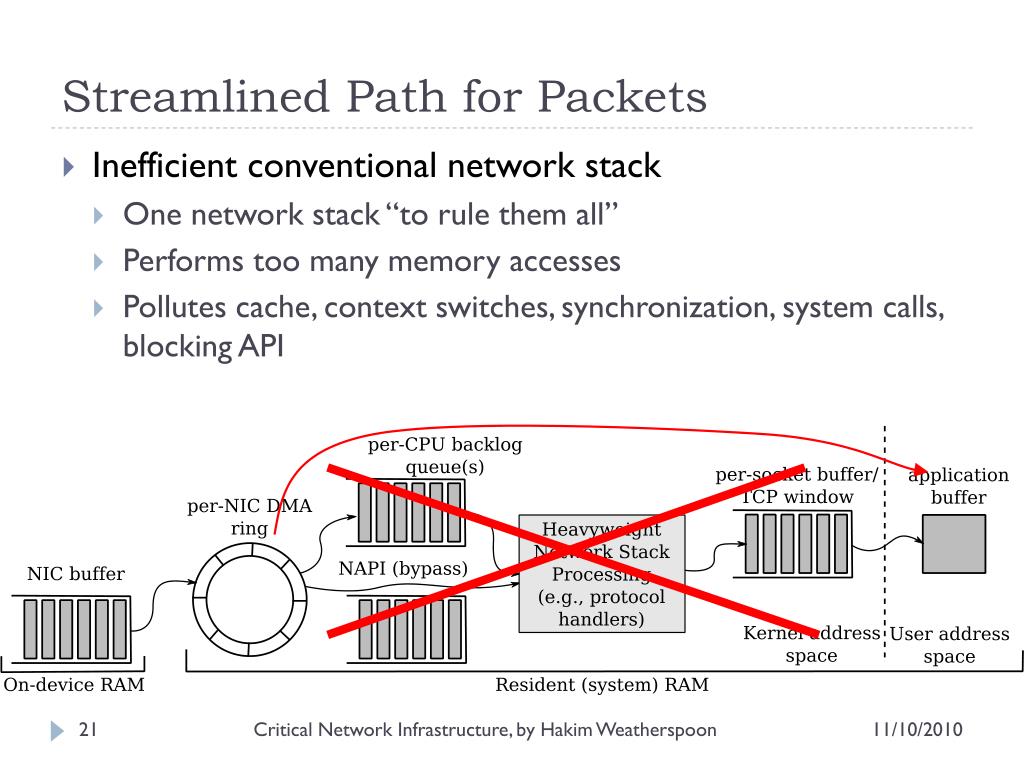

  21. Streamlined Path for Packets • Inefficient conventional network stack • One network stack “to rule them all” • Performs too many memory accesses • Pollutes cache, context switches, synchronization, system calls, blocking API Critical Network Infrastructure, by Hakim Weatherspoon

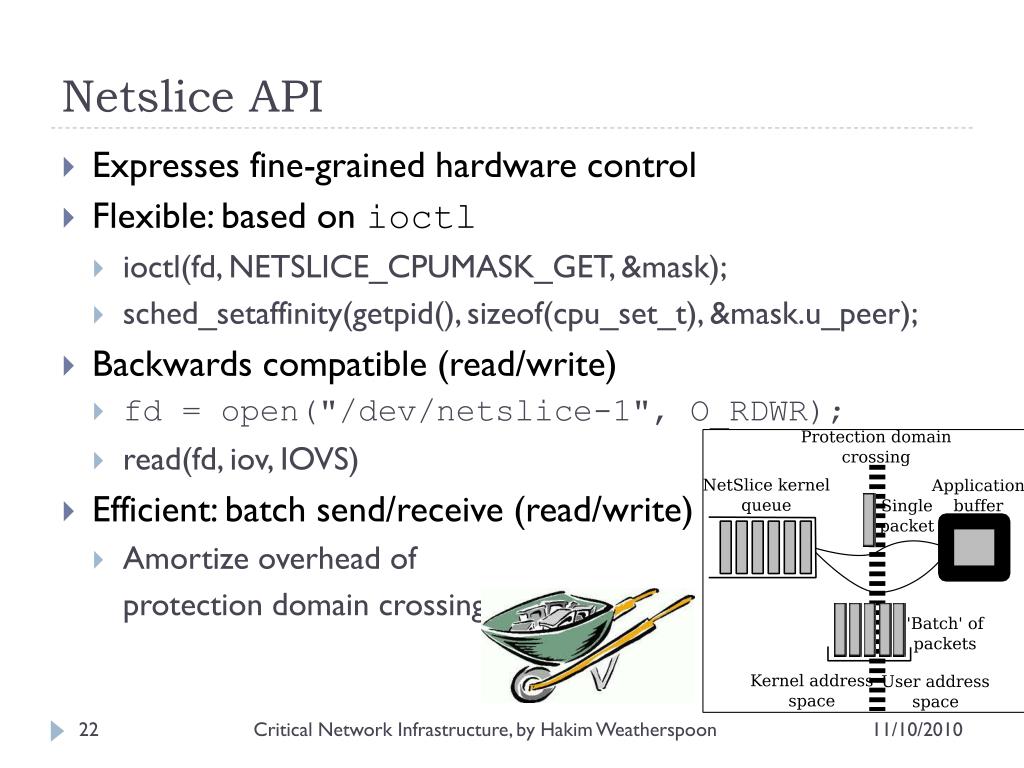

  22. Netslice API • Expresses fine-grained hardware control • Flexible: based on ioctl • ioctl(fd, NETSLICE_CPUMASK_GET, &mask); • sched_setaffinity(getpid(), sizeof(cpu_set_t), &mask.u_peer); • Backwards compatible (read/write) • fd = open("/dev/netslice-1", O_RDWR); • read(fd, iov, IOVS) • Efficient: batch send/receive (read/write) • Amortize overhead of protection domain crossing Critical Network Infrastructure, by Hakim Weatherspoon

  23. Experimental Setup • R710 packet processors • dual socket quad core 2.93GHz Xeon X5570 (Nehalem) • 8MB of shared L3 cache and 12GB of RAM • 6GB connected to each of the two CPU sockets • Two Myri-10G NICs • R900 client end-hosts • four socket 2.40GHz Xeon E7330 (Penryn) • 6MB of L2 cache and 32GB of RAM Critical Network Infrastructure, by Hakim Weatherspoon

  24. Netslice Evaluation • Compare against state-of-the-art • RouteBricks in-kernel, Click & pcap-mmap user-space • Additional baseline scenario • All traffic through single NIC queue (receive-livelock) • What is the basic forwarding performance? • How efficient is the streamlining of one Netslice? • What is the benefit of batching? • How is Netslice scaling with the number of cores? • Can build high-speed complex packet processors? Critical Network Infrastructure, by Hakim Weatherspoon

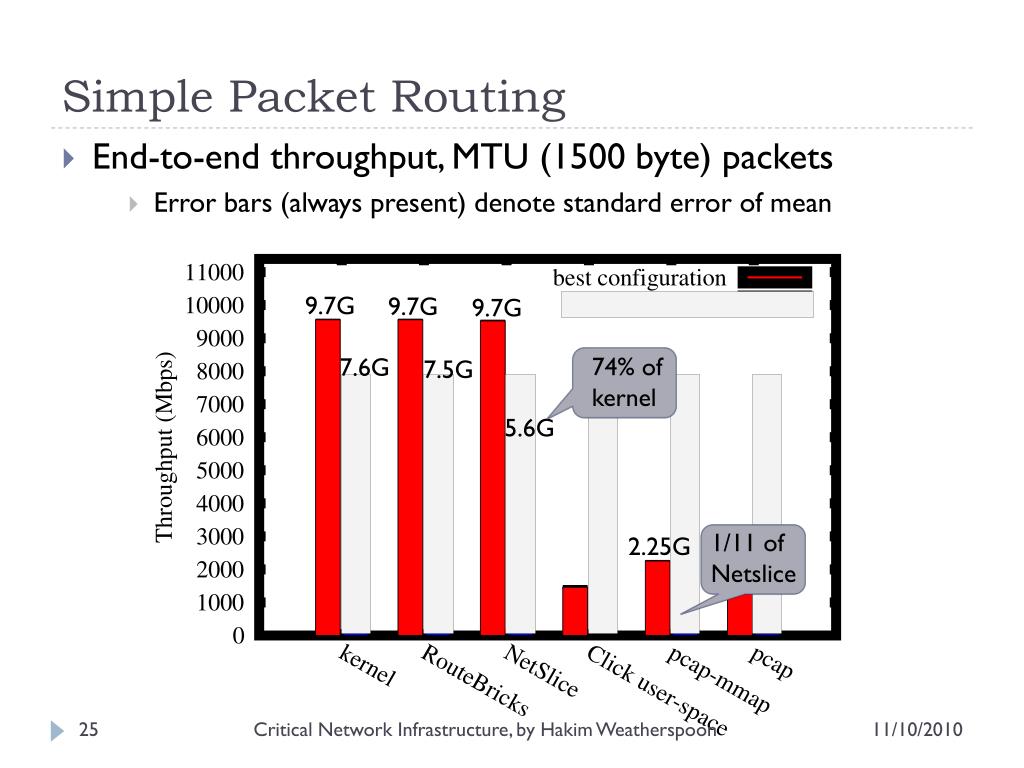

  25. Simple Packet Routing • End-to-end throughput, MTU (1500 byte) packets • Error bars (always present) denote standard error of mean 9.7G 9.7G 9.7G 74% of kernel 7.6G 7.5G 5.6G 1/11 of Netslice 2.25G Critical Network Infrastructure, by Hakim Weatherspoon

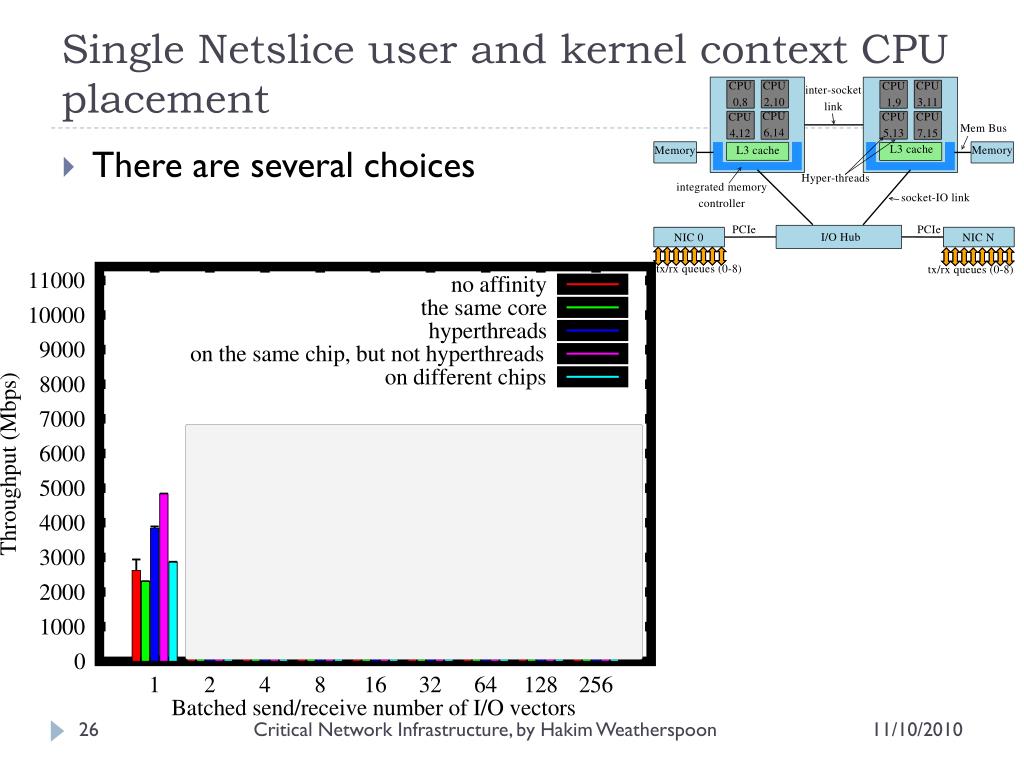

  26. Single Netslice user and kernel context CPU placement • There are several choices Critical Network Infrastructure, by Hakim Weatherspoon

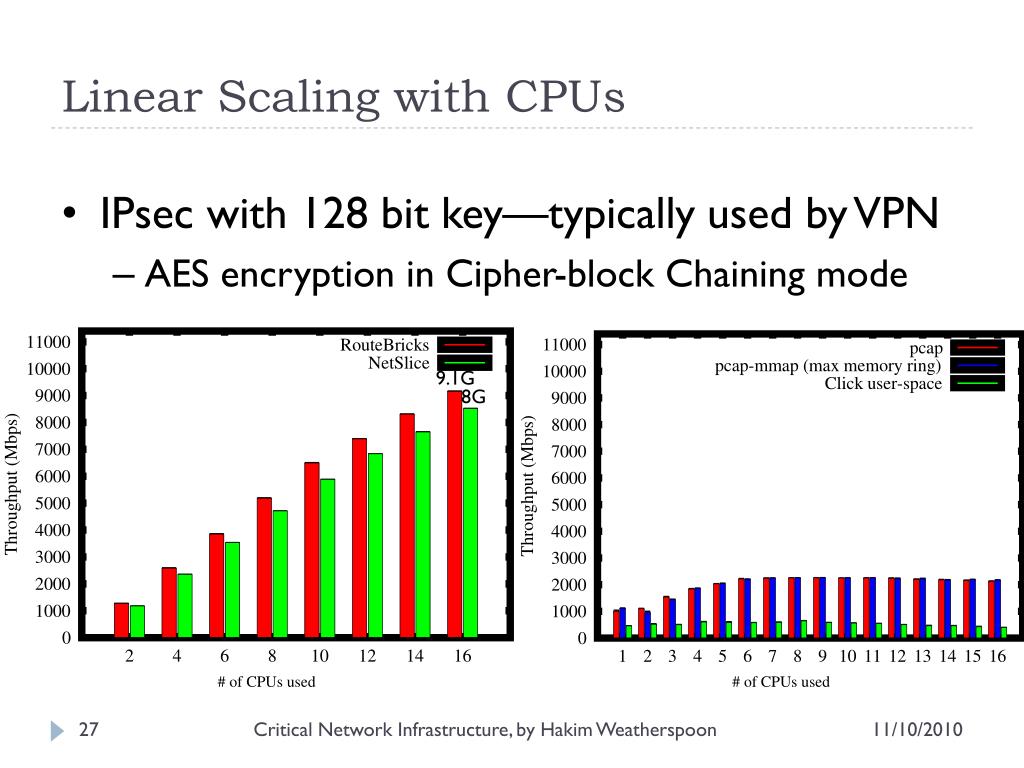

  27. Linear Scaling with CPUs • IPsec with 128 bit key—typically used by VPN • AES encryption in Cipher-block Chaining mode 9.1G 8G # of CPUs used # of CPUs used Critical Network Infrastructure, by Hakim Weatherspoon

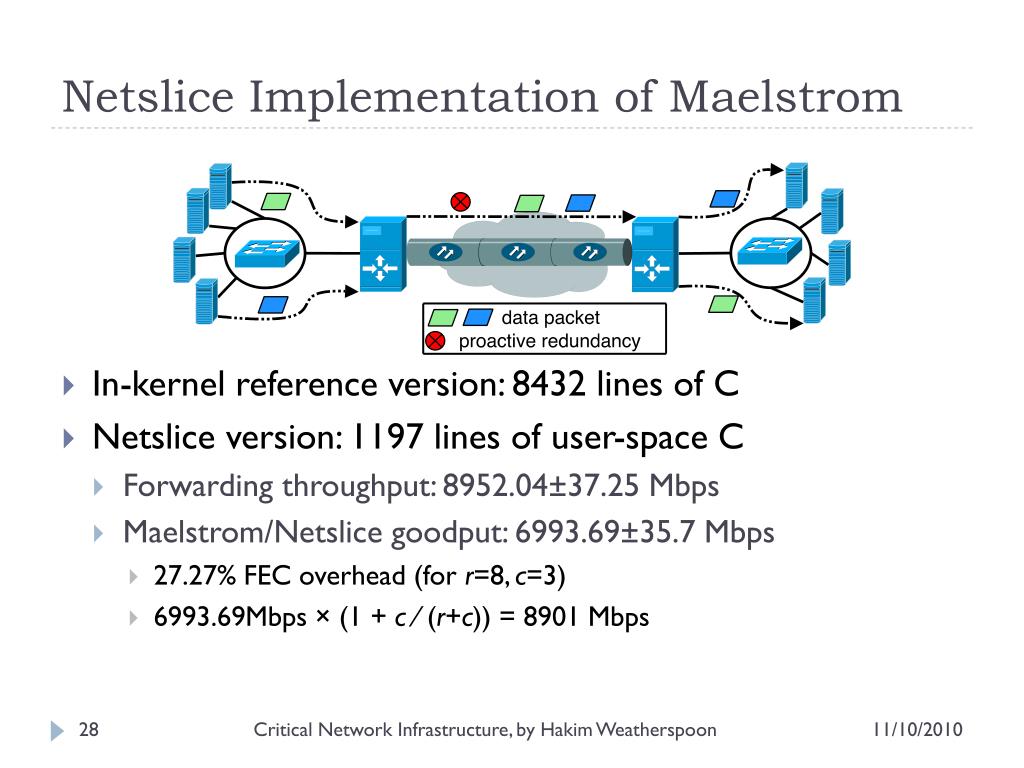

  28. Netslice Implementation of Maelstrom • In-kernel reference version: 8432 lines of C • Netslice version: 1197 lines of user-space C • Forwarding throughput: 8952.04±37.25 Mbps • Maelstrom/Netslice goodput: 6993.69±35.7 Mbps • 27.27% FEC overhead (for r=8, c=3) • 6993.69Mbps × (1 + c ⁄ (r+c)) = 8901 Mbps Critical Network Infrastructure, by Hakim Weatherspoon

  29. 10Gbps and beyond • Netslice • Flexible API and spatial partitioning • Nehalem CPUs • FSB not the bottleneck any longer • MultiqueueNICs • Each core carves a private slice of every NIC • Batching • Userspace multi-read / multi-write instead of ossified conventional read / write • Traditional tricks • Pin down memory, minimize LLC contention, etc. Critical Network Infrastructure, by Hakim Weatherspoon

  30. Conclusion • Network layer is fundamental to Datacenter operations • Packet processors enhance network functionality and performance • Improve network performance with software packet processors running on commodity servers in userspace • OS support to build packet processing applications • Harness implicit parallelism of modern hardware to scale • Solution completely portable; kernel module load at runtime Critical Network Infrastructure, by Hakim Weatherspoon

  31. Paper Trail Theme: “Datacenter Middleboxes” • BiFocals/SDNA in IMC-2010 • NLR study in DSN-2010 • SMFS in FAST-2009 • Maelstrom (FEC) in TONS-2010 and NSDI-2008 • FWP, NSDI-2008 Poster Session • More at http://fireless.cs.cornell.edu Critical Network Infrastructure, by Hakim Weatherspoon

  32. Questions Critical Network Infrastructure, by Hakim Weatherspoon
