COMP 416b Internet Protocols and Software

1. Instructor: Zhijun Wang Quiz#2 will be given in the last hour Lab#3 will be given on the next week Today’s content Overview of Peer-to-Peer (P2P) system Search in P2P P2P streaming COMP 416b Internet Protocols and Software TCP/IP Protocol Suite

2. Client-server architecture The traditional web service is a client-server model. Clients request data from the server. Reliable, powerful, successful. WWW, FTP TCP/IP Protocol Suite

3. Limitations of client-server model • Scalability: poor scalability for huge systems • Failure recovery: a single point failure problem • Maintenance: server needs administration TCP/IP Protocol Suite

4. Peer-to-peer (P2P) architecture • Each peer acts as both client and server. Any node can provide and consume data • No centralized data source TCP/IP Protocol Suite

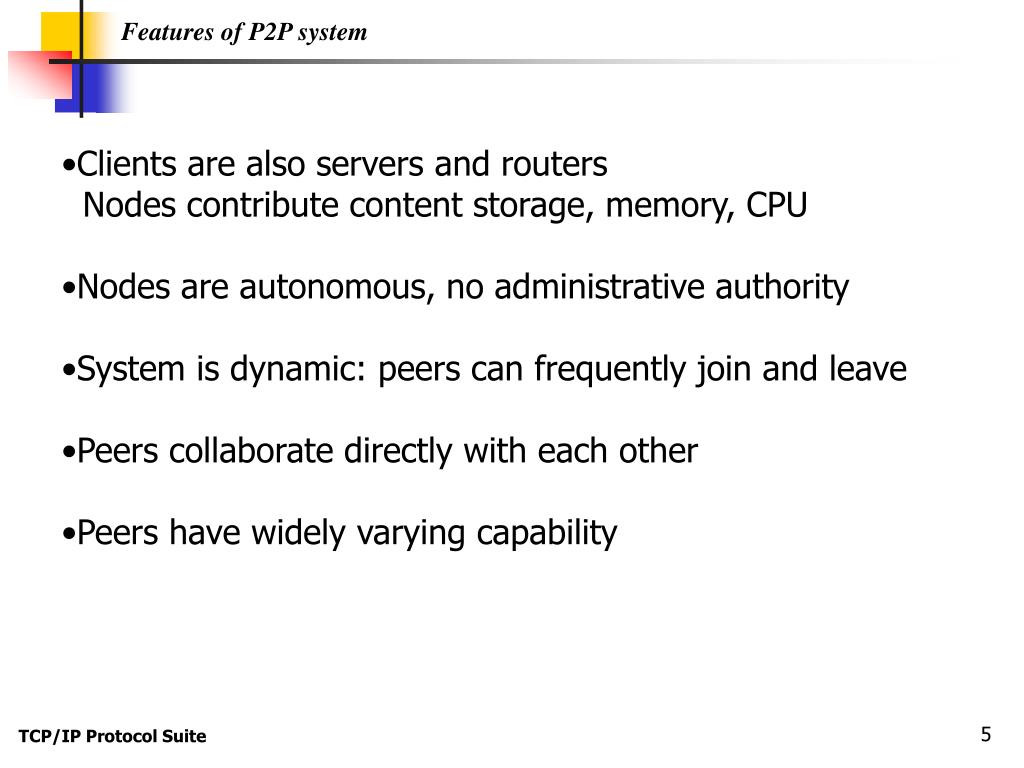

5. Features of P2P system • Clients are also servers and routers • Nodes contribute content storage, memory, CPU • Nodes are autonomous, no administrative authority • System is dynamic: peers can frequently join and leave • Peers collaborate directly with each other • Peers have widely varying capability TCP/IP Protocol Suite

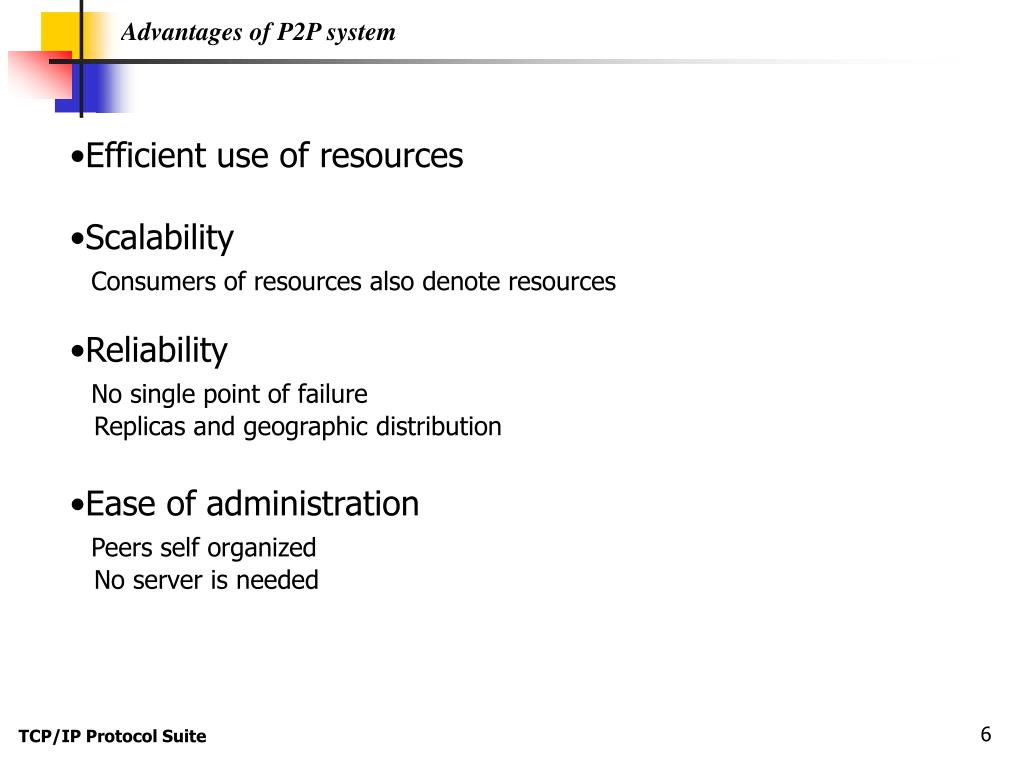

6. Advantages of P2P system • Efficient use of resources • Scalability • Consumers of resources also denote resources • Reliability • No single point of failure • Replicas and geographic distribution • Ease of administration • Peers self organized • No server is needed TCP/IP Protocol Suite

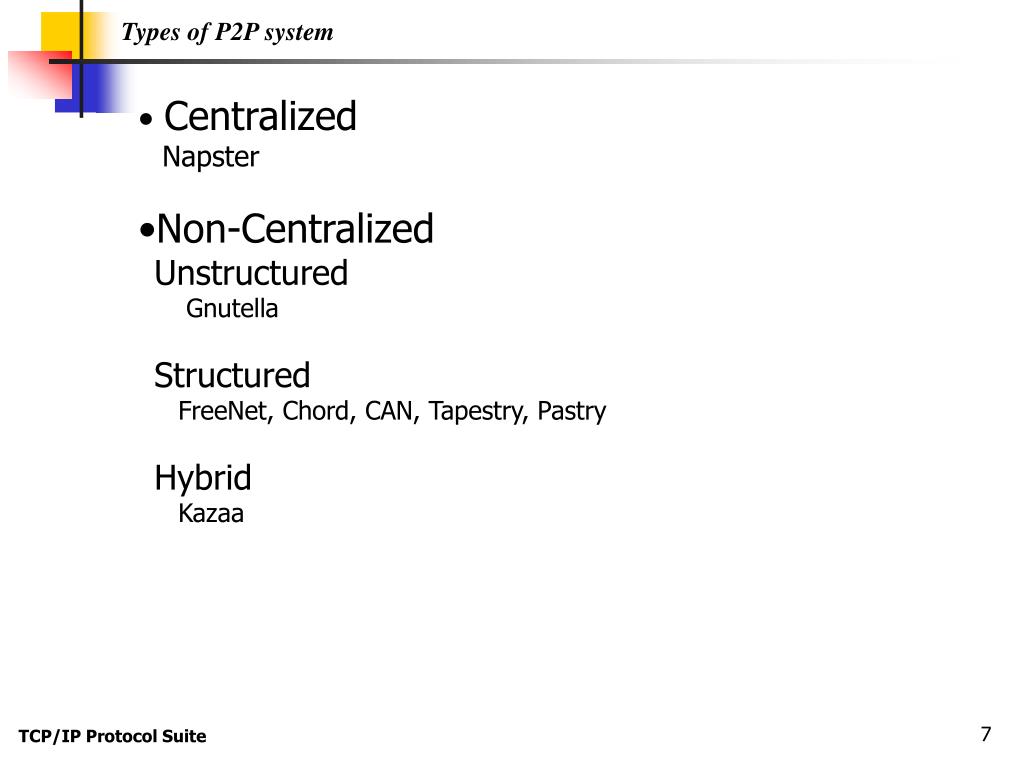

7. Types of P2P system • Centralized • Napster • Non-Centralized • Unstructured • Gnutella • Structured • FreeNet, Chord, CAN, Tapestry, Pastry • Hybrid • Kazaa TCP/IP Protocol Suite

8. Centralized P2P system • Napster model: File index is stored in a center server for file search File exchange directly by peers • Benefits: • Low per-node state • Limited bandwidth usage • Short location time • High success rate • Fault tolerant • Drawbacks: • Central point of failure • Limited scale • Possibly unbalanced load Bob Alice Judy Jane TCP/IP Protocol Suite

9. Napster • A P2P system for music sharing • Peers upload their list of files to Napster server • Peers send queries to Napster server for files on intrest • Napster server replies with IP address of users with matching files • Peers direct connect to the peers storing the intrested files. TCP/IP Protocol Suite

10. Unstructured P2P system • Gnutella model • Benefits: • Limited per-node state • Fault tolerant • Drawbacks: • High bandwidth usage • Long time to locate item • No guarantee on success rate • Possibly unbalanced load Carl Jane Bob Alice Judy TCP/IP Protocol Suite

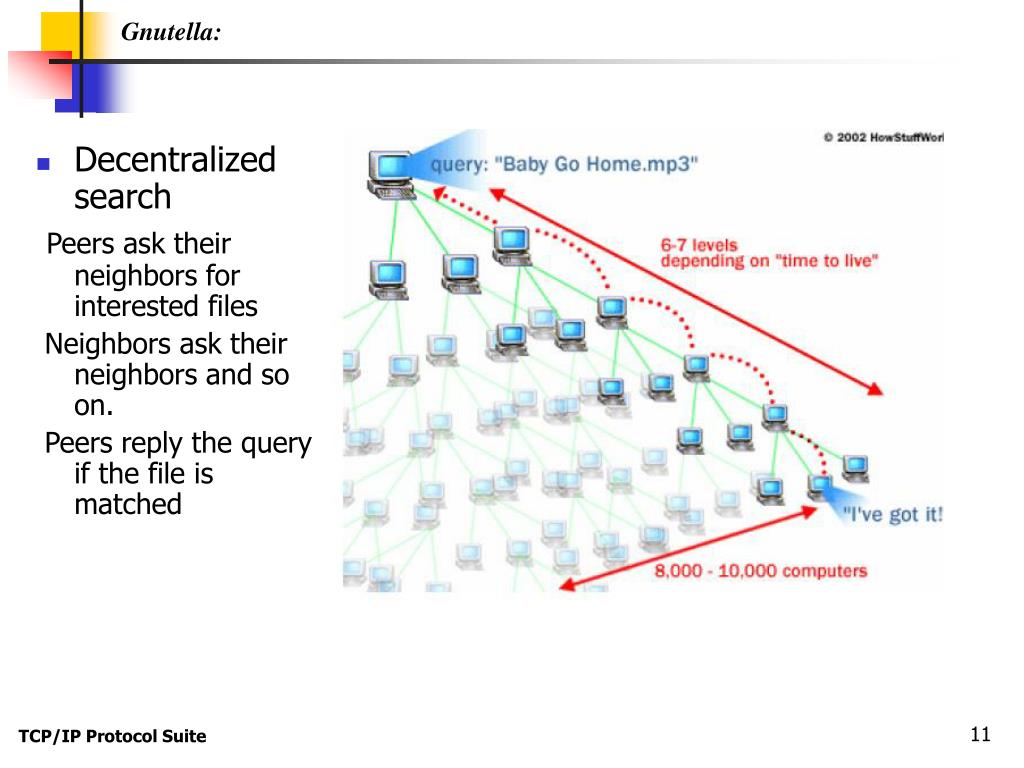

11. Gnutella: • Decentralized search Peers ask their neighbors for interested files Neighbors ask their neighbors and so on. Peers reply the query if the file is matched TCP/IP Protocol Suite

12. Structured P2P system • FreeNet, Chord, CAN, Tapestry, Pastry model Files are placed based on the file ID. Using hash for file search. • Benefits: • Manageable per-node state • Manageable bandwidth usage and time to locate item • Guaranteed success • Drawbacks: • Possibly unbalanced load • Harder to support fault tolerance 001 012 212 ? 212 ? 332 212 305 TCP/IP Protocol Suite

13. Distributed hash table (DHT) • Distributed version of a hash table data structure • Stores (key, value) pairs • The key is like a filename • The value can be file contents • Goal: Efficiently insert/lookup/delete (key, value) pairs • Each peer stores a subset of (key, value) pairs in the system • Core operation: Find node responsible for a key • Map key to node • Efficiently route insert/lookup/delete request to this node TCP/IP Protocol Suite

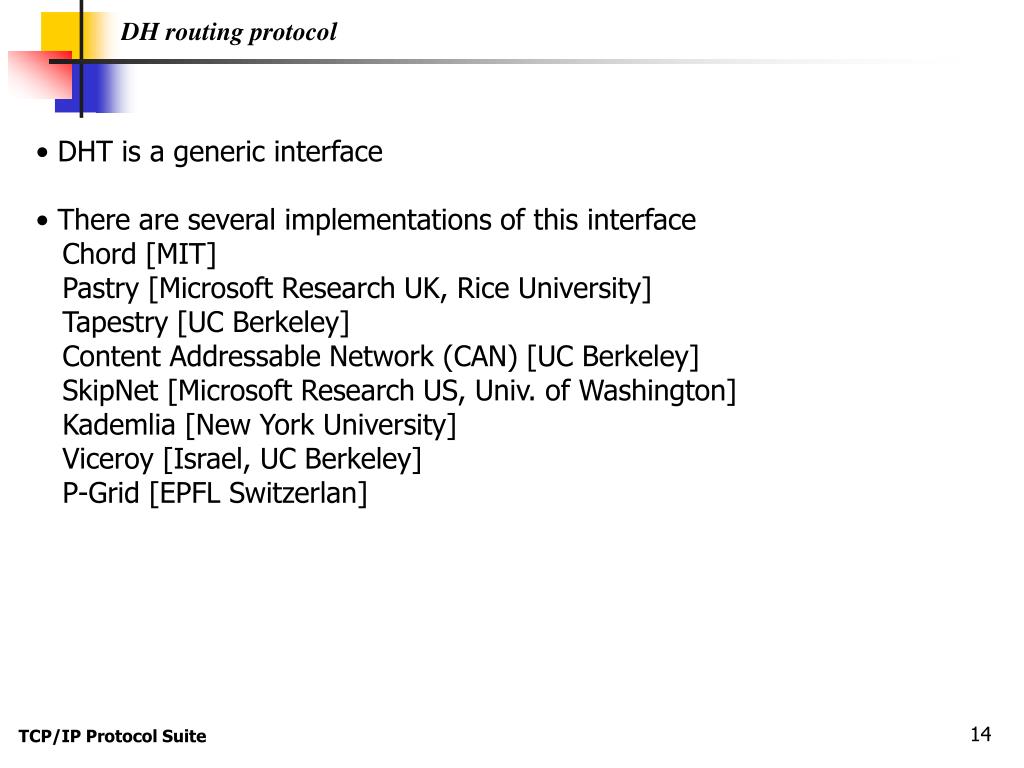

14. DH routing protocol • DHT is a generic interface • There are several implementations of this interface • Chord [MIT] • Pastry [Microsoft Research UK, Rice University] • Tapestry [UC Berkeley] • Content Addressable Network (CAN) [UC Berkeley] • SkipNet [Microsoft Research US, Univ. of Washington] • Kademlia [New York University] • Viceroy [Israel, UC Berkeley] • P-Grid [EPFL Switzerlan] TCP/IP Protocol Suite

15. Document Routing 001 012 • FreeNet, Chord, CAN, Tapestry, Pastry model • Benefits: • More efficient searching • Limited per-node state • Drawbacks: • Limited fault-tolerance vs redundancy 212 ? 212 ? 332 212 305 TCP/IP Protocol Suite

16. Associate to each node and item a unique id in an d-dimensional space Goals Scales to hundreds of thousands of nodes Handles rapid arrival and failure of nodes Properties Routing table size O(d) Guarantees that a file is found in at most d*n1/d steps, where n is the total number of nodes Document Routing – CAN TCP/IP Protocol Suite Slide modified from another presentation

17. Simple failures know your neighbor’s neighbors when a node fails, one of its neighbors takes over its zone More complex failure modes simultaneous failure of multiple adjacent nodes scoped flooding to discover neighbors hopefully, a rare event Node Failure Recovery TCP/IP Protocol Suite Slide modified from another presentation

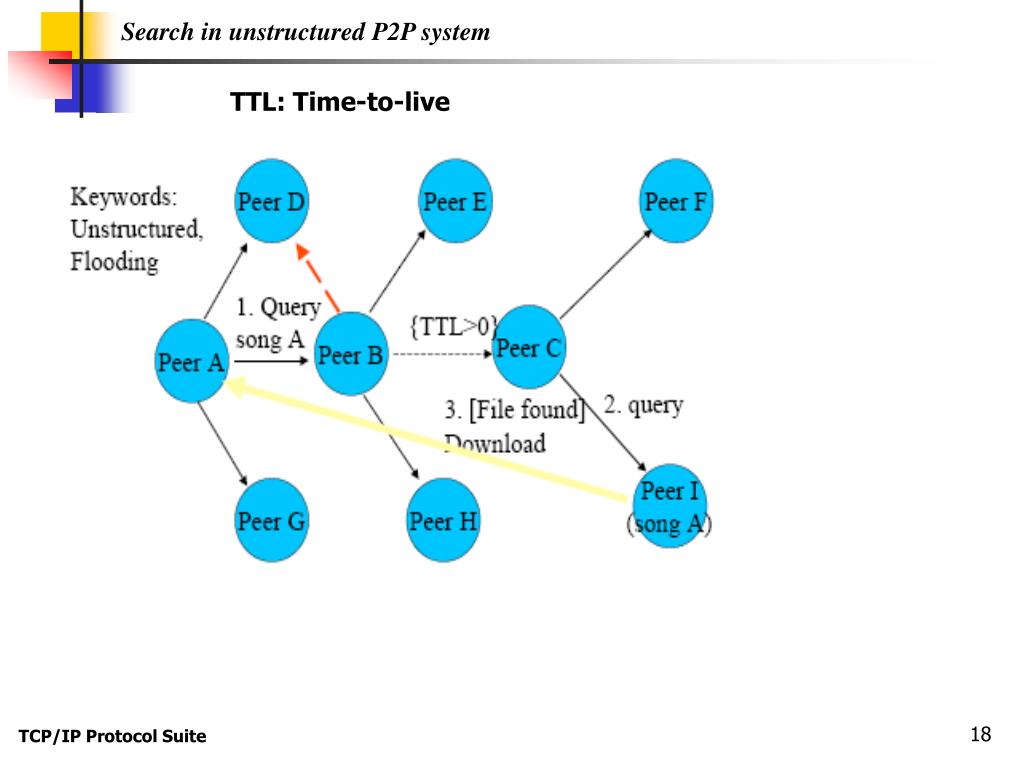

18. Search in unstructured P2P system TTL: Time-to-live TCP/IP Protocol Suite

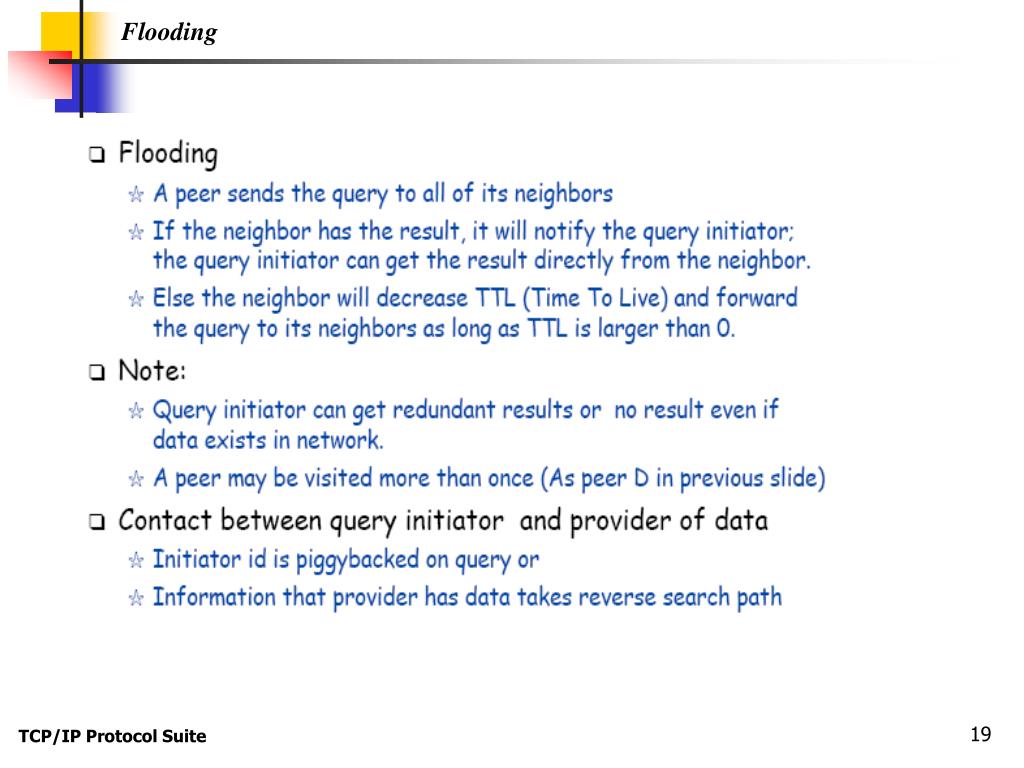

19. Flooding TCP/IP Protocol Suite

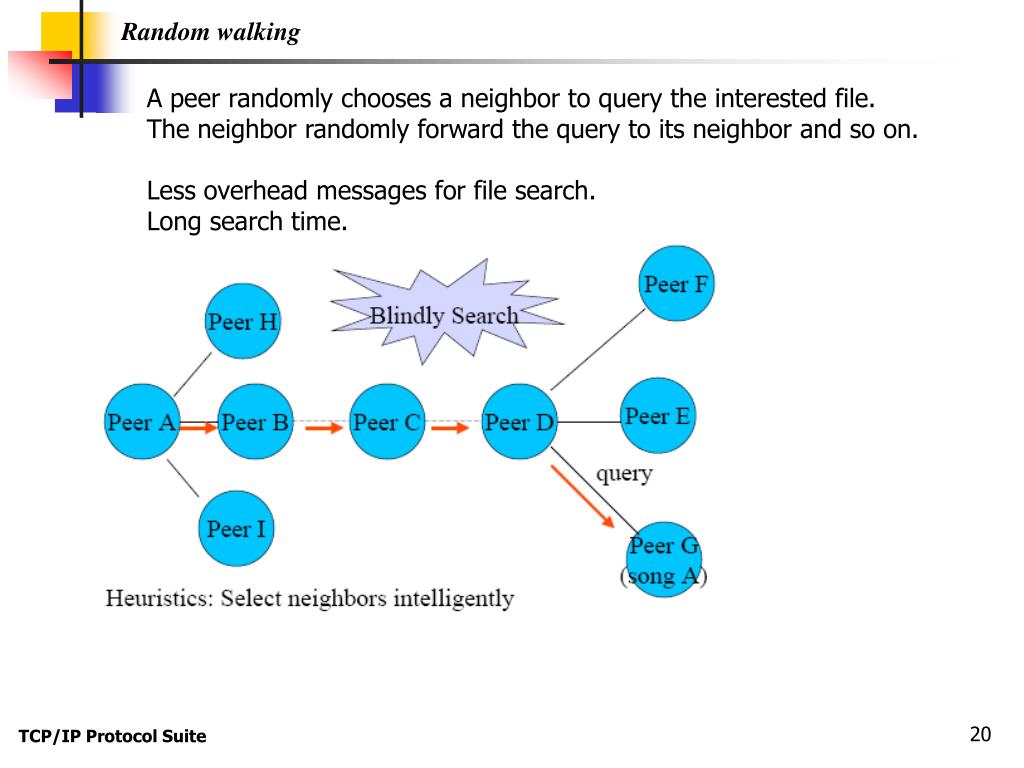

20. Random walking A peer randomly chooses a neighbor to query the interested file. The neighbor randomly forward the query to its neighbor and so on. Less overhead messages for file search. Long search time. TCP/IP Protocol Suite

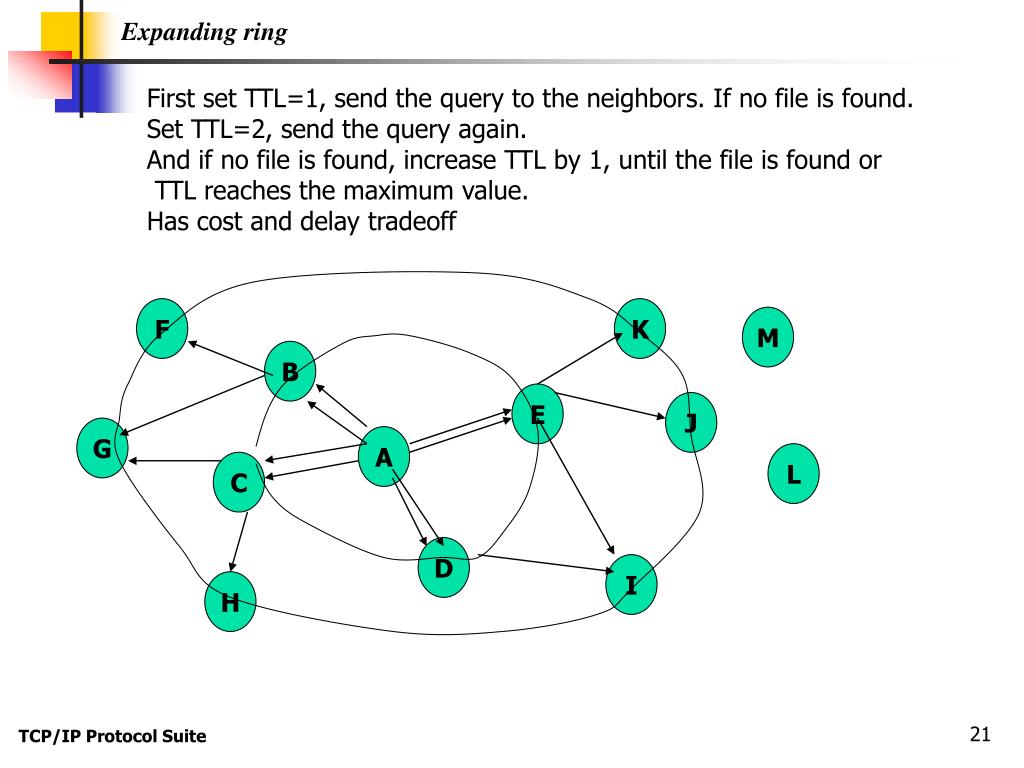

21. Expanding ring First set TTL=1, send the query to the neighbors. If no file is found. Set TTL=2, send the query again. And if no file is found, increase TTL by 1, until the file is found or TTL reaches the maximum value. Has cost and delay tradeoff F K M B E J G A L C D I H TCP/IP Protocol Suite

22. Instructor: Zhijun Wang P2P streaming COMP 416b Internet Protocols and Software TCP/IP Protocol Suite

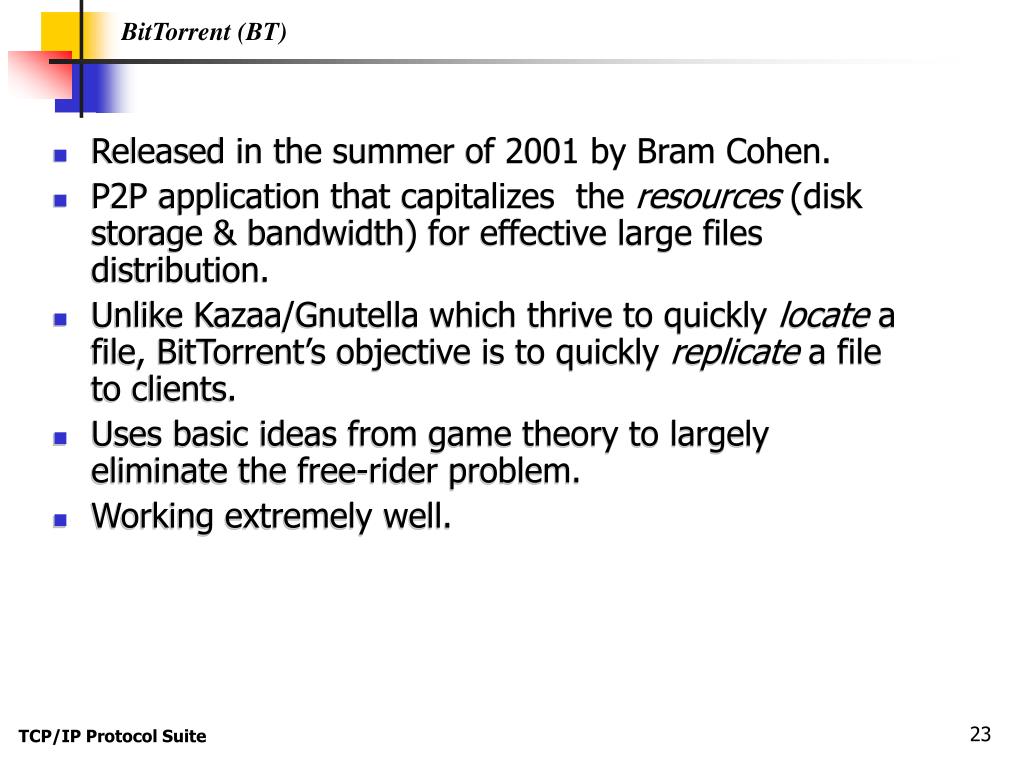

23. BitTorrent (BT) • Released in the summer of 2001 by Bram Cohen. • P2P application that capitalizes the resources (disk storage & bandwidth) for effective large files distribution. • Unlike Kazaa/Gnutella which thrive to quickly locate a file, BitTorrent’s objective is to quickly replicate a file to clients. • Uses basic ideas from game theory to largely eliminate the free-rider problem. • Working extremely well. TCP/IP Protocol Suite

24. Basic concepts of BT • Seed : A peer that has the entire file. • Leecher : A peer that has incomplete copy of the file. • A .torrent file. • Passive component • Lists a SHA1 hash to verify integrity of files • Typically hosted on a web server • A Tracker • Active component • Allows peers to find each other • Returns a random list of peers connected TCP/IP Protocol Suite

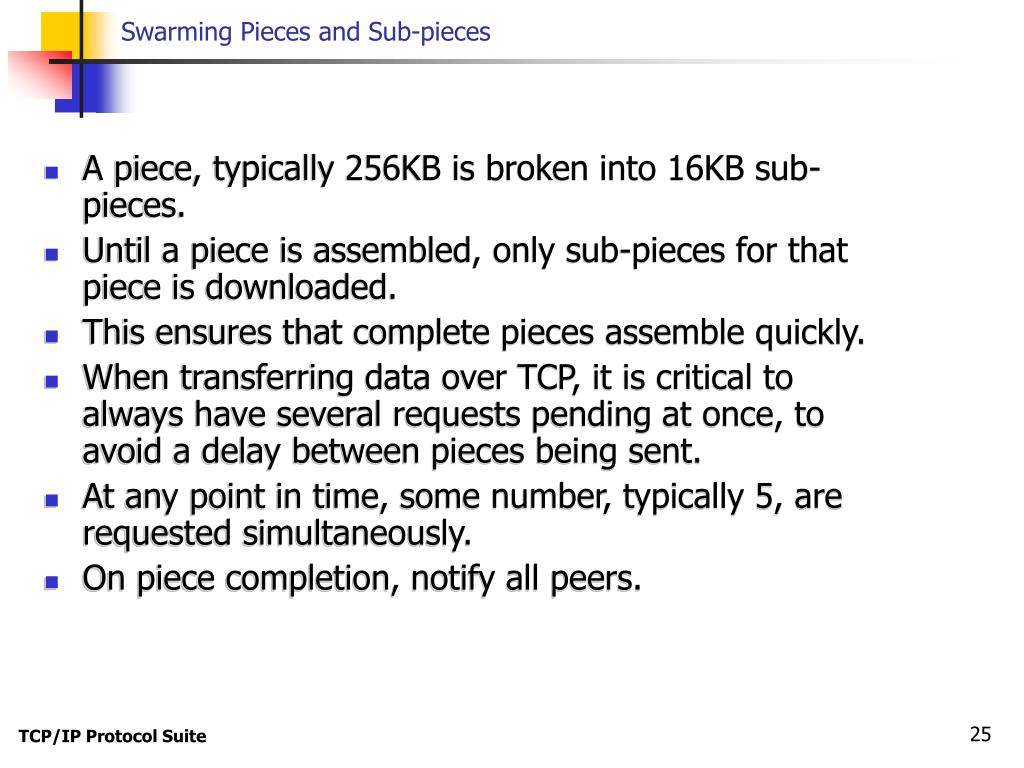

25. Swarming Pieces and Sub-pieces • A piece, typically 256KB is broken into 16KB sub-pieces. • Until a piece is assembled, only sub-pieces for that piece is downloaded. • This ensures that complete pieces assemble quickly. • When transferring data over TCP, it is critical to always have several requests pending at once, to avoid a delay between pieces being sent. • At any point in time, some number, typically 5, are requested simultaneously. • On piece completion, notify all peers. TCP/IP Protocol Suite

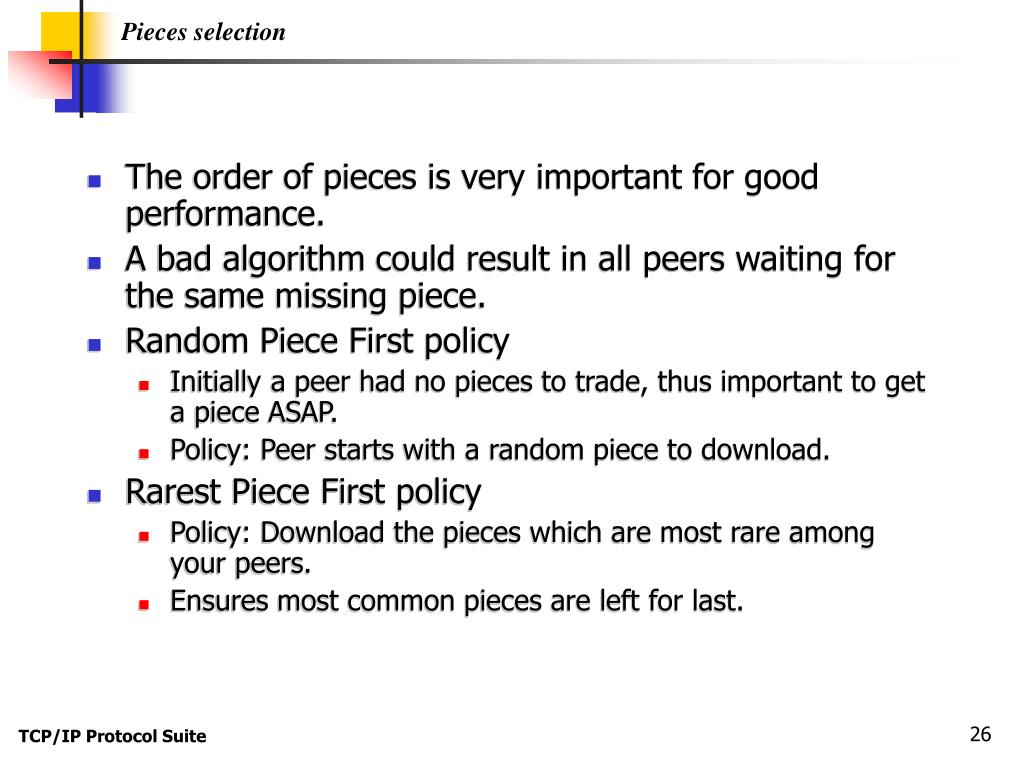

26. Pieces selection • The order of pieces is very important for good performance. • A bad algorithm could result in all peers waiting for the same missing piece. • Random Piece First policy • Initially a peer had no pieces to trade, thus important to get a piece ASAP. • Policy: Peer starts with a random piece to download. • Rarest Piece First policy • Policy: Download the pieces which are most rare among your peers. • Ensures most common pieces are left for last. TCP/IP Protocol Suite

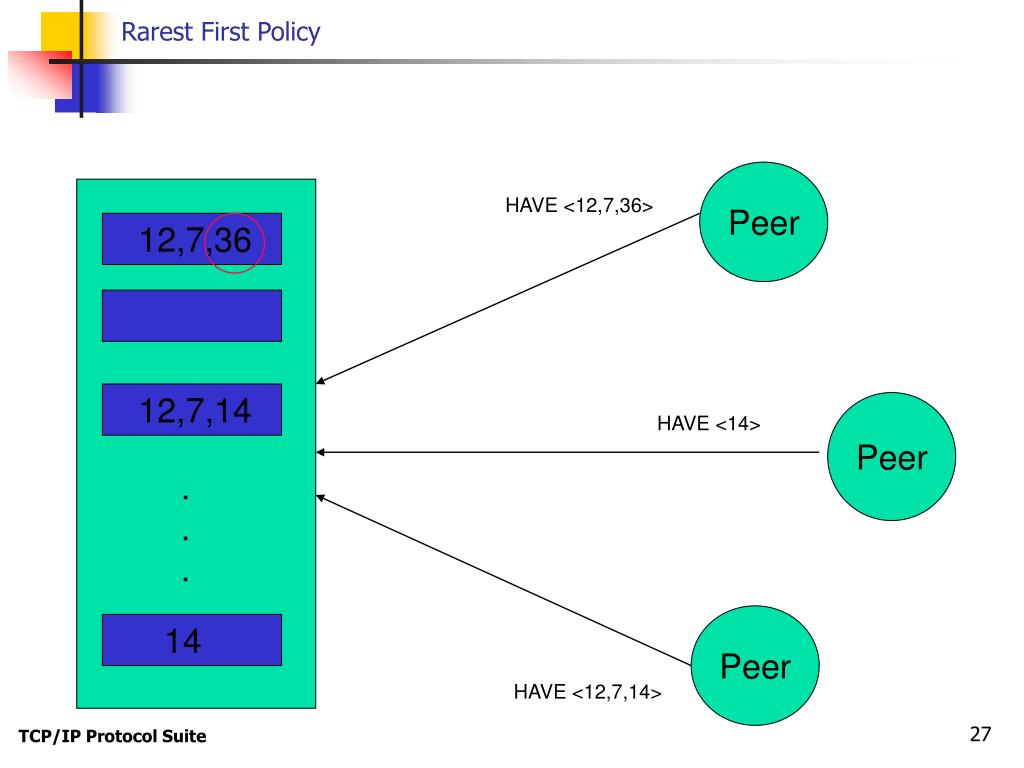

27. HAVE <12,7,36> HAVE <14> HAVE <12,7,14> Rarest First Policy Peer 12,7,36 12,7,14 Peer . . . Peer 14 TCP/IP Protocol Suite

28. Topology P2P streaming system • Tree topology Server Peers are arranged as a tree. A peer download the data from its parent. TCP/IP Protocol Suite

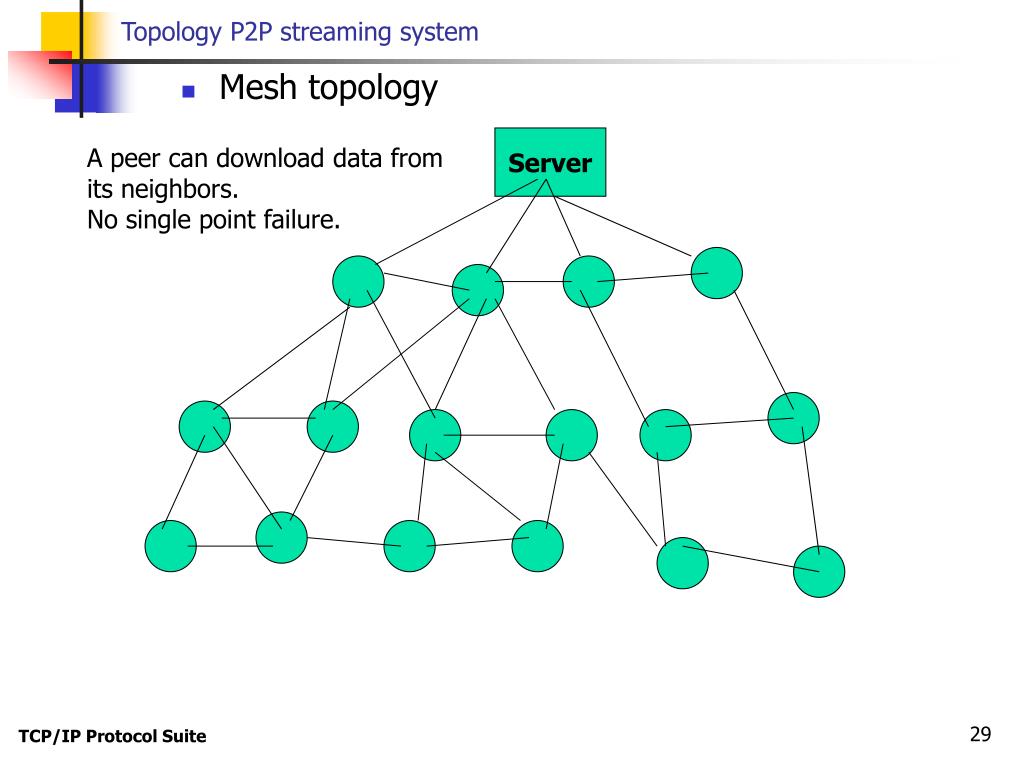

29. Topology P2P streaming system • Mesh topology Server A peer can download data from its neighbors. No single point failure. TCP/IP Protocol Suite

30. IPTV system • PPLive: free P2P-based IPTV • As of January 2006, the PPLive network provided 200+ channels with 400,000 daily users on average. • The bit rates of video programs mainly range from 250 Kbps to 400 Kbps with a few channels as high as 800 Kbps. • The video content is mostly feeds from TV channels in Mandarin. • The channels are encoded in two video formats: Window Media Video (WMV) or Real Video (RMVB). • The encoded video content is divided into chunks and distributed to users through the PPLive P2P network. TCP/IP Protocol Suite

31. IPTV Architecture TCP/IP Protocol Suite

32. PPlive process TCP/IP Protocol Suite

33. PPlive process • Cached contents can be uploaded to other peers watching the same channel. • This peer may also upload cached video chunks to multiple peers. • Received video chunks are reassembled in order and buffered in queue of PPLive TV engine, forming local streaming file in memory. • When the streaming file length crosses a predefined threshold, the PPLive TV engine launches media player, which downloads video content from local HTTP streaming server. • After the buffer of the media player fills up to required level, the actual video playback starts. • When PPLive starts, the PPLive TV engine downloads media content from peers aggressively to minimize playback start-up delay. • When the media player receives enough content and starts to play the media, streaming process gradually stabilizes. • The PPLive TV engine streams data to the media player at media playback rate. TCP/IP Protocol Suite

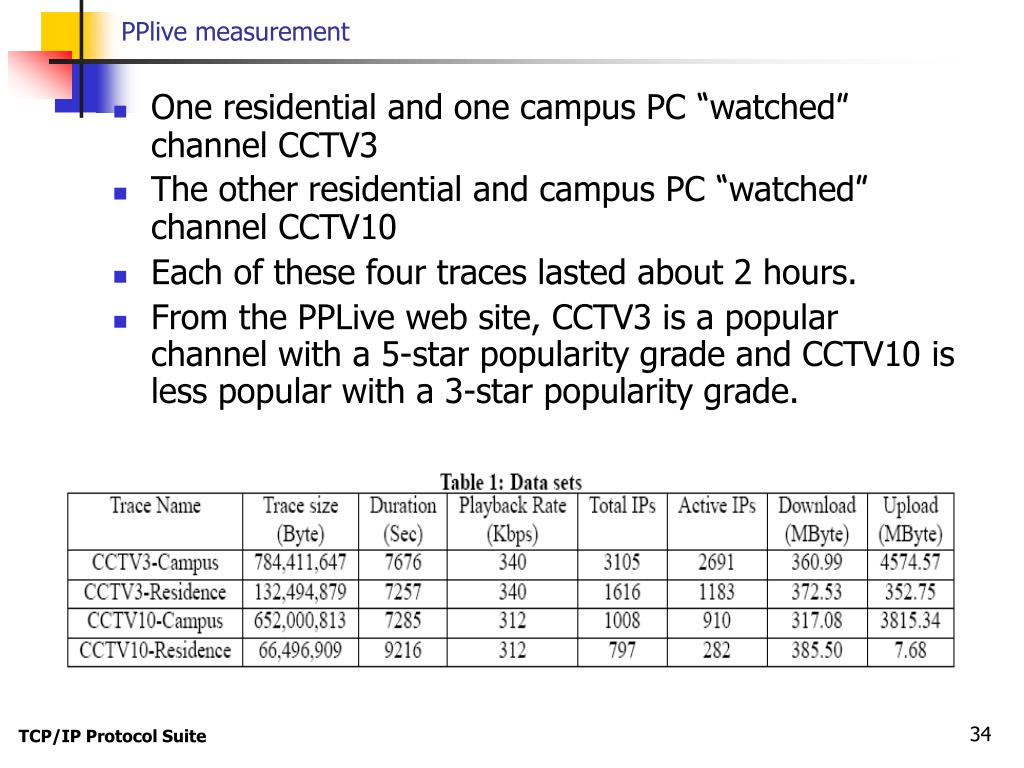

34. PPlive measurement • One residential and one campus PC “watched” channel CCTV3 • The other residential and campus PC “watched” channel CCTV10 • Each of these four traces lasted about 2 hours. • From the PPLive web site, CCTV3 is a popular channel with a 5-star popularity grade and CCTV10 is less popular with a 3-star popularity grade. TCP/IP Protocol Suite

35. Session duration • Signaling versus video sessions • All sessions are TCP based • The median video session is about 20 seconds and about 10% of video sessions last for over 15 minutes or more. TCP/IP Protocol Suite

36. Video traffic breakdown TCP/IP Protocol Suite

37. Questions?? TCP/IP Protocol Suite
