  1. LISA-Pathfinder

  2. Les buts The LISA TechnologyPackage on board of LISA PATHFINDER will enable testing of following LISA key technologies: 'Inertial Sensor': to demonstrate that the test masses are really flying free of all external influences and to detect changes in the position and orientation of the satellite relative to the proof mass; 'disturbance-free flight control': multiple sets of thrusters at µ-Newton levels (not part of LTP) will be used to control the spacecraft position to a few microns. The thrusters are to counteract the changes in position and orientation of the spacecraft due to external forces in order to keep it centred on the proof mass. This will also include test of the algorithms of the system control. ‘laser interferometer': to measure the absolute position and attitude and the difference in the displacement of the two proof masses to validate that each is 'disturbance-free' within the requirements.

  3. LISA-Pathfinder Masse de l'engin spatial Science : 480 kg Module de propulsion, carburant inclus : 420 kg Masse totale au lancement : 1900 kg Dimensions : 2,9 m de haut pour 2,1 m de diamètre Date de lancement : Mi-2008

  4. Spacecraft Masse Masse laser interferometer

  5. Heterodyne Interferometer for LISA Pathfinder

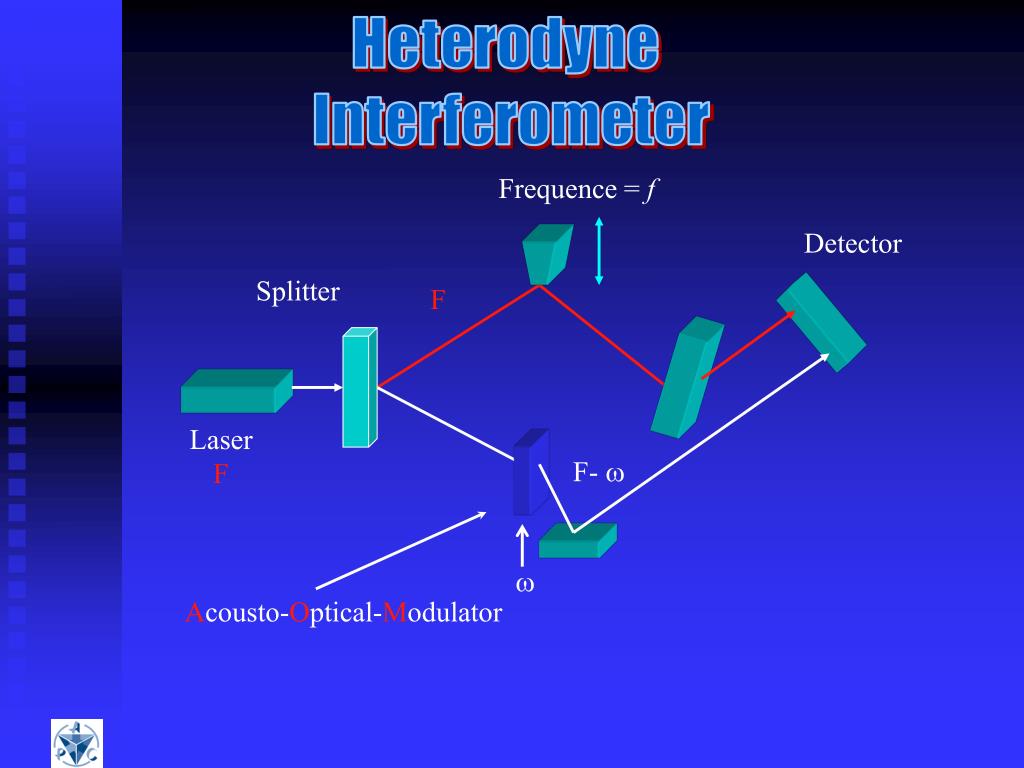

  6. Heterodyne Interferometer Frequence = f Detector Splitter F Laser F F- w w Acousto-Optical-Modulator

  7. Heterodyne Interferometer Sans f et F Phase du au Mouvement du miroir -f +f W

  8. Acousto Optique Modulator F Ordre 1 F+ w Ordre 0 F F F- w F Ordre 0 Ordre 1 w w

  9. Heterodyne Interferometer for LISA Pathfinder

  10. Interferometre

  11. Interferometre

  12. Interferometre

  13. Laser Modèle de vol Nd:YAG 25 mw 1064 nm --> LISA

  14. Projet

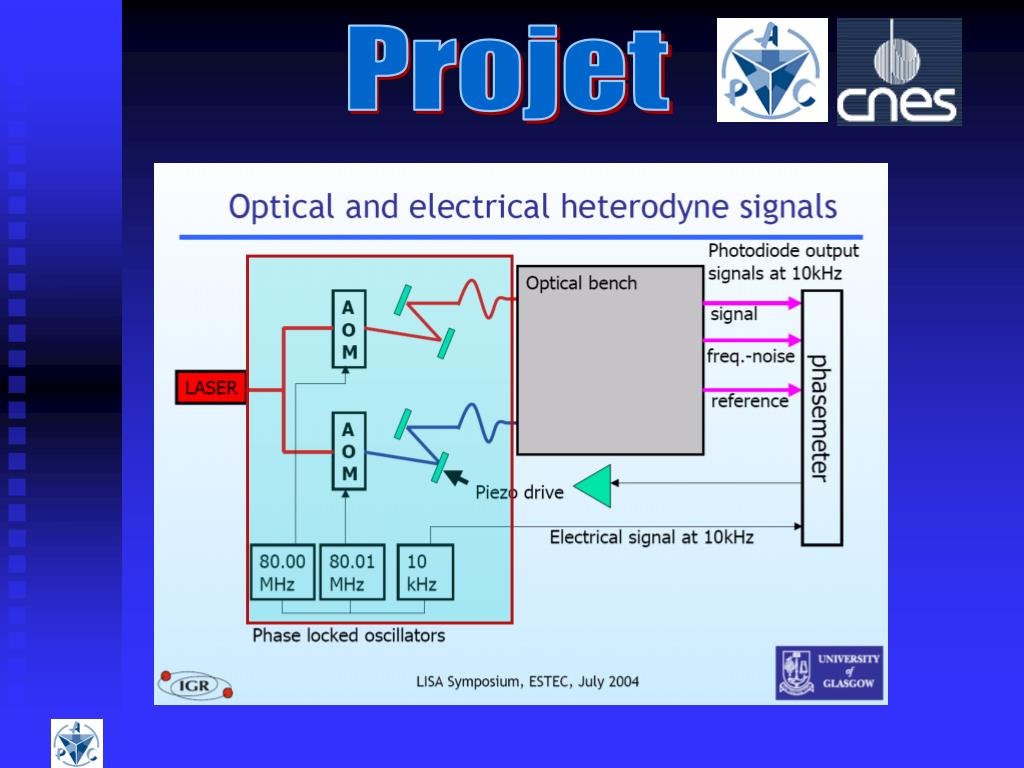

  15. A.O.M. Pharao. • -Design of 15 AOM • (Oxyde de Tellure) • Prototype AOM for Lisa-Pathfinder. Ecole Normale Supérieure

  16. Effets Temperature

  17. Resultats

  18. AOM with RF amplitude control Laser-AOM électronique 178 cm Laser unit 212 cm

  19. Qui

  20. Pour 2012-14 FIN
