Industrial Storm Water Permits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Industrial Storm Water Permits The purpose of the Stormwater Industrial program is to provide training, inspections and enforcement to municipal and industrial facility owner/operators and the public so they can be in compliance with their Oklahoma City Stormwater Industrial Discharge permit and to prevent pollution of Oklahoma City community waterways. City of Oklahoma City Public Works Department Storm Water Quality Division

  2. History… • OKC Public Works Department obtained ODEQ Permit – 1995, and all City permits were in place. • 1st Focus: Erosion Control & Construction Outreach & Training • 2nd: 1996, began Industrial Inspections • 3rd: 1997, began Cosmetic Cleaning

  3. Are you on the list?Is there a “Potential”? • USEPA identified 11 industrial business facility categories, each with a list of SIC codes, to be evaluated for the permit requirement. • 40 CFR 122.26(b)(14)(i)-(xi) • www.epa.gov/npdes/pubs/list.pdf • You must first find your 4-digit SIC code,(Corporate tax returns under Schedule K), and determine if your on the list.

  4. SIC and/or Risk • Assure the facility’s SIC is “listed” or the activity is worthy of permitting. • Evaluate thePotential Pollutant Risk • None: No Exposure Certification • Yes: Permit • Permitted facilities receive: • Annual Audits • Semi-annual Inspections • Complaint Inspections • Annual Workshops at no cost

  5. No Exposure Certification • NO EXPOSURE…. • Means precipitation does not come into contact with any industrial materials and/or activities, and if it does, • It will not have a potential to pollute the waterways of the state. • NEC’s are reviewed every 5 years.

  6. No Exposure Certification

  7. Storm-Resistant Shelter Not Required When … • Drums, barrels, tanks, & other containers are sealed (never opened outside), and do not have operational taps/valves • Are not deteriorated or leaking • Have clean exteriors • Are off the ground, on a contaminant-free platform, rack or pallet • Are regularly inspected

  8. Audit/Inspection Preparation • Monthly printouts of “inspections due” are provided to each Inspector. • Each Facility’s Permit File is reviewed, and the “pink copy” of the last visit is pulled. • The inspector may review literature on unfamiliar industrial types. • The Inspector may (some prefer not to) then make appointments with each Facility Coordinator/Owner.

  9. Upon Arrival • Establish contact with the Coordinator and present credentials. • Explain the purpose of the visit, the information to be reviewed, and the exterior inspection to be done. • Document initial information on the 3-copy audit form.

  10. Information & Forms Required Include: • SWQ Notice of Intent (NOI) • SWPPP – Storm Water Pollution Prevention Plan [Materials/Activities Inventory & BMPs] • Facility Site Plan or Map • Routine Site Inspection Documents with P.M. • Employee Training • Quarterly Visual Monitoring Documents • Annual Comprehensive Site Evaluation Reports

  11. Inventory & Specific BMPs • Most importantpart of the Plan! • Documents all outside materials & activities, • Perform Risk Assessmentson each, and if risk found… • Requires a specific BMPto assure no pollutant hasthe potential to be dis-charged from the property.

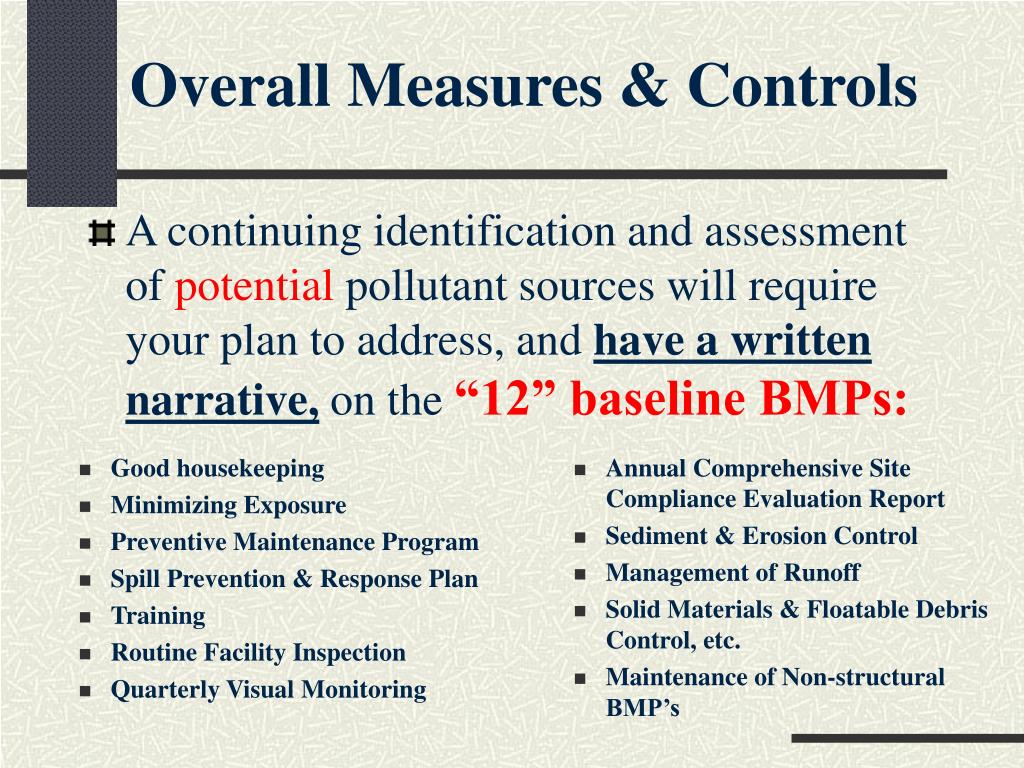

  12. Overall Measures & Controls • A continuing identification and assessment of potential pollutant sources will require your plan to address, and have a written narrative, on the “12” baseline BMPs: • Good housekeeping • Minimizing Exposure • Preventive Maintenance Program • Spill Prevention & Response Plan • Training • Routine Facility Inspection • Quarterly Visual Monitoring • Annual Comprehensive Site Compliance Evaluation Report • Sediment & Erosion Control • Management of Runoff • Solid Materials & Floatable Debris Control, etc. • Maintenance of Non-structural BMP’s

  13. Non-Stormwater Discharges • To “Certify” that your facility has been evaluated, you must: • Identify potential non-stormwater discharges (Process water; A/C condensate; Cooling water; Vehicle wash water; Sanitary wastes) • Allowable Discharge vs. A Pollutant • Describe the method used (visual or analytical), and result of the evaluation • Indicate the location of onsite drainage points, if any • Provide the date and signature of the certifier.

  14. Allowable Discharge vs. Pollutant • If the evaluation test results find the discharge to be contaminated, it must be: • Added to the “Materials and Activities Inventory” and the “BMP Development” forms, and the • BMP implemented to control the discharge

  15. Develop Site Maps (Actual & 1-mi Radius) • To include discharge points (outfalls), storm drains, past spills, non-stormwater discharges • Drainage patterns (direction of flow) • Pollutants likely to be discharged – linked to Inventory • Surface receiving waters within 1 mile • Structural control measures • Location of materials exposed to storm water • Location of high-risk, waste-generating areas and industrial activities (fueling stations, loading/unloading areas, etc.)

  16. Visual Monitoring • You must perform and document a “quarterly” visual examination of a storm water discharge from each outfall identified on your site map. • The sample(s) must be taken within the first 30 minutes, not later than 1 hour of when the runoff begins discharging from your facility, preferably during regular working hours. The rain event must be greater than 0.1 inches in magnitude and at least 72 hours from the last measurable rainfall. • While your facility, or a site, is temporarily inactive and unstaffed, you may exercise a waiver of the monitoring requirement. To do this, you must sign and certify the waiver in your SWPPP, stating that “the site is inactive or unstaffed and that performing visual examinations during a qualifying rainfall is not feasible.

  17. Visual Monitoring Data Sample to be collected in a wide-mouth, clear glass or plastic container, 500 ml or 1 qt in size.

  18. Annual Audit “Inspection” • Goal is to assure all industrial materials or activities, and their locations, which are exposed to storm water and have a potential to pollute, are addressed in the SWPPP. • Proof is through Quarterly Visual Monitoring, Routine Facility Inspections, Employee Training and other required documentation.

  19. What To Look For….. • Areas where spills and leaks from equipment, drums, tanks, or other containers have occurred within the past 3 years • Raw, final or waste materials; residue; trash; or sediment; that could contaminate, blow or wash away • Offsite vehicle tracking of materials or sediment • Evidence of, or potential for, pollutants to enter the “Drainage System”

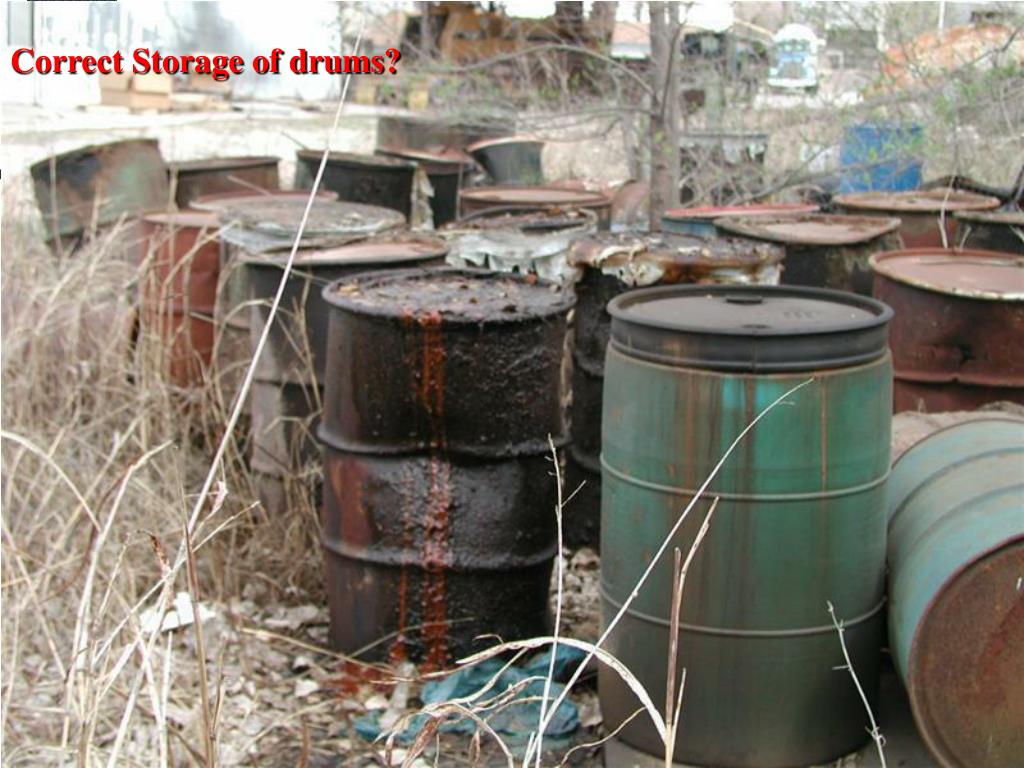

  20. Correct Storage of drums?

  21. Illicit Discharge • …any discharge to an MS4 that is not composed entirely of storm water…

  22. Identify minor spills Paint Spill

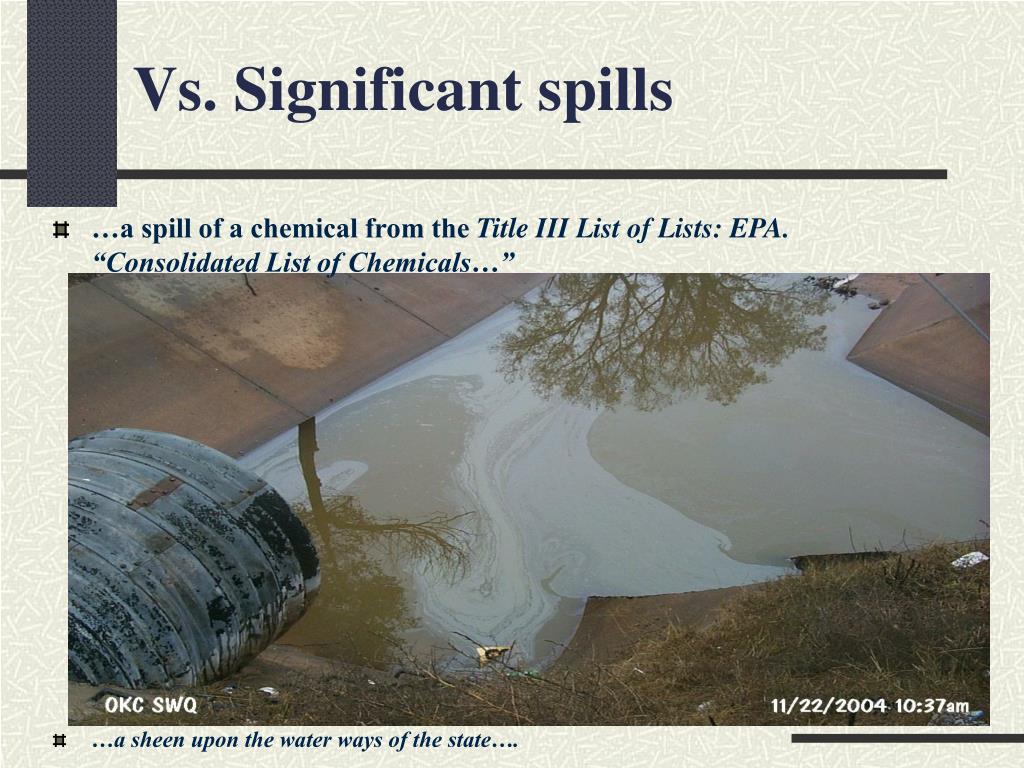

  23. Vs. Significant spills • …a spill of a chemical from the Title III List of Lists: EPA. “Consolidated List of Chemicals…” • …a sheen upon the water ways of the state….

  24. Evaluate the facility… • All industrial processes and disposal methods that has a potential to contaminate rain water runoff • Outside storage areas and supplies • Loading and unloading areas • Chemical storage and spill control (ASTs) • Waste storage, treatment and disposal • Facility’s storm drain connections and ditches • BMPs in use • Maintenance of Records – 3 years

  25. Floatable debris

  26. Dumpsters without plugs, cause leakage & staining

  27. Cosmetic Cleaning… • Any commercial washing, requires a permit. • In accordance with Chapter 57 of our Municipal Codes:Any system, machine, or substance used to remove undesirable substances from ANY surface or facade creating free foreign matter.

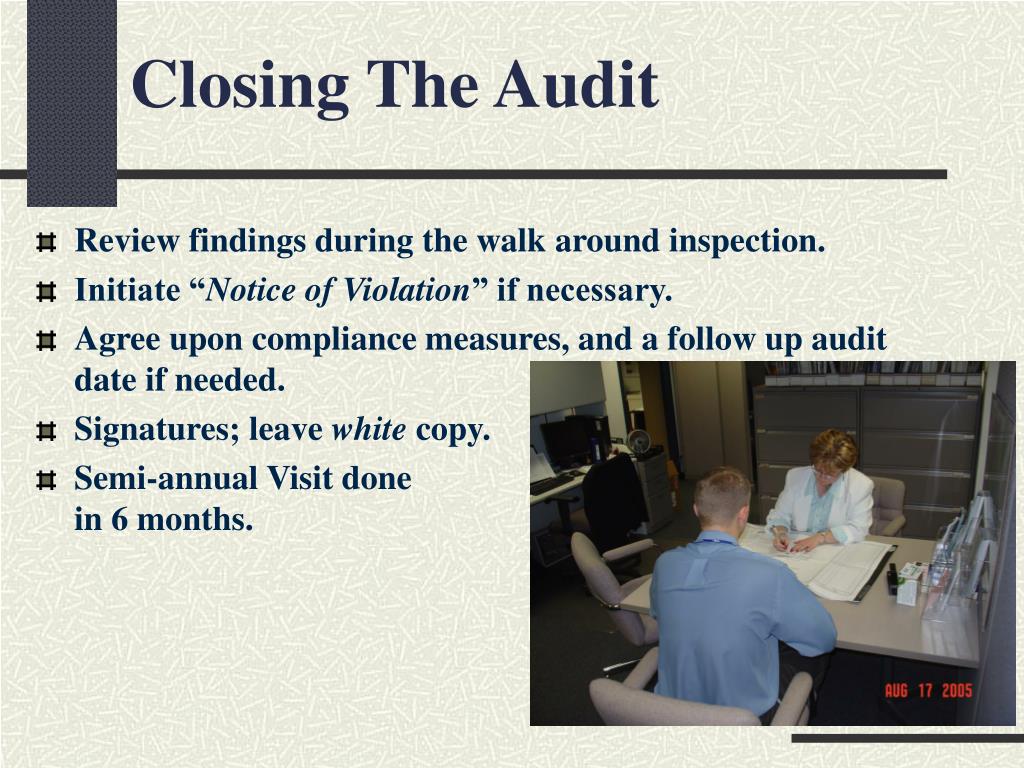

  28. Closing The Audit • Review findings during the walk around inspection. • Initiate “Notice of Violation” if necessary. • Agree upon compliance measures, and a follow up audit date if needed. • Signatures; leave white copy. • Semi-annual Visit done in 6 months.

  29. Office Paper Flow • Audit forms (yellow and pink copies) (and any pictures) are filed in the individual Facility’s Permit File. • Information is entered intothe Industrial database.

  30. Enforcement • All Industrial inspectors are commissioned Environmental Enforcement Officers, capable of shutting down or stopping any activity that is breaking city ordinances or a facilities requirement per their SWPPP. • First offense: Warning possible Notice of Violation (NOV) • Second offense: NOV and stopping activity or facility • Third offense: NOV, stopping facility, fine/s • On some occasions, in cooperation with the Departmental of Environmental Quality, felony arrests have been made.

  31. Safety • An Inspector shall not attempt to do an audit when the safety of the Inspector could be compromised in anyway, or • If during an audit the Inspector feels that their safety is in danger in anyway, • The inspector shall immediately stop the audit and leave the facility.

  32. City of Oklahoma CityStormwater Quality Forms • www.okc.gov • City Departments • Public Works • Storm Water Quality • Forms
