Chp . 7 Rotational Motion

Chp . 7 Rotational Motion. Rotational Motion. When an object spins or moves about an axis of rotation it has rotational motion. Ɵ = S = angular displacement the angle r of change in motion measured in radians in rotary motion. S. Ɵ. S = arc length , distance along the

eagan-oneil
Télécharger la présentation

Chp . 7 Rotational Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chp. 7 Rotational Motion

  2. Rotational Motion When an object spins or moves about an axis of rotation it has rotational motion. Ɵ = S=angular displacement the angle rof change in motion measured in radians in rotary motion S Ɵ S = arc length, distance along the circular path measured in m or cm r = radius of circular path, measured in m or cm • Fig, 7-3 • page 245

  3. Conversion: degrees to radians • Ɵ(in degrees) _____ox Π/180o = Ɵ(in radians)

  4. FYI:Linear vs. Rotational Kinematic Equations vf= vi+ aΔt x = vit + ½ aΔt2 vf2= vi2 + 2aΔx x = ½ (vi+vf)Δt ωf = ωi+αΔt ΔƟ = ωiΔt+ ½ αΔt2 ωf2 = ωi2+ 2αΔƟ ΔƟ = ½(ωi+ωf)Δt * Table 7-2 page 251

  5. Tangential Speed: Vt(units: m/sec) Instantaneous linear speed of an object directed along a tangent path to an object’s circular motion. vt= rω Tangential Acceleration: at(units: m/sec2) Instantaneous linear acceleration of an object along it’s tangent path to the object’s circular motion. at= rα * Sample 7E & 7F page 254 & 256

  6. Centripetal Acceleration: ac Accleration due to change in direction and it is directed toward the center of the circular path. ac = vt2( units: m/s2 ) r ac =rω2 (units: m x (rad/s)2 = m/s2 ) atvs. ac : They are not the same thing!!

  7. ac at atotal atotal =ac2 + at2 Therefore… tan Ɵ= ac at * Sample 7G page 258

  8. Forces that create and maintain circular motion Fc m r V Fc = mac= mvt2 = mrω2 (units: N) r Centripetal Force *Sample 7H page 261

  9. Newton’s Law of Universal Gravitation Based on the mutual force of attraction between particles of matter -- gravitational forces. Gravitational forces exist between any 2 objects no matter how small or how large or how far apart they are. Fg= G m1m2 r2 Universal Gravitation Constant G= 6.673 x 10-11 N m2/kg2

  10. * Sample 7I page 264 Satellites Pages 266-267 Calculating the escape speed for satellites: Vesc Vesc= 2MG R

  11. Hmwk. #3 Book Chp. 7 7E 1,2,4 2. ω1=10.5 rad/s 4. a. 3.6m/s b. 15 rad/s c. 29 m/s d. 1.3m 7F 1,2,3 2. r = .51m 7G 1,2,5 2. vt=11 m/s 7H 1,3,4 4. vt= 35 m/s 7 I 1,2,3 2. r = 9.4 x 106m ?? Km

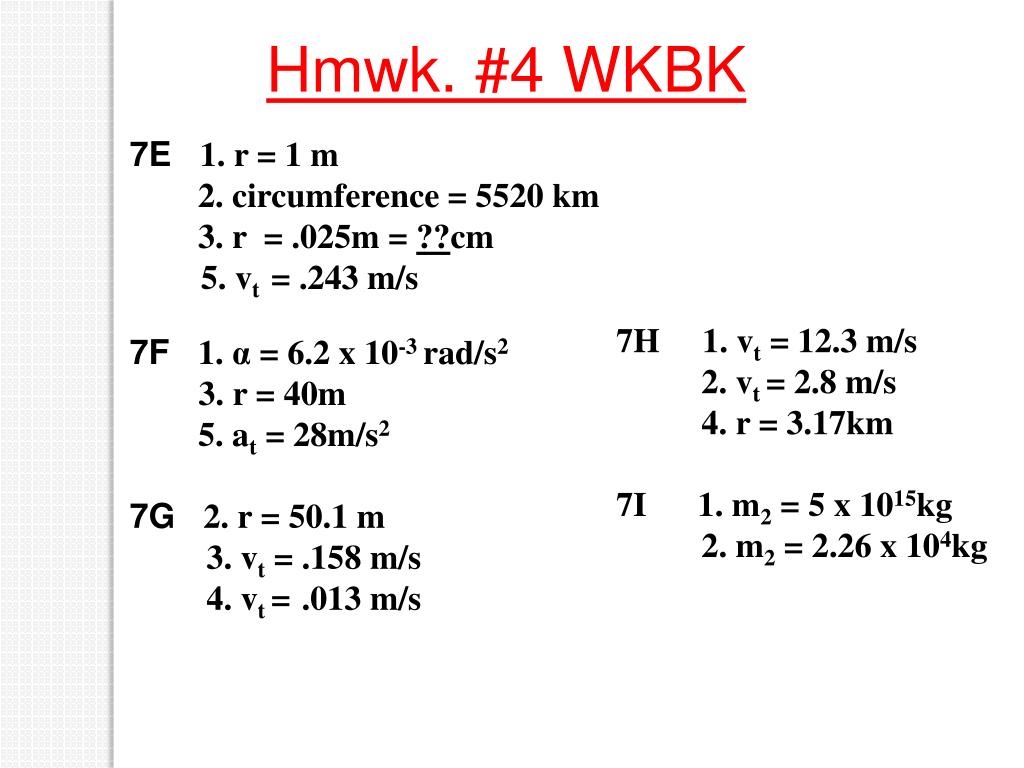

  12. Hmwk. #4 WKBK 7E 1. r = 1 m 2. circumference = 5520 km 3. r = .025m = ??cm 5. vt= .243 m/s 7F 1. α = 6.2 x 10-3 rad/s2 3. r = 40m 5. at = 28m/s2 7G 2. r = 50.1 m 3. vt = .158 m/s 4. vt=.013 m/s 7H 1. vt = 12.3 m/s 2. vt= 2.8 m/s 4. r = 3.17km 7I 1. m2 = 5 x 1015kg 2. m2 = 2.26 x 104kg
