  1. Advanced Topics Cleanroom Software Engineering Quality Assurance CSE 495 Maj Brian Hermann

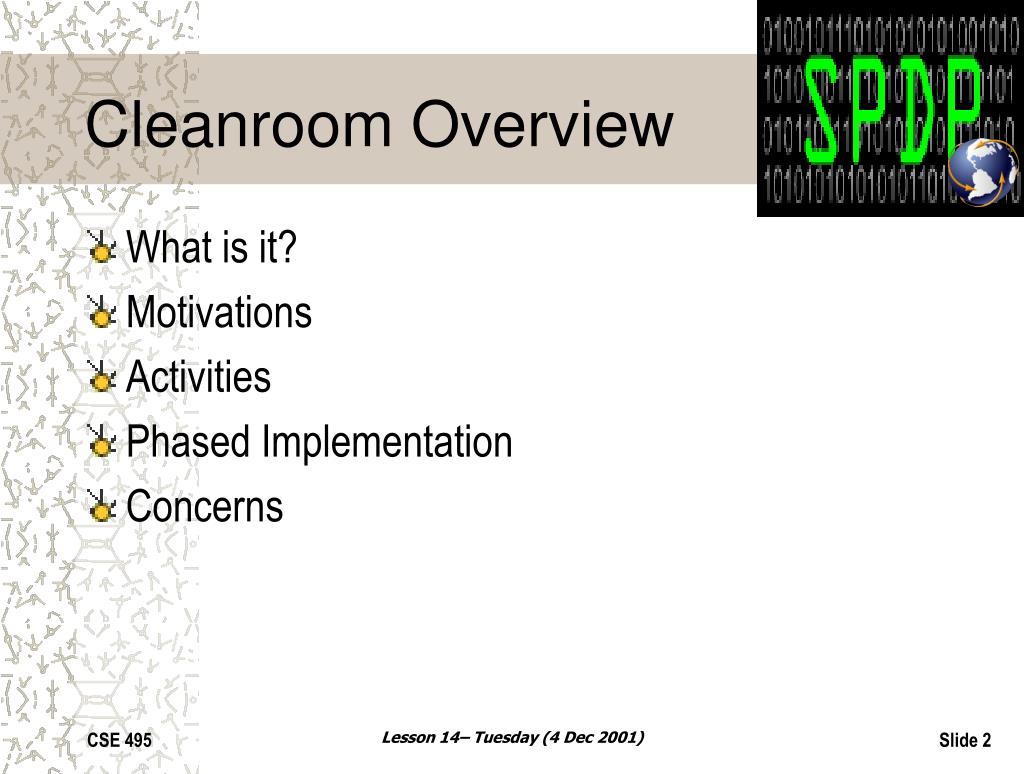

  2. Cleanroom Overview • What is it? • Motivations • Activities • Phased Implementation • Concerns Lesson 14– Tuesday (4 Dec 2001)

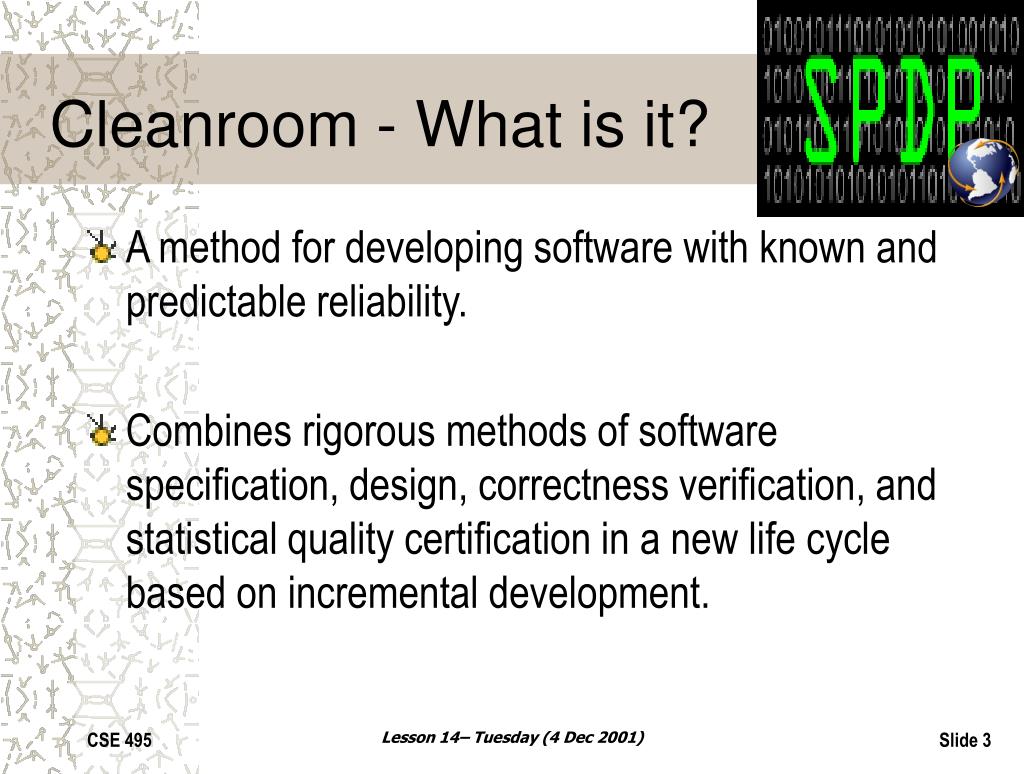

  3. Cleanroom - What is it? • A method for developing software with known and predictable reliability. • Combines rigorous methods of software specification, design, correctness verification, and statistical quality certification in a new life cycle based on incremental development. Lesson 14– Tuesday (4 Dec 2001)

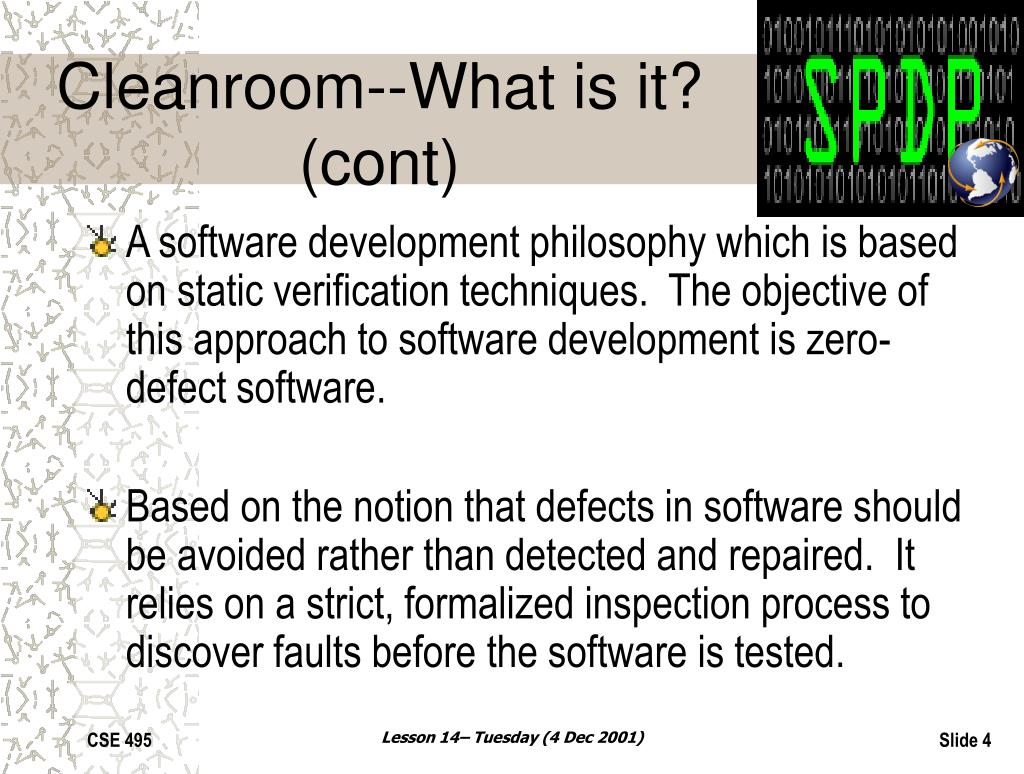

  4. Cleanroom--What is it? (cont) • A software development philosophy which is based on static verification techniques. The objective of this approach to software development is zero-defect software. • Based on the notion that defects in software should be avoided rather than detected and repaired. It relies on a strict, formalized inspection process to discover faults before the software is tested. Lesson 14– Tuesday (4 Dec 2001)

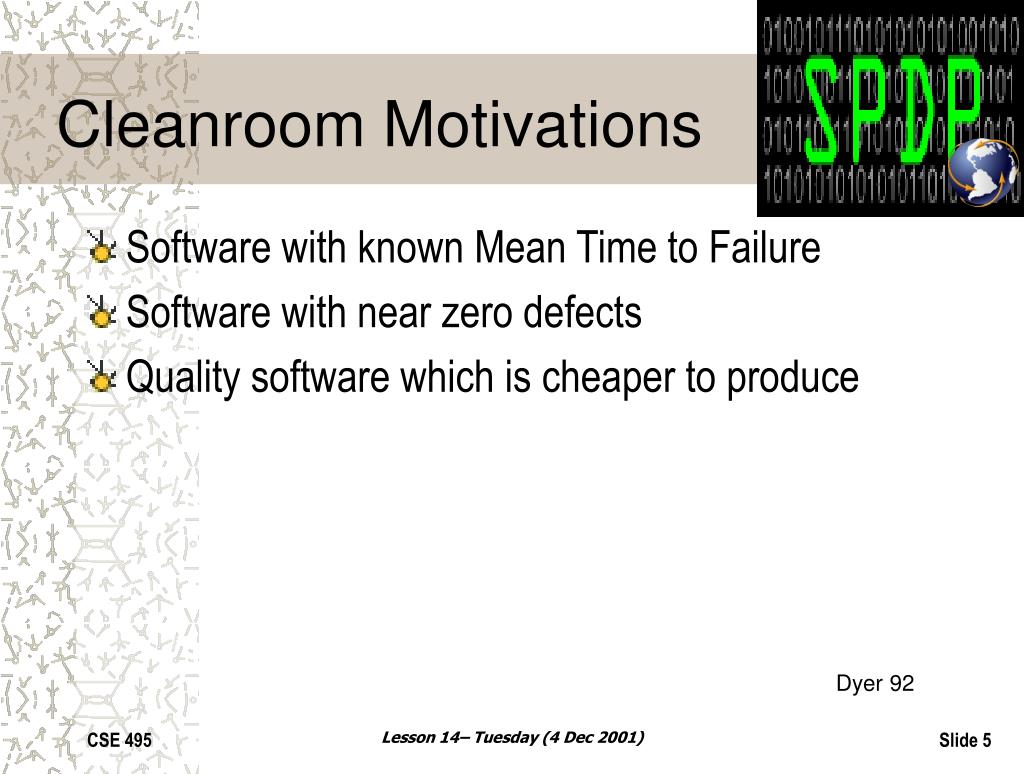

  5. Cleanroom Motivations • Software with known Mean Time to Failure • Software with near zero defects • Quality software which is cheaper to produce Dyer 92 Lesson 14– Tuesday (4 Dec 2001)

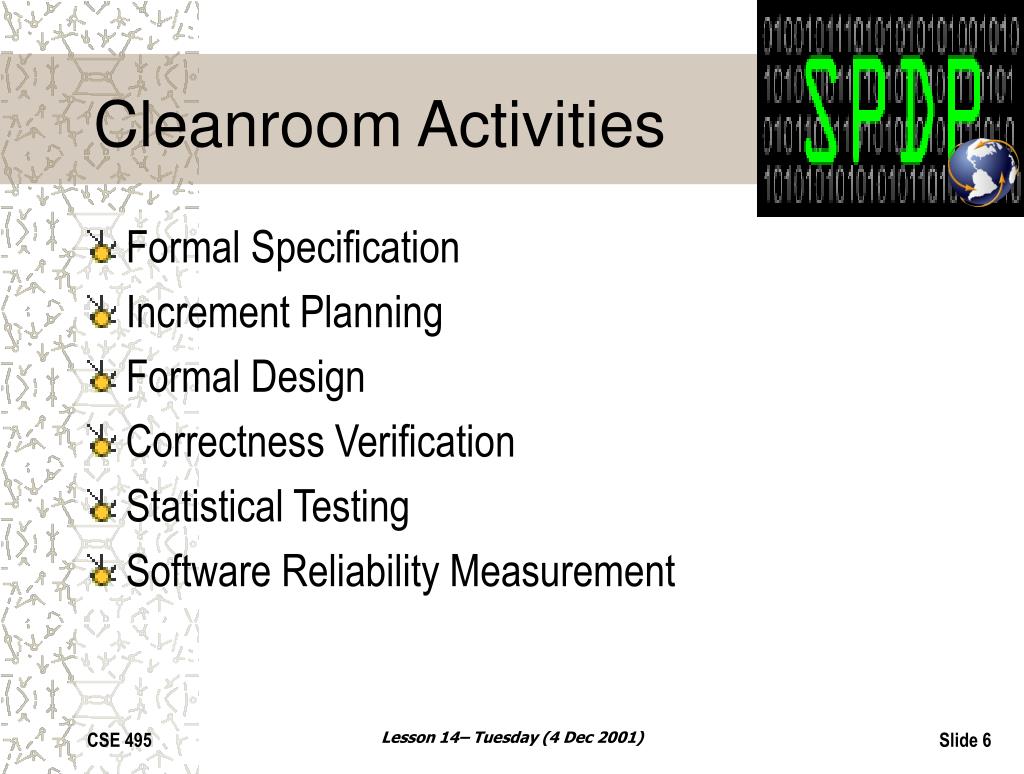

  6. Cleanroom Activities • Formal Specification • Increment Planning • Formal Design • Correctness Verification • Statistical Testing • Software Reliability Measurement Lesson 14– Tuesday (4 Dec 2001)

  7. Formal Specification • Formal methods (box structuring techniques, Z, VDM, etc.) force a more exacting analysis of the requirements and tend to minimize ambiguity, inconsistency, and incompleteness in the resultant software specification. • Two specifications: • Functional • Usage Lesson 14– Tuesday (4 Dec 2001)

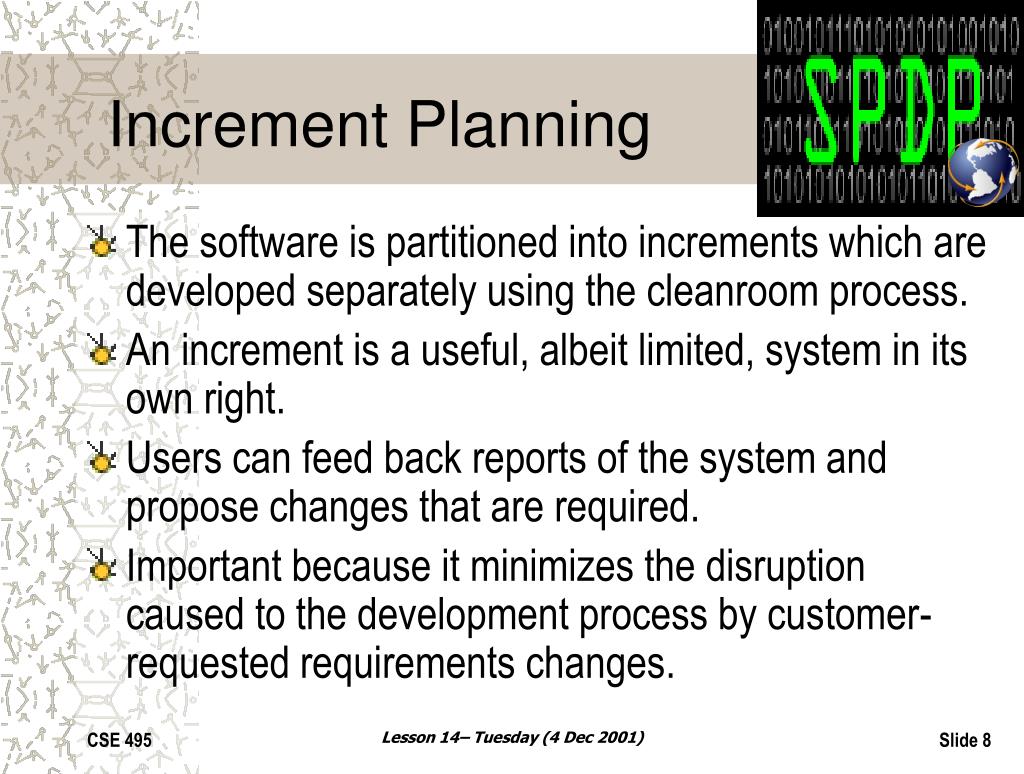

  8. Increment Planning • The software is partitioned into increments which are developed separately using the cleanroom process. • An increment is a useful, albeit limited, system in its own right. • Users can feed back reports of the system and propose changes that are required. • Important because it minimizes the disruption caused to the development process by customer-requested requirements changes. Lesson 14– Tuesday (4 Dec 2001)

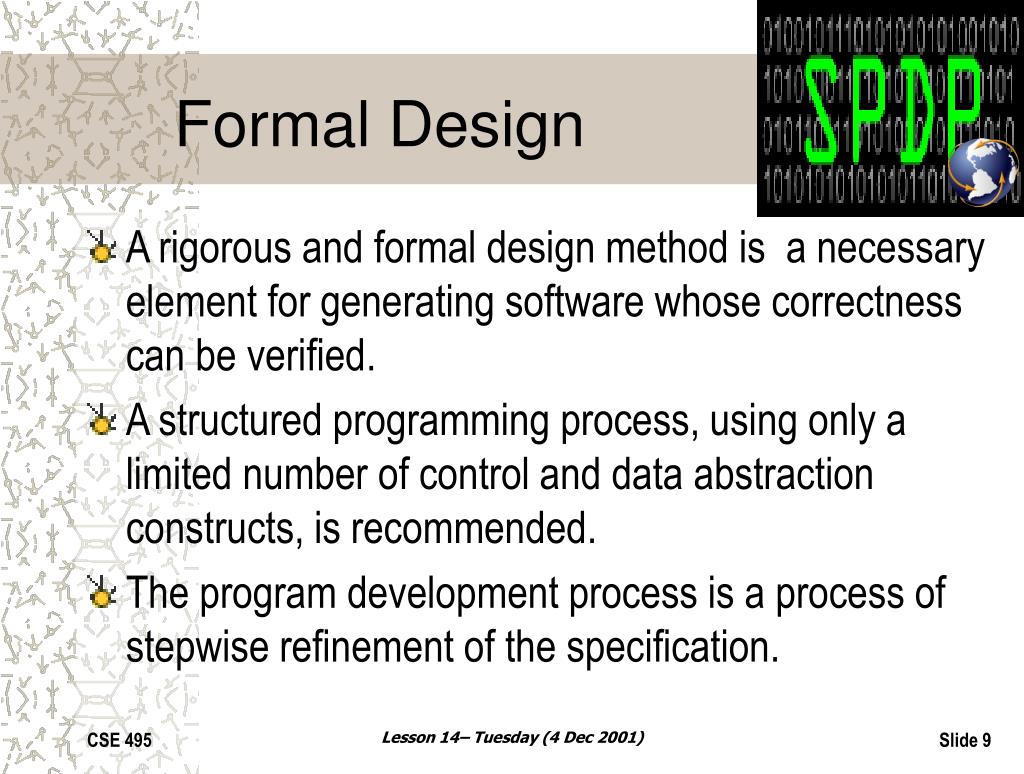

  9. Formal Design • A rigorous and formal design method is a necessary element for generating software whose correctness can be verified. • A structured programming process, using only a limited number of control and data abstraction constructs, is recommended. • The program development process is a process of stepwise refinement of the specification. Lesson 14– Tuesday (4 Dec 2001)

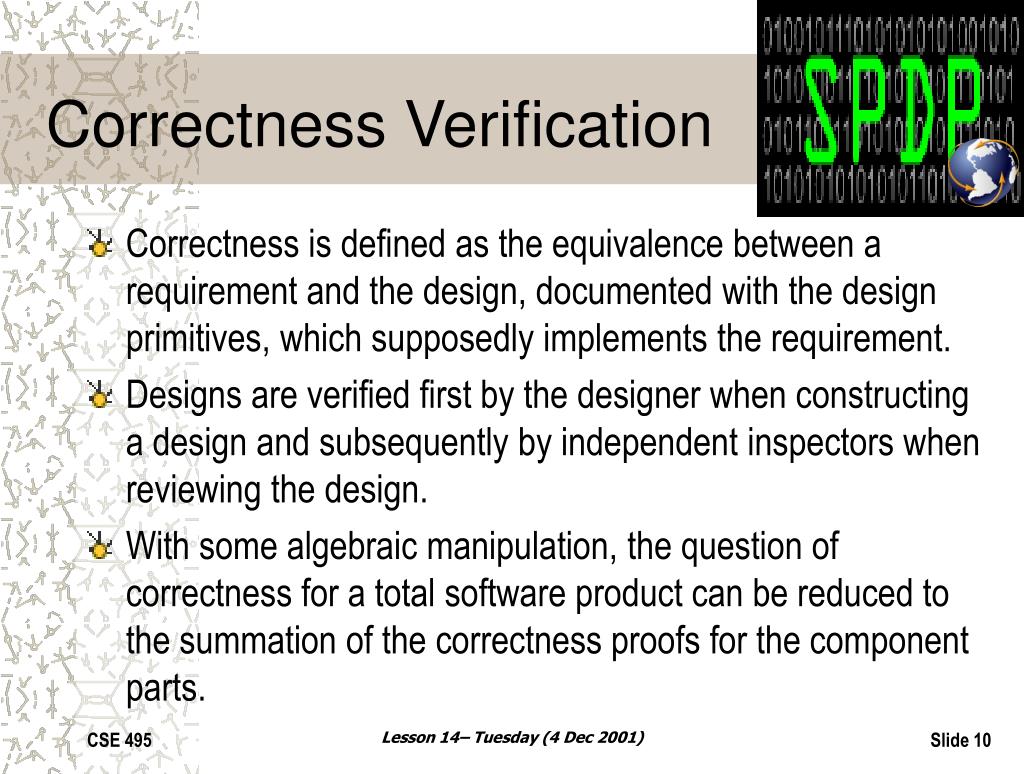

  10. Correctness Verification • Correctness is defined as the equivalence between a requirement and the design, documented with the design primitives, which supposedly implements the requirement. • Designs are verified first by the designer when constructing a design and subsequently by independent inspectors when reviewing the design. • With some algebraic manipulation, the question of correctness for a total software product can be reduced to the summation of the correctness proofs for the component parts. Lesson 14– Tuesday (4 Dec 2001)

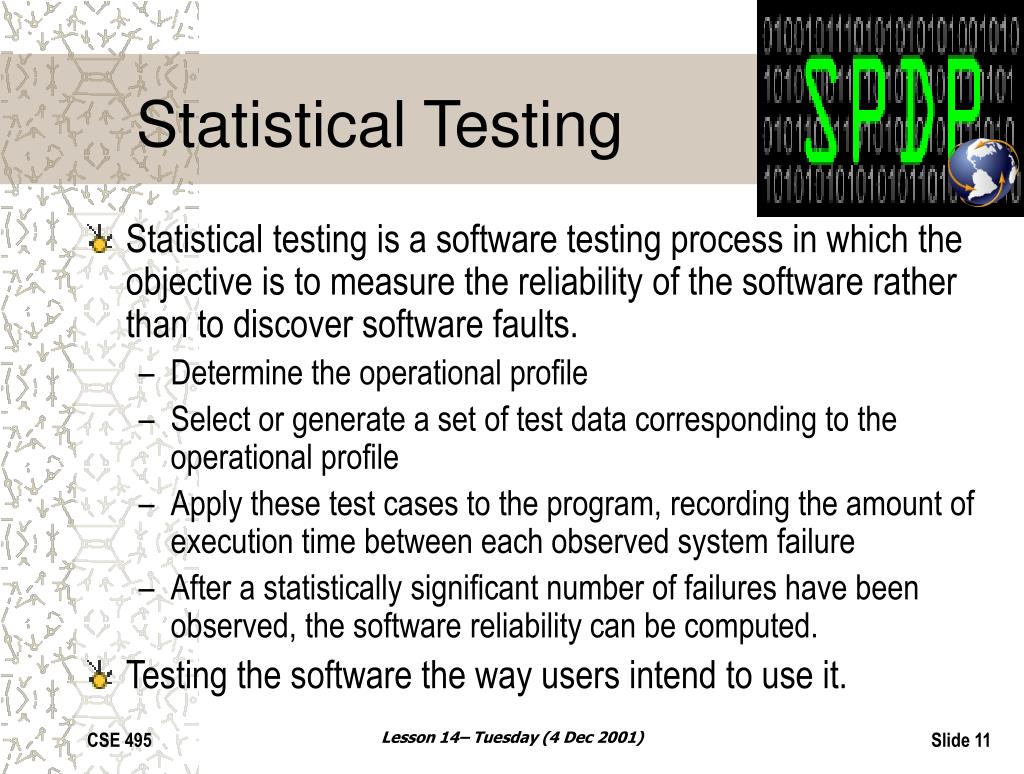

  11. Statistical Testing • Statistical testing is a software testing process in which the objective is to measure the reliability of the software rather than to discover software faults. • Determine the operational profile • Select or generate a set of test data corresponding to the operational profile • Apply these test cases to the program, recording the amount of execution time between each observed system failure • After a statistically significant number of failures have been observed, the software reliability can be computed. • Testing the software the way users intend to use it. Lesson 14– Tuesday (4 Dec 2001)

  12. Statistical Testing - Difficulties • Operational profile uncertainty • Difficult to anticipate usage for new or innovative systems • System usage can change over time • Many systems have many improbable, but not impossible, conditions • High costs of operational profile generation • Statistical uncertainty when high reliability is specified • It may be hard to generate (especially automatically) test data to create rare, but valid, inputs Lesson 14– Tuesday (4 Dec 2001)

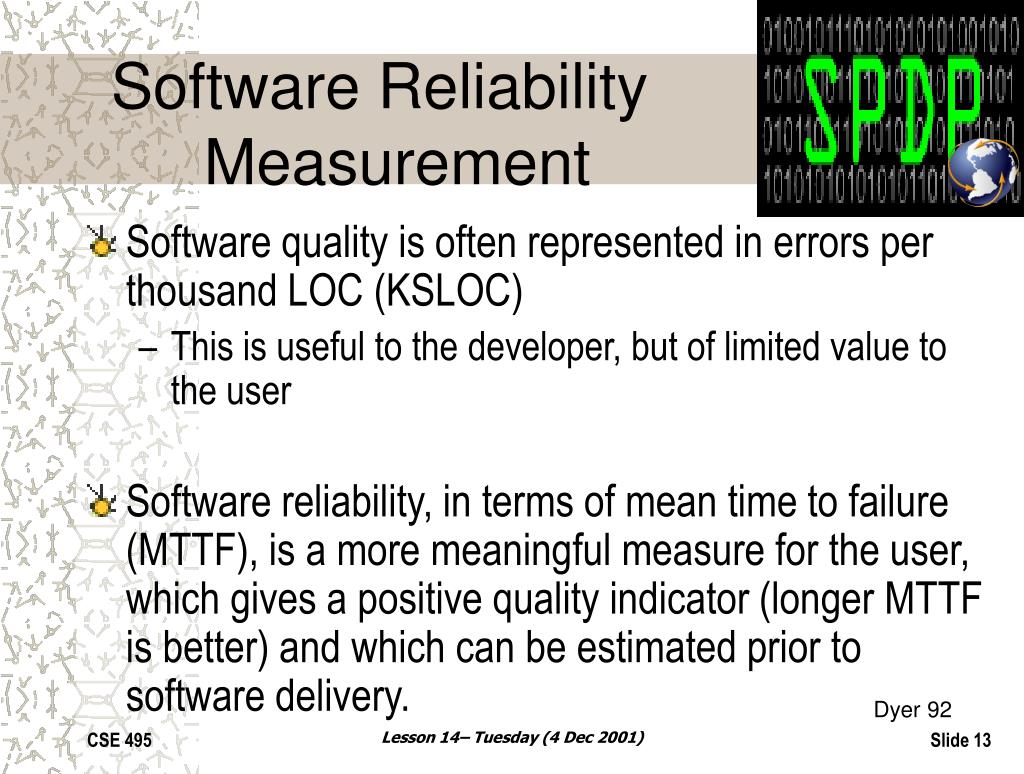

  13. Software Reliability Measurement • Software quality is often represented in errors per thousand LOC (KSLOC) • This is useful to the developer, but of limited value to the user • Software reliability, in terms of mean time to failure (MTTF), is a more meaningful measure for the user, which gives a positive quality indicator (longer MTTF is better) and which can be estimated prior to software delivery. Dyer 92 Lesson 14– Tuesday (4 Dec 2001)

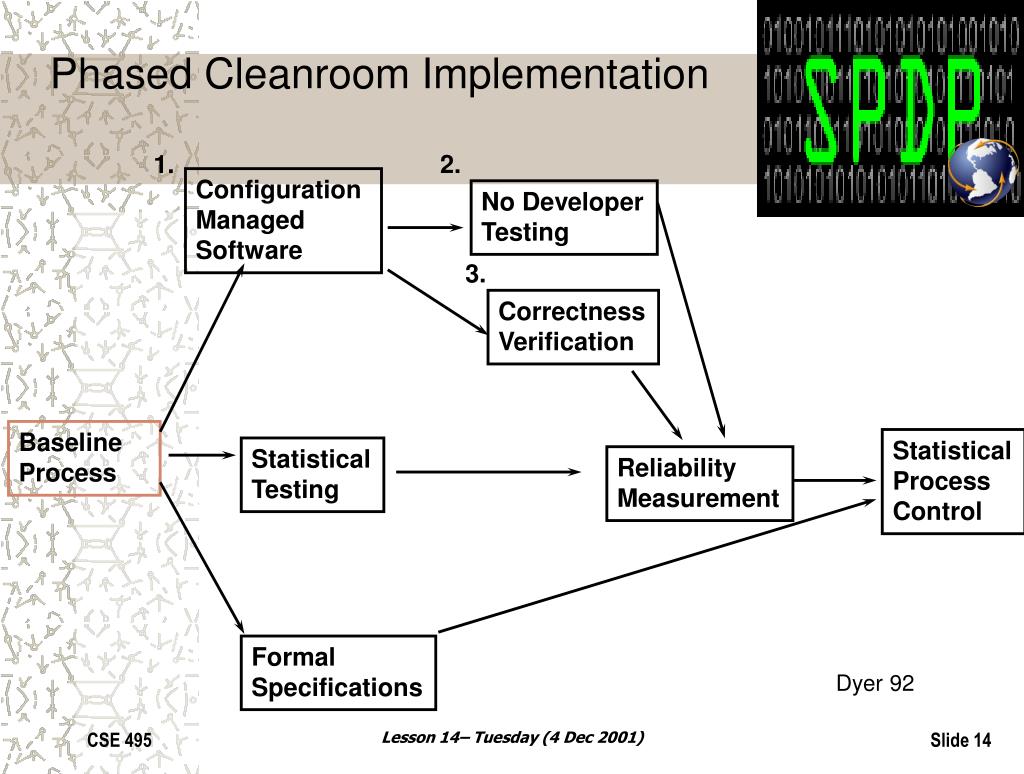

  14. 2. No Developer Testing 3. Correctness Verification Phased Cleanroom Implementation 1. Configuration Managed Software Baseline Process Statistical Process Control Statistical Testing Reliability Measurement Formal Specifications Dyer 92 Lesson 14– Tuesday (4 Dec 2001)

  15. Cleanroom Concerns • Too mathematical and not usable in an environment of changing requirements • Developer unit testing is an essential step in software development and can not be eliminated • Randomized testing was neither a cost effective method nor could it provide adequate requirements coverage • Distrust in the concept of a software MTTF and in its role in the software development process Dyer 92 Lesson 14– Tuesday (4 Dec 2001)

  16. Cleanroom - Reasons for Slow Growth • A belief that correctness verification is too theoretical to be usable in real software development • It advocates no developer testing and replaces it with correctness verification and statistical quality control -- concepts opposite of how most software is developed today • Maturity of the software development industry Henderson 95 Lesson 14– Tuesday (4 Dec 2001)

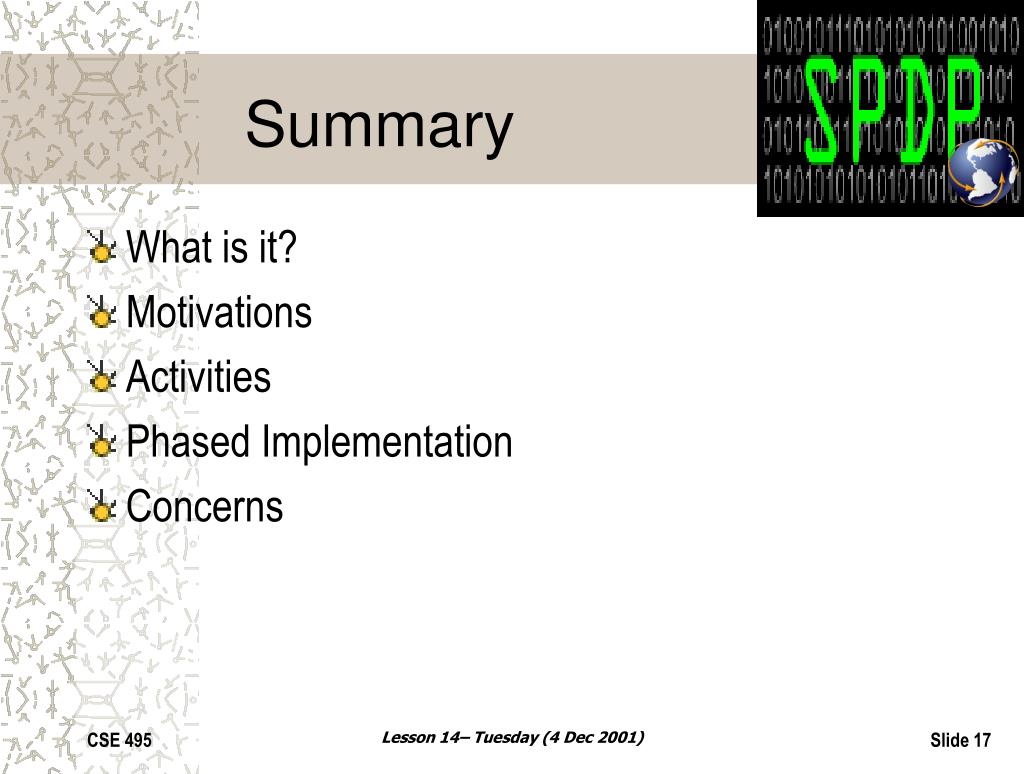

  17. Summary • What is it? • Motivations • Activities • Phased Implementation • Concerns Lesson 14– Tuesday (4 Dec 2001)
