  1. COSO 1030 Section 4 Recursion

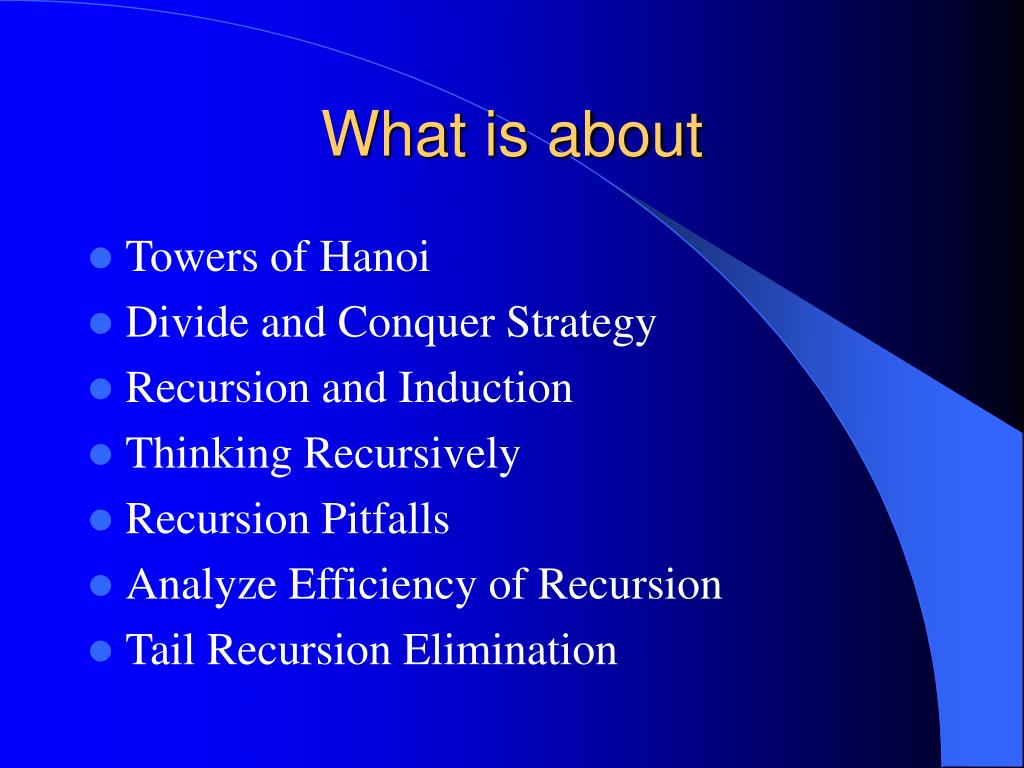

  2. What is about • Towers of Hanoi • Divide and Conquer Strategy • Recursion and Induction • Thinking Recursively • Recursion Pitfalls • Analyze Efficiency of Recursion • Tail Recursion Elimination

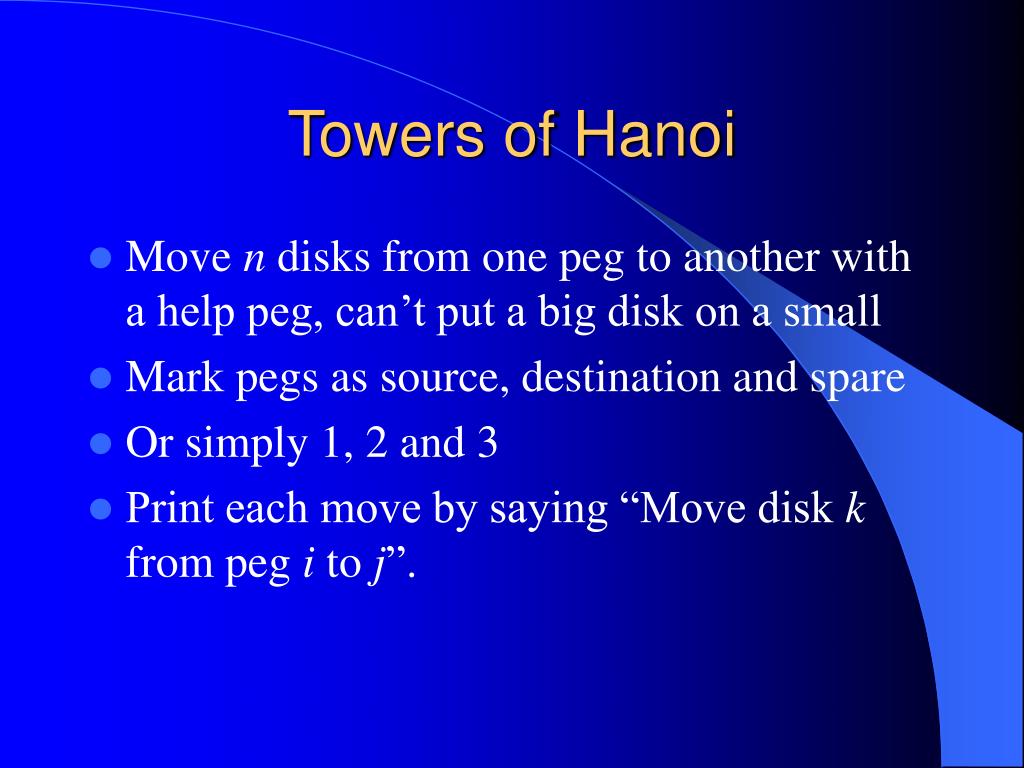

  3. Towers of Hanoi • Move n disks from one peg to another with a help peg, can’t put a big disk on a small • Mark pegs as source, destination and spare • Or simply 1, 2 and 3 • Print each move by saying “Move disk k from peg i to j”.

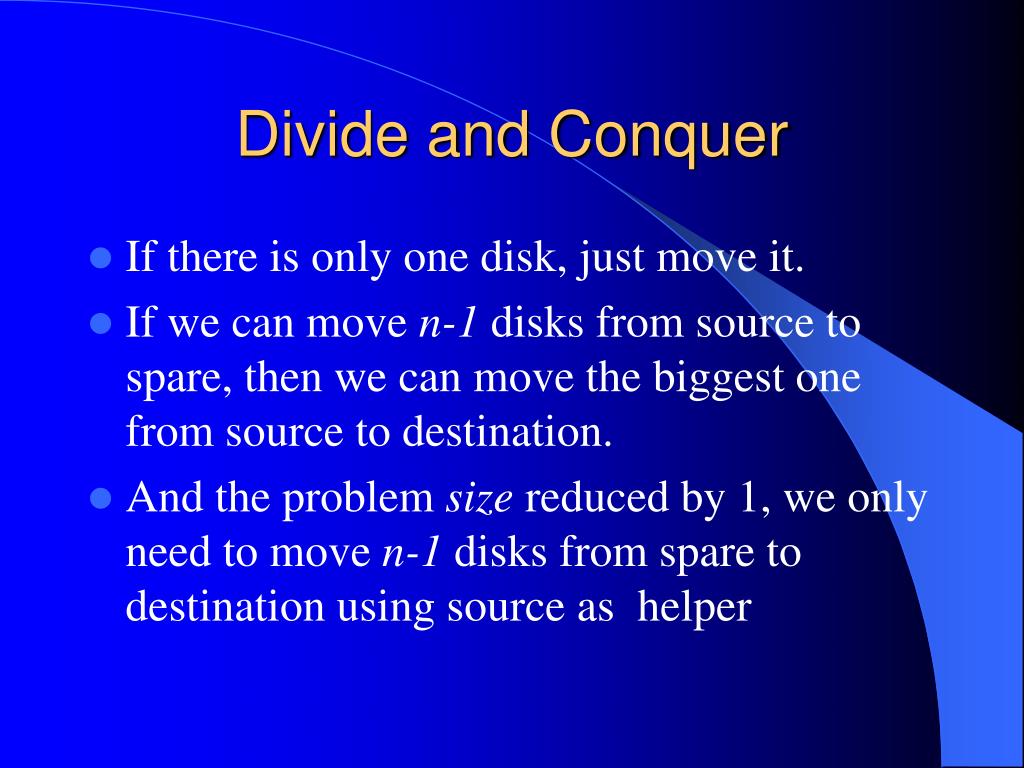

  4. Divide and Conquer • If there is only one disk, just move it. • If we can move n-1 disks from source to spare, then we can move the biggest one from source to destination. • And the problem size reduced by 1, we only need to move n-1 disks from spare to destination using source as helper

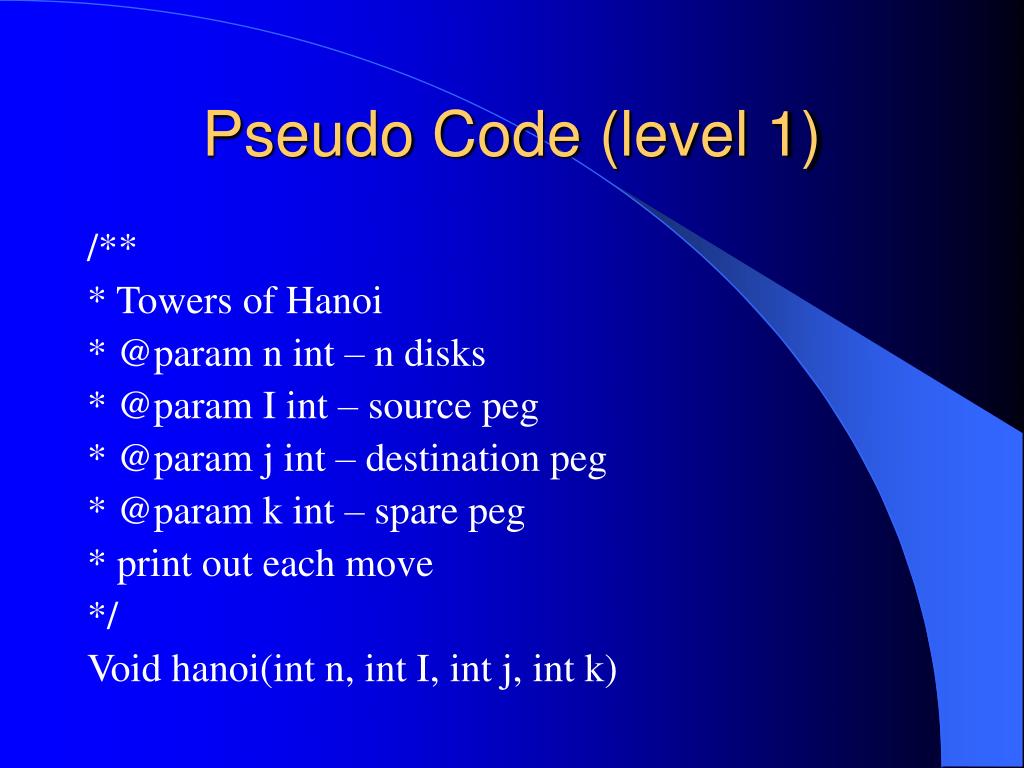

  5. Pseudo Code (level 1) /** * Towers of Hanoi * @param n int – n disks * @param I int – source peg * @param j int – destination peg * @param k int – spare peg * print out each move */ Void hanoi(int n, int I, int j, int k)

  6. { /* divide */ if( n == 1) { print(“Move ” + n + “th disk from ”+ i + “ to ” + j); } else { // 1. move n-1 disks from i to k using j for help // 2. move nth disk from i to j // 3. move n-1 disks from k to j using i. } } • The sub problem 2. is easy to solve print(“Move ” + n + “th disk from ”+ i + “ to ” + j); • To the 1 and 3, problem size is n-1

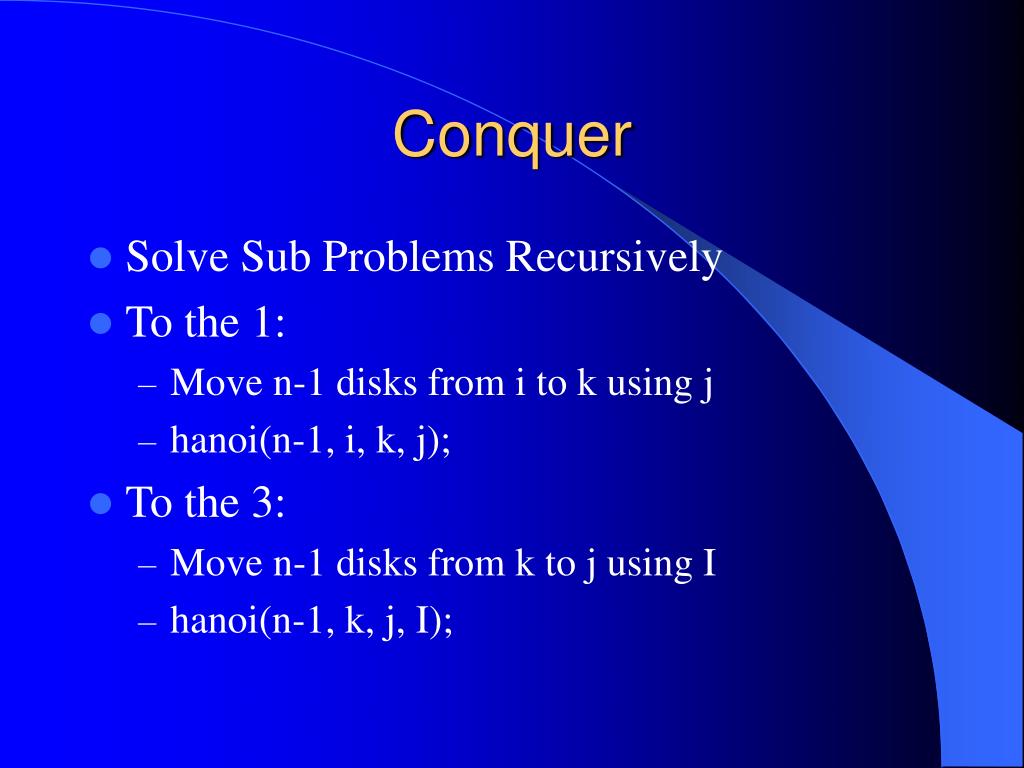

  7. Conquer • Solve Sub Problems Recursively • To the 1: • Move n-1 disks from i to k using j • hanoi(n-1, i, k, j); • To the 3: • Move n-1 disks from k to j using I • hanoi(n-1, k, j, I);

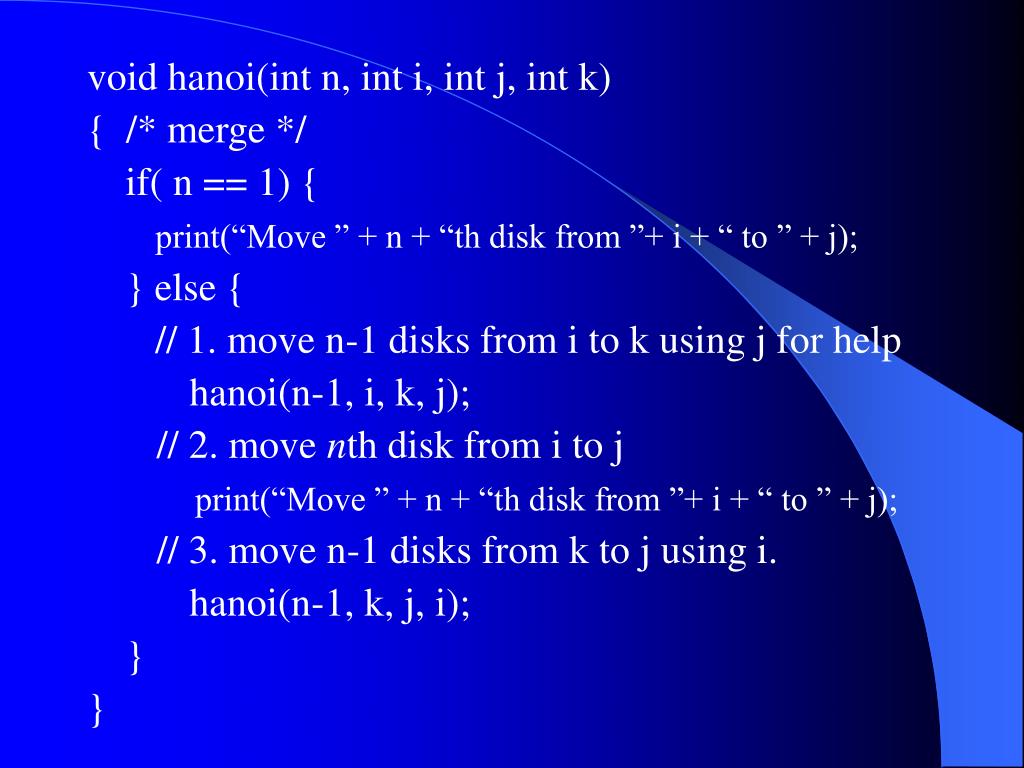

  8. void hanoi(int n, int i, int j, int k) { /* merge */ if( n == 1) { print(“Move ” + n + “th disk from ”+ i + “ to ” + j); } else { // 1. move n-1 disks from i to k using j for help hanoi(n-1, i, k, j); // 2. move nth disk from i to j print(“Move ” + n + “th disk from ”+ i + “ to ” + j); // 3. move n-1 disks from k to j using i. hanoi(n-1, k, j, i); } }

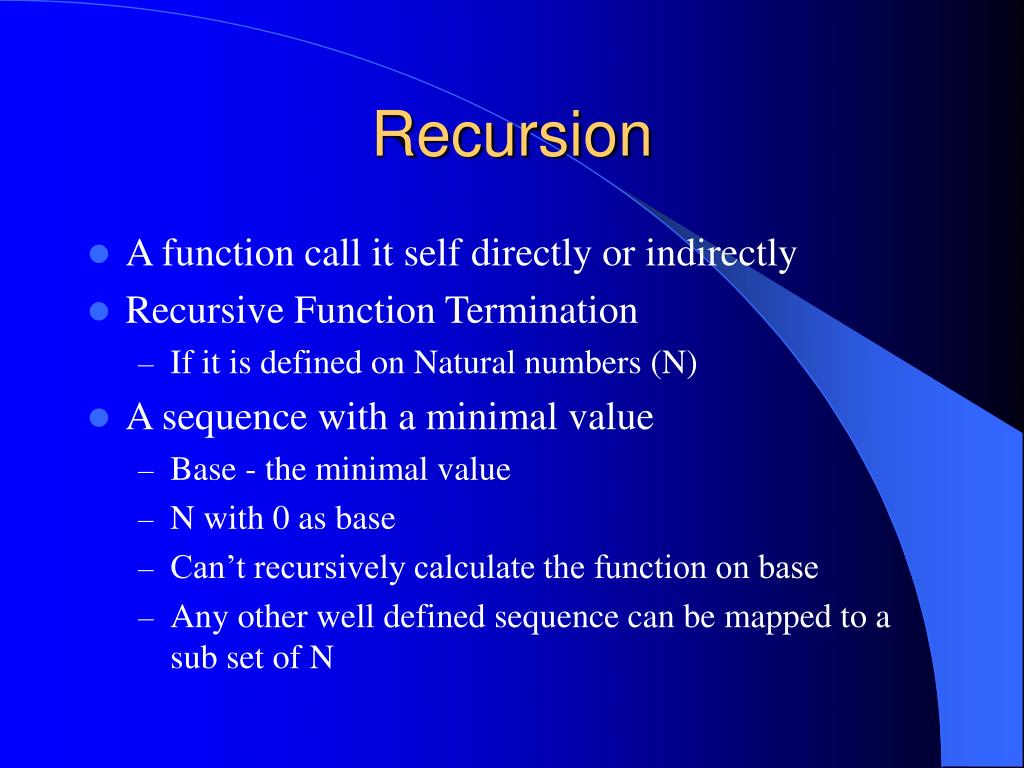

  9. Recursion • A function call it self directly or indirectly • Recursive Function Termination • If it is defined on Natural numbers (N) • A sequence with a minimal value • Base - the minimal value • N with 0 as base • Can’t recursively calculate the function on base • Any other well defined sequence can be mapped to a sub set of N

  10. Recursion and Induction • Inductive definition of String • String ::= EMPTY • String ::= String + CHAR • Recursively counts space characters in a string int numOfSpaceCh(String string) { if(string == null) { return 0; // base } else { int n = numOfSpaceCh(string.substring(1)); // recursion return ((string.charAt(0) == ‘ ’) ? 1: 0) + n; // merge } }

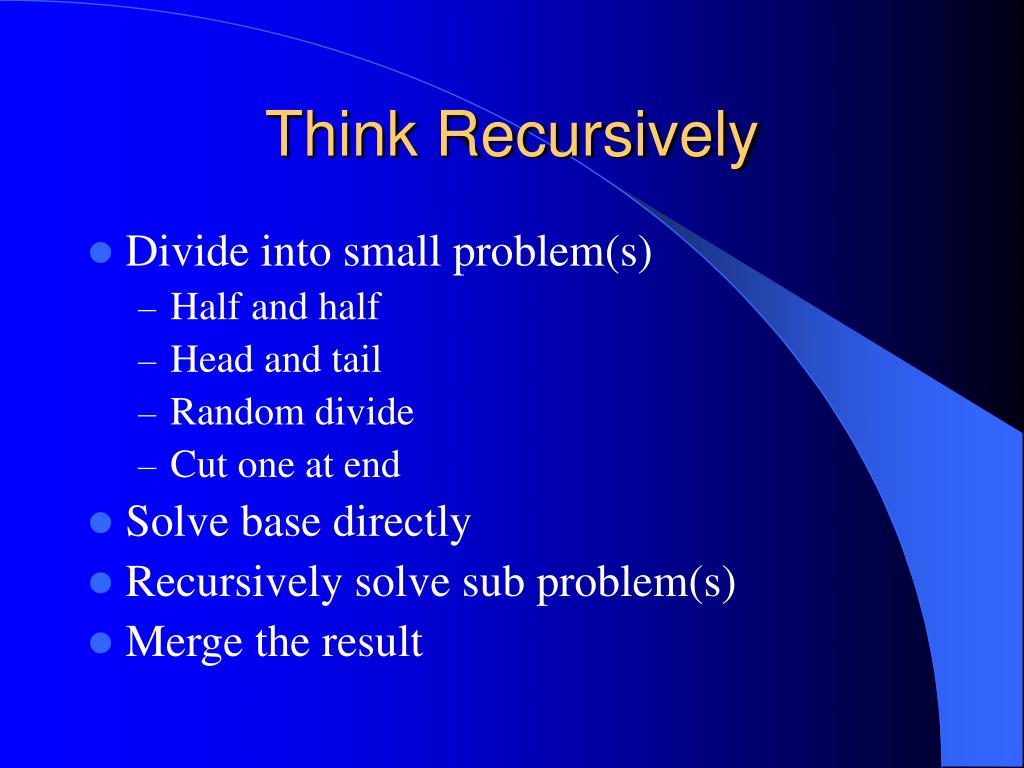

  11. Think Recursively • Divide into small problem(s) • Half and half • Head and tail • Random divide • Cut one at end • Solve base directly • Recursively solve sub problem(s) • Merge the result

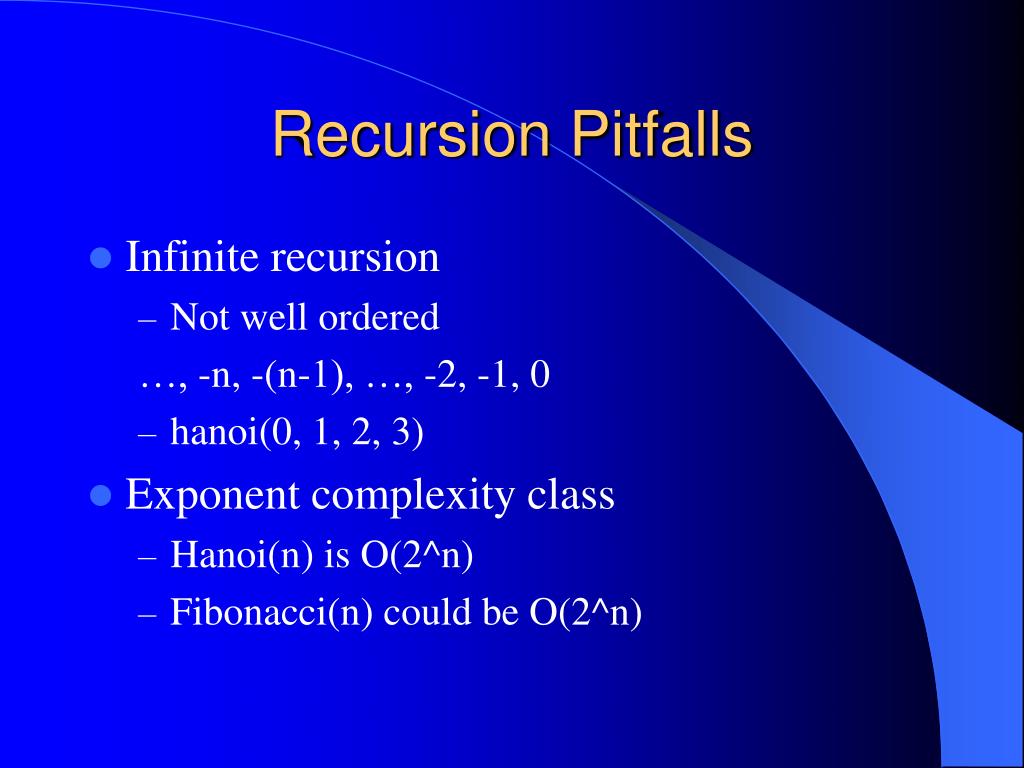

  12. Recursion Pitfalls • Infinite recursion • Not well ordered …, -n, -(n-1), …, -2, -1, 0 • hanoi(0, 1, 2, 3) • Exponent complexity class • Hanoi(n) is O(2^n) • Fibonacci(n) could be O(2^n)

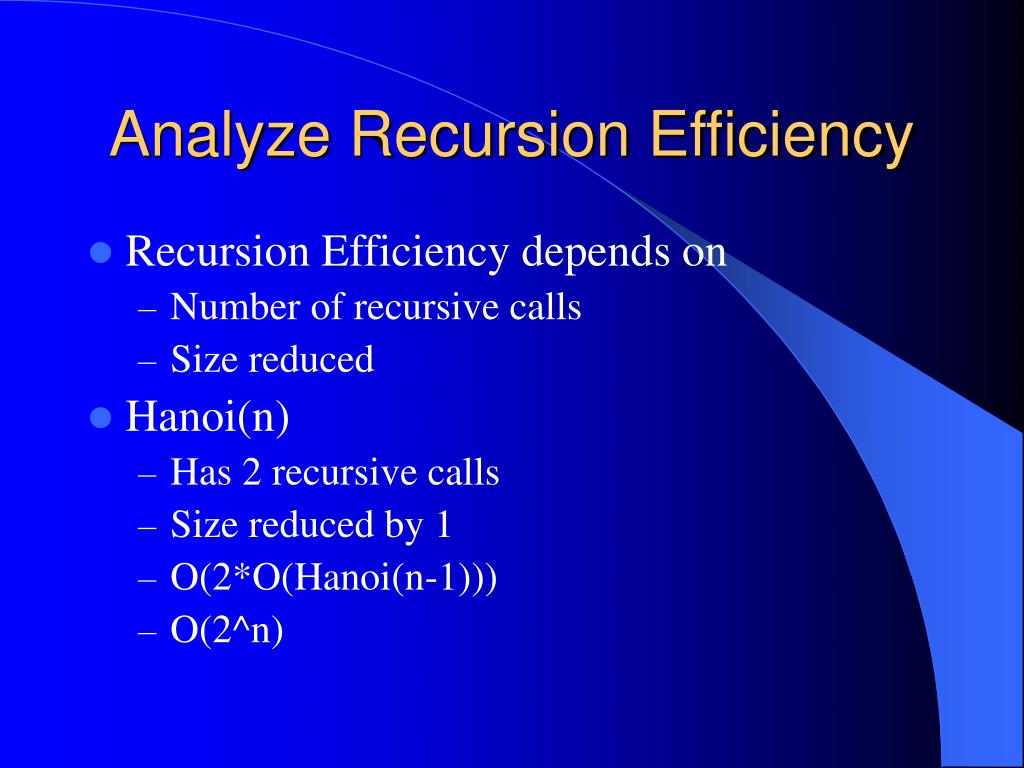

  13. Analyze Recursion Efficiency • Recursion Efficiency depends on • Number of recursive calls • Size reduced • Hanoi(n) • Has 2 recursive calls • Size reduced by 1 • O(2*O(Hanoi(n-1))) • O(2^n)

  14. Inductive Proof • There exists K and n0 such that for any n >= n0, K 2^n <= Hanoi(n) • There exists K’ and n0’ such that for any n >= n0’, Hanoi(n) <= K’ 2^n • Let K = 1 and n0 = 2 • Base n = n0: if; Hanoi(1); print; Hanoi(1);2^2 = 4 = Steps of Hanoi(2)Use SofH(n) for Steps of Hanoi(n)

  15. Induction • Assume for any m = n - 1, m >= n0,2^m <= SofH(m) • SofH(m + 1) are no less than SofH(m) + 1 + SofH(m). • By assumption 2^m <= SofH(m), we getSofH(m+1)<= 2 * 2^m = 2 ^(m+1) • Conclusion: for any n > n0Steps of Hanoi(n) >= 2 ^ n.

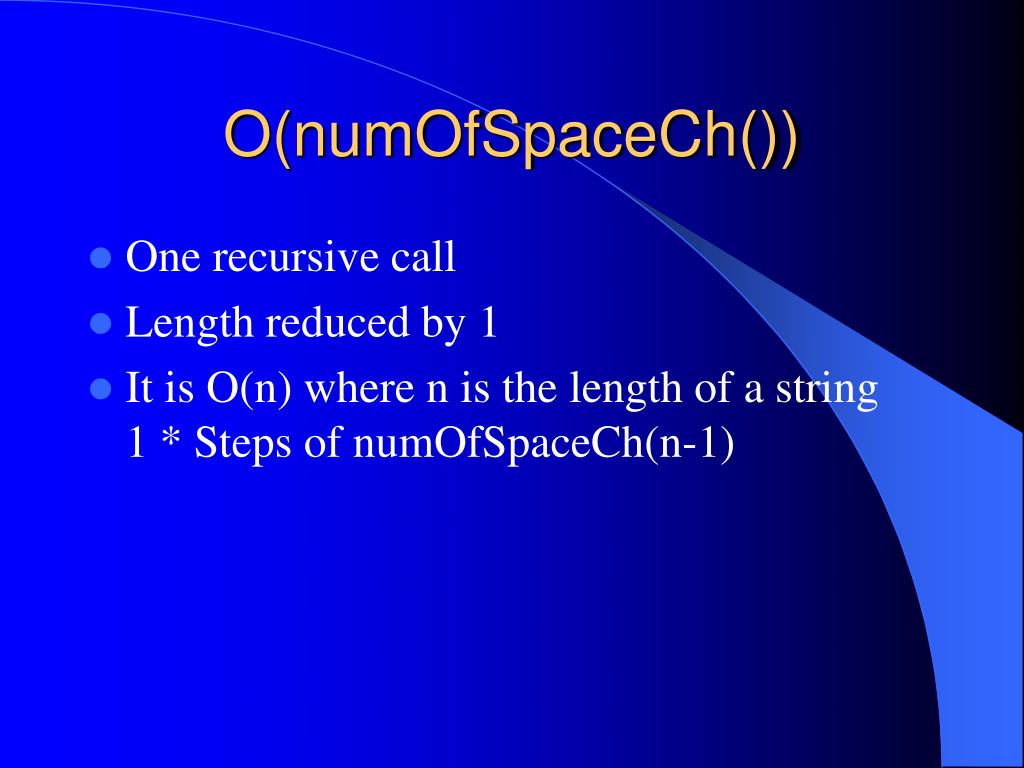

  16. O(numOfSpaceCh()) • One recursive call • Length reduced by 1 • It is O(n) where n is the length of a string1 * Steps of numOfSpaceCh(n-1)

  17. Tail Recursion • A recursive function is tail recursion, if • It has only one recursive call • And the call is the last statement of the function • numOfSpaceCh is a tail recursive function • Iteration versionint n = 0; for (int I = 0; I < string.length; I ++) { if (string.charAt(I) == ‘ ’) n++; }; return n;

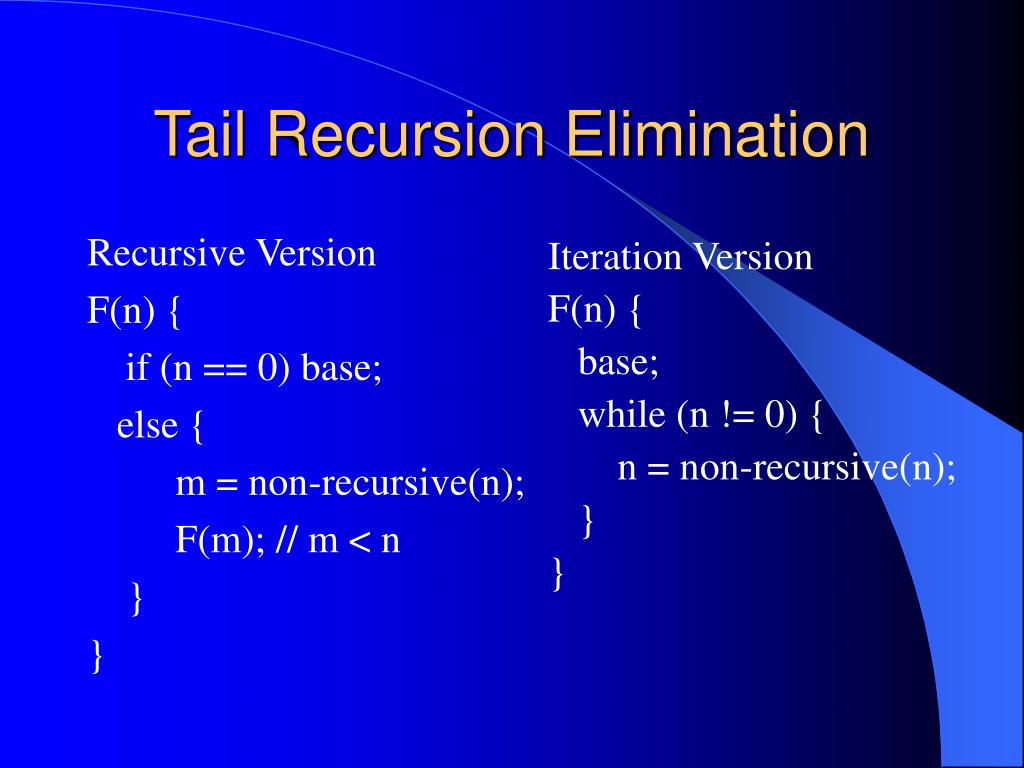

  18. Tail Recursion Elimination Recursive Version F(n) { if (n == 0) base; else { m = non-recursive(n); F(m); // m < n } } Iteration Version F(n) { base; while (n != 0) { n = non-recursive(n); } }

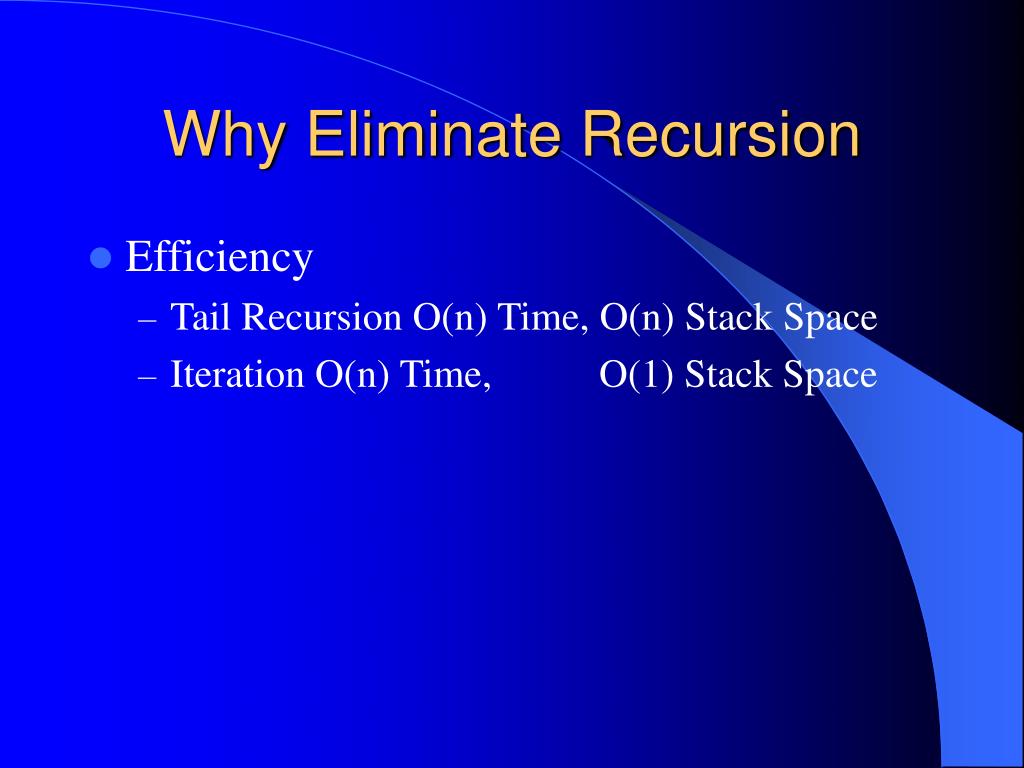

  19. Why Eliminate Recursion • Efficiency • Tail Recursion O(n) Time, O(n) Stack Space • Iteration O(n) Time, O(1) Stack Space

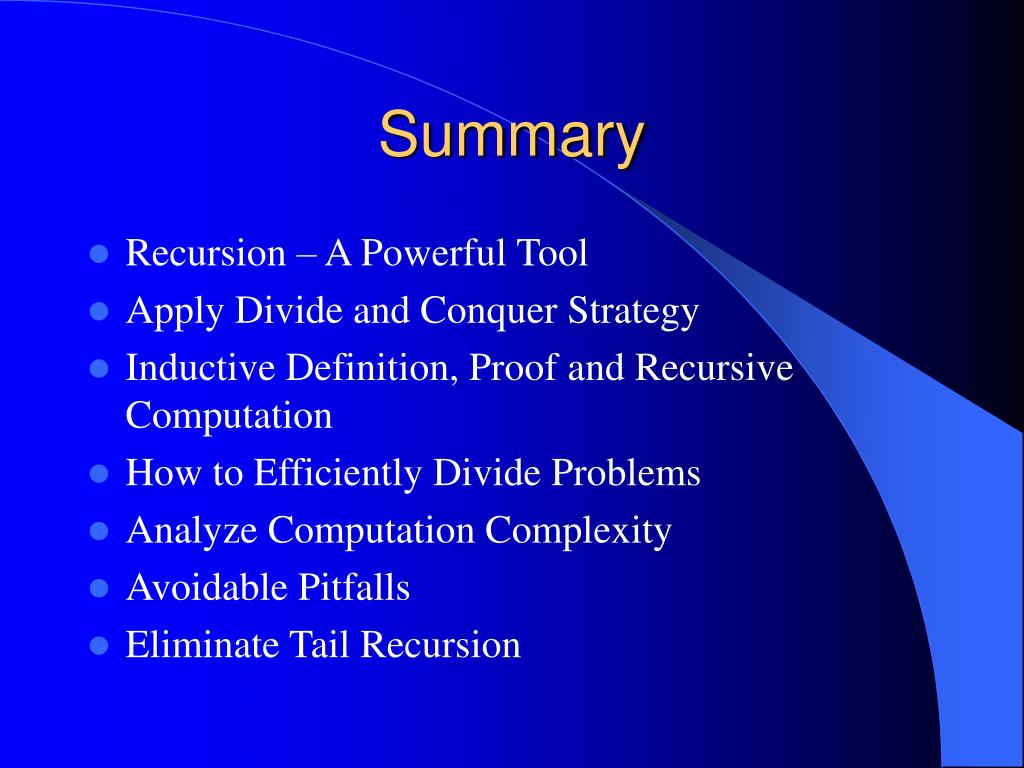

  20. Summary • Recursion – A Powerful Tool • Apply Divide and Conquer Strategy • Inductive Definition, Proof and Recursive Computation • How to Efficiently Divide Problems • Analyze Computation Complexity • Avoidable Pitfalls • Eliminate Tail Recursion
