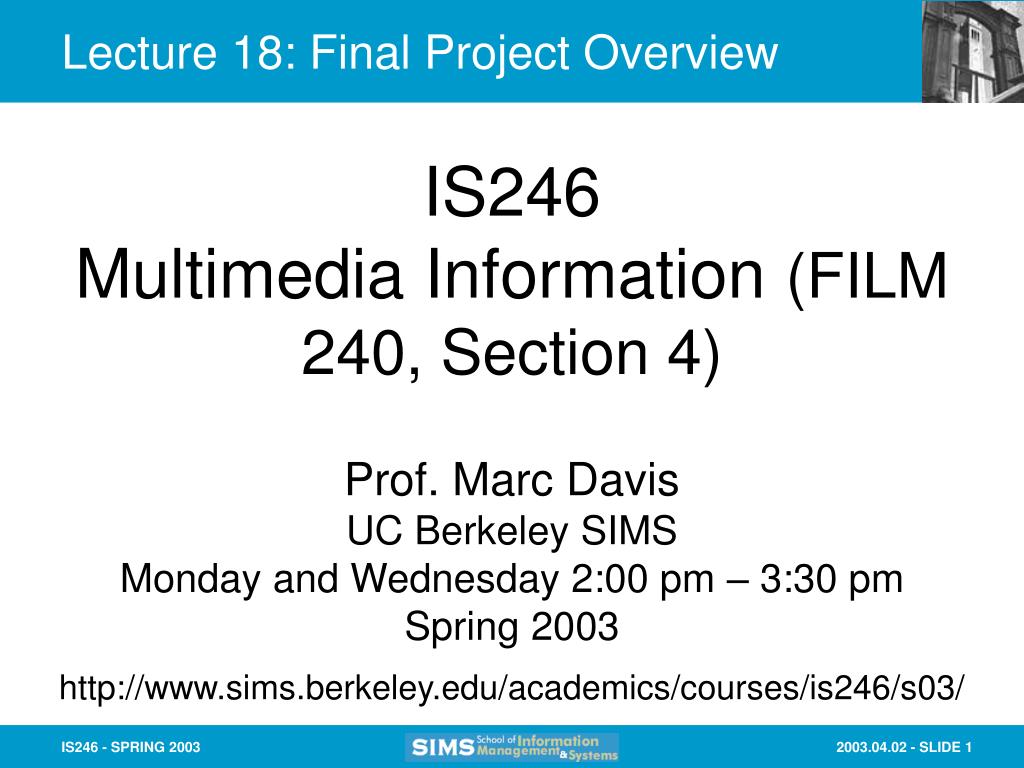

Lecture 18: Final Project Overview IS246Multimedia Information (FILM 240, Section 4) Prof. Marc Davis UC Berkeley SIMS Monday and Wednesday 2:00 pm – 3:30 pm Spring 2003 http://www.sims.berkeley.edu/academics/courses/is246/s03/

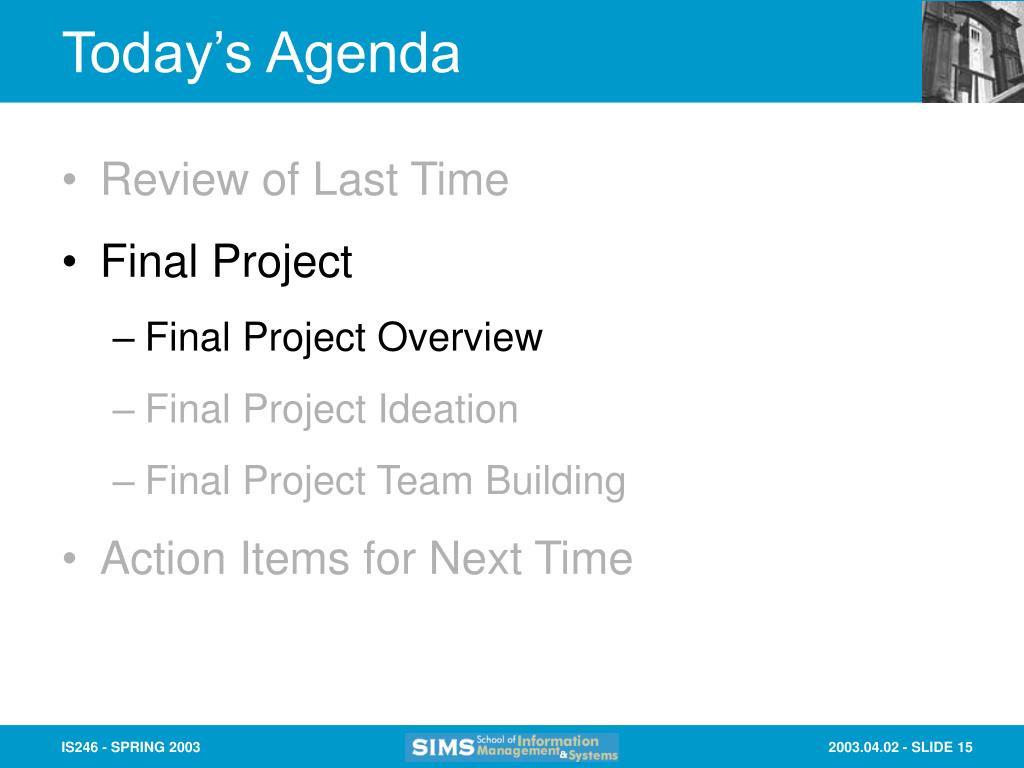

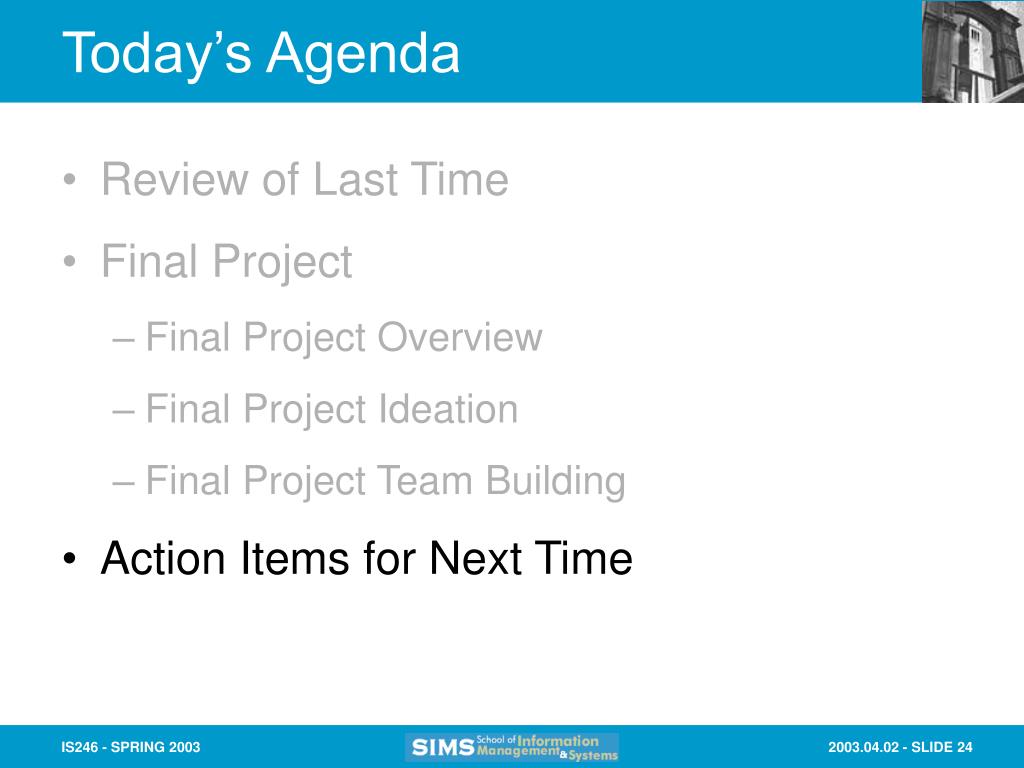

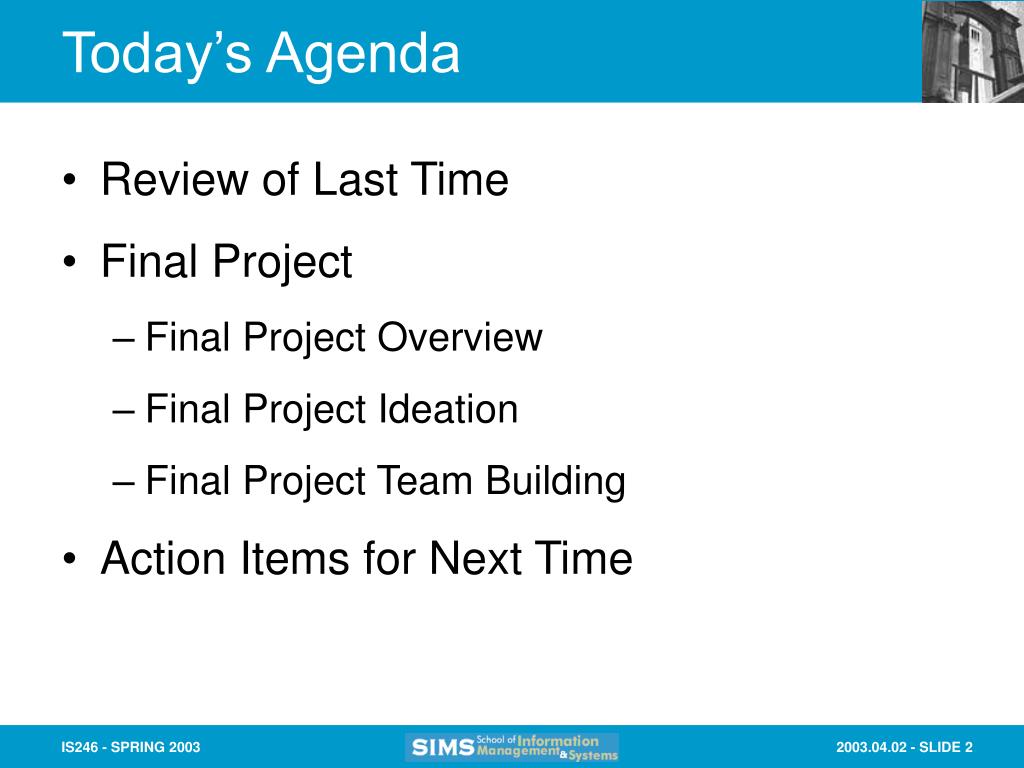

Today’s Agenda • Review of Last Time • Final Project • Final Project Overview • Final Project Ideation • Final Project Team Building • Action Items for Next Time

What is the Problem? • Today people cannot easily find, edit, share, and reuse media • Computers don’t understand media content • Media is opaque and data rich • We lack structured representations • Without content representation (metadata), manipulating digital media will remain like word-processing with bitmaps

Desiderata for Media Metadata • At least, Pat should be able to use Pat’s metadata • Better, Chris should be able to use Pat’s metadata • Even better, Chris’s computer should be able to use Pat’s metadata • At best, Chris, Pat, and their computers should be able to use the metadata they all produce

Representing Video • Streams vs. Clips • Stream-based annotation makes annotation pay off • The richer the annotation, the more numerous the possible segmentations of the video stream • Clips change from being fixed segmentations of the video stream, to being the results of retrieval queries based on annotations of the video stream • Annotations create representations that make clips, not representations of clips • Video syntax and semantics • The Kuleshov Effect • Video has a dual semantics • Sequence-independent invariant semantics of shots • Sequence-dependent variable semantics of shots • Ontological issues in video representation • Video plays with rules for identity and continuity • Space • Time • Person • Action

The Search for Solutions • Current approaches to creating metadata don’t work • Signal-based analysis • Keywords • Natural language • Need standardized metadata framework • Designed for video and rich media data • Human and machine readable and writable • Standardized and scaleable • Integrated into media capture, archiving, editing, distribution, and reuse

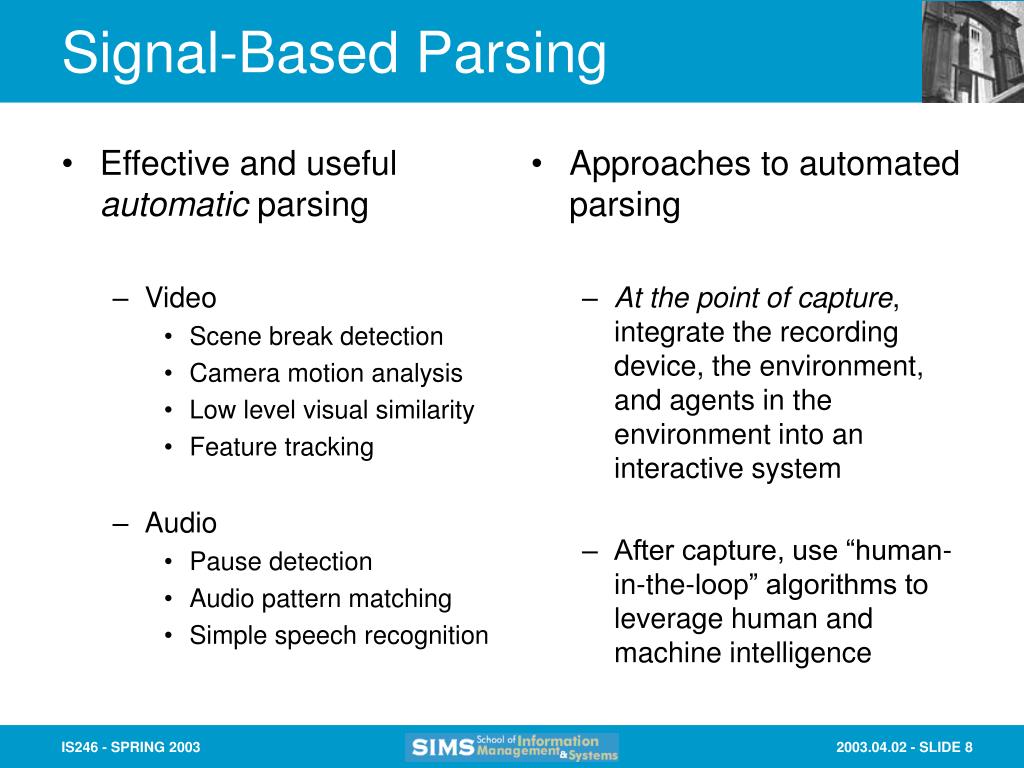

Effective and useful automatic parsing Video Scene break detection Camera motion analysis Low level visual similarity Feature tracking Audio Pause detection Audio pattern matching Simple speech recognition Approaches to automated parsing At the point of capture, integrate the recording device, the environment, and agents in the environment into an interactive system After capture, use “human-in-the-loop” algorithms to leverage human and machine intelligence Signal-Based Parsing

Why Keywords Don’t Work • Are not a semantic representation • Do not describe relations between descriptors • Do not describe temporal structure • Do not converge • Do not scale

Natural Language vs. Visual Language Jack, an adult male police officer, while walking to the left, starts waving with his left arm, and then has a puzzled look on his face as he turns his head to the right; he then drops his facial expression and stops turning his head, immediately looks up, and then stops looking up after he stops waving but before he stops walking.

Notation for Time-Based Media: Music

Visual Language Advantages • A language designed as an accurate and readable representation of time-based media • For video, especially important for actions, expressions, and spatial relations • Enables Gestalt view and quick recognition of descriptors due to designed visual similarities • Supports global use of annotations

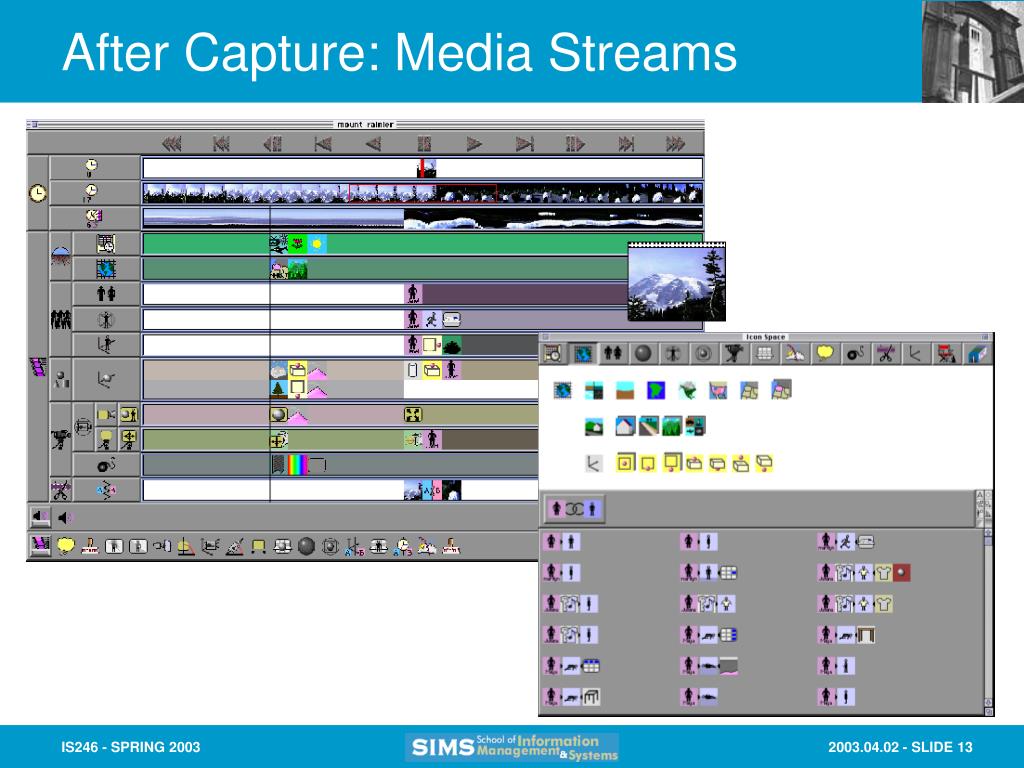

After Capture: Media Streams

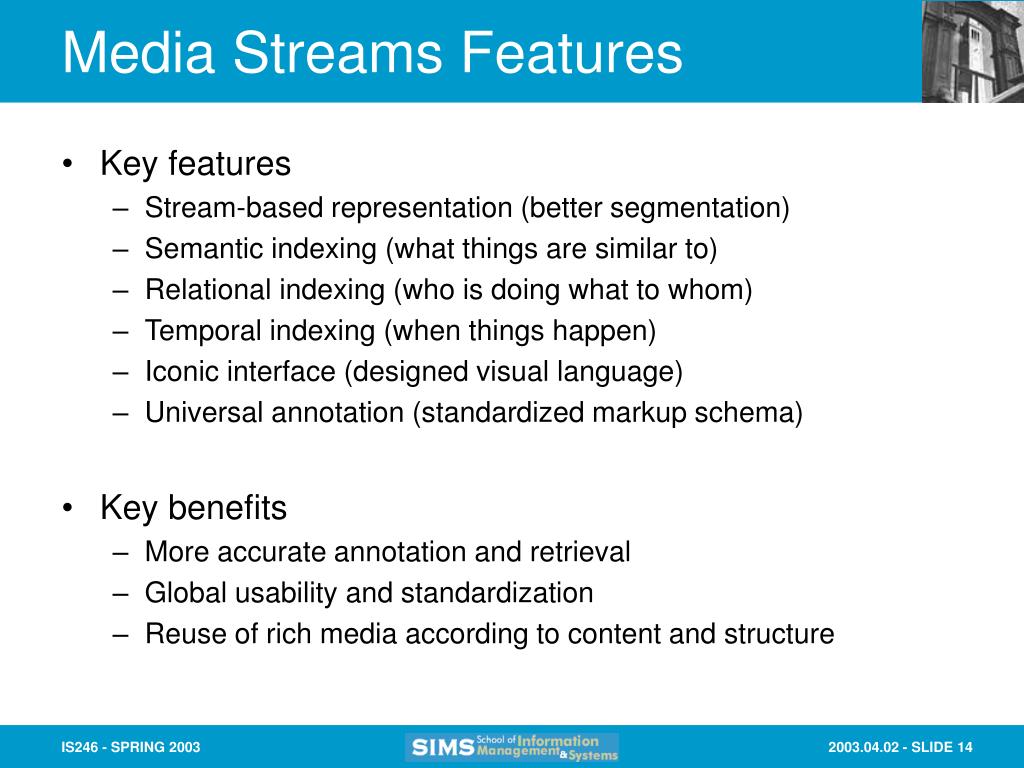

Media Streams Features • Key features • Stream-based representation (better segmentation) • Semantic indexing (what things are similar to) • Relational indexing (who is doing what to whom) • Temporal indexing (when things happen) • Iconic interface (designed visual language) • Universal annotation (standardized markup schema) • Key benefits • More accurate annotation and retrieval • Global usability and standardization • Reuse of rich media according to content and structure

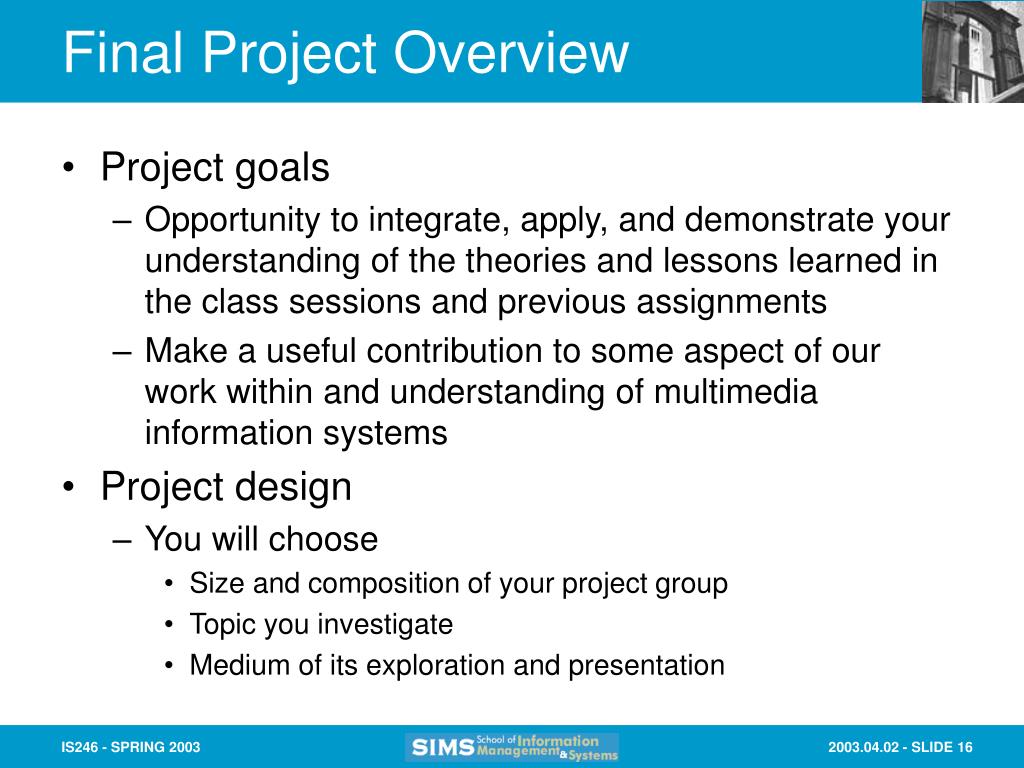

Final Project Overview • Project goals • Opportunity to integrate, apply, and demonstrate your understanding of the theories and lessons learned in the class sessions and previous assignments • Make a useful contribution to some aspect of our work within and understanding of multimedia information systems • Project design • You will choose • Size and composition of your project group • Topic you investigate • Medium of its exploration and presentation

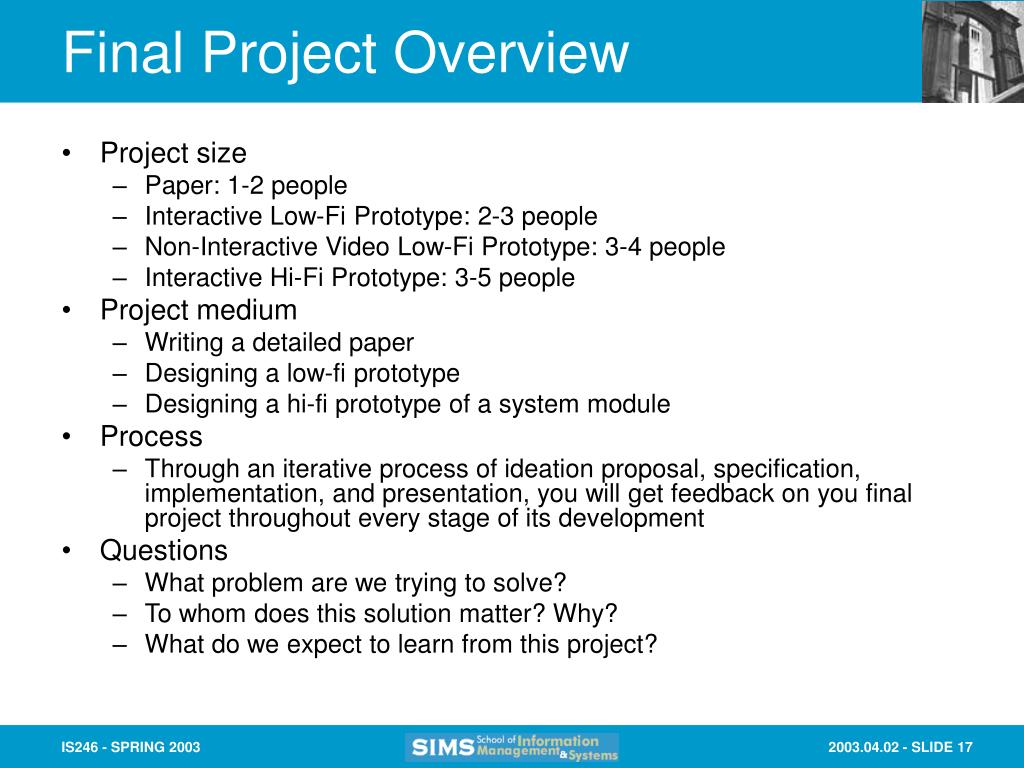

Final Project Overview • Project size • Paper: 1-2 people • Interactive Low-Fi Prototype: 2-3 people • Non-Interactive Video Low-Fi Prototype: 3-4 people • Interactive Hi-Fi Prototype: 3-5 people • Project medium • Writing a detailed paper • Designing a low-fi prototype • Designing a hi-fi prototype of a system module • Process • Through an iterative process of ideation proposal, specification, implementation, and presentation, you will get feedback on you final project throughout every stage of its development • Questions • What problem are we trying to solve? • To whom does this solution matter? Why? • What do we expect to learn from this project?

Final Project Schedule • Week 11 • Wed 04/02/2003 Milestone 1 – Final Project Team / Idea Formation assigned • Week 12 • Mon 04/07/2003 Milestone 1 due • Mon 04/07/2003 Milestone 2 – Final Project Proposal assigned • Week 13 • Mon 04/14/2003 Milestone 2 due • Wed 04/16/2003 Milestone 3 – Final Project Design Specification assigned • Week 14 • Wed 04/23/2003 Milestone 3 due • Week 15 • Mon 04/28/2003 Milestone 4 – Final Project Presentation & Write-Up assigned • Week 17 • Wed 05/14/2003 Milestone 4 due – Final Project Presentations

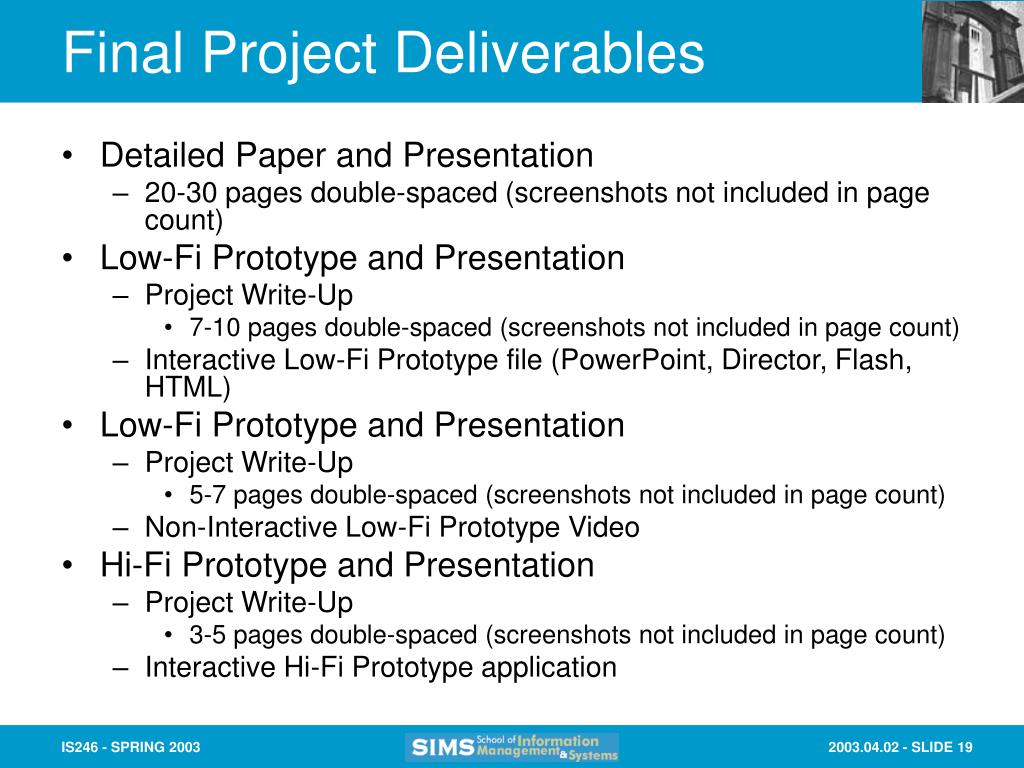

Final Project Deliverables • Detailed Paper and Presentation • 20-30 pages double-spaced (screenshots not included in page count) • Low-Fi Prototype and Presentation • Project Write-Up • 7-10 pages double-spaced (screenshots not included in page count) • Interactive Low-Fi Prototype file (PowerPoint, Director, Flash, HTML) • Low-Fi Prototype and Presentation • Project Write-Up • 5-7 pages double-spaced (screenshots not included in page count) • Non-Interactive Low-Fi Prototype Video • Hi-Fi Prototype and Presentation • Project Write-Up • 3-5 pages double-spaced (screenshots not included in page count) • Interactive Hi-Fi Prototype application

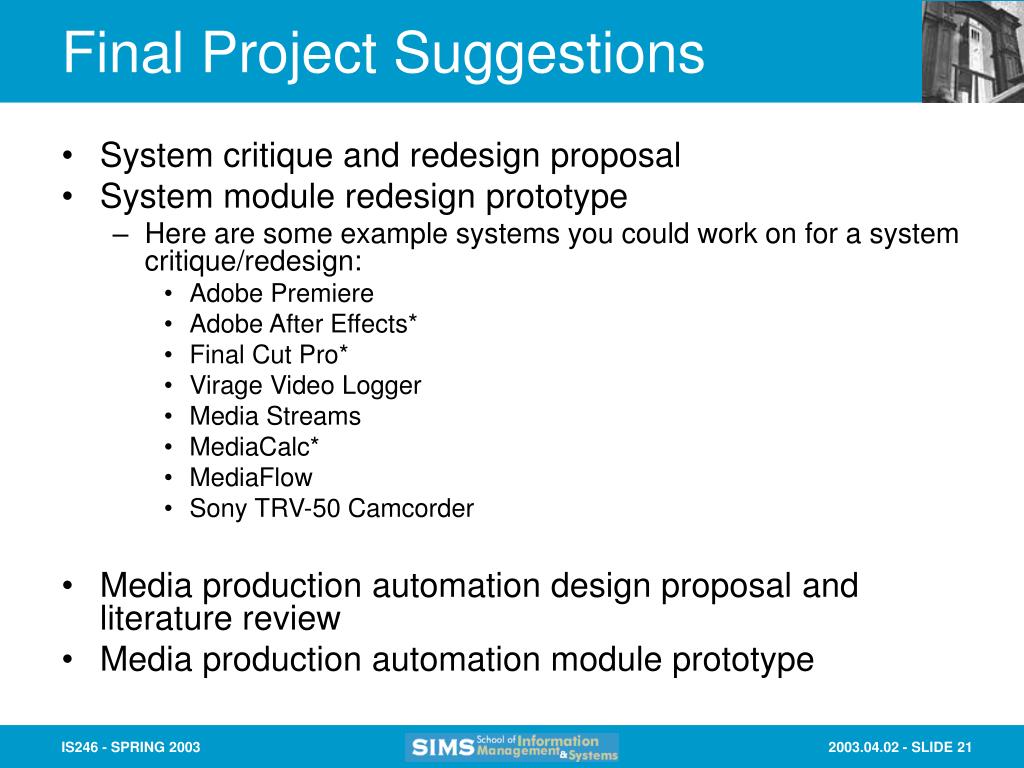

Final Project Suggestions • System critique and redesign proposal • System module redesign prototype • Here are some example systems you could work on for a system critique/redesign: • Adobe Premiere • Adobe After Effects* • Final Cut Pro* • Virage Video Logger • Media Streams • MediaCalc* • MediaFlow • Sony TRV-50 Camcorder • Media production automation design proposal and literature review • Media production automation module prototype

Media Production Automation Areas • Preproduction • Storyboarding • Scriptwriting • Casting • Production • Continuity systems • Directing • Cinematography • Production information tracking • Postproduction • Editing • Special effects • Sound design • Distribution • Customization/Personalization (based on location, person, platform, device, context)

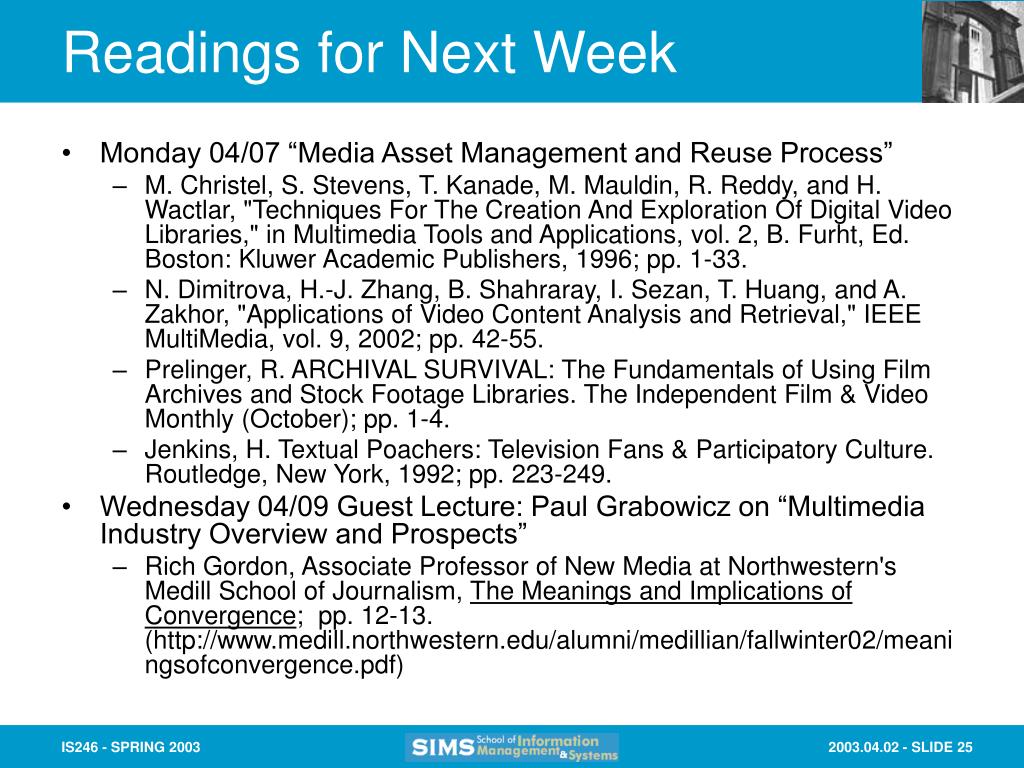

Readings for Next Week • Monday 04/07 “Media Asset Management and Reuse Process” • M. Christel, S. Stevens, T. Kanade, M. Mauldin, R. Reddy, and H. Wactlar, "Techniques For The Creation And Exploration Of Digital Video Libraries," in Multimedia Tools and Applications, vol. 2, B. Furht, Ed. Boston: Kluwer Academic Publishers, 1996; pp. 1-33. • N. Dimitrova, H.-J. Zhang, B. Shahraray, I. Sezan, T. Huang, and A. Zakhor, "Applications of Video Content Analysis and Retrieval," IEEE MultiMedia, vol. 9, 2002; pp. 42-55. • Prelinger, R. ARCHIVAL SURVIVAL: The Fundamentals of Using Film Archives and Stock Footage Libraries. The Independent Film & Video Monthly (October); pp. 1-4. • Jenkins, H. Textual Poachers: Television Fans & Participatory Culture. Routledge, New York, 1992; pp. 223-249. • Wednesday 04/09 Guest Lecture: Paul Grabowicz on “Multimedia Industry Overview and Prospects” • Rich Gordon, Associate Professor of New Media at Northwestern's Medill School of Journalism, The Meanings and Implications of Convergence; pp. 12-13. (http://www.medill.northwestern.edu/alumni/medillian/fallwinter02/meaningsofconvergence.pdf)
