  1. What is a Sensor Web ? Abhinav Roongta Wireless Information Networking Group University of Florida March 3, 2004

  2. Outline • Sensor Web • Definition • Basics • Organization • Potential • Current applications

  3. Introduction Single transducer monitors and records particular aspect of environment. Little information regarding dynamics. Correctly configured group can extract spatio-temporal dynamics.

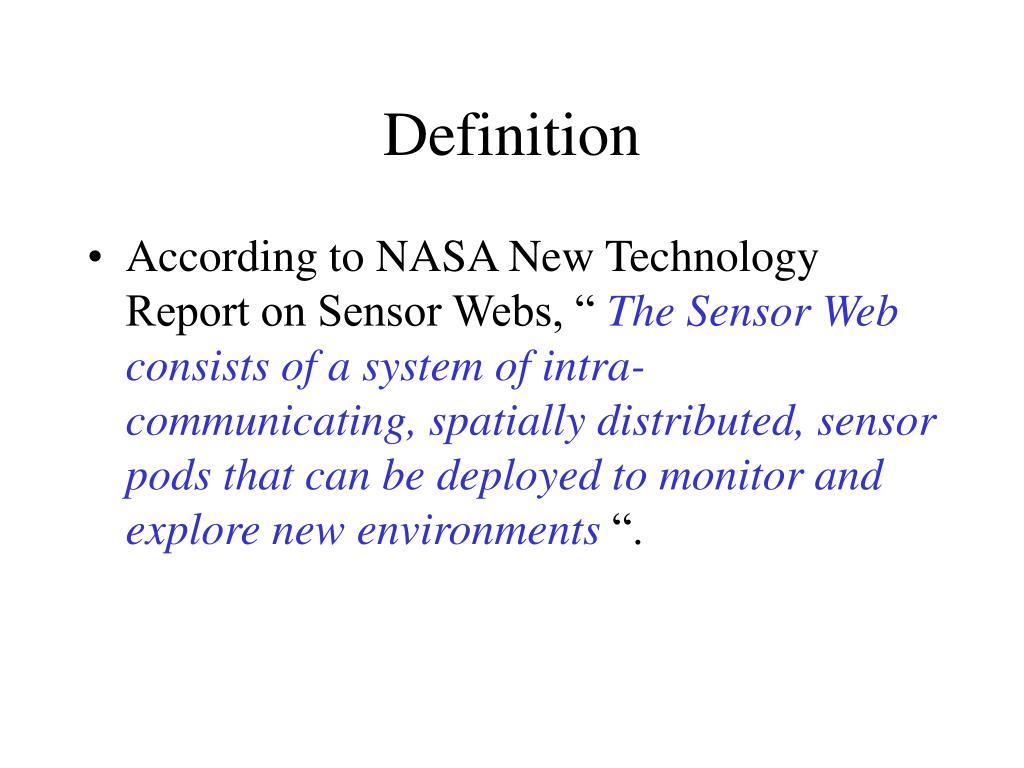

  4. Definition • According to NASA New Technology Report on Sensor Webs, “ The Sensor Web consists of a system of intra-communicating, spatially distributed, sensor pods that can be deployed to monitor and explore new environments “.

  5. Sensor Web Basics • Communication occurs wirelessly • Each pod consists of two modules • Transducers that convert environmental parameters into electrical signals. • Second module • Telecommunication capabilities • Power sources • Energy harvesting devices • Computation devices

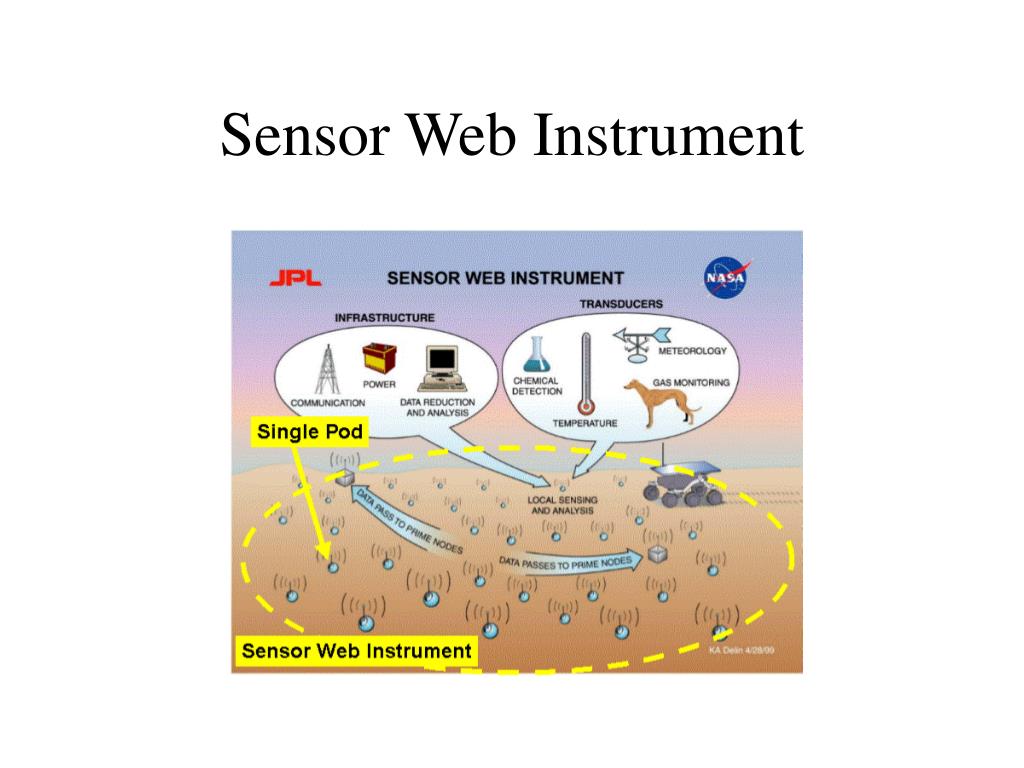

  6. Sensor Web Instrument

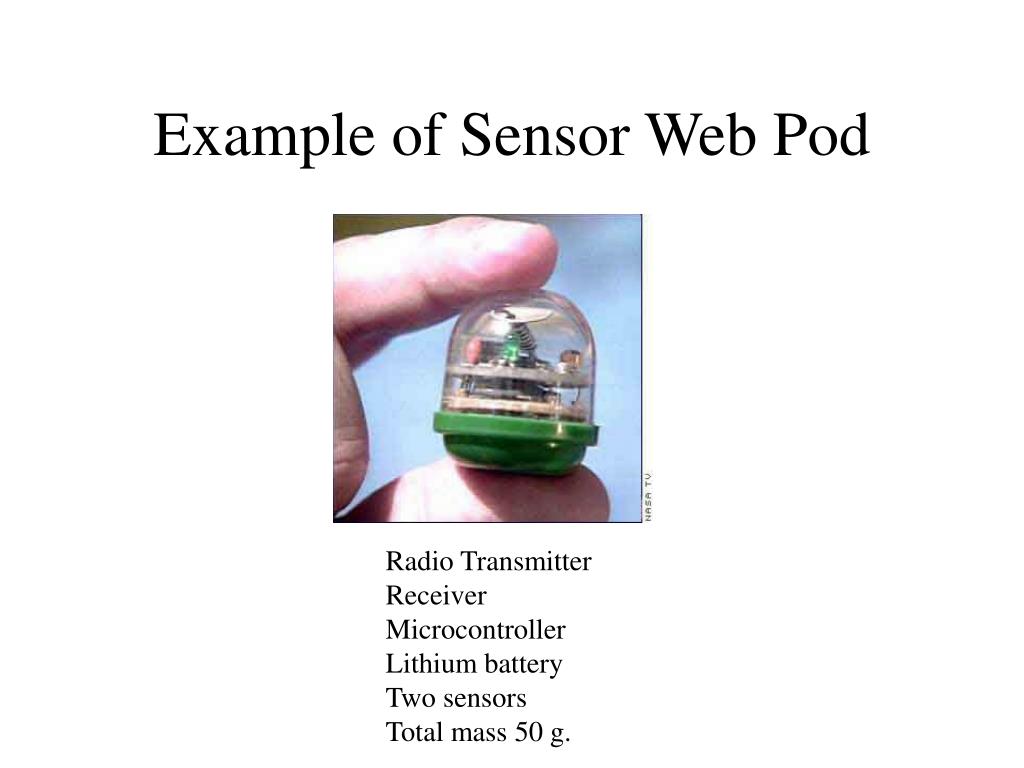

  7. Example of Sensor Web Pod Radio Transmitter Receiver Microcontroller Lithium battery Two sensors Total mass 50 g.

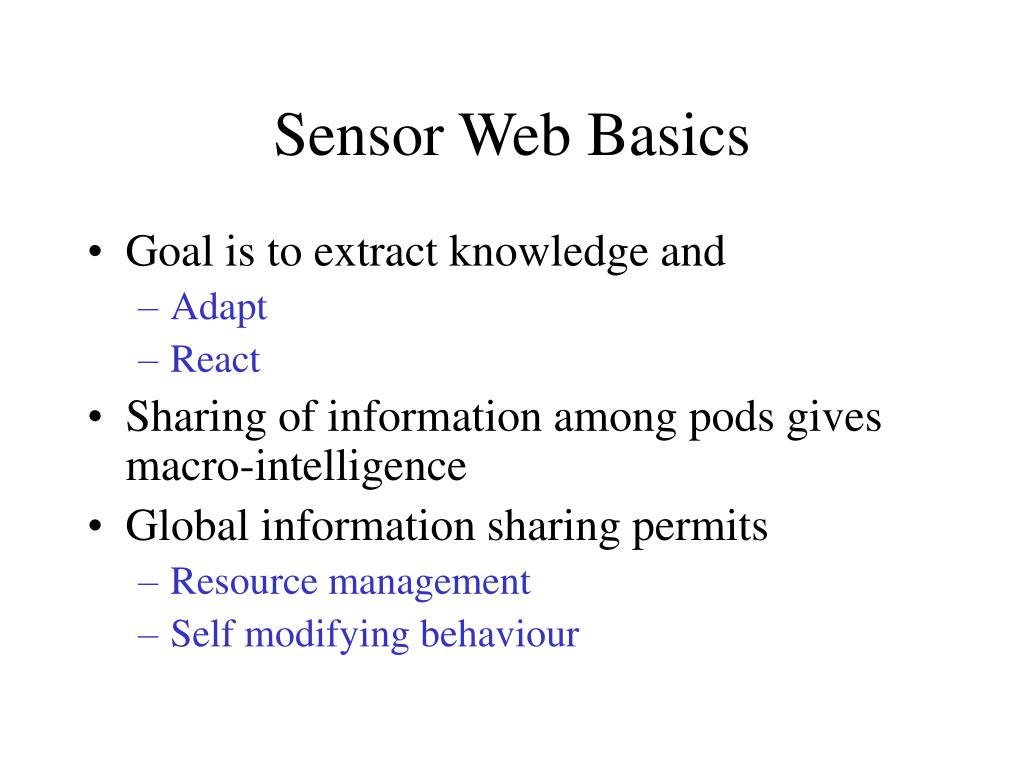

  8. Sensor Web Basics • Goal is to extract knowledge and • Adapt • React • Sharing of information among pods gives macro-intelligence • Global information sharing permits • Resource management • Self modifying behaviour

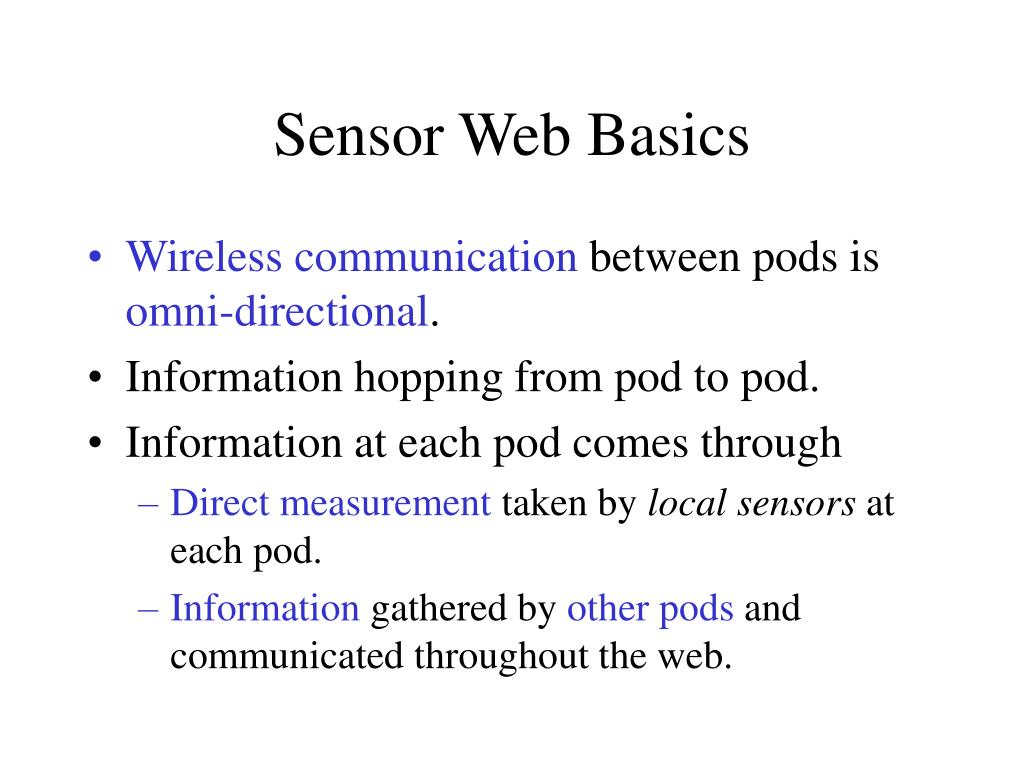

  9. Sensor Web Basics • Wireless communication between pods is omni-directional. • Information hopping from pod to pod. • Information at each pod comes through • Direct measurement taken by local sensors at each pod. • Information gathered by other pods and communicated throughout the web.

  10. Multi-Hopping and Power Efficiency

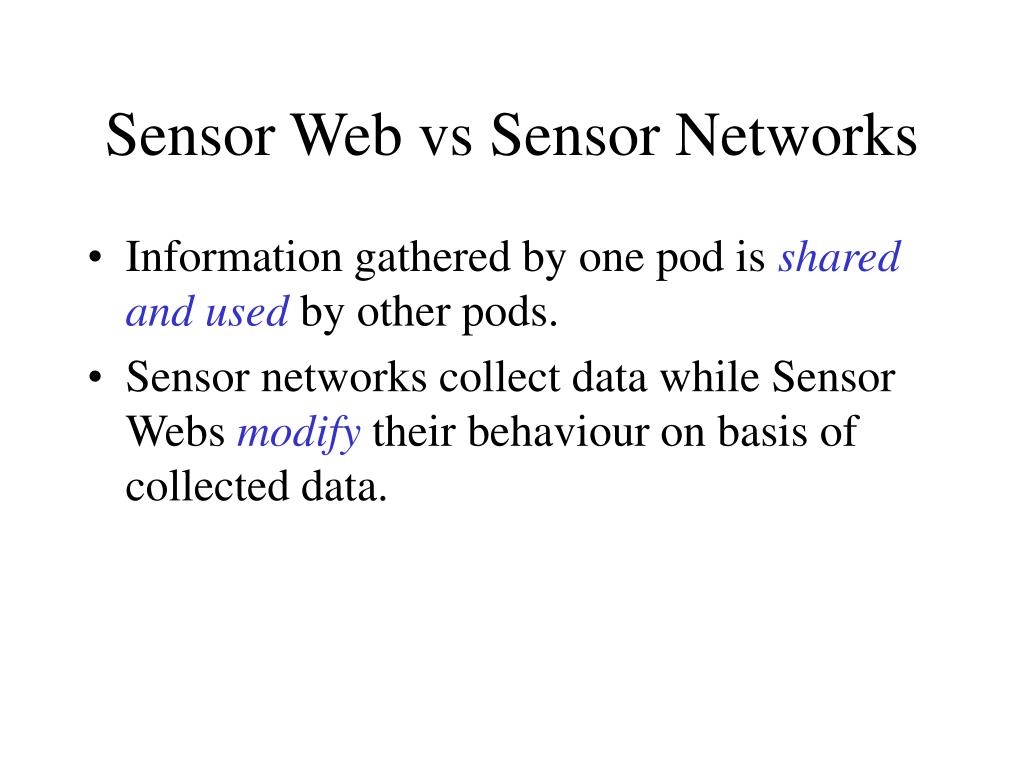

  11. Sensor Web vs Sensor Networks • Information gathered by one pod is shared and used by other pods. • Sensor networks collect data while Sensor Webs modify their behaviour on basis of collected data.

  12. Sensor Web Organization

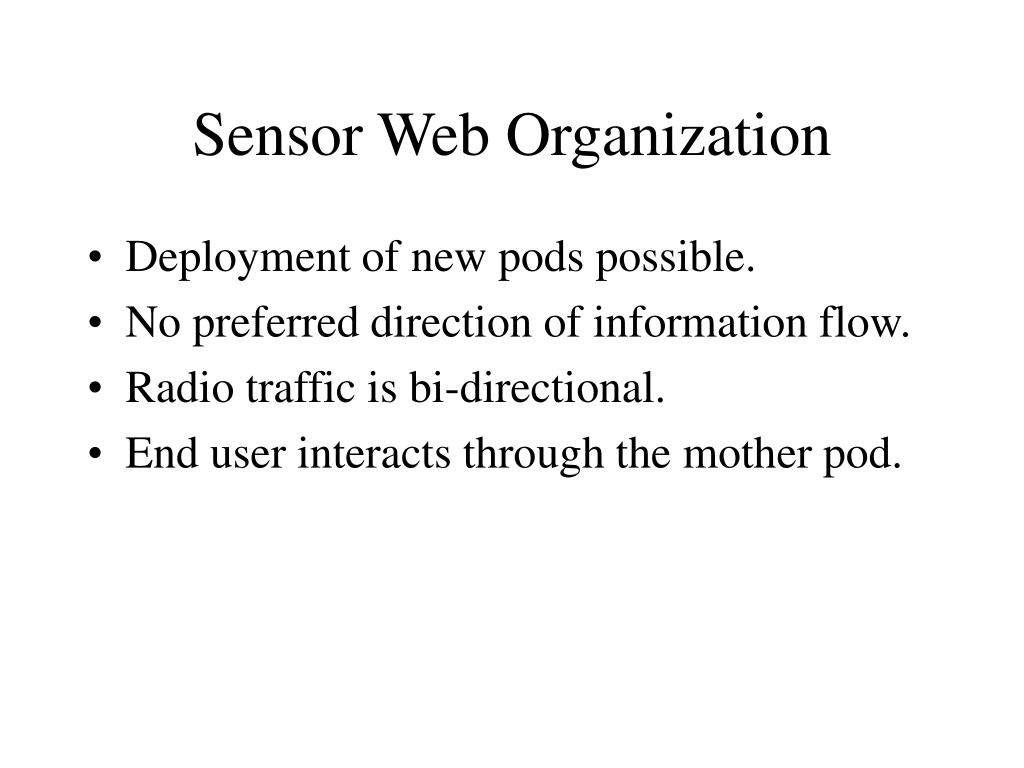

  13. Sensor Web Organization • Deployment of new pods possible. • No preferred direction of information flow. • Radio traffic is bi-directional. • End user interacts through the mother pod.

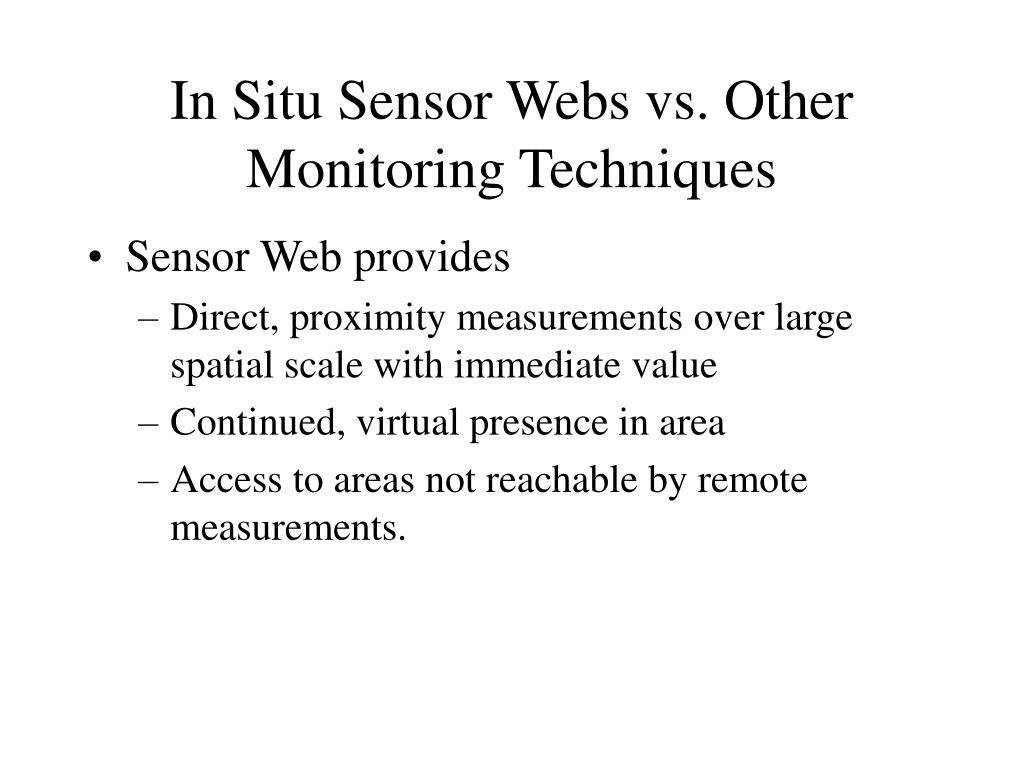

  14. In Situ Sensor Webs vs. Other Monitoring Techniques • Sensor Web provides • Direct, proximity measurements over large spatial scale with immediate value • Continued, virtual presence in area • Access to areas not reachable by remote measurements.

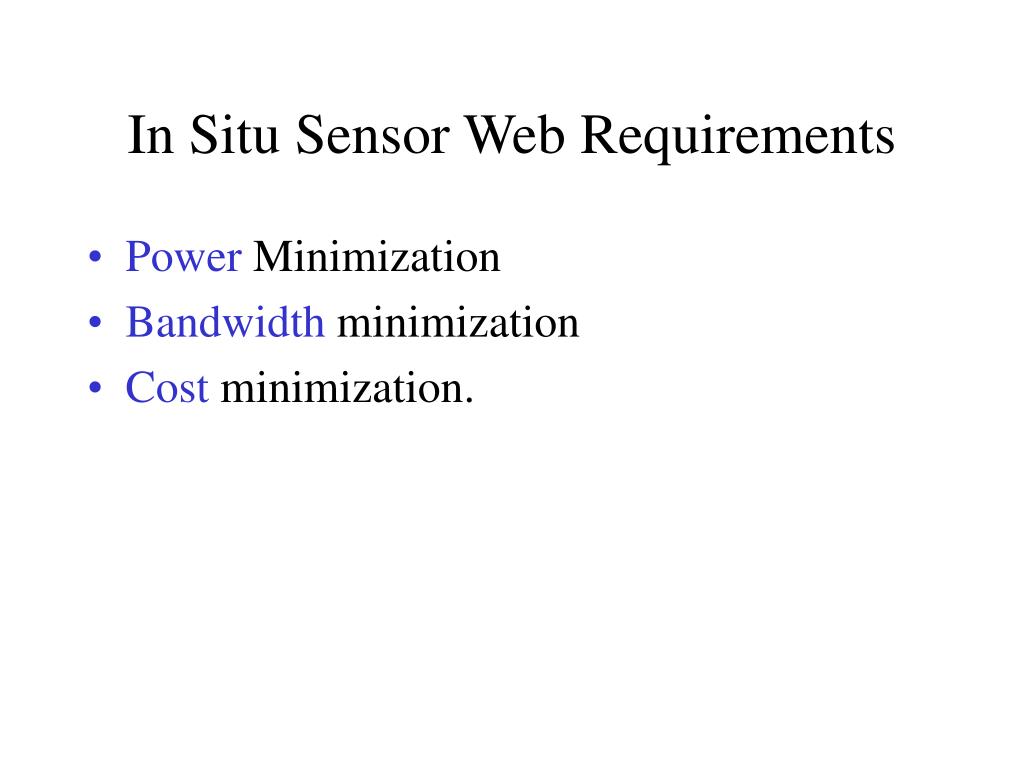

  15. In Situ Sensor Web Requirements • Power Minimization • Bandwidth minimization • Cost minimization.

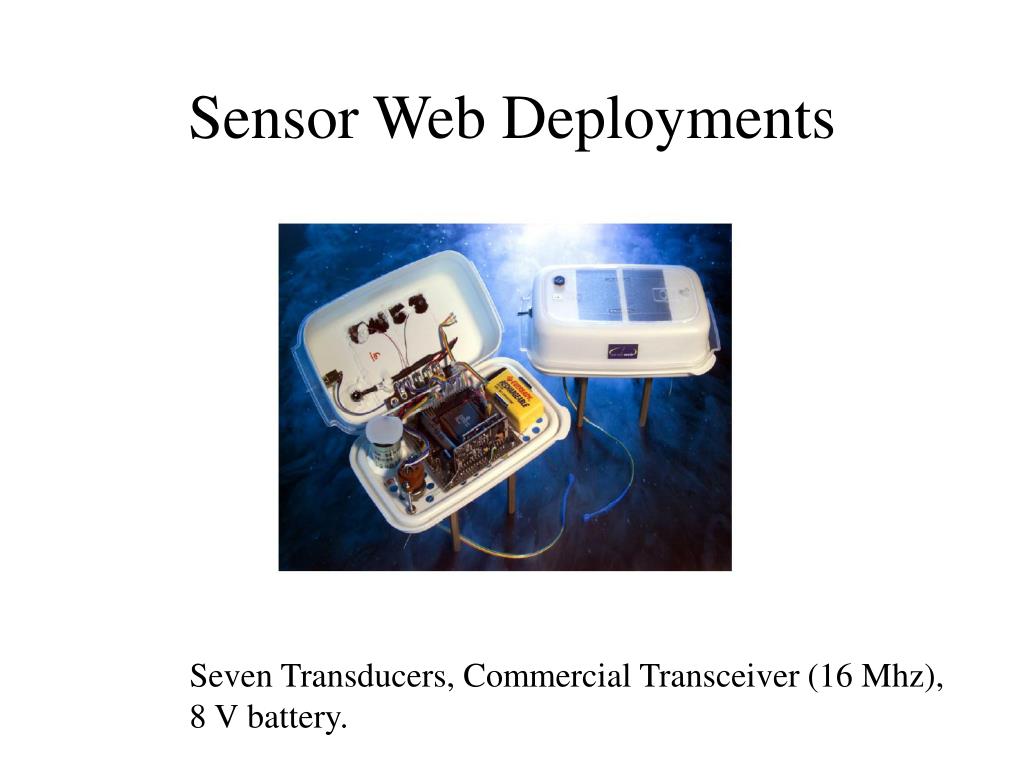

  16. Sensor Web Deployments Seven Transducers, Commercial Transceiver (16 Mhz), 8 V battery.

  17. Sensor Web Deployments

  18. Key Concepts Demonstrated • Individual pods reintegrate themselves • Minor hardware repairs & upgradesperformed on some pods while rest of the web is running • Isolated pods seek the network & integrate themselves • Synchronization of pods

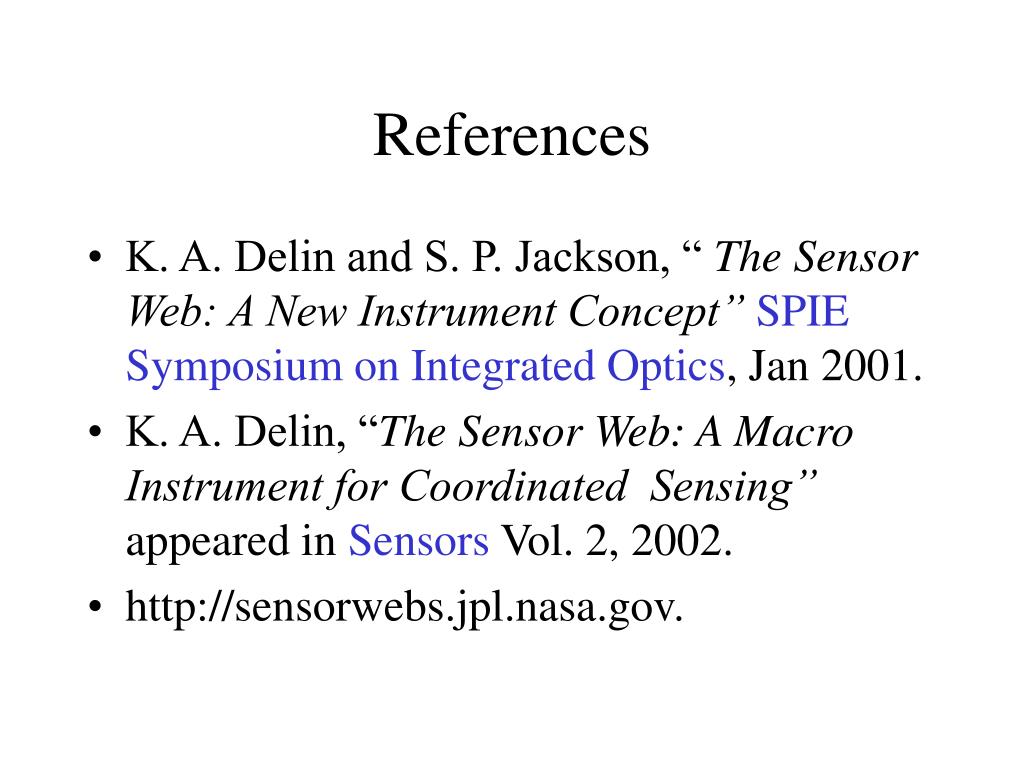

  19. References • K. A. Delin and S. P. Jackson, “ The Sensor Web: A New Instrument Concept”SPIE Symposium on Integrated Optics, Jan 2001. • K. A. Delin, “The Sensor Web: A Macro Instrument for Coordinated Sensing” appeared in Sensors Vol. 2, 2002. • http://sensorwebs.jpl.nasa.gov.
