  1. Cellular Communications Cellular Basics

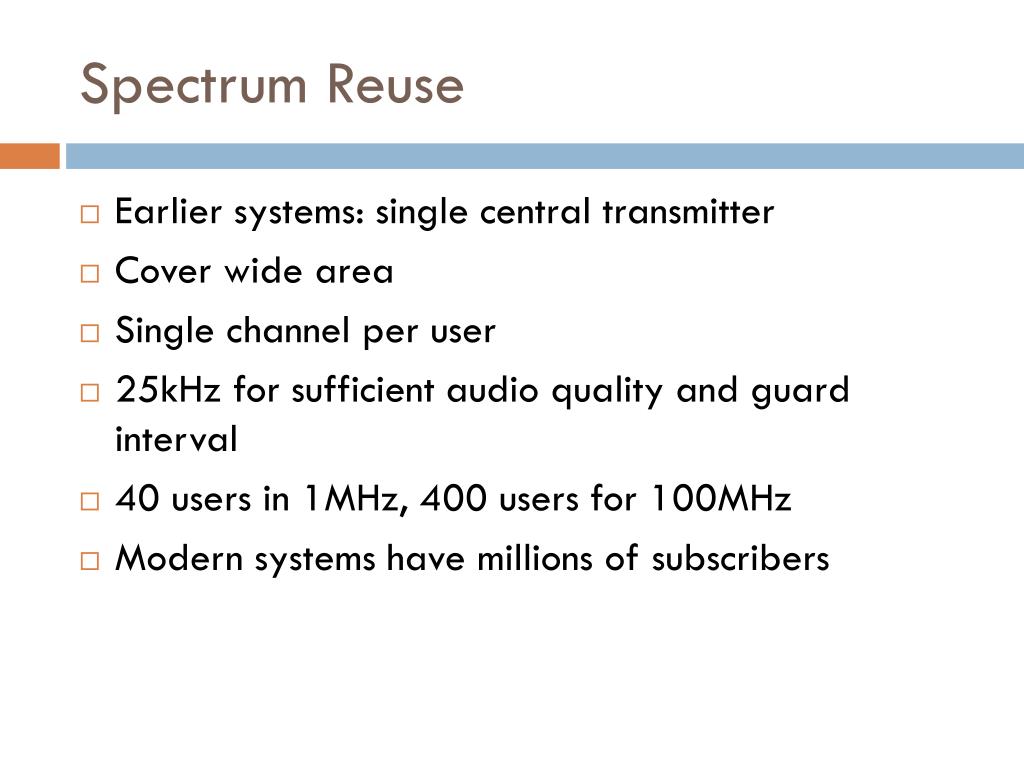

  2. Spectrum Reuse • Earlier systems: single central transmitter • Cover wide area • Single channel per user • 25kHz for sufficient audio quality and guard interval • 40 users in 1MHz, 400 users for 100MHz • Modern systems have millions of subscribers

  3. Spectrum Reuse • Several transmitters, each having only certain coverage area • Cell==coverage area • Reuse same spectrum in many transmitters

  4. Cells

  5. Cells • Often shown as hexagonal shapes • In reality, very irregular boundaries • Signal strength decreases gradually=>no exact cell edges • Some cell areas may overlap • Allocate different spectrum to adjacent cells • Can overlap without causing interference

  6. Cells

  7. 3 3 2 = S R R 2 Cell Footprint

  8. Clusters • Cells with different spectrum grouped together as cluster • Often clusters of size 7

  9. Theoretical Network Planning Honeycomb (hexagonal) cell structure Cluster: set of different frequencies used in group of cells Cluster is repeated by linear shift i steps along one direction j steps in the other direction How many different frequencies does a cluster contain?

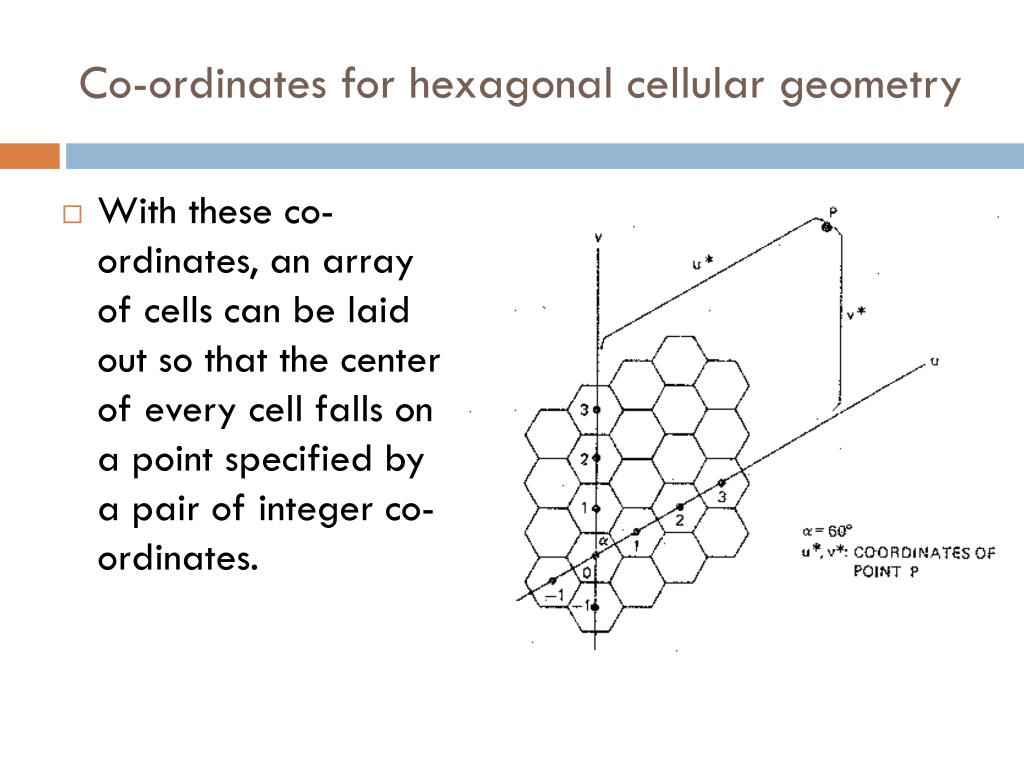

  10. Co-ordinates for hexagonal cellular geometry • With these co-ordinates, an array of cells can be laid out so that the center of every cell falls on a point specified by a pair of integer co-ordinates.

  11. Cosine Rule

  12. 3 Reuse Distance Distance between cell centers = × Cell Radius Reuse distance distance between the centers of two co-channel cells p 2 2 = + + 2ij cos 3 R j R i u 3 where R is Cell Radius R is Reuse Distance u p and cos( /3) = 1/2

  13. R u = R c 3 Cluster Radius Radius of a cluster

  14. Surface area of one hexagonal cell is 3 3 2 = S R R 2 2 { } 3 3 R u = C = S S R R u 2 3 = R 3C R u Cluster Size C: number of channels needed for (i,j) grid is proportional to surface area of cluster Surface area of a (hexagonal) cluster of C cells is Combining these two expressions gives

  15. = R 3C R u 2 2 = + + ij 3 R j R i u 2 2 C = + + ij j i Possible Cluster Sizes We have seen and also Thus: with integer i and j .

  16. Cellular Telephony · Chose C to ensure acceptable link quality at cell boundary Typical Cluster Sizes 2 2 Cluster size C = i + ij + j = 1, 3, 4, 7, 9, ... C = 1 i = 1, j = 0 } Cluster size for CDMA net C = 3 i = 1, j = 1 C = 4 i = 2, j = 0 C = 7 i = 2, j = 1 } Usual cluster sizes for TDMA · C = 9 i = 3, j = 0 } cellular telephone nets C = 12 i = 2, j = 2

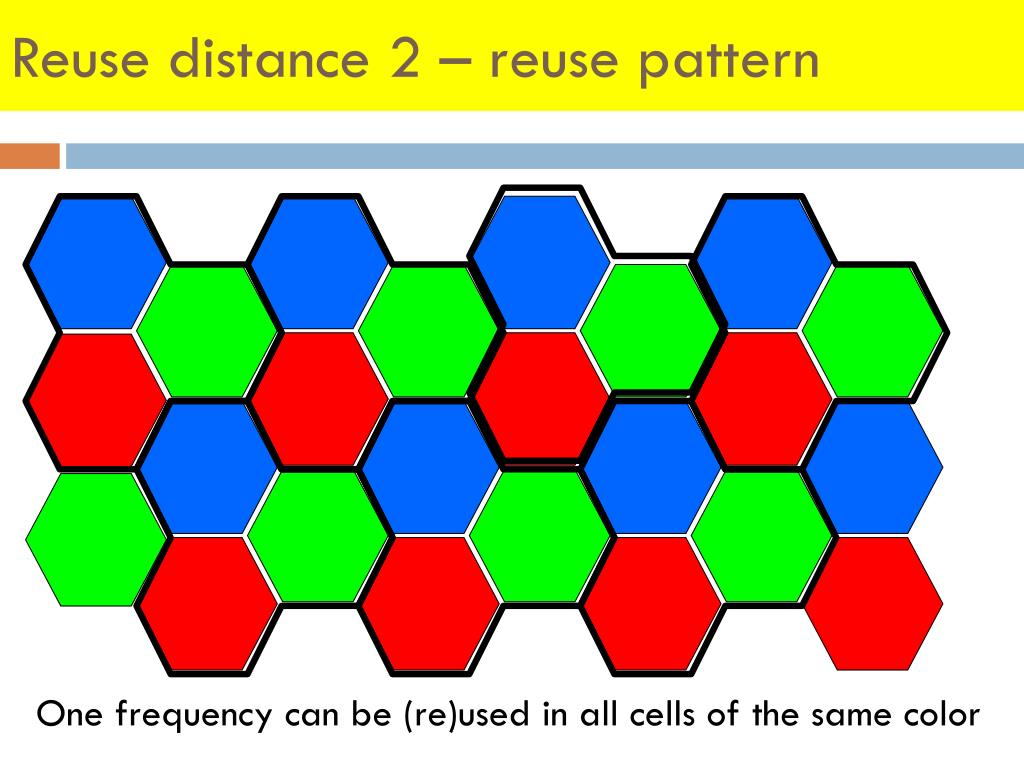

  17. Reuse distance 2 – reuse pattern One frequency can be (re)used in all cells of the same color

  18. Reuse distance 3 – reuse pattern

  19. Design Objectives for Cluster Size • High spectrum efficiency • many users per cell • Small cluster size gives much bandwidth per cell • High performance • Little interference • Large cluster sizes

  20. The effect of decreasing cell size • Increased user capacity • Increased number of handovers per call • Increased complexity in locating the subscriber • Lower power consumption in mobile terminal: Longer talk time, · · Safer operation • Different propagation environment, shorter delay spreads • Different cell layout, · lower path loss exponent, more interference · cells follow street pattern · more difficult to predict and plan · more flexible, self-organizing system needed

  21. Cells • Macrocells • 10km, sparsely populated area • Microcells • 1km, densely populated area • Picocell • 200m, particular buildings, streets

  22. Umbrella Cells

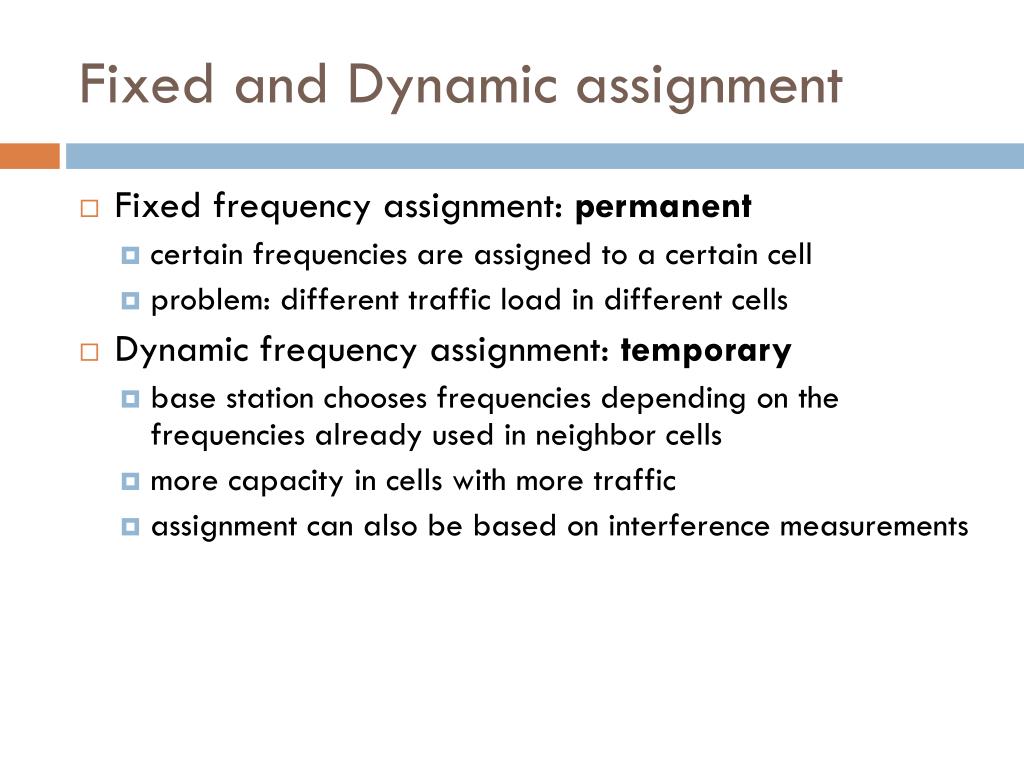

  23. Fixed and Dynamic assignment • Fixed frequency assignment: permanent • certain frequencies are assigned to a certain cell • problem: different traffic load in different cells • Dynamic frequency assignment: temporary • base station chooses frequencies depending on the frequencies already used in neighbor cells • more capacity in cells with more traffic • assignment can also be based on interference measurements

  24. Increasing Capacity • Add new channels • Dynamic channel allocation – frequencies can be taken from adjacent cells by congested cells • Cell splitting – cells in areas of high usage can be split into smaller cells • Cell sectoring – cells are divided into a number of wedge-shaped sectors, each with their own set of channels (typical: 3) • Microcells – antennas move to buildings, hills, and lamp posts

  25. Cell sectorization • Use directional antennas • Collocate cell antenna at the cell edges • Reduce cost

  26. Handoff/Handover • Maintain call while moving

  27. Basic Network Architecture

  28. Basic Architecture • Base Station Controller (BSC) • Control each base station • Manage hand-off of a call from one base station to other • Mobile Switching Center(MSC) • Manages setup and tear down of calls to and from mobile subscribers • Home Location Register (HLR) • HLR subscriber database including location

  29. Network • Base Transceiver Station (BTS) • Antenna Tower • Radio transceivers • Power Supply • Link to BSC (land lines or microwave)

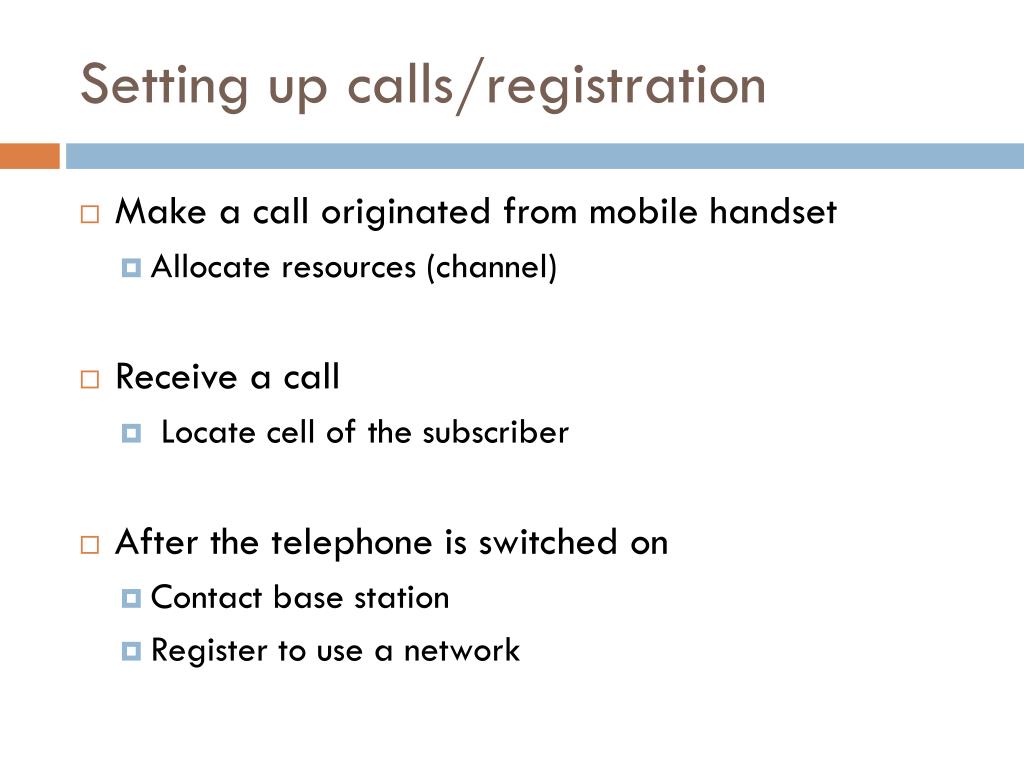

  30. Setting up calls/registration • Make a call originated from mobile handset • Allocate resources (channel) • Receive a call • Locate cell of the subscriber • After the telephone is switched on • Contact base station • Register to use a network

  31. Registration • Authenticate (e.g. for billing) • Authentication Center (AuC) • Store my location • HLR for “home” subscribers • VLR for “visiting”/roaming subscribers • Mobile communicates with the network to update status/location • Network keeps last known location

  32. Receiving a calls • Network should send a notification to a mobile • Network send to the area where mobile is located • Mobile listen to a “paging” channel • Examine each message on the paging channel and compares number with his own • Respond if match

  33. Paging channel • Always listening to the paging channel drains the battery • Divide paging channel into 10 subgroups according to a last digit of mobile phone number • Mobile has to listen only 1/10 of time • Longer call setup time

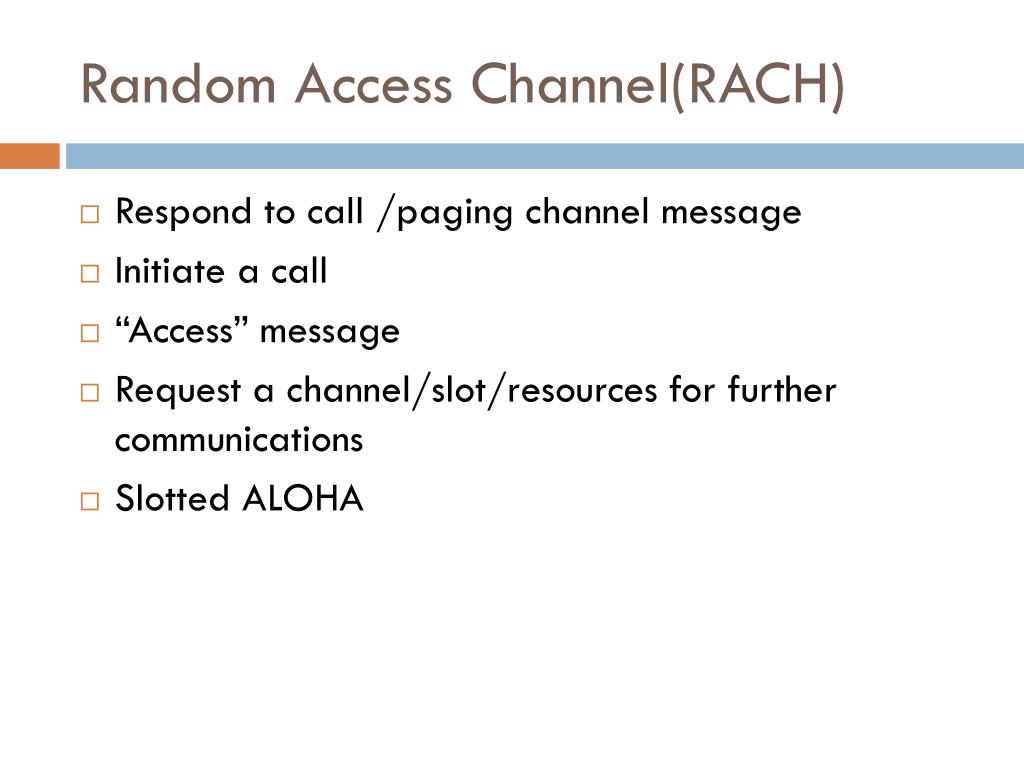

  34. Random Access Channel(RACH) • Respond to call /paging channel message • Initiate a call • “Access” message • Request a channel/slot/resources for further communications • Slotted ALOHA

  35. Handover(EU)/Handoff(US) • Mobile monitor signal strength • Network knows about availability of channels • Mobile monitors strength of signal from current and adjacent cells and sends this information to network • When signal drops below certain level, network reserved new channel at adjacent cell • Mobile switch channel, network shuts down old channel

  36. Handoff Region Signal strength due to BSi Signal strength due to BSj Pj(x) Pi(x) E Pmin BSi MS BSj X1 X3 X5 Xth X4 X2 • By looking at the variation of signal strength from either base station it is possible to decide on the optimum area where handoff can take place.

  37. Types of Handoffs • Hard handoff • A hard handoff is a “break before make” connection. • MS is linked to no more than one BS at any given time. • Hard handoff is primarily used in FDMA and TDMA. • Soft handoff • It isn't a “break before make” transition. • The call can be carried on both cells simultaneously. • Soft handoff is used in CDMA.

  38. Handoff Decisions • Decision-making process of handoff may be centralized or decentralized • Three different kinds of handoff decisions • Network-Controlled Handoff • Mobile-Assisted Handoff • Mobile-Controlled Handoff

  39. Operation Support Systems • Network Management Systems • Service Delivery • Service Fulfillment, including the Network Inventory, Activation and Provisioning • Service Assurance • Customer Care • Billing

  40. GSM

  41. GroupeSpeciale Mobile/Global System for Mobile

  42. GSM Air Interface • TDMA with FDD • 200Khz channels with 200KHz guard bands • GSM 900 has 124 carriers • GMSK modulation, 270kbps per carrier • Up to 8 users, 24.8kbps per user • FEC reduces to 13kbps per user for voice

  43. Physical Channel • RF carrier divided into 8 slots, numbered 0..7 • Timeslots carrying data • At most 8 traffic channels • Control messages • At least 1 control channels • More control (logical) channels • Packed into RF carrier

  44. Single Burst/Slot

  45. Frame Structure

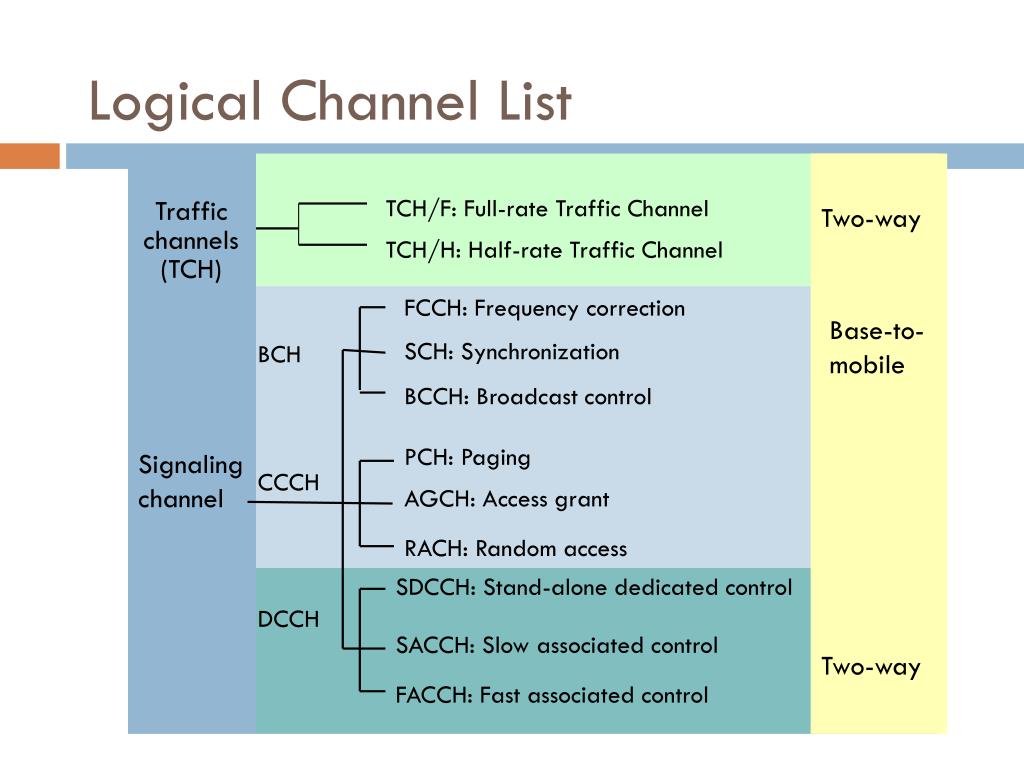

  46. Logical Channel List TCH/F: Full-rate Traffic Channel Traffic channels (TCH) Two-way TCH/H: Half-rate Traffic Channel FCCH: Frequency correction Base-to- mobile SCH: Synchronization BCH BCCH: Broadcast control PCH: Paging Signaling channel CCCH AGCH: Access grant RACH: Random access SDCCH: Stand-alone dedicated control DCCH SACCH: Slow associated control Two-way FACCH: Fast associated control

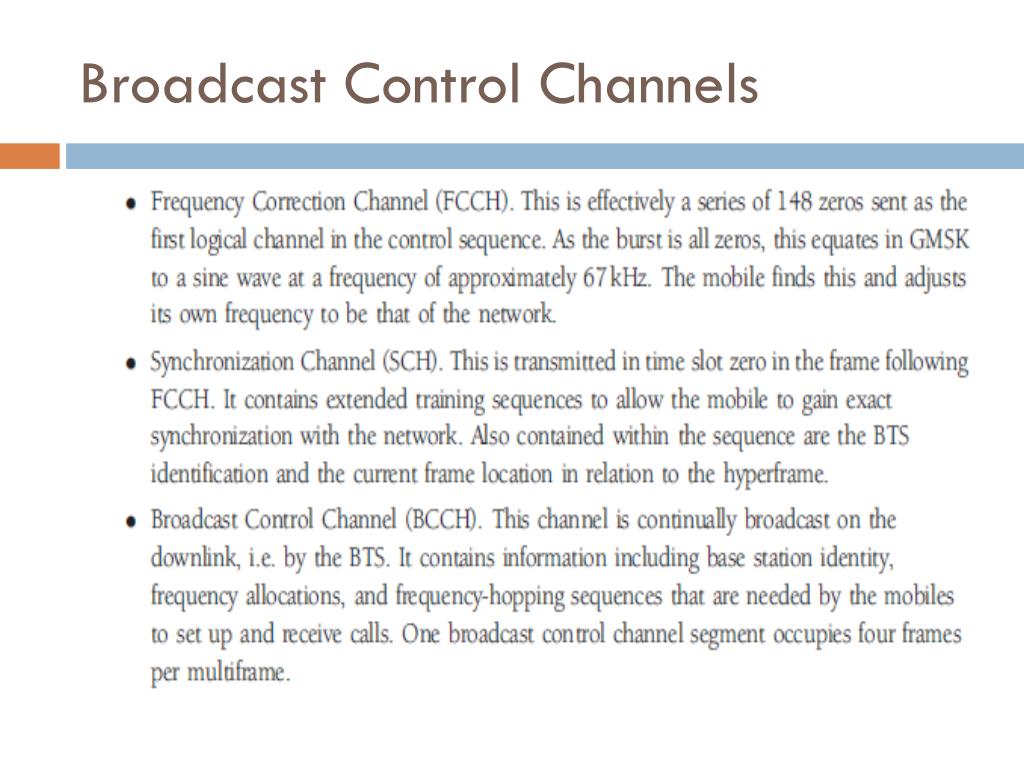

  47. Broadcast Control Channels

  48. Common Control Channels

  49. Dedicated Control Channels
