Chapter 18 OpenSSH: Secure Network Communication

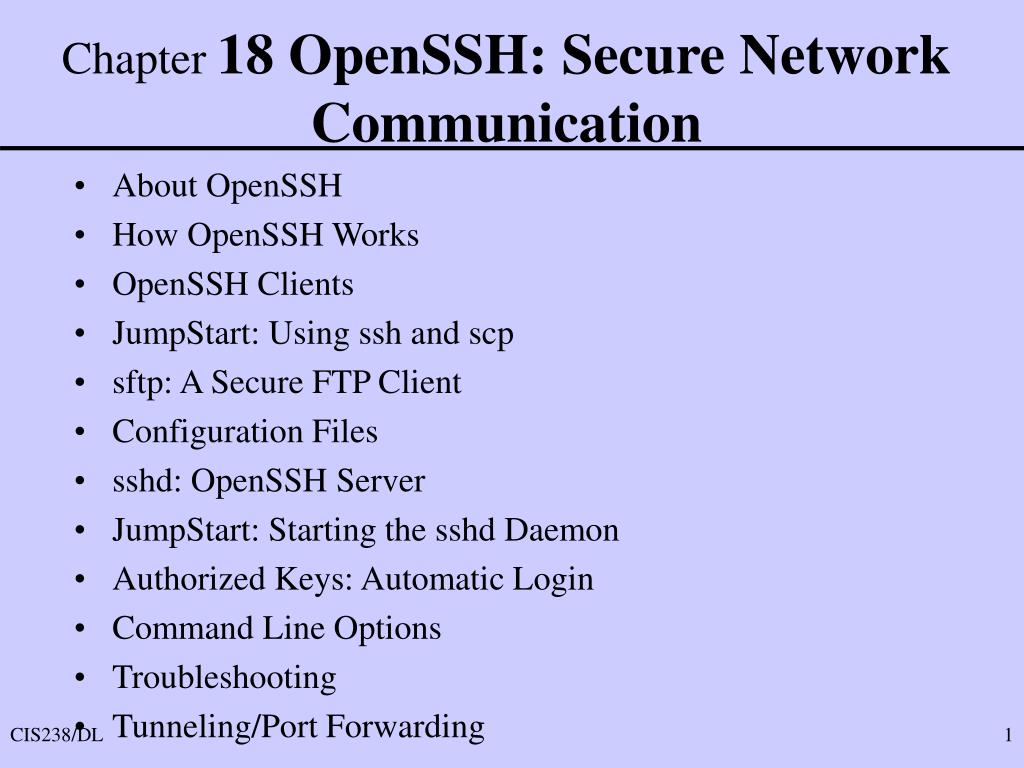

1. Chapter 18 OpenSSH: Secure Network Communication • About OpenSSH • How OpenSSH Works • OpenSSH Clients • JumpStart: Using ssh and scp • sftp: A Secure FTP Client • Configuration Files • sshd: OpenSSH Server • JumpStart: Starting the sshd Daemon • Authorized Keys: Automatic Login • Command Line Options • Troubleshooting • Tunneling/Port Forwarding

2. About OpenSSH • SSH1 versus SSH2 • What is ssh? • X11 forwarding

3. /etc/ssh: Gobal Files • moduli - key exchange information • ssh_config – global config file • sshd_config – ssh daemon config file • ssh_host_dsa_key or ssh_dsa_ke.pub – DSA host keys (can also be rsa instead of dsa) • ssh_known_hosts – allowed known ssh hosts • sshrc – startup file with initialization routines

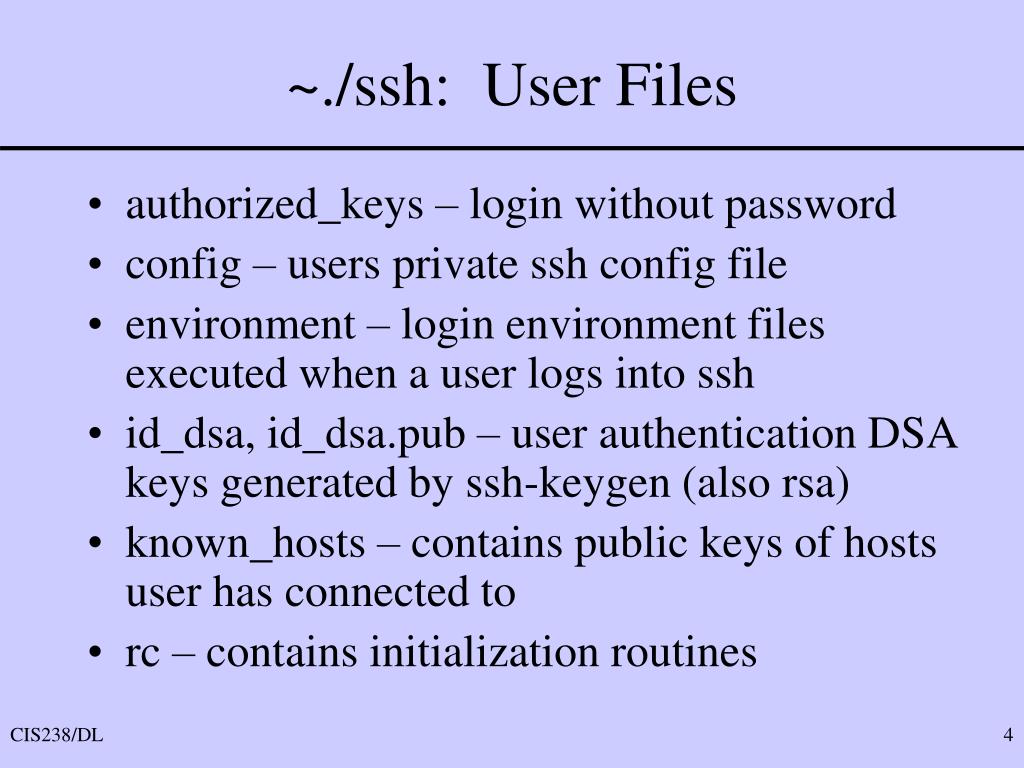

4. ~./ssh: User Files • authorized_keys – login without password • config – users private ssh config file • environment – login environment files executed when a user logs into ssh • id_dsa, id_dsa.pub – user authentication DSA keys generated by ssh-keygen (also rsa) • known_hosts – contains public keys of hosts user has connected to • rc – contains initialization routines

5. How OpenSSH Works • Establishes encrypted connection • Authenticates user • Negotiates using 2 pairs • Host key pair generated by sshd • Session key pair that changes hourly • Verifies that the server is correct server • Client copies server public key to compare in later sessions • Client generates random key, encrypts it with the server public key and session key • Server decrypts with its private key

6. OpenSSH Clients • Need: openssh and openssh-clients • Download and install with yum, up2date,or apt-get (synaptics)

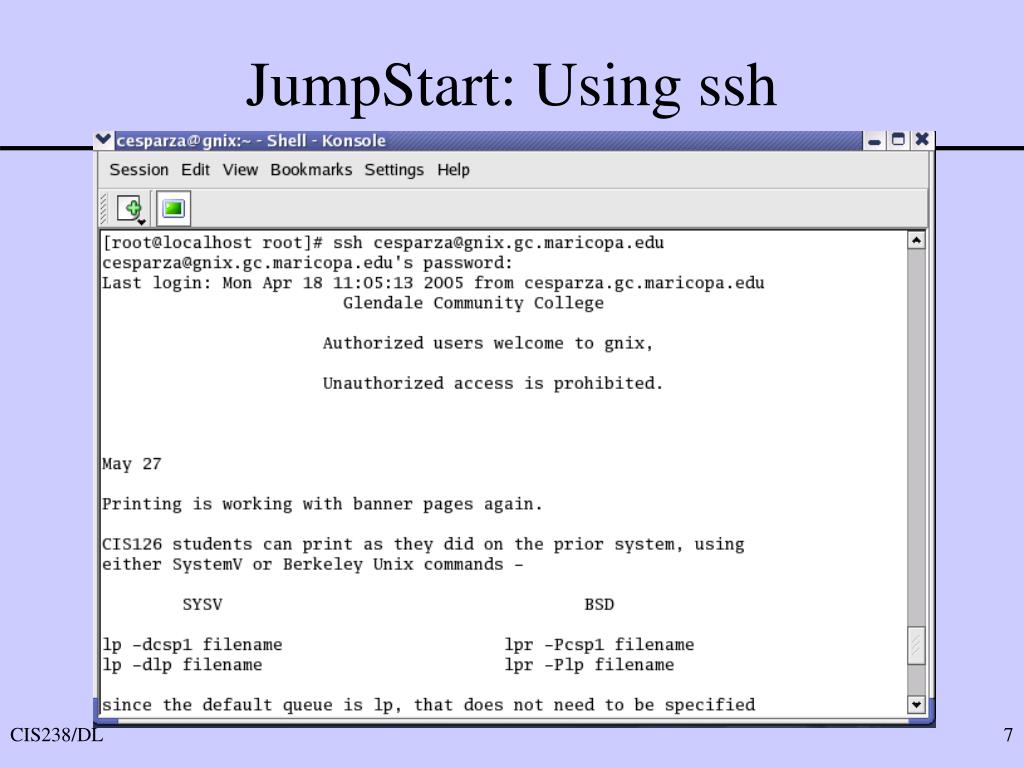

7. JumpStart: Using ssh

8. ssh: Connect to and Execute Commands on a Remote System

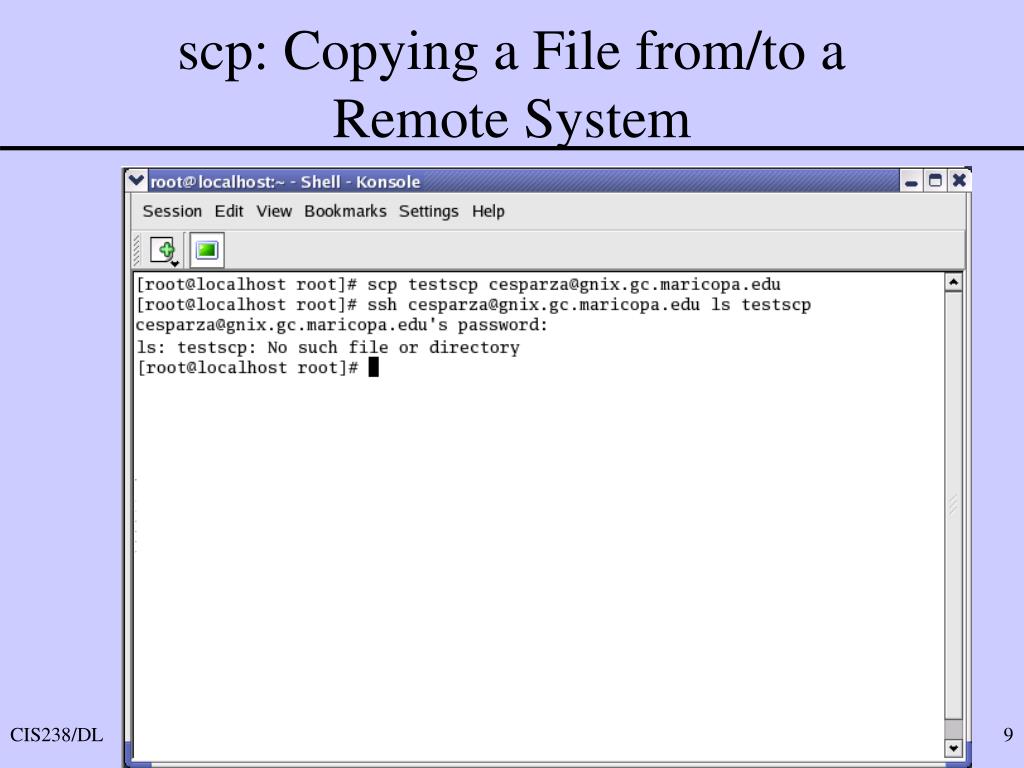

9. scp: Copying a File from/to a Remote System

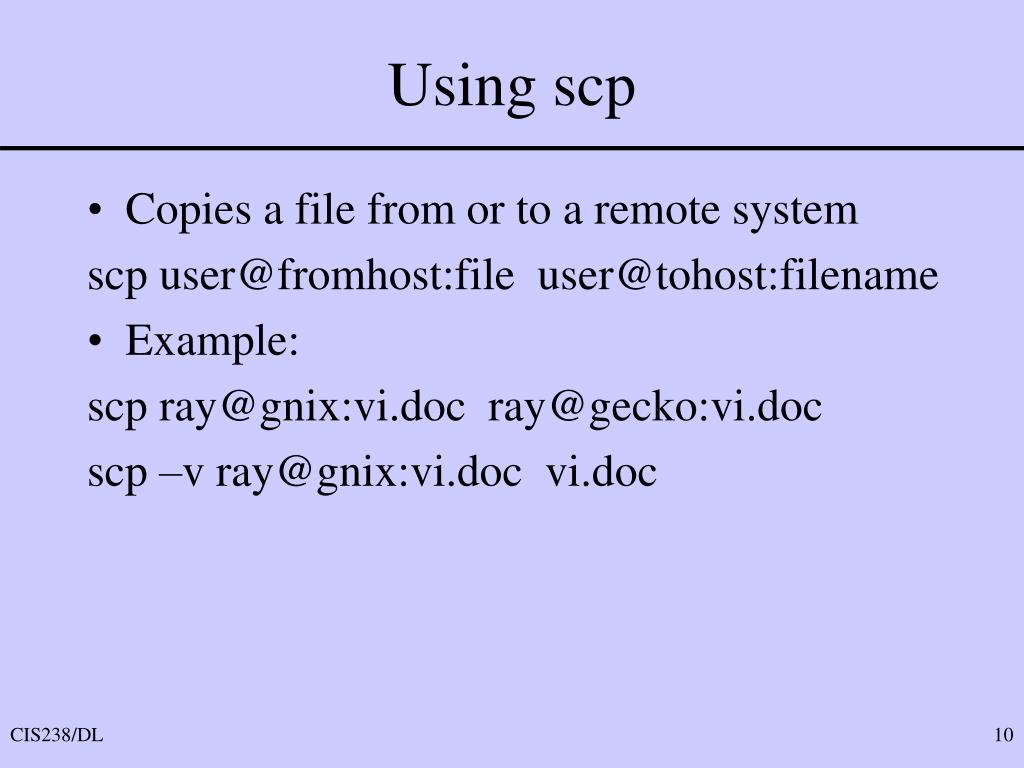

10. Using scp • Copies a file from or to a remote system scp user@fromhost:file user@tohost:filename • Example: scp ray@gnix:vi.doc ray@gecko:vi.doc scp –v ray@gnix:vi.doc vi.doc

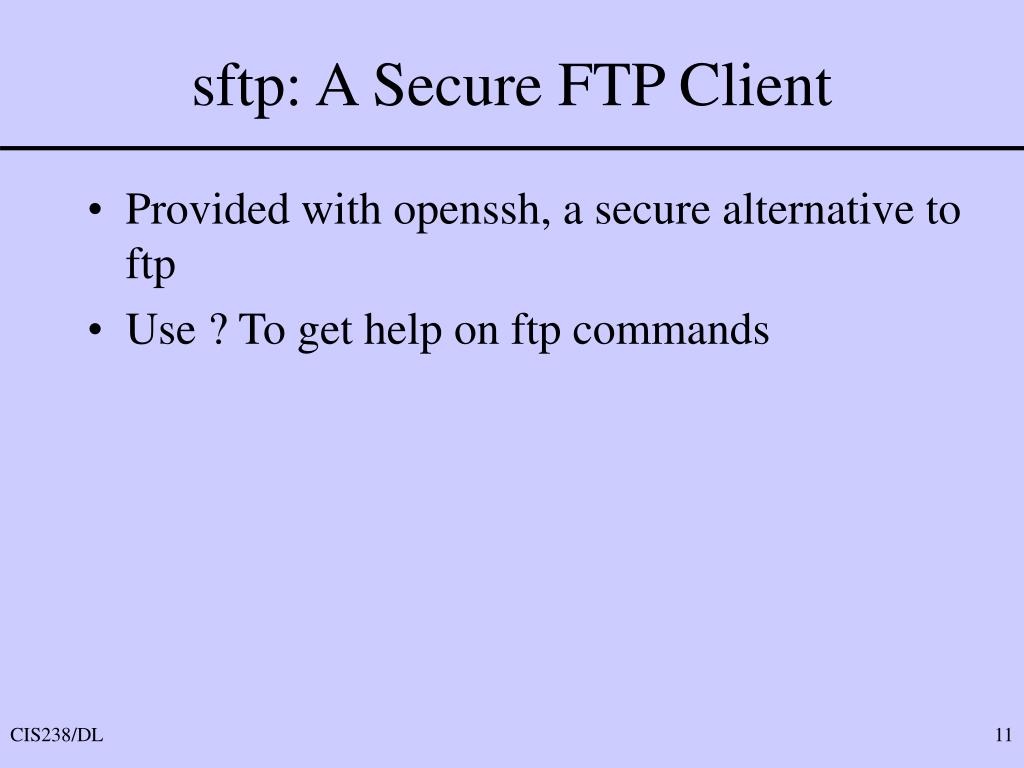

11. sftp: A Secure FTP Client • Provided with openssh, a secure alternative to ftp • Use ? To get help on ftp commands

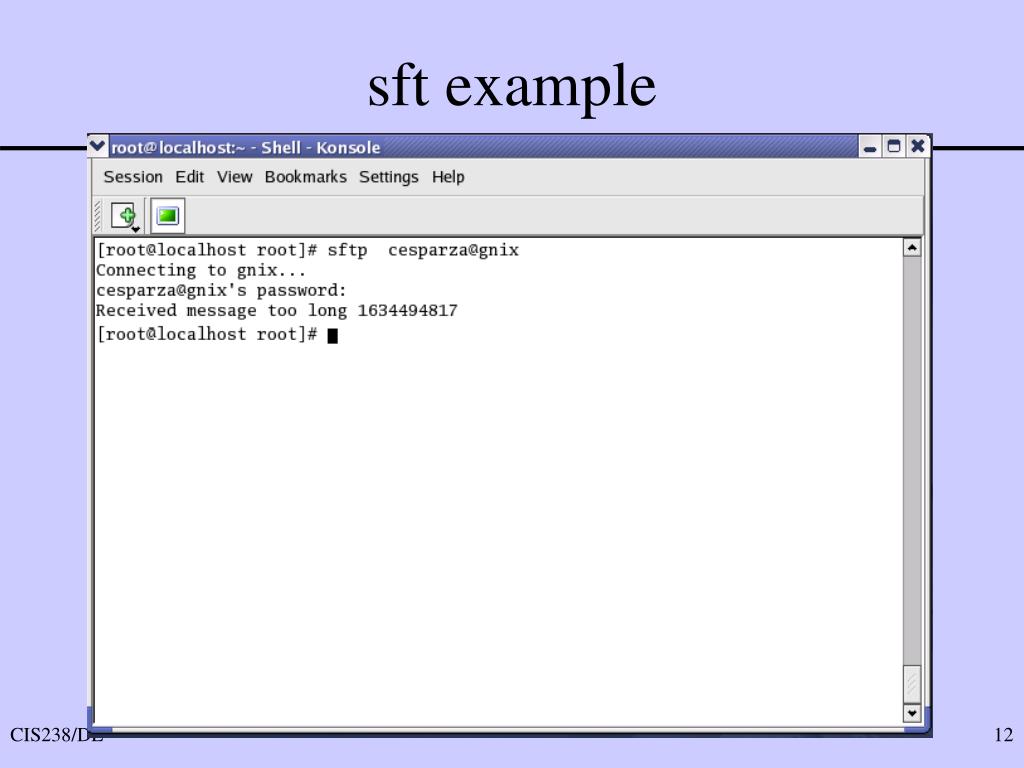

12. sft example

13. Configuration Files • -/.ssh/config • .ssh/config is your own client local file, it is read first and over-rides any entry in the global file: • /etc/ssh/ssh_config • This is the global file that uses defaults not set in your .ssh/config file

14. sshd: OpenSSH Server • Prerequisites: openssh and openssh-server • /sbin/service sshd start • Authorized Keys: automatic user login • ssh-keygen –t rsa (or dsa) generates keys • Copy ~/.ssh/id_rsa.pub to ~/.ssh/authorized_keys for no password login

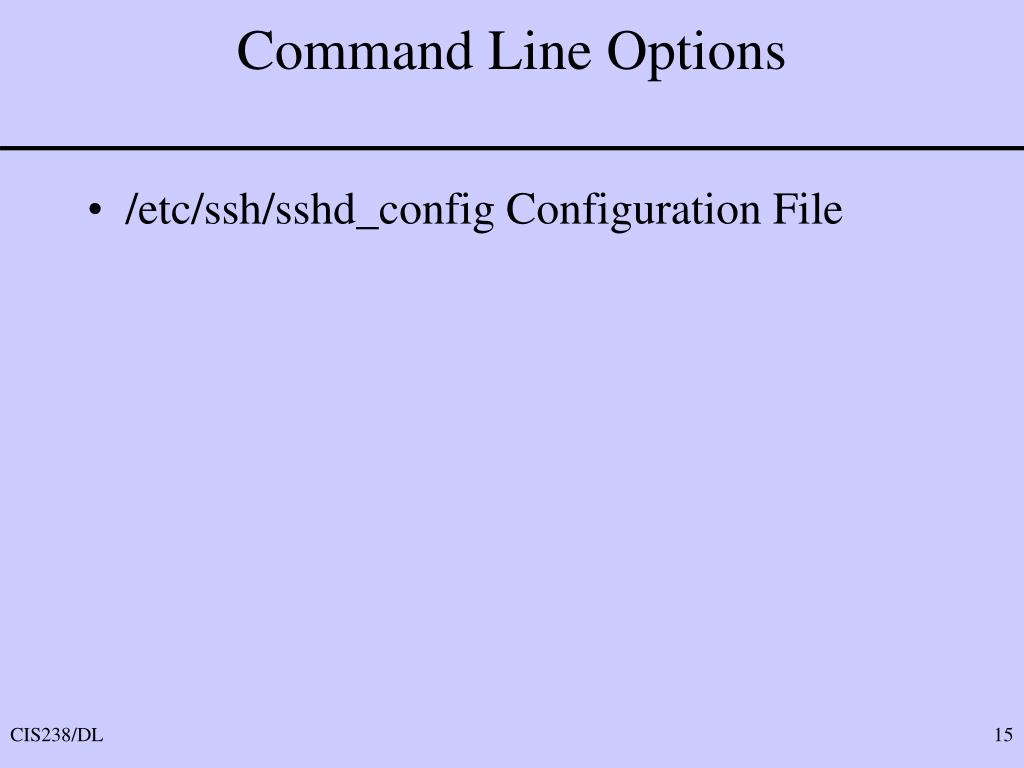

15. Command Line Options • /etc/ssh/sshd_config Configuration File

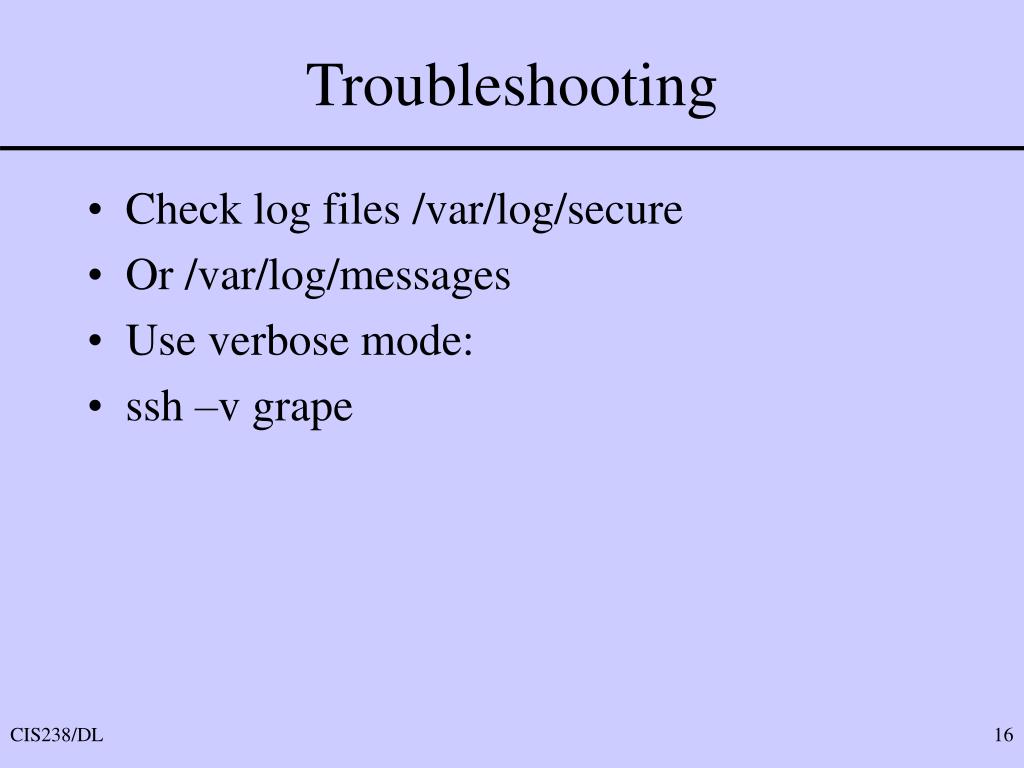

16. Troubleshooting • Check log files /var/log/secure • Or /var/log/messages • Use verbose mode: • ssh –v grape

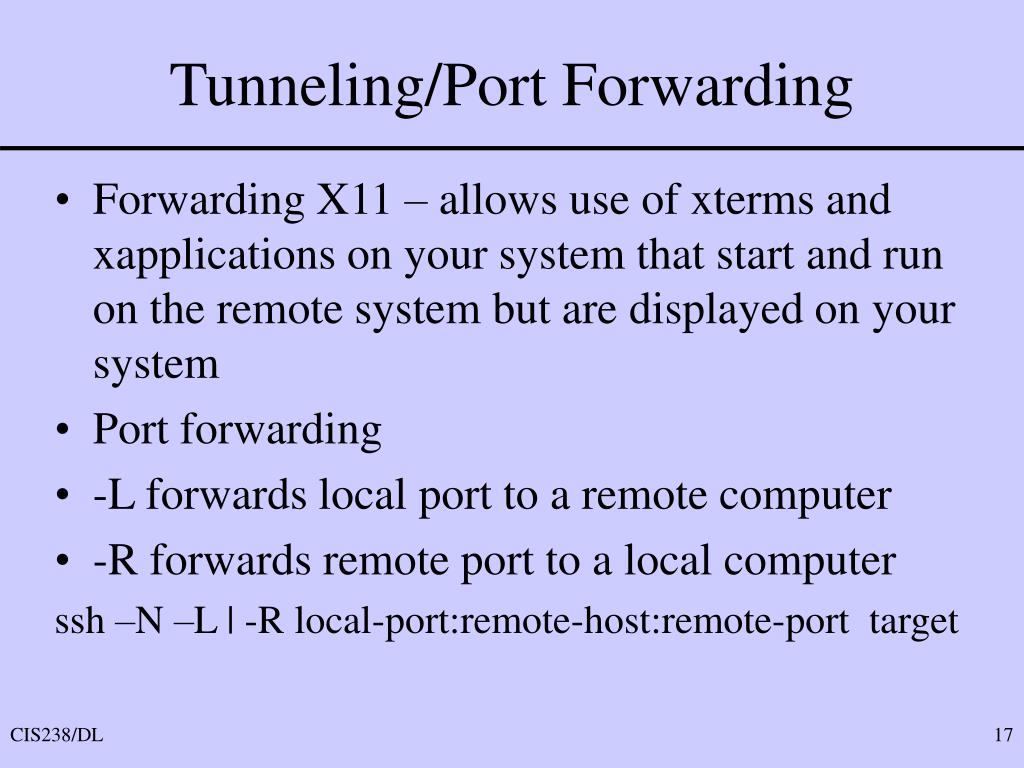

17. Tunneling/Port Forwarding • Forwarding X11 – allows use of xterms and xapplications on your system that start and run on the remote system but are displayed on your system • Port forwarding • -L forwards local port to a remote computer • -R forwards remote port to a local computer ssh –N –L | -R local-port:remote-host:remote-port target

18. Any Questions?
