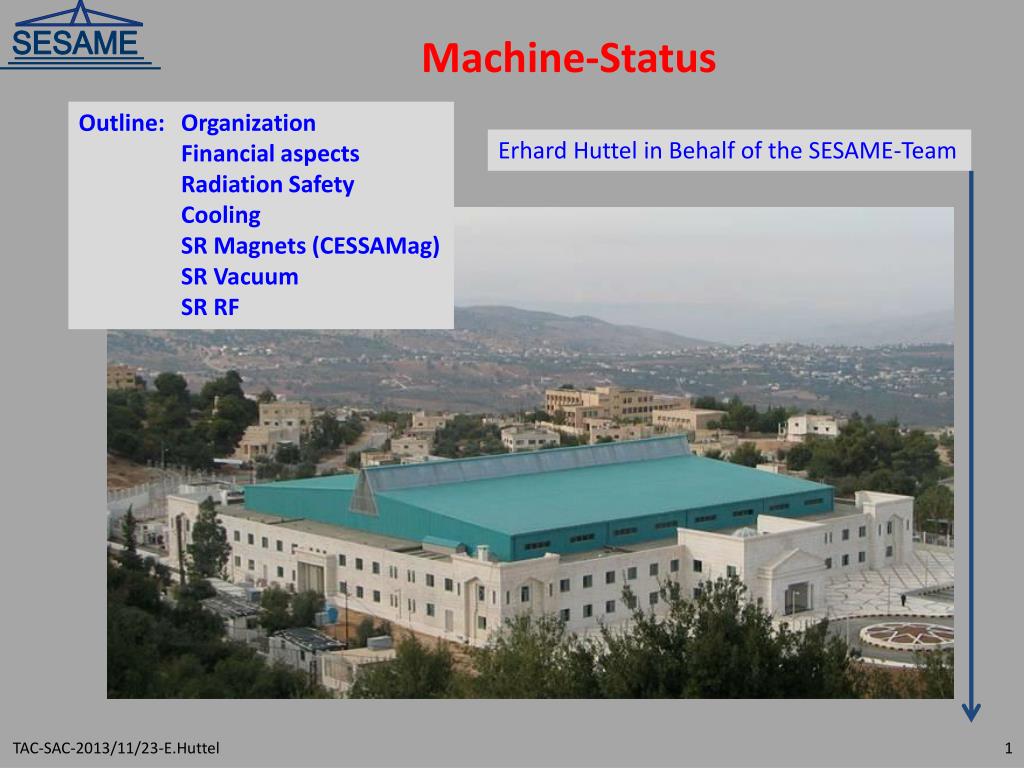

  1. Machine-Status Outline: Organization Financial aspects Radiation Safety Cooling SR Magnets (CESSAMag) SR Vacuum SR RF Erhard Huttel in Behalf of the SESAME-Team

  2. Organization Cooling/Vacuum FirasMahahleh Osama Nour (C) Mohammad Al-Nadjdawi (V) Adel Amro (V) SaedBudair (V) Beamlines (+1) XABS:MessaoudHarfouche IR: Ibraheem Yousef PD: RabiaKaneez (2013) Power-Supplies / Electric (+1) SofianJavar IfikharAbid Osama Khader(2013) YazeedMomani FarouqAl-Omari Machine-Physics (+2) Maher Attal Mohammad Ebeni (2013) KoryunMaunkyan (2013). Computing Salman MAtalgah Mustafa Zoubi Design/Mechanics Maher Shehab Thaer Abu-Hanieh Akrum Al-Homoud Ahmad Ateieh Open position RF/Diagnostics DarweeshFoudeh Nashat (RF) AlaaAlkurdi (RF) Hussain Al-Mohammad (D) Control (+1,-1) (ZiaulhaqueQazi) left 2013 Ibrahim Saleh Abdallah Ismail (2013) Open Positions Administration (+4) Sonia Al-Faques MajedaSalama ( 2013) Ayman Al-Zoubi Ibrahim Radwan Abd Al MawlaGnaimat AmeyrehBasheer(2013) Khaled Al-Zoubi (2013) Rawan Ramadan (2013) Radiation-Safety AdliHamad MortezaMansouri Administrative Sector Technical Sector Scientific Sector Groups working for both Sectors (more efficient for a small facility)

  3. Financial Aspects till 2016 Injector-upgrade 0.9 M€ Magnets and PS:5.0 M€ Girder: 0.8 M€ Vacuum: 3.0 M€ RF: 3.0 M€ Diagnostics: 1.5 M€ SR-Cooling: 0.5 M€ Cabling: 0.5 M€ Commissioning: 1.5 M€ Control-System 1.1 M€ Safety P+A 0.8 M€ Front-Ends: 0.5 M€ Sum [€] 19.0 M€ Sum [$] 23.3 M$ 10% 25.6 M$ Income EU-CERN: 5.00 M€ Jordan: 4 x 1.25 M$ Turkey: 4 x 1.25 M$ Israel: 4 x 1.25 M$ Iran: 4 x 1.25 M$ ? Sum: 26 M $ ? Machine: 25.6 M$ 4 Beamlines upgrade: 8.7 M$ Guesthouse+ 1.3 M$ Sum 35.6 M$

  4. Cost Planning / Schedule Plan A Nov 2013 till Nov 2014: Committed money 12.5 M$ > provided money 7.5 M$ < less spend money 6.0 M$ If committed money must be less provided money Schedule must be revised! Plan B. Start of operation delayed! 1) Contribution Israel, Jordan, Turkey 2) due to partial payment over two years spend is less than committed money The contribution of Iran is needed for the built up of the beam-lines!

  5. Cost Planning / Schedule Plan B Provided Money (blue) > committed money (red) > spend money (green) Commissioning delayed to 2017! The contribution of Iran is needed for the built up of the beam-lines ! 1) Contribution Israel, Jordan, Turkey 2) due to partial payment over two y ears spend is less than committed money

  6. Project-Development Still in the expected range for commissioning in 2016

  7. No-In-kind Contribution Pakistan Visit of SESAME Director, Scientific- and Administrative Director Jan. 2013 Visit of SESAME-Technical Director and Mechanical Group-Leader March 2013 In preparation of contracts: Our mails have not been replied Kick off meeting at HMC3

  8. Cooling System Design by SESAME : FirasMakahleh Done by local provider: Alpha-Amman Volume: 2.2 M $, Built up: 2011-2013 Financed by: EuropAid Chillers, Cooling towers (2 x 1.1 MW) Air conditioning Hall (600 kW), Tunnel (30 kW) Heat-exchanger (2x 0.9 MW) Pumps

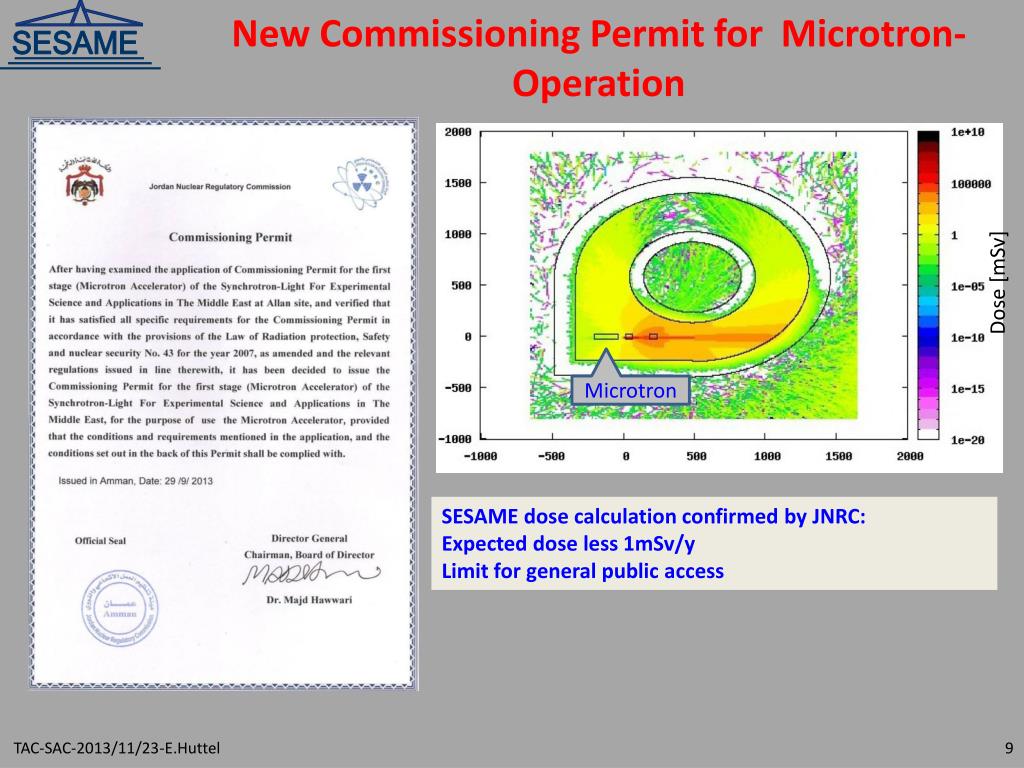

  9. New Commissioning Permit for Microtron-Operation Dose [mSv] Microtron SESAME dose calculation confirmed by JNRC: Expected dose less 1mSv/y Limit for general public access

  10. Radiation Safety Two bids (Thermo/Eberlein, Berthold (178 k$, 275 k$) On-line-Radiation Monitors (Thermo/Eberlein) delivered: Aug. 13 X-ray and Neutron Personal (Luxel) Dosimeter ordered from Landauer Radiation Monitor installed on top of the SESAME Booster Luxel Dosimeter

  11. Personal Safety System Personal-Safety System Invitation to bid: May 13 3 Bids received: Jul. 13 (SAM, PROCON, SELMER) (73 k$, 163 k$, 743 k$)

  12. Booster Installation Done: Vacuum Installed and pumped Magnets aligned RF Installed Septum, Kicker PS built up Cabling done Control system built up Radiation-Monitors installed Commissioning Jan.2014 Cavity Quadrupole Current-Monitor Corrector Dipole

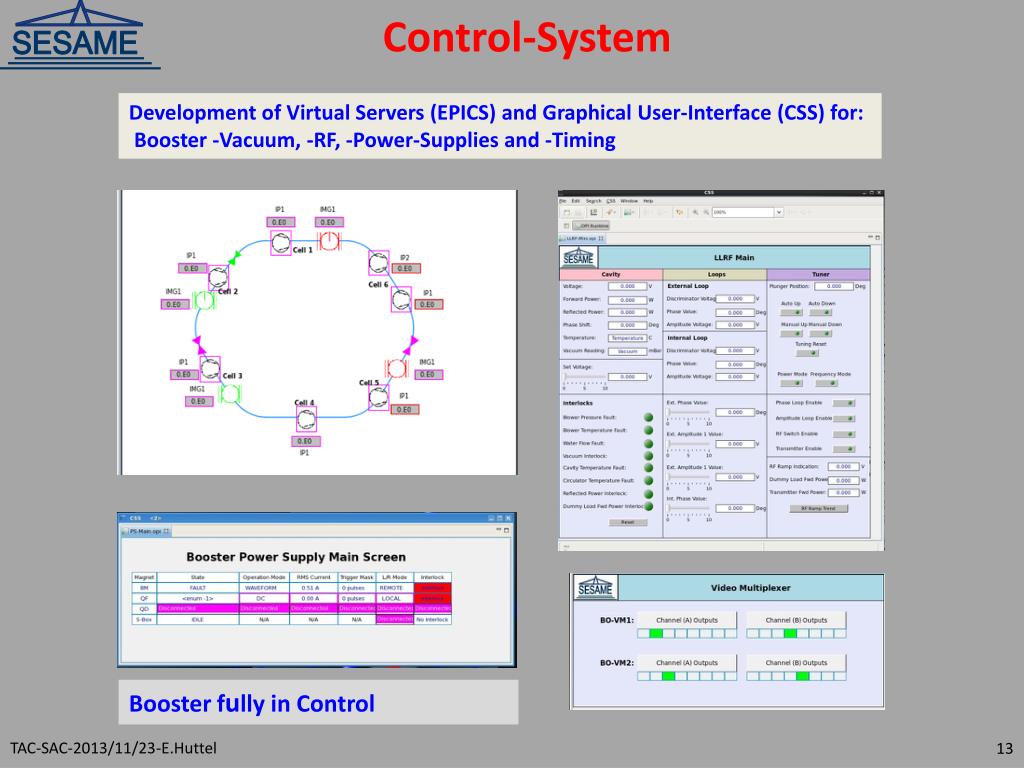

  13. Control-System Development of Virtual Servers (EPICS) and Graphical User-Interface (CSS) for: Booster -Vacuum, -RF, -Power-Supplies and -Timing Booster fully in Control

  14. CESSAMag-Project CERN SESAME agreement: 15.05.2012 EU CERN agreement FP7: 11.04.2013 CERN Jean-Pierre Koutchouk DavideTommasini Attilio Milanese Louis Walckiers Theodor Tortschanoff SESAME Erhard Huttel Maher Attal Maher Shehab FirasMakahleh Mohammad Ebeni ALBA Montse Pont Paul Proudlock Jean-Paul Burnet Miguel CerqueiraBastos Invitation to Bid (Jun. 2013) Opening of Bids (Aug.2013) Dipole: (TESLA, DANFYSIK) Quadrupole: (ELYTT, SIGMA-PHI, SCANDITRONIX, DANFYSIK,TESLA) Cost allow Power-Supplies to be fully paid within CESSMag Project

  15. Storagering Magnets Dipole: B: 1.46 T B’:2.79 T/m L: 2.25 m Quadrupole: B’: 17 (-9) T/m L: 0.28 (0.1) m Sextupole: M: 90 (-140) T/m2 l.: 0.1 m First punched laminations

  16. Measuring Bench

  17. SR-Girder Design ready (ALBA Design) 6 feeds 3 struts used for transverse and longitudinal adjustment 3 jacks used for vertical adjustment and clamping Magnet Position defined by pins Tender Request next week

  18. SR-Vacuum-Chamber-Design Pressure < 2 10-9 mbar for lifetime > 10 h Syn.Rad. is absorbed on lumped absorber, Pumps beneath Syn.Rad. is passing into ante chamber Electron beam chamber 70 x 28 mm2 Installed Ion-Pumps: 16 x ( 2x 300 l/s + 7 150 l/s)

  19. Vacuum-System-Purchasing Invitation to Bid: Jun. 13 3 bids received : Aug. 13 (FMB, CECOM, RCJ) (2.0 M$, 2.2 M$, 3.9 M$) Next: Purchasing Pumps (Varian, Gamma-Vac) Purchasing Valves, Bellows (VAT)

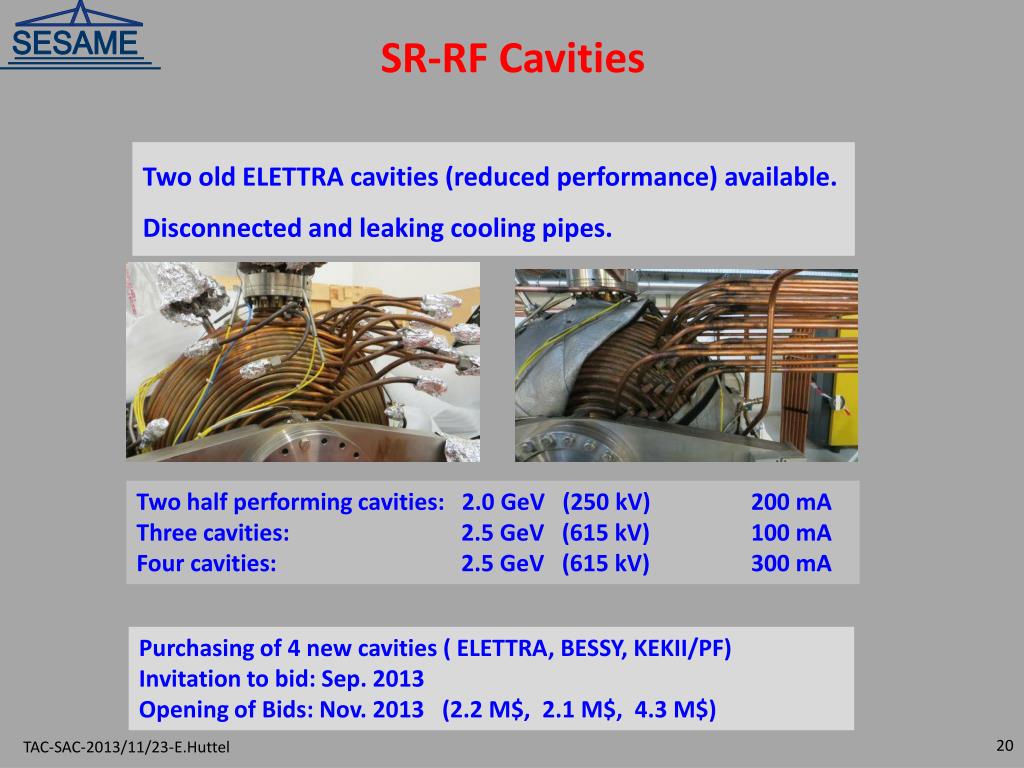

  20. SR-RF Cavities Two old ELETTRA cavities (reduced performance) available. Disconnected and leaking cooling pipes. Two half performing cavities: 2.0 GeV (250 kV) 200 mA Three cavities: 2.5 GeV (615 kV) 100 mA Four cavities: 2.5 GeV (615 kV) 300 mA Purchasing of 4 new cavities ( ELETTRA, BESSY, KEKII/PF) Invitation to bid: Sep. 2013 Opening of Bids: Nov. 2013 (2.2 M$, 2.1 M$, 4.3 M$)

  21. Cavities Specification: Number: 4 Frequency: 499.65 MHz Shunt Impedance: > 3.3 MΩ Max Cavity Voltage: > 650 kV Max Window Power: > 120 kW HOM-Damping Properties: Wave guide (BESSY) ++ Beam-Pipe (KEK/PF) + Temperature (ELETTRA) 0 Invitation to Bid: Sep. 13 3 bids received : Nov. 13 (RI, ELETTRA, TOSHIBA)

  22. RF Amplifier Intended : Use 500 MHz solid state amplifier (0.6 kW Module) developed at SOLEIL Needed: 4 x 80 kW from 4 x 10 x 16 x 0.5 kW Status: 16 Modules combined and tested by SOLEIL. 40 kW tower will be built up by SOLEIL for THOMX (Beginning 2014). Export of Technology from SOLEIL to SESAME on halt (May 2013) Export approval received (Aug.2013) Intended:Built up of one 80 kW tower (Demonstrator) by SOLEIL, sold to SESAME. Participation of SESAME. Licensing of 500 MHz technology from SOLEIL to SIGAM-PHI-Electronics? Purchasing of further 3 towers from SIGMA-PHI-Electronics? Cost?

  23. 500 MHz 80 kW Solid-State-Amplifier X 16 X 10 4 x 0.65 kW 10 kW 80 kW Syn.Rad. Losses: (200 mA 600 kV) / 4 = 30 kW Cavity Losses: (500 kV)2 / (6 MΩ)= 40 kW 4 Cavities: 280 kW

  24. Summery Done in 2013: Cooling plant/Air-conditioning: Installation done. Microtron: Commissioned. Booster: Installation done. Radiation Monitoring System: Installation done. SR Magnet System (CESSAMag): Design, Tendering, Contracting done. SR Vacuum Chamber: Design, Tendering, (Contracting) done. Girder System: Design, (Tendering) done. SR-RF-Cavities: Tendering done. Foreseen in 2014: Booster: Commissioning SR Magnets: Testing of Prototype, Start Production SR Vacuum Chamber: Testing of Prototype, Start Production SR Girder: Testing of Prototype, Start Production RF amplifier: Tendering. SR Pumps: Tendering. SR valves, bellows: Tendering. Thank you for your attention!

  25. Power and Cooling Electric Power Cooling Capacity Cooling Tower Compressor 400 kW 2x 1 115 kW Chilling water tank Pumps 100 kW Heat Exchanger 2 x 870 kW Pumps 120 kW Air-Conditioning 300 kW 600 kW De Ionized Water Circuits: SR Magnet 500 kW RF Amplifier 250 kW RF-Cavities 200 mA 125 kW SR Absorber (200 mA) 125 kW Booster (PS) 100 kW Sum 2 000 kW
